Trotec WA 4i – water separator
The WA 4i water separator for the modular MultiQube system for insulation drying comes with an integrated micro filter system that features a magnetic lock filter compartment for easy micro filter cartridge placement. With a triple-fold filter element, it's an all-in-one solution with pre-HEPA filter stages in a single device, ensuring optimal flow and setup efficiency. Perfect for insulation drying up to 40m² surfaces, the compact WA 4i offers practical features like TTKwic quick couplings, cable holder, and residual water drainage. Weighing only six kilograms, it perfectly complements Trotec MultiQube modules like the VE 4, while remaining compatible with earlier models.
View all of our water damage dryers or browse our full range of commercial drying dehumidifiers that are suitable for multiple applications and environments.

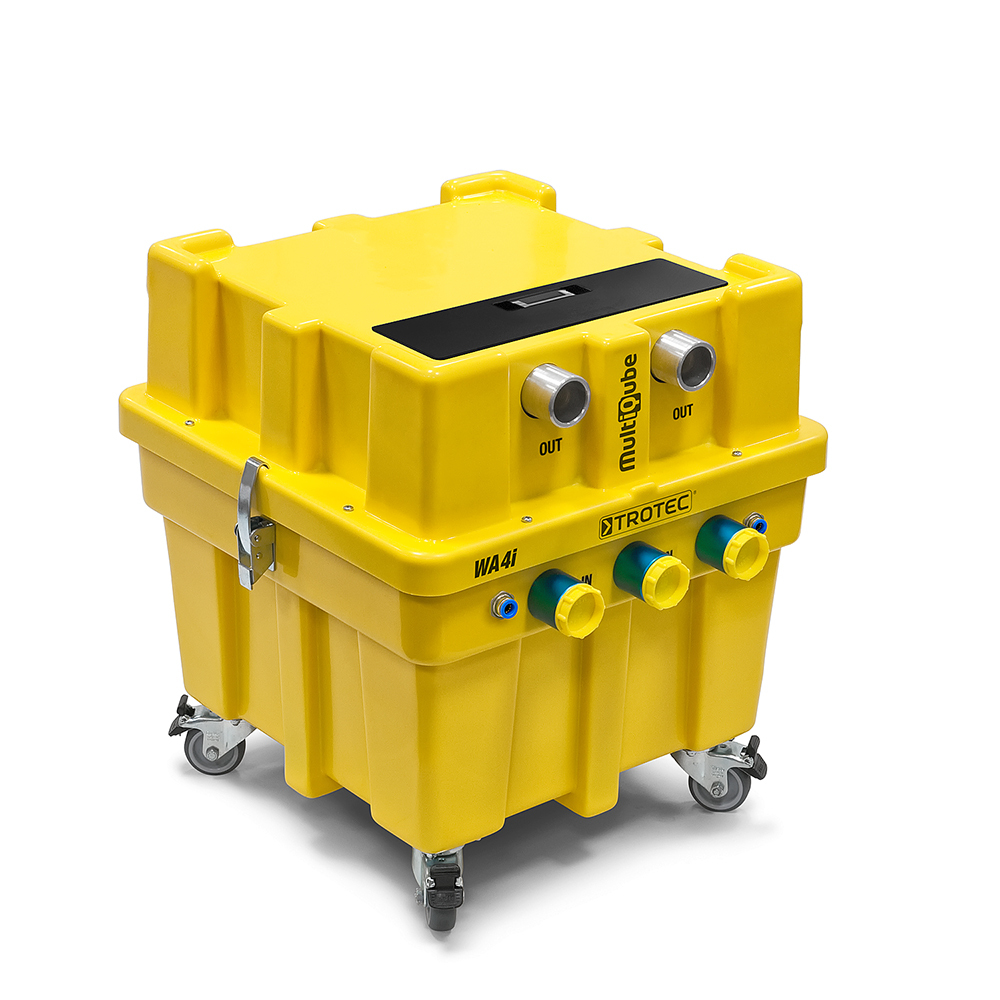

Trotec WA 4i water separator
|
Trotec WA 4i water separator
|
Trotec WA 4i dimensions
|

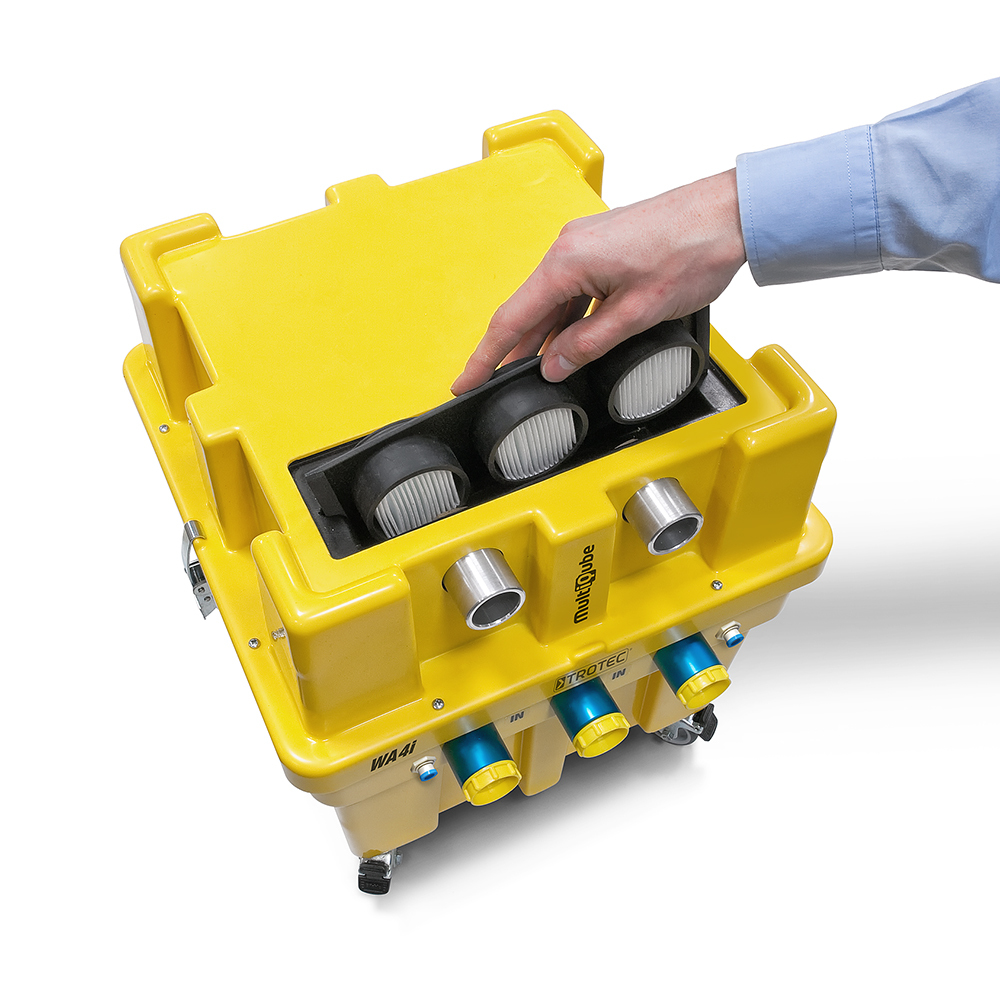

Trotec WA 4i filter
|

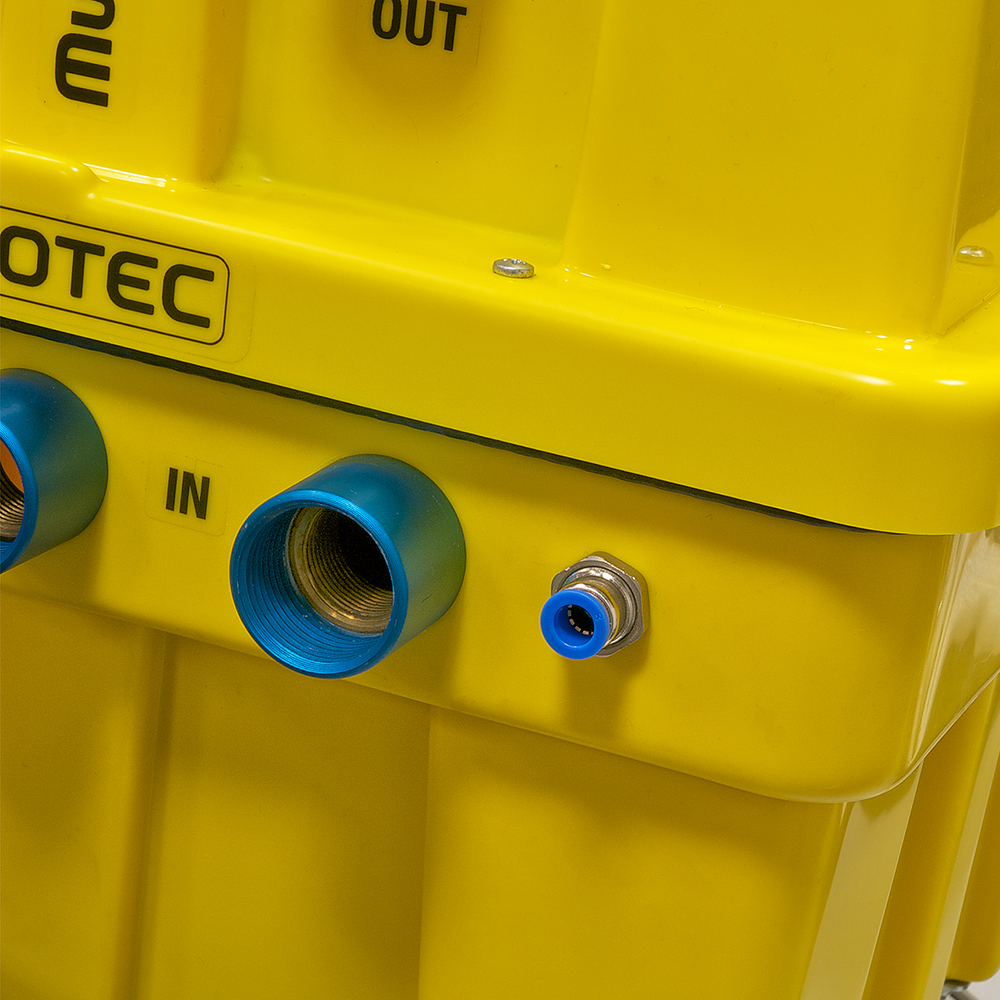

Trotec WA 4i connections
|

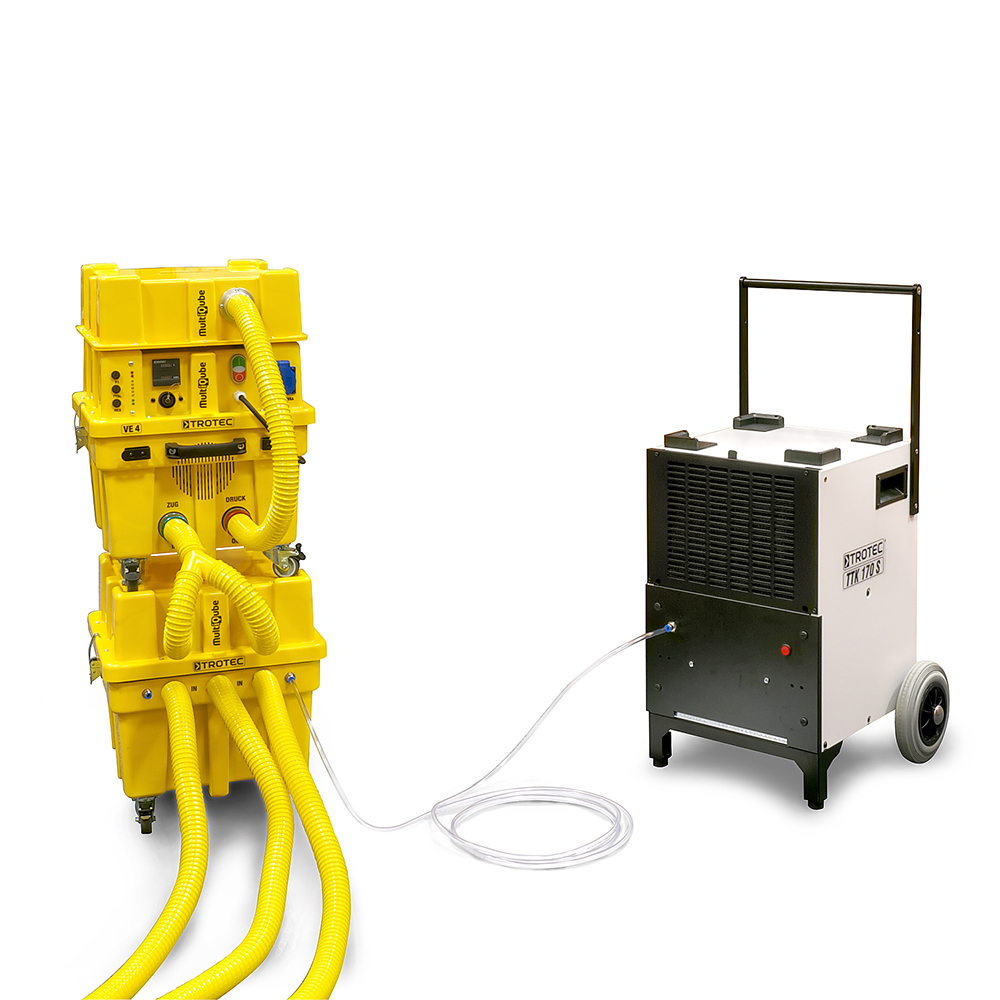

Trotec WA 4i application
|
Key features
- Maintenance-friendly and high-performing filter technology
- Innovative micro filter system with all pre-HEPA filter stages in one device
- Two integrated quick couplings for central water discharge for up to two connected dehumidifiers
- Stainless steel demister for water separation and fine filtration
- Residual water drainage function
- Active overflow protection due to automatic compressor switch-on/-off
- Light, robust and low-maintenance design
- Wheels with parking brakes
- Quick release fasteners for easy maintenance
- Emergency stop switch
- Automatic switch-off overflow sensor
- Stackable for compact storage
- MID-compliant dual counter for operating and kW hours
Product specifications
| Specifications | Units | WA 4i MultiQube |
|---|---|---|
| Volume | l | 17 |
| Fine filter | class | F8 |
| Power supply | V/Hz | 230/1ph/50 |
| Power input | kW | 0.32 |
| Fuse | A | 16 |
| Hose connector | Ømm | 3 x 38 |
| Product size (l x w x h) | mm | 420 x 440 x 395 |
| Weight | kg | 11.3 |
Suitable for
- Water damage restoration
