Trotec VSP-VS System – optical inspection

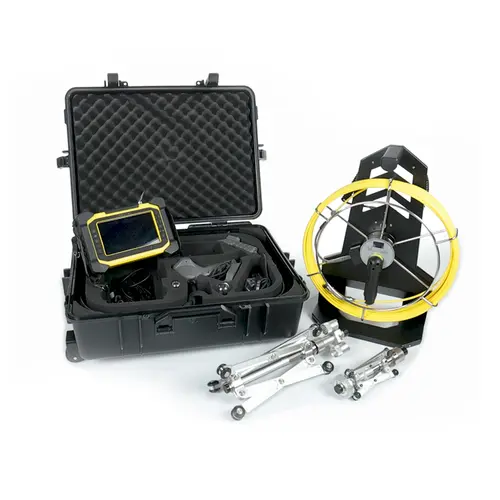

VSP inspection system
Trotec top badge

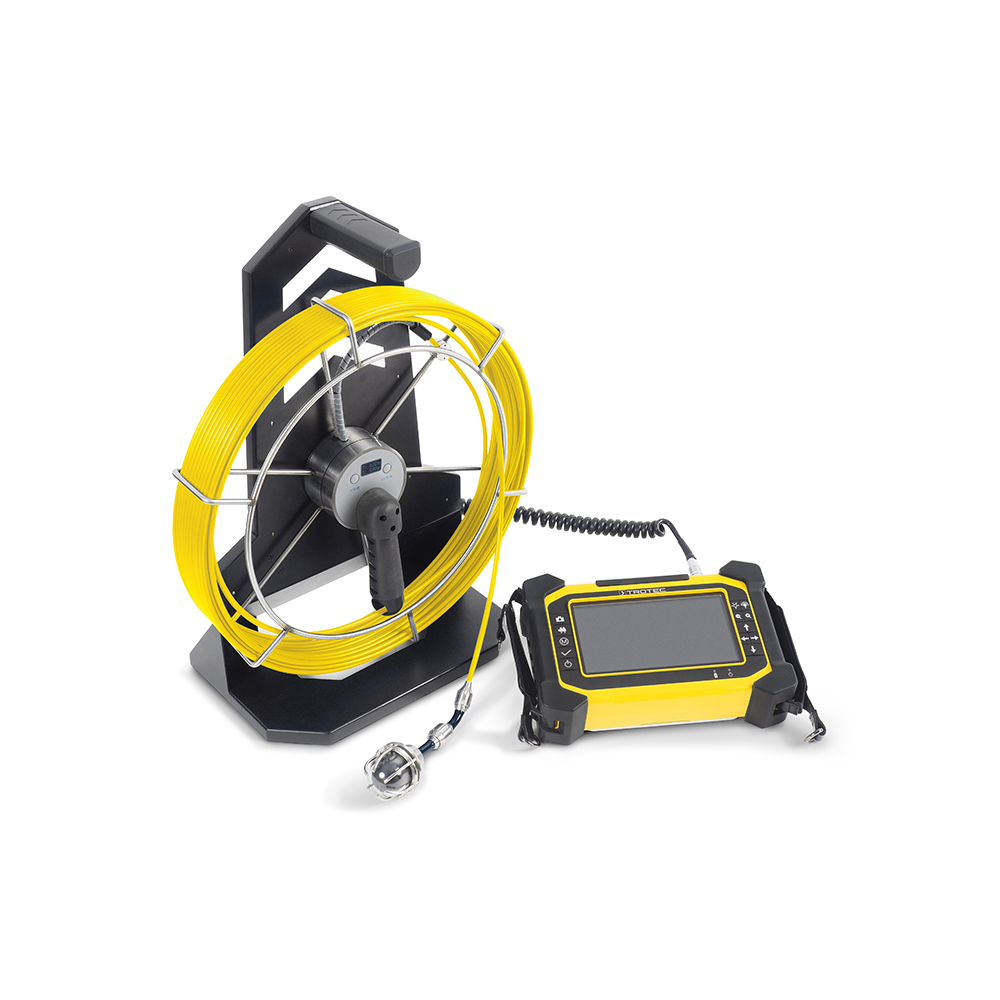

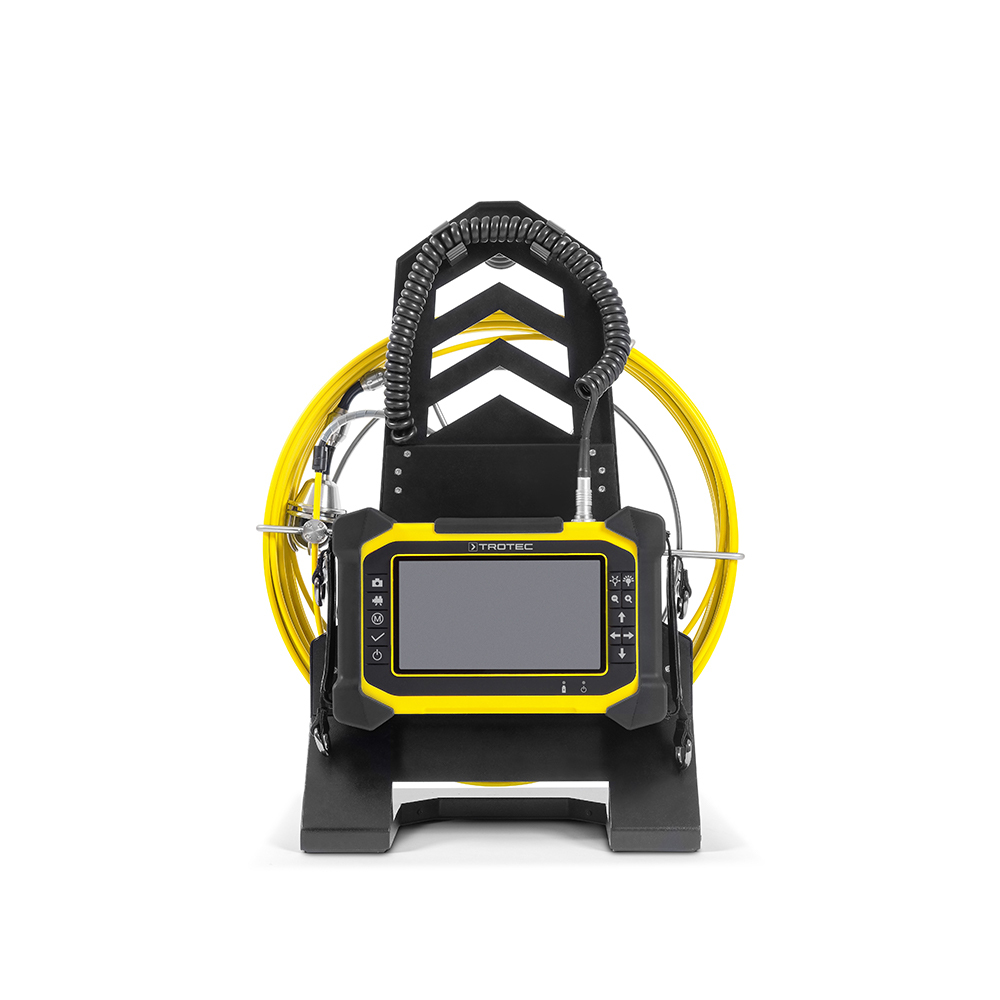

Trotec VSP inspection sytsem
Trotec VSP inspection sytsem
Trotec VSP inspection sytsem
Trotec VSP inspection sytsem

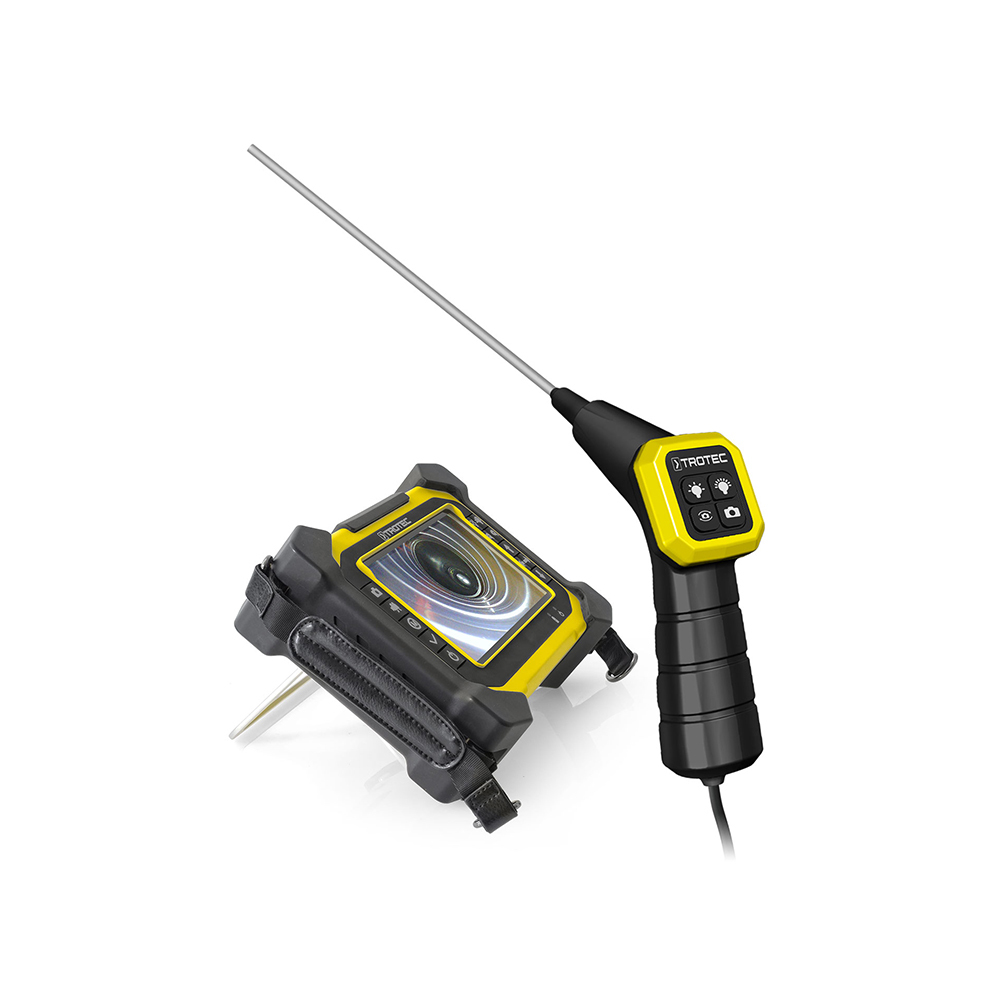

Trotec VSP inspection sytsem VSP VS
Trotec VSP inspection sytsem VSP VS

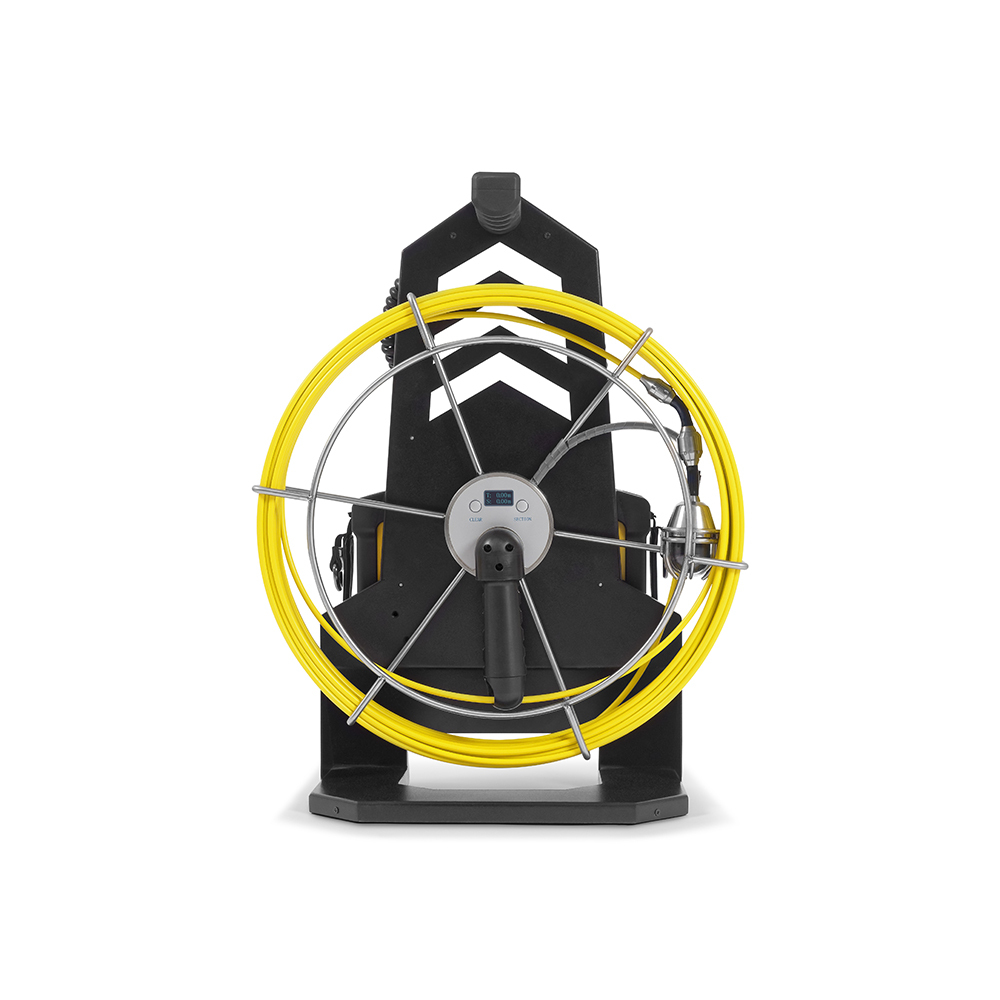

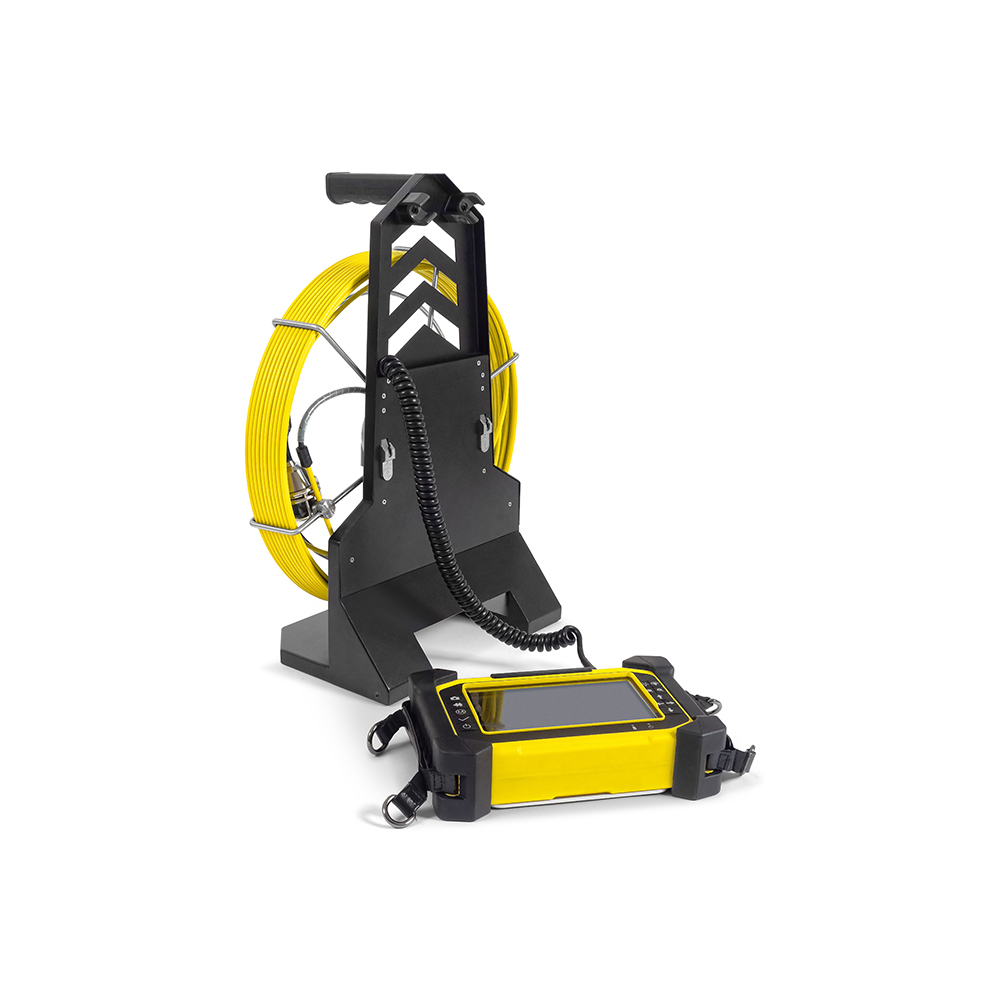

Trotec VSP inspection sytsem back
Trotec VSP inspection sytsem back

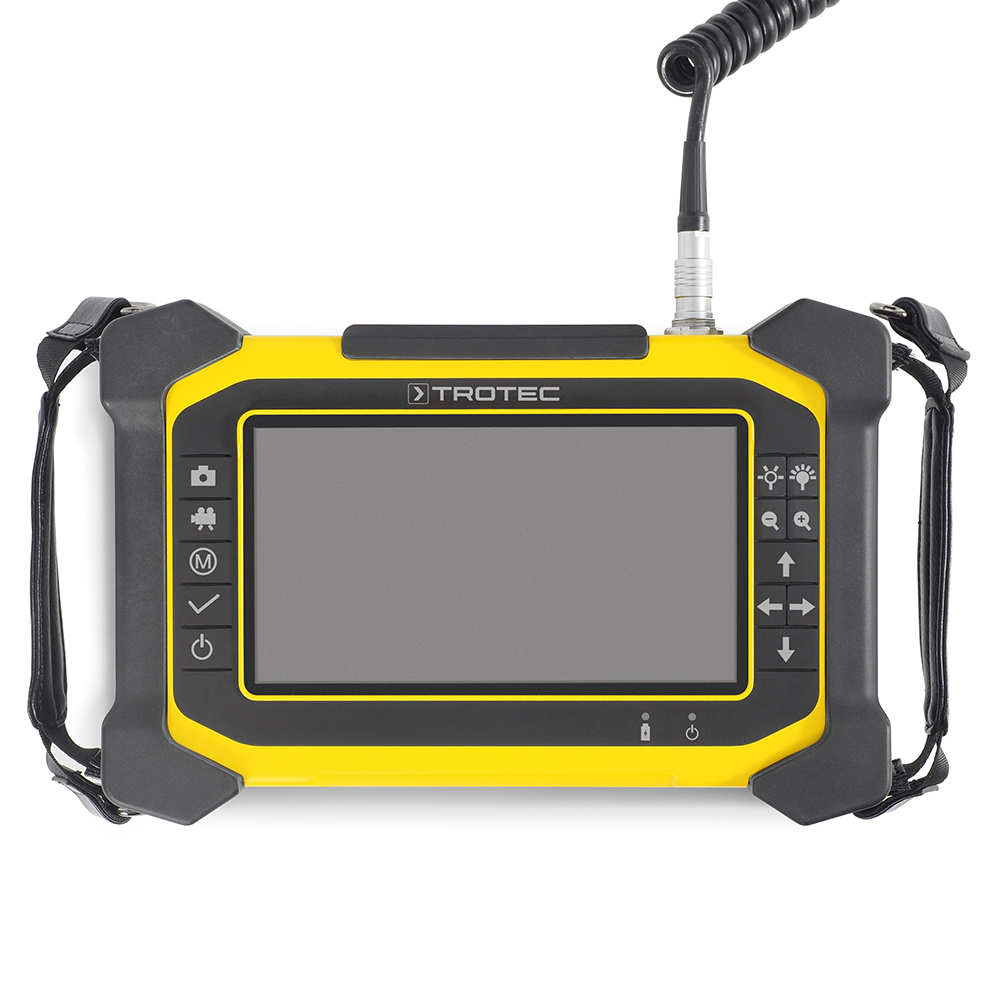

Trotec VSP inspection sytsem VSP control front
Trotec VSP inspection sytsem VSP control front

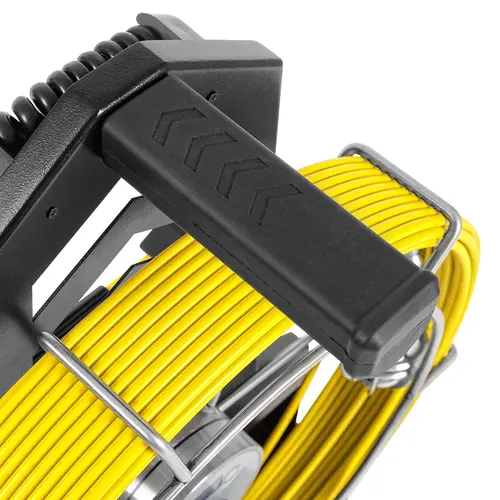

Trotec VSP inspection sytsem detail
Trotec VSP inspection sytsem detail

The Trotec VSP-VS system is a versatile optical inspection system designed to provide high-quality visual inspection of a wide range of materials and surfaces. It features a high-resolution camera and advanced optics for clear and detailed images. With a compact design, the VSP-VS system is easy to use and can be quickly set up for a variety of applications. The system is ideal for quality control, research, and development, and is a reliable and cost-effective solution for anyone in need of optical inspection.

Interested?

Key features

  • Universal solution for many VT applications (virtual testing)
  • Modular system – can be flexibly combined and extended
  • Colour display and lithium polymer battery system
  • Light intense, bendable camera, rotatable and water proof accordance IP67
  • Can be expanded with various video endoscopes and borescopes

Product specifications

Design

Pistol grip with keypad and joystick control


Type of protection (system)

IP64


Functions

Probe head bending, photograph and video production, lighting brightness


Interfaces

Connection cable with multi-connector for VSP-Control, length approx. 150cm


Probe Diameter

4.5
mm


Probe Length

1.5
m


Backlight

6 LEDs


DOF

8 - 80
mm


Resolution

300,000
pixels


Field of vision

>90
°


Bending

Up/ down/left/right


Design

Tungsten wire mesh with titanium alloy


Type of protection (probe)

IP67


Product size (l x w x h) without probe

155 x 110 x 190
mm


Weight

620
g
