Trotec VE 4 S MultiQube – side channel compressor
Side channel compressor
The VE 4 S MultiQube is a compact and light-weight side channel compressor that can be used both for under- and overpressure operation and is suited for insulation drying projects of surfaces up to 40m² (underpressure) or 50m² (overpressure). The unit is delivered with integrated operating hours counter, ammeter, cable holder, transport wheels and more and can be stacked for ease of handling and to save space.
View all of our water damage drying units or browse our full range of commercial dryers that are suitable for multiple applications and environments.

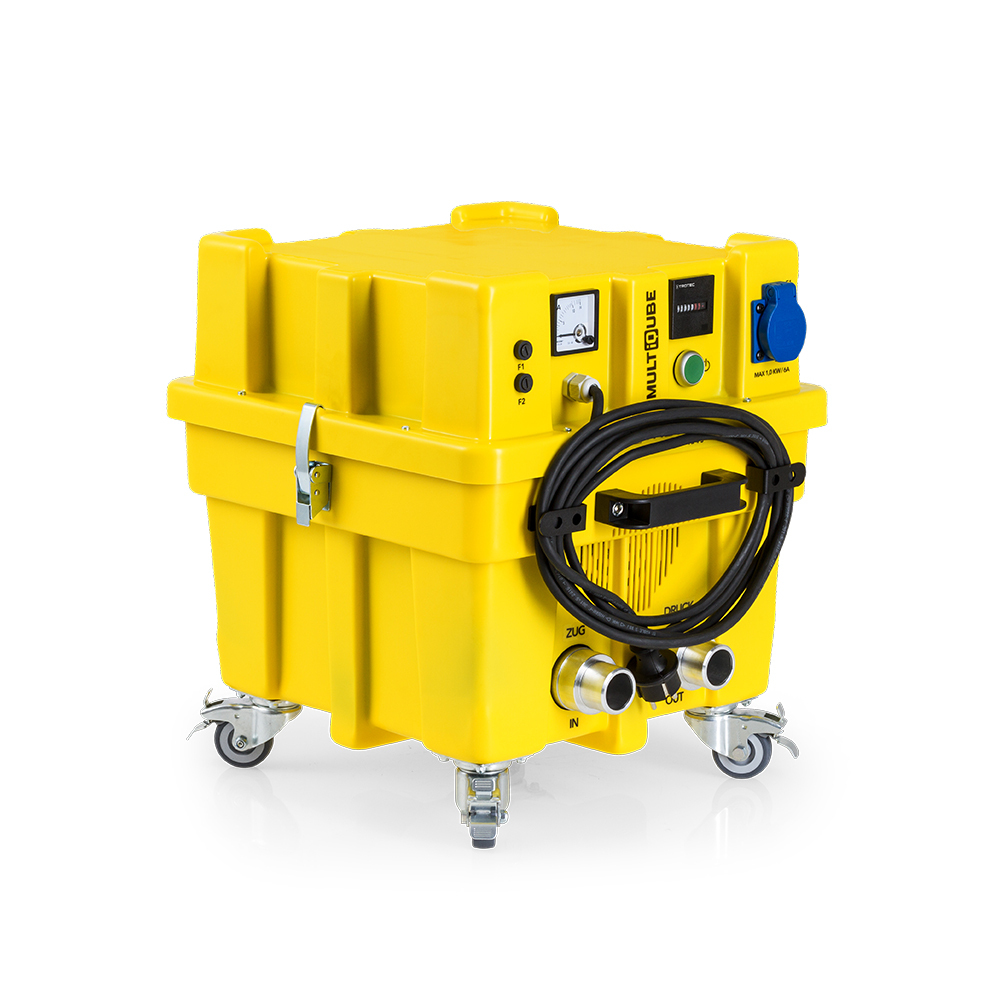

Trotec VE 4 S MultiQube insulation dryer
|

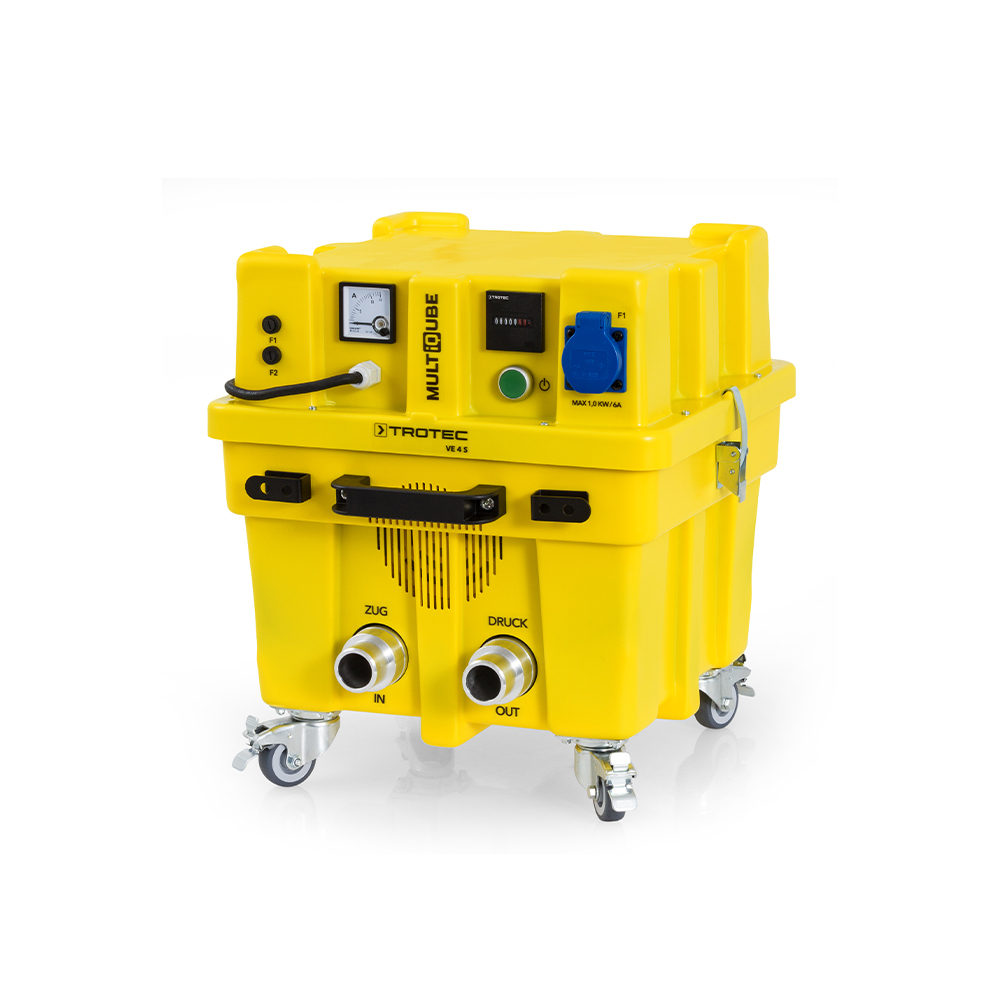

Trotec VE 4 S MultiQube
|

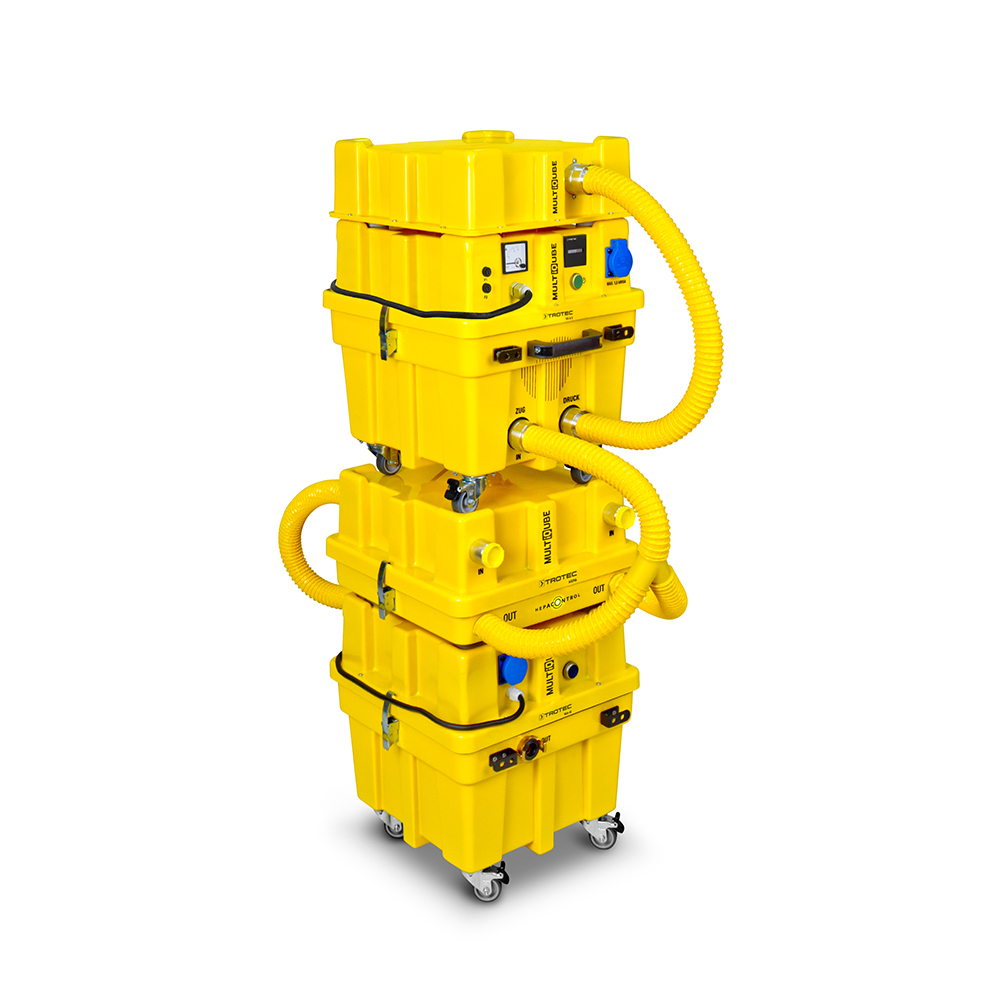

Trotec VE 4 S MultiQube Stackable
|

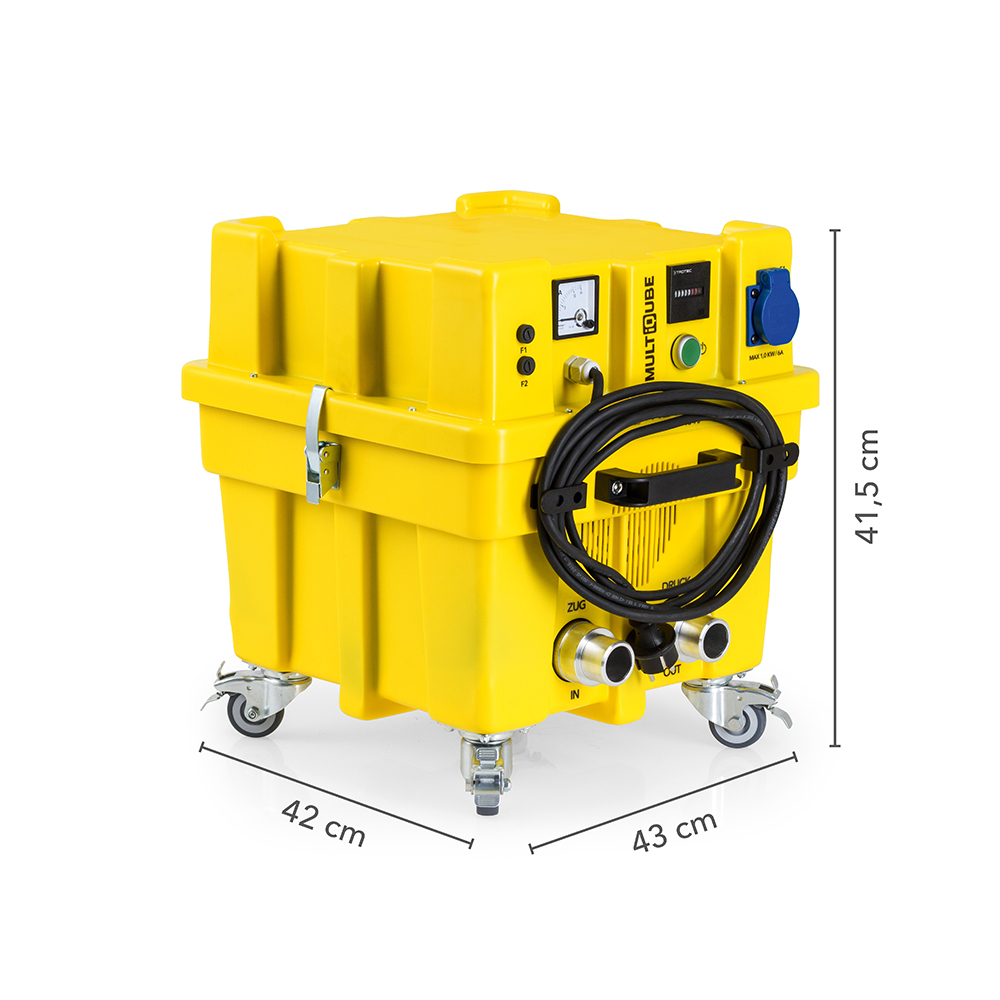

Trotec VE 4 S MultiQube Dimensions
|

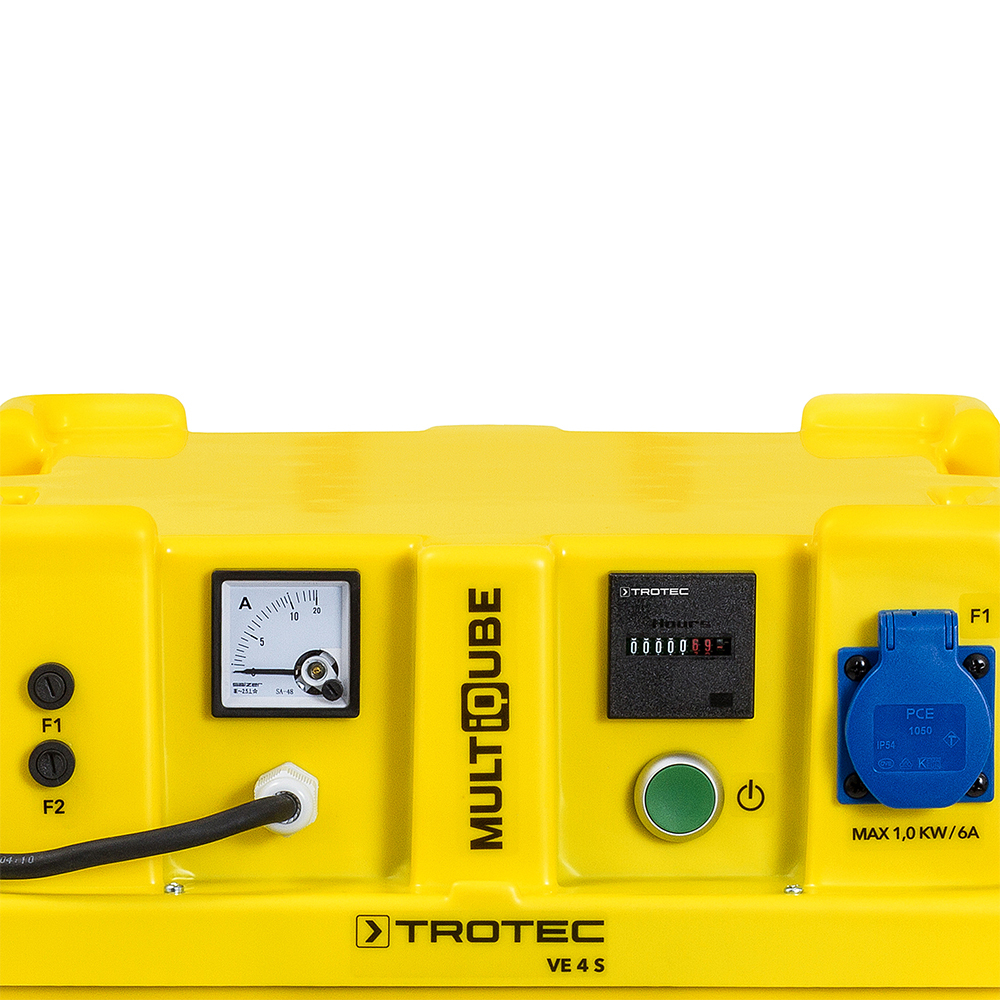

Trotec VE 4 S MultiQube Control Panel
|

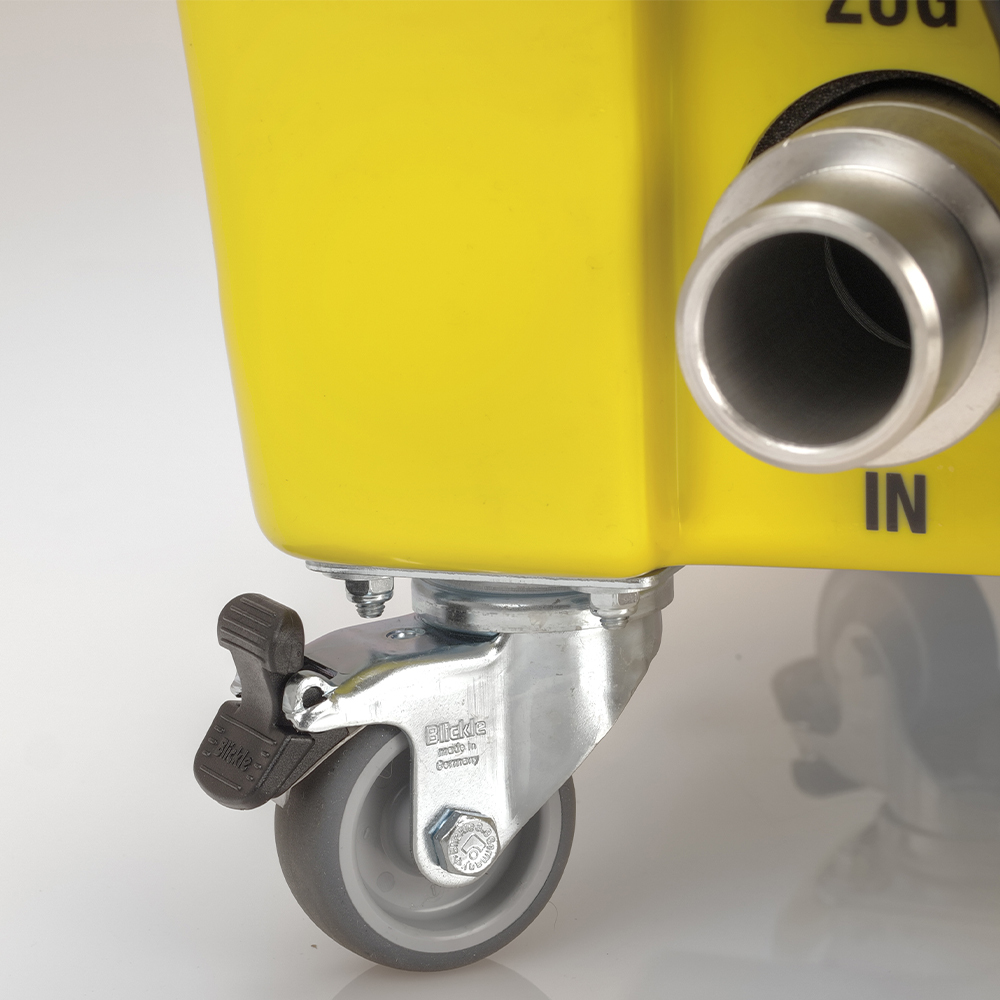

Trotec VE 4 S MultiQube wheels
|

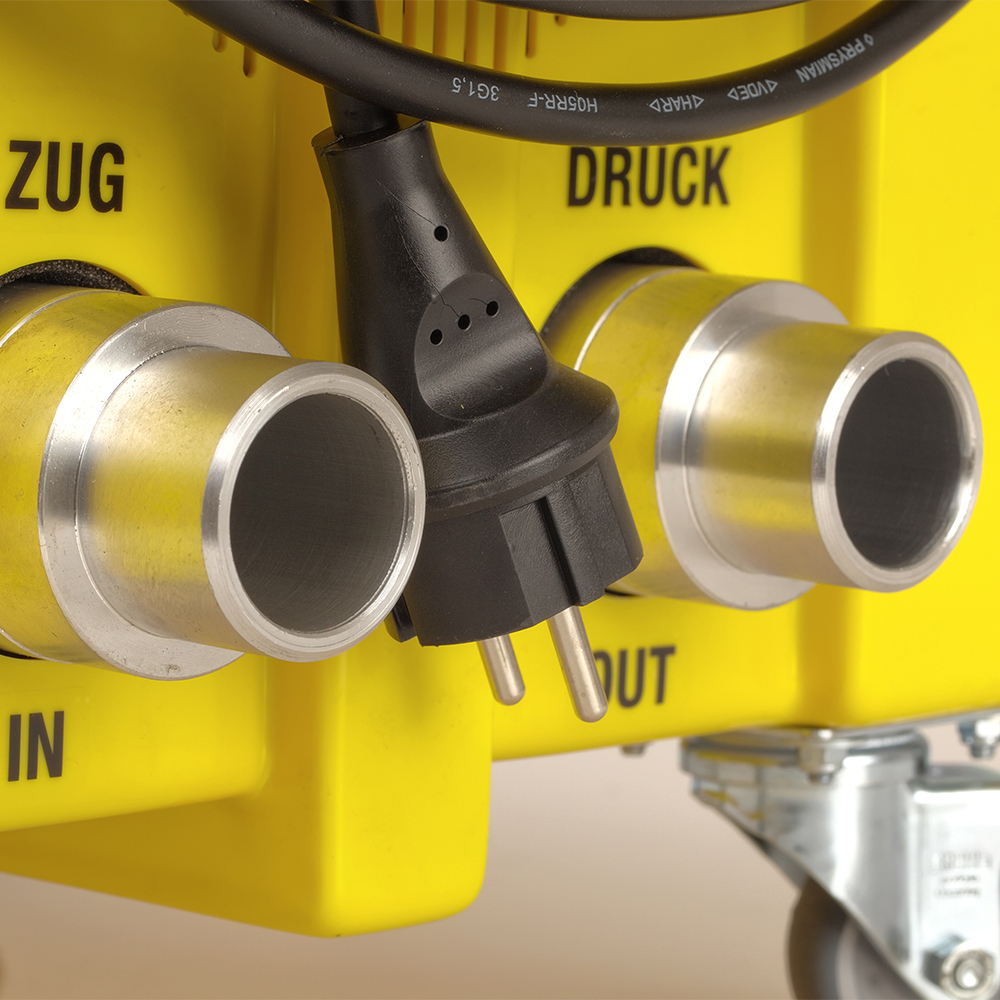

Trotec VE 4 S MultiQube connections
|

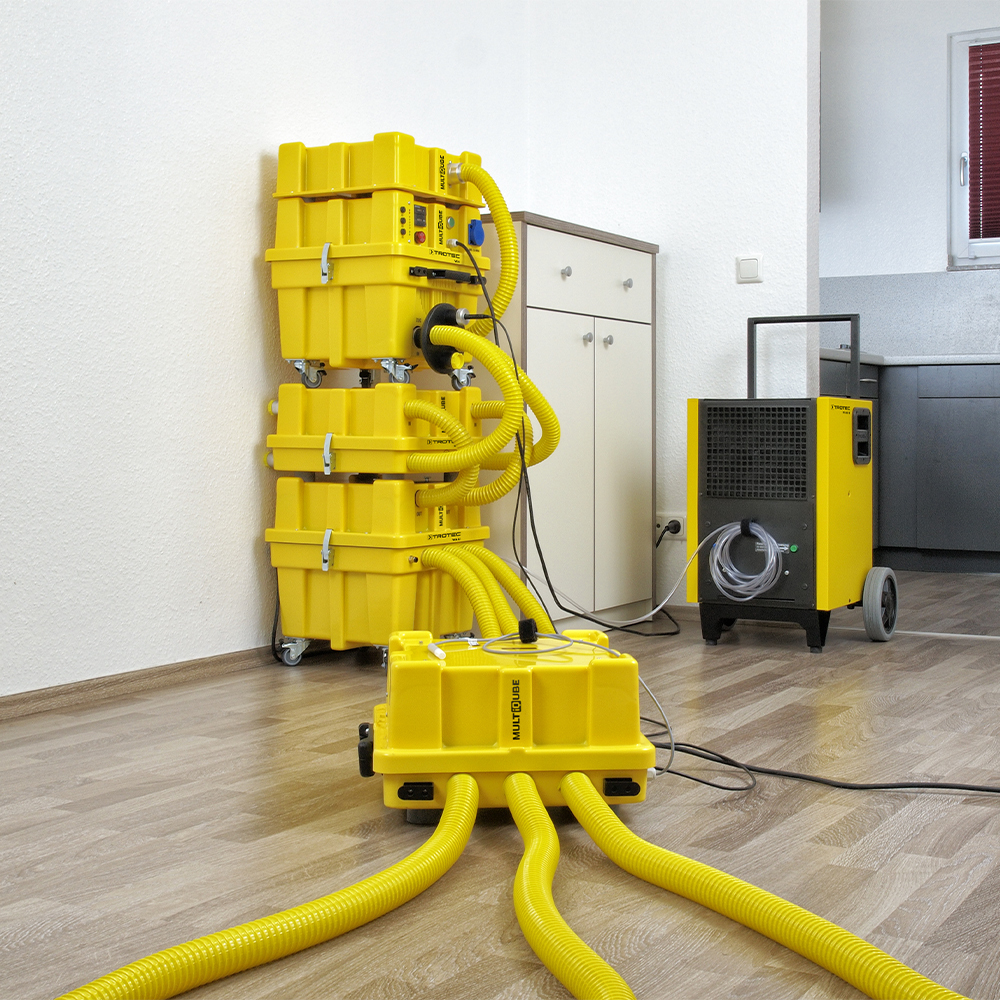

Trotec VE 4 S MultiQube Application
|
Key features
- Suitable for rooms of approx. 50m² (positive pressure drying) and 40m² (negative pressure drying)
- For positive and negative pressure drying
- Built-in ammetre and operating hours counter
- Service socket
- Designed for use with other MultiQube modules
- Quick release fasteners for easy maintenance
- Integrated cable holder and rubber wheels for ease of handling
- Stackable to save space
Product specifications
| Specifications | Units | VE 4 S MultiQube |
|---|---|---|
| Max. excess pressure | mbar | 200 |
| Max. negative pressure | mbar | 175 |
| Air flow rate (freely blowing) | m³/h | 150 |
| Power supply | V/Hz | 230/1ph/50 |
| Power input | kW | 1.1 |
| Nominal current consumption | A | 7.5 |
| Hose connector | Ømm | 38 |
| Product size (l x w x h) | mm | 420 x 430 x 415 |
| Weight | kg | 25.5 |
Suitable for
- Water damage restoration
