Trotec TTW 100000 – professional axial fan

Uber-wind machines

The TTW 100000 wind machine, a top-tier German-manufactured device, features a sturdy transport frame, premium mechanical and electronic components, rendering it virtually indestructible. Ideal for machine rental companies, industries, and entertainment, its standard frequency converter ensures precise and continuous regulation of the immense output. Protected with IP55, it offers flexibility for both indoor and outdoor use. Additionally, the wind machine comes with an adjustable inclination device for targeted airflow, suitable even for high wall or ceiling areas. Boasting professional quality and variable air volume, this powerhouse is available as an explosion-proof version, making it a practical choice for diverse applications. Technical specifications include an airflow of up to 109,000m³/h, blower speeds, and a weight of 580kg.

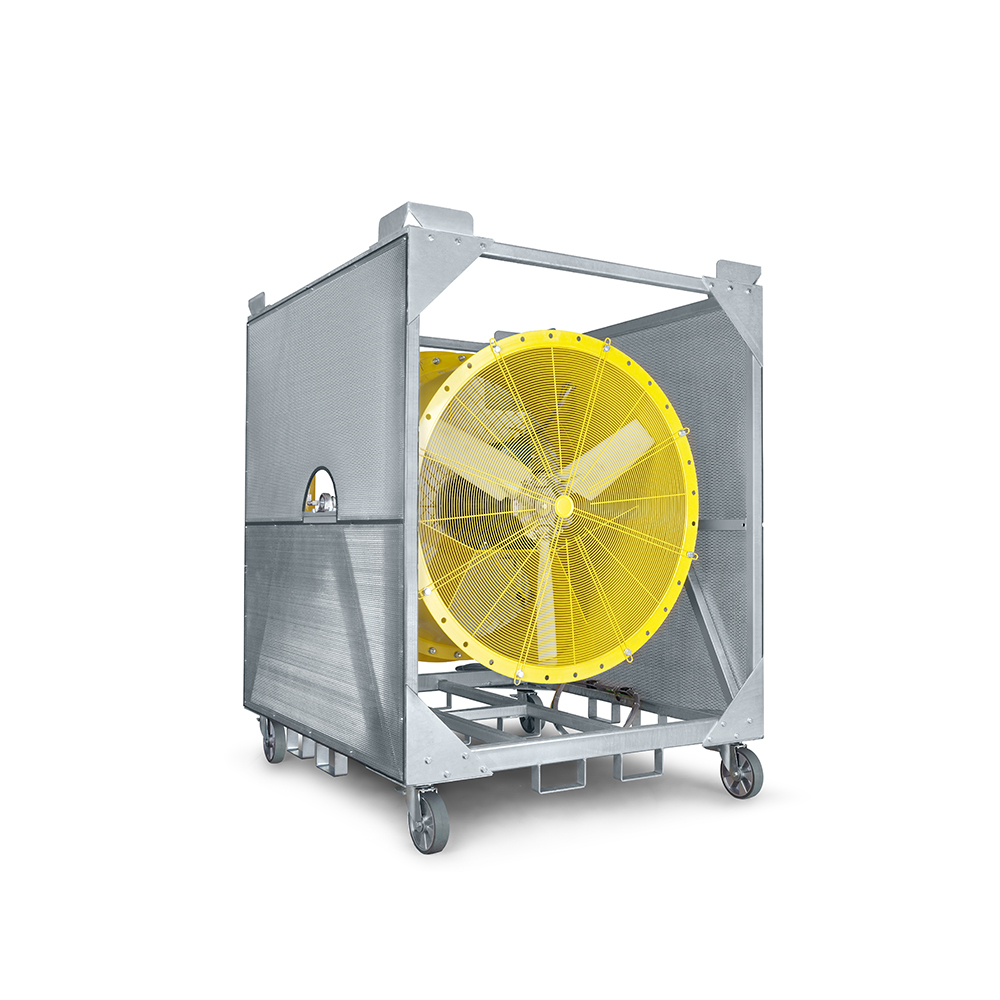

Trotec TTW 100000 fan
Trotec TTW 100000 fan

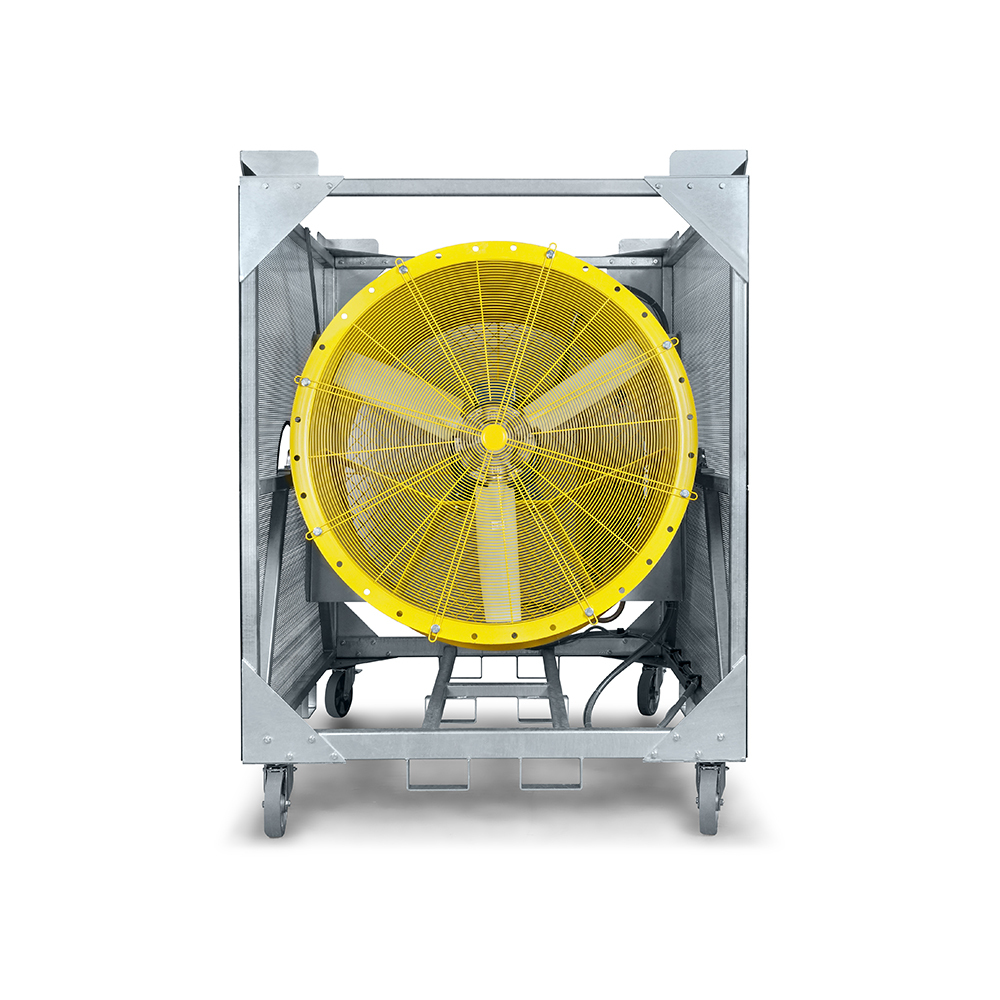

Trotec TTW 100000 front
Trotec TTW 100000 front

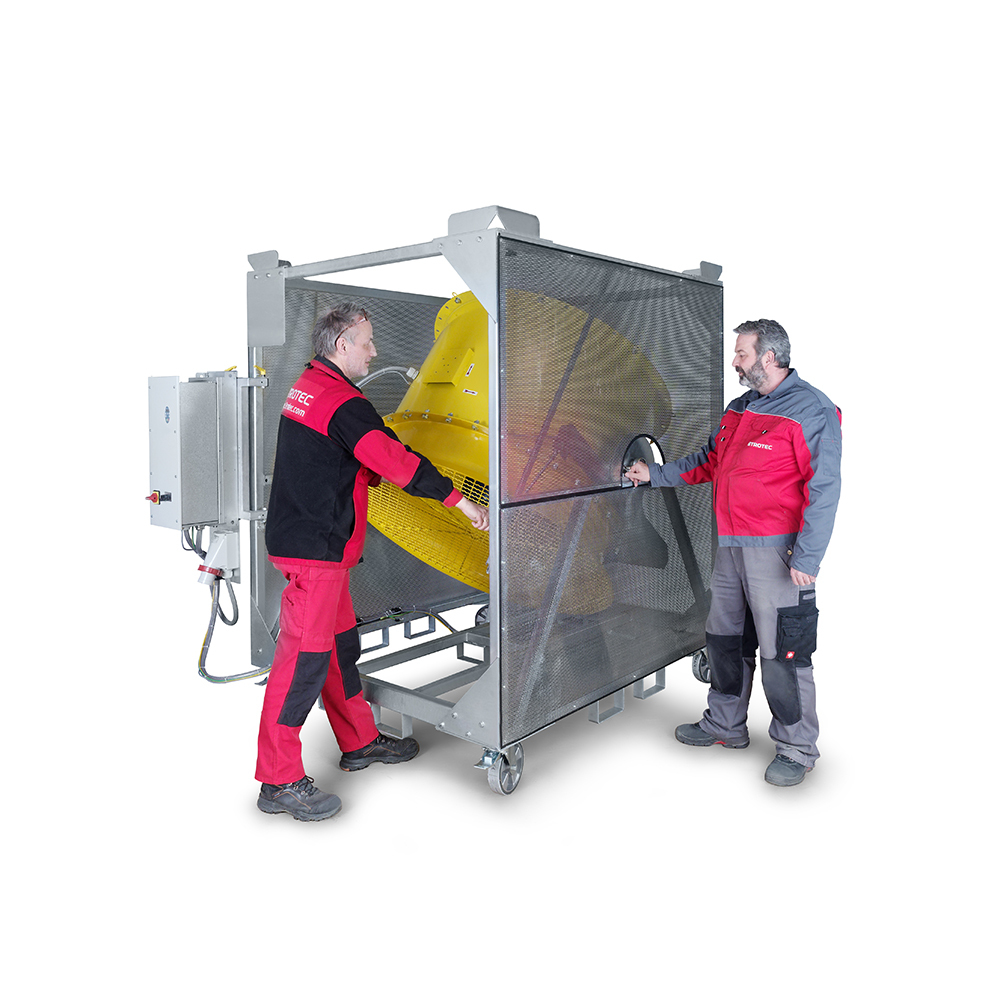

Trotec TTW 100000 adjustment
Trotec TTW 100000 adjustment

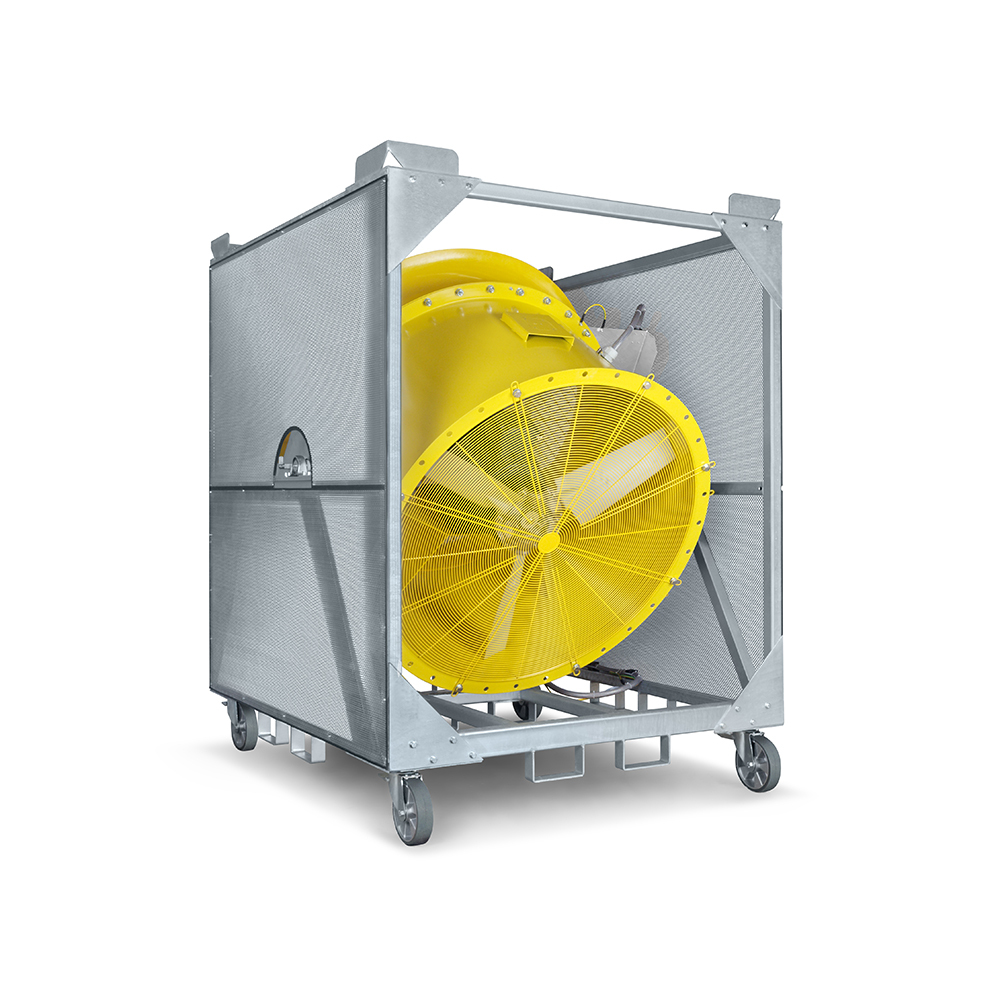

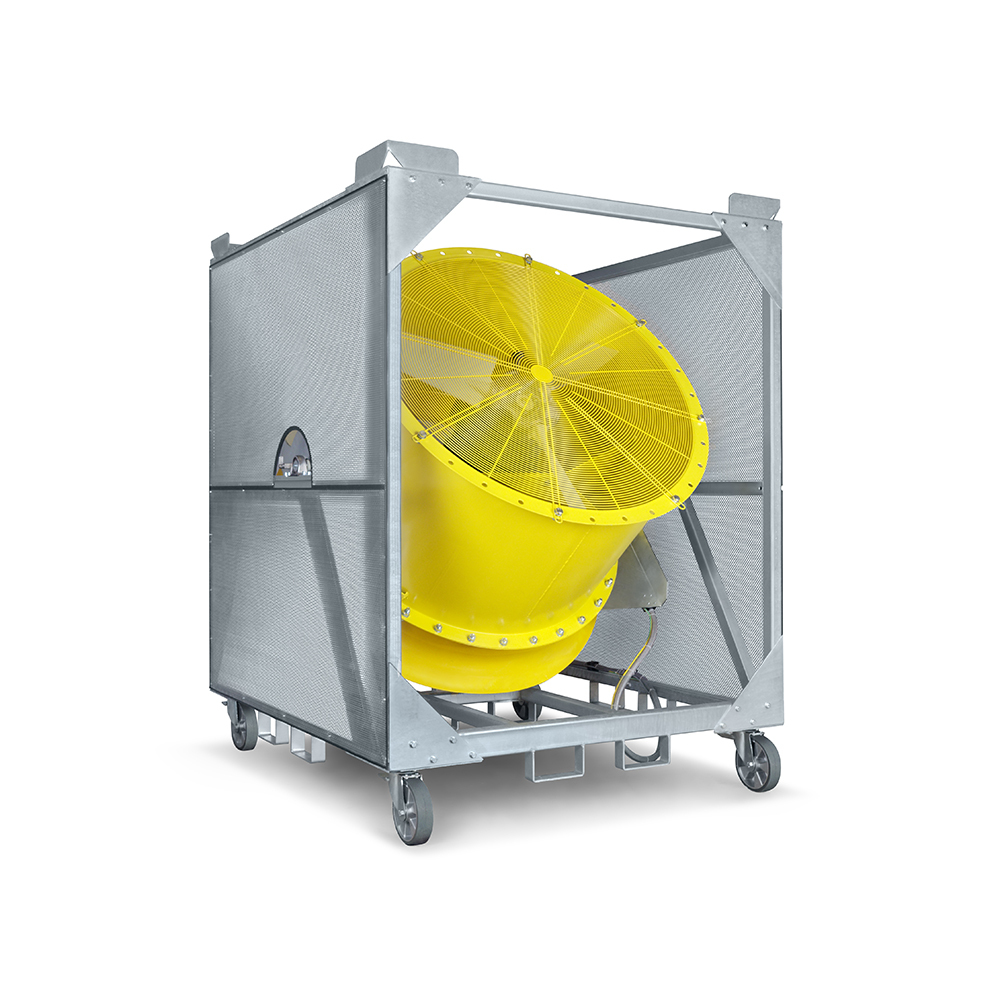

Trotec TTW 100000 angled
Trotec TTW 100000 angled
Trotec TTW 100000 angled
Trotec TTW 100000 angled

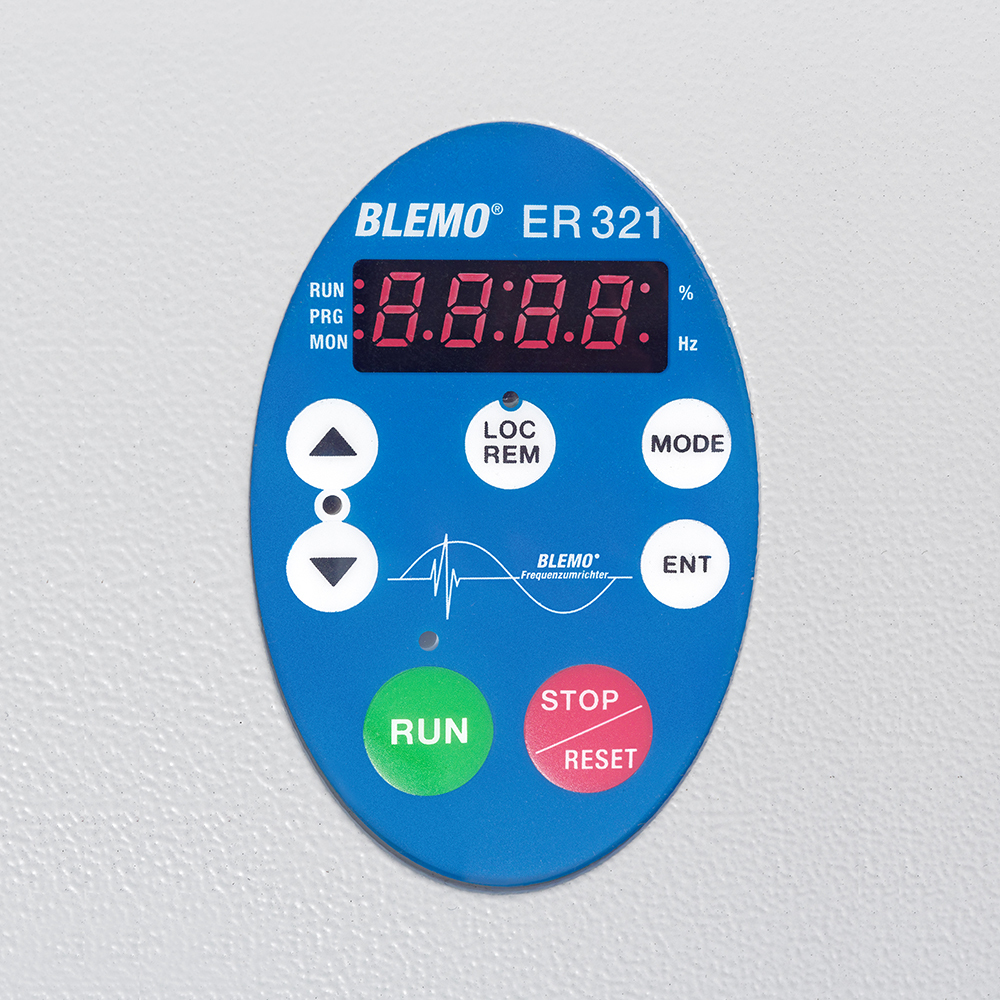

Trotec TTW 100000 operation panel
Trotec TTW 100000 operation panel

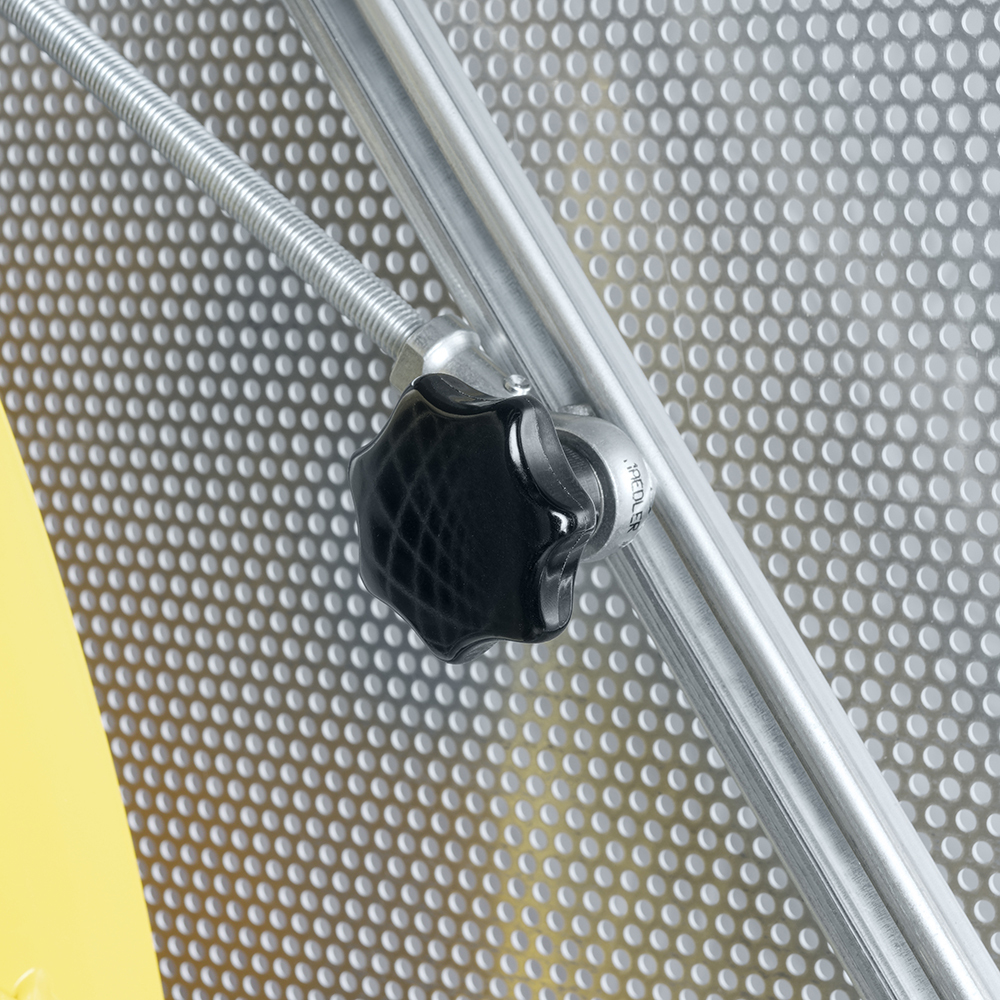

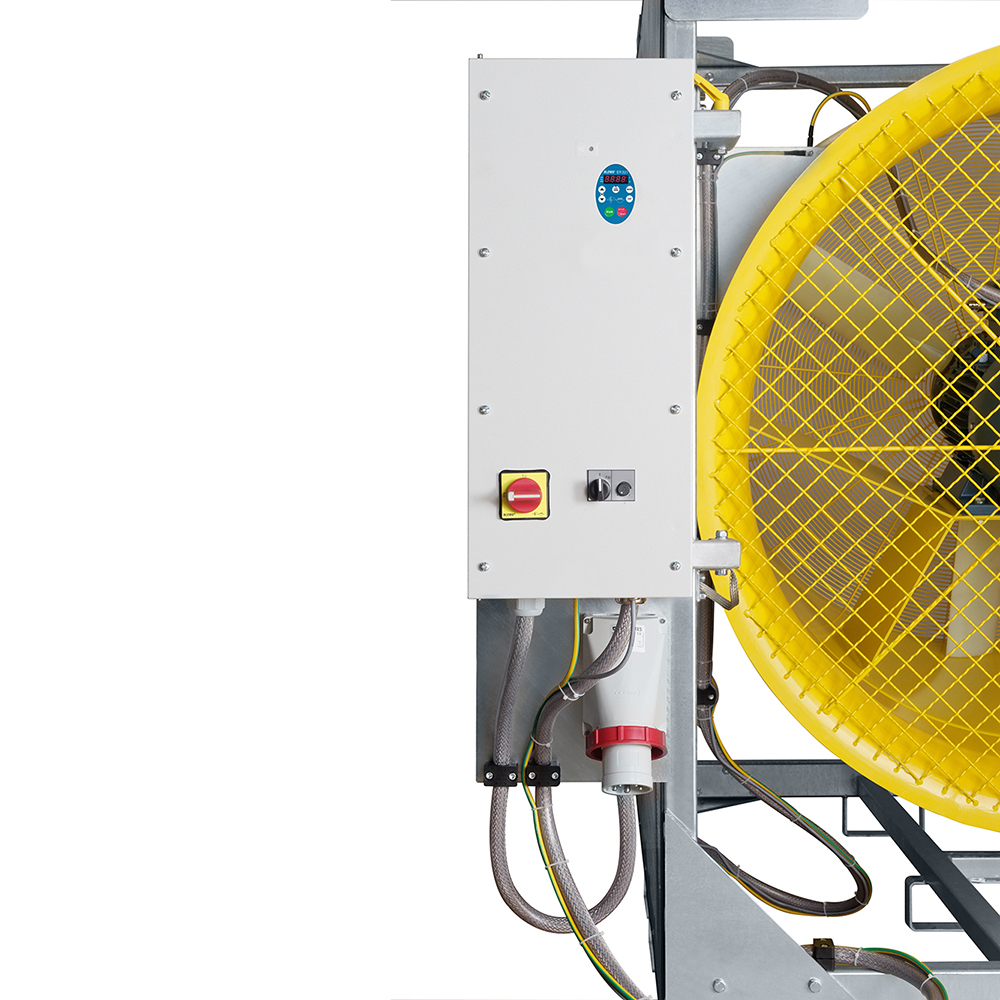

Trotec TTW 100000 detail
Trotec TTW 100000 detail
Trotec TTW 100000 detail
Trotec TTW 100000 detail

Key features

  • Extremely robust construction, ideal for rental use
  • Continuously adjustable inclination angle of air flow
  • Infinitely variable air volume
  • IP55-rated ('splashproof')
  • Lockable cabinet for secure operation and storage
  • Also available as explosion-proof version

Product specifications

SpecificationsUnitsTTW 100000
Air volume freely blowing max.
m³/h
109,000
Air current
blowing out
Air discharge speed
km/h
24.6/88.56
Discharge distance outside/inside
m
120/400
Fan stages
infinitely variable
Air pressure max.
Pa
600
Max. transport medium temperature
°C
40
Power supply
V/Hz
400/50
Power input
kW
22
Necessary fuse
A
63
Protection class
IP55
Explosion protection
-
Sound level @3m
dB(A)
88
Product size (l x w x h)
mm
1830 x 1620 x 2180
Weight
kg
790

Suitable for

  • Events and festivals
  • Rental companies
