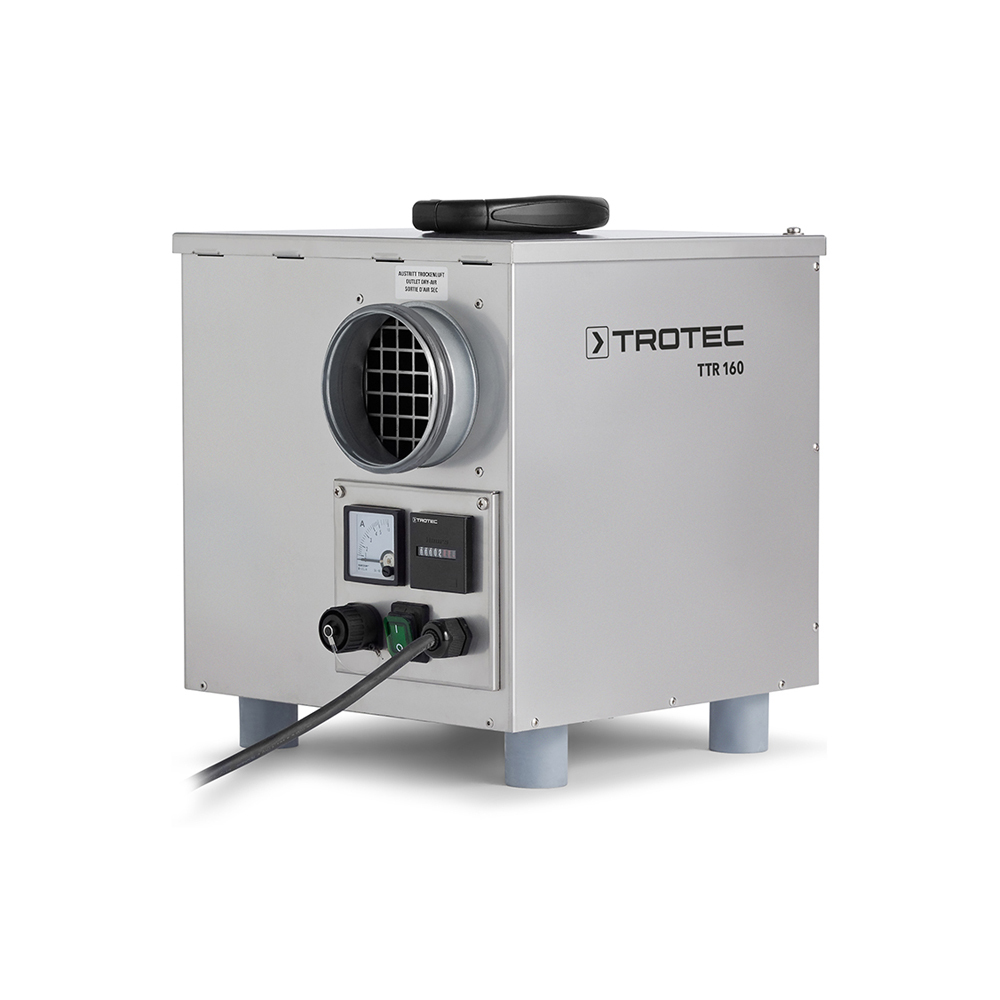

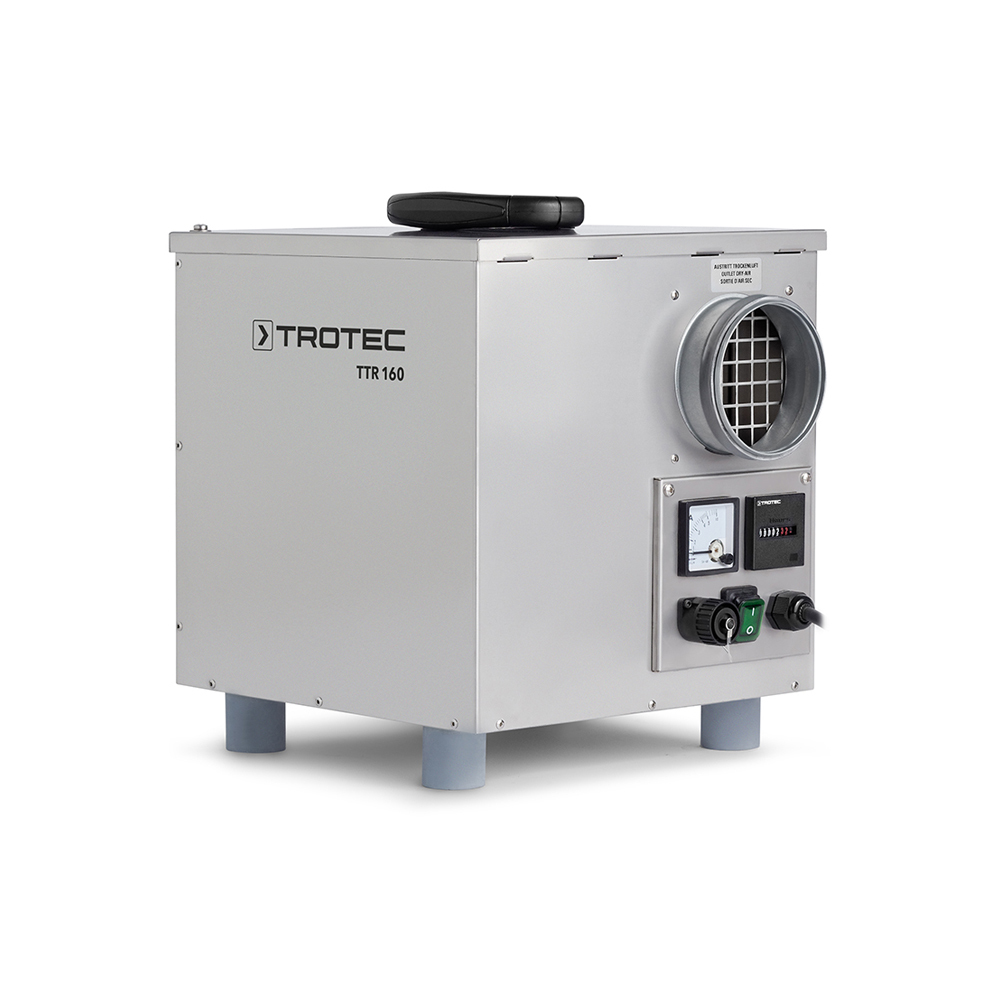

Trotec TTR 160 – desiccant dehumidifier
Industrial desiccant dehumidifier
The TTR 160 is a very dependable desiccant dehumidifier that is crafted in corrosion-resistant stainless steel housing. The German-made device ensures effective humidity control in production areas, storage spaces, and humidity-sensitive environments. Not only does it deliver high dehumidification performance even at low dew points, but its durable construction also boasts remarkable corrosion resistance and hygiene properties. The TTR 160 suits environments with stringent hygienic standards and challenging atmospheres, offering features like a washable silica gel sorption rotor, heat recovery, PTC heating, and more.
Contact our team to discuss which desiccant dehumidifier or type of commercial dehumidifier is most suitable for your intended purpose.
Interested?
Key features
-
Corrosion-resistant stainless steel housing
-
Washable silica gel sorption rotor
-
Integrated heat recovery
-
Self-regulating PTC heating with no risk of overheating
-

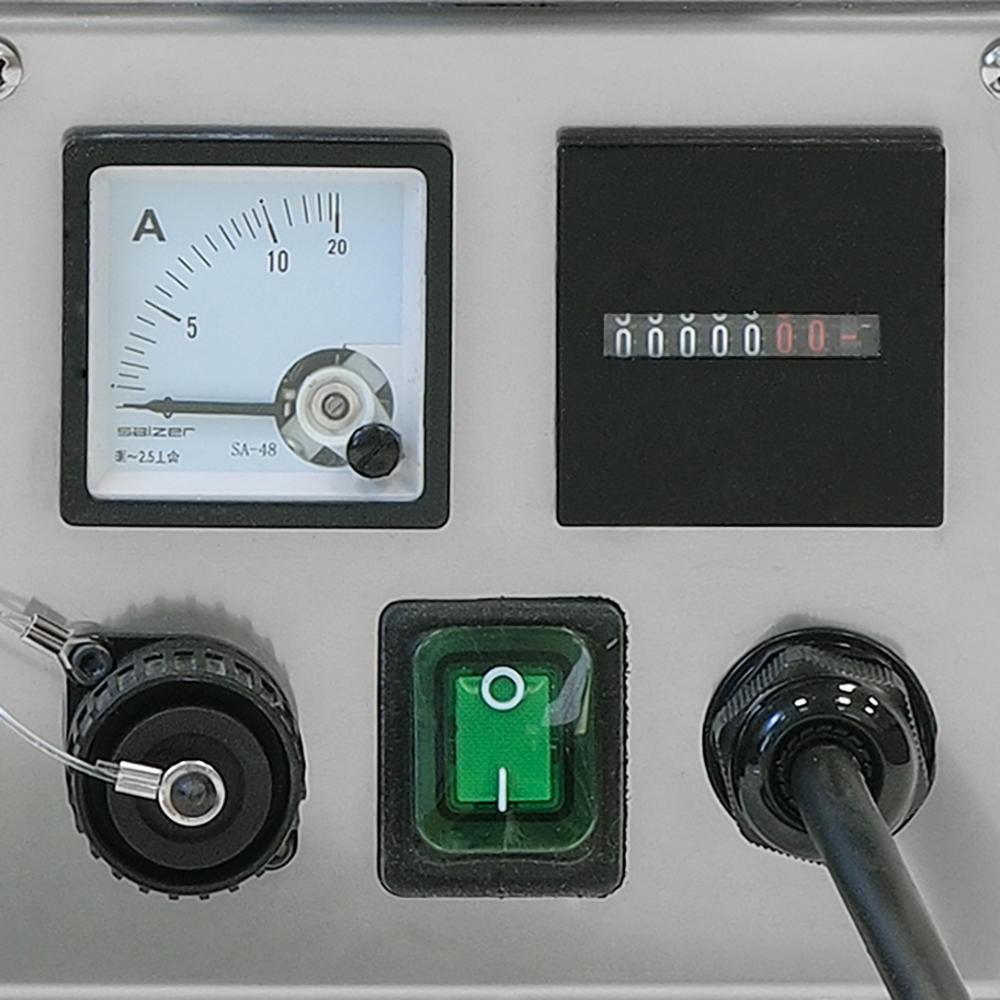

Integrated ampere meter and operating hours counter
-
Optional MID-compliant kWh counter
-
Stackable design saves space
Product specifications
Capacity (20°C/60% RH)
0.5
kg/h
Dry air range
60 - 160
m³/h
Dry air air volume nominal
155
m³/h
Available pressure
50
Pa
Regeneration air flow
35
m³/h
Available pressure
25
Pa
Operating temperature range
-20 - +35
°C
Operating humidity range
0 - 100
% RH
Power supply
230/1ph/50-60
V/Hz
Power input total
0.65
kW
Power input heating
0.6
kW
Sound level @1m
56
dB(A)
Connections dry air outlet
100
Ømm
Connections humid air outlet
63
Ømm

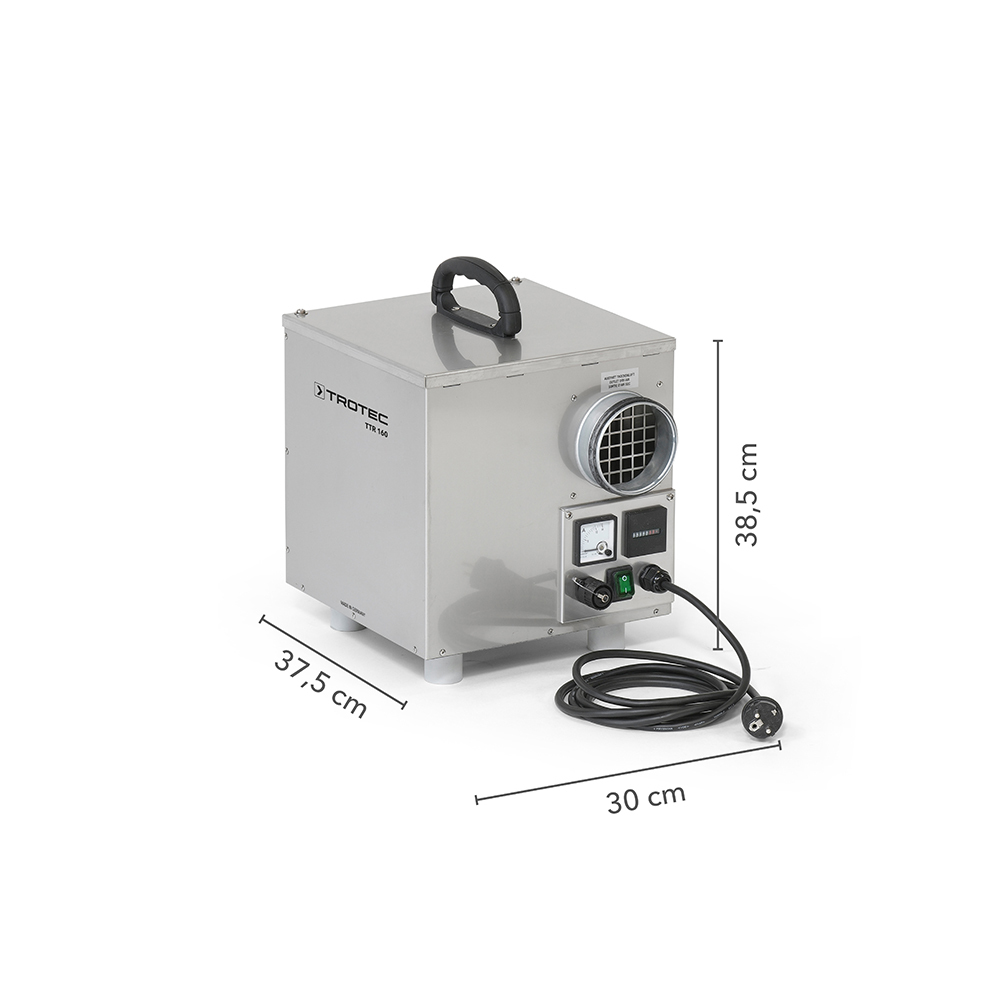

Product size (l x w x h)
375 x 300 x 385
mm
Weight
14
kg
