Trotec TTK 500 – condensation dehumidifier

Construction dryers

The TTK 500 condensation dehumidifier is a robust unit with a rugged metal housing. Defying challenging conditions, this high-performance condenser dryer excels in versatile construction sites. Capable of dehumidifying up to 76 litres, its automatic hot gas defrost system ensures efficiency even in cold environments. Designed for mobility, the unit has an adjustable push handle for ease of use. Experience the pinnacle of reliability with the TTK 500, ready for continuous operation on demanding sites. Maintenance is a breeze with its modular design, ensuring minimal downtime.

View other condensation dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.

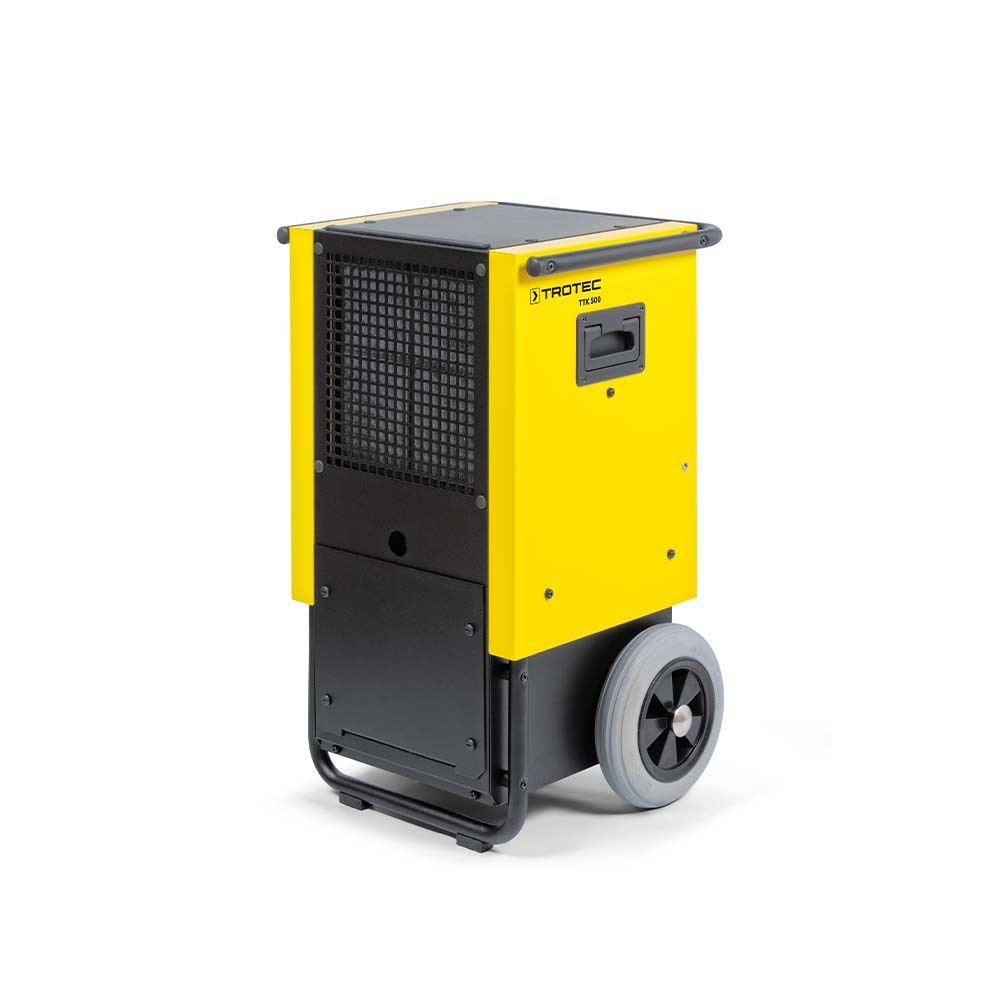

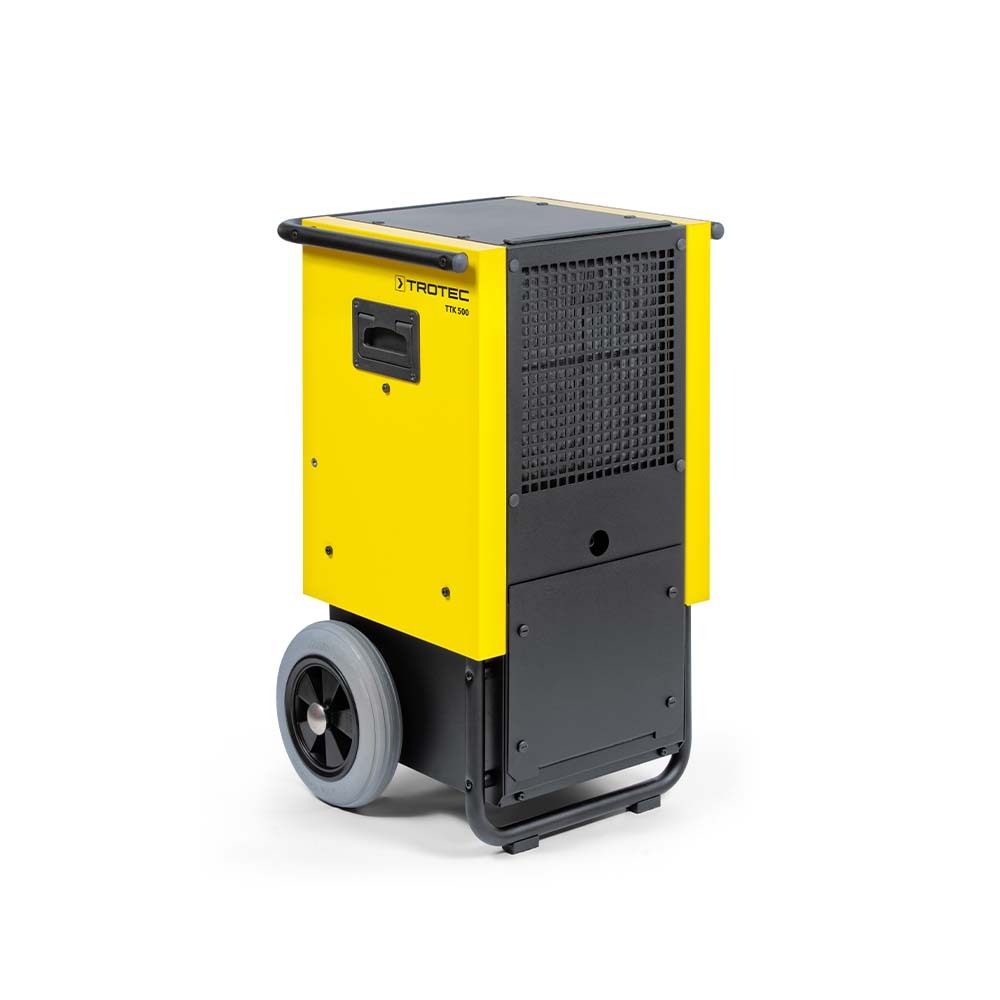

Trotec TTK 500 condensation dehumidifier	Trotec TTK 500 condensation dehumidifier

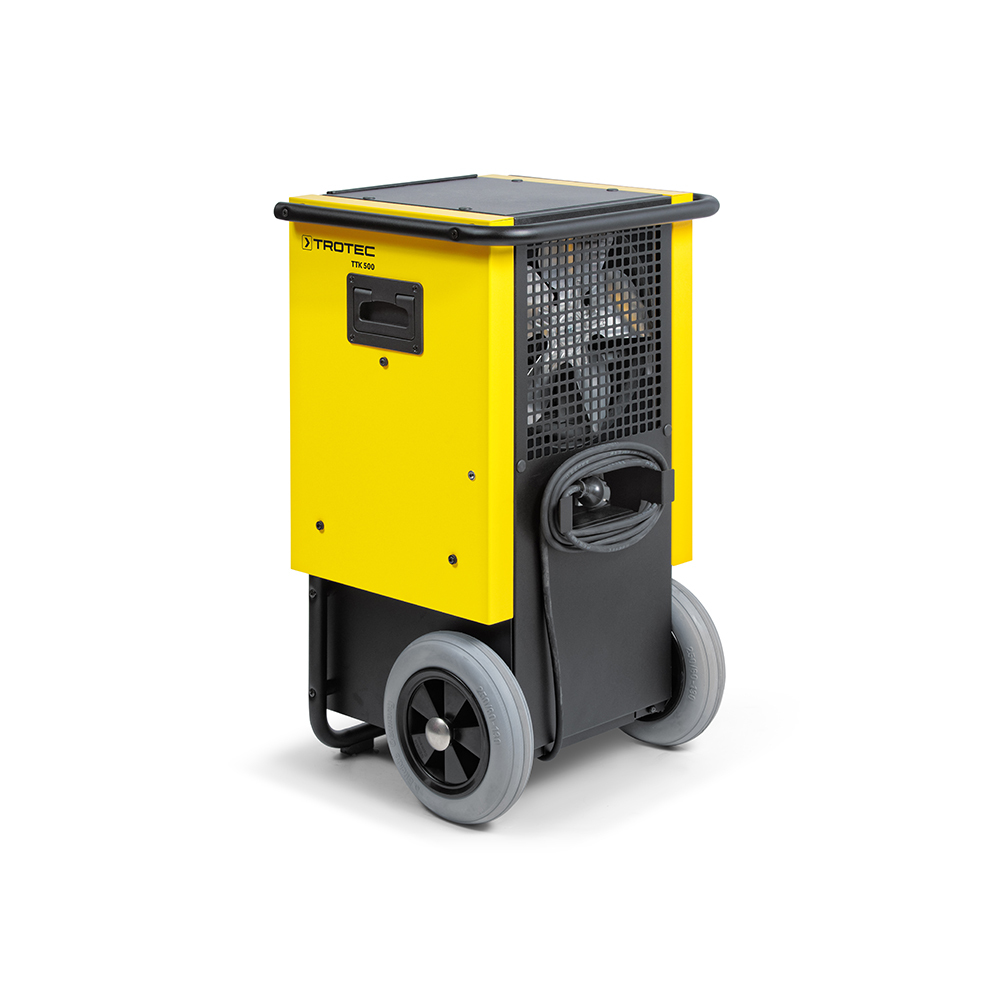

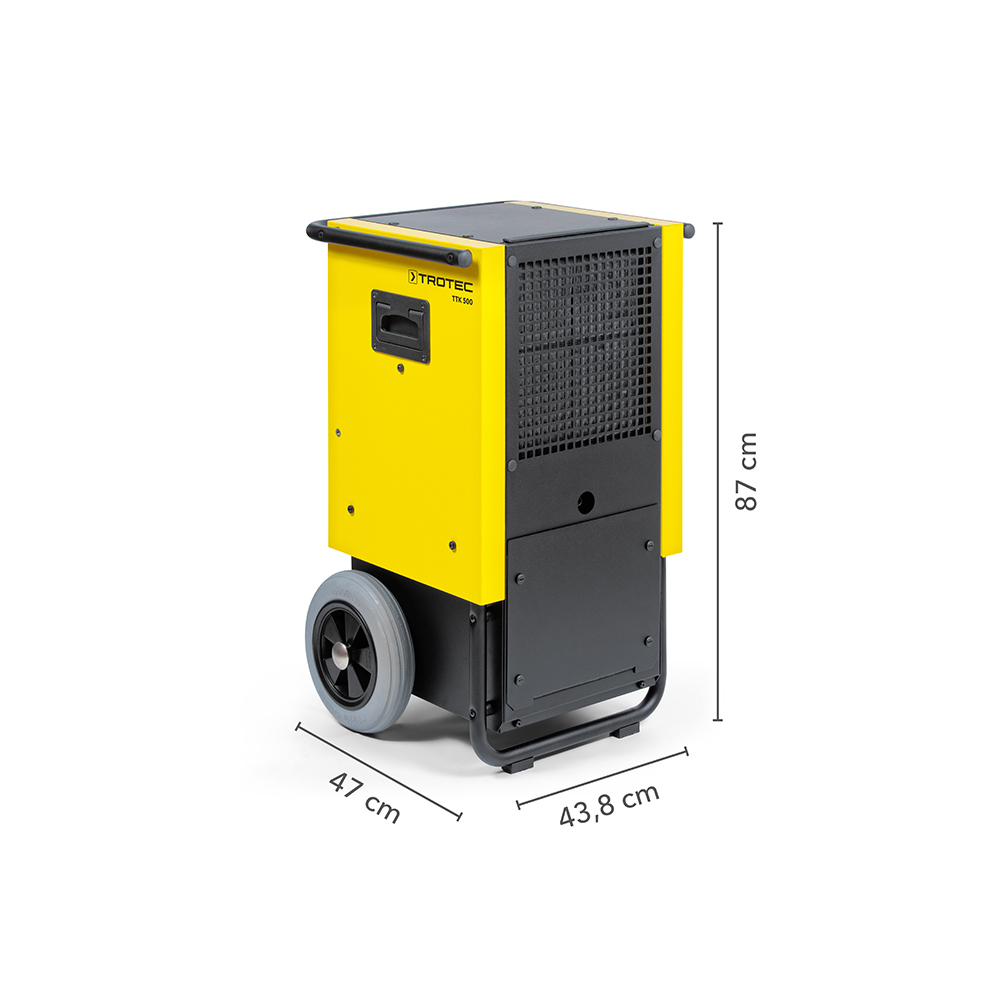

Trotec TTK 500 back	Trotec TTK 500 dimensions

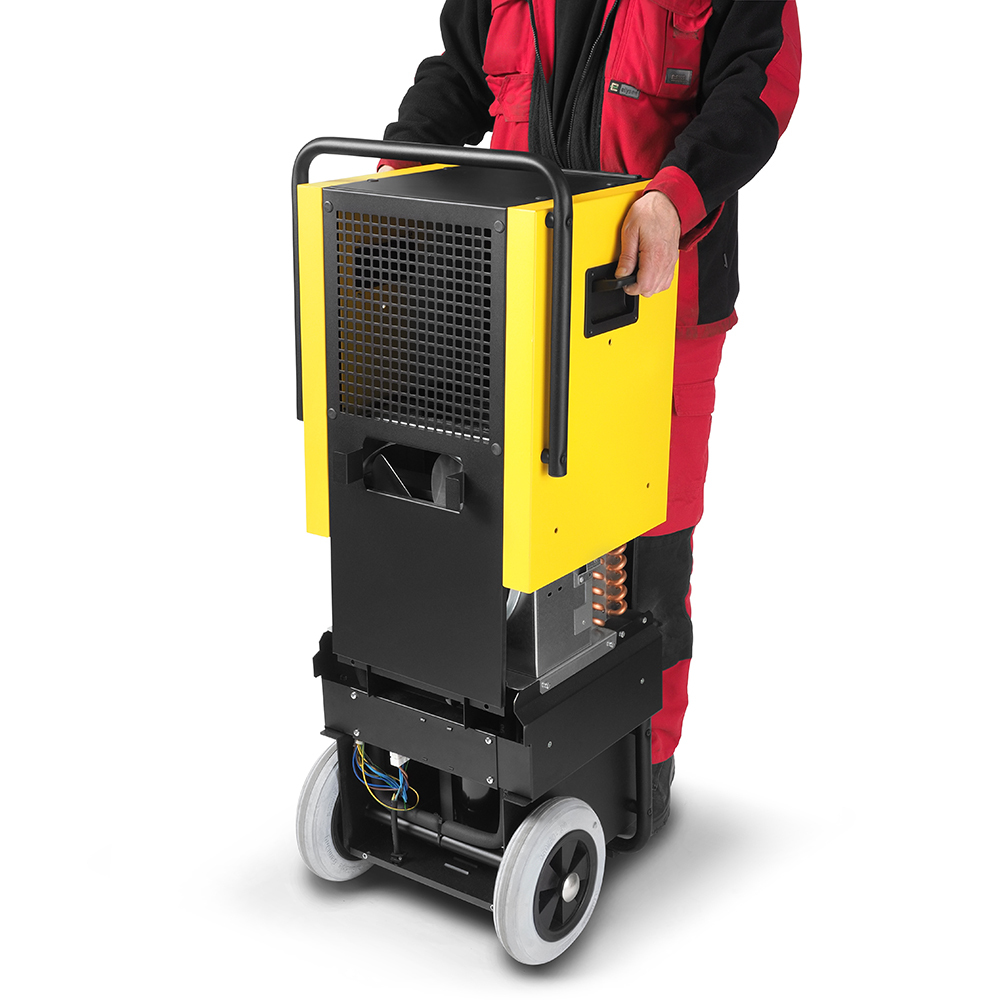

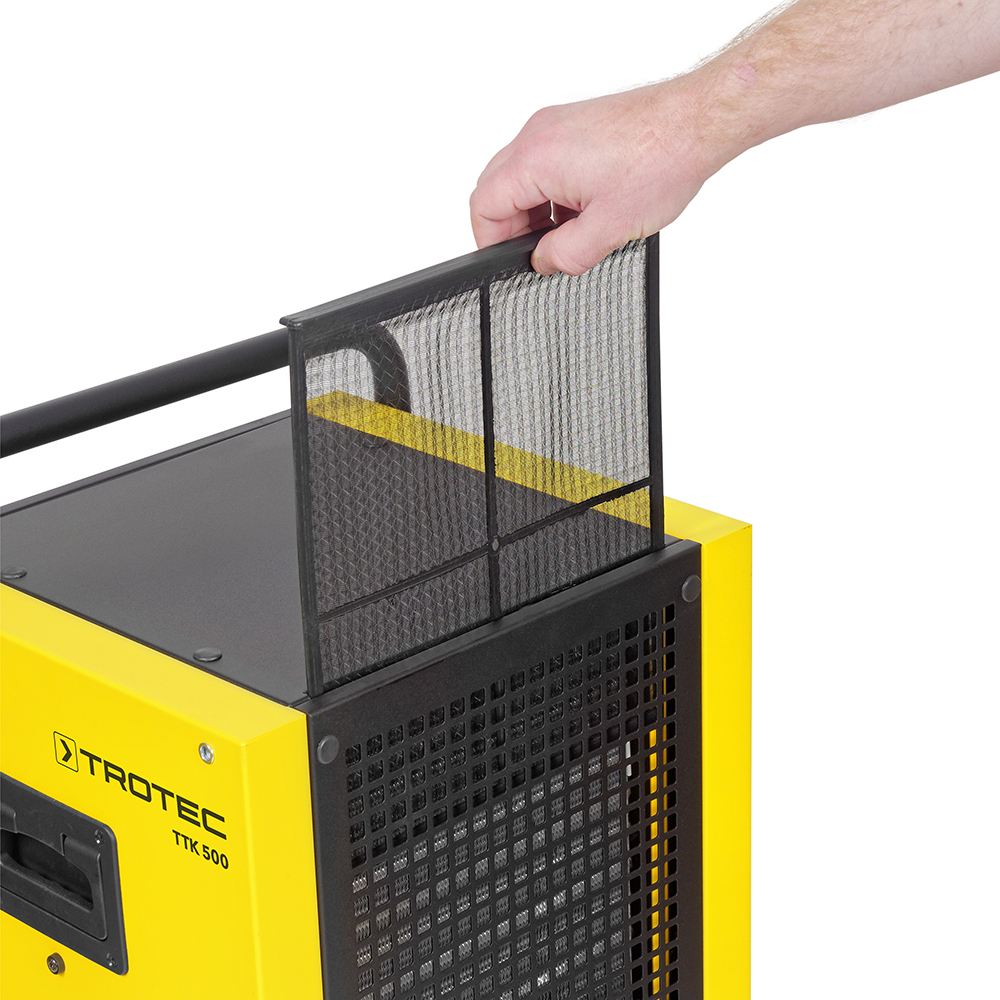

Trotec TTK 500 deconstruction	Trotec TTK 500 filter

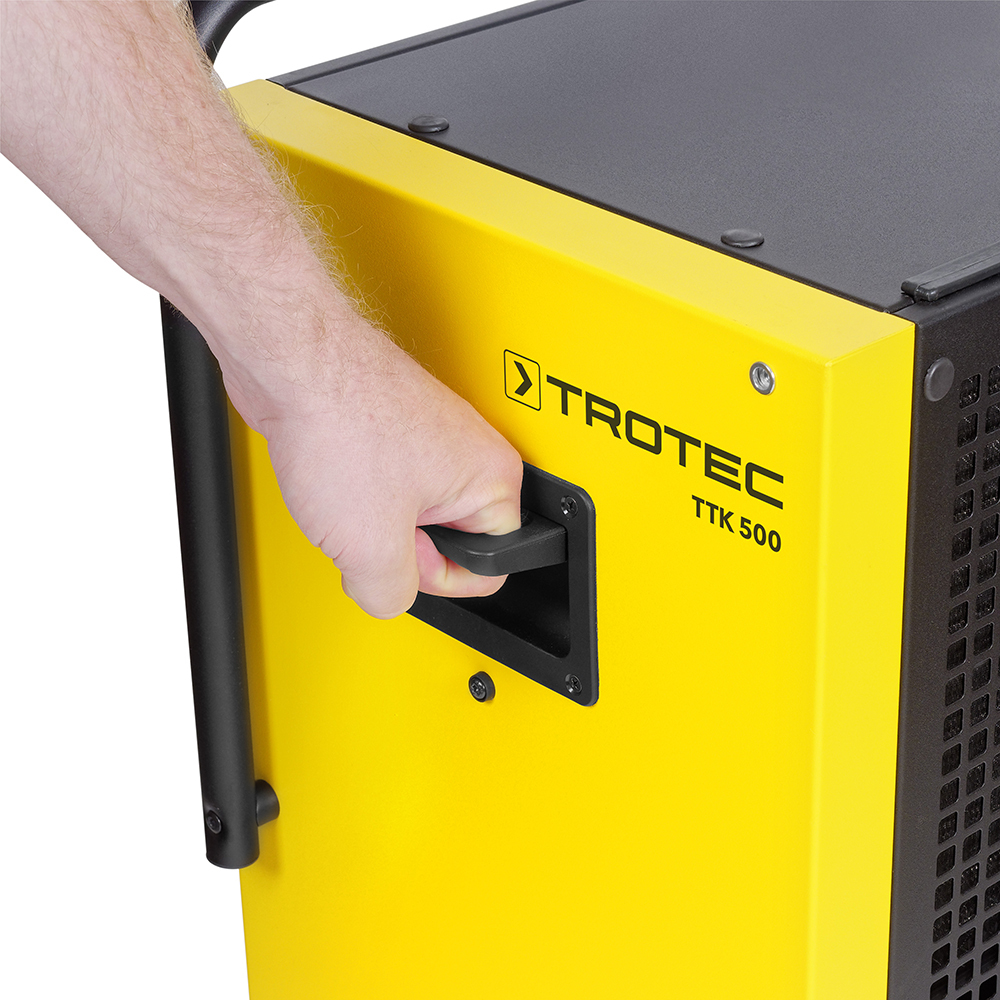

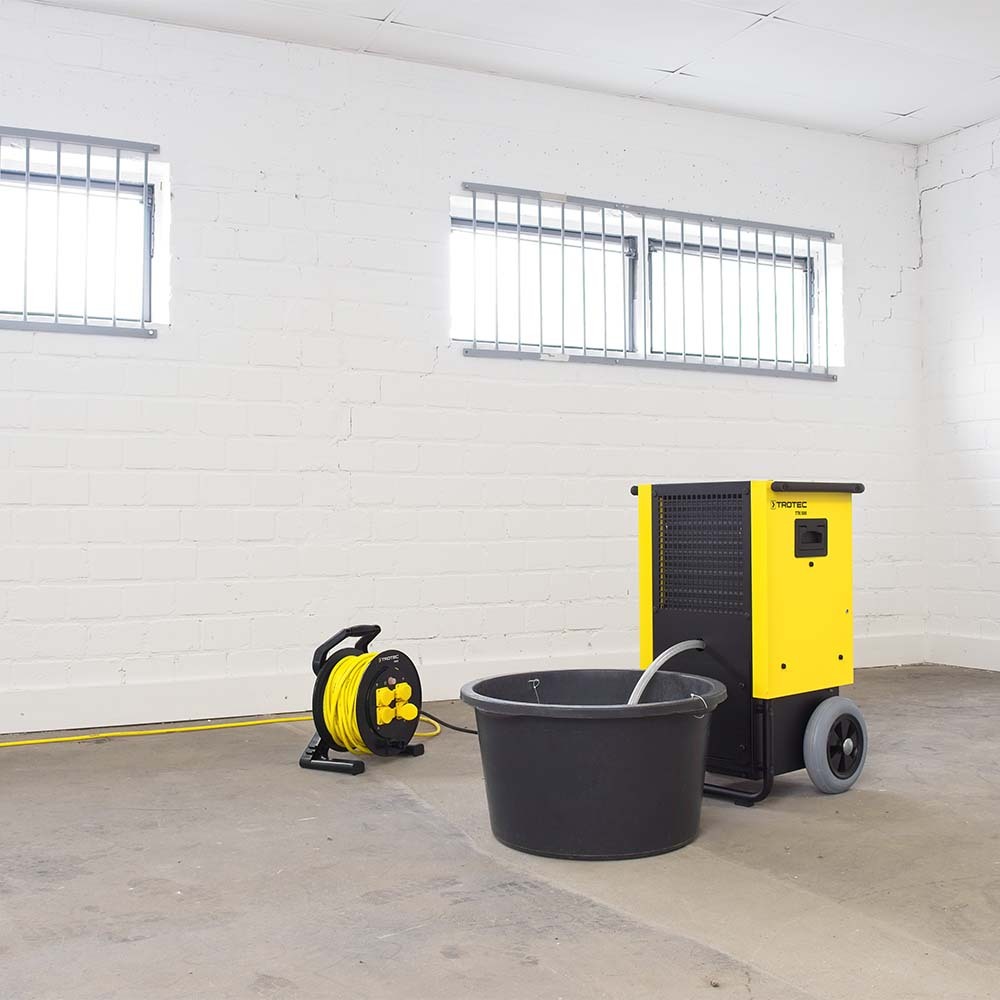

Trotec TTK 500 handle	Trotec TTK 500 application

Key features

High dehumidification capacity - even at temperatures below 15°C
Automatic hot gas defrost system
Removable cabinet for inspections, fast cleaning and maintenance
Stackable for space-saving storage
Sturdy wheels for easy on-site handling
Easily exchangeable and washable air filter
Connection for external hygrostat
Adjustable push handle
Operating hours counter as standard
Optional MID-compliant dual hour and energy counter
Available in stainless steel
Suitable for rooms of approx. 940m³

Product specifications

Specifications	Units	TTK 500
Capacity(30°C/80% RH)	l/24h	64
Air flow	m³/h	400
Operating temperature range	°C	5-35
Operating humidity range	% RH	35-90
Power consumption	W	1,600
Power supply	V/Hz	220-240/50
Sound level @3m	dB(A)	58
Compressor	Type	Rotary
Refrigerant	Type	R454C
Product size (l x w x h)	mm	438 x 470 x 870
Weight	kg	52

Suitable for

Construction
Rental companies
Water damage restoration
