Trotec TAC 6500 – commercial air cleaner

Professional air cleaners
Trotec top badge

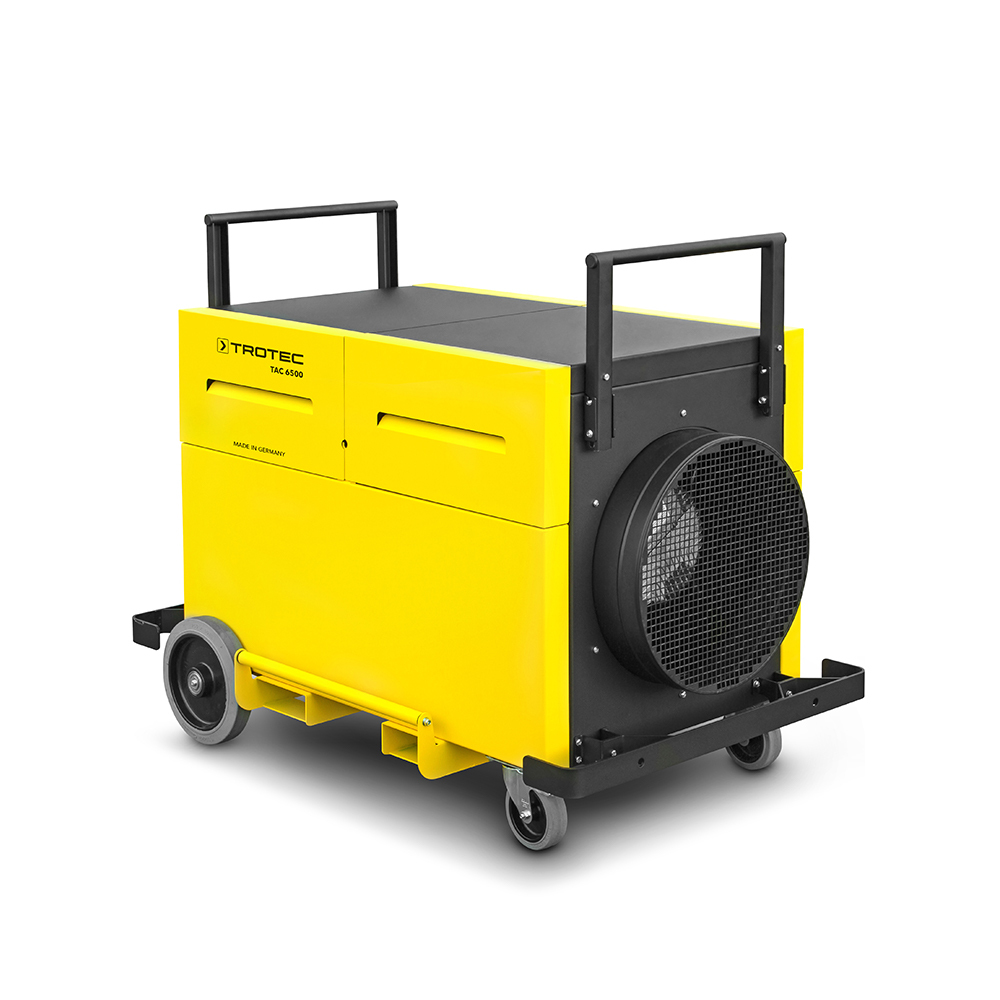

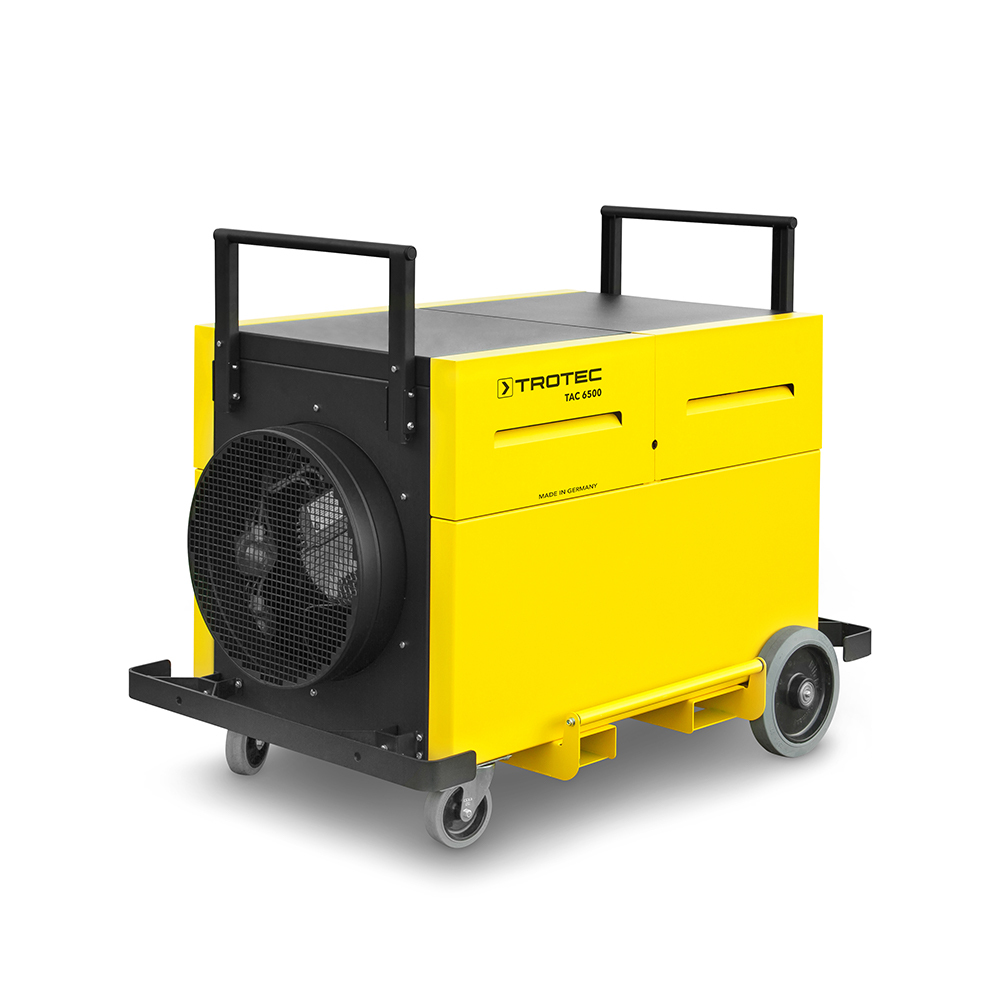

Trotec TAC 6500 air cleaner
Trotec TAC 6500 air cleaner
Trotec TAC 6500 air cleaner
Trotec TAC 6500 air cleaner

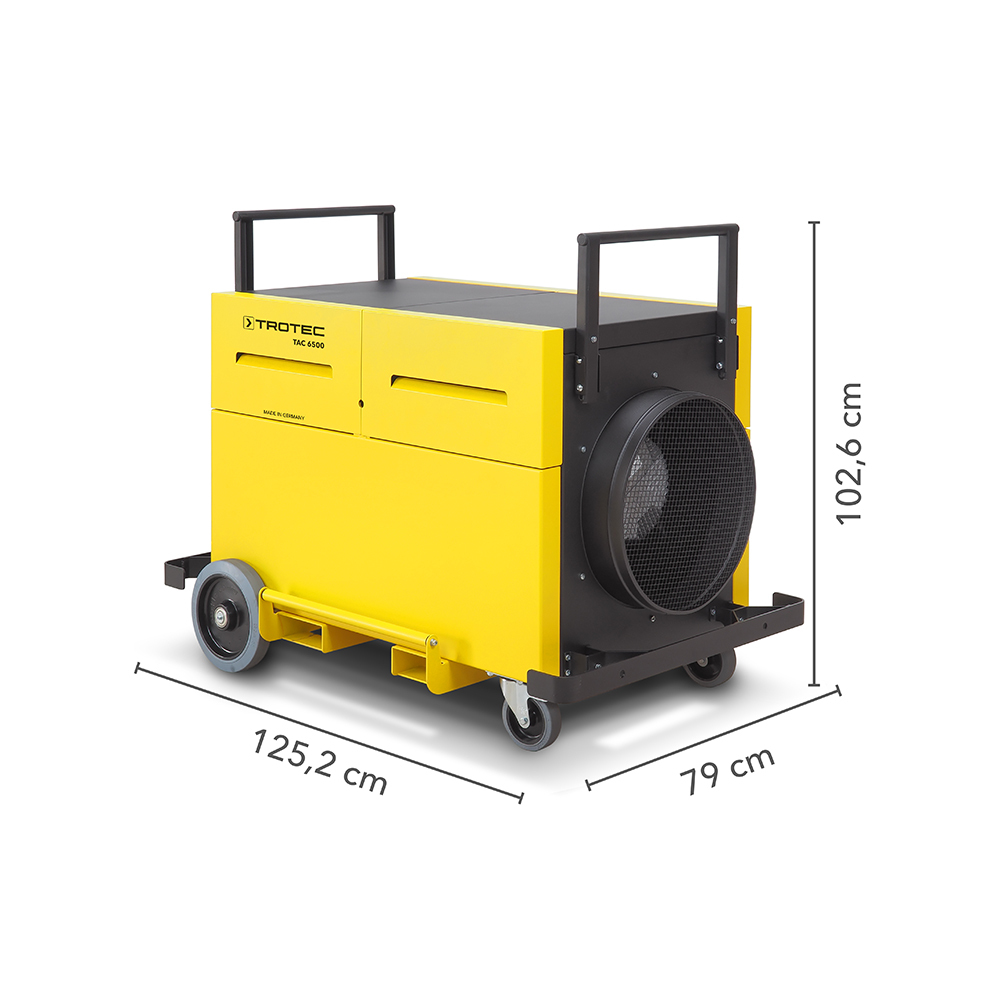

Trotec TAC 6500 dimensions
Trotec TAC 6500 dimensions

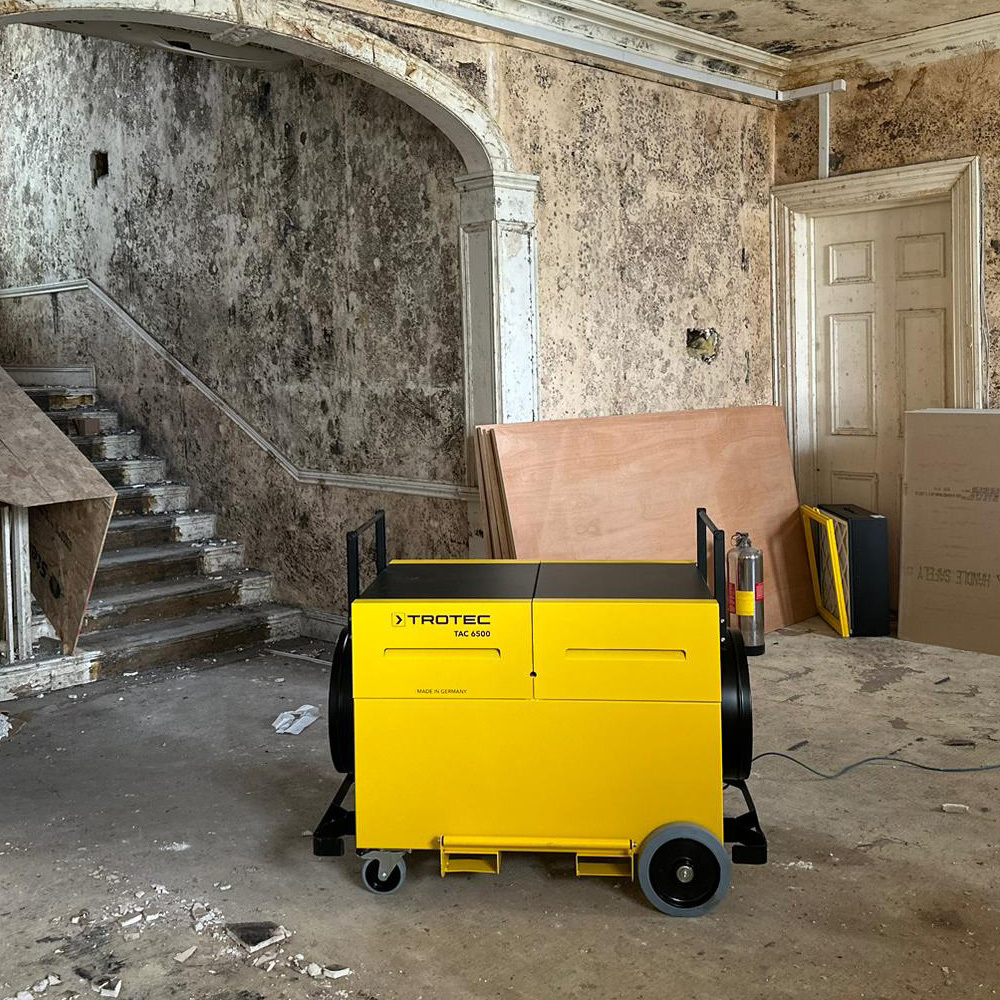

Trotec TAC 6500 air cleaning refurbishment
Trotec TAC 6500 air cleaning refurbishment

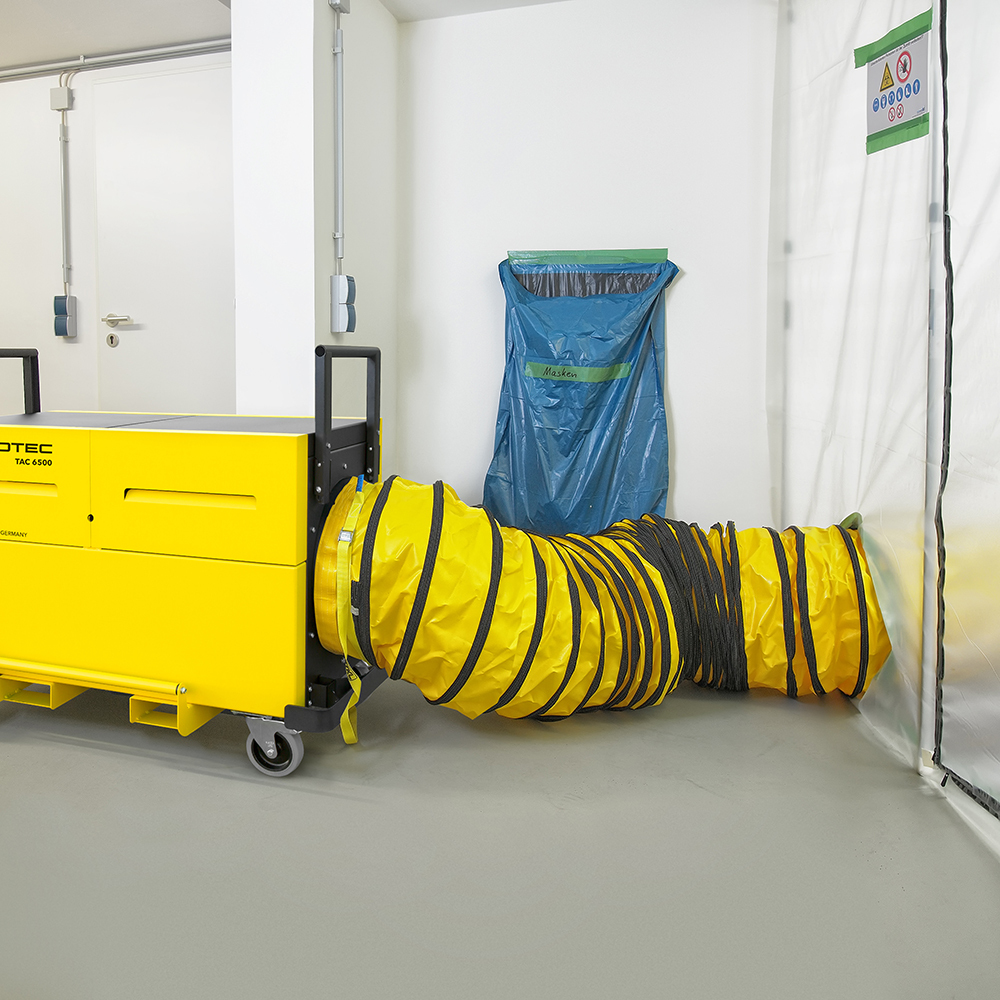

Trotec TAC 6500 application
Trotec TAC 6500 application

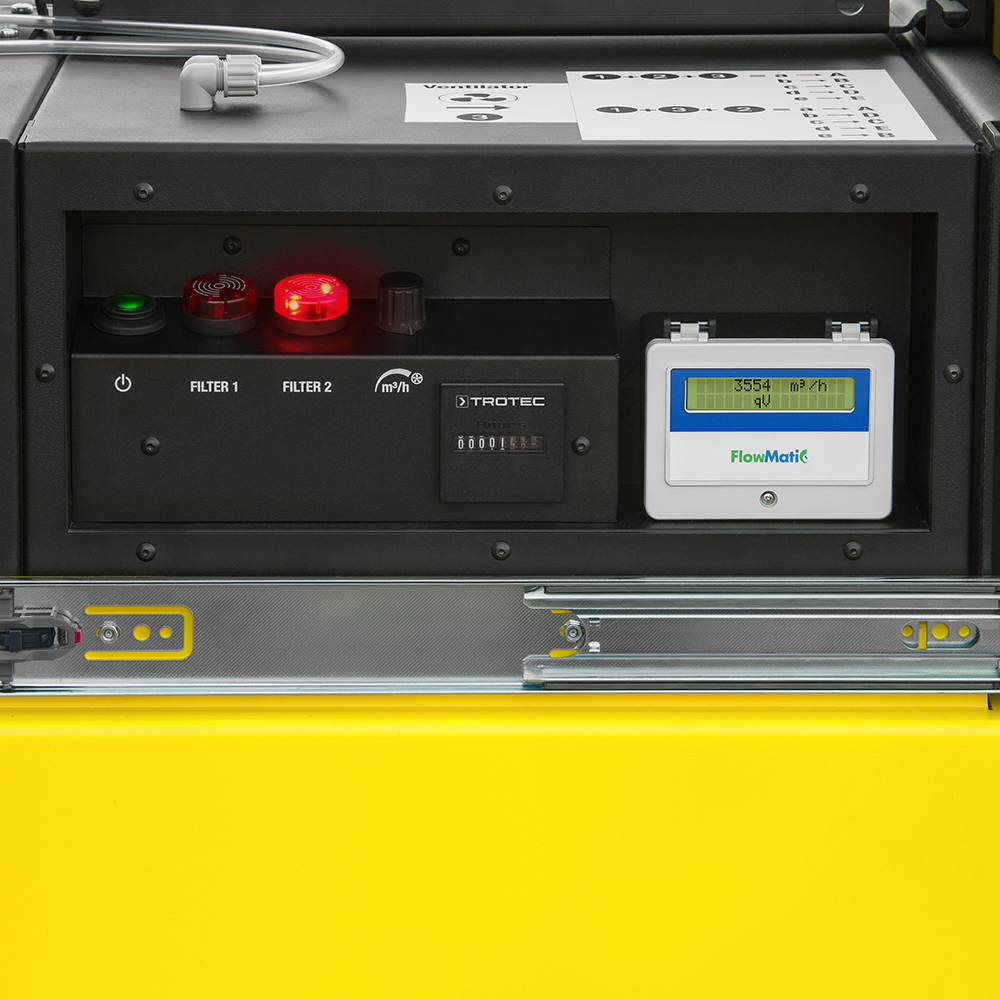

Trotec TAC 6500 operation panel
Trotec TAC 6500 operation panel

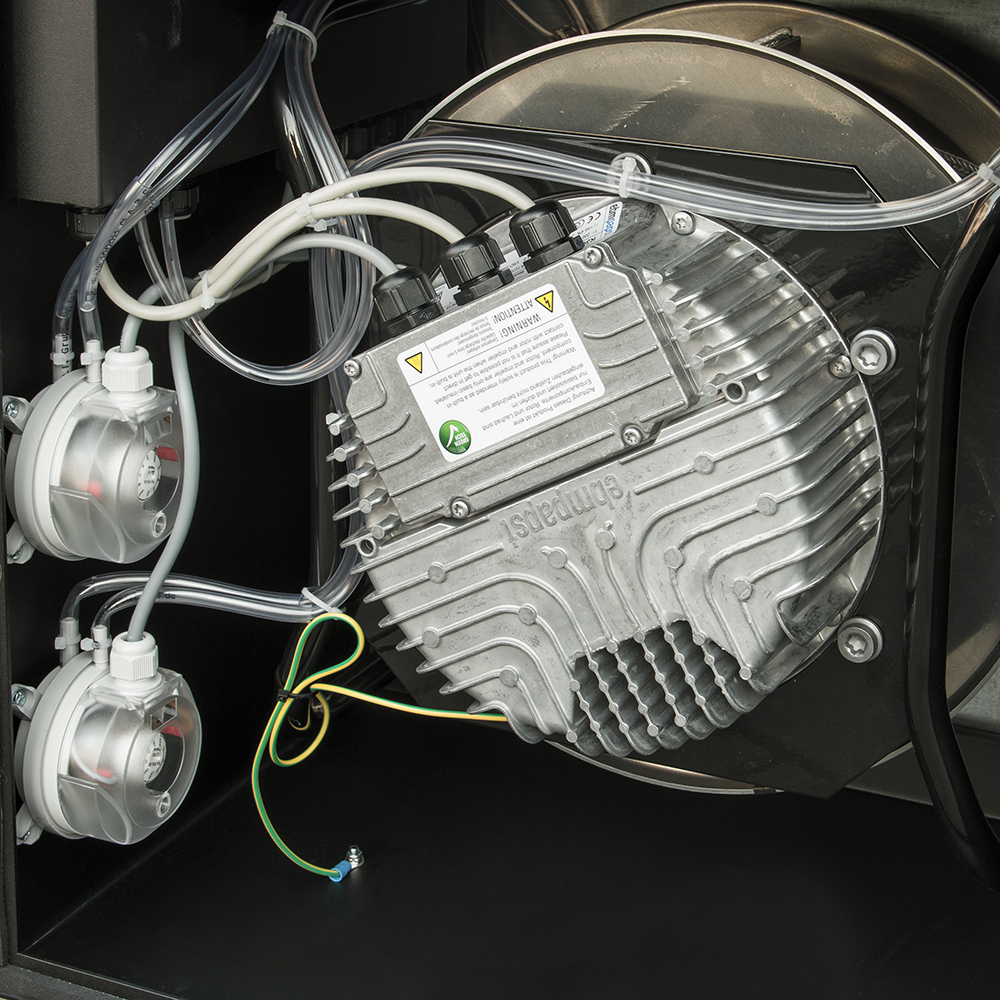

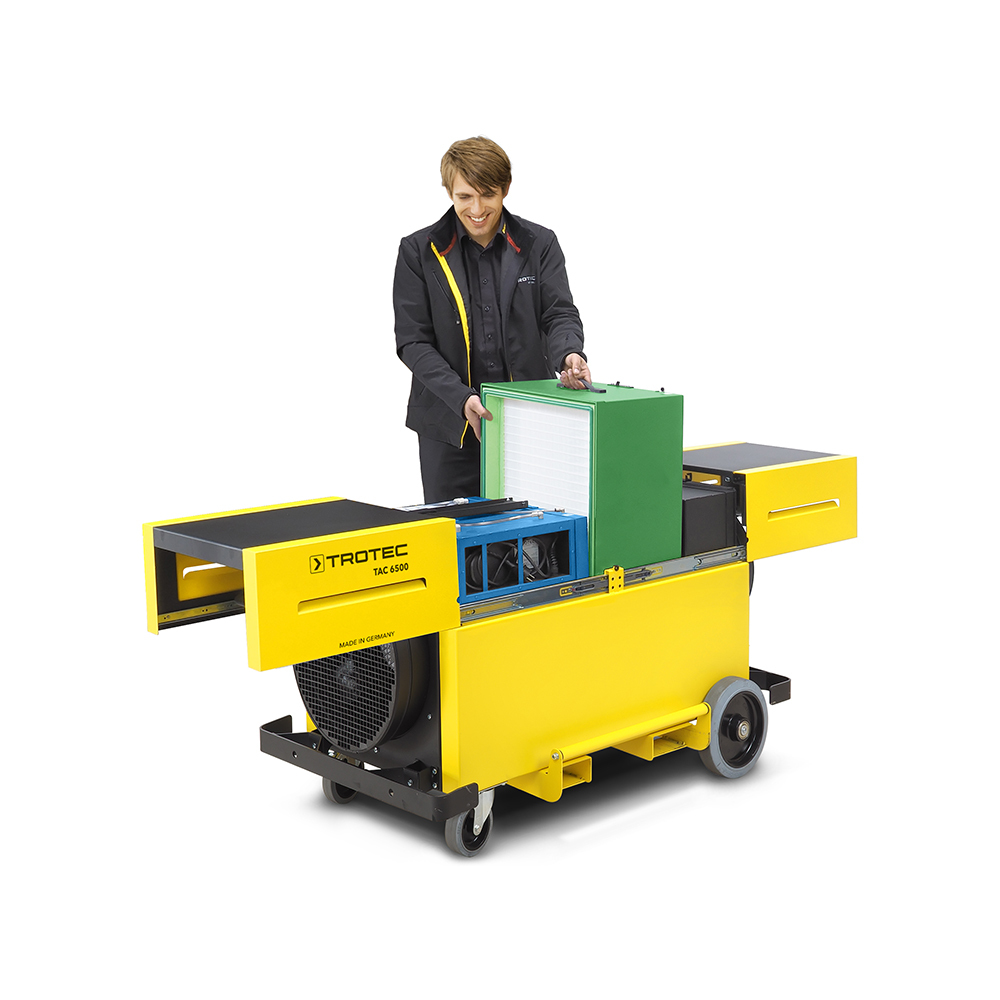

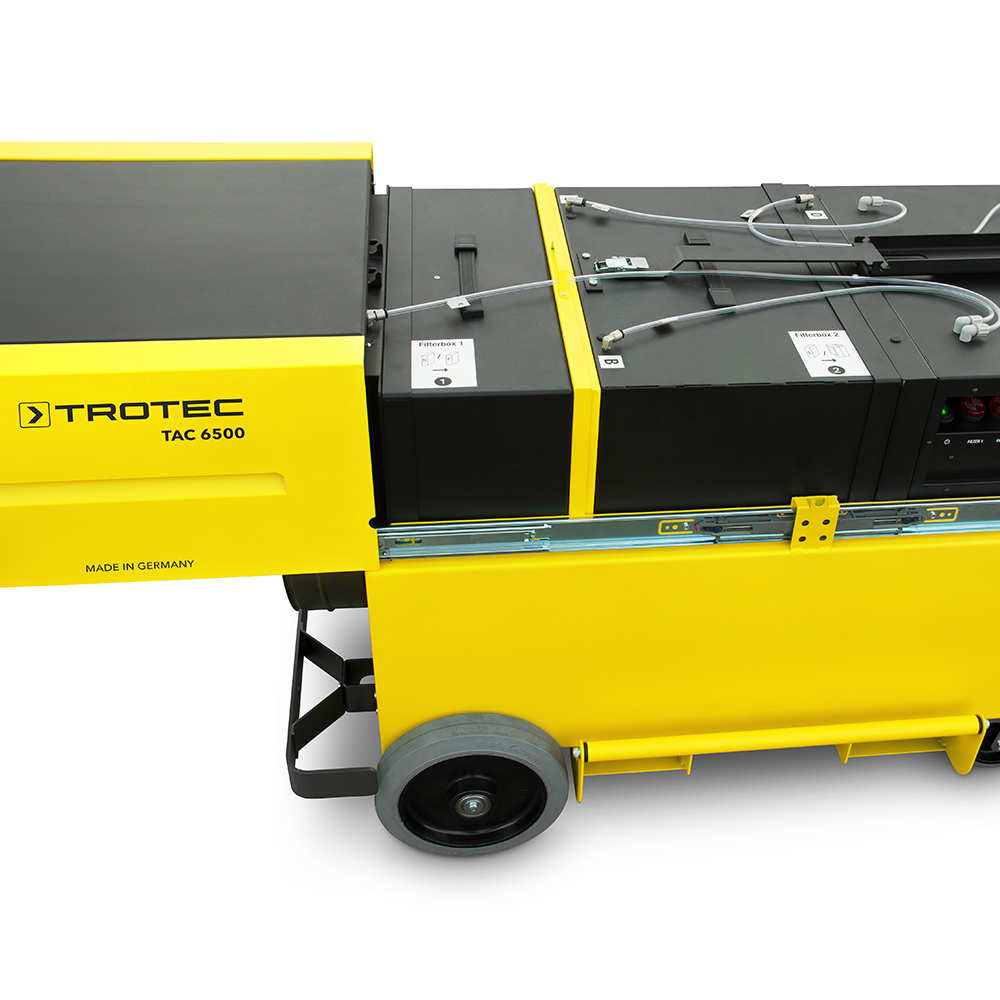

Trotec TAC 6500 detail
Trotec TAC 6500 detail
Trotec TAC 6500 detail
Trotec TAC 6500 detail
Trotec TAC 6500 detail
Trotec TAC 6500 detail

The Trotec TAC 6500 is a heavy-duty air cleaner that is ideal for use in industrial settings such as chemical plants, pharmaceutical facilities, and food processing plants. With a maximum air flow rate of 5,700m³/h, it can quickly and effectively remove even the most hazardous airborne contaminants. The air cleaner features a durable and rugged construction, making it ideal for use in harsh environments. It also has a variable speed control and a filter change indicator, allowing you to customise the air flow rate and monitor filter replacement. With its impressive air flow rate and heavy-duty construction, the TAC 6500 is the perfect choice for demanding industrial air cleaning tasks.

Interested?

Key features

  • Versatile air cleaner that is ideal for both building sites and cleanroom renovations
  • Dust class H, approvable for asbestos abatement as per TRGS 519
  • Vario-shift function to adjust fan/filter positioning to your application requirements
  • Monoventic air regulator for accurate and infinite adjustment of air volume
  • Visual and acoustic filter change indicator
  • Carrying handle and swivel casters for optimal mobility
  • Quick top unlocking makes filter changes easy
  • Stacking aid and shock protection
  • Easy filter change
  • Scope of filtration: asbestos, quartz, construction dust, flour, wood, mineral fibres, mould spores, paint particles

Product specifications

Dust class

H
filter


Air flow rate max.

5,700
m³/h


Recommended amount of air for filter class H

3,000
m³/h


Power supply

230/1ph/50-60
V/Hz


Power input

1.4
kW


Current consumption

6
A


Sound level @1m

68
dB(A)


Hose connector suction side

450
Ømm


Hose connector blow-out side

450
Ømm


Product size (l x w x h)

1252 x 790 x 1026
mm


Weight

136
kg


Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

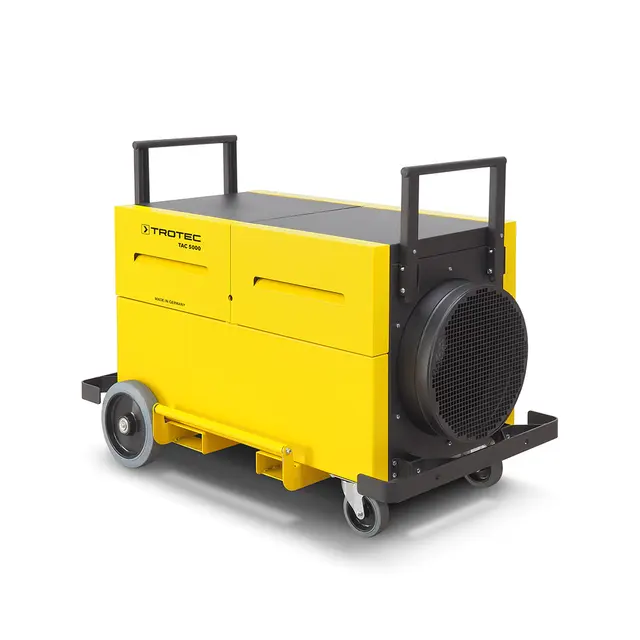

Trotec TAC 5000 air cleaner
Trotec top badge

Professional air cleaners

One of a kind and Trotec exclusive: Portable air cleaner with Vario-shift and FlowMatic function for construction sites to cleanrooms.

Trotec TAC 3000 air cleaner
Trotec top badge

Professional air cleaners

From the construction site and asbestos abatement including to hygiene-sensitive areas and cleanrooms – all with one device.

Heylo air cleaner PF 3500
Master Top Badge

Air cleaner

High-performance filter for dust filtering and dust extraction. Can be closed after use of contaminants. Various filters can be exchanged.

Trotec TAC 1500 air cleaner
Trotec top badge

Professional air cleaners

From applications on construction sites and asbestos abatement to hygiene-sensitive areas and cleanrooms – all with one device.

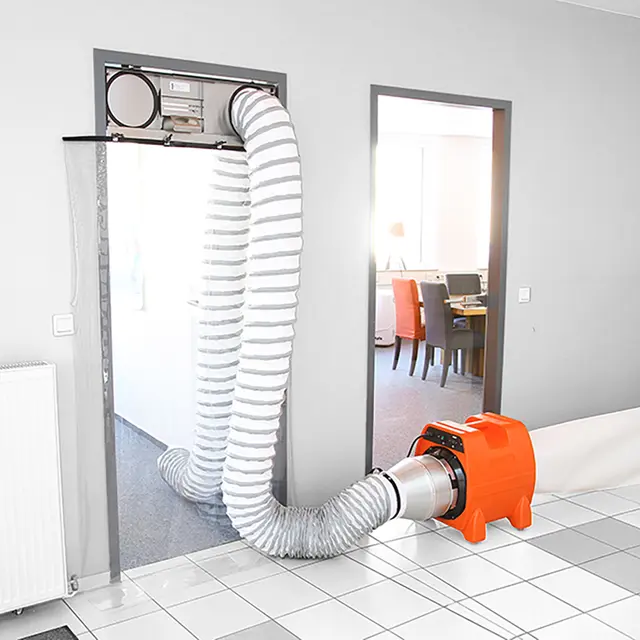

Heylo dust control system DCS PV 3000
