Trotec TA300 – anemometers
With professional anemometers from Trotec, installers, service technicians and experts have the ideal measuring device for flow rate measurements in air or gases. A calibration certificate already included in the standard scope of delivery emphasises the professional orientation of these precision anemometers.
Both measuring devices (TA300/TA400) determine flow rate, air temperature and volumetric flow alike; the cross-sections of the measured air ducts – be they round or square – can be entered into the device in a differentiated way.
For more information, please click on the catalogue.

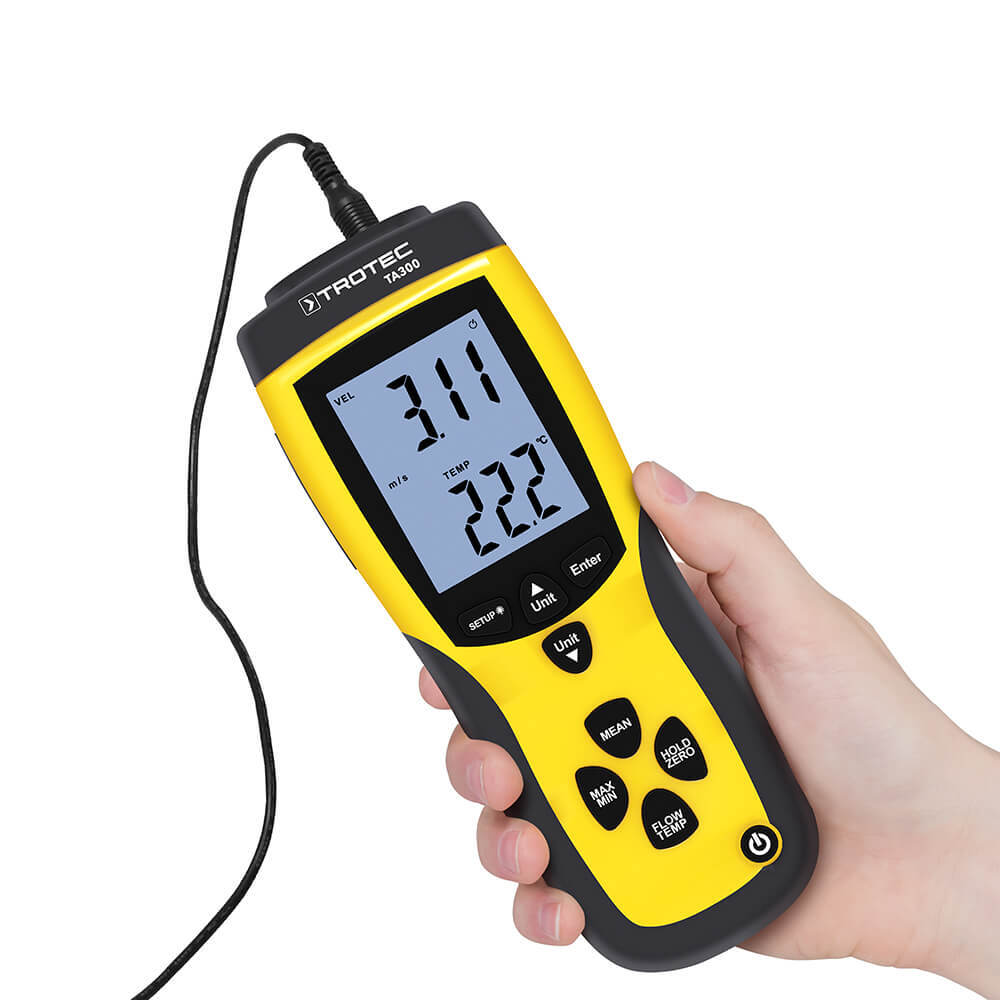

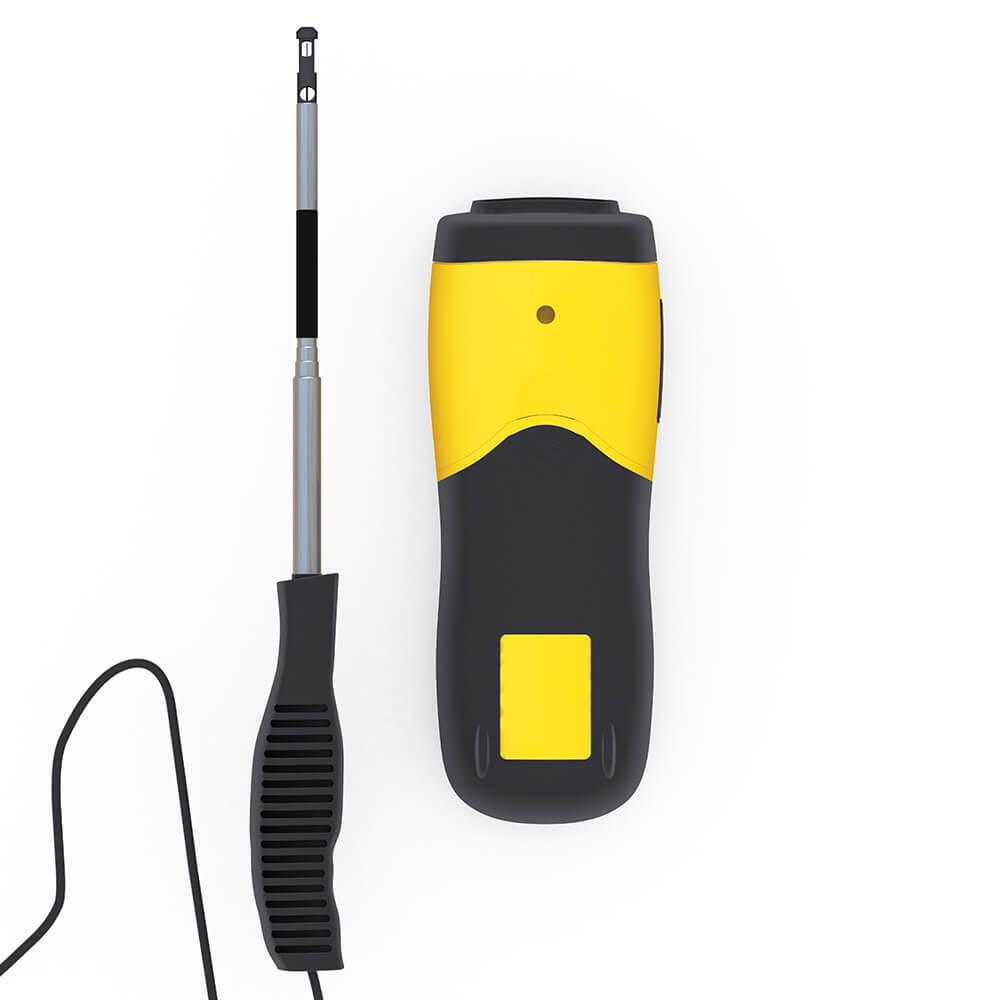

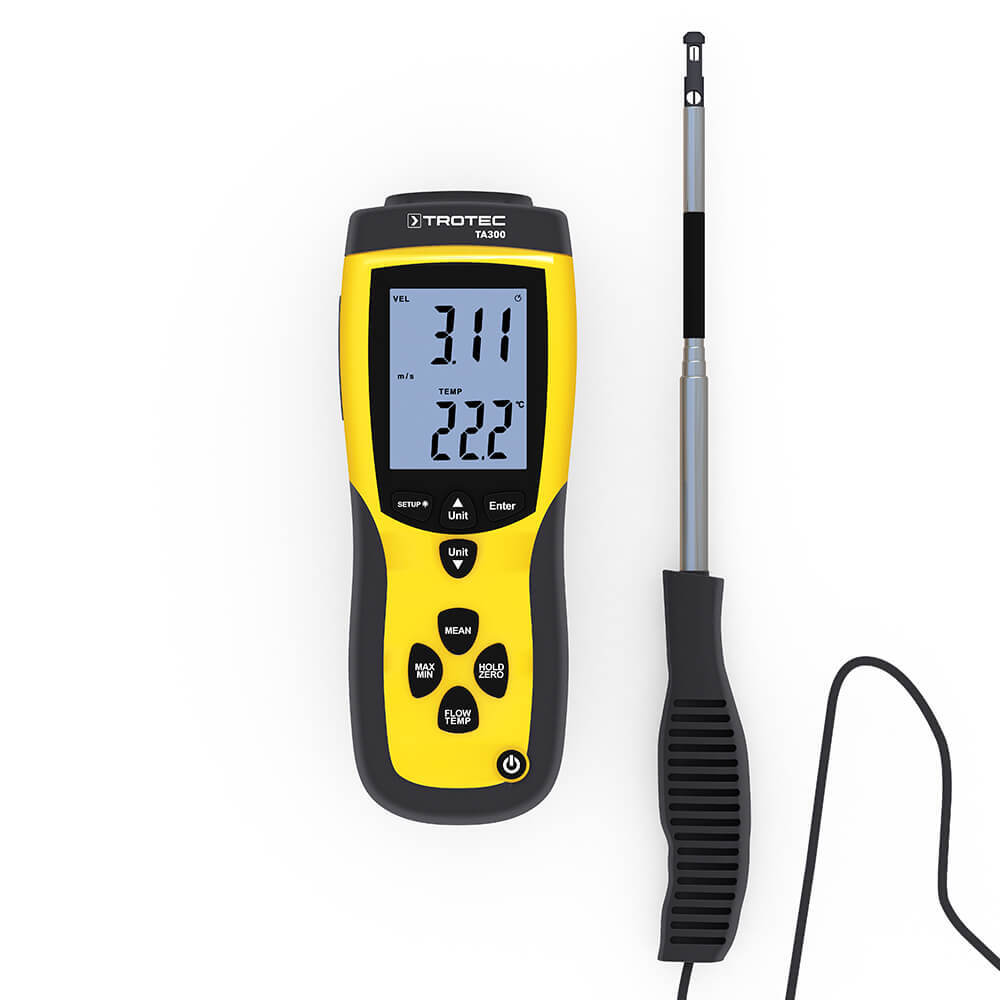

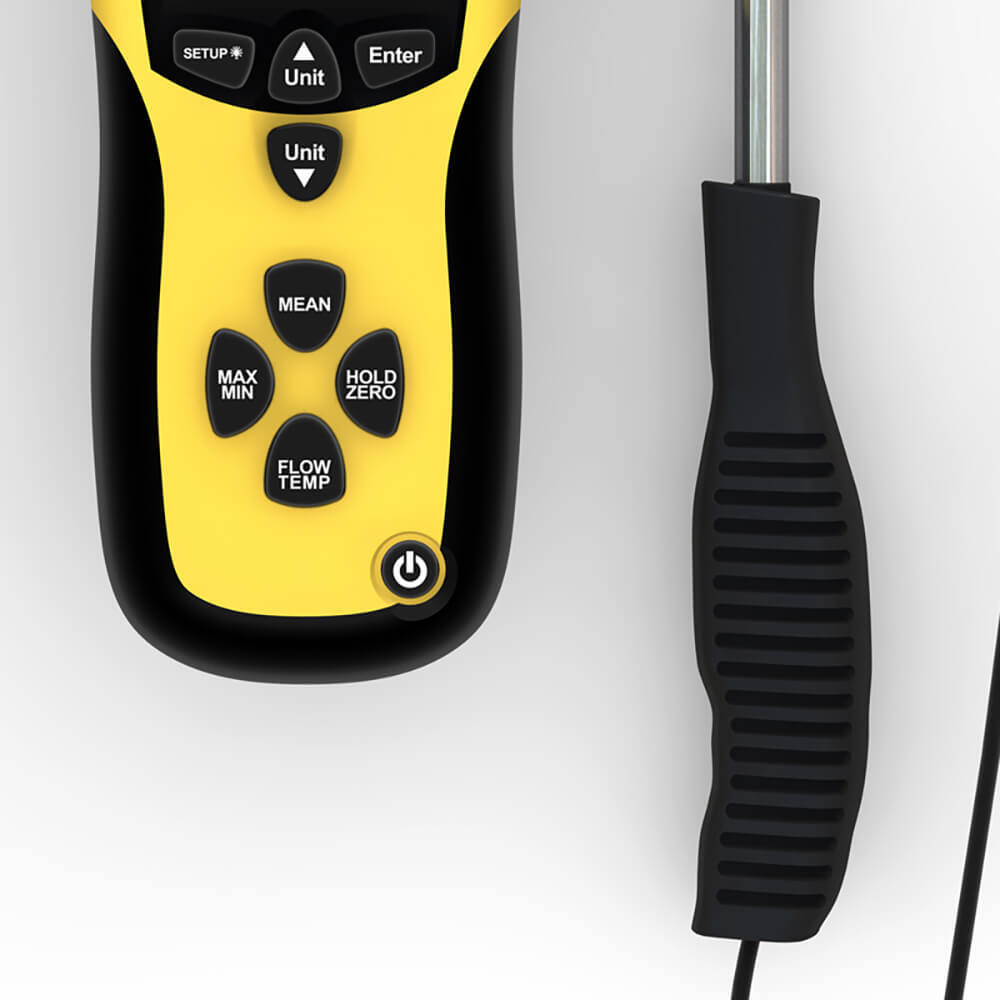

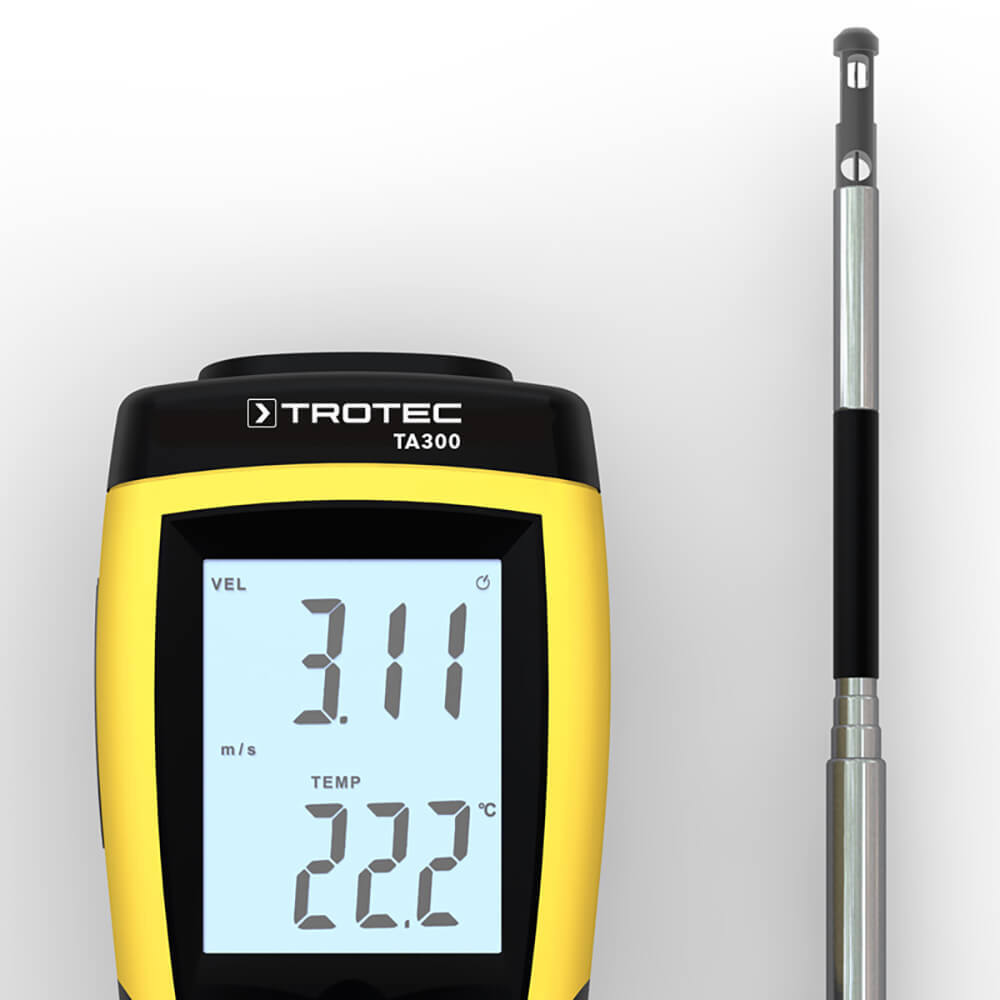

Trotec TA300 – anemometers
|
Trotec TA300 – anemometers
|
Trotec TA300 – anemometers
|
Trotec TA300 – anemometers
|
Trotec TA300 – anemometers
|

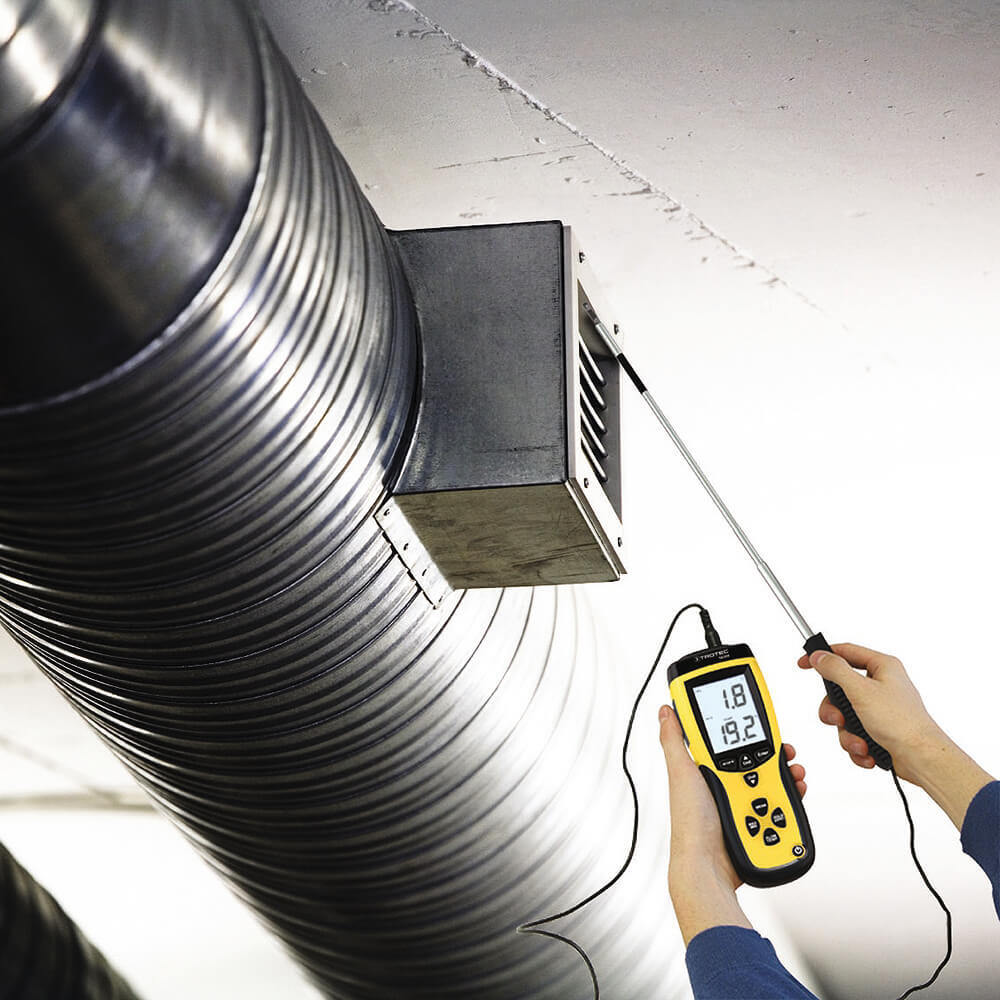

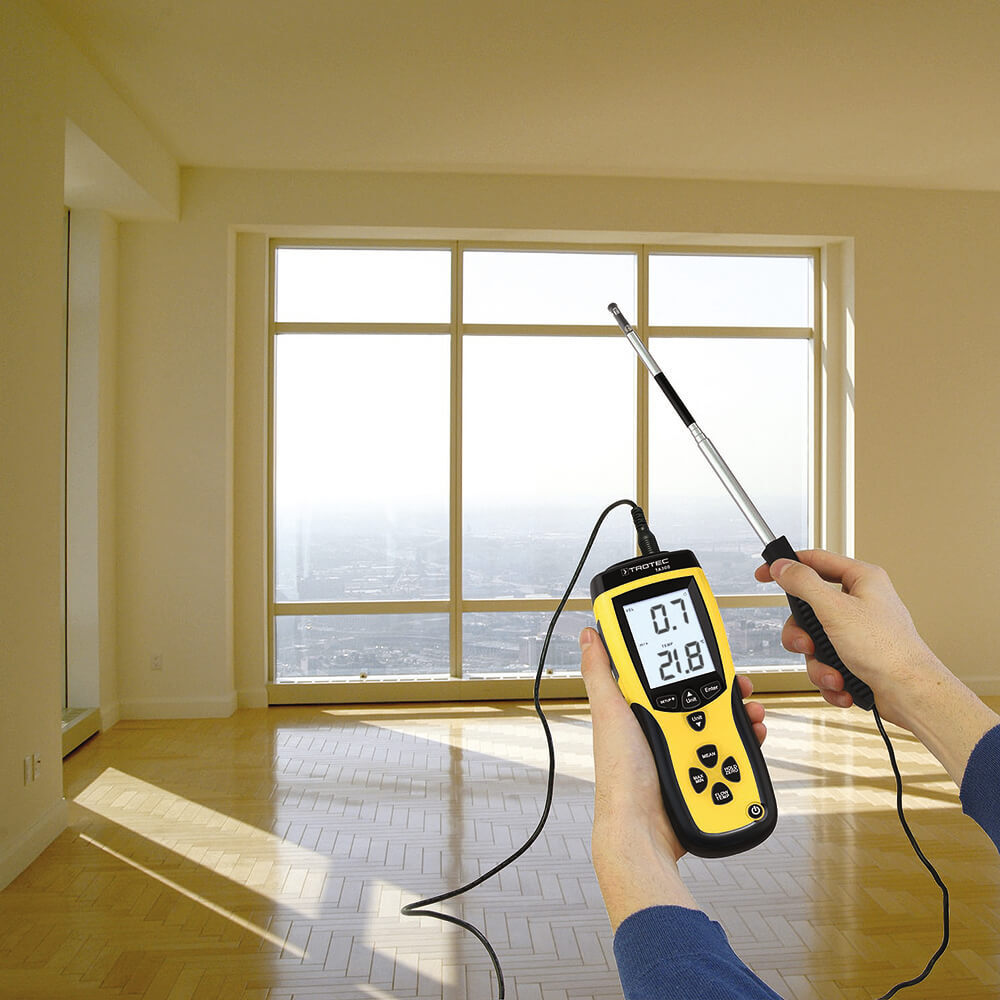

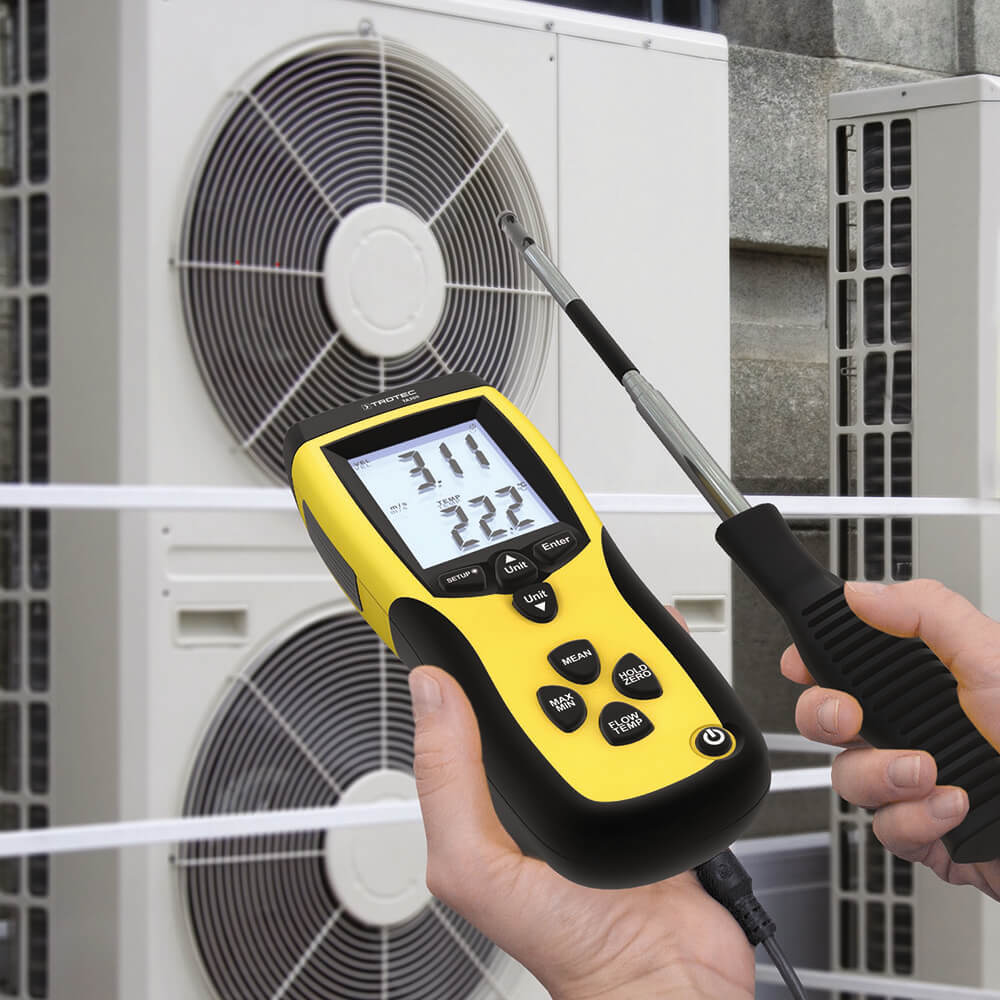

Trotec TA300 – application
|
Trotec TA300 – application
|
Trotec TA300 – application
|
Key features
- Professional anemometers for flow rate, differential pressure and volumetric flow measurements
- Suitable for high flow rates (up to 80 m/s)
- Large, easily legible LCD with background illumination and dual indication of measured values
- Diverse measuring functions
- USB port and software for real-time measurement series recording
- ¼ inch tripod connection
- Live log function with connected PC
The combination of robust hot-wire sensor and steplessly extendable telescopic probe makes the TA300 an ideal flow meter even at distant locations or poorly accessible air outlets. The TA300 impresses with a high spatial and temporal resolution and is particularly well suited for the precise determination even of low flow rates in all areas of air conditioning and ventilation.
Product specifications
| Specifications | Units | TA300 |
|---|---|---|
| Probe | Type | Hot-wire probe |
| Probe | Design | Telescopic probe, straight |
| Probe Length | mm | 185 to 1,000 |
| Probe tip/base | ø mm | 10/12 |
| Air velocity - Measuring range | m/s | 0.1-25.0 |
| Air velocity - Measuring range | km/h | 0.3-90 |
| Air velocity - Measuring range | ft/min | 20-4,925 |
| Air velocity - Measuring range | mph | 0.2-55.8 |
| Air velocity - Measuring range | kn | 0.2-48.5 |
| Air velocity - Accuracy | ± 5 % of the measured value + 1 measuring unit | |
| Air velocity - Resolution | 0.01 m/s, 0.1 km/h, 1 ft/min, 0.1 mph, 0.1 kn | |
| Volumetric flow - Measuring range | m³/min (CMM) | 0-99,999 |
| Volumetric flow - Measuring range | ft³/min (CFM) | 0-99,999 |
| Volumetric flow - Resolution | 0.001 bis 100 | |
| Temperature - Measuring range | °C | 0 bis 50 (32 bis 122 °F) |
| Temperature - Accuracy | °C | ± 1 (± 1.8 °F) |
| Temperature - Resolution | °C | 0.1 (0.1 °F) |
| Operating conditions | °C | 0 °C to +50 °C, < 80 % RH (on-condensing) |
| Power supply | 9 V IEC 6LR61 | |
| Product size (l x w x h) | mm | 210 x 75 x 50 |
| Weight | g | 450 (incl. battery and probe) |
Suitable for
- Commercial buildings
- Construction
- Data centres and telecoms
- Energy and renewables
- Industrial, factories and production
- Warehouses and storage
- Water damage restoration
