Trotec OZ-ONE – ozone meter
With the ozone meter OZ-ONE you have the ideal testing instrument for a quick and precise check or the long-term detection of ozone concentrations in the ambient air. The OZ-ONE is characterised by a very low cross-sensitivity to other gases or VOCs and impresses with quick, highly accurate measurement results even at very low ozone concentrations.
Many integrated functions such as the ozone zero adjustment, the reference value measuring option for short-term exposure limit (STEL) and time-weighted average (TWA), or the value display, switchable from ppm to µg/m³ and vice versa, make the quickly responding OZ-ONE an indispensable tool for precise ozone exposure measurements. Moreover, this device is a compact portable environmental measuring device for the determination of air temperature and humidity or the calculation of dew point and wet-bulb temperature. The dual display of this measuring device always shows you two measured values at a time, visible at a glance.
For more information, please click on the catalogue.

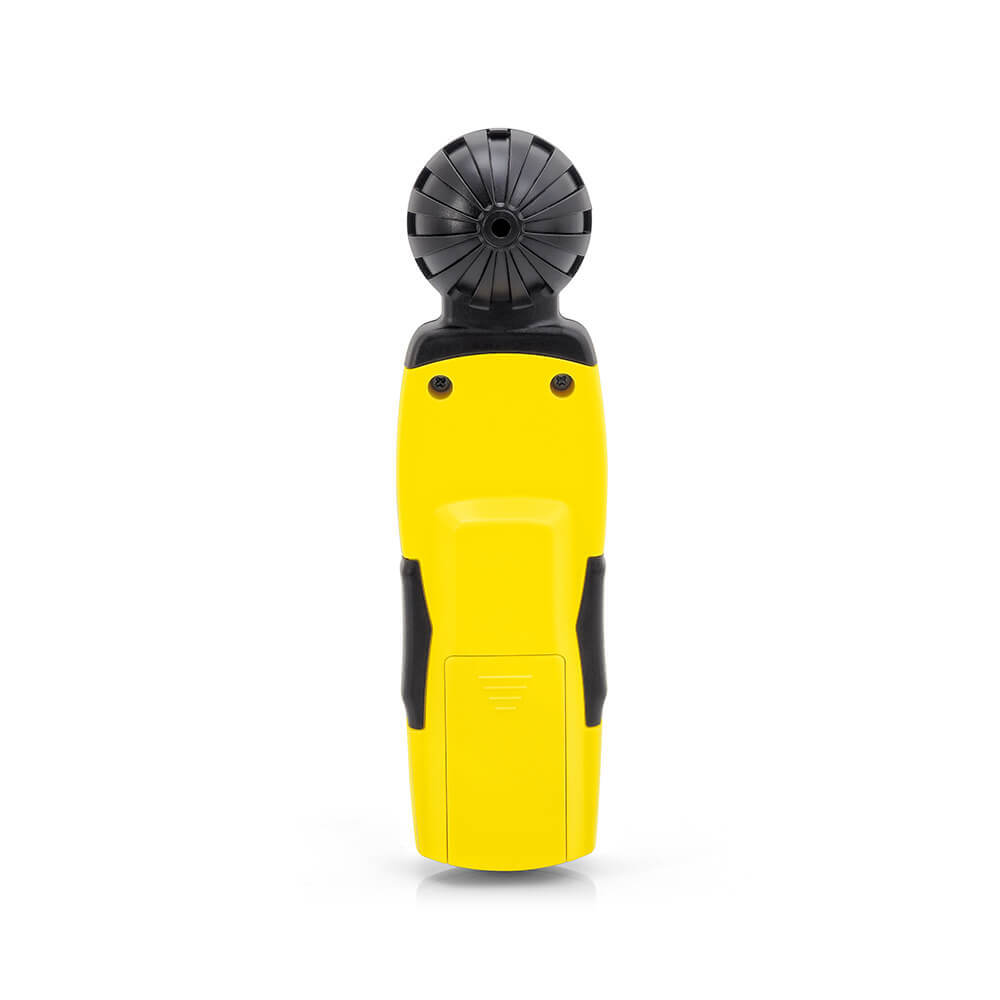

Trotec OZ-ONE – ozone meter
|

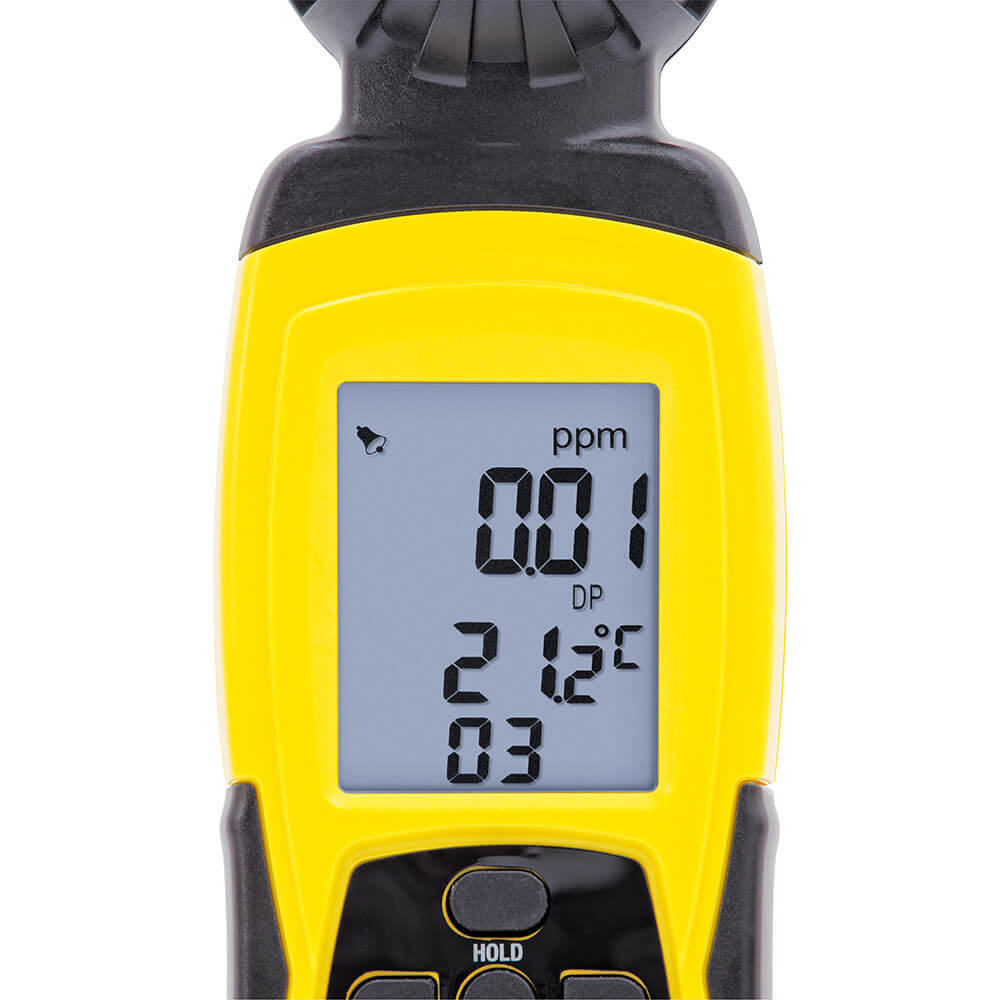

Trotec OZ-ONE – ozone meter
|

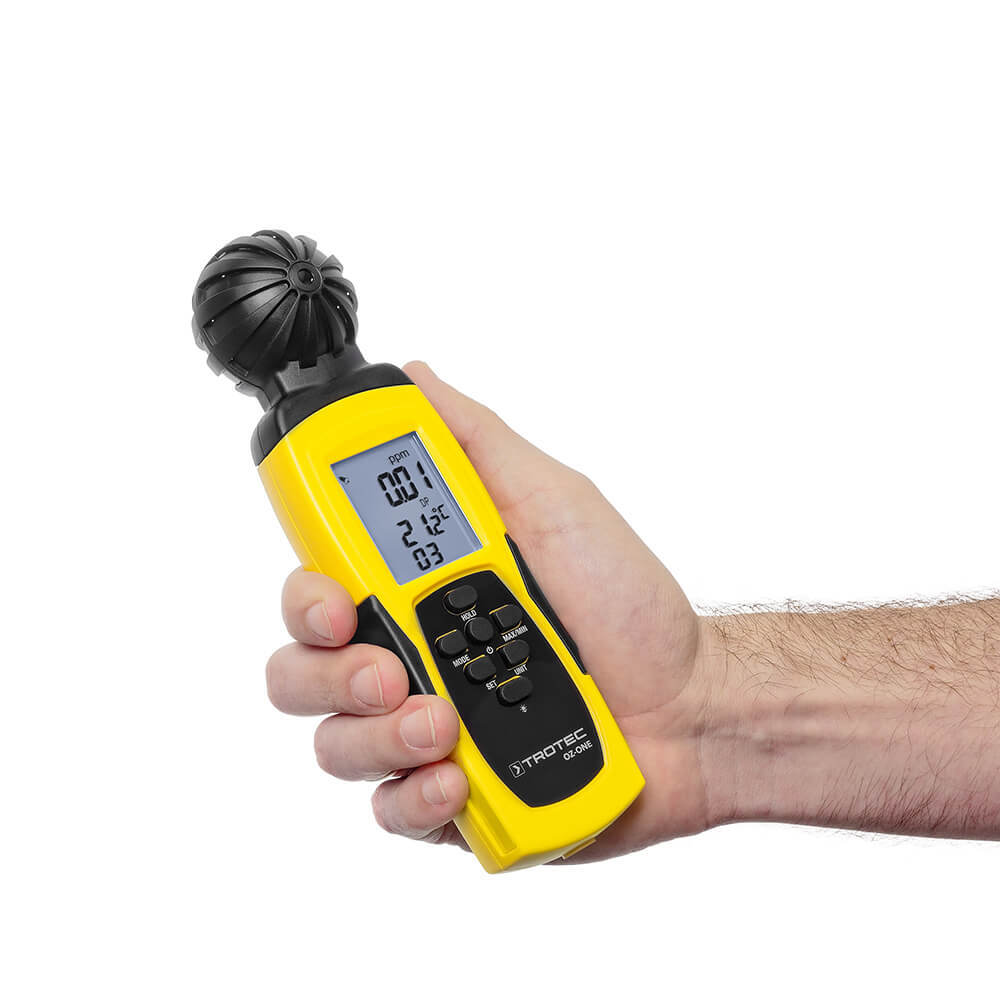

Trotec OZ-ONE – ozone meter
|

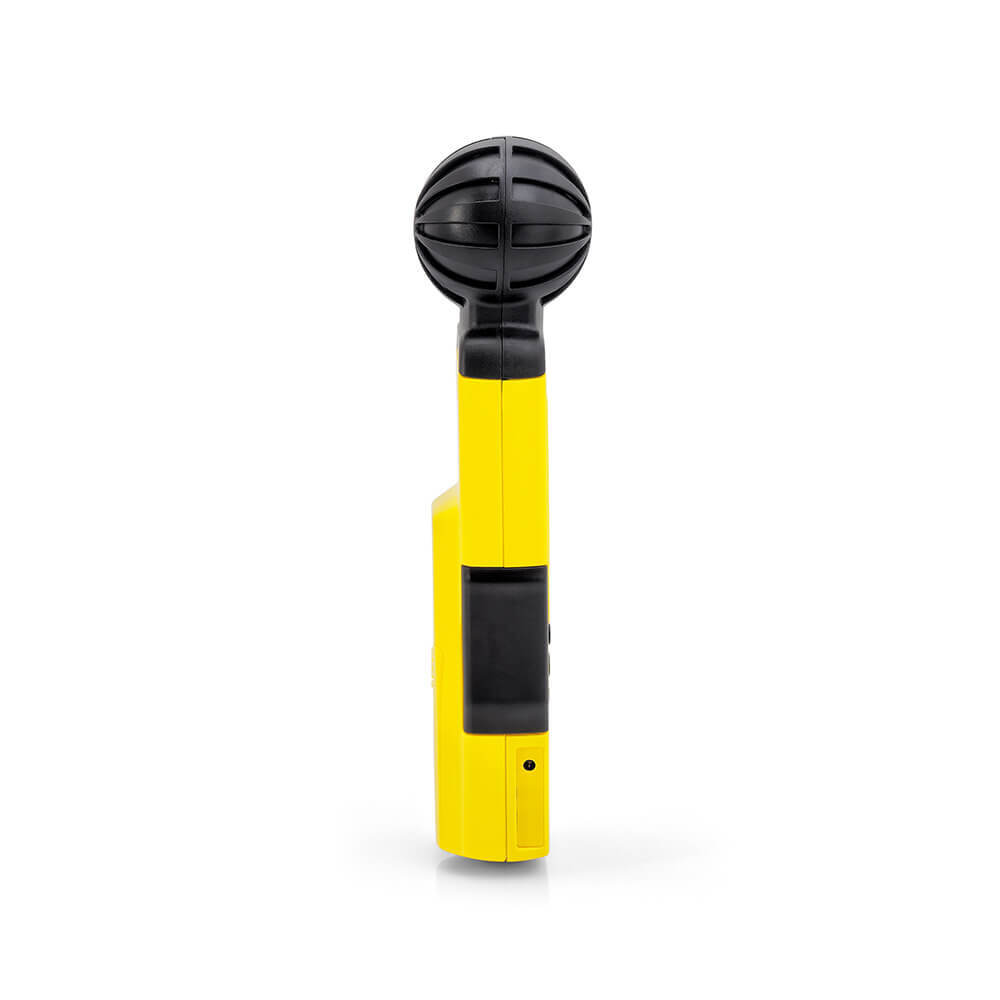

Trotec OZ-ONE – ozone meter
|

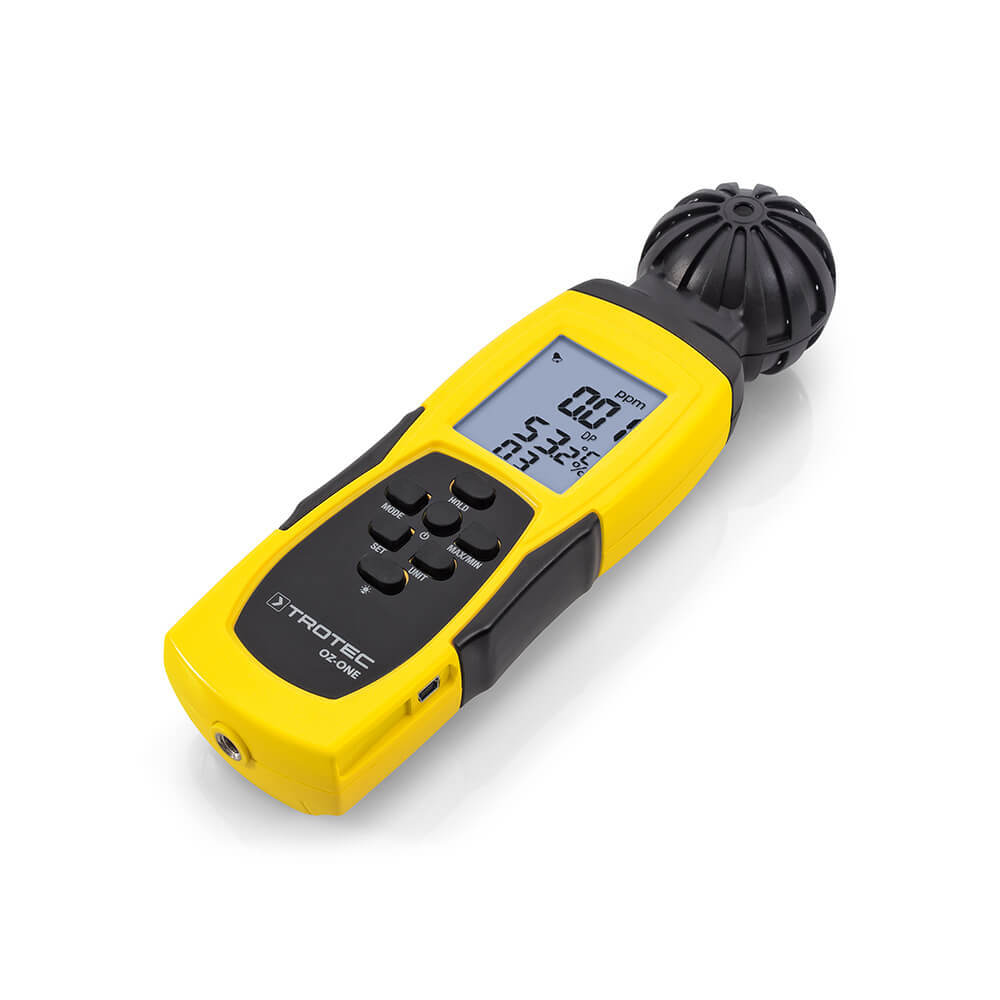

Trotec OZ-ONE – ozone meter
|

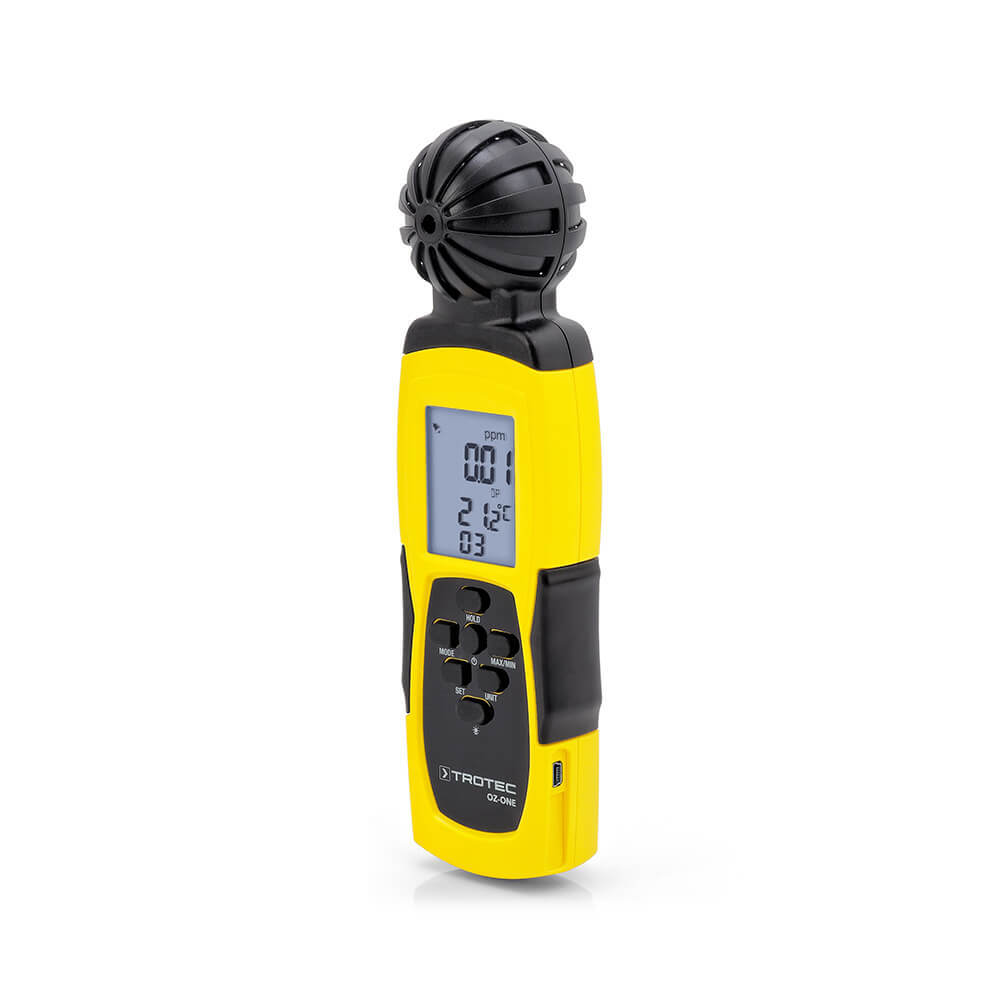

Trotec OZ-ONE – ozone meter
|

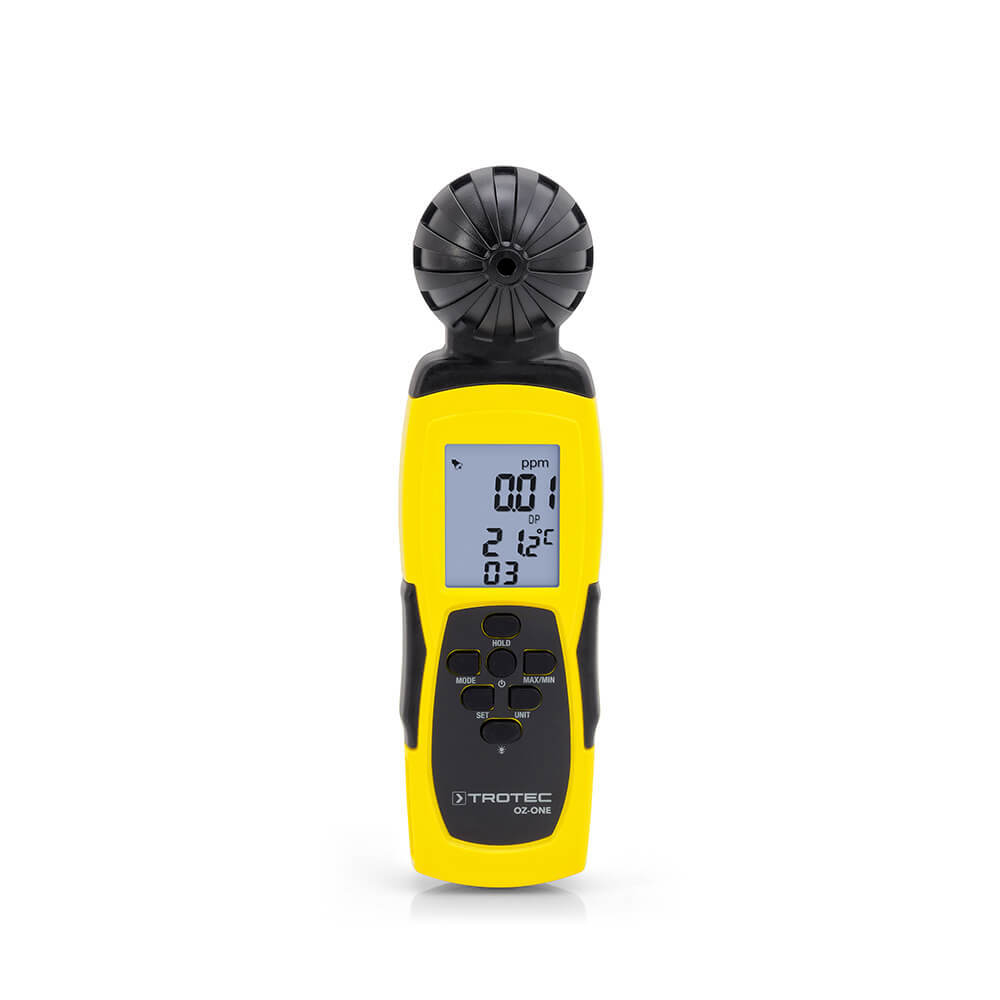

Trotec OZ-ONE – ozone meter
|

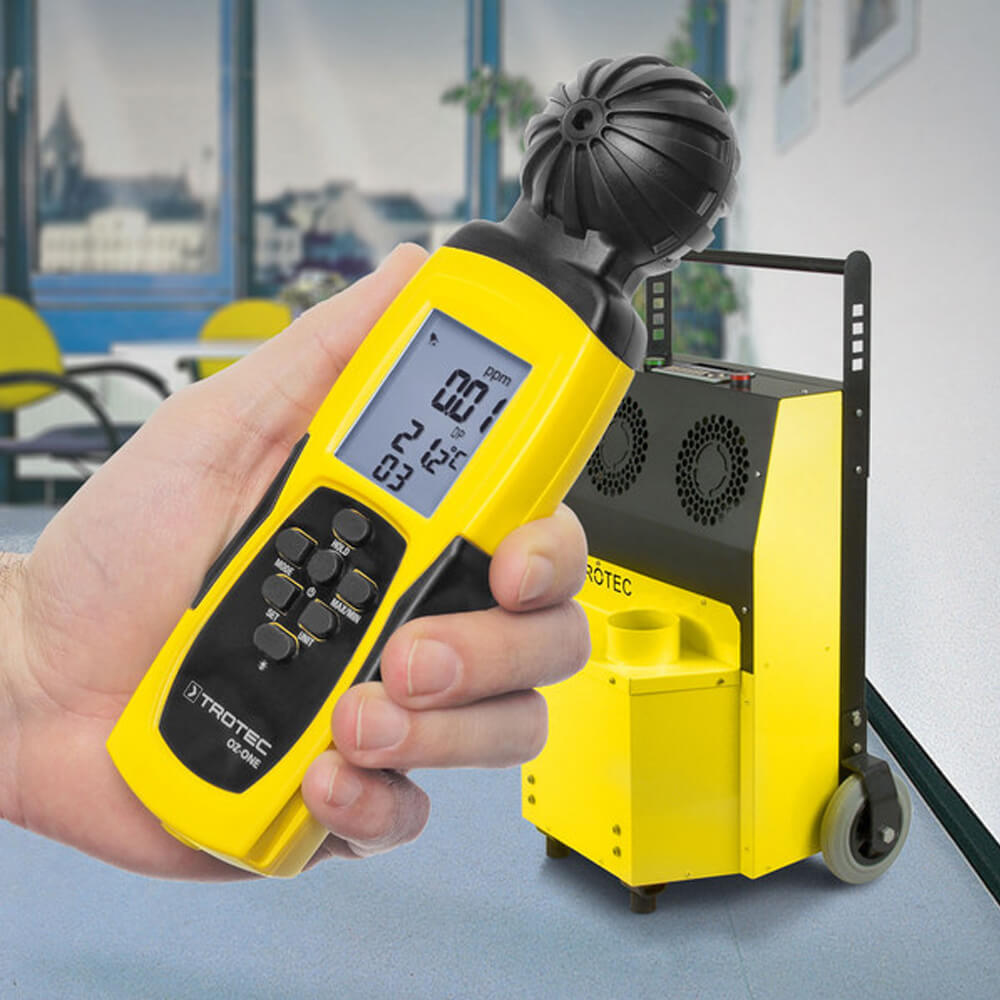

Trotec OZ-ONE – application
|
Key features
- Quick and precise determination even of low ozone concentrations
- Indication of the measured ozone value in ppm or µg/m³
- Fast response time
- Minor cross-sensitivity to VOCs
- Ozone zero adjustment function
- Ozone reference value measurement (STEL/TWA)
- Atmospheric pressure offset for high-precision standard cubic metre measurements
- Measuring air temperature and humidity
- Calculating dew point and wet-bulb temperature
- Offset adjustment for air temperature and humidity
- Data hold, MAX/MIN and alarm function
- Display illumination
- ¼ inch threading for tripod connection
- In addition to battery operation, mains operation for non-stop measurements also permitted
- Energy-saving automatic switch-off
- Incl. calibration certificate
For long-term measurements the OZ-ONE can also be attached to a tripod. In addition, the measuring device houses both a mini USB port and a barrel-type 9 V coaxial power socket. These ports permit a continuous mains operation as alternative to the battery-powered application. Last but not least, to ensure a mobile power supply via the mini USB port the OZ-ONE may also be connected to a powerbank.
Product specifications
| Specifications | Units | OZ-ONE |
|---|---|---|
| Ozon (O3) - Measuring principle | Electrochemical sensor | |
| Ozon (O3) - Measuring range | 0.00 to 1.00 ppm (0 to 1,996 µg/m³ [at 20 °C and 1,013 hPa]) | |
| Ozon (O3) - Accuracy | < 0.1 ppm (< 200 µg/m³): ± 0.02 ppm (± 40 µg/m³) at 25 °C and 1,013 hPa; otherwise ± 10 % | |
| Ozon (O3) - Resolution | 0.01 ppm (1 μg/m³) | |
| Ozon (O3) - Drift | ±2 % / month (This systematic measurement deviation is attributable to the characteristics of the required O₃ sensor technology. Electrochemical sensors are wear products and
subject to a continuous aging process from the date of manufacture. For this reason Trotec uses particularly durable sensors with a typical lifetime of two years
and with a one-year warranty from the date of purchase throughout Europe.) | |
| Air temperature - Measuring range | °C | 0.0 to 50.0 (32 to 122 °F) |
| Air temperature - Accuracy | °C | ±0.6 |
| Air temperature - Resolution | °C | 0.1 |
| Humidity - Measuring range | % RH | 0 to 99.9 |
| Humidity - Accuracy | ± 3 % at 25 °C and 10 to 70 % RH, otherwise ± 5 % | |
| Humidity - Resolution | % | 0.1 |
| Functions | ||
| Minimum/maximum value display | Yes | |
| Hold function | Yes | |
| Reference value measurement | Short-term exposure limit (STEL ¹, 15 min.), time-weighted average(TWA ², 8 h) (¹ Short Term Exposure Limit
² Time Weighted Average) | |
| Display illumination | Yes | |
| Ozone alarm function | Acoustic (limit value can be configured individually) | |
| Adjustable measurement units | °C, °F, ppm, μg/m³ | |
| Dew point calculation | Yes | |
| Wet-bulb temperature calculation | Yes | |
| Zero adjustment function (Zero-Reset) | Ozone | |
| Offset adjustment | Air temperature, humidity level | |
| Equipment | ||
| Display | Backlit monochrome LCD (44 x 33 cm) for the simultaneous indication of two parameters | |
| Tripod connection | ¼ inch | |
| Ports | Mini USB, barrel-type 9 V coaxial power socket | |
| Power supply - internal | 4 x LR03 AAA | |
| Power supply - external | Via mini USB or 9 V power adapter (not included in the scope of delivery) | |
| Product size (l x w x h) | mm | 210 x 60 x 40 |
| Weight | g | 185 |
Suitable for
- Automotive
- Camps and field hospitals
- Commercial buildings
- Industrial, factories and production
- Residential buildings
- Water damage restoration
- Waterworks
