Trotec IC200 – thermal imaging cameras
Thermal imaging cameras
With two different models based on the same construction, Trotec’s IC series always offers you the ideal thermal imaging camera for almost every need:
As an economy-priced professional thermal imaging camera, the IC200 comes equipped with a state-of-the-art 256x192 detector with 49,152 independent temperature measuring spots, each of which records and visualises the current temperature values of the measuring object 25 times per second. A geometric resolution of 3.75 mrad and a thermal sensitivity of 0.1 °C ensure precise thermograms in real time for any measurement situation up to temperature measuring ranges of +550 °C.
Owing to the high refresh rate not one picture is omitted, thus not leaving out any important thermographic information, and every thermal image is displayed in real time.
For more information, please click on the catalogue.

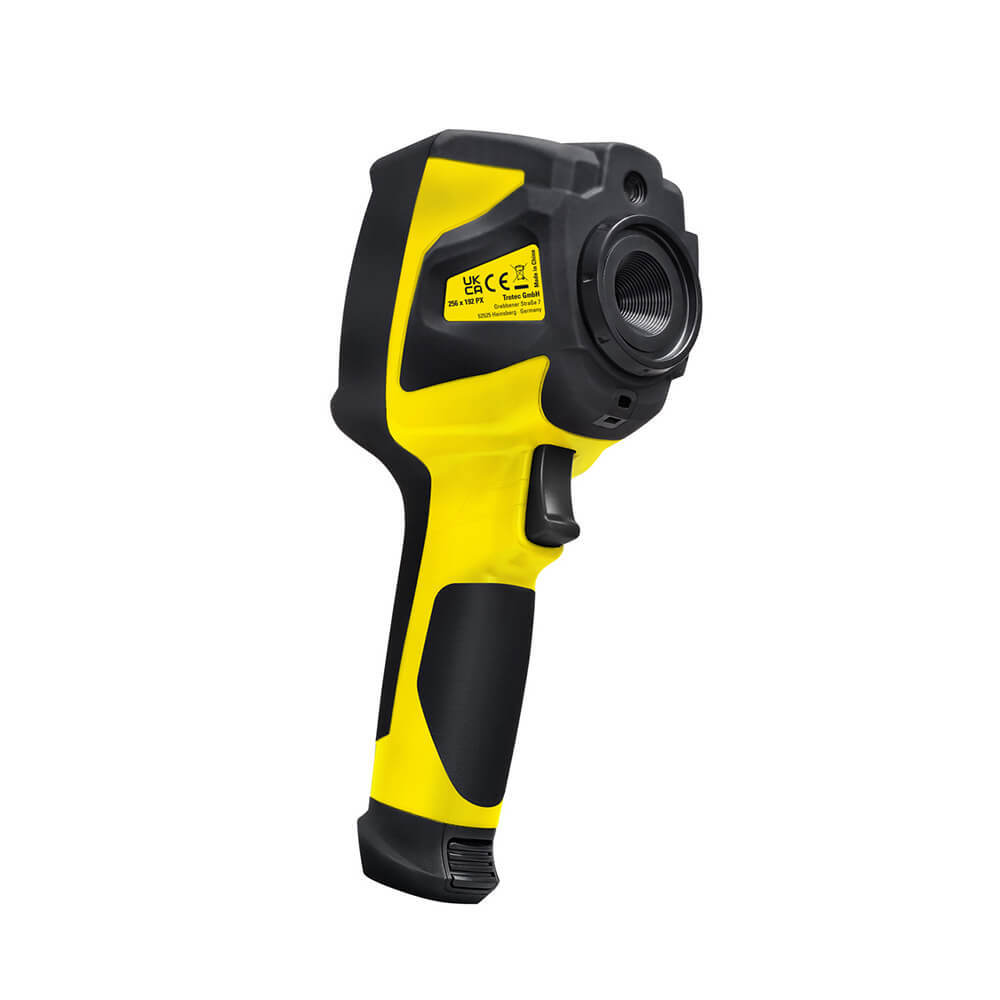

Trotec IC200 – thermal imaging cameras
|

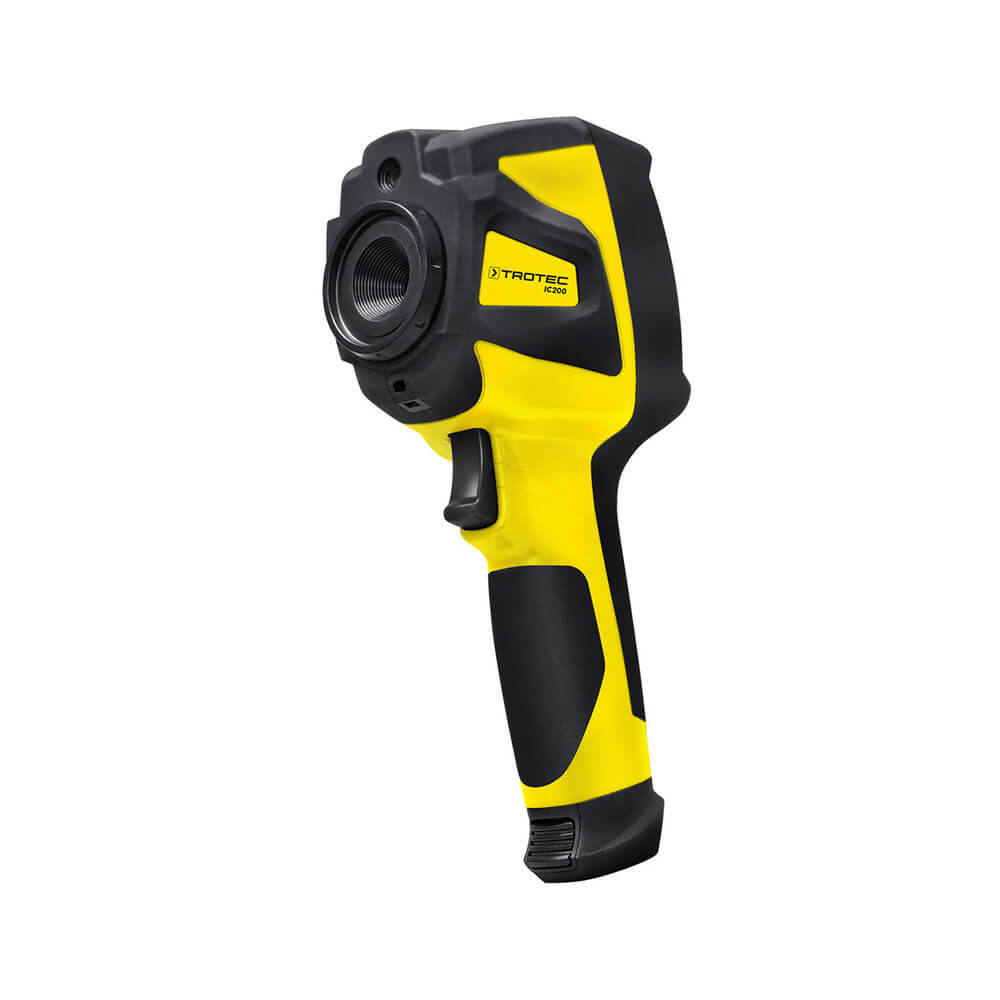

Trotec IC200 – thermal imaging cameras
|

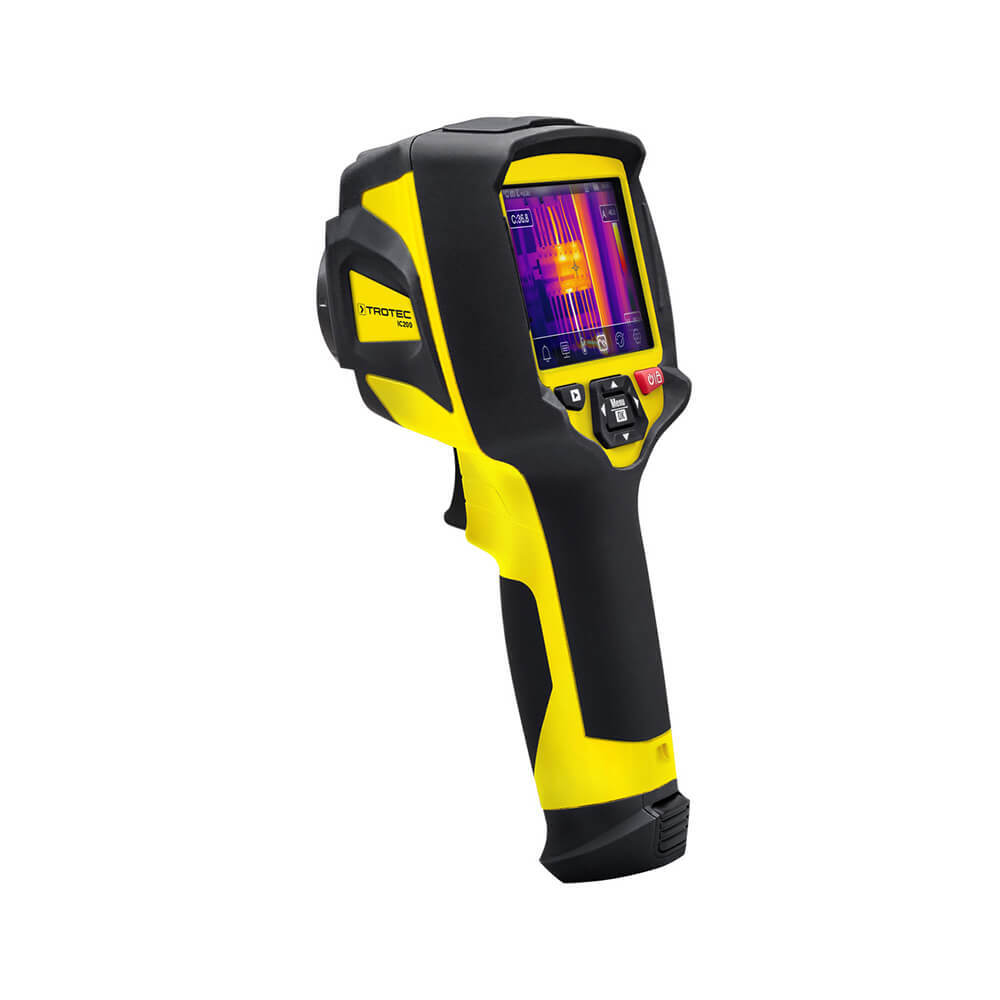

Trotec IC200 – thermal imaging cameras
|

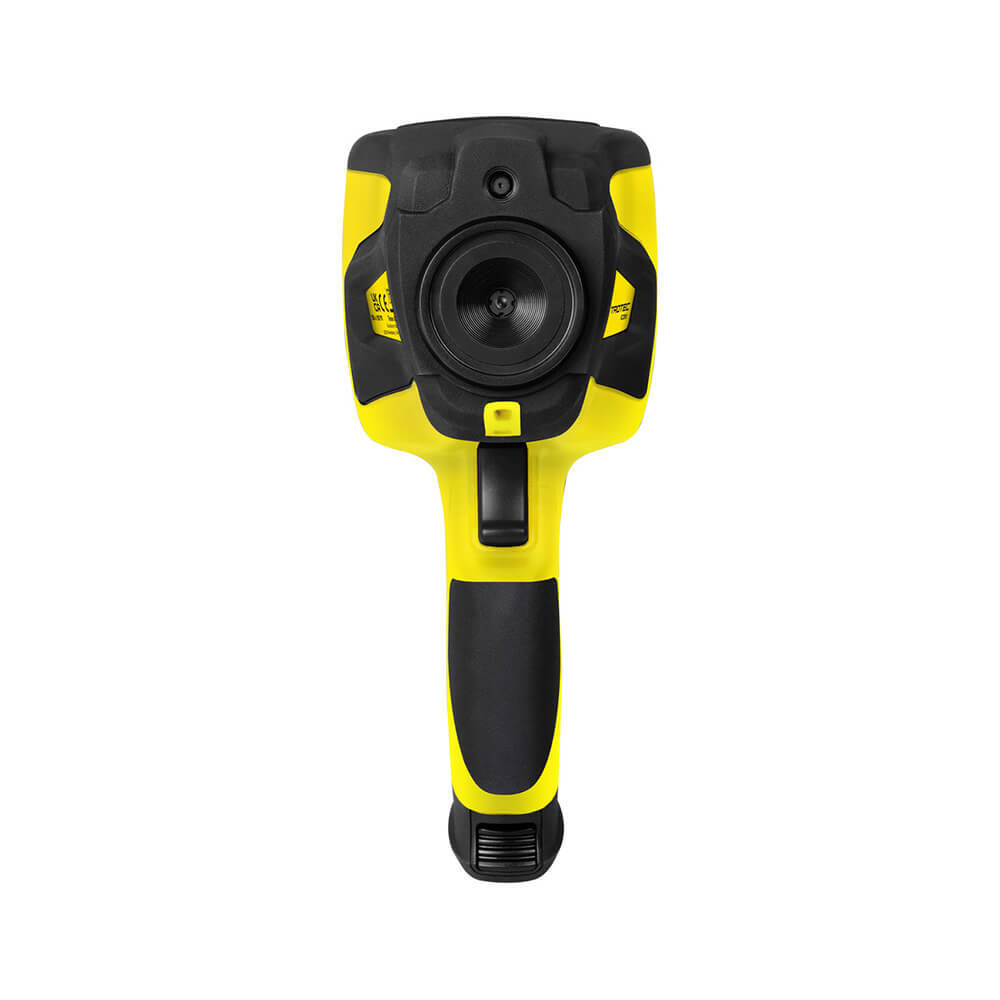

Trotec IC200 – thermal imaging cameras
|
Trotec IC200 – thermal imaging cameras
|

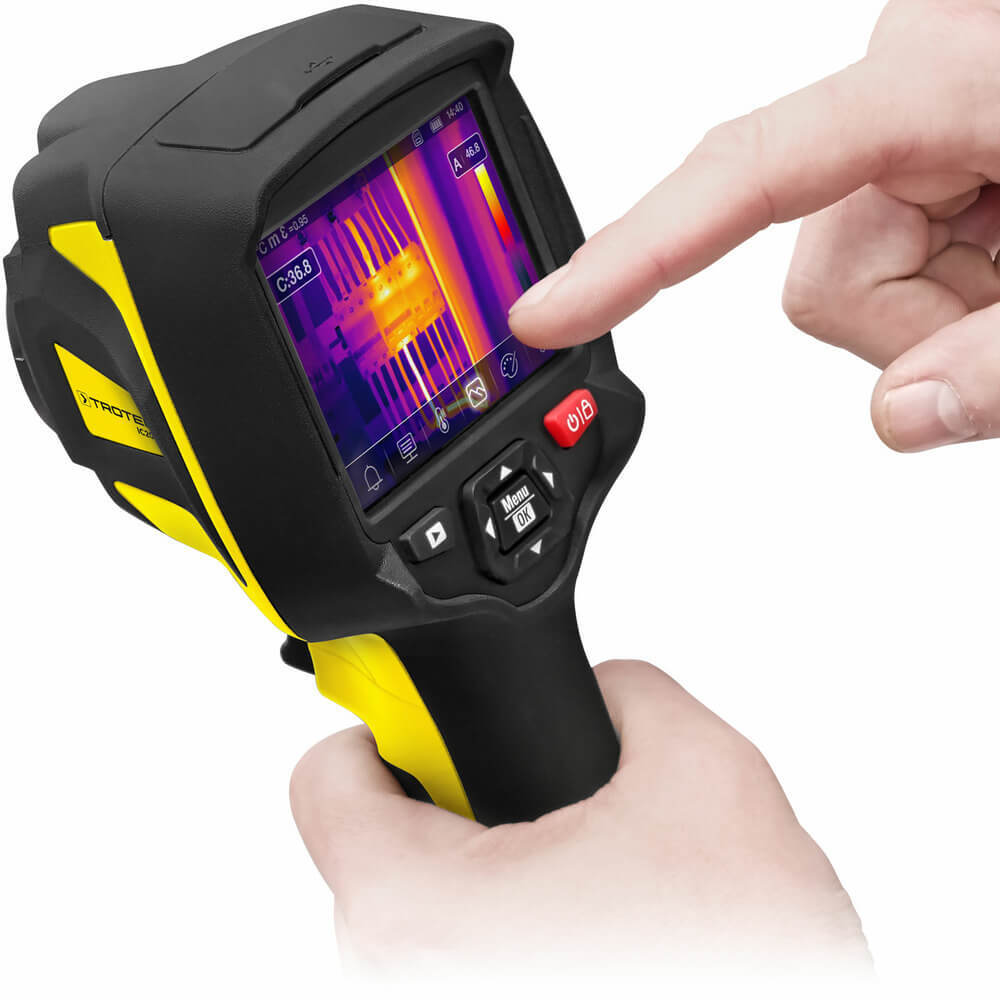

Trotec IC200 – display
|
Trotec IC200 – thermal imaging cameras
|

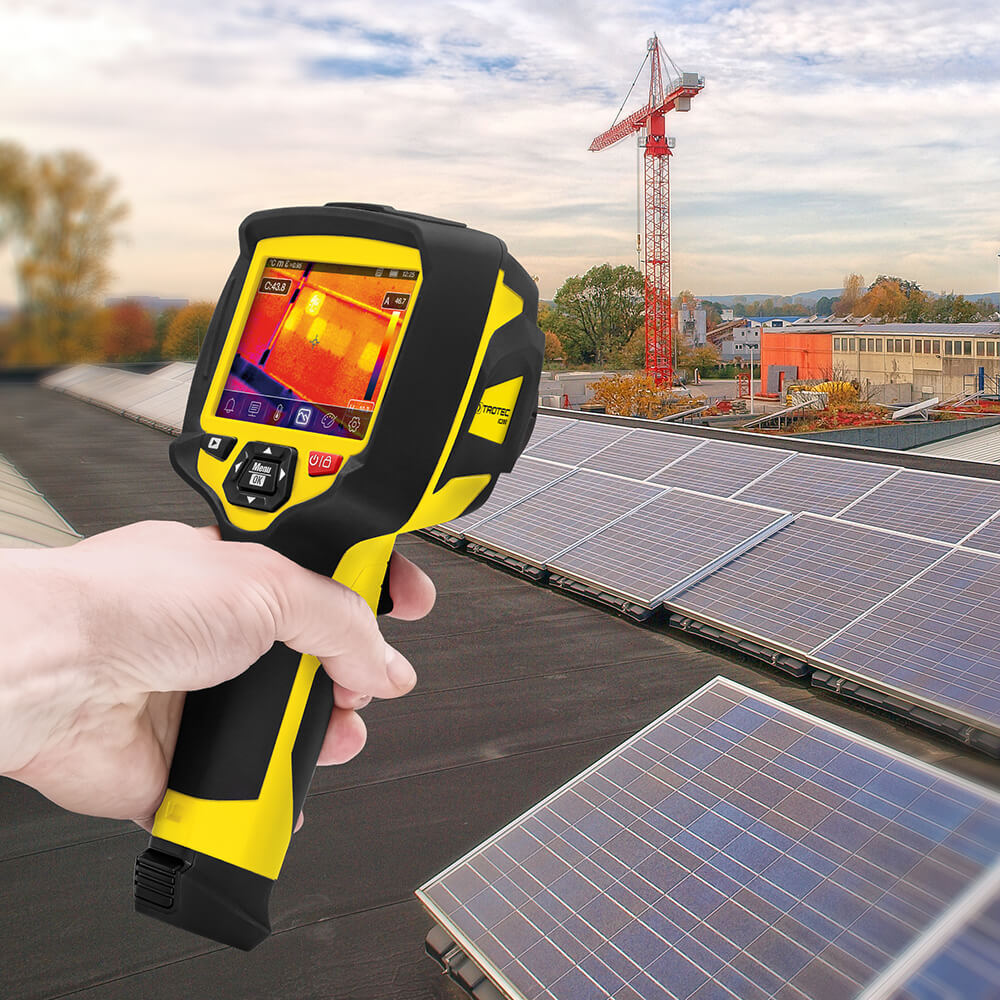

Trotec IC200 – application
|
Key features
- Fully radiometric IR camera – precise temperature measurement in the entire picture
- Real-time measurement and real-time image display ensure clear thermal images of high quality
- High thermal sensitivity
- High geometric resolution
- 3.5-inch touchscreen
- Integrated digital camera for real images
- Stepless 1–16x digital zoom
- Dual key touchscreen control
- DuoVision Plus function for combined display of infrared and real image as contour-accentuated detail-enhanced thermogram
- Robust, shock-protected design in two-component construction with IP54 type of protection
- Diverse measuring functions
- Data transmission via USB
- High-quality analysis software included in the scope of delivery (download)
Product specifications
| Specifications | Units | IC 200 |
|---|---|---|
| Measurement | ||
| Temperature range | °C | -20 to +550 |
| Accuracy | +2 °C or +2 % of the measured value (ambient temperature 10 °C to 35 °C, object temperature >0 °C) | |
| Radiometric image performance | ||
| Detector type | Focal Plane Array (FPA), uncooled microbolometer | |
| Detector resolution | pixels | 256 x 192 |
| Spectral range | μm | 8 to 14 |
| Field of vision (FOV) | ° | 56 x 42 |
| Geometric resolution | mrad | 3.75 |
| Thermal sensitivity | °C | <0.1 at 30°C |
| Refresh rate | Hz | 25 |
| Focus / min. focus distance | m | fixed / 0.5 |
| Visual image performance | ||
| Digital photo camera | megapixels | 2 |
| Field of vision (FOV) | ° | 65 |
| Image representation | ||
| Display | 3.5-inch LCD touchscreen | |
| Zoom | 16x infinitely variable digita | |
| Image display | Pseudo colours, 8 colour palettes | |
| Image display options | IR image, real image, DuoVision Plus display (overlay of infrared and real images in random intensities), DuoVision Plus display (fusion of infrared and real image as contour-accentuated detail-enhanced thermogram) | |
| Measurement and analysis | ||
| Measuring spots | 4 (3 x manual, 1 x centre spot) | |
| Measuring functions | Isotherm, line profile analysis, sector analysis (rectangle), various alarm functions, Min/Max temperature tracking (hot/cold spot), differential measurements at up to 3 temperature measuring points | |
| Area measurement | 3 areas | |
| Degree of emission | User-defined variably adjustable from 0.01 to 1.0 | |
| Measurement correction | Correction of the reflected object temperature; automatic correction based on user-defined specifications for ambient temperature, distance and relative humidity | |
| Data storage | ||
| Memory | 3.4 GB internal eMMC memory (plus additional 16 GB via microSD card) | |
| File format | Radiometric image: HIR (proprietary); visual image: JPEG; non-radiometric thermographic video: MPEG-4 | |
| Data storage / transmission | Storage of non-radiometric IR videos (MPEG-4) as well as radiometric and real images on internal memory or external microSD card; storage of fully radiometric IR videos on PC via USB | |
| Interfaces | USB type C, Wifi 802.11 | |
| Power supply | ||
| Battery type | Li-ion battery (2,600 mAh); rechargeable, exchangeable | |
| Operating time | h | ≈ 4 |
| Mains power | V/A | 5/2.4 |
| Energy saving mode | User-defined | |
| Ambient conditions | ||
| Temperature | °C | -15 to +50 (operation), -40 to +70 (storage) |
| Humidity | % RH | 10 to 90 (non-condensing) |
| Type of protection / shock / vibration | IP54 / 25G / 2G | |
| Impact resistance (falling from) | m | 2 |
| Physical characteristics | ||
| Product size (l x w x h) | mm | 96 x 77 x 224 |
| Weight | g | 500 |
| Tripod connection | inch | ¼ |
| Standard lens | ° | 56 x 42 |
Suitable for
- Automotive
- Commercial buildings
- Construction
- Data centres and telecoms
- Emergency services
- Energy and renewables
- Heritage sites
- Military and aerospace
- Pharmaceutical and scientific
- Residential buildings
- Water damage restoration
