Trotec DH 160 – condensation dehumidifier

Large-capacity floor-standing dehumidifiers
Trotec top badge

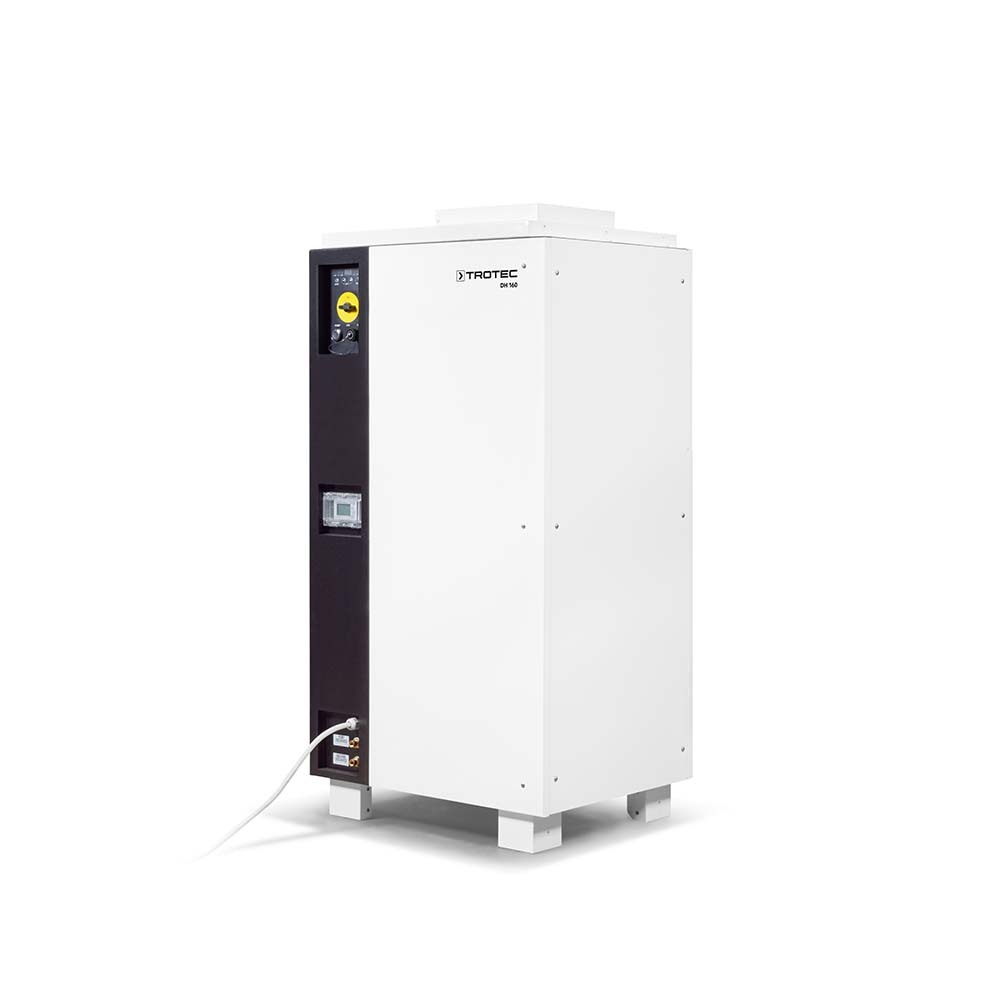

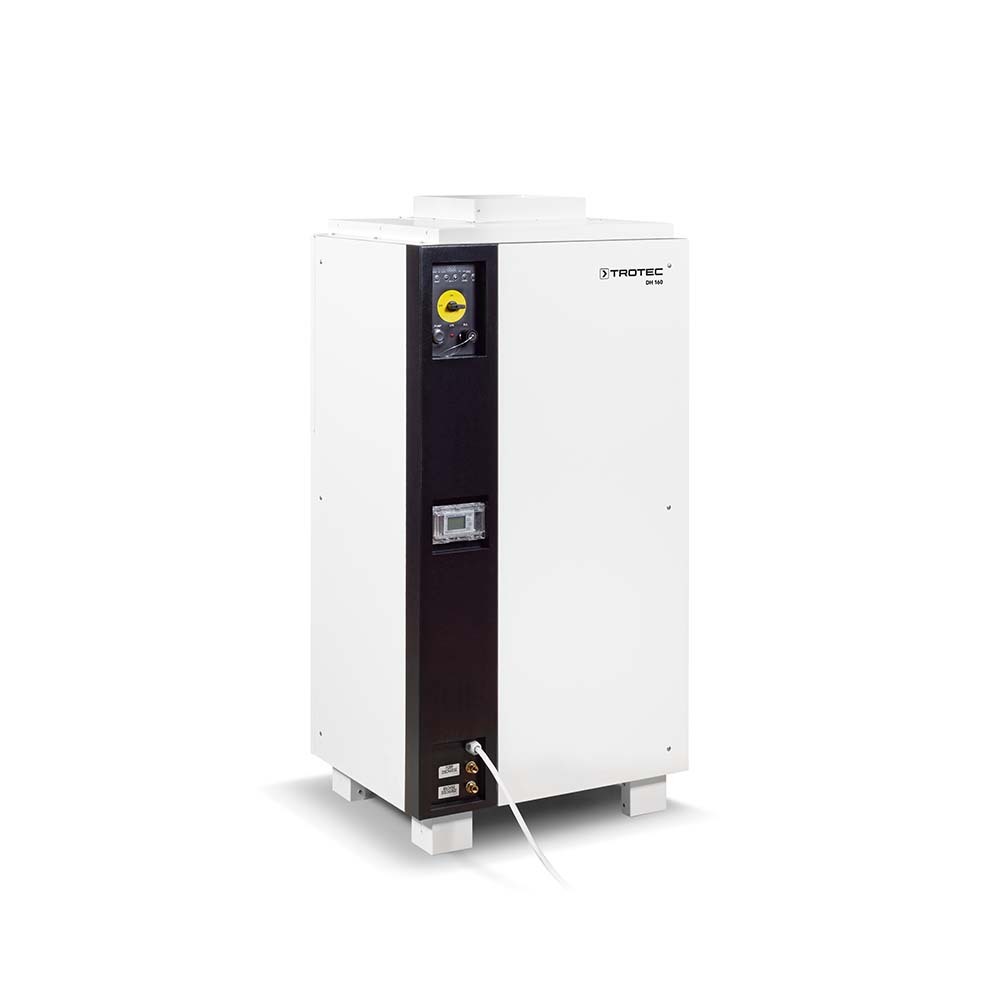

Trotec DH 160 condensation dehumidifier
Trotec DH 160 condensation dehumidifier
Trotec DH 160 condensation dehumidifier
Trotec DH 160 condensation dehumidifier

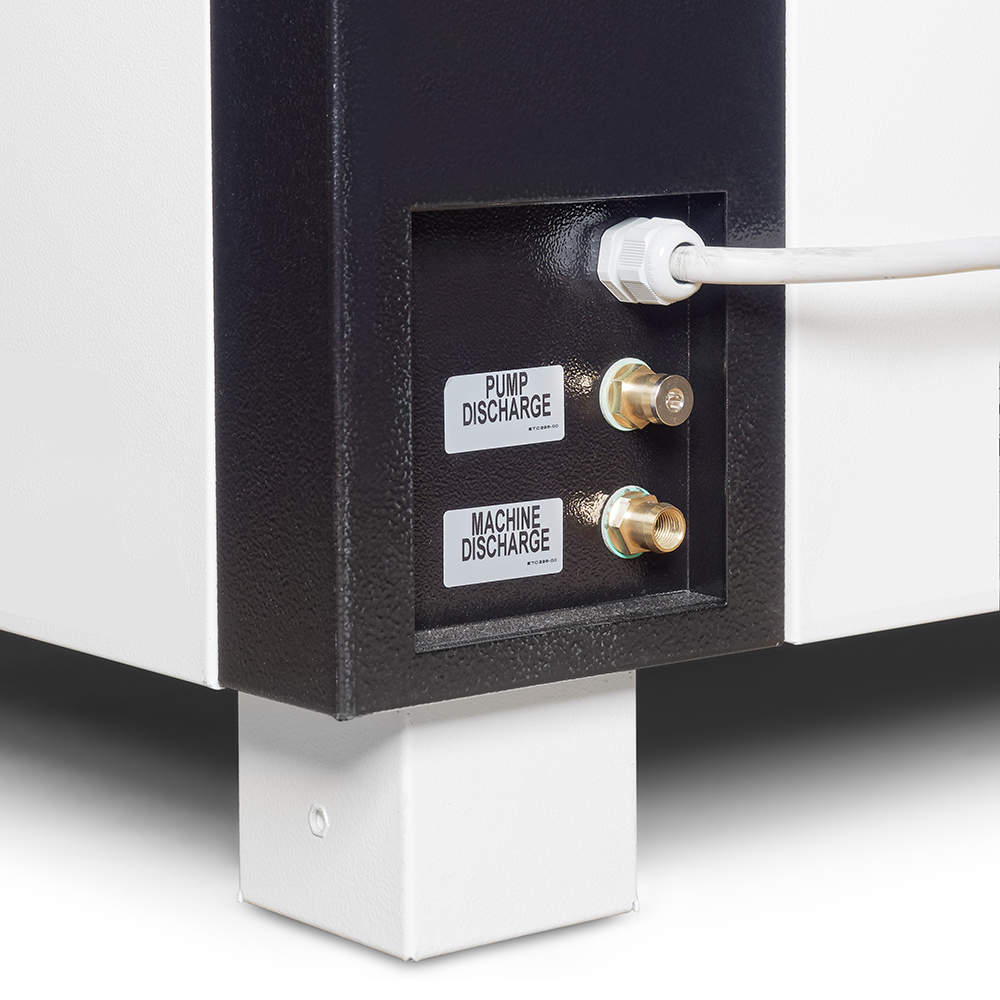

Trotec DH 160 hose connection
Trotec DH 160 hose connection

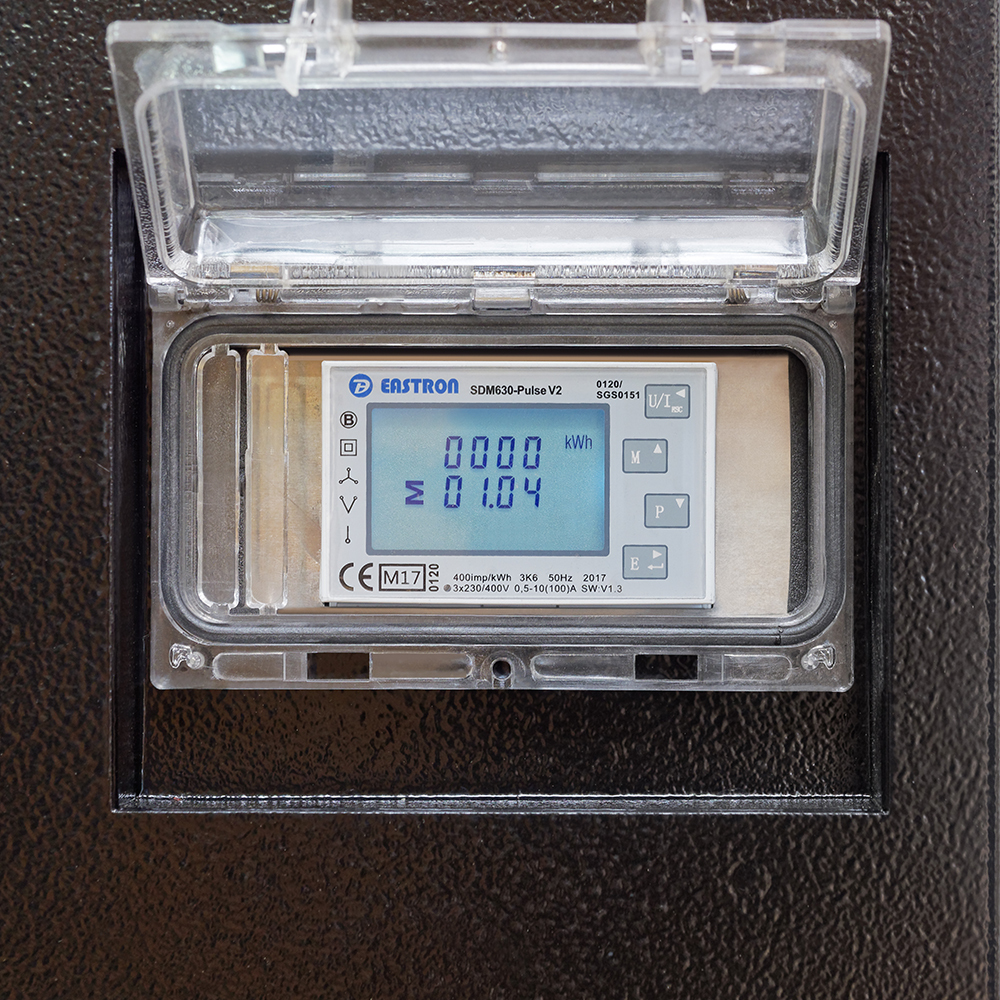

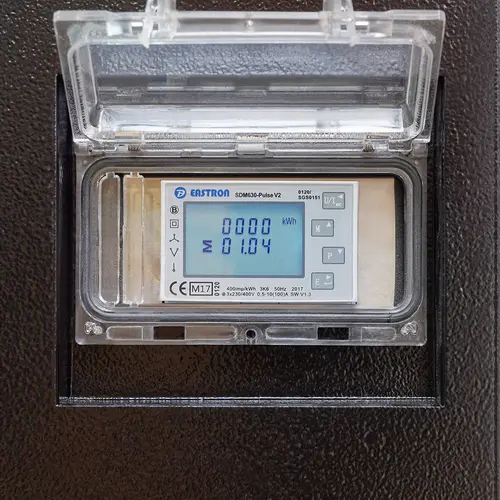

Trotec DH 160 MID
Trotec DH 160 MID

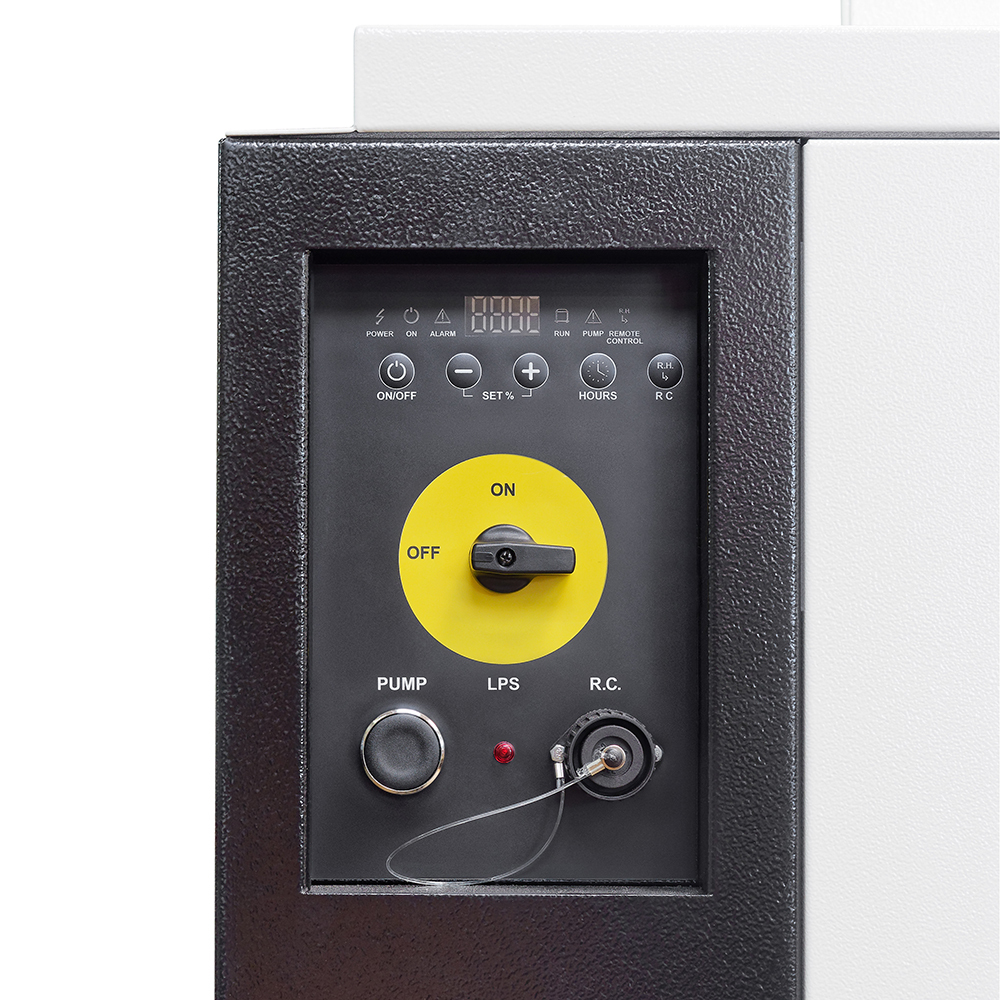

Trotec DH 160 control panel
Trotec DH 160 control panel

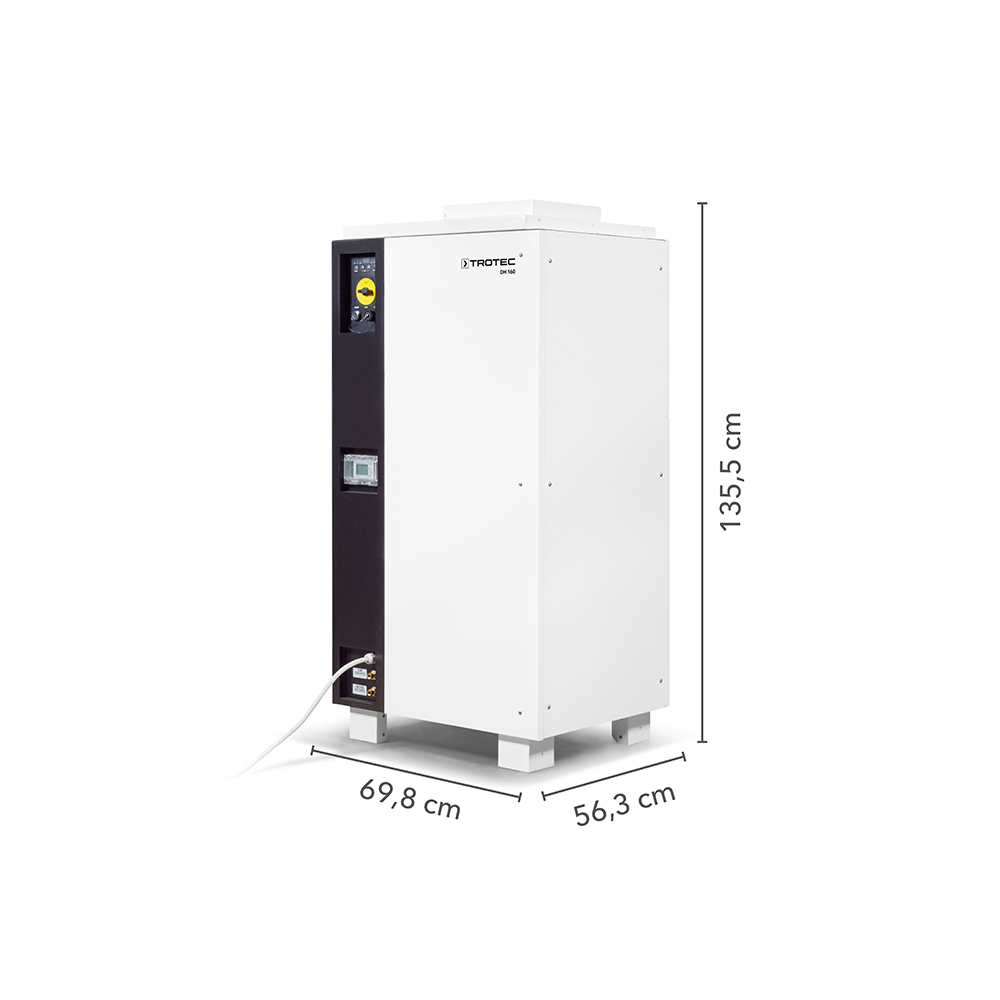

Trotec DH 160 dimensions
Trotec DH 160 dimensions

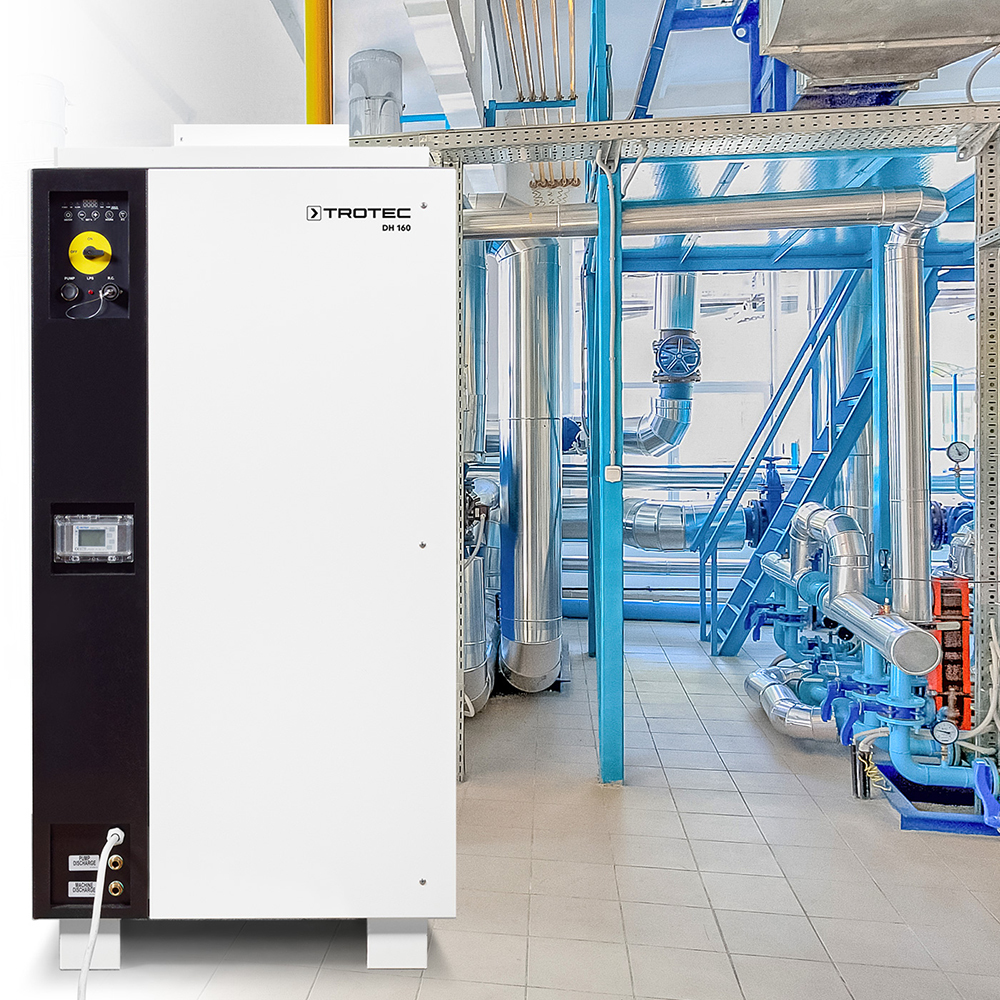

Trotec DH 160 waterworks
Trotec DH 160 waterworks

The DH 160 is a versatile dehumidifier designed for continuous use in commercial and industrial applications. With a maximum dehumidifying capacity of 245 litres per day it is suitable for maintaining low humidity levels in control centers, warehouses, pump stations, and various other settings. The DH 160 features a high dehumidification capacity, reliable operation, and flexibility in installation options. It is energy-efficient with a scroll compressor and EC radial fan. The unit includes an integrated condensate pump for easy discharge. It effectively reduces humidity, simultaneously heating the air, and has a high coefficient of performance (COP). The DH 160 is suitable for a wide range of applications and can be customized to meet specific needs.

Contact our team to discuss which commercial condensation dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

Interested?

Key features

  • High dehumidification performance even at low temperatures
  • Robust and corrosion-protected design
  • Fully automatic operation
  • Automatic hot gas defrost system
  • Optional defrosting down to -0.5 °C for cold stores
  • Self-regulating stepless EC double-flow radial fan
  • Reduces energy needs for separate heating
  • DIN socket for external equipment
  • Integrated condensate pump
  • Energy consumption meter, MID-compliant
  • Stainless steel housing option

Product specifications

Dehumidification performance @ 30°C/80% RH

245
l/24h


Air flow rate

2,200
m³/h


Operating temperature range

1.5 - 42
°C


Operatin range humidity max.

95
% RH


Power supply

400/3ph/50
V/Hz


Nominal current consumption

9.5
A


Power input

3.5
kW


Starting current

50
A


Refrigerant

R407c
Type


Quantity of refrigerant

2,250
g


Fan

Radial


Compressor

Scroll compressor


Defrosting

Hot gas


Sound level @3m

59
dB(A)


Product size (l x w x h)

560 x 700 x 1355
mm


Weight

150
kg


Condensate discharge connection

16
Ømm


Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.
