Trotec BX50 MID – energy cost measuring device

Professional measuring device

The Trotec BX 50 MID is a professional-grade energy cost measuring device that is designed to help businesses and organisations track their energy usage and costs. It features advanced technology and high-quality components to ensure accurate and reliable measurements. The BX 50 MID is ideal for use in commercial and industrial settings where energy costs can be a significant expense. It features a user-friendly design and is easy to operate and maintain. With its advanced features and reliable performance, the BX 50 MID is the perfect choice for businesses and organisations looking to optimise their energy usage and reduce costs.

For more information, please click on the catalogue.

Trotec BX50 MID measuring device
Trotec BX50 MID – energy cost measuring device

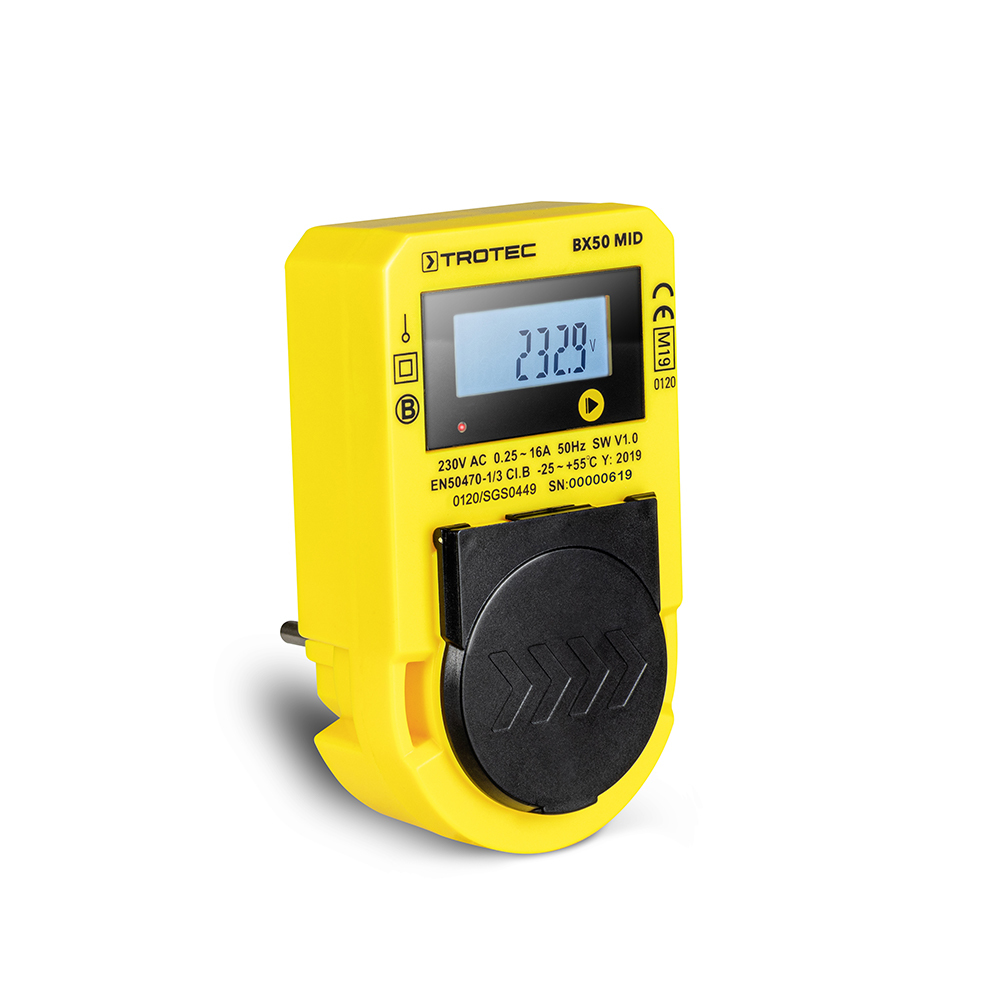

Trotec BX50 MID main right
Trotec BX50 MID – energy cost measuring device
Trotec BX50 MID front
Trotec BX50 MID – energy cost measuring device
Trotec BX50 MID side
Trotec BX50 MID – energy cost measuring device

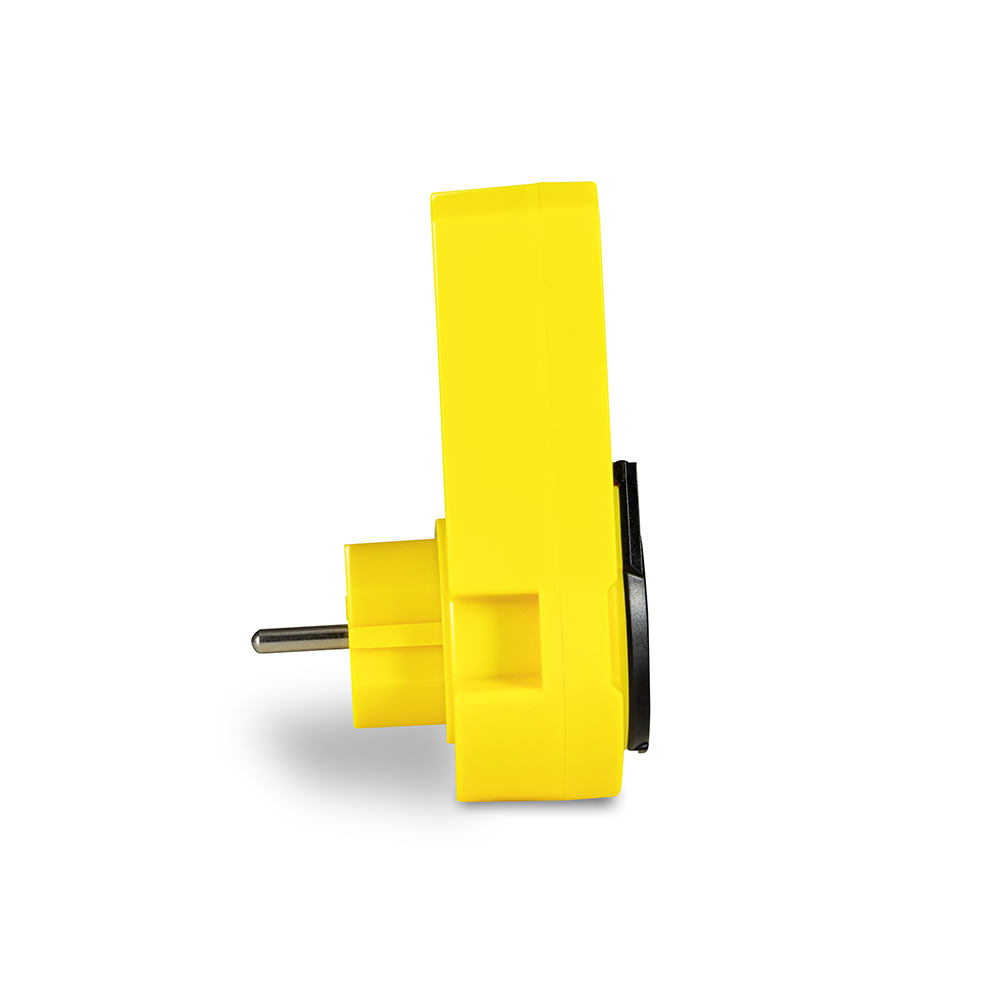

Trotec BX50 MID 2side 2
Trotec BX50 MID – energy cost measuring device

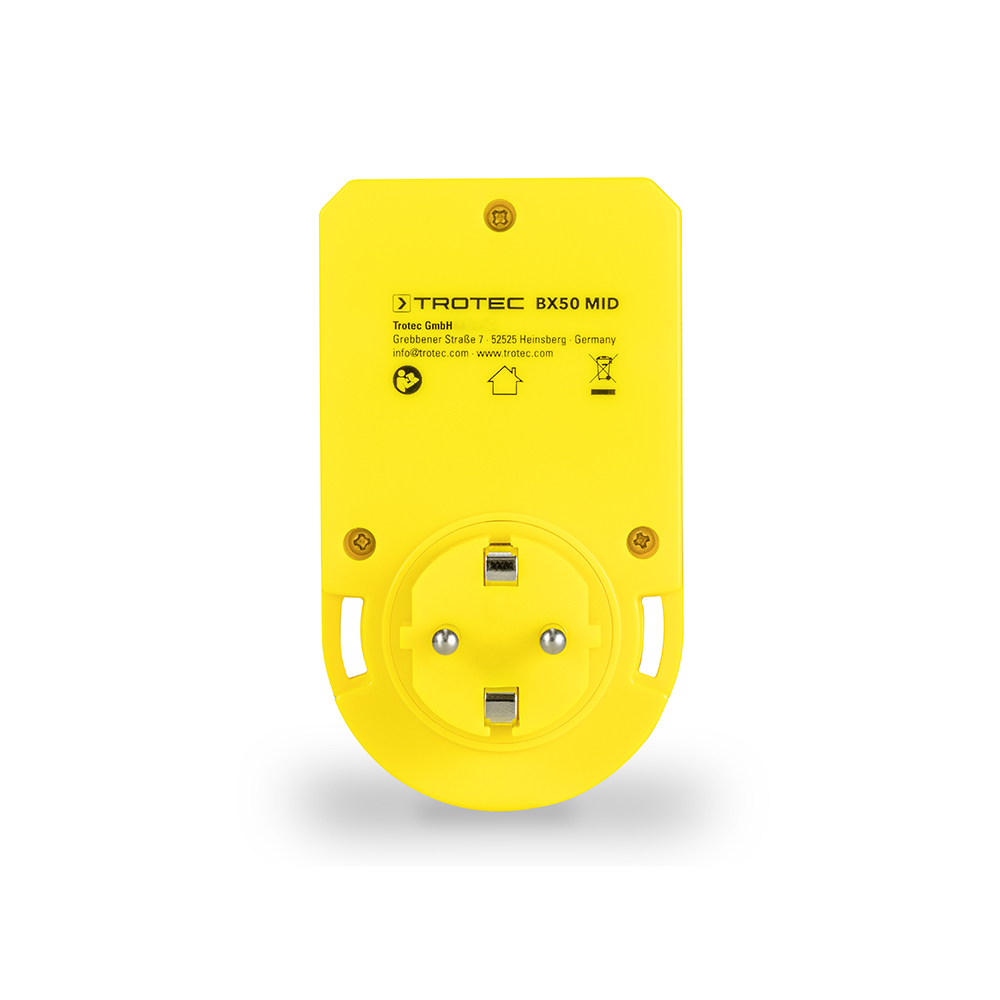

Trotec BX50 MID back
Trotec BX50 MID – energy cost measuring device

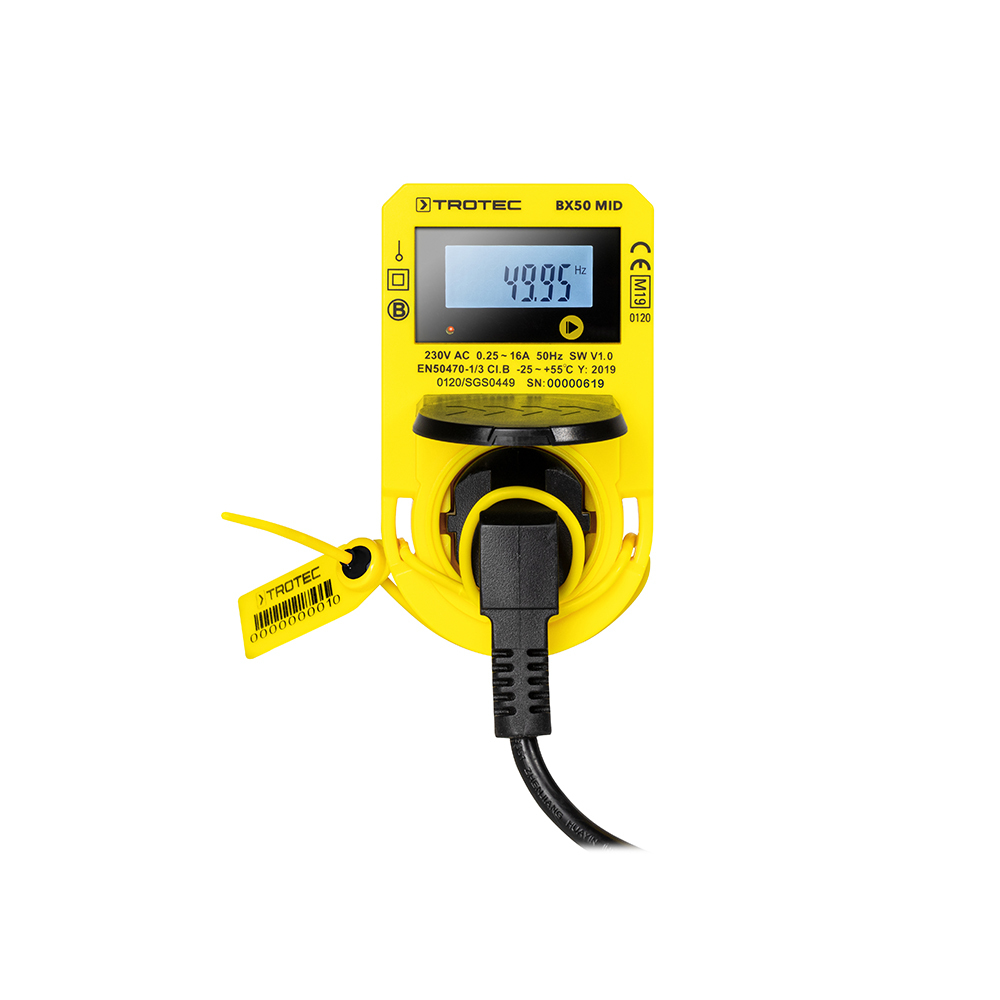

Trotec BX50 MID front socket 1
Trotec BX50 MID – energy cost measuring device
BX50 MID application
Trotec BX50 MID – application

Key features

  • Professional measuring device for quickly and easily recording the energy requirement of electricity consuming appliances
  • Bidirectional measurement – ideally for precise feed-in calculations for balcony power plants
  • MID-compliance* – approved for the commercial determination of the energy consumption for billing purposes
  • Sealing slots for safeguarding the plugs in compliance with the Weights and Measures Act (MessEG)
  • Tamper-proof total consumption meter
  • Resettable daily consumption meter
  • Socket outlet with spring-loaded flap lid to provide protection against pollution when it is not used

Product specifications

SpecificationsUnitsBX50 MID
Active power meter
MID-certified, non-resettable
Measuring range
W
57.5 to 3,680
Maximum performance
W/A
3,680/16
AC voltage
V
176 to 276
Input voltage
V/Hz
230, AC/50
Consumption measurement
kWh
0 to 999,999.9
Ambient conditions
°C
-25 to 55
Measuring category
CAT II (600 V)
Insulation
Protection class II
Accuracy class
Class 1 IEC 62053-21, Class B EN 50470-1/3
Type of protection
IP54
Measured values
Power [W], AC voltage [V/AC], alternating current [A/AC], frequency [Hz],, power factor [cos Ф], display electricity production [W], display absolute production [kWh], display power consumption [W], display showing the absolute consumption [kWh]
Functions
Digital display of voltage (V), power (W), current (A), frequency (Hz), power factor (cos Ф), max. electricity demand (W) and absolute consumption (kWh), tamper-proof total consumption meter (production / consumption), resettable daily consumption meter (production / consumption), fail-safe, display illumination
Power supply
Via mains voltage
Product size (l x w x h)
mm
77 x 63 x 118
Weight
g
155

Suitable for

  • Commercial buildings
  • Construction
  • Energy and renewables
  • Rental companies
  • Water damage restoration
