Master SP 30-60 – indirect oil-fired heaters
Air heating systems with indirect oil burners
The SP 30 and SP 60 are fixed air heaters, fitted as standard with a pre-set oil burner and a 4-sided supply air plenum with directional fins.
The quality of their components and finish make them top-of-the-range generators.
Compact in size, the SP 30 and SP 60 are designed to be connected to an independent oil storage tank. They are ideally suited to heating or frost-proofing garages, workshops, warehouses and livestock buildings, with volumes ranging from 2,700m³(SP 30) to 6,000m³(SP 60).
View all of our indirect oil fired air heaters and other types of portable commercial heaters to meet your required applications.

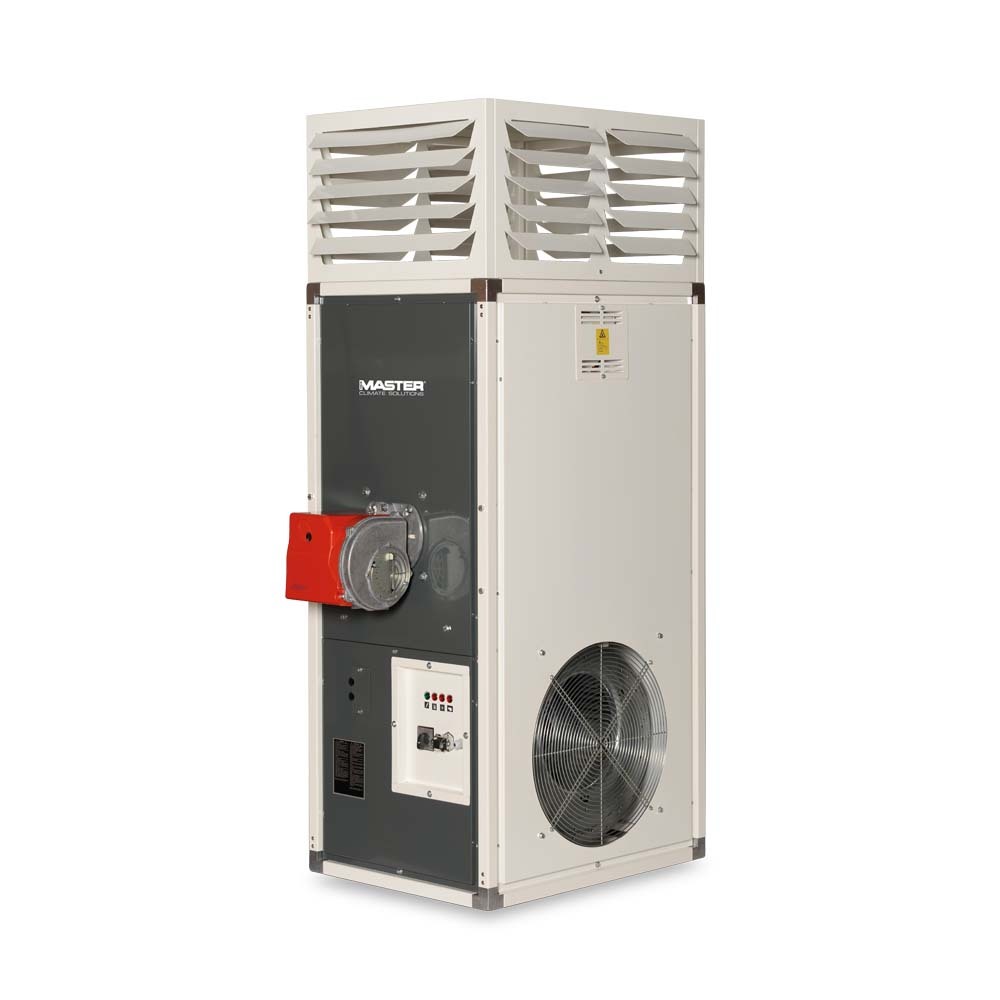

Master SP 40
|

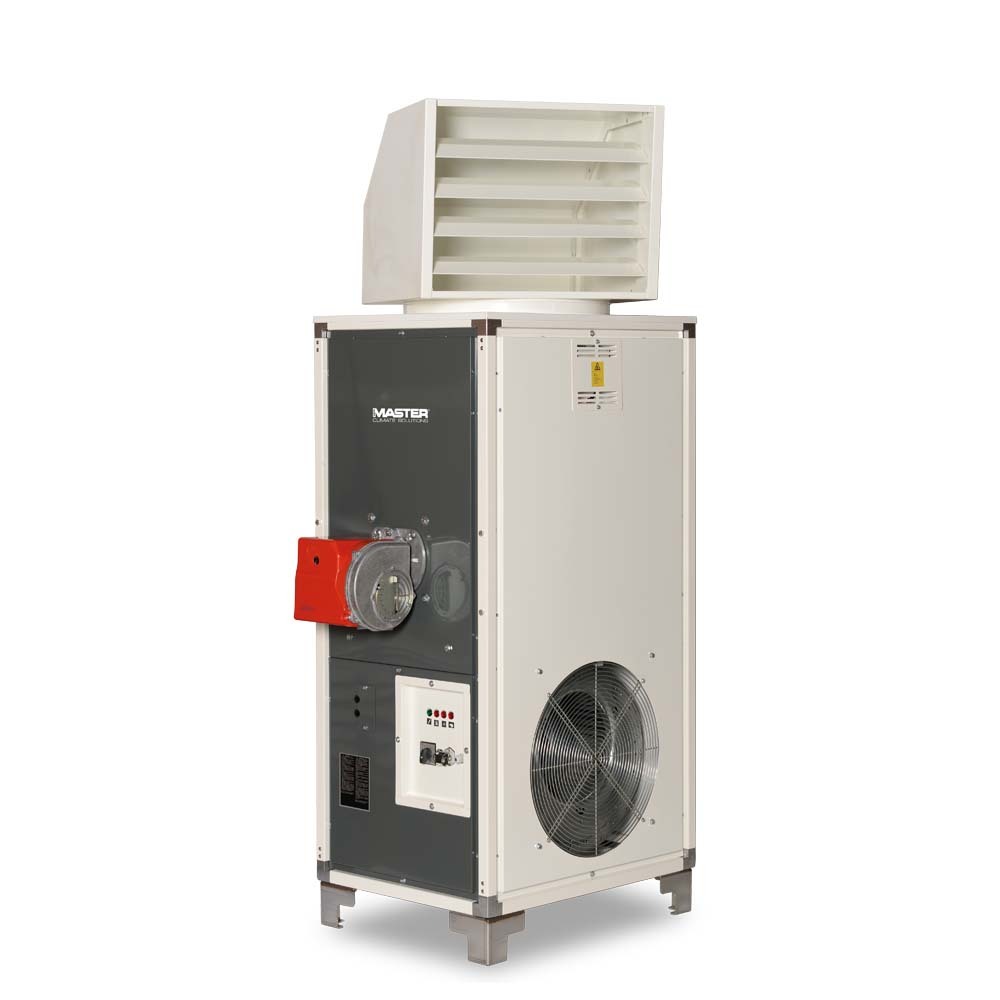

Master SP indirect oil fired heater
|

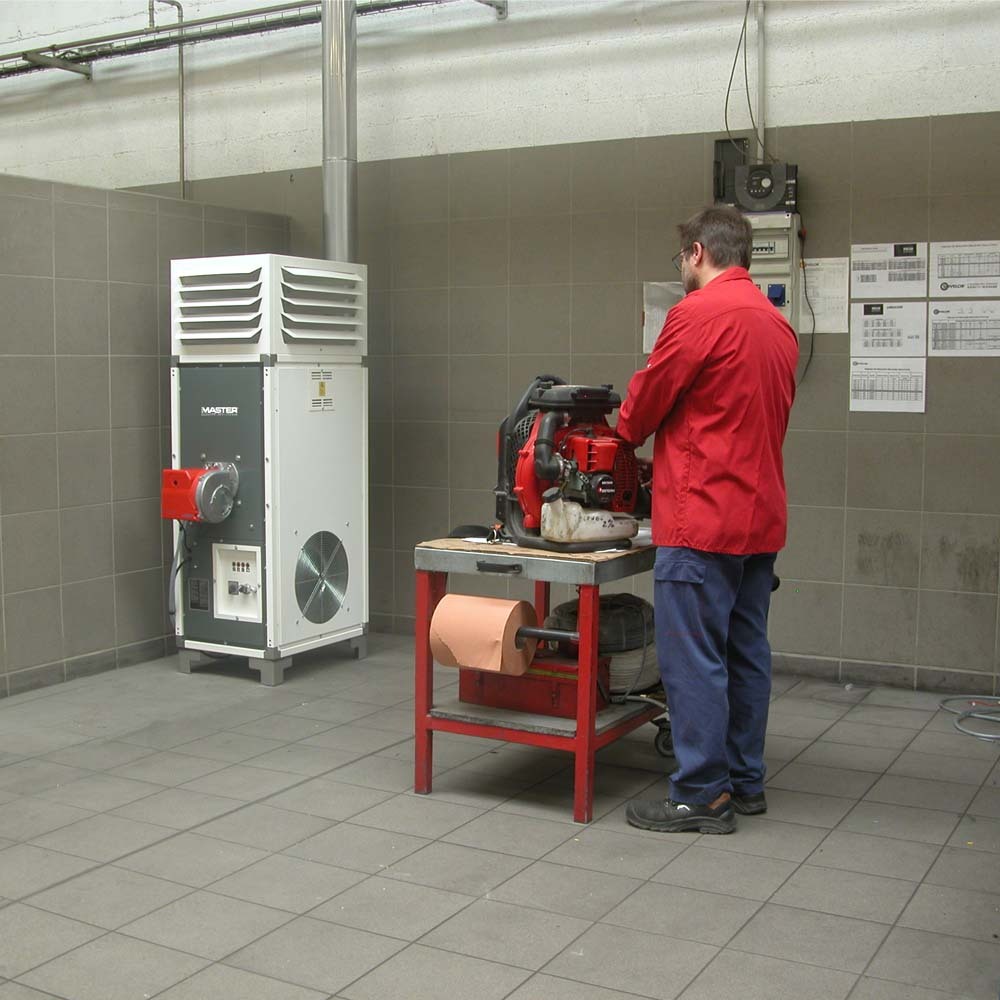

Master SP heater workshop
|
Key features
- Large built-in oil tank as standard
- 4-sided supply plenum with directional vanes
- Complete tubular structure for high rigidity
- Stainless steel combustion chamber with high efficiency heat exchanger
- Integrated control panel with protection, indicator lights and selector switch
- Body panels with reinforcement
- High-pressure centrifugal fan with dual intake
- Summer-winter switch for ventilation only
- Ideally suited to heating garages, workshops, warehouses, livestock buildings, etc. or keeping them frost-free
- Can run on HVO100 biofuel, diesel or kerosene
Product specifications
| Specifications | Units | SP 30 |
|---|---|---|
| Heating power | kW | 27.55 |
| Air flow | m³/h | 2,700 |
| Performance | % | 93.9 |
| Fuel consumption | kg/h | 2.18 |
| Air pressure | Pa | 150 |
| Power supply | V/Hz | 230/1ph/50 |
| Electric power | W | 690 |
| Chimney connection diameter | Ømm | 153 |
| Product size (l x w x h) | mm | 511 x 935 x 1605 |
| Weight | kg | 115 |
| Specifications | Units | SP 60 |
|---|---|---|
| Heating power | kW | 59.53 |
| Air flow | m³/h | 6,000 |
| Performance | % | 93.6 |
| Fuel consumption | kg/h | 4.7 |
| Air pressure | Pa | 150 |
| Power supply | V/Hz | 230/1ph/50 |
| Electric power | W | 1,360 |
| Chimney connection diameter | Ømm | 153 |
| Product size (l x w x h) | mm | 580 x 955 x 1800 |
| Weight | kg | 153 |
Suitable for
- Commercial buildings
- Industrial, factories and production
- Transport and logistics
- Warehouses and storage
