SET 1501-2501-3501 T – swimming pool dehumidifiers
Wall-mounted/floor-standing swimming pool dehumidifiers
The wall-mounted or floor-standing optional condensation dehumidifiers have been designed to blend well with any modern pool interior. Offering energy-efficient and near-silent humidity control, the units were conceived with a view to quality and ease of operation. Combined with highly efficient fans and compressors, the advanced remote control and monitoring options contribute to cost-efficient operation and significant energy savings.
View our swimming pool dehumidifier range or see other portable and wall mounted dehumidifiers suitable for multiple applications.

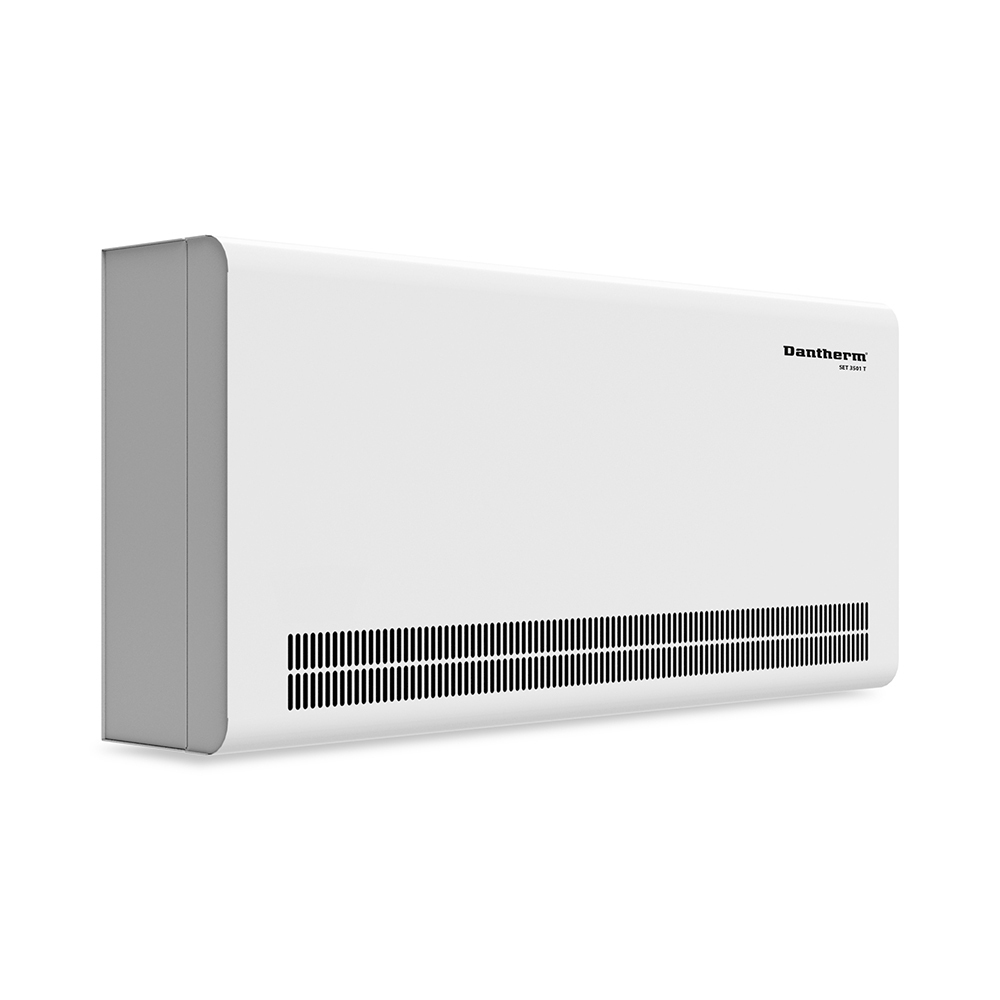

SET 3501 T – swimming pool dehumidifiers
|

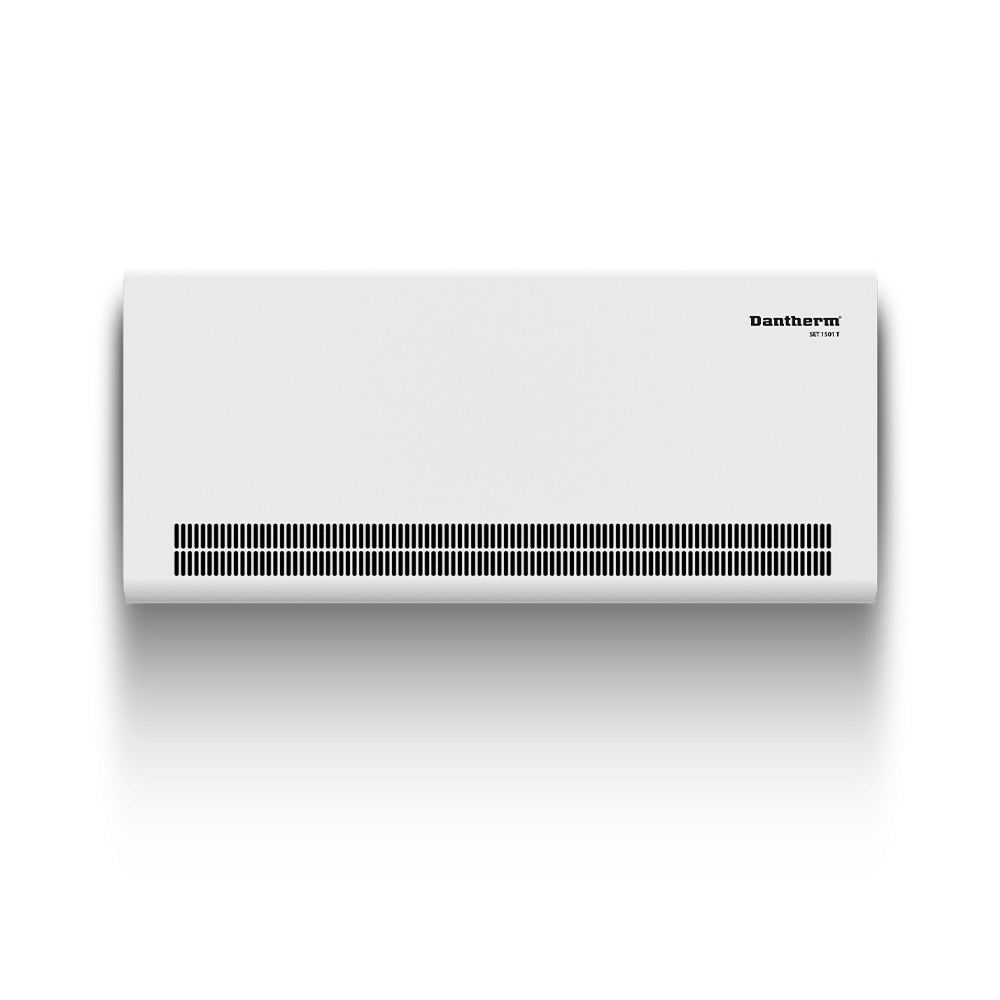

SET 1501 T Front
|

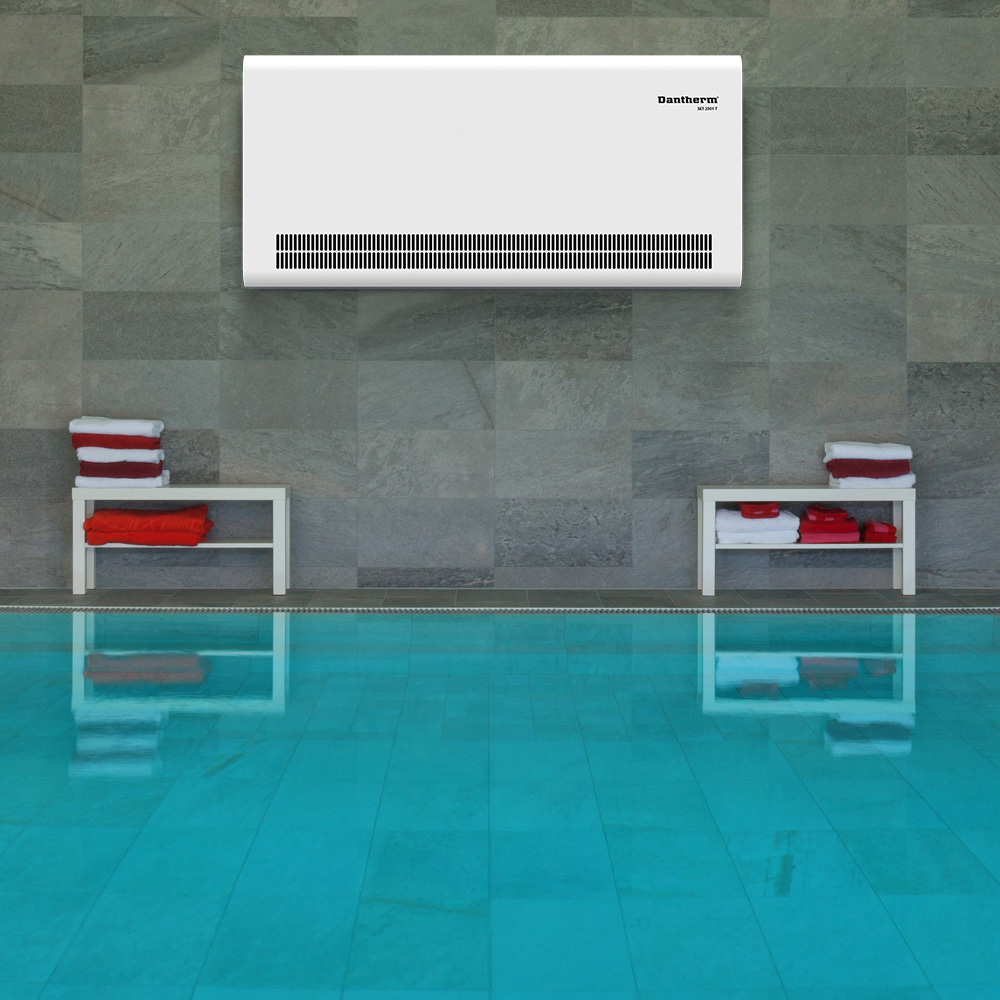

SET 3501 T pool installation
|
Key features
- Low sound level
- Low energy consumption
- Evaporator and condenser coils are epoxy coated
- Metal parts are powder coated before assembly
- Optional remote control
- Integrated control of heating and humidity (ON/OFF)
- BMS Communication (Modbus RS485)
- 230V connection
- Available as a through-the-wall version
Product specifications
| Specifications | Units | SET 1501 T |
|---|---|---|
| Operating temperature range | °C | 10-36 |
| Operating humidity range | % RH | 40-100 |
| Dehumidification capacity @ 30°C/54% RH | l/24h | 34 |
| Specific energy consumption @ 30°C/54% RH | KWh/l | 0.51 |
| Air flow | m³/h | 400 |
| Sound pressure level @ 1m | dB(A) | 46 |
| R407C gas weight/CO₂ equivalent | kg/t | 0.7/1.24 |
| Power supply | V/Hz | 230/1ph/50 |
| Power consumption @ 30°C/54% RH | kW | 0.69 |
| Power consumption w/elec. heater @ 30°C/54% RH | kW | 2.69 |
| Heat recovered @ 30°C/54% RH | kW | 1.97 |
| Product size (w x d x h) | mm | 1004 x 308 x 695 |
| Weight | kg | 56.5 |
| Specifications | Units | SET 2501 T |
|---|---|---|
| Operating temperature range | °C | 10-36 |
| Operating humidity range | % RH | 40-100 |
| Dehumidification capacity @ 30°C/54% RH | l/24h | 52 |
| Specific energy consumption @ 30°C/54% RH | KWh/l | 0.50 |
| Air flow | m³/h | 680 |
| Sound pressure level @ 1m | dB(A) | 47 |
| R407C gas weight/CO₂ equivalent | kg/t | 0.9/1.60 |
| Power supply | V/Hz | 230/1ph/50 |
| Power consumption @ 30°C/54% RH | kW | 1.04 |
| Power consumption w/elec. heater @ 30°C/54% RH | kW | 4.54 |
| Heat recovered @ 30°C/54% RH | kW | 2.95 |
| Product size (w x d x h) | mm | 1154 x 308 x 695 |
| Weight | kg | 65.0 |
| Specifications | Units | SET 3501 T |
|---|---|---|
| Operating temperature range | °C | 10-36 |
| Operating humidity range | % RH | 40-100 |
| Dehumidification capacity @ 30°C/54% RH | l/24h | 69 |
| Specific energy consumption @ 30°C/54% RH | KWh/l | 0.48 |
| Air flow | m³/h | 900 |
| Sound pressure level @ 1m | dB(A) | 50 |
| R407C gas weight/CO₂ equivalent | kg/t | 1.2/2.13 |
| Power supply | V/Hz | 230/1ph/50 |
| Power consumption @ 30°C/54% RH | kW | 1.24 |
| Power consumption w/elec. heater @ 30°C/54% RH | kW | 6.24 |
| Heat recovered @ 30°C/54% RH | kW | 4.15 |
| Product size (w x d x h) | mm | 1488 x 308 x 695 |
| Weight | kg | 75.5 |
Suitable for
- Leisure and recreation
- Swimming pools
