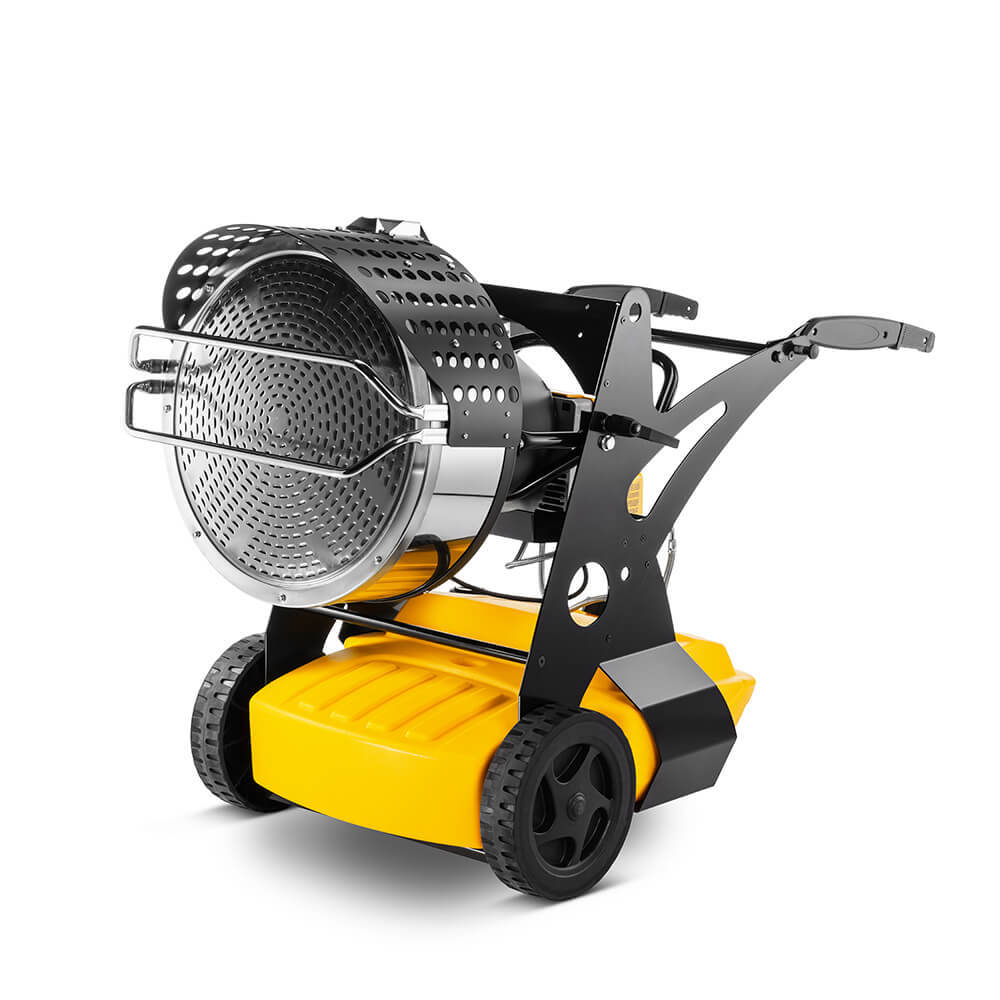

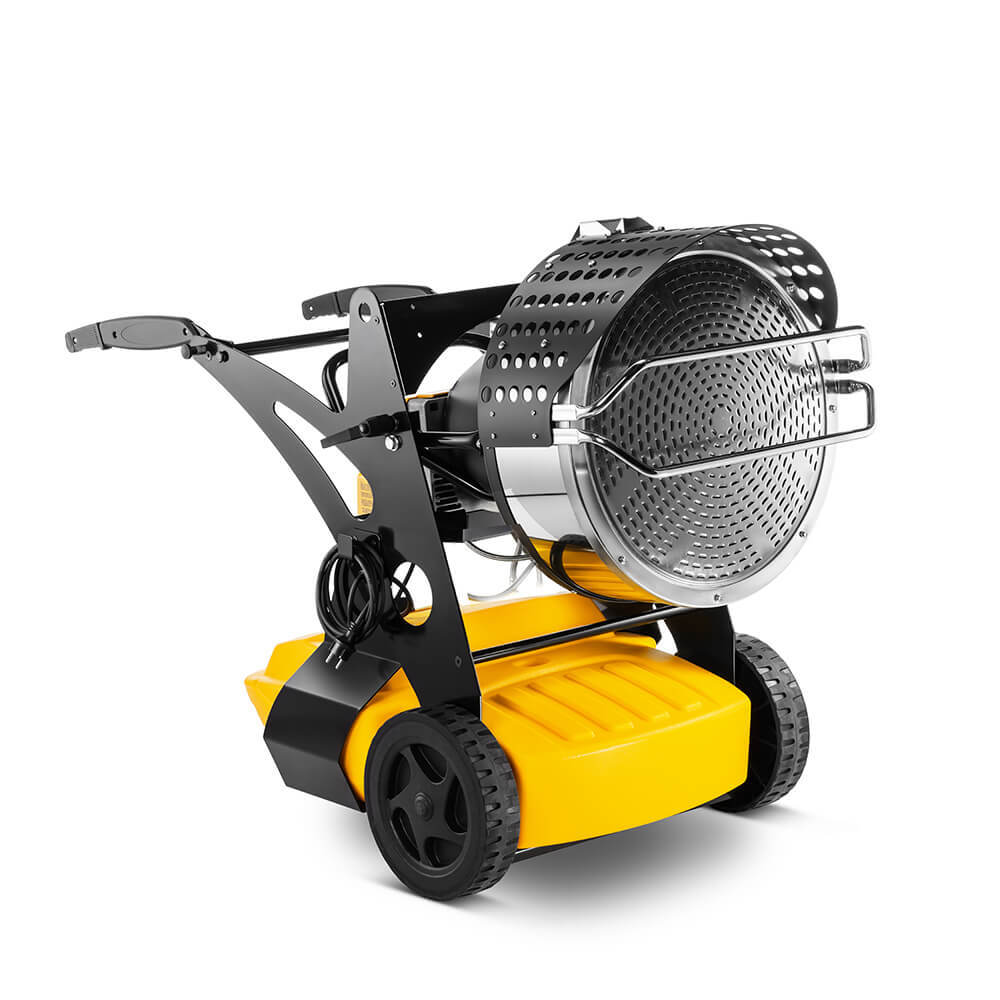

Master XL 9SR – infrared oil fired heaters

Infrared oil fired heaters with separate Master burner
Master Top Badge

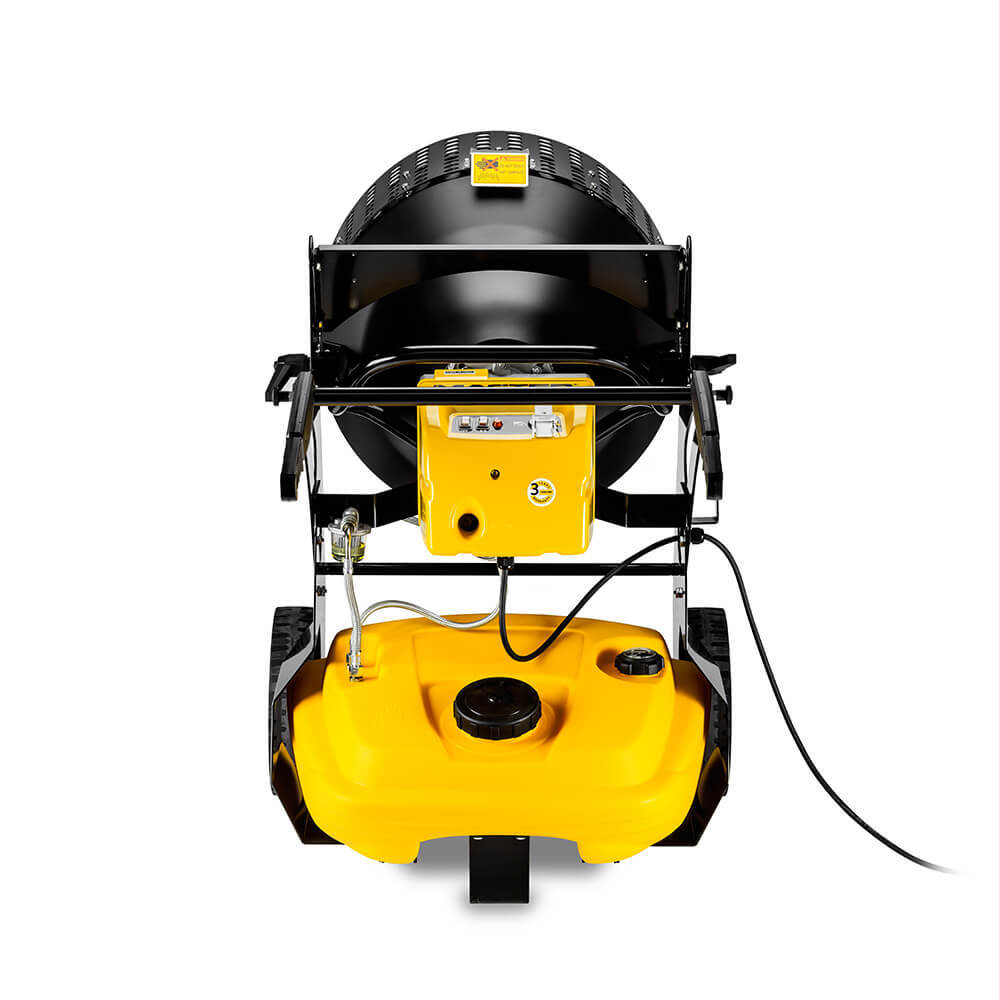

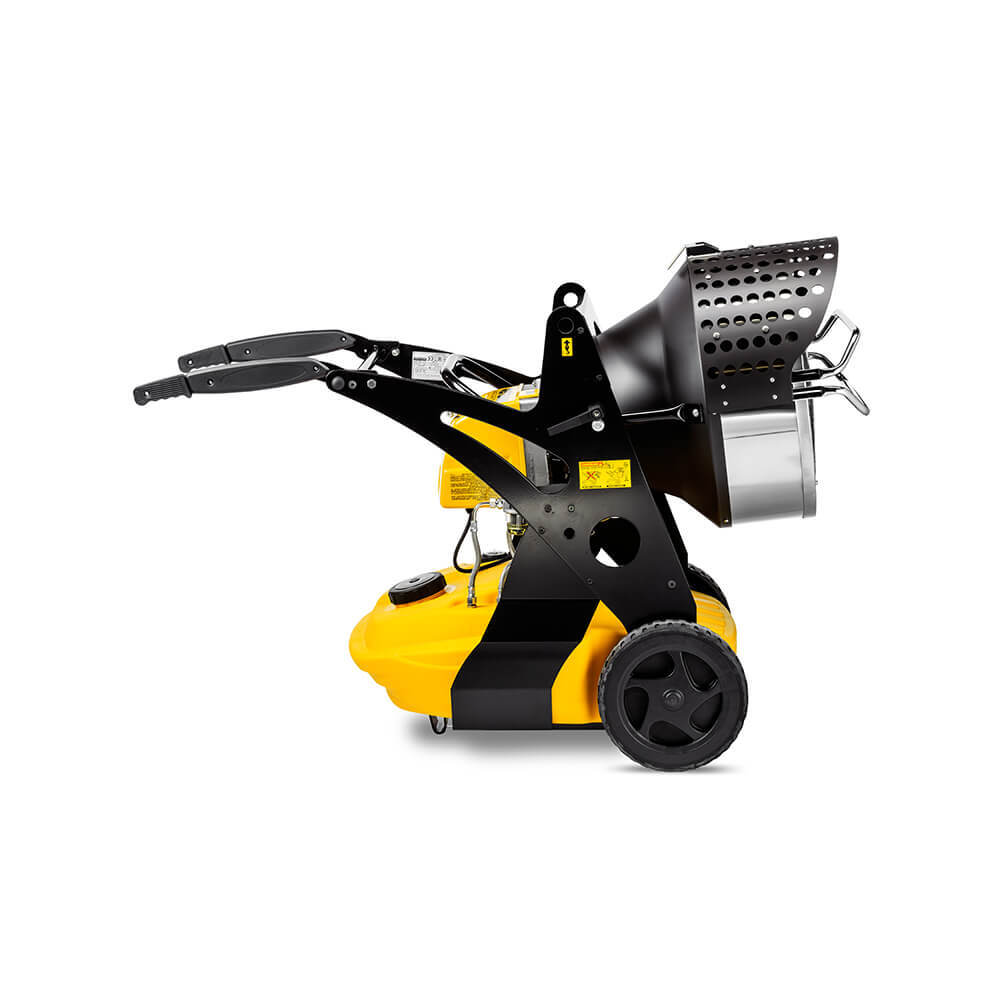

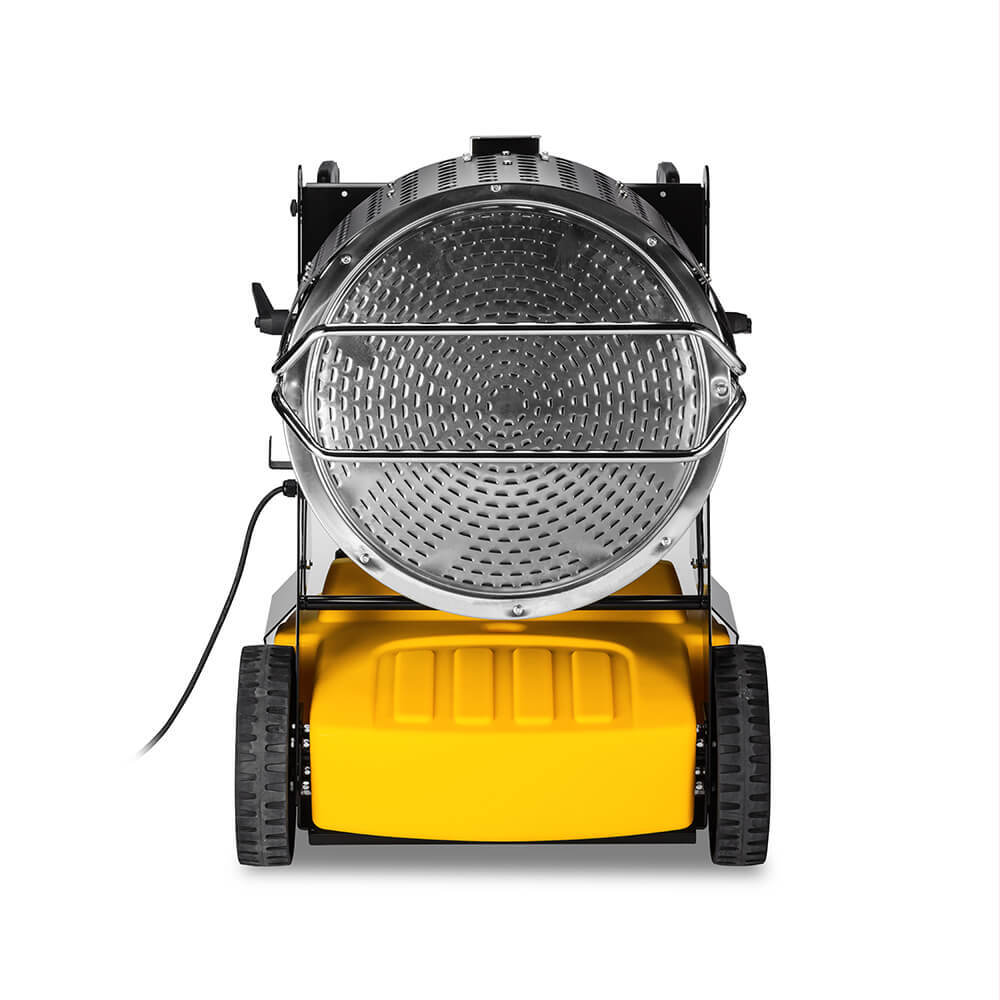

Master XL 91 SR – infrared oil fired heater
Master XL 91 SR – infrared oil fired heater
Master XL 9 heating a warehouse
Master XL 9 heating a warehouse
Master infrared heater diagram
Master infrared heater diagram

Infrared heaters deliver heat quickly and right where it is needed without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipe lines, and heating work areas. This powerful technology results in significant energy savings and can be used in dusty areas or outside.

View all of our infrared oil fired heaters and other types of portable commercial heaters to meet your required applications.

Interested?

Key features

  • Separate Master burner
  • Low noise
  • Infrared heating (short wave)

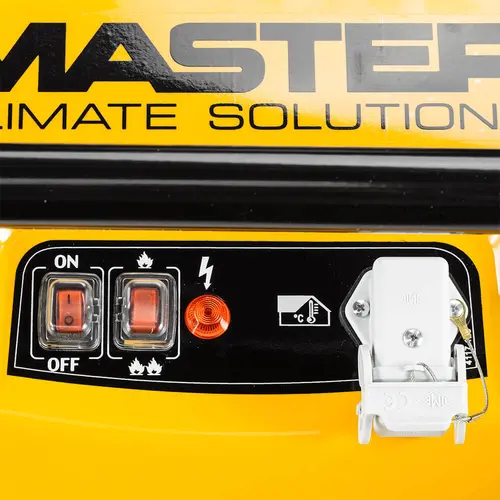

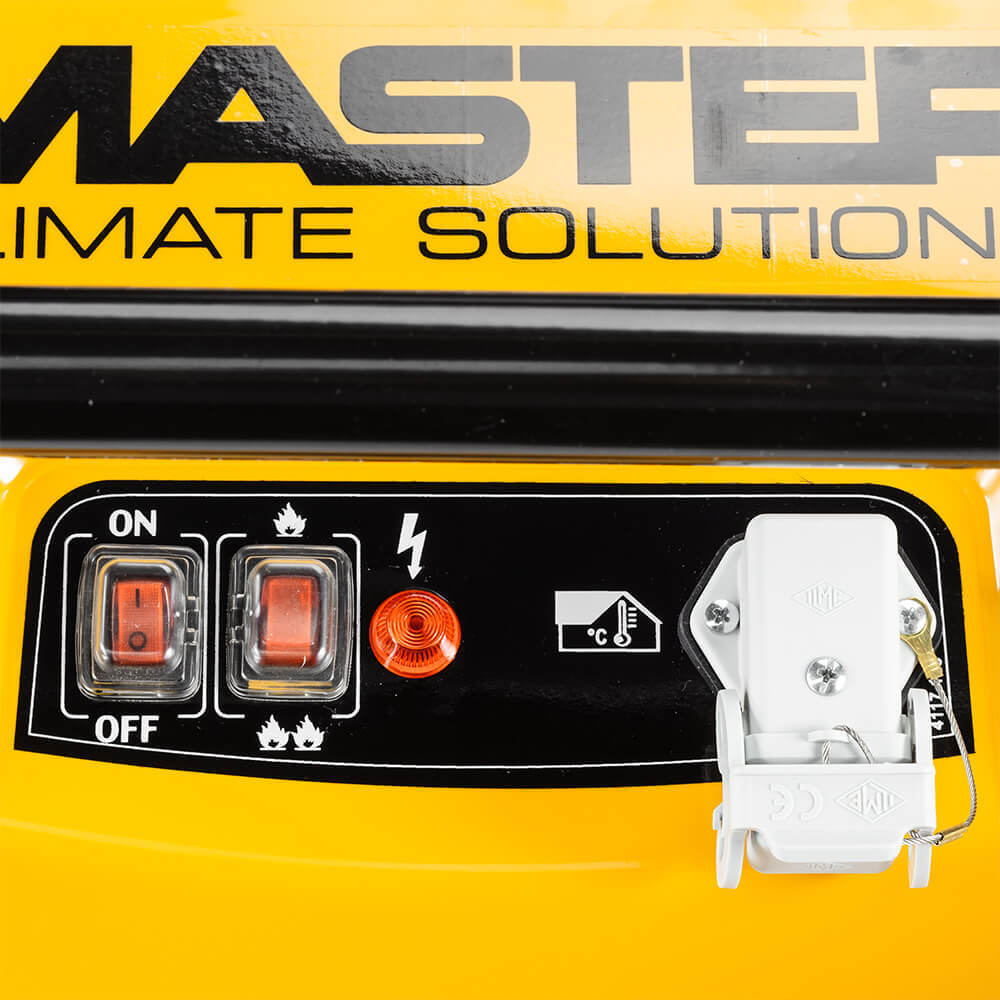

  • 2-step power
  • Electronic flame control with photocell
  • Post-ventilation

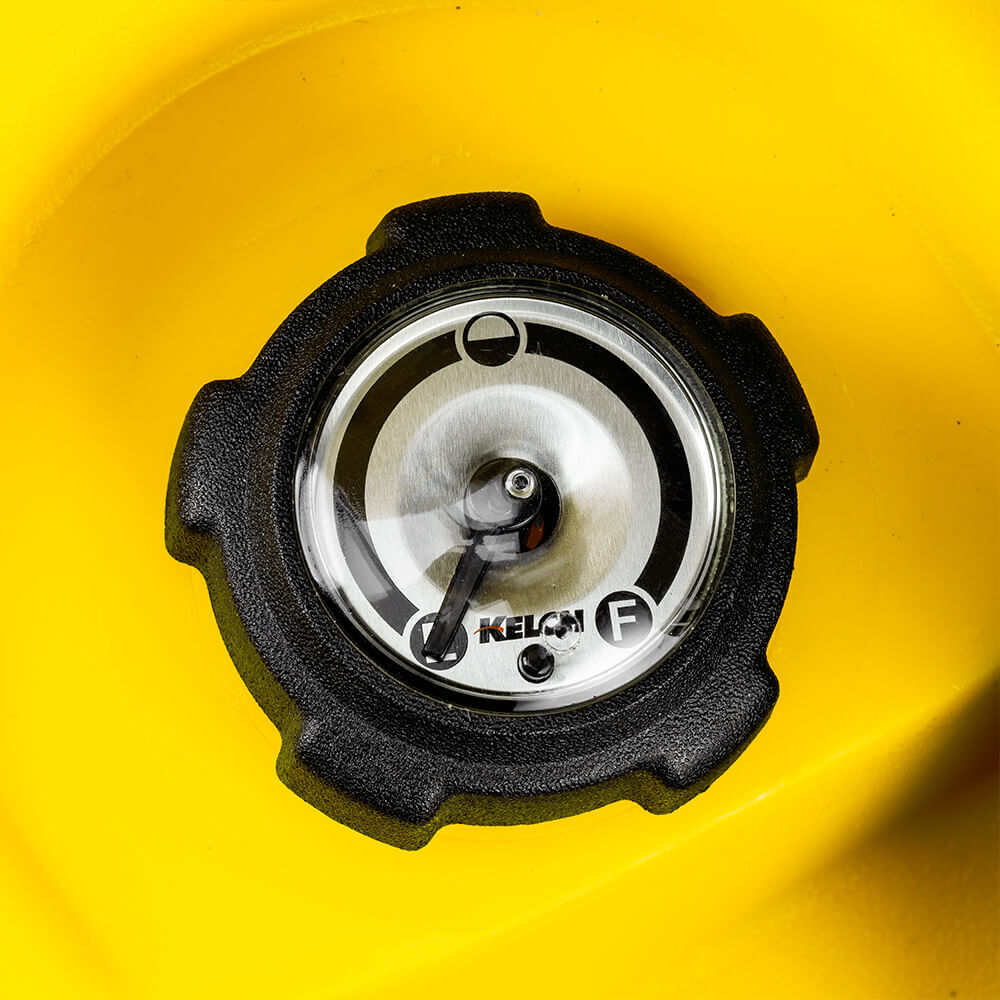

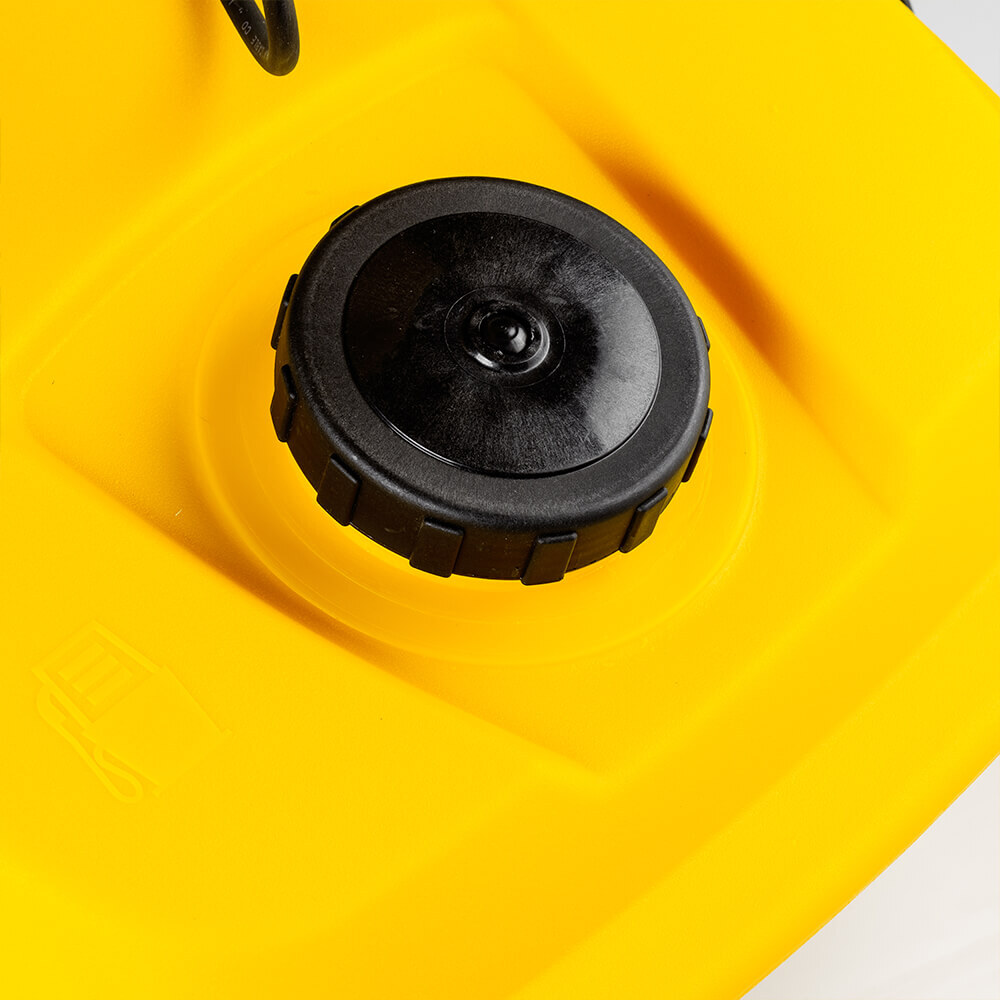

  • Oil level indicator

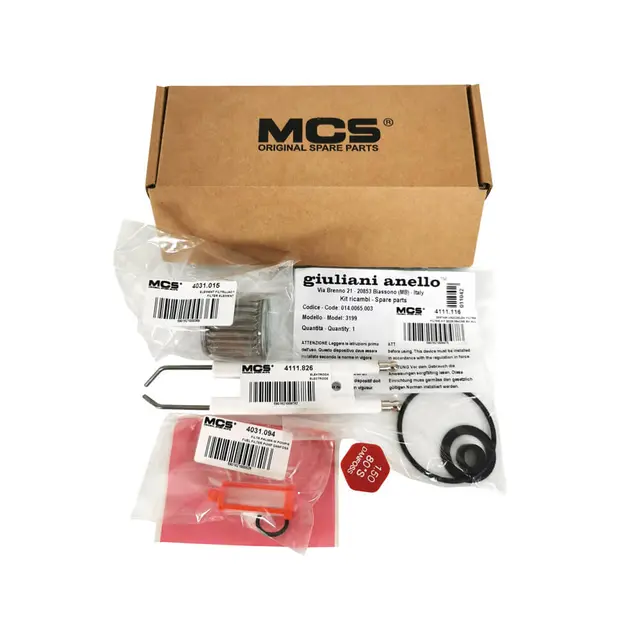

  • Oil pump filter, suction filter and inlet filter

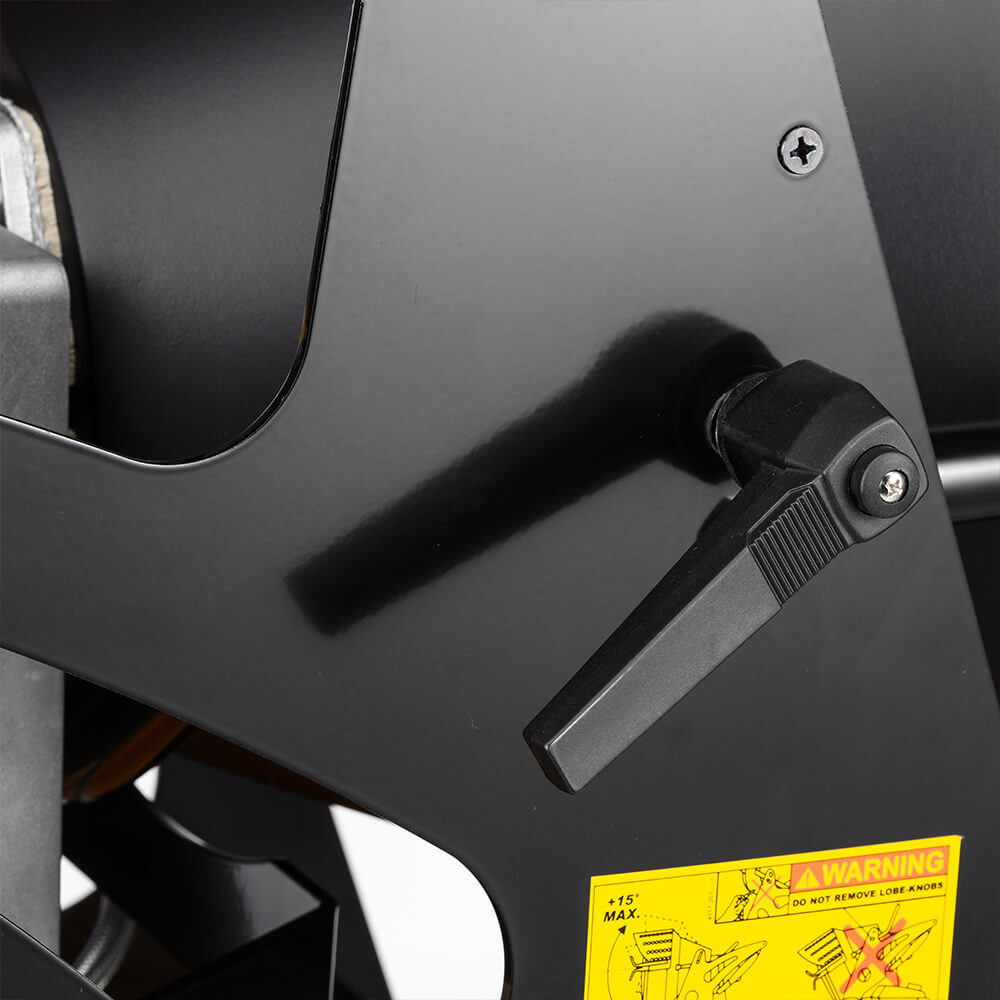

  • Adjustable direction/tilting
  • Trolley included

Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:

  • Heating objects, bodies or walls indoors and outdoors.
  • Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
  • Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
  • Saving energy, because less energy is required for achieving the same heating effect.

Product specifications

Heating power

29 | 43
kW


Heating power

99,300 | 146,900
Btu/h


Heating power

25,000 | 37,000
kcal/h


Fuel consumption

2.7 | 4.03
l/h


Fuel autonomy

21 | 14
h


Thermostat control

Analogue


Electric power

0.16
kW


Power supply

220-240/1ph/50
V/Hz


Rated current

0.7
A


Tank capacity

60
l


Product size (l x w x h)

1070 x 700 x 980
mm


Box size (l x w x h)

1200 x 750 x 1130
mm


Net/gross weight

69/85
kg


Pallet

1
pcs


110 V

Available


Our tools

Recommendation icon2

Air flow heater recommendation tool

Use our calculator to get recommendations for the size of air flow heater you need for your room.

Warranty

Master 3-year limited warranty

Register your Master product here to take advantage of the benefits of the 3-year limited warranty.

Download app

Master Climate Solutions app

Use the Master Climate solutions app to calculate power and get recommended heating, cooling, drying or ventilation products for your work area.

Accessories and consumables

Master Analogue thermostat TH5 with cable 4150 109
Master Top Badge

Product code: 4150.109

Accessory for direct oil, indirect oil, AIR-BUS, BLP ET, B 18, B 30, RS 40, XL 9, XL 61, XL 91, DC 61, CF 75

Master Analogue thermostat TH5 with cable 4150 112
Master Top Badge

Product code: 4150.112

Accessory for direct oil, indirect oil, AIR-BUS, BLP ET, B 18, B 30, RS 40, XL 9, XL 61, XL 91, DC 61, CF 75

Master Digital thermostat THD with cable 4150 133
Master Top Badge

Product code: 4150.133

Accessory for direct oil, indirect oil, AIR-BUS, BLP ET, B 18, B 30, RS 40, XL 9, XL 61, XL 91, DC 61, CF 75

Master Digital thermostat THD with cable 4150 134
Master Top Badge

Product code: 4150.134

Accessory for direct oil, indirect oil, AIR-BUS, BLP ET, B 18, B 30, RS 40, XL 9, XL 61, XL 91, DC 61, CF 75

Master Fuel preheater 4033 049
Master Top Badge

Product code: 4033.049

Accessory for B 230, B 360, BV 110, BV 170, BV 290, BV 400, XL 9, XL 91
