Master E36202 – destratifiers
Destratifiers
Master destratifiers can be used during summer and winter to improve the climate in the room.

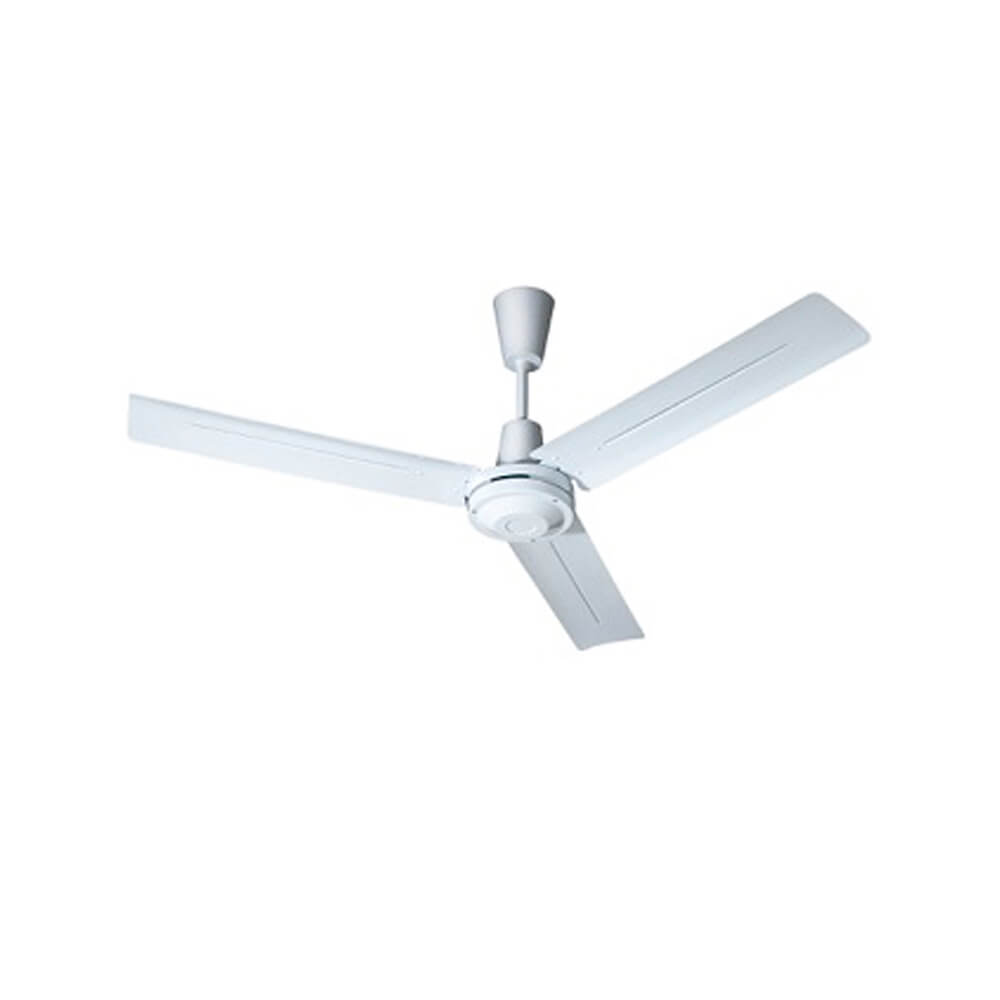

Master E36202 – destratifier
|

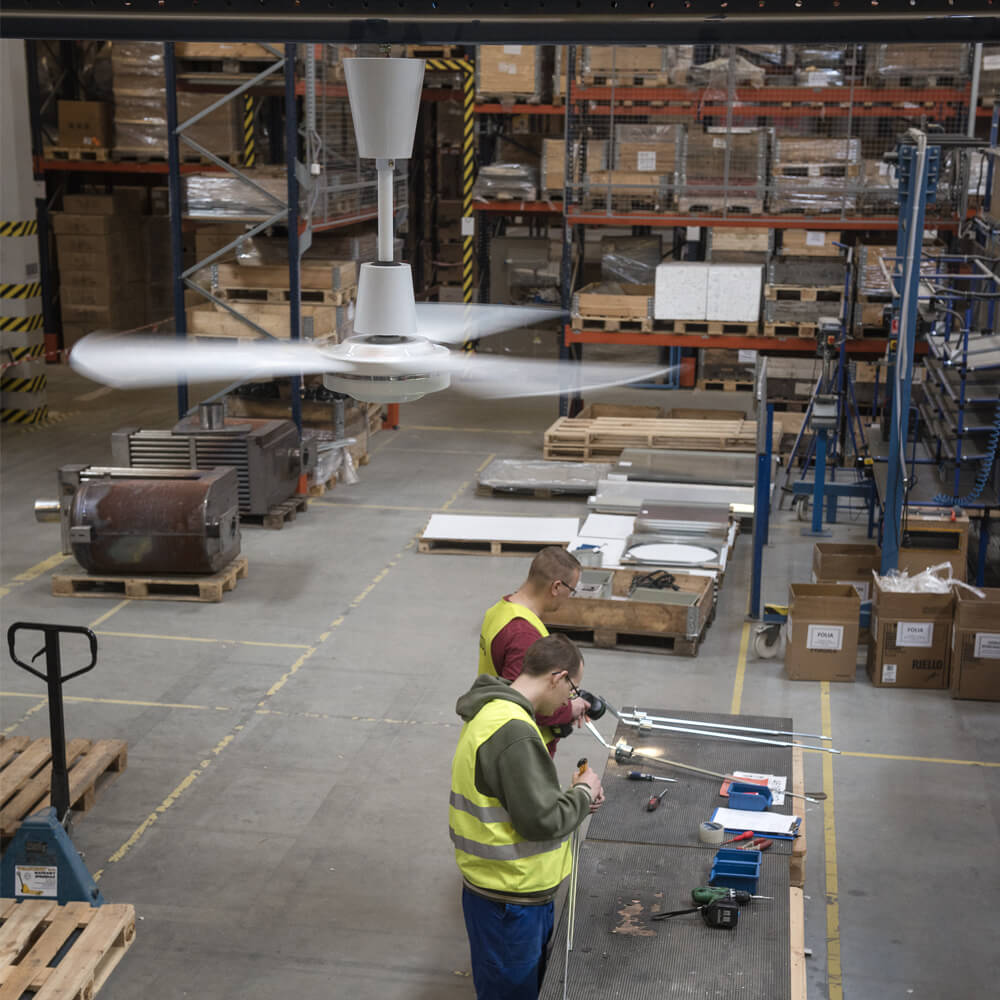

Master E destratifier production facility
|

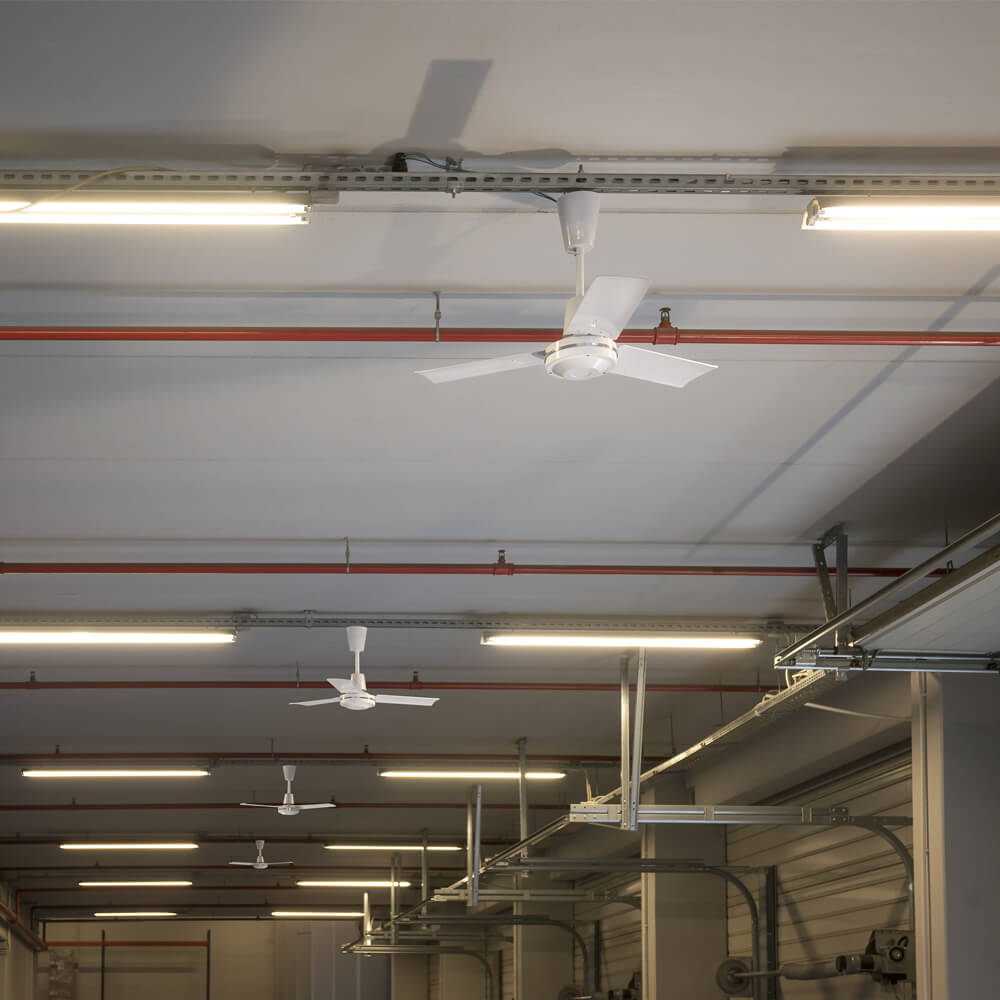

Master E destratifier factory ceiling
|

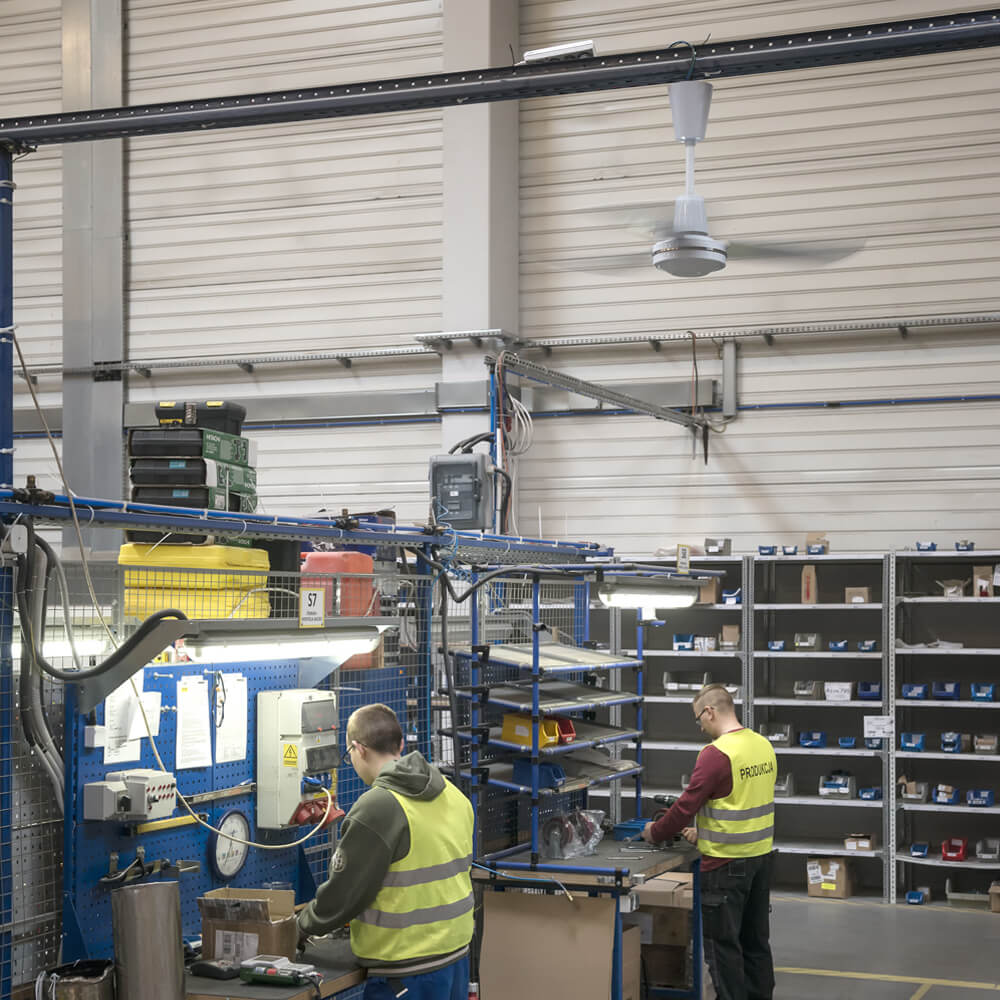

Master E destratifier workshop
|
Key features
- The most powerful ceiling fans available on the market
- Working area up to 14 meters
- Heavy duty construction for many years of hassle-free use
- The aerodynamic shape moves moves large volumes of air
- Balanced motor and blades for vibration-free operation
- The motor is protected from thermal overload as it is equipped with thermal protection and automatic reset
- Can work in harsh professional conditions
Winter destratification
The hot air flows upstream. The Master ceiling fan pushes heat back down to the floor. The resulting energy saving is about 30%.
Summer ventilation
The Master ceiling fan creates an air flow which helps moisture evaporate from the skin, with an improvement of about 4°C on the perceived temperature. The fan supports the air-conditioning allowing the air to feel 23°C even when the thermostat shows 27°. It is perfect for humid environments and eliminates mould and dust.
Side view of an installation
Example of distribution of the destratifiers in a factory
Product specifications
| Specifications | Units | E36202 |
|---|---|---|
| Air flow | m³/h | 19,900 |
| Maximum area in destratification | m² | 140 |
| Turning diameter | mm/inch | 900/36 |
| Fan | type | Axial-Blades |
| Colour/number of blades | White/3 | |
| Power supply | V/Hz | 230/1ph/50/60 |
| Power consumption | W | 71 |
| Rated current | A | 0.31 |
| Max. speed | rpm | 325 |
| Max. working height | m | 4 |
| Product size | Ømm | 900 x h 600 |
| Box size (l x w x h) | mm | 660 x 250 x 250 |
| Net/gross weight | kg | 7.7/9 |
| Pallet | pcs | 45 |
Suitable for
- Commercial buildings
- Industrial, factories and production
- Warehouses and storage
