Master E36202 – destratifiers

Destratifiers
Master Top Badge

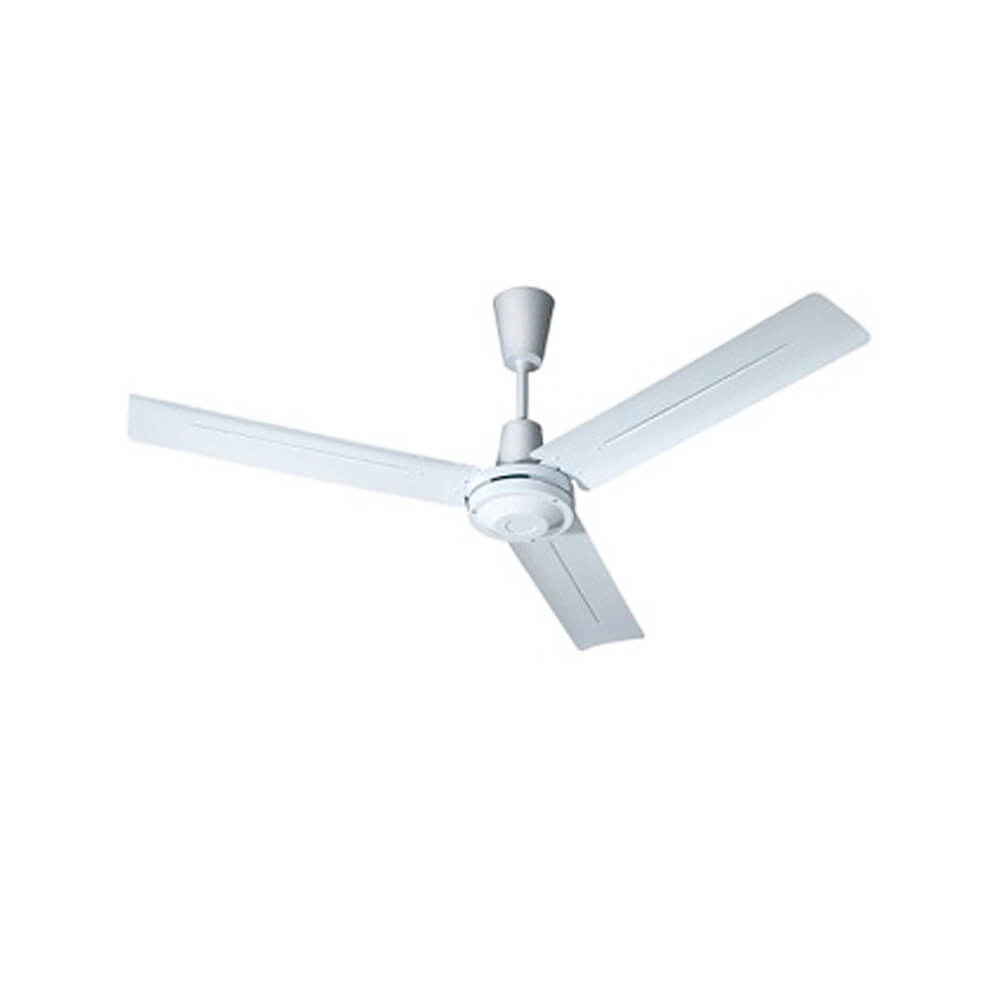

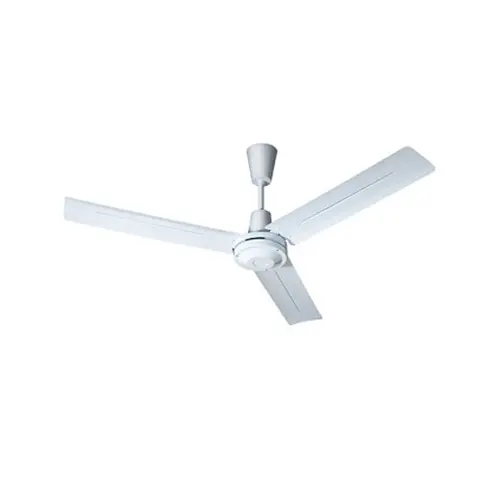

Master E36202 – destratifier
Master E36202 – destratifier

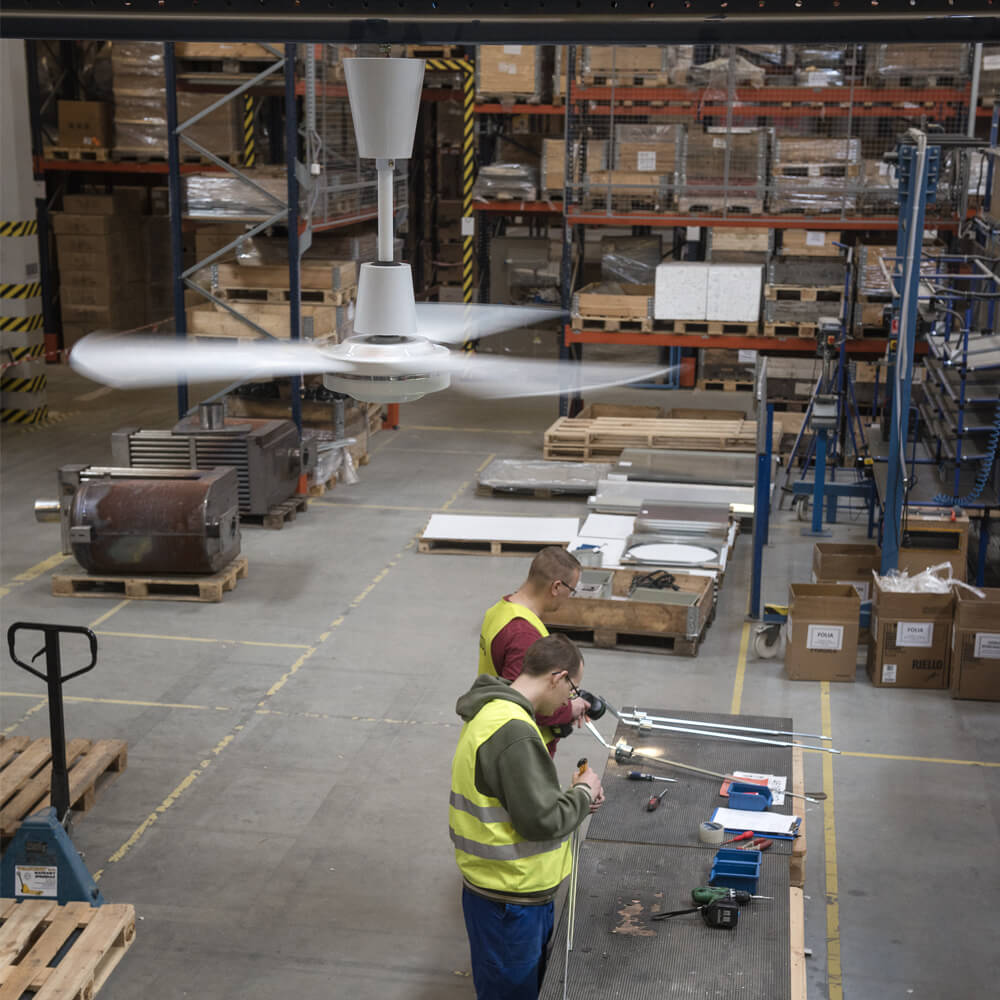

Master E destratifier production facility
Master E destratifier production facility

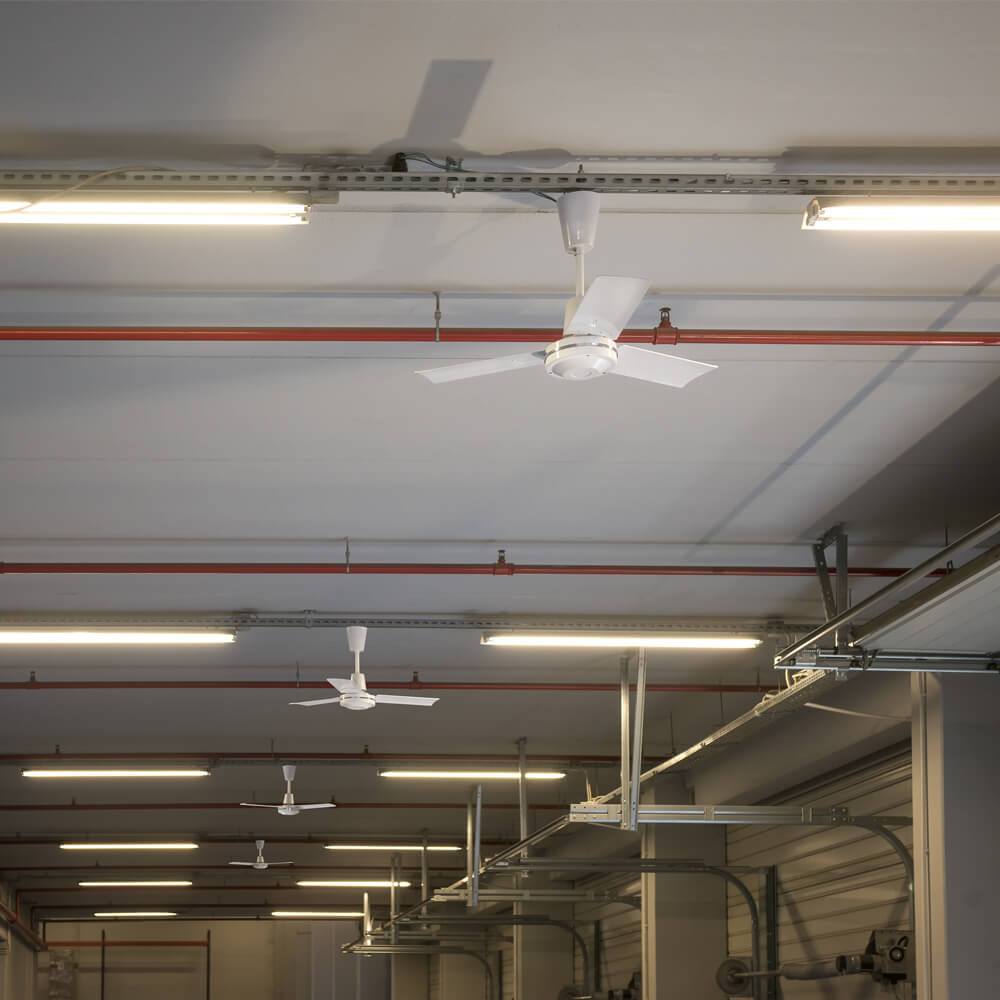

Master E destratifier factory ceiling
Master E destratifier factory ceiling

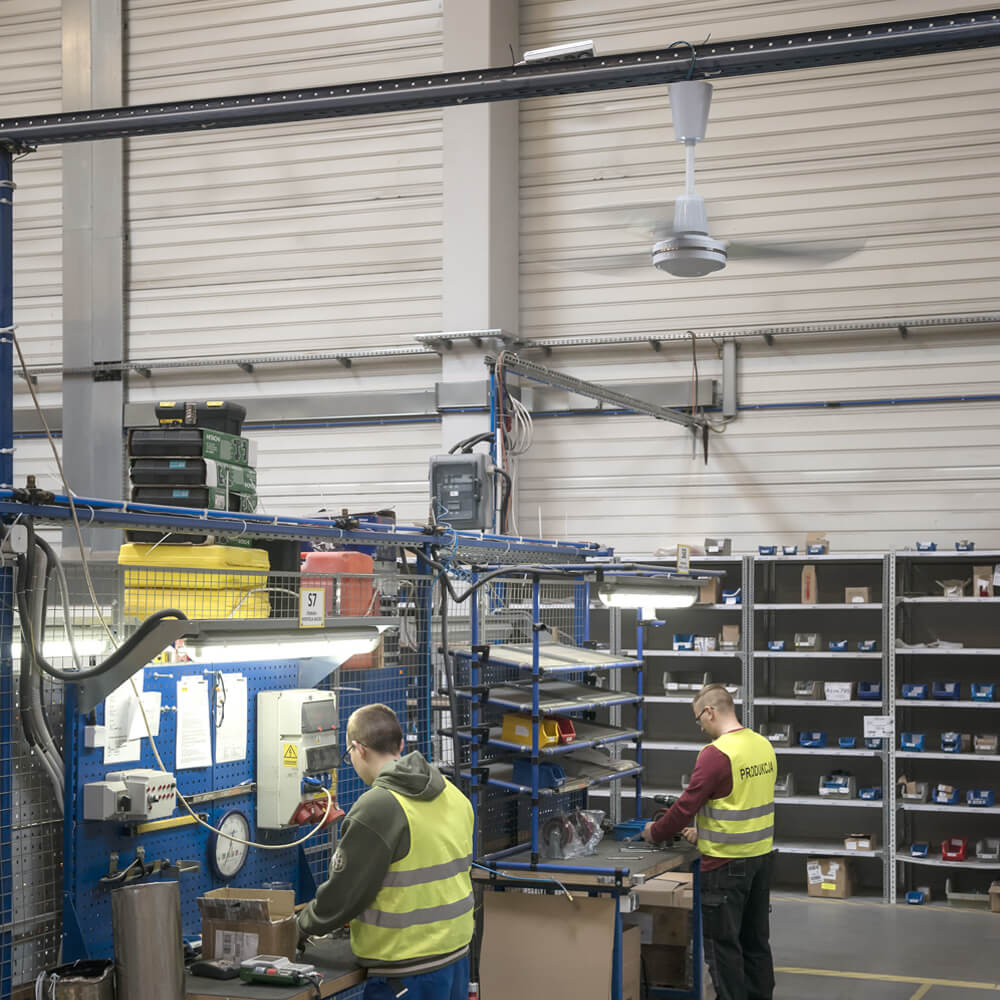

Master E destratifier workshop
Master E destratifier workshop

Master destratifiers can be used during summer and winter to improve the climate in the room.

Interested?

Key features

  • The most powerful ceiling fans available on the market
  • Working area up to 14 meters
  • Heavy duty construction for many years of hassle-free use
  • The aerodynamic shape moves moves large volumes of air
  • Balanced motor and blades for vibration-free operation
  • The motor is protected from thermal overload as it is equipped with thermal protection and automatic reset
  • Can work in harsh professional conditions

Winter destratification

The hot air flows upstream. The Master ceiling fan pushes heat back down to the floor. The resulting energy saving is about 30%.

Summer ventilation

The Master ceiling fan creates an air flow which helps moisture evaporate from the skin, with an improvement of about 4°C on the perceived temperature. The fan supports the air-conditioning allowing the air to feel 23°C even when the thermostat shows 27°. It is perfect for humid environments and eliminates mould and dust.

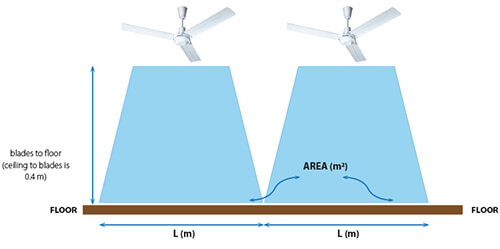

Side view of an installation

Side view of an installation

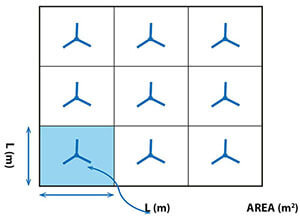

Example of distribution of the destratifiers in a factory


Product specifications

Air flow

19,900
m³/h


Maximum area in destratification

140


Turning diameter

900/36
mm/inch


Fan

Axial-Blades
type


Colour/number of blades

White/3


Power supply

230/1ph/50/60
V/Hz


Power consumption

71
W


Rated current

0.31
A


Max. speed

325
rpm


Max. working height

4
m


Product size

900 x h 600
Ømm


Box size (l x w x h)

660 x 250 x 250
mm


Net/gross weight

7.7/9
kg


Pallet

45
pcs


Our tools

Download app

Master Climate Solutions app

Use the Master Climate solutions app to calculate power and get recommended heating, cooling, drying or ventilation products for your work area.

Accessories and consumables

Master Speed regulator 4800 018
Master Top Badge

Product code: 4800.018

Speed regulator for 2 fans RVS 2.5A

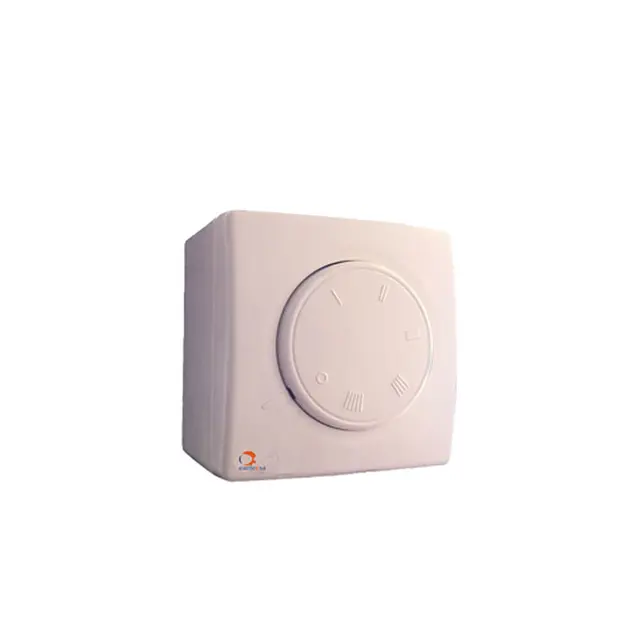

Master Speed regulator 4800 019
Master Top Badge

Product code: 4800.019

Speed regulator for 5 fans RVS 5A

Master Speed regulator 4800 020
Master Top Badge

Product code: 4800.020

Speed regulator for 10 fans RVS 10A

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

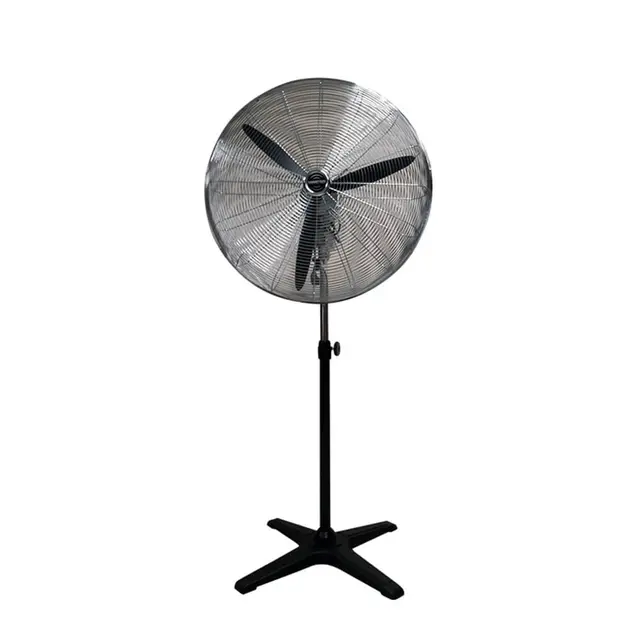

Master FS 75 – professional fan
