Master DH 7160 – condensation dehumidifier

Professional condensation dehumidifers
Master Top Badge

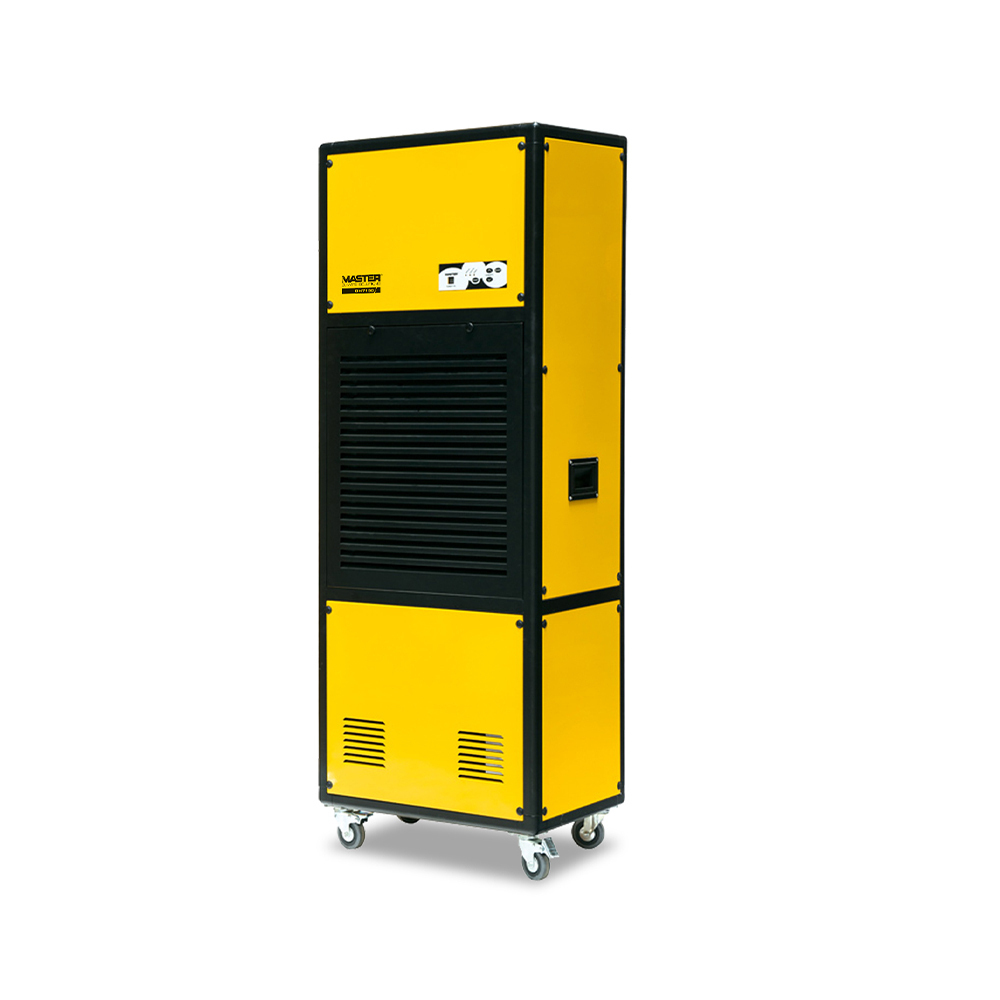

Master DH 7160 – condensation dehumidifier
Master DH 7160 – condensation dehumidifier

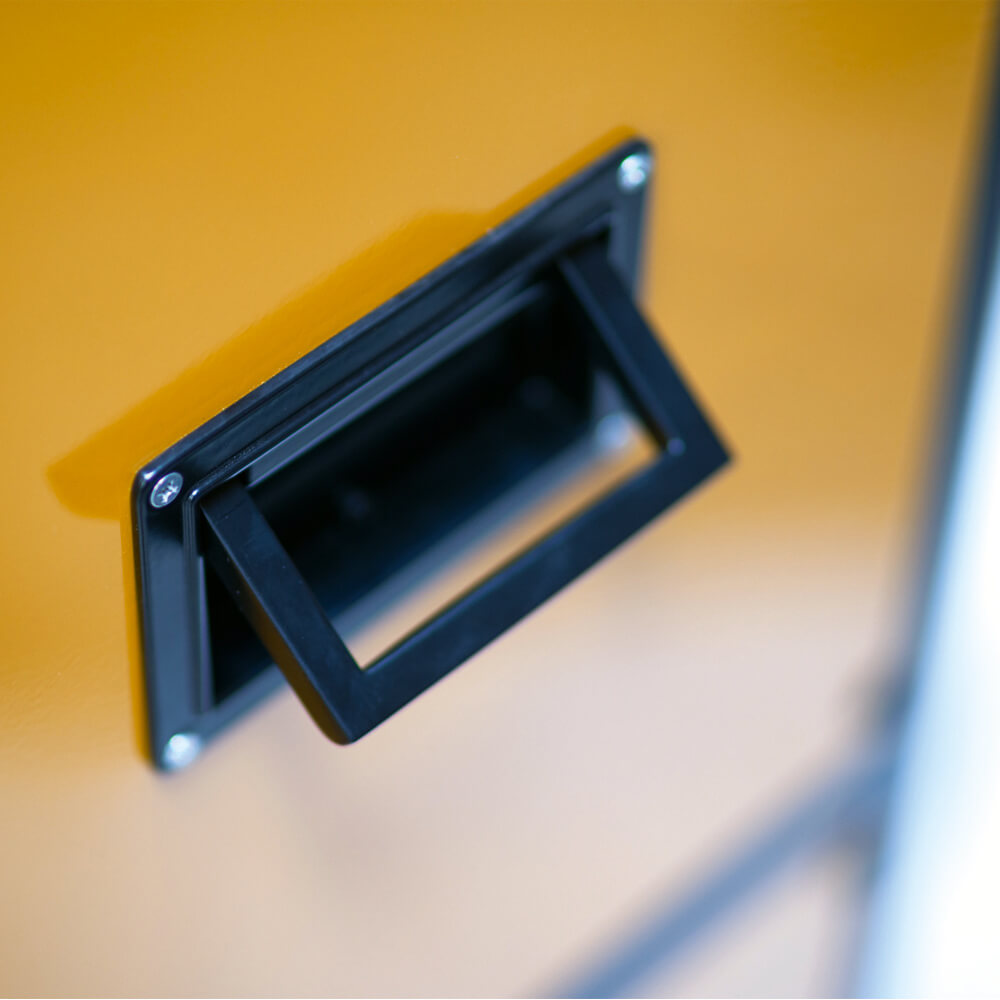

Master DH 7160 folding handles
Master DH 7160 folding handles

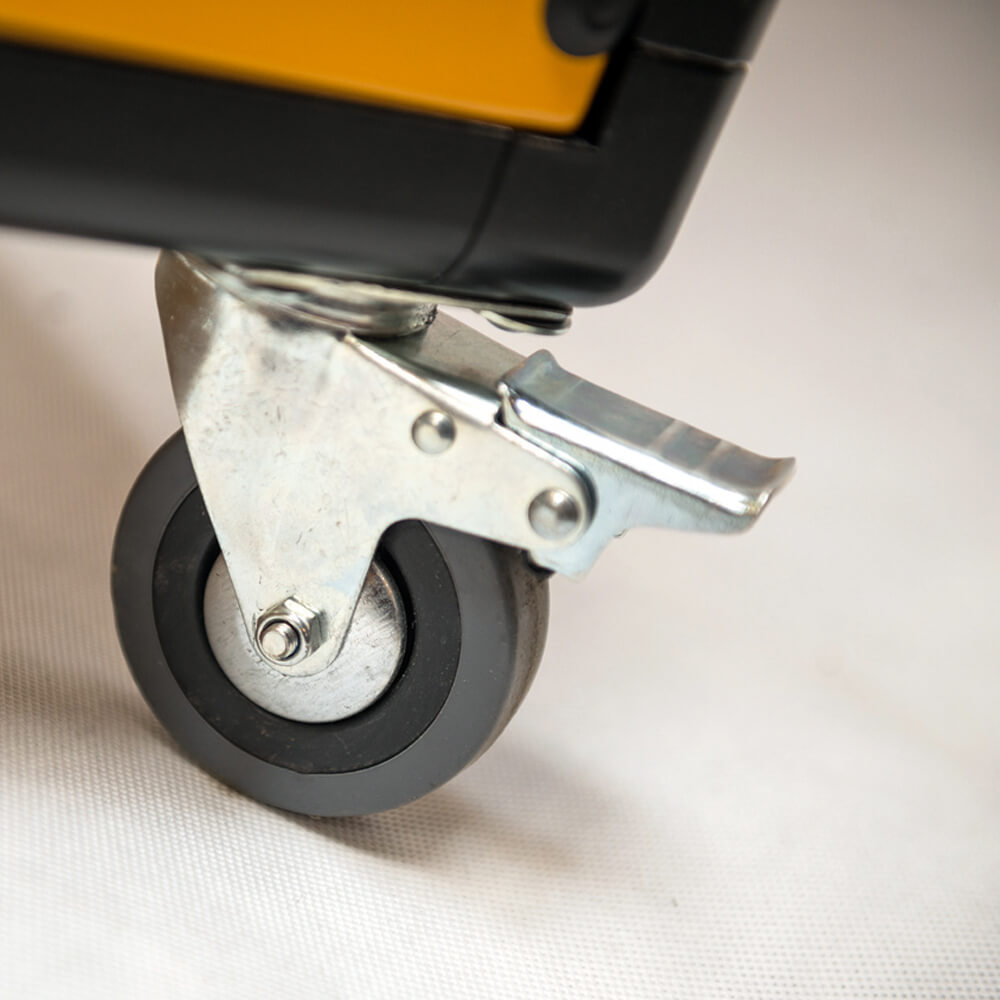

Master DH 7160 foot brake
Master DH 7160 foot brake

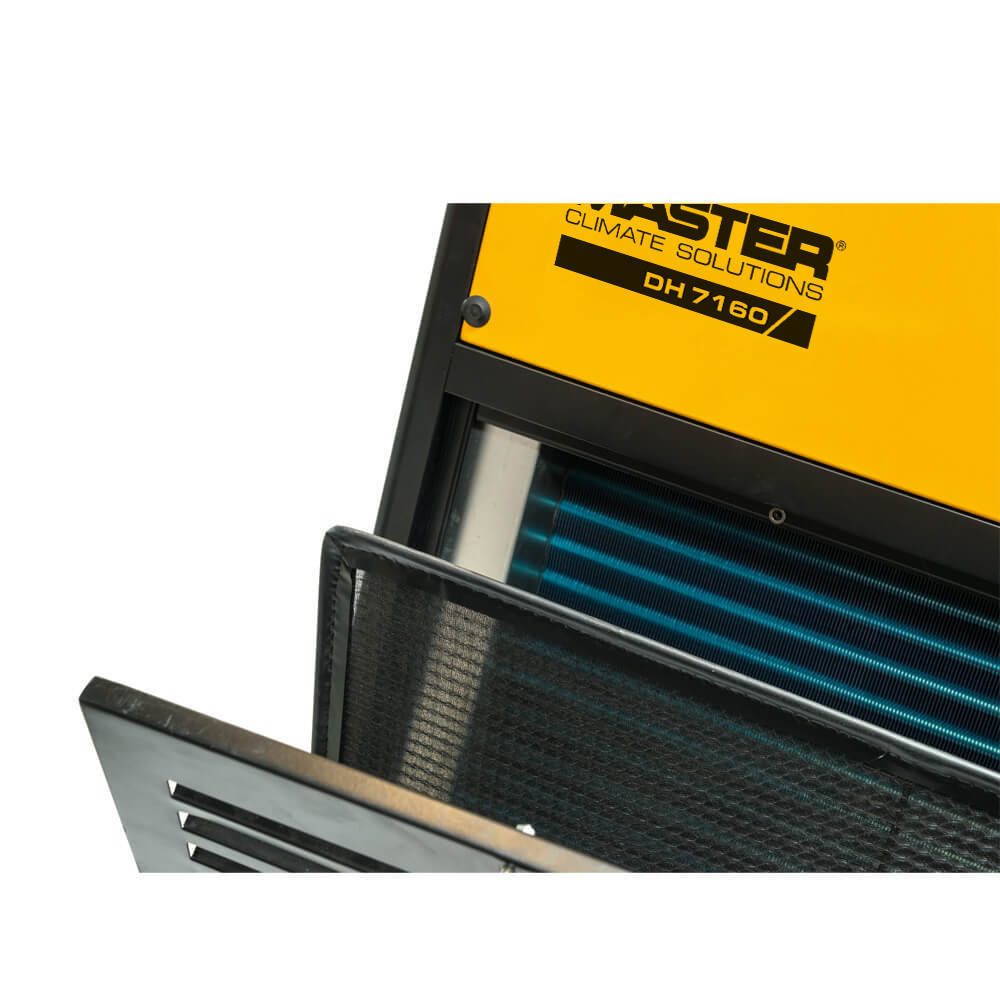

Master DH 7160 filter
Master DH 7160 filter

Condensation dehumidifiers with a large air flow for fast and effective dehumidification. Supplied with a powerful and quiet centrifugal fan, big air filter and three phase compressor secured by phase protection. They are best suited for storage rooms with products sensitive to humidity, such as drugs, wooden and iron items, paper and leather products, electronic equipment and protection of cargo in containers from becoming damaged due to humidity.

Contact our team to discuss which condensation dehumidifier or type of commercial dehumidifier is most suitable for your intended purpose.

Interested?

Key features

  • Large air flow for fast and effective dehumidification
  • Robust metal frame and housing
  • Folding handles and wheels
  • Wheel foot brakes
  • Powerful and quiet centrifugal fan
  • Continuous removal of condensed water (no tank)
  • Big air filter easy to access
  • Three phase compressor secured by phase protection
  • Automatic defrosting

Electronic control panel

  • Can be set for continuous operation or controlled by built-in electronic humidistat
  • Memory settings possible

Product specifications

Capacity (30°C/80% RH)

166
l/24h


Capacity (20°C/60% RH)

57.6
l/24h


For rooms of approx.

2,490


For restoration after flooding

996


Air flow

1,700
m³/h


Operating temperature range

5-32
°C


Operating humidity range

30-90
% RH


Refrigerent

R407c
type


Power consumption

2,820
W


Power supply

380-400/3ph/50
V/Hz


Sound level

70
dB(A)


Compressor

Rotary
type


Product size (l x w x h)

582 x 410 x 1624
mm


Box size (l x w x h)

640 x 465 x 1700
mm


Net/gross weight

102/110
kg


Pallet

1
pcs
