Master DC 61 – infrared oil fired heater
Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipelines, heating the working areas. The DC 61 is hybrid so can be electric or battery operated.
View all of our infrared oil fired heaters and other types of portable commercial heaters to meet your required applications.

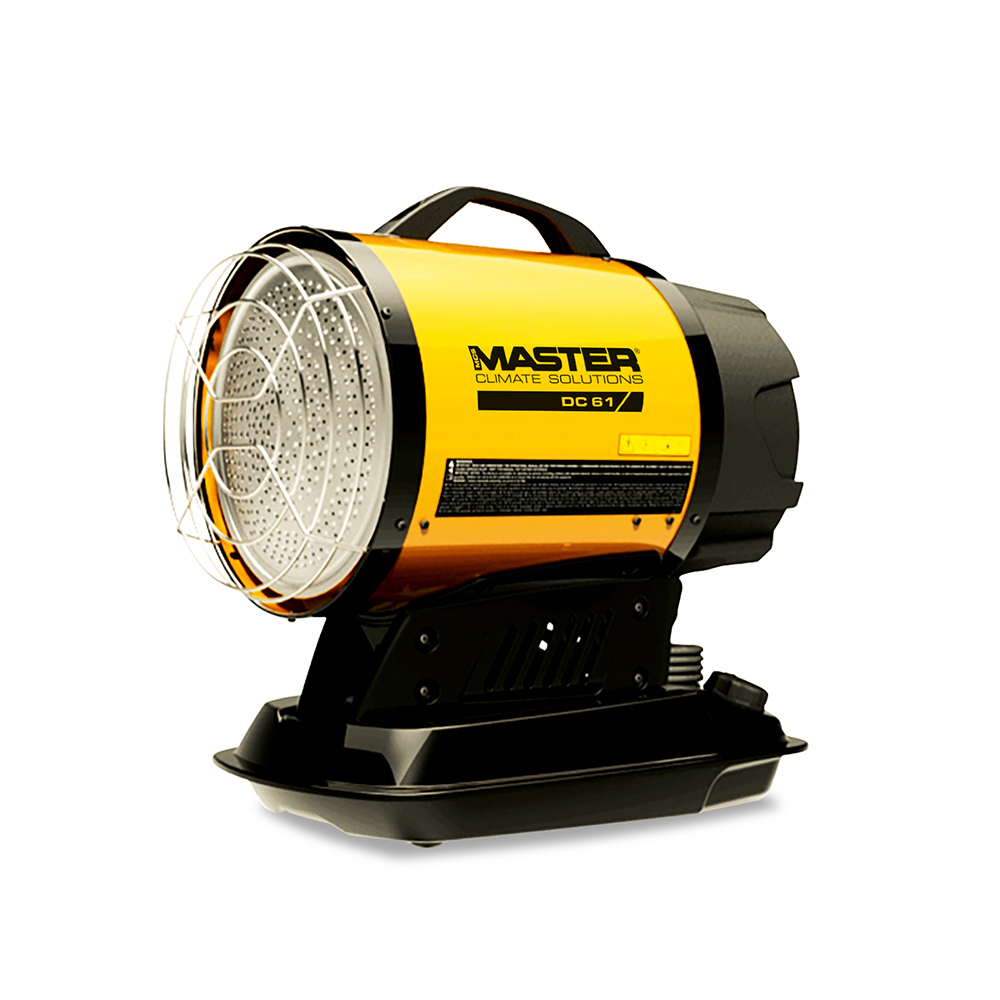

Master DC 61 – infrared oil fired heaters
|

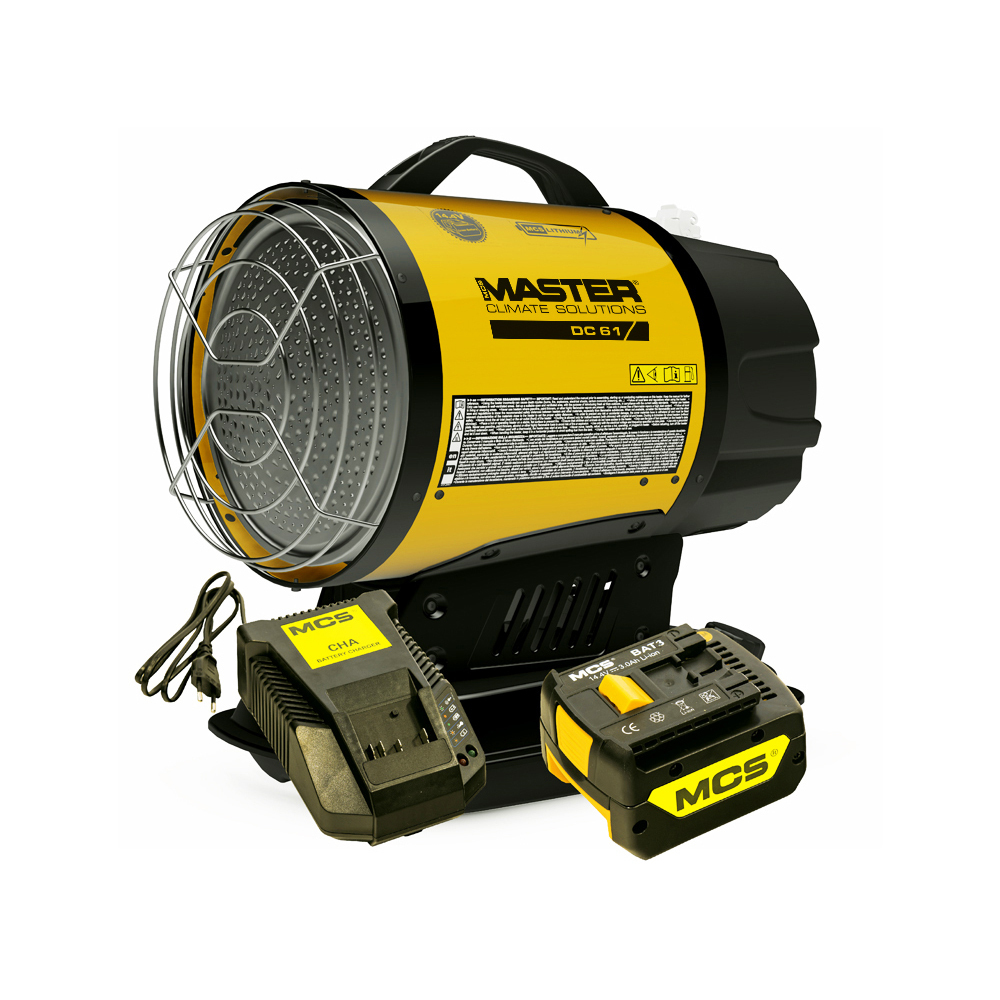

Master DC 61 with battery and charger
|

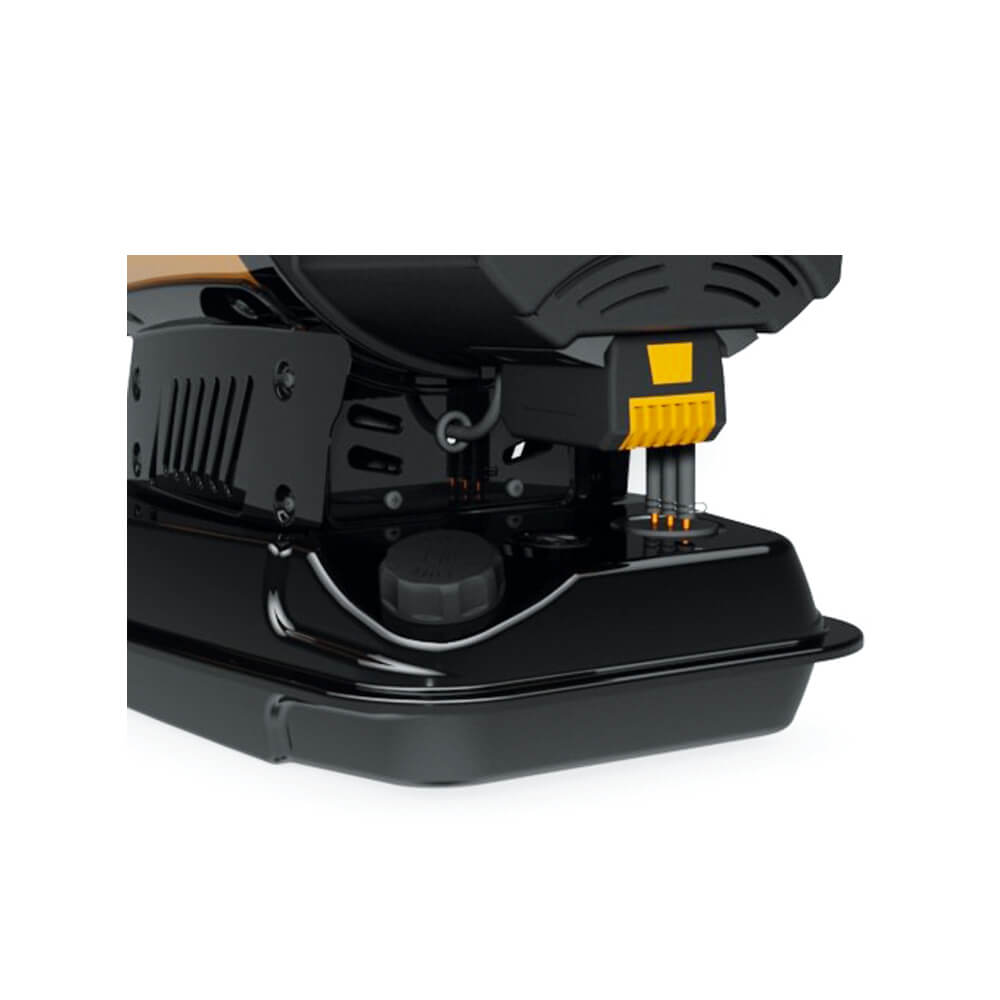

Master DC 61 battery view
|

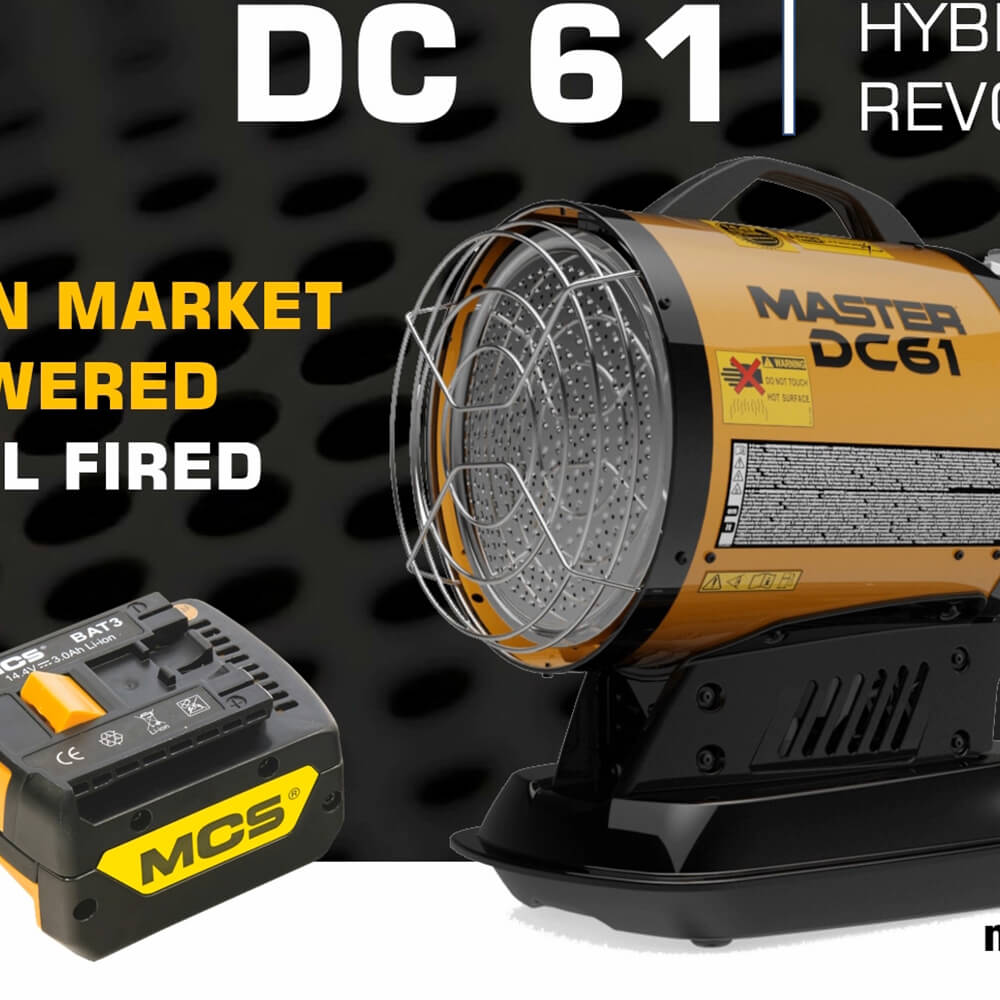

Master DC 61 infrared oil heater video
|

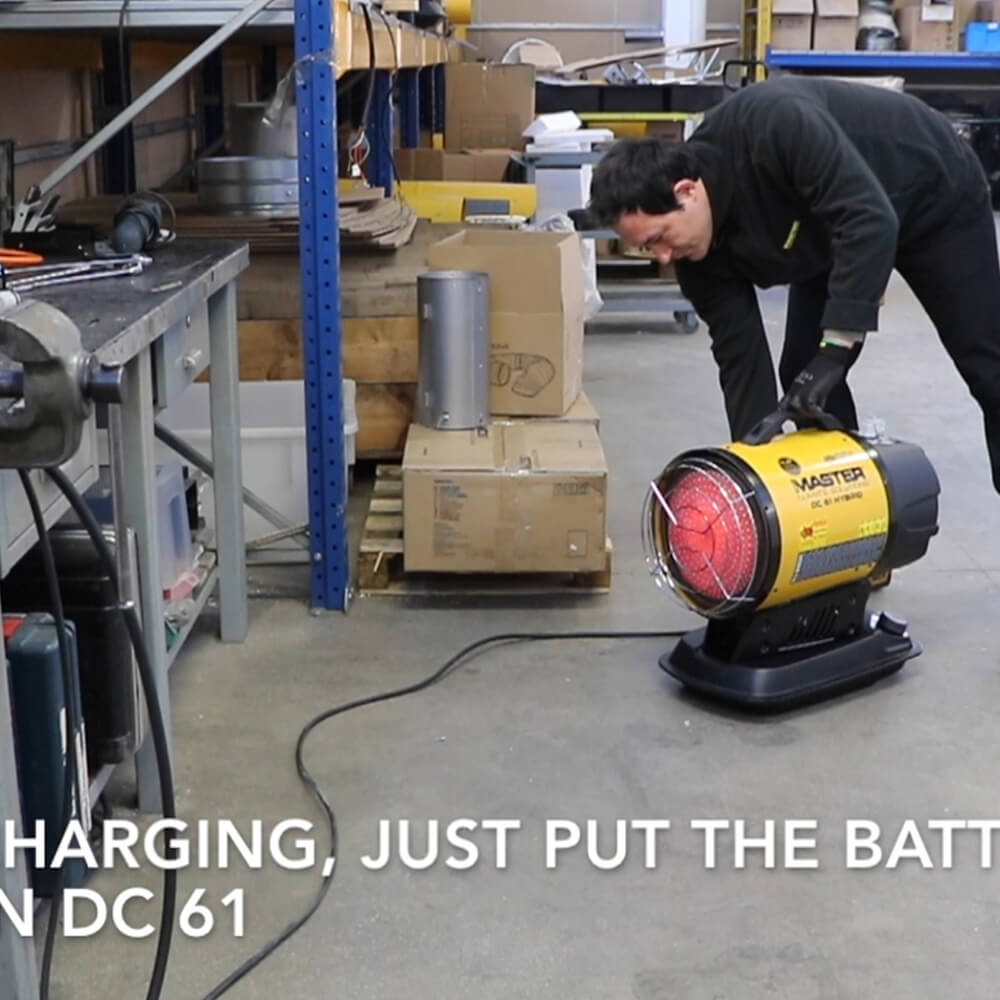

How to use and unpack your Master DC 61 heater
|

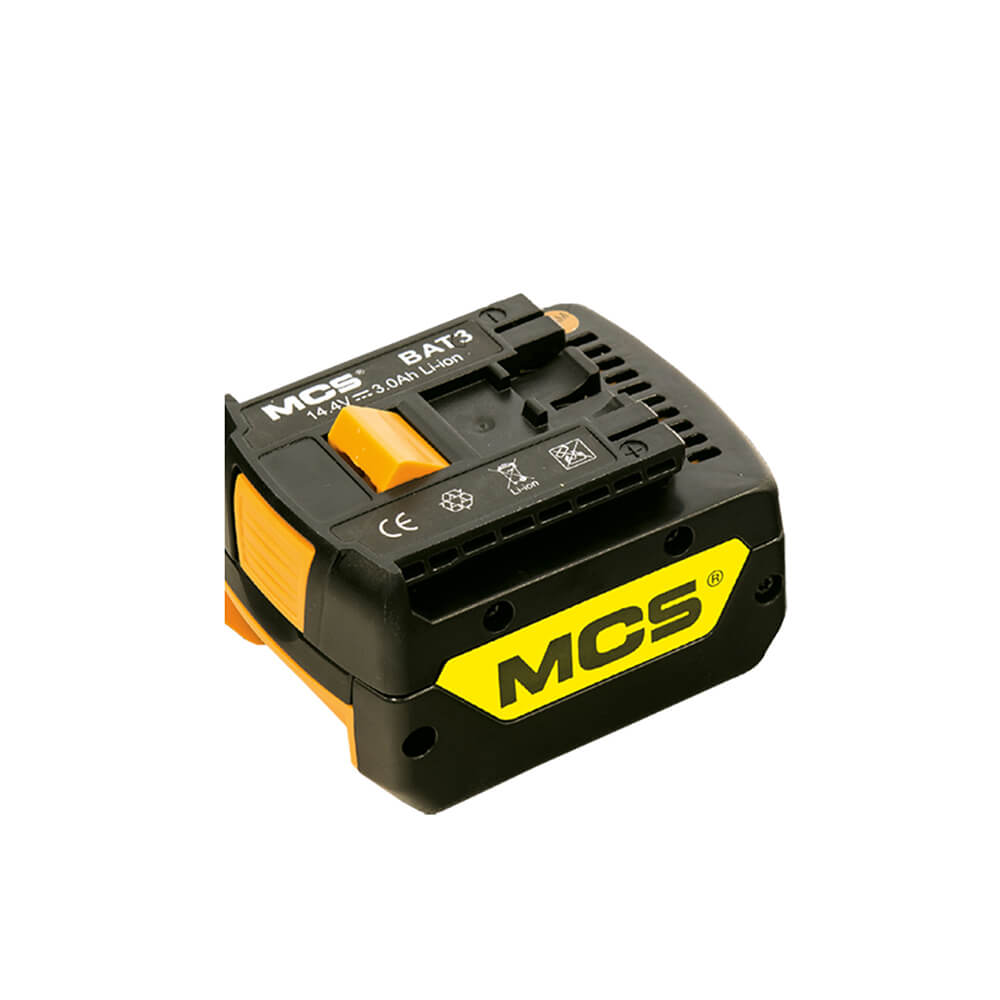

Master 6Ah lithium battery
|

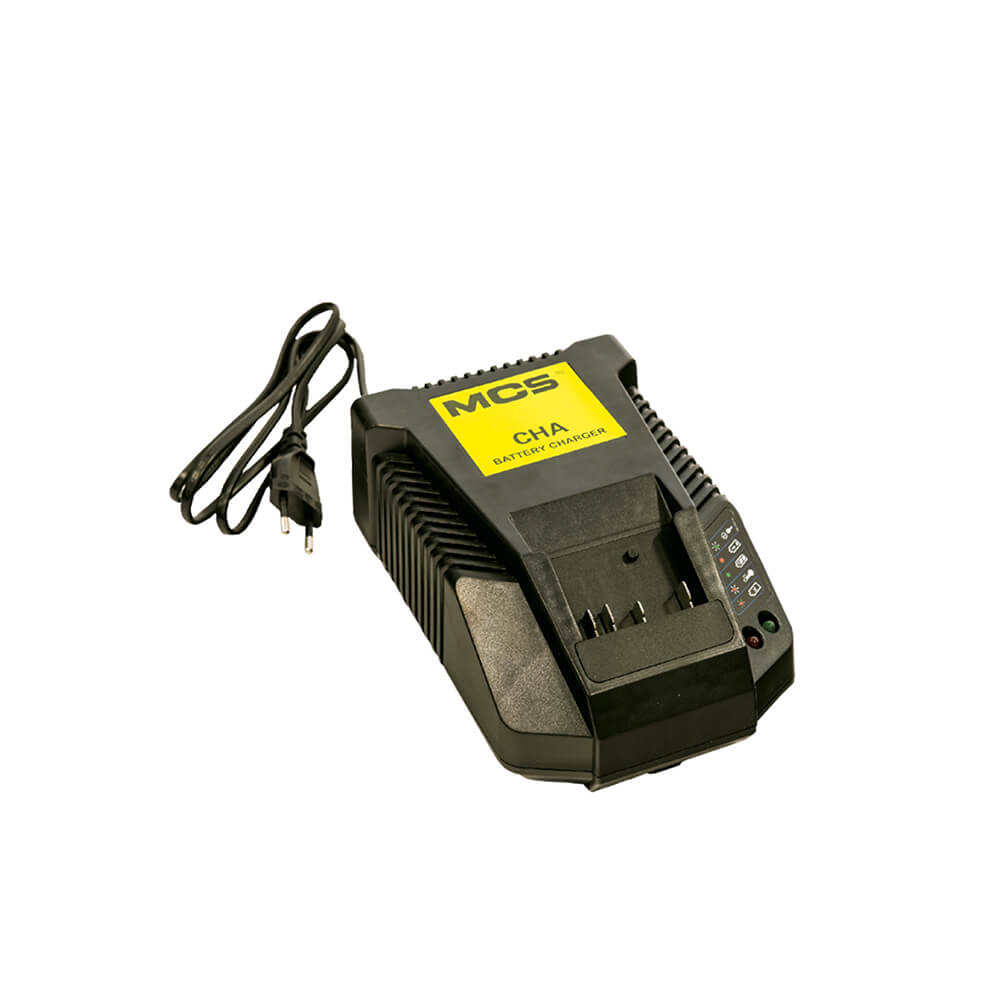

Master battery pack charger
|

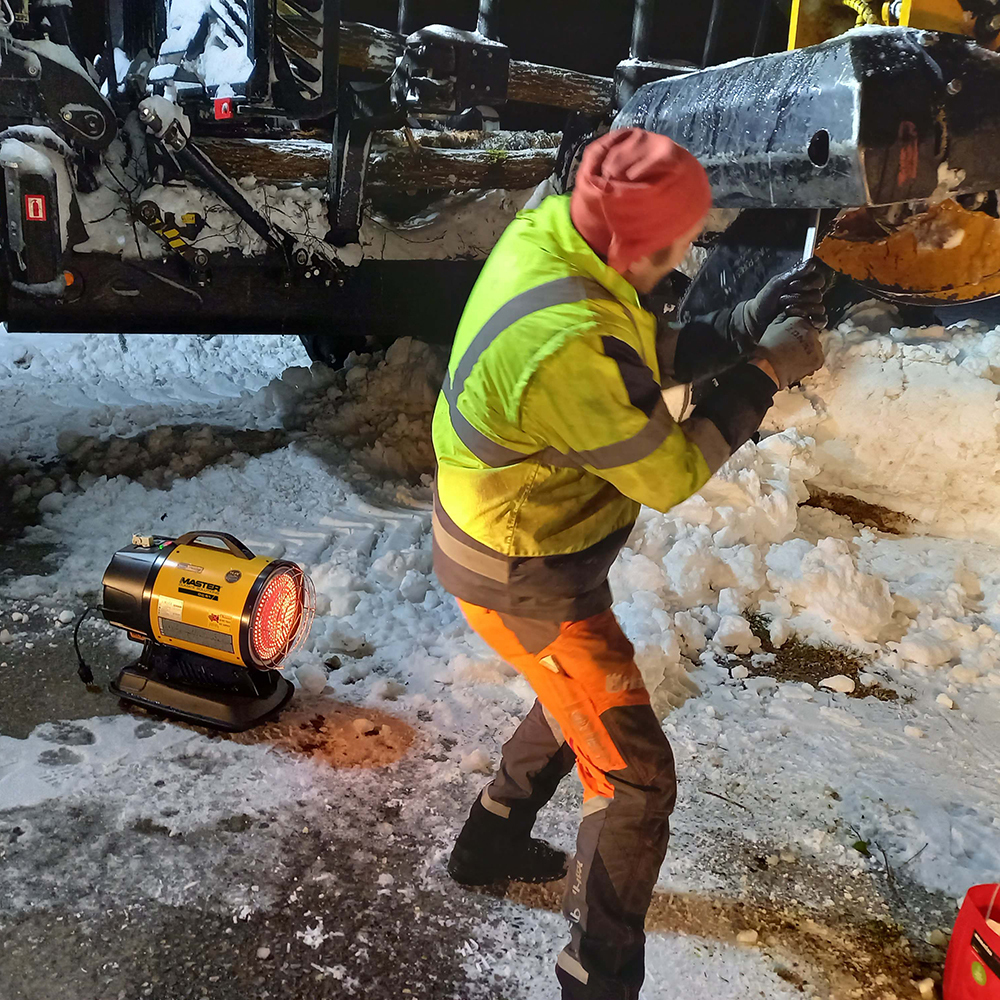

Master DC 61 snow machine repairs
|

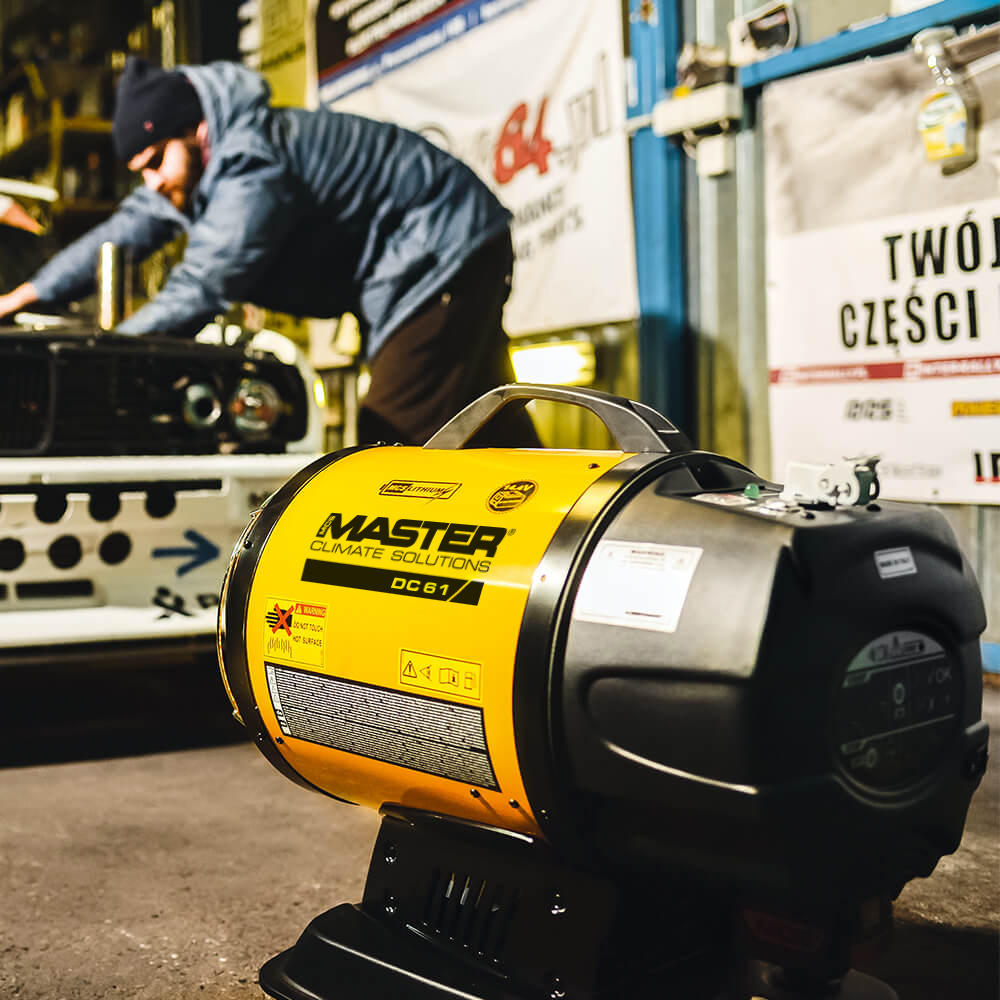

Master DC 61 heating a garage
|

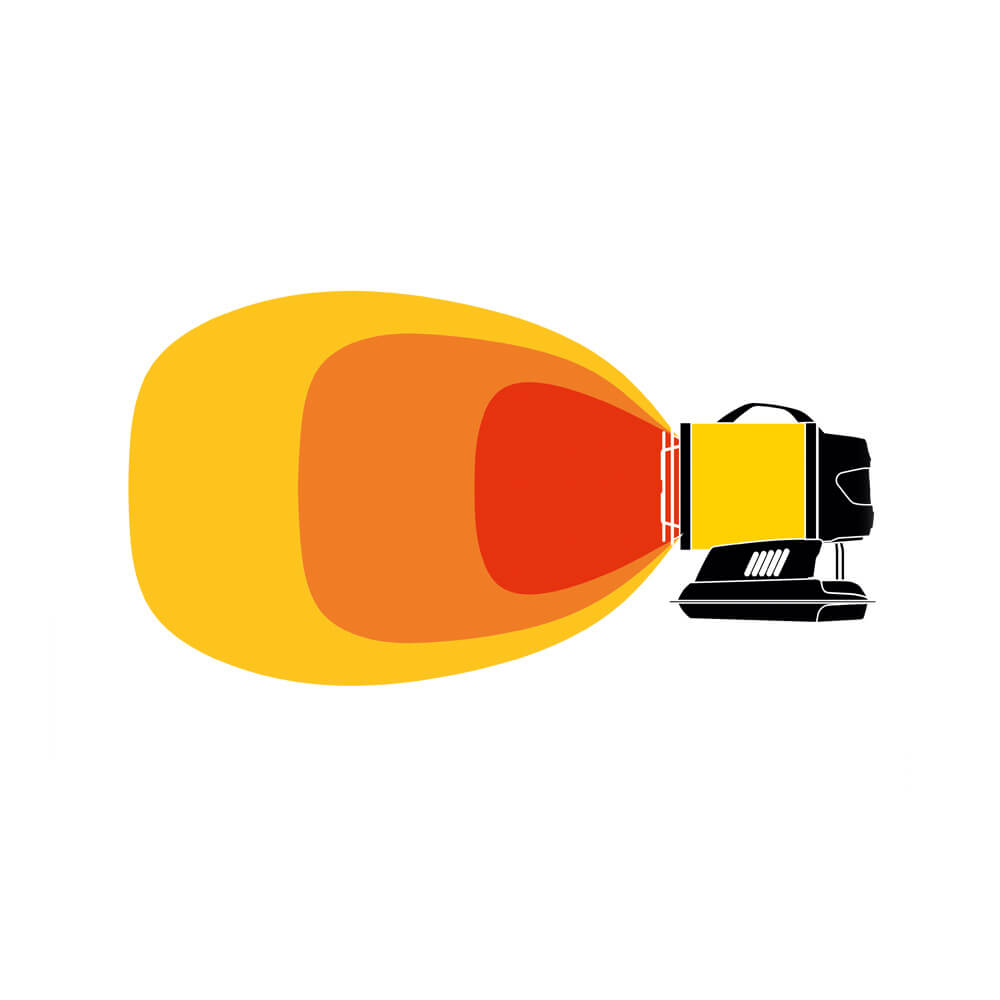

Master DC 61 radiation diagram
|
Key features
- Can be plugged into the mains (110-240 V) or can be used cordless with lithium battery (14 V)
- 14 V only the highest electrical safety
- Equipped with Master Lithium Battery BAT6
- On board power adapter from 110 V to 220 V AC included
- Low noise
- Infrared heating (short wave)
- No air flow
- Electronic flame control with photocell
- Post-ventilation
- Standard oil level indicator
- ILME socket for remote thermostat: analogue or digital
- Suction filter and inlet filter
- Snorkel
- Overheat thermostat
- Anti-tilt switch
- Battery: 4 hours run-time and fully charged in 60 minutes
Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:
- Heating objects, bodies or walls indoors and outdoors.
- Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
- Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
- Saving energy, because less energy is required for achieving the same heating effect.
Product specifications
| Specifications | Units | DC 61 |
|---|---|---|
| Heating power | kW | 17 |
| Heating power | Btu/h | 58,000 |
| Heating power | kcal/h | 14,600 |
| Fuel consumption | l/h | 1.6 |
| Fuel autonomy | h | 7 |
| Thermostat control | Analogue or digital | |
| Electric power | kW | 0.2 |
| Power supply | V/Hz | 110-240/1ph/50 |
| Rated current | A | 1 |
| Tank capacity | l | 11 |
| Product size (l x w x h) | mm | 560 x 345 x 575 |
| Box size (l x w x h) | mm | 680 x 380 x 580 |
| Net/gross weight | kg | 19/21 |
| Pallet | pcs | 12 |
Heating radiation table
| Specifications | Units | T Ambient 20°C - DC 61 |
|---|---|---|
| 0.5m | °C | 110 |
| 1m | °C | 50 |
| 1.5m | °C | 20 |
Suitable for
- Agriculture
- Automotive
- Construction
- Emergency services
- Events and festivals
- Industrial, factories and production
- Military and aerospace
- Rental companies
- Transport and logistics
