Master BV 290 – indirect oil fired air heaters

Indirect oil fired air heaters – high pressure

Master indirect oil heaters are highly efficient and generate 100% clean, dry and fume-free warm air. They are ideal for places with limited ventilation like shops, event tents, food preparation areas or exhibition halls. They can be used with flex hoses to distribute the warm air.

View all of our indirect oil fired air heaters, commercial grade tent heaters and other types of commercial heater to meet your required applications.

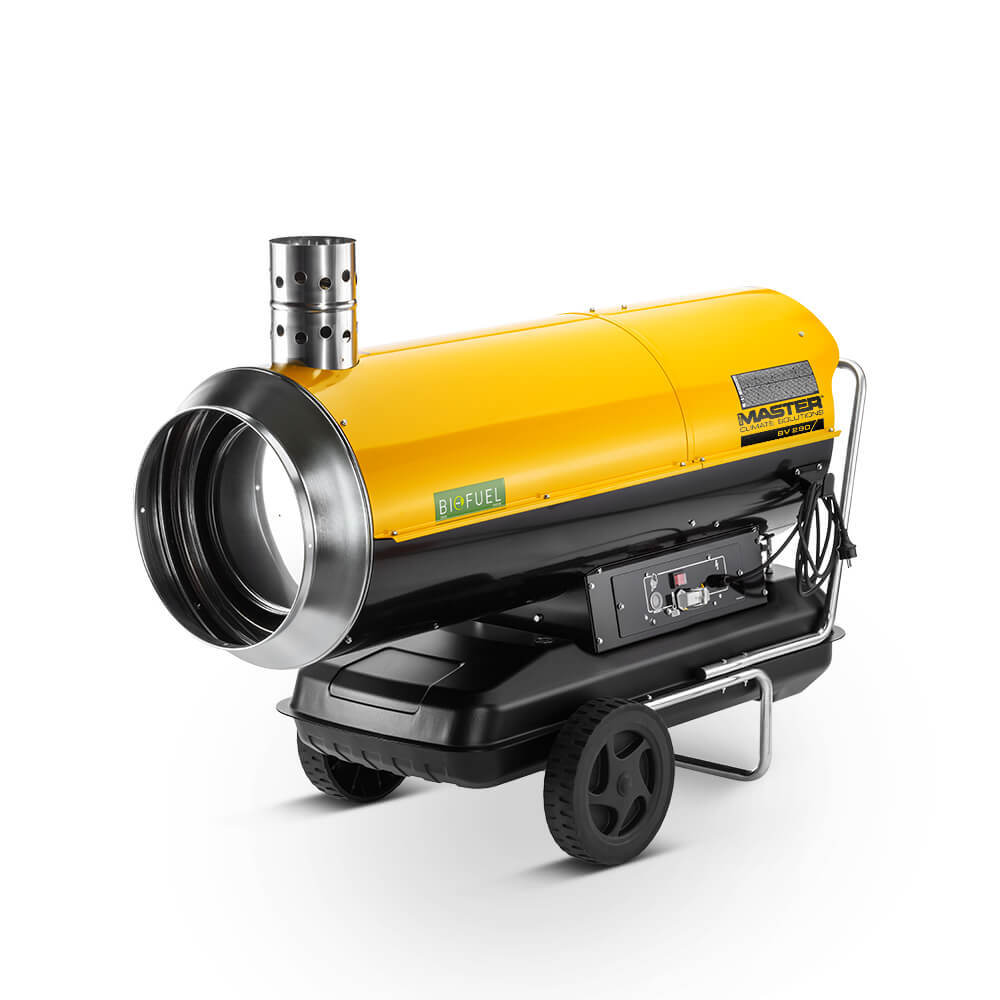

Master BV 290 main left web
Master BV 290 – indirect oil fired air heaters

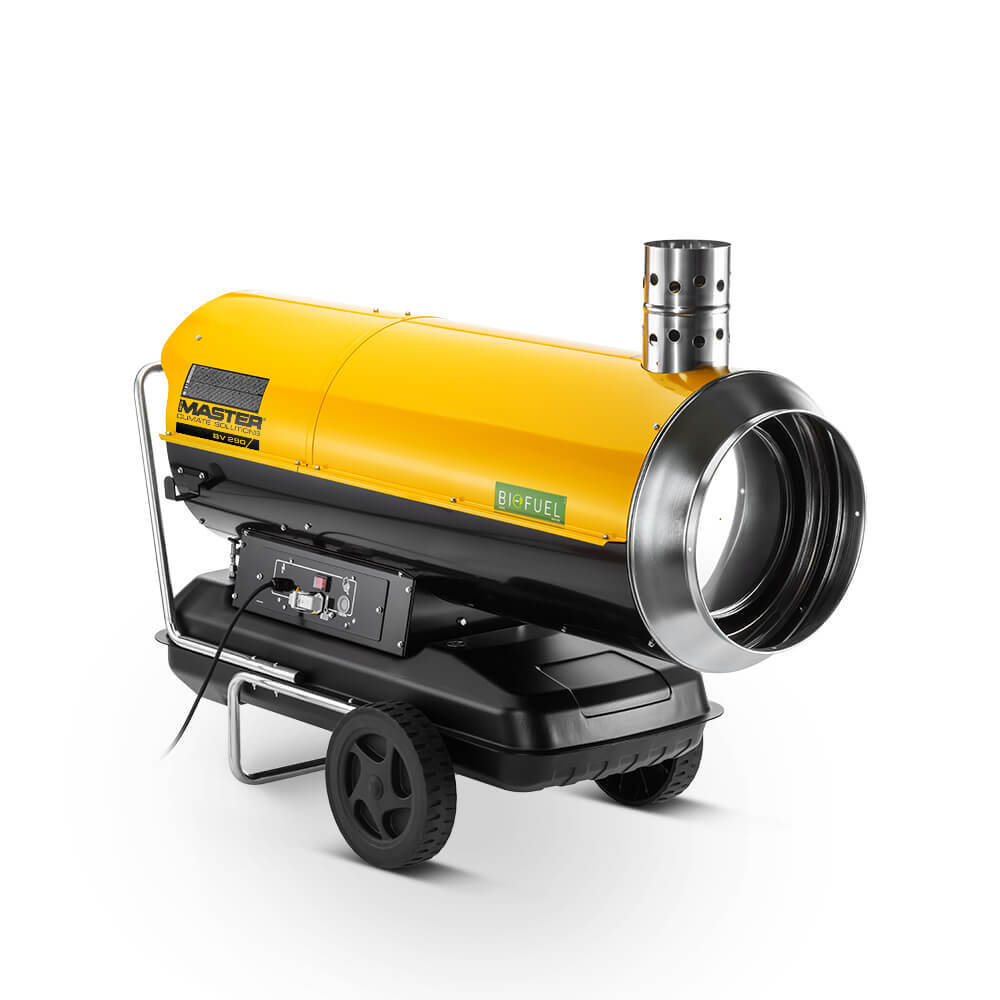

Master BV 290 main right web
Master BV 290 – indirect oil fired air heaters

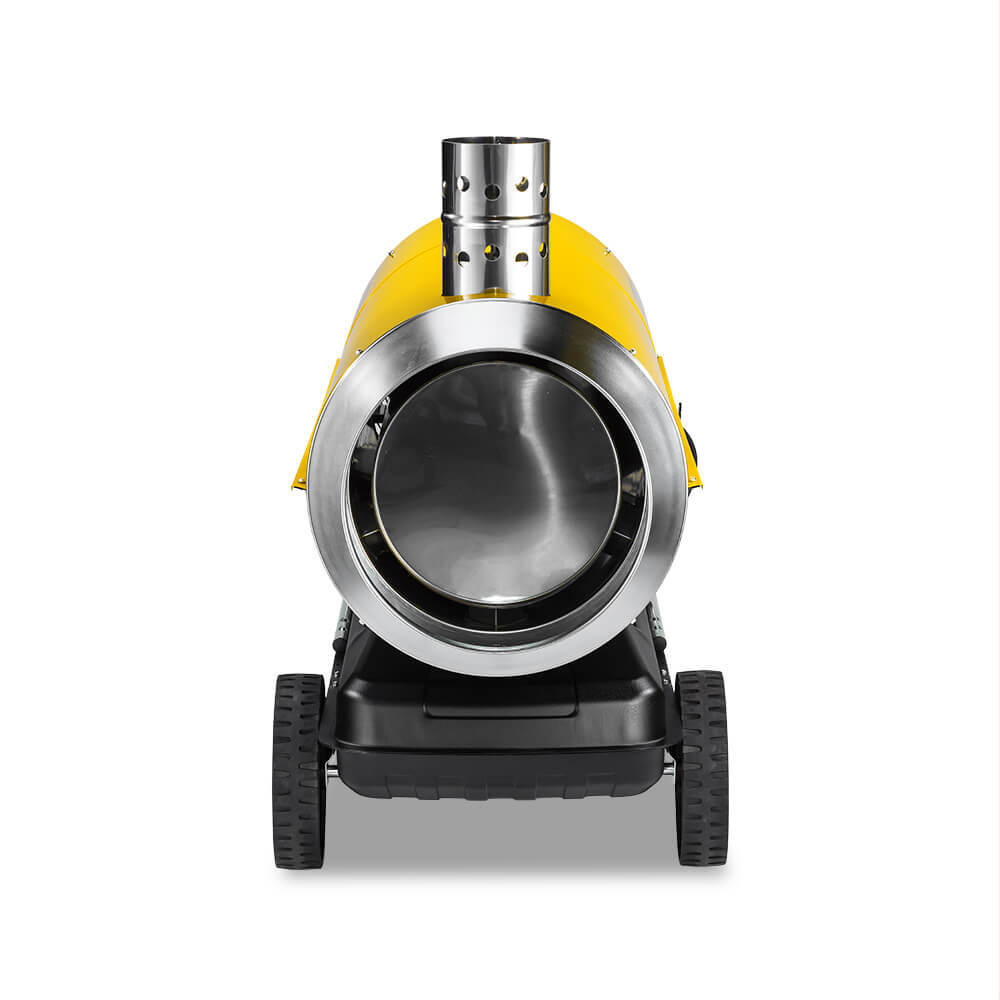

Master BV 290 front web
Master BV 290 – indirect oil fired air heaters

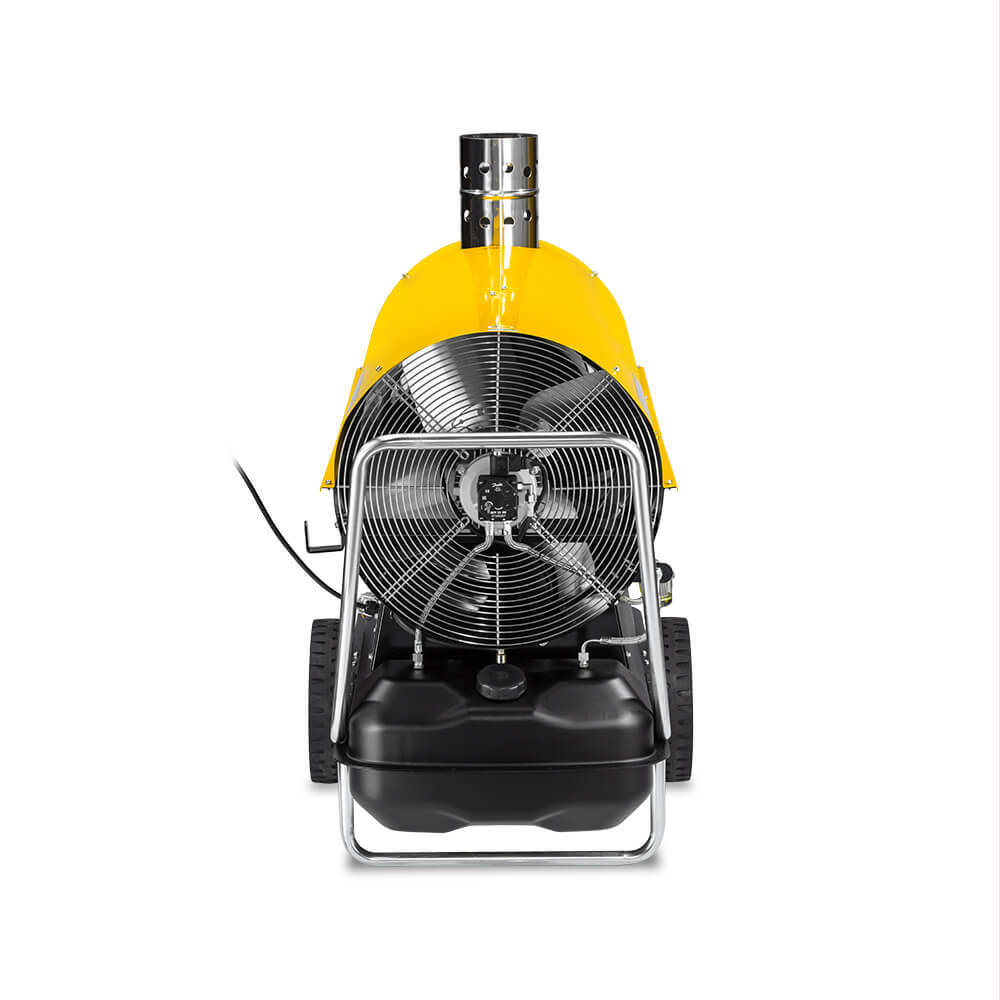

Master BV 290 back web
Master BV 290 – indirect oil fired air heaters

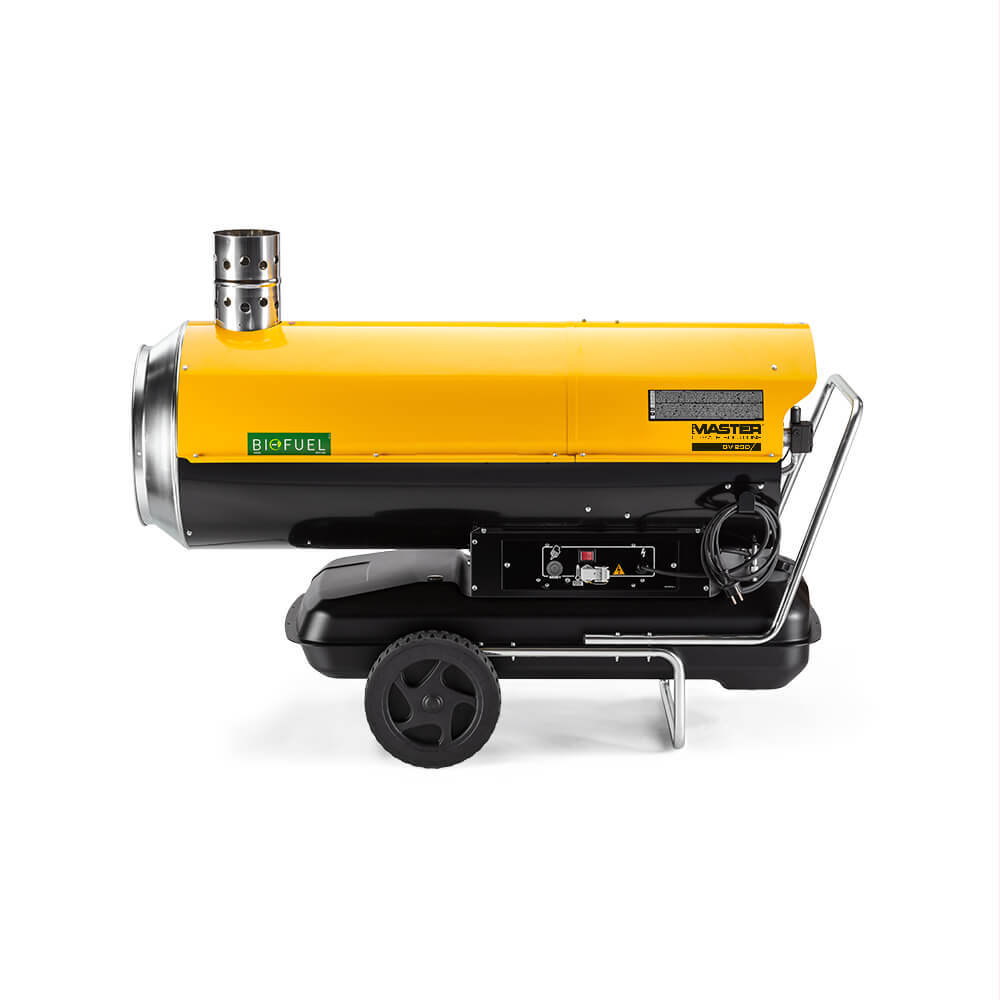

Master BV 290 side right web
Master BV 290 – indirect oil fired air heaters

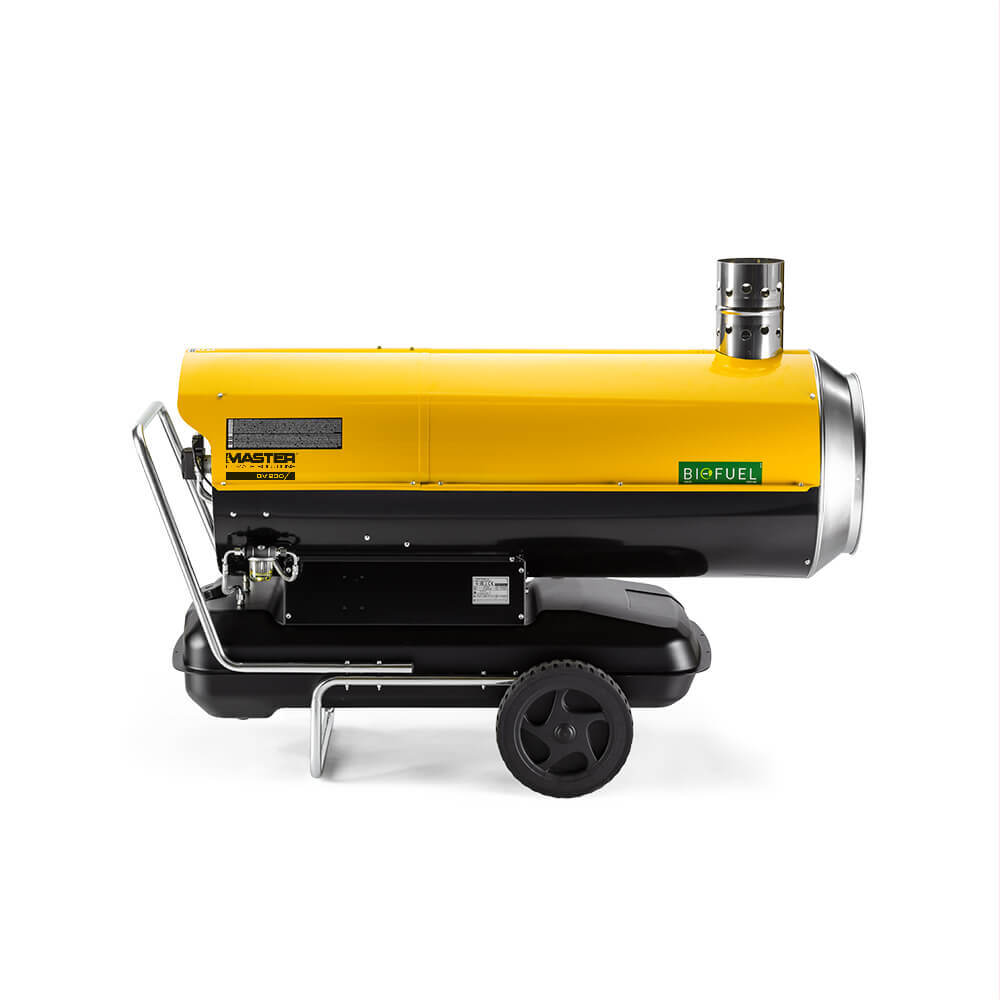

Master BV 290 side left web
Master BV 290 – indirect oil fired air heaters

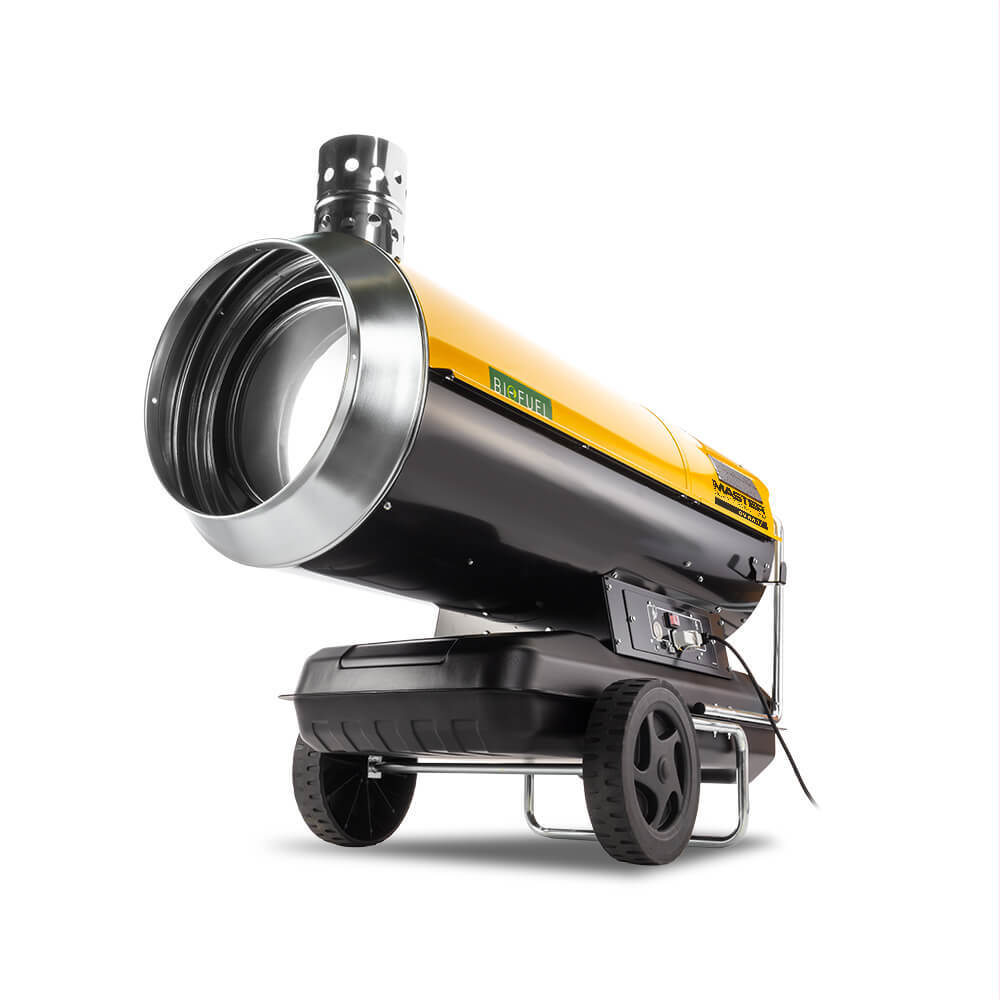

Master BV 290 hero web
Master BV 290 – indirect oil fired air heaters

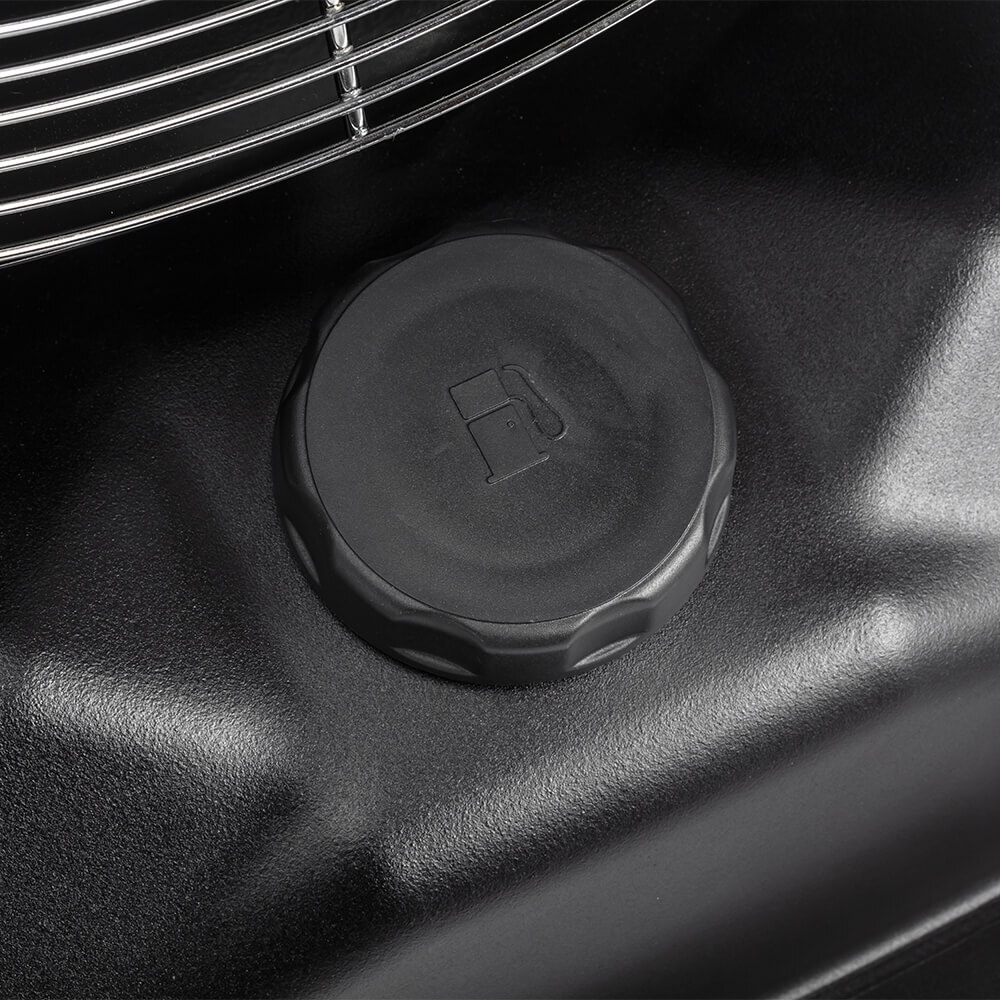

Master BV 290 close up1 web
Master BV 290 – indirect oil fired air heaters

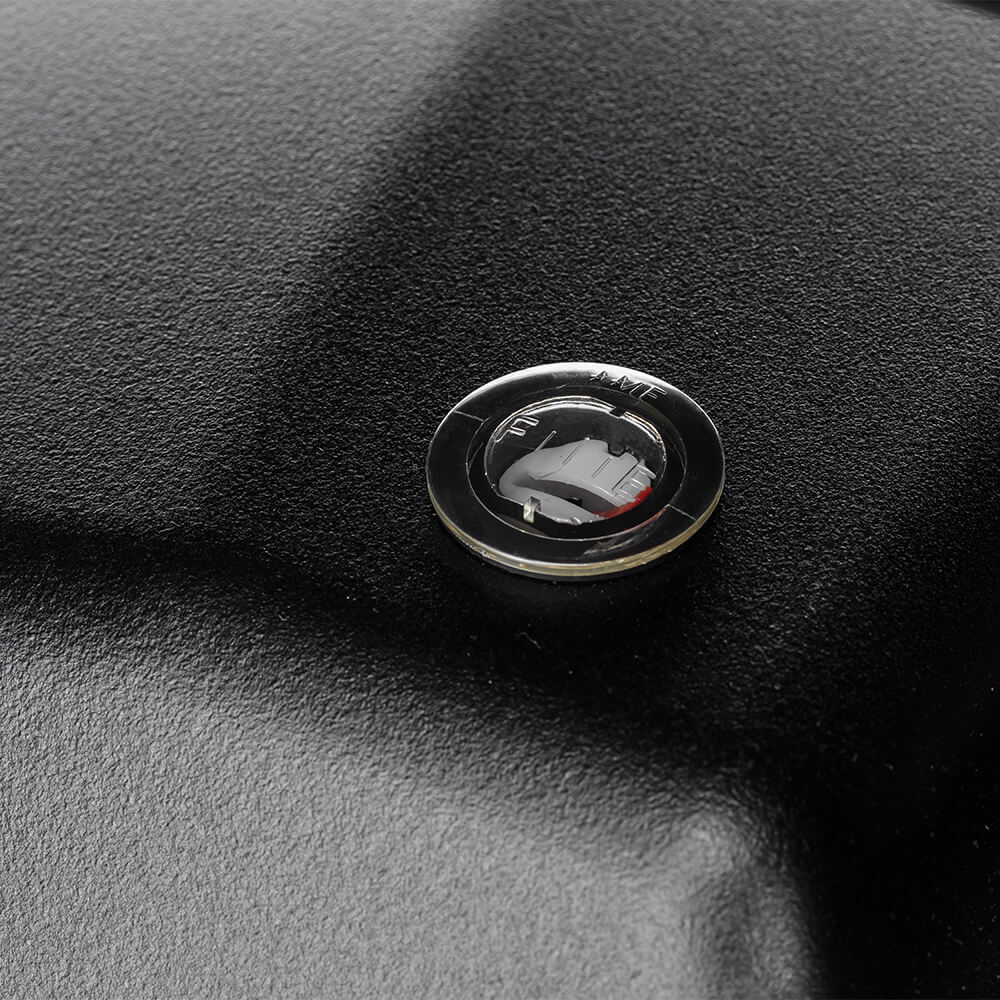

Master BV 290 close up2 web
Master BV 290 – indirect oil fired air heaters

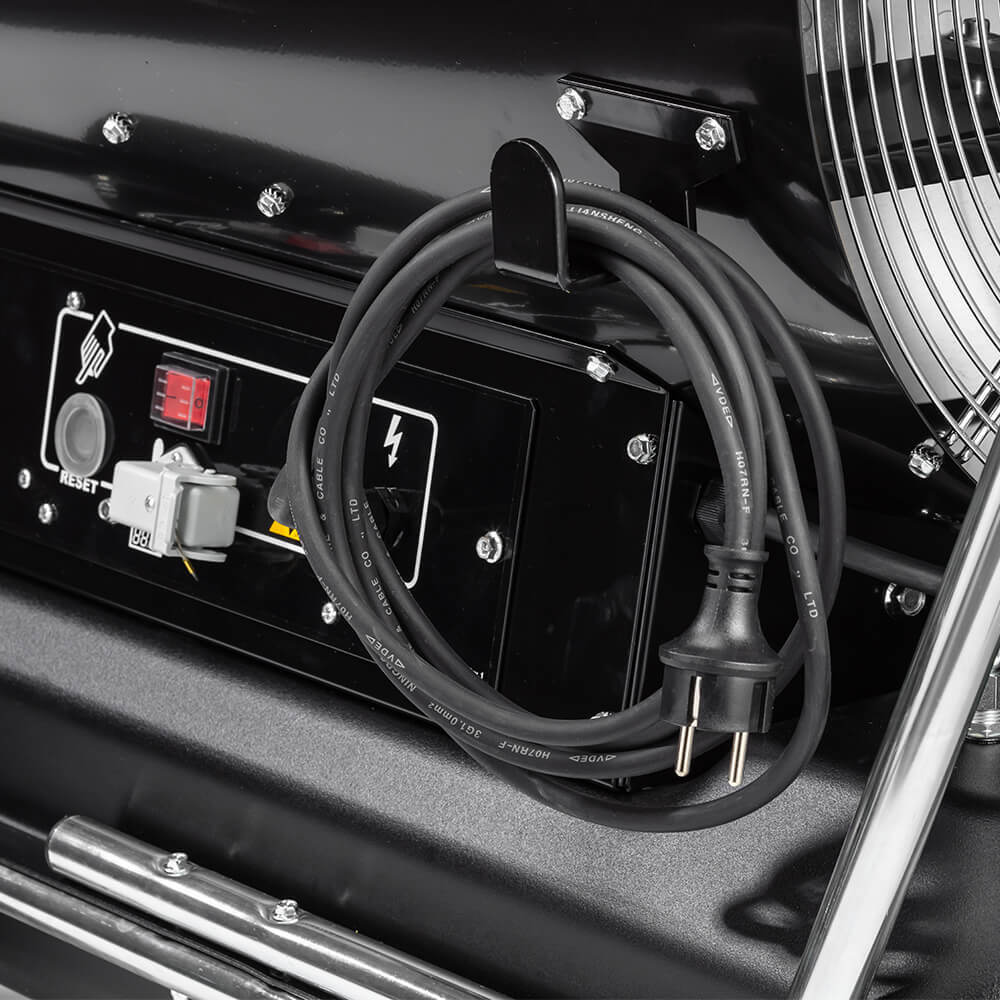

Master BV 290 close up3 web
Master BV 290 – indirect oil fired air heaters

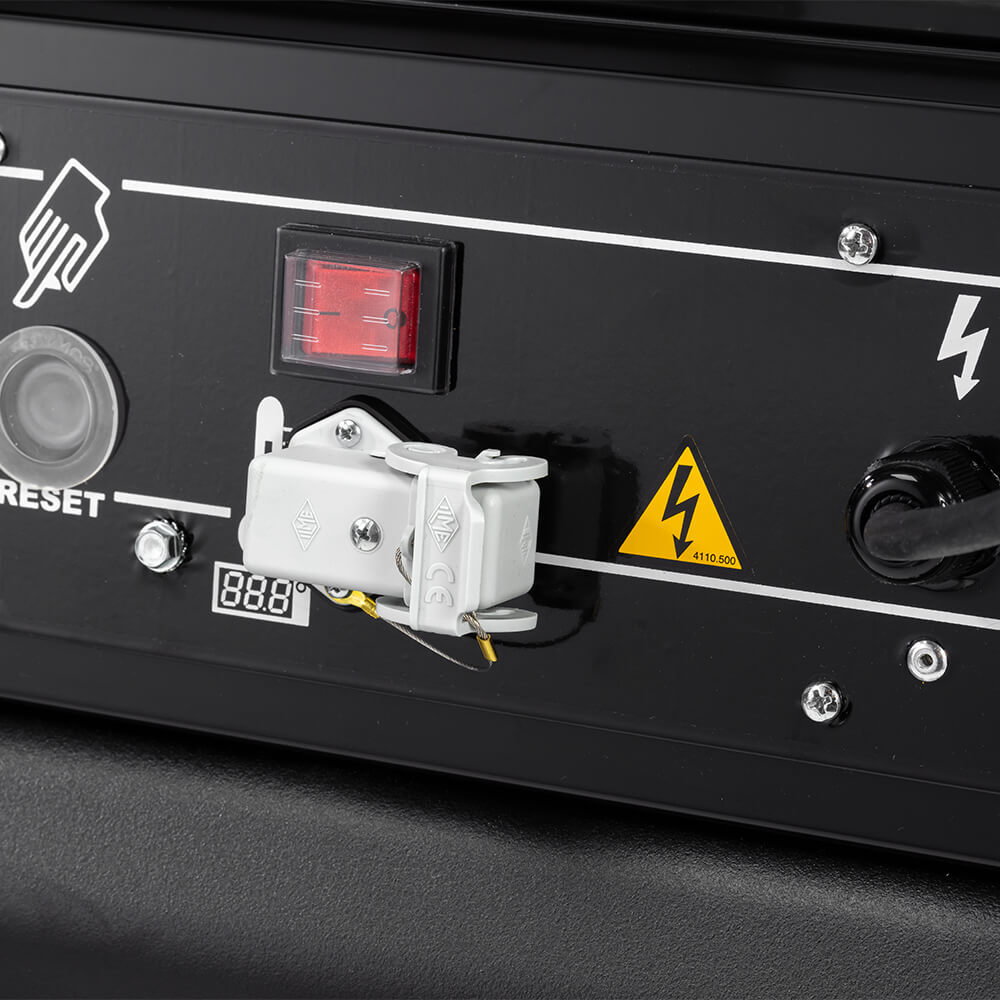

Master BV 290 close up4 web
Master BV 290 – indirect oil fired air heaters

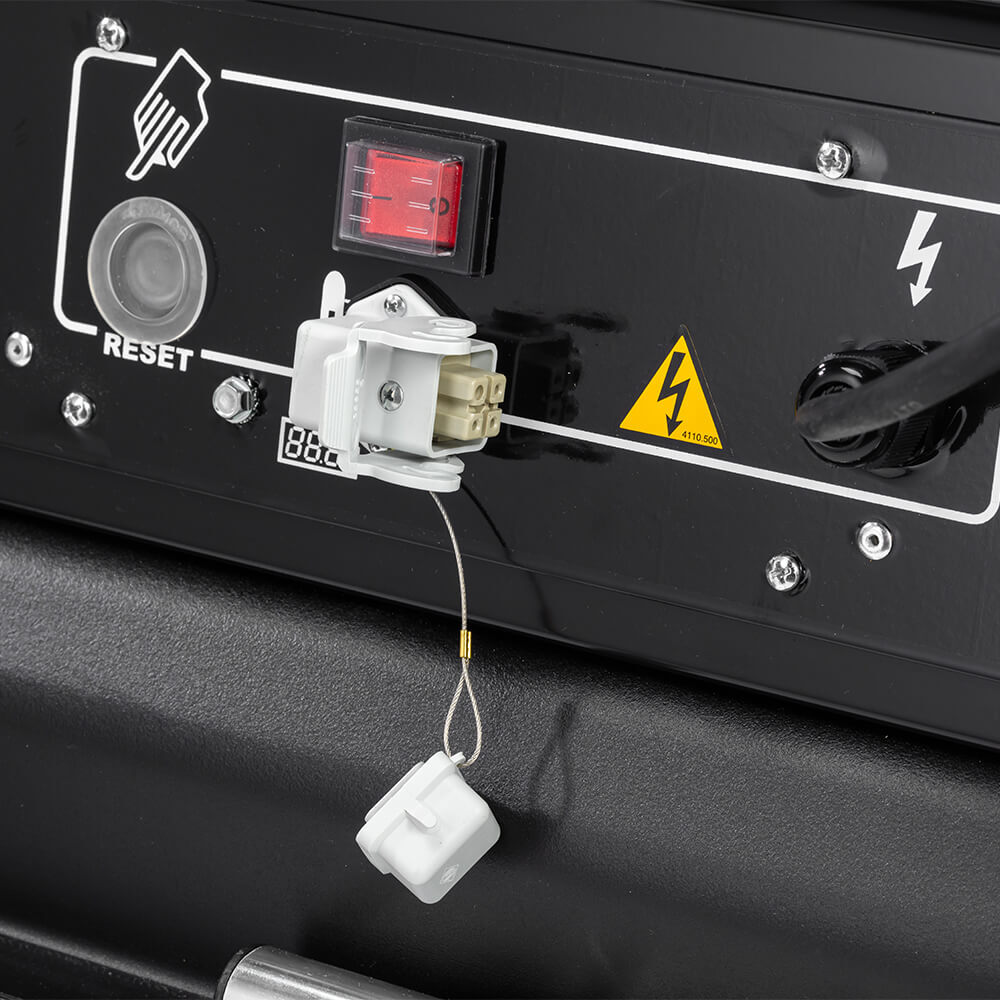

Master BV 290 close up5 web
Master BV 290 – indirect oil fired air heaters
Master indirect heaters applications
Master indirect heaters applications
Master BV heaters with air recycling video
Master BV heaters with air recycling video

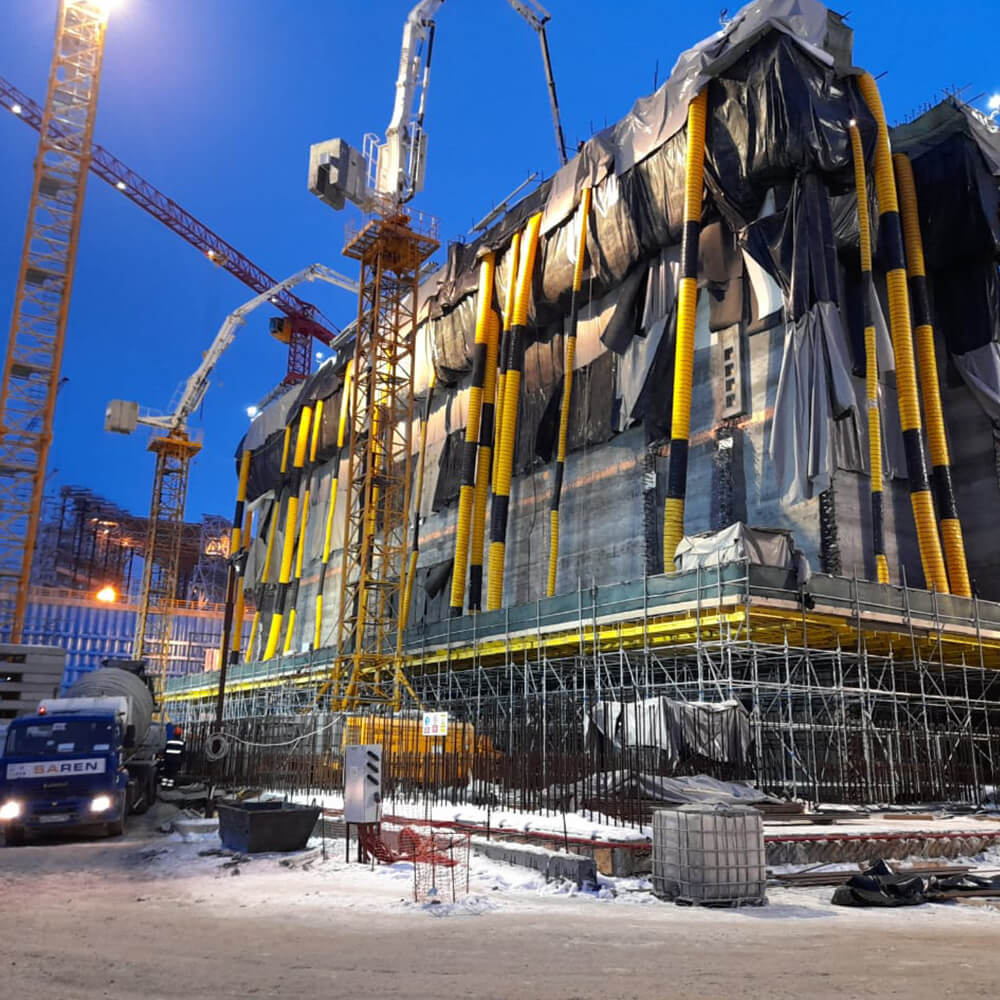

Master BV 290 construction site
Master BV 290 construction site

Key features

  • High pressure heaters
  • Clean hot air
  • Optional connection to a flexible tube
  • Flue gas exhaust
  • Heat exchanger
  • Overheat thermostat
  • Post-ventilation
  • Thermally protected motor
  • Three oil filters: oil pump filter, suction filter and inlet filter
  • External suction filter with transparent glass cup
  • Electronic flame control with photocell
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Trolley included
  • High quality brand fuel pump
  • Fuel pump with access for easy maintenance
  • Snorkel – breather for non-drip fuel tank
  • Diagnostic LED
  • These heaters can burn: biofuel HVO 100, diesel or kerosene

Product specifications

SpecificationsUnitsBV 290
Heating power
kW
85
Heating power
Btu/h
290,000
Heating power
kcal/h
73,100
Air flow
m³/h
3,300
Fuel autonomy
h
13
Thermostat control
Analogue or digital
Fuel consumption
l/h
8.1
Power supply
V/Hz
220-240/1ph/50-60
Electric power
kW
1.06
Rated current
A
4.6
Protection
IP41
Tank capacity
l
105
Flue tube
Ømm
150
Flex tube
Ømm
407
Product size (l x w x h)
mm
1600 x 700 x 1150
Box size (l x w x h)
mm
1670 x 750 x 1180
Net/gross weight
kg
101/123
Pallet
pcs
1
Dual voltage
Available

Suitable for

  • Agriculture
  • Automotive
  • Commercial buildings
  • Construction
  • Emergency services
  • Events and festivals
  • Industrial, factories and production
  • Military and aerospace
  • Rental companies
  • Transport and logistics
