Master BCB 19 – evaporative cooler

Portable air coolers
Master Top Badge

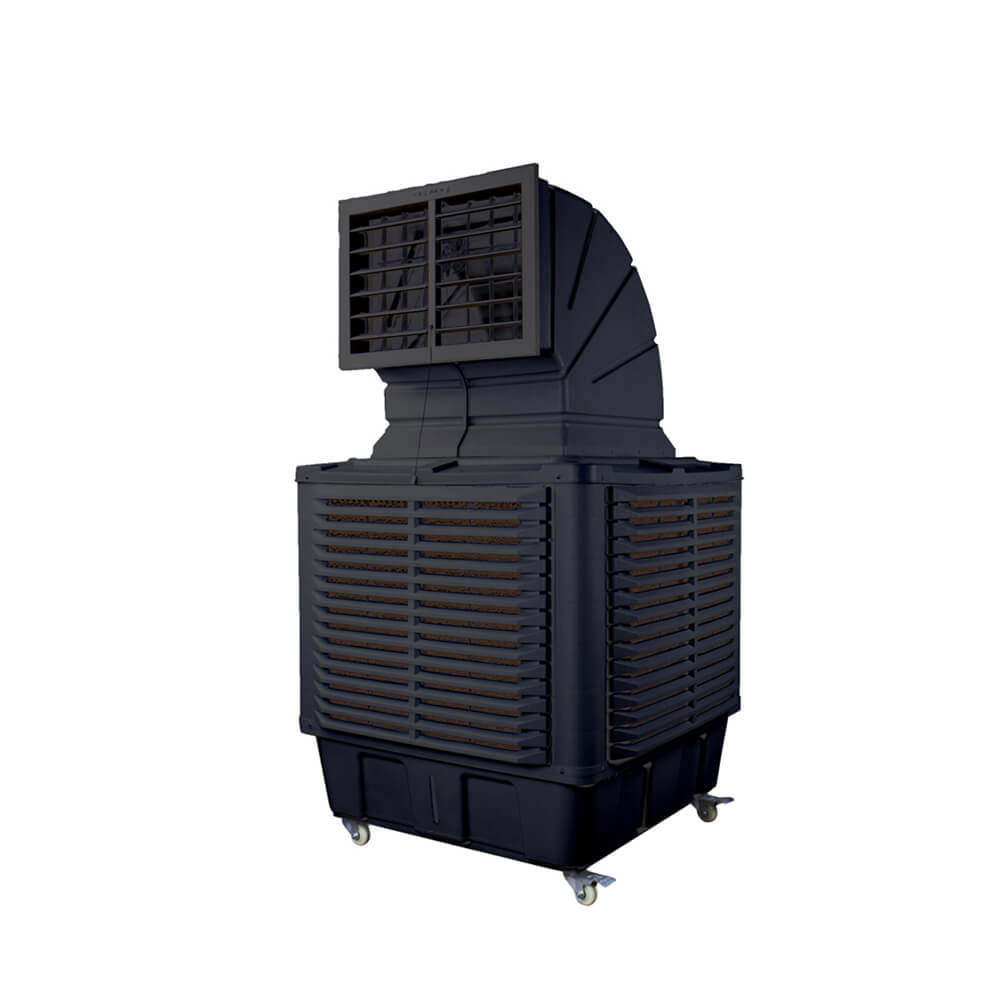

Master BCB 19 – evaporative cooler
Master BCB 19 – evaporative cooler

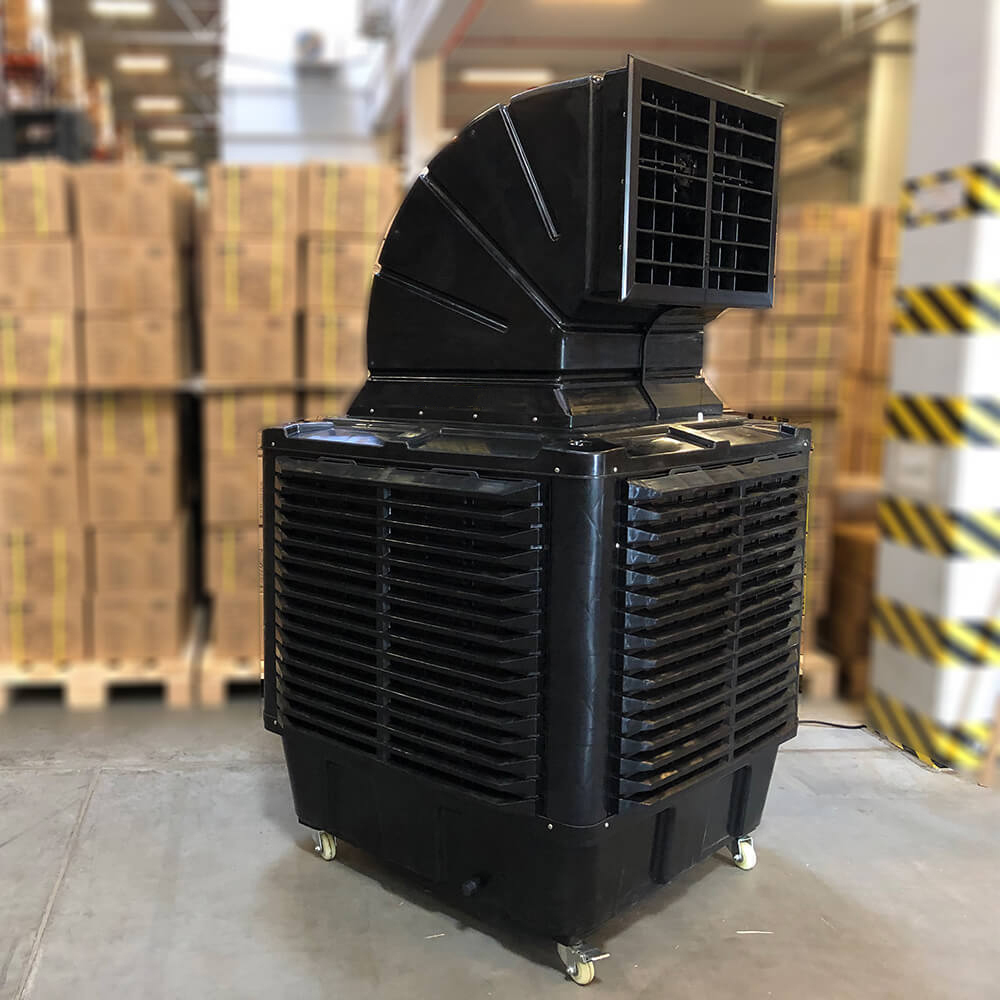

Master BCB 19 warehouse
Master BCB 19 warehouse

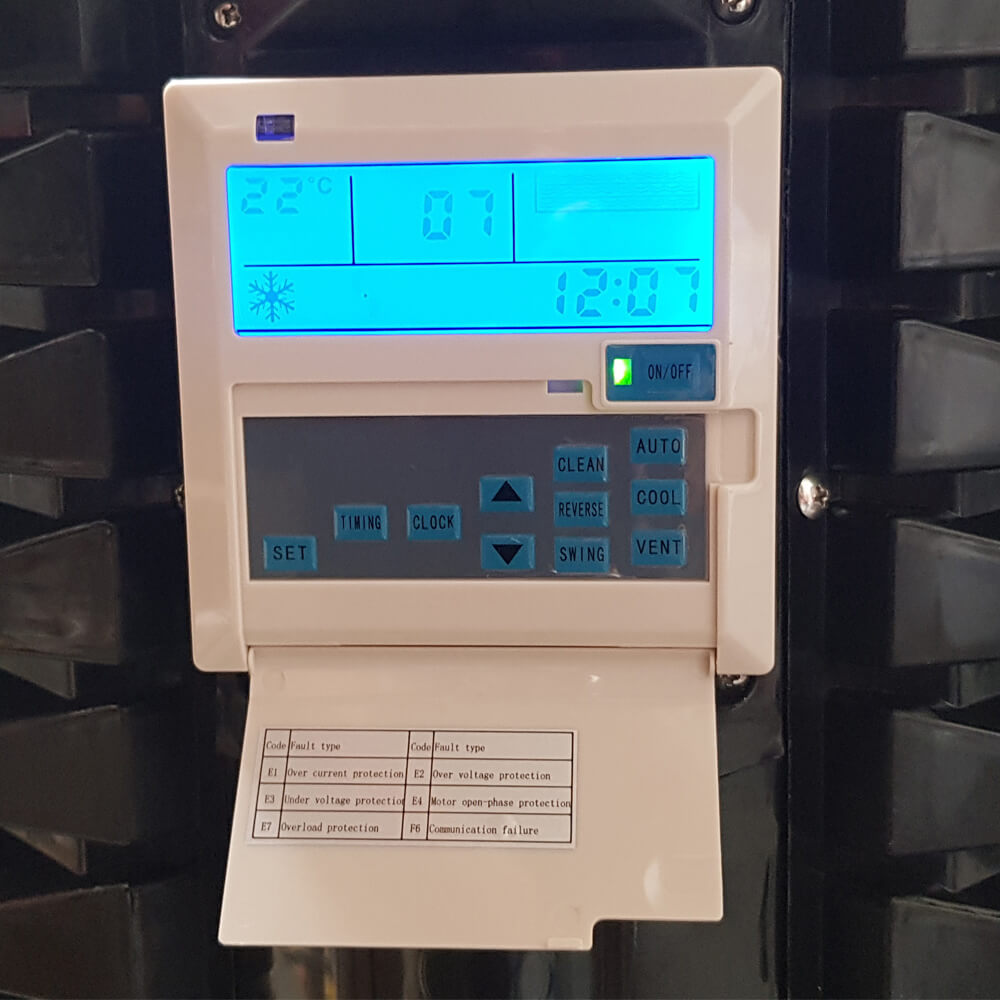

Master BCB controls
Master BCB controls
Master evaporative cooling diagram
Master evaporative cooling diagram
Master air coolers applications
Master air coolers applications

Our professional evaporative coolers are easy to move and use, making them great for rental purposes and hiring out for events and festivals. They provide spot cooling where needed and quickly cool areas down giving workers maximum comfort in hot weather.

View our range of air cooling units and evaporative coolers suitable for all types of application and commercial or industrial purpose on any scale.

Interested?

Key features

  • Axial fan with optional ducting for cool air
  • Made of robust UV resistant plastic
  • Easy to move – functional wheels
  • Diffuser on top – upper exit
  • LCD remote control with 7.5m cable
  • Infrared remote control
  • 12-speed fan, adjustable to create ideal climate
  • Long-life cooling pads
  • Automatic: self-cleaning, self-draining, self-drying when the cooler is inactive
  • External filter included to protect against dust and and dirt from the environment
  • Prevention system against Legionella, algae, fungus, etc.
  • Ideal for well-ventilated spaces like party and event tents
  • Plug-and-play principle, connect water and enjoy cool air
  • Ideal for rental purposes
  • Very low energy consumption

Benefits of evaporative cooling

  • The use of Master air coolers strongly reduces the CO₂ impact compared to air-conditioners
  • Clean air that reduces the risk of bacteria and virus
  • No chemicals or refrigerants
  • Low energy consumption
  • Virtually maintenance-free equipment

How does it work

The heart of the evaporative cooling system is the cooling pad where the water evaporates and the air passing through the pads is cooled. Evaporative cooling pads are manufactured from fluted cellulose sheets that are glued together. The material is chemically impregnated with special compounds to prevent rot and ensure a long service life and easy maintenance.

Evaporative cooling and humidity

A given volume of air at a certain temperature and pressure is capable of absorbing and holding a certain amount of water vapour. If that volume of air contains 50% of the moisture it is capable of holding, we say it is at 50% relative humidity.

The hotter the day, the drier the air, the more cooling can be done by means of evaporation. In other words, the cooling effect is best when you need it most.

Our evaporative coolers are developed to work well in high-humidity environments too, however, and will remain much more efficient than a simple fan that just circulates warm air.

Our coolers will increase humidity by 2 to 5%, depending on temperature and humidity in the environment you want to cool. The slight increase is not noticeable in ventilated areas where the air produced by the unit is exhausted.

Product specifications

Cooling pad

220
dm³


Cooling pad

79 x 70 x 10
cm


Air flow

18,000
m³/h


Maximum air pressure

200
Pa


Maximum area

250


Power consumption

1.1
Kw


Power supply

230/1ph/50
V/Hz


Air exit

Top


Fan type

Axial


Fan speed

12


Protection

IP44


Water consumption

10-15
l/h


Tank capacity

250
l


Sound level

66
dB(A)


Water input/drain

½ and 1
inch


Dimensions air exit

64 x 45
cm


Product size (l x w x h)

1100 x 1100 x 1850
mm


Box size (l x w x h)

1150 x 1150 x 2000
mm


Net weight

75/85
kg


Pallet

1
pcs
