Master BC 80 – evaporative cooler

Evaporative coolers
Master Top Badge

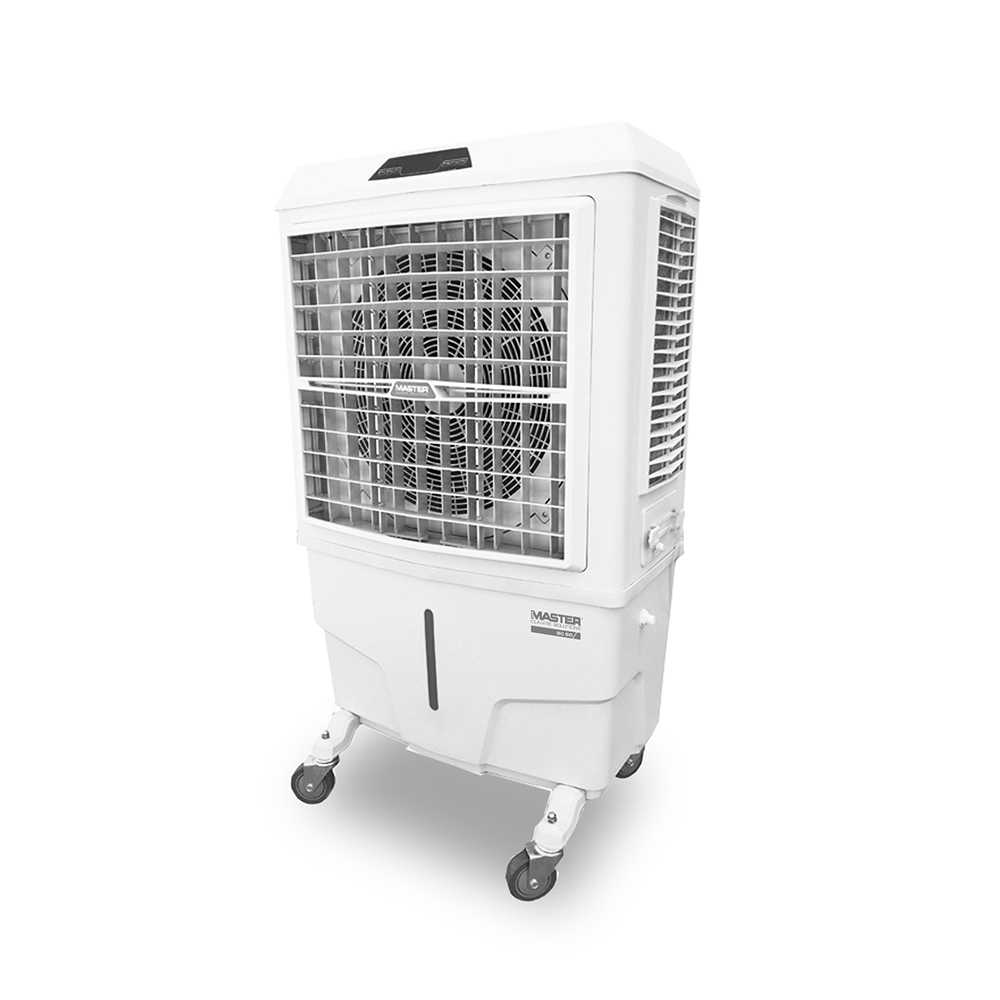

Master BC 80 – evaporative cooler
Master BC 80 – evaporative cooler
Master evaporative cooling diagram
Master evaporative cooling diagram
Master BC 80 video
Master BC 80 video
Master air coolers applications
Master air coolers applications

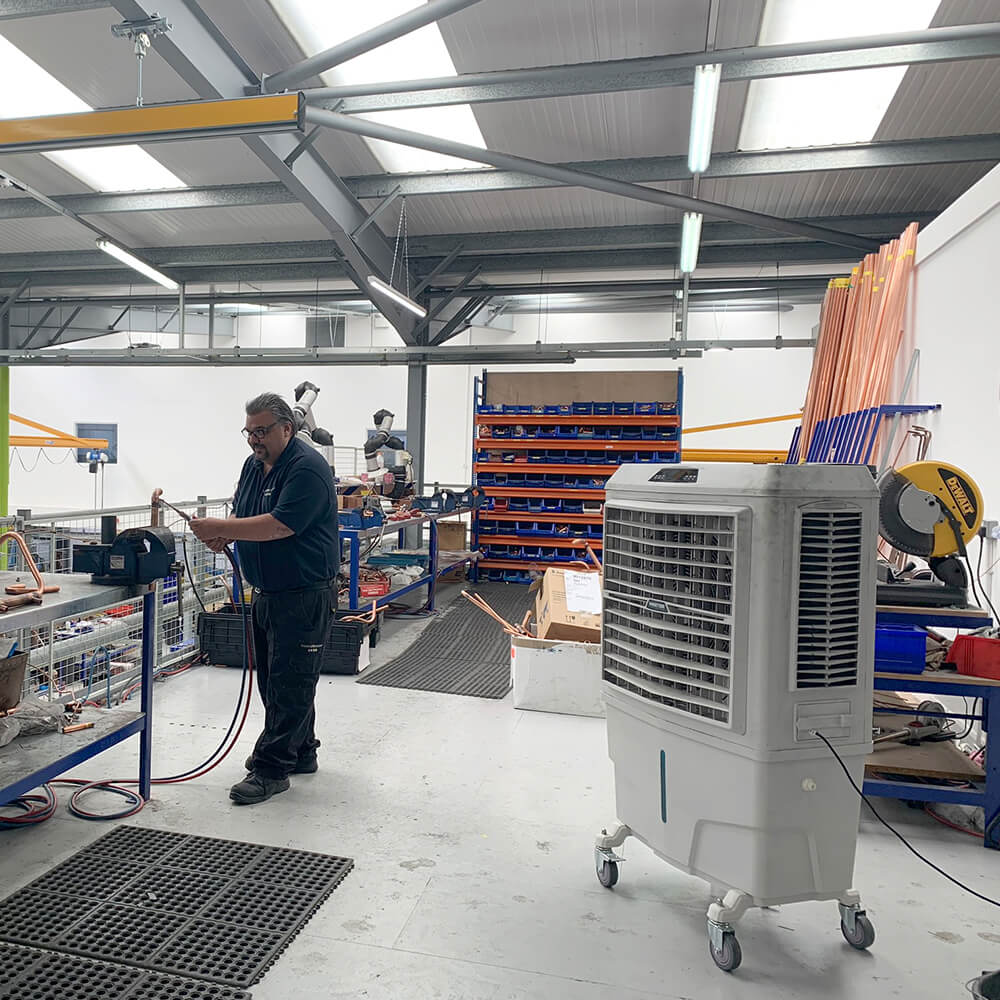

Master BC 80 factory
Master BC 80 factory

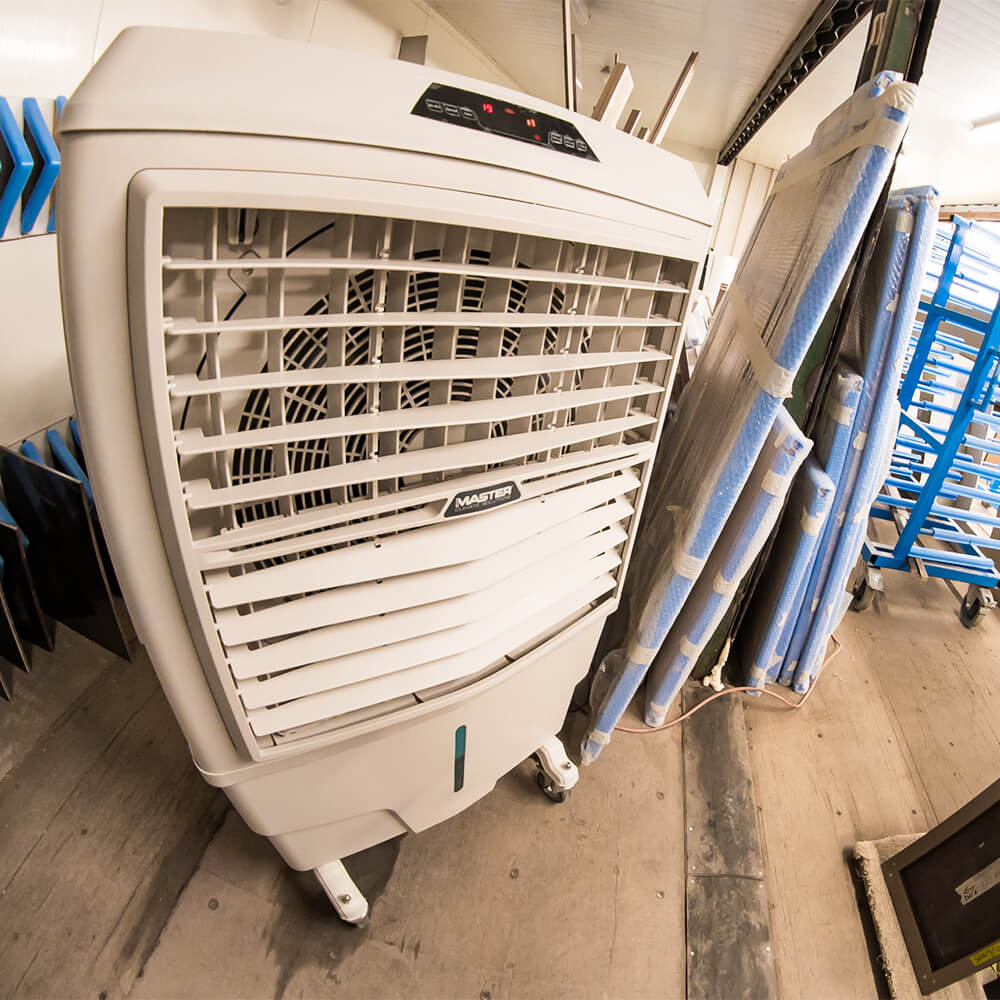

Master BC 80 paint factory
Master BC 80 paint factory

Master evaporative coolers cool the air using a simple natural process – the evaporating water decreases the temperature of the air. A pump takes the water from a tank and dampens a large pad made of natural cellulose. A powerful ventilator aspires air through the filter. The water evaporates from the filter and decreases the temperature of the air by several degrees. The fresh and clean air flows into the room and cools it down.

View our range of air cooling units and evaporative coolers suitable for all types of application and commercial or industrial purpose on any scale.

Interested?

Key features

  • Easy to move on wheels – ideal for rental
  • Flaps can swing automatically
  • No installation required – connect to water hose or refill tank and enjoy cool air
  • Eco friendly: no compressor, no gas, very low energy and water consumption
  • Ionizer to improve air quality – the cooler refreshes and cleans the air of fumes, dust and odours
  • Remote control to easily find your ideal cooling modus
  • Air filters to ease maintenance

Benefits of evaporative cooling

  • The use of Master air coolers strongly reduces the CO₂ impact compared to air-conditioners
  • Clean air that reduces the risk of bacteria and virus
  • No chemicals or refrigerants
  • Low energy consumption
  • Virtually maintenance-free equipment

How does it work

The heart of the evaporative cooling system is the cooling pad where the water evaporates and the air passing through the pads is cooled. Evaporative cooling pads are manufactured from fluted cellulose sheets that are glued together. The material is chemically impregnated with special compounds to prevent rot and ensure a long service life and easy maintenance.

Evaporative cooling and humidity

A given volume of air at a certain temperature and pressure is capable of absorbing and holding a certain amount of water vapour. If that volume of air contains 50% of the moisture it is capable of holding, we say it is at 50% relative humidity.

The hotter the day, the drier the air, the more cooling can be done by means of evaporation. In other words, the cooling effect is best when you need it most.

Our evaporative coolers are developed to work well in high-humidity environments too, however, and will remain much more efficient than a simple fan that just circulates warm air.

Our coolers will increase humidity by 2 to 5%, depending on temperature and humidity in the environment you want to cool. The slight increase is not noticeable in ventilated areas where the air produced by the unit is exhausted.

Product specifications

Cooling pad

70
dm³


Air flow

8,000
m³/h


Maximum area

180


Power consumption

330
W


Power supply

230/1ph/50
V/Hz


Rated current

1.5
A


Fan speed

3


Outlet versions

Front


Water consumption

8
l/h


Tank capacity

100
l


Direct water connection

½
inch


Tank level control

Yes


Sound level

62
dB(A)


Product size (l x w x h)

500 x 850 x 1410
mm


Box size (l x w x h)

520 x 870 x 1310
mm


Weight (without/with water)

32/132
kg


Pallet

2
pcs


Our tools

Warranty

Master 3-year limited warranty

Register your Master product here to take advantage of the benefits of the 3-year limited warranty.

Download app

Master Climate Solutions app

Use the Master Climate solutions app to calculate power and get recommended heating, cooling, drying or ventilation products for your work area.

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.
