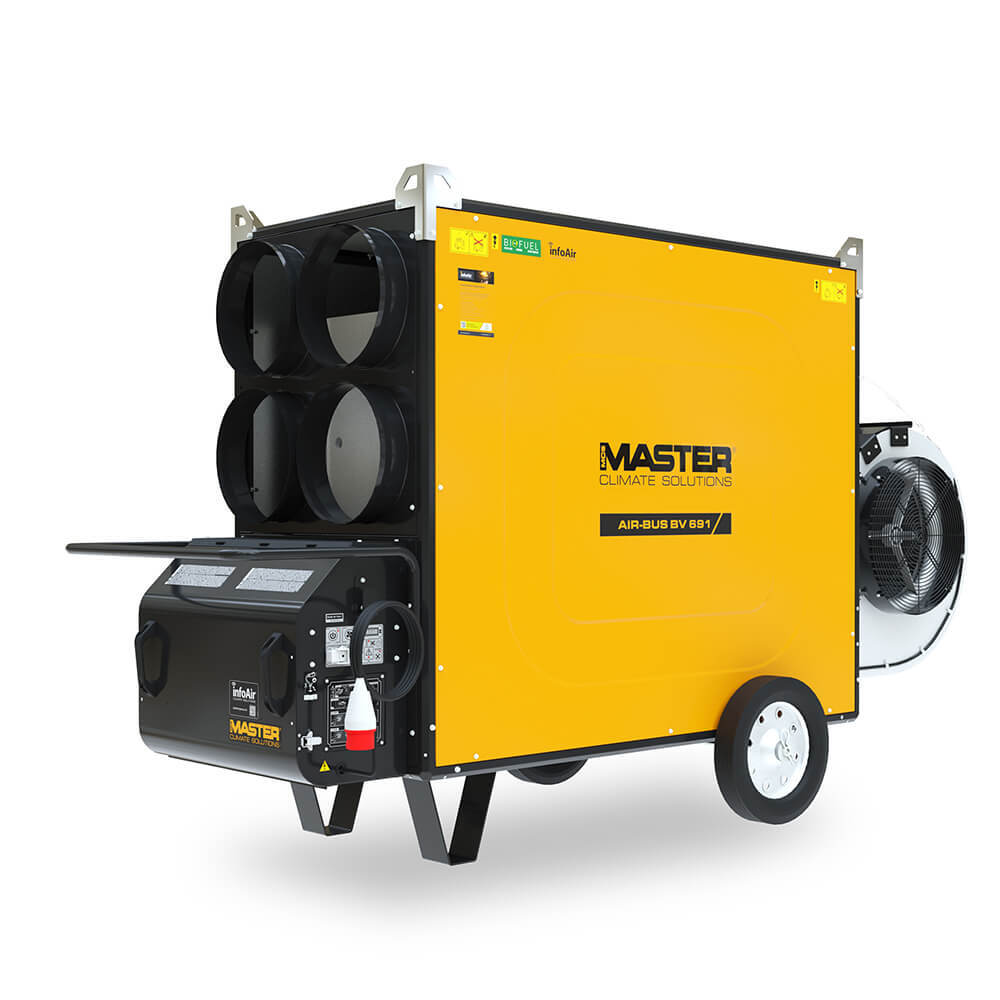

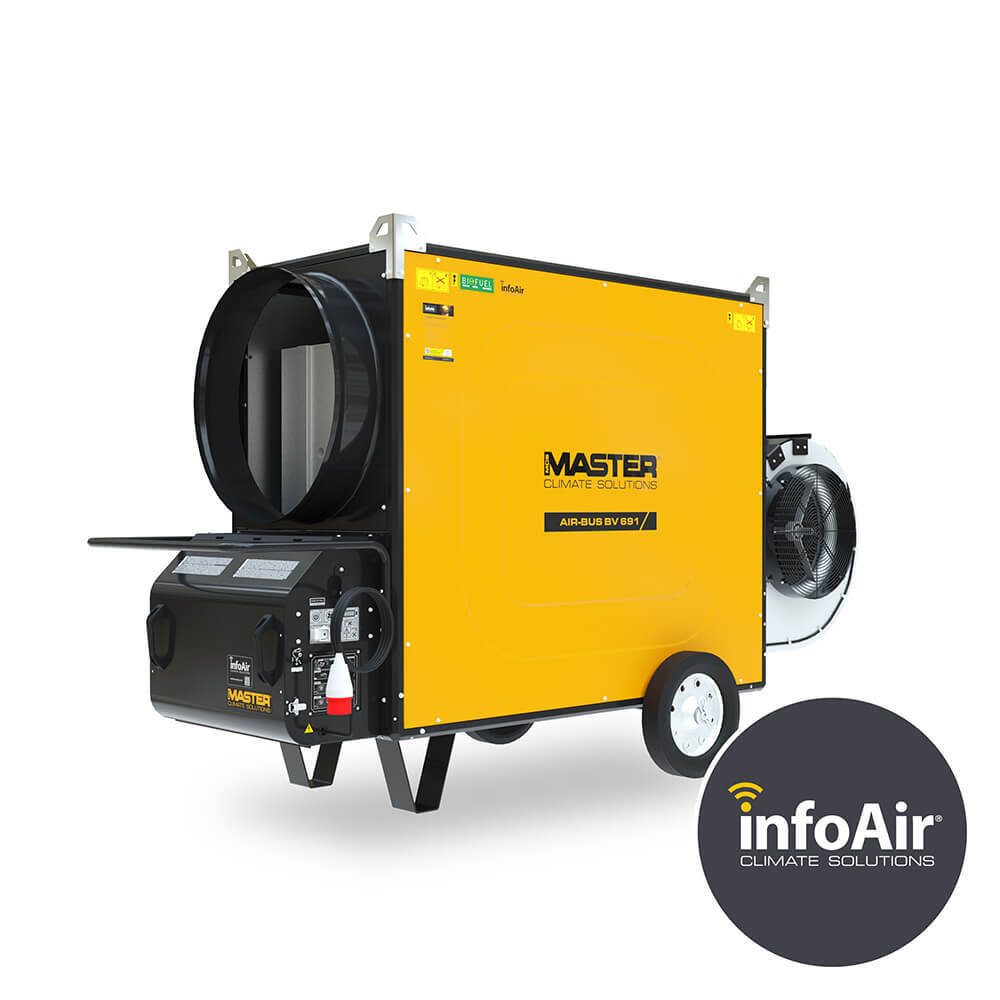

Master AIR-BUS BV 691 TR – indirect oil fired air heaters
Indirect fuel fired air heaters with separate Riello burner
AIR-BUS indirect air flow heaters have a wide heat exchanger in stainless steel pipes and a separate Riello burner. They offer high efficiency and the possibility of connecting up to four flex tubes per unit.
View all of our indirect fuel fired heaters or search for an indirect oil fired heater, tent heater or other type of commercial heater to meet your required applications.
Interested?
Key features
-
Strong and robust steel frame with metric bolts
-
Powerful fan
-
Air pressure 250 Pa (400 Pa for centrifugal version)
-
Digital control of the combustion
-
Unique 'cold start' button for very cold environments
-
Possible connection to 4, 2 or 1 flexible tubes
-
Flue gas exhaust
-
Separate Riello oil burner
-
Summer/Winter switch for ventilation only
-
Electronic flame control with photocell
-
Fan-Limit thermostat with automatic reset
-
Limit thermostat with manual reset
-
Fuel preheater
-
Two oil filters: oil pump filter and suction filter
-
Quick connector to external tank (optional)
-
High-efficiency heat exchanger made of stainless steel pipes
-
Stainless steel combustion chamber
-
Robust wheels included
-
4 robust crane hooks
-
These heaters can burn: biofuel HVO 100, diesel or kerosene
Product specifications
Heating power
225
kW
Heating power
768,000
Btu/h
Heating power
193,500
kcal/h
Air flow
12,800
m³/h
Fan
Centrifugal
type
Air pressure
400
Pa
Thermostat control
Analogue or digital
Fuel consumption
21.44
l/h
Power supply
380-400/3ph/50
V/Hz
Electric power
2.8
kW
Rated current
7.6
A
Electronic box protection
IP55
Flue tube
200
Ømm
Air outlet diameter
4 x 320
1 x 700
mm
Product size (l x w x h)
2680 x 990 x 1550
mm
Box size (l x w x h)
2620 x 840 x 1530
mm
Net/gross weight
400/430
kg
