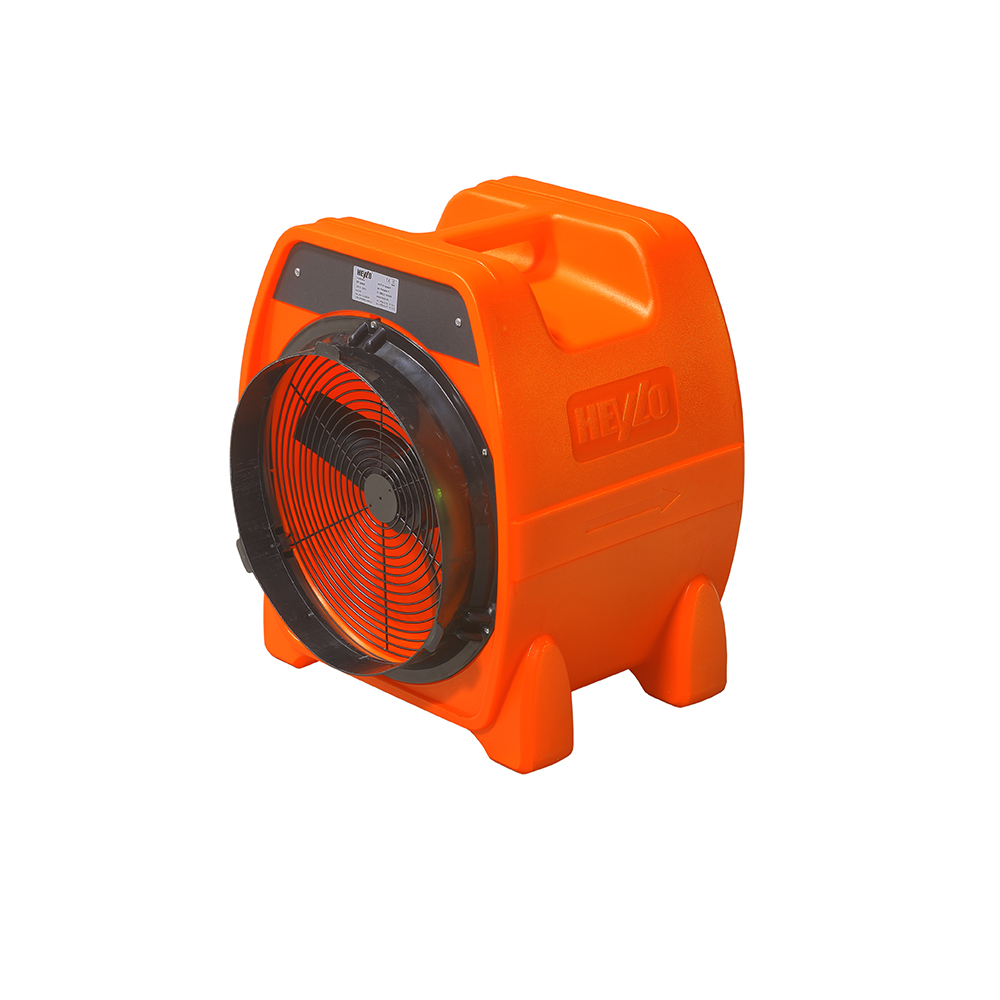

Heylo PowerVent 6000 – axial ventilator

Axial ventilator with high pressure
Master Top Badge
Heylo axial ventilator PV 6000
Heylo axial ventilator PV 6000

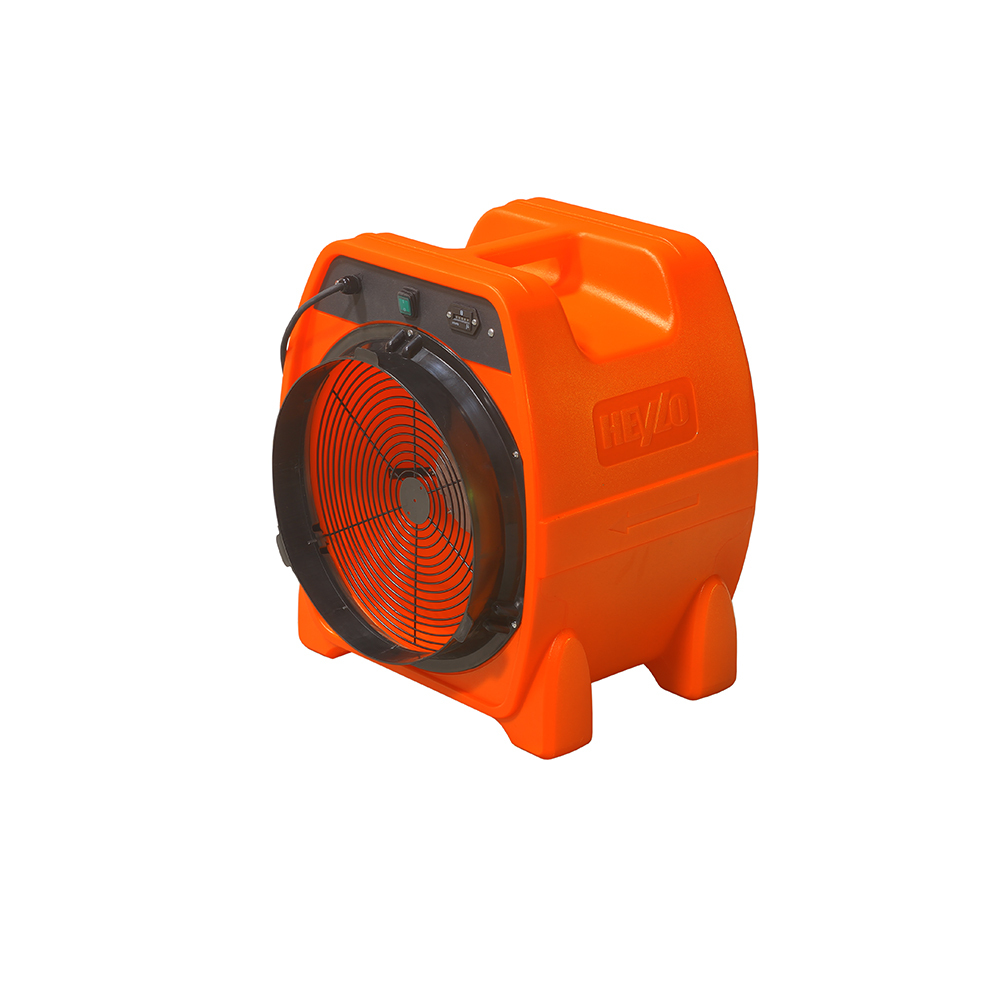

Heylo ventilator PV 6000 back
Heylo ventilator PV 6000 back

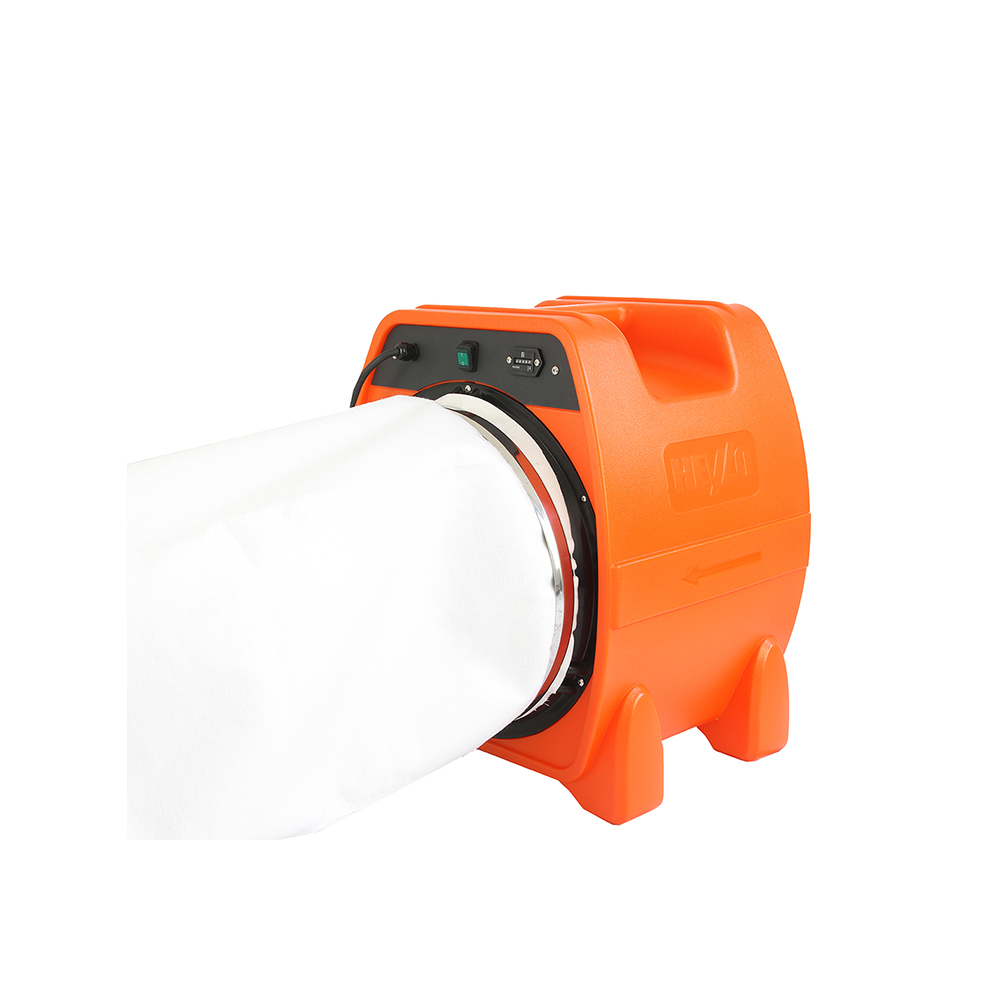

Heylo ventilator PV 6000 combi
Heylo ventilator PV 6000 combi

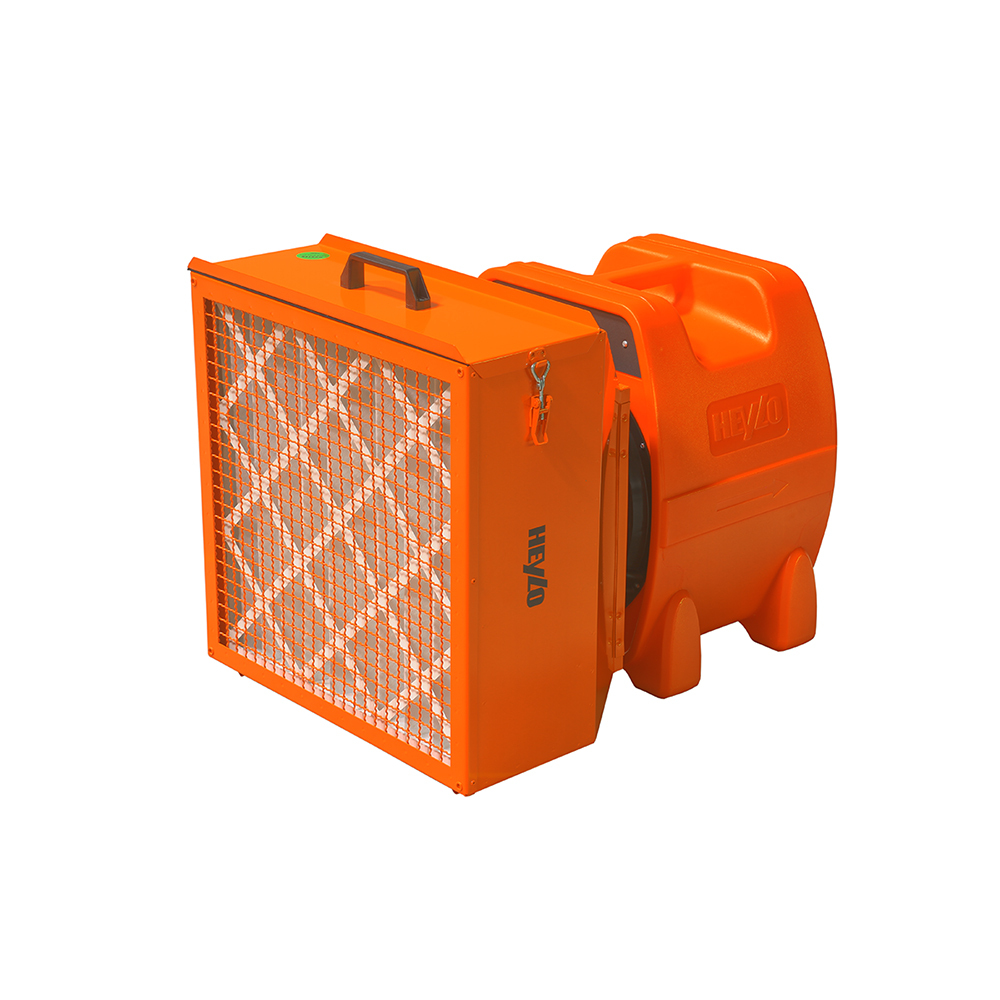

Heylo StaubStop with PV 6000
Heylo StaubStop with PV 6000

The PowerVent 6000 is a high performance ventilator for fast drying and venting. The fan is used in building construction, underground engineering, ventilation in tunnels and shafts, as well as in industry. It is used for dust extraction, as well as cooling and ventilation. The PV 6000 provides a maximum airflow with adequate low electrical power. The PowerVent 6000 is a high performance ventilator for fast drying and venting. The fan is used in building construction, underground engineering, ventilation in tunnels and shafts, as well as in industry. It is used for dust extraction, as well as cooling and ventilation. The PV 6000 provides a maximum airflow with adequate low electrical power.

The fan also transports the air over long distances and with high counter-pressure. Hose operation up to 50m is possible. With the PowerVent 6000, the connection of different distributors allows a more targeted ventilation by means of several hoses.

For dust removal, the connection of a dust bag of the M-Class or a filter housing is possible. Further information can be found at these products:

Interested?

Key features

  • Fast drying and ventilation of large objects such as buildings, shafts and tunnels
  • Used in civil engineering and industry
  • High air compression for long hoses. The air can also be transported over long distances and under high back pressure
  • Connecting different distributors enables ventilation to take place in an even more targeted way via several hoses
  • Robust housing
  • M class dust bag can be connected

Product specifications

Air flow

5,410
m³/h


Air pressure

377
Pa


Fan

Axial
type


Blower stages

1


Power consumption

910
W


Power supply

230/1ph/50
V/Hz


Outlet size

420
Ømm


Protection class

IP44


Product size (l x w x h)

615 x 515 x 500
mm


Box size (l x w x h)

520 x 550 x 620
mm


Net/gross weight

18.3/20.5
kg


Pallet

12
pcs


Accessories and consumables

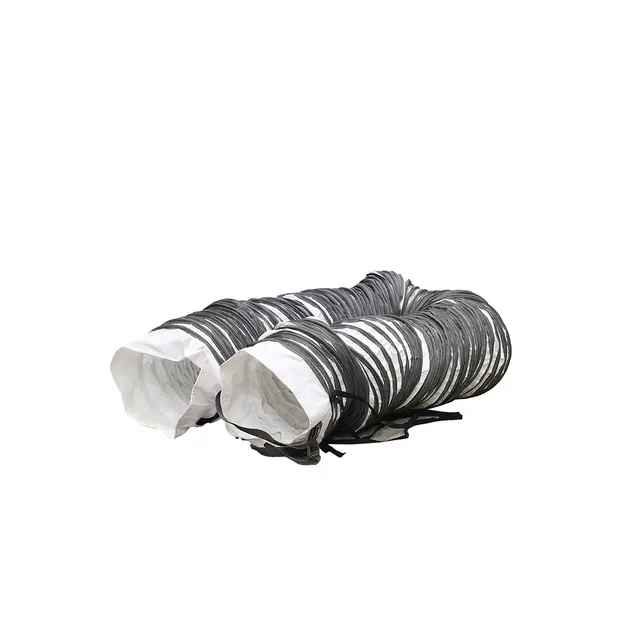

Duct - 1250004
Master Top Badge

Product code: 4515.392

Accessory for Heylo PV 6000

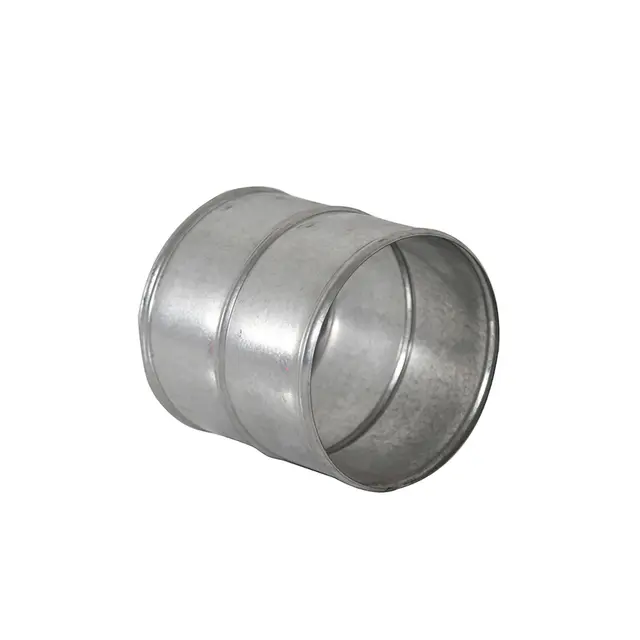

Connector - 1250204
Master Top Badge

Product code: 1250204

Accessory for K 50, K 120, K 120 R, K 160, K 160 R, KS 85 T, PowerVent 6000

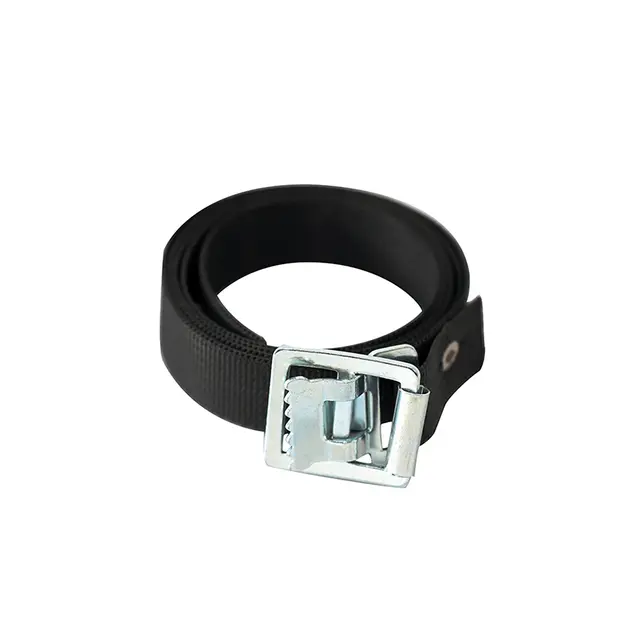

Fixing strap - 1670001
Master Top Badge

Product code: 1670001

Accessory for all hose type "A" and ventilator hoses

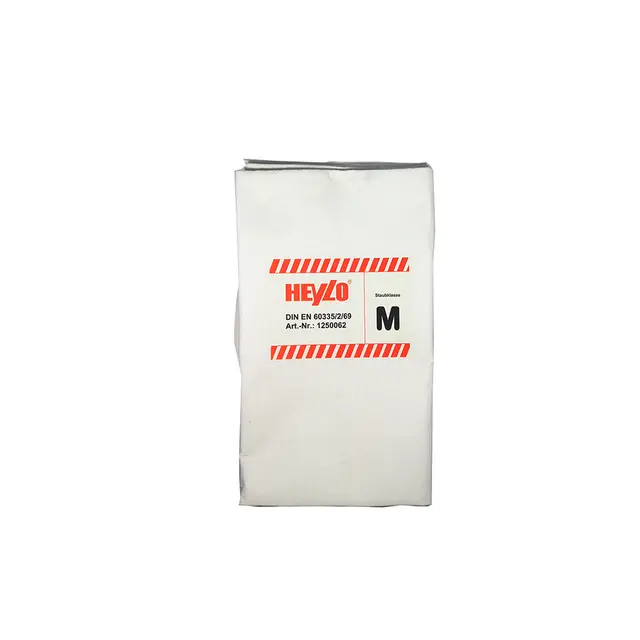

Dust bag - 1250062
Master Top Badge

Product code: 1250062

Accessory for ventilator PowerVent 6000

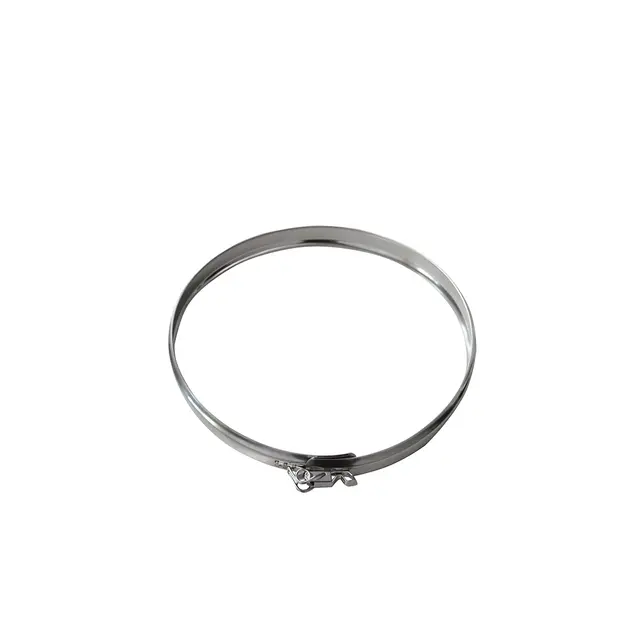

Fixing clamp for dust bag - 1250140
Master Top Badge

Product code: 1250140

Accessory for ventilator PowerVent 6000

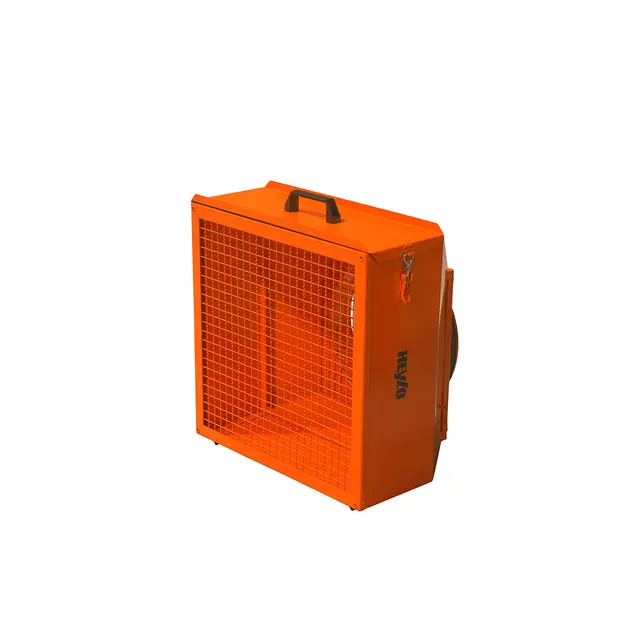

Filter box - 1200066
Master Top Badge

Product code: 1200066

Accessory for ventilator PowerVent 6000

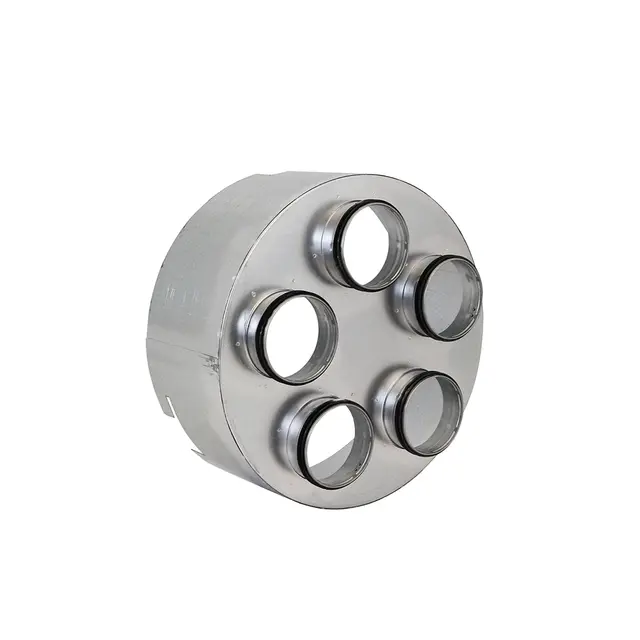

5-fold adapter - 1200017
Master Top Badge

Product code: 1200017

Accessory for ventilator PowerVent 6000

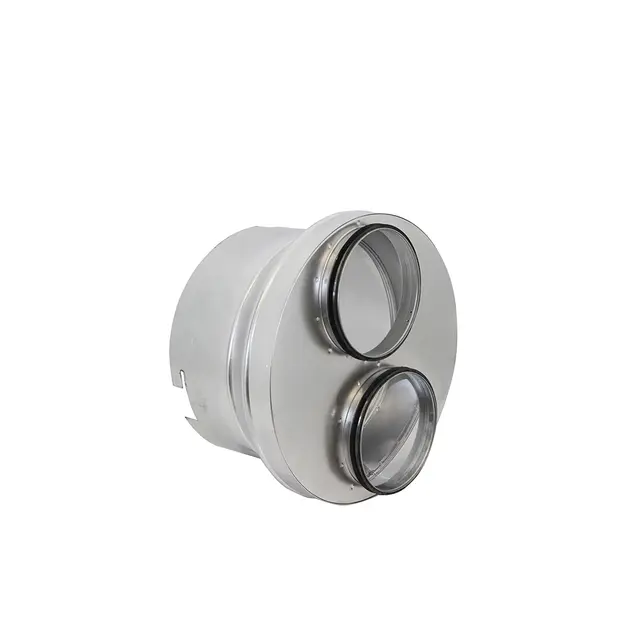

2-fold adapter - 1200018
Master Top Badge

Product code: 1200018

Accessory for ventilator PowerVent 6000

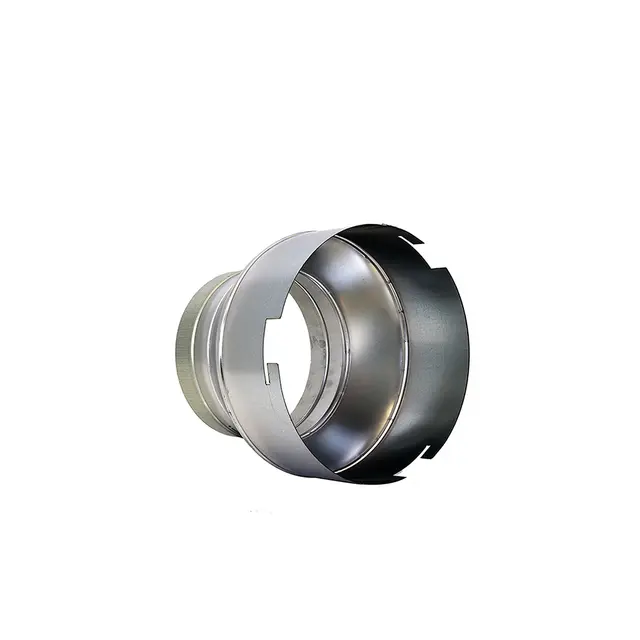

Reduction - 1200019
Master Top Badge

Product code: 1200019

Accessory for ventilator PowerVent 6000

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

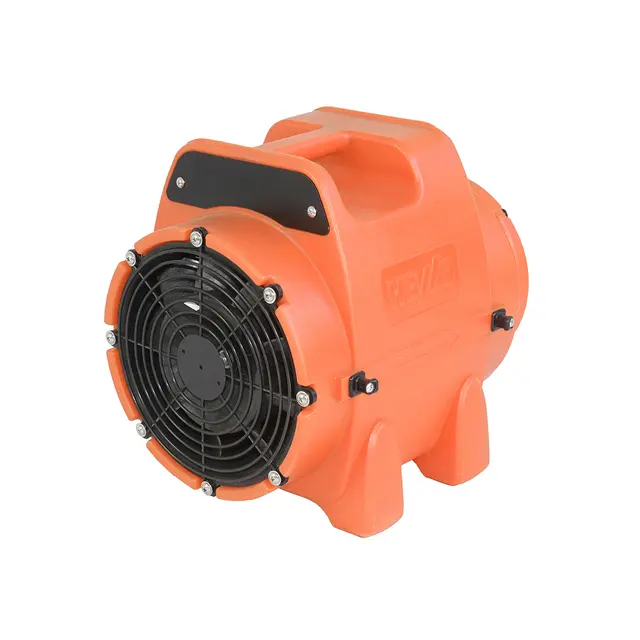

Heylo axial ventilator PV 1500
Master Top Badge

Axial ventilator with an air flow rate of 1162m³/h

Compact axial ventilator for ventilation in shafts, on construction sites and for drying cavities.

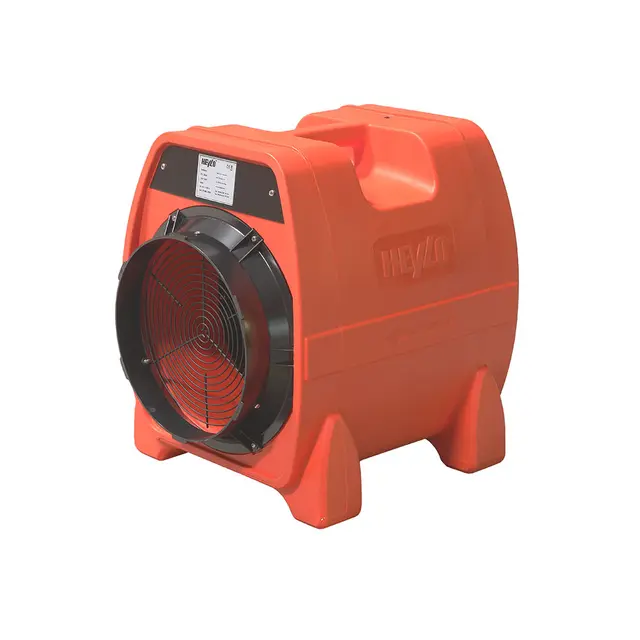

Heylo ventilator PV 3000
Master Top Badge

Axial ventilator for ventilation and drying

Versatile, powerful ventilators for drying and ventilating construction sites, tunnels and rooms.

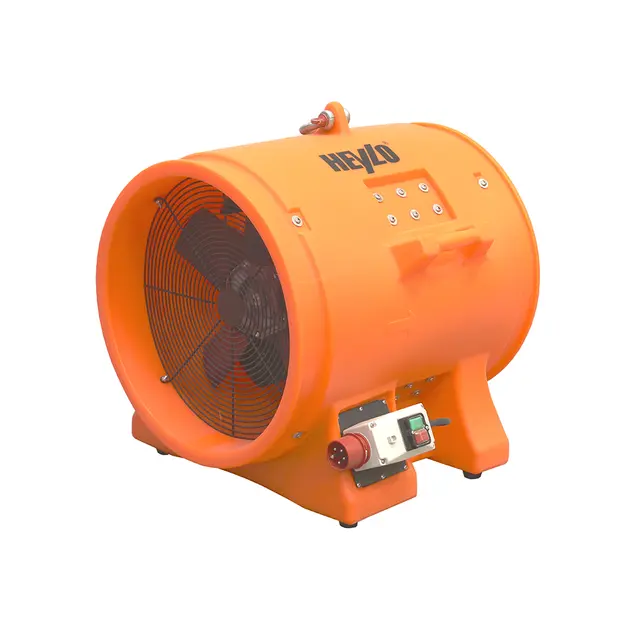

Heylo axial ventilator PV 12000
