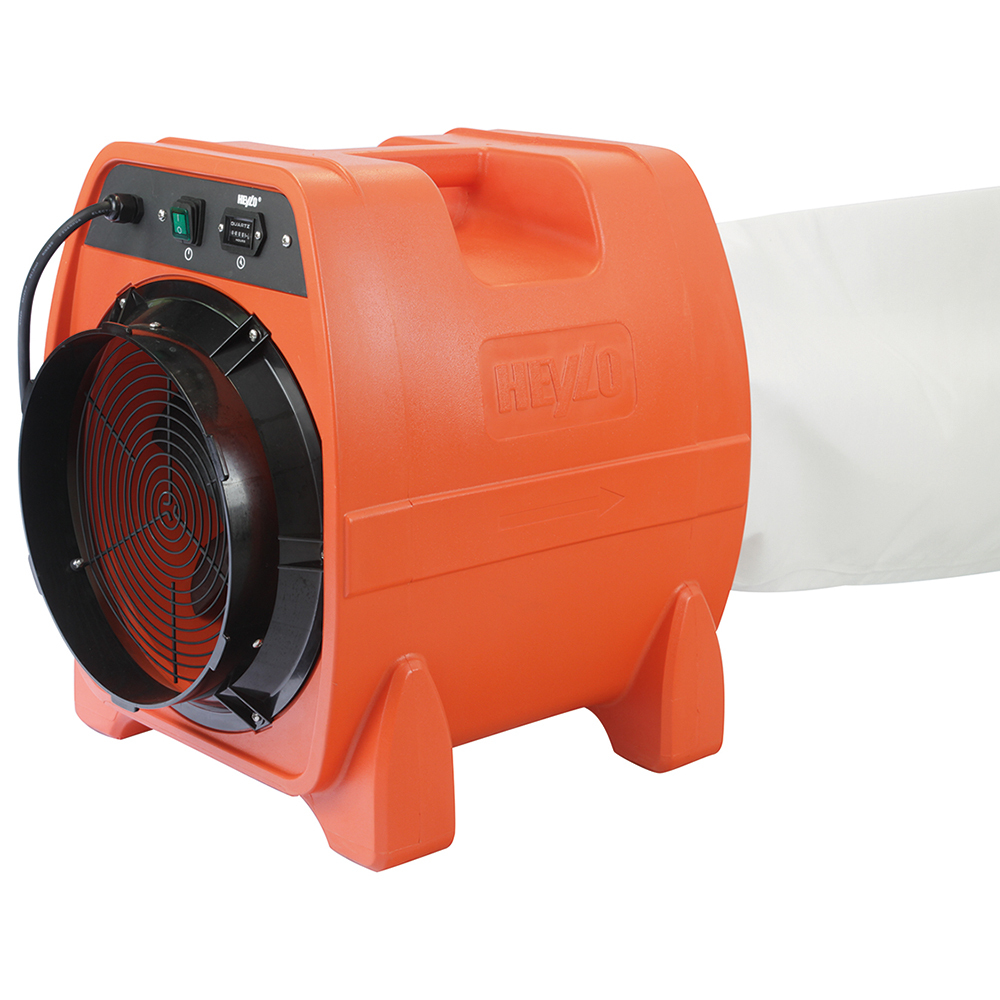

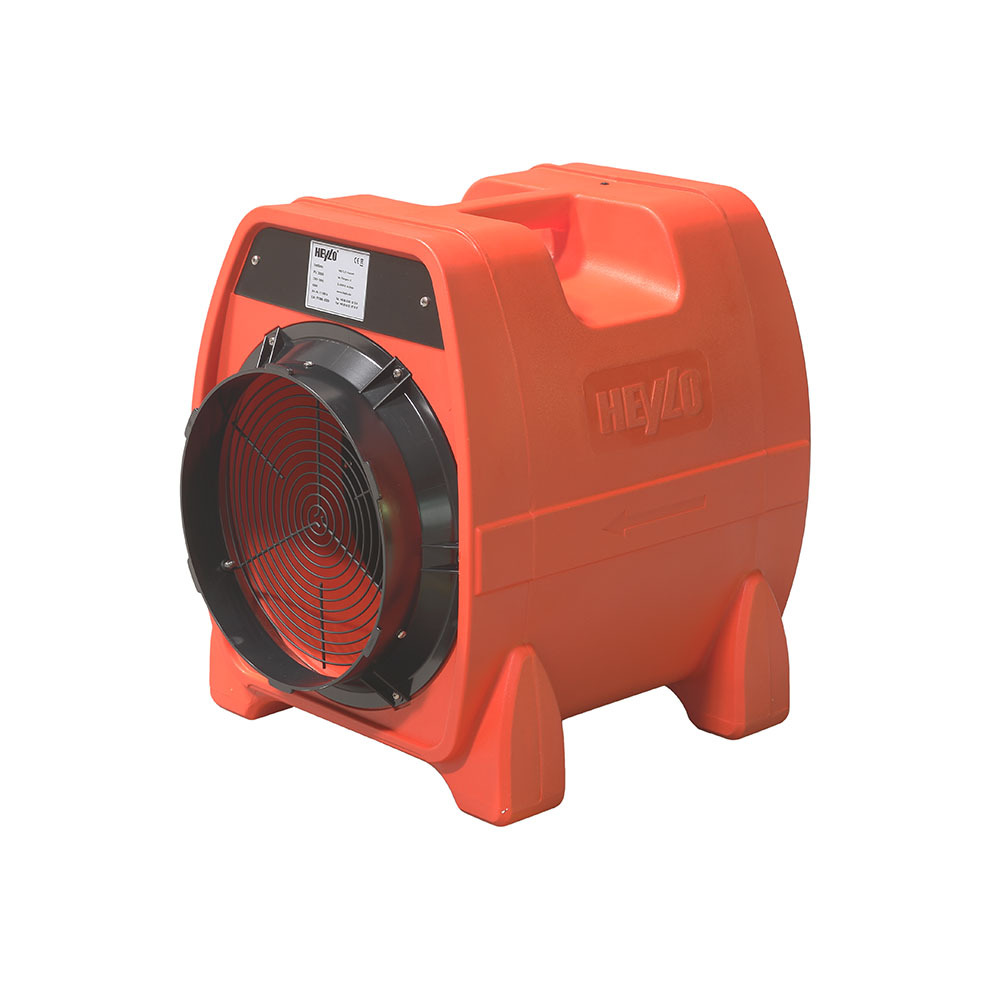

Heylo PowerVent 3000 – axial ventilator
Axial ventilator for ventilation and drying
The PowerVent 3000 axial ventilator moves air powerfully whereby the venting and drying process is accelerated into the most hidden corners.

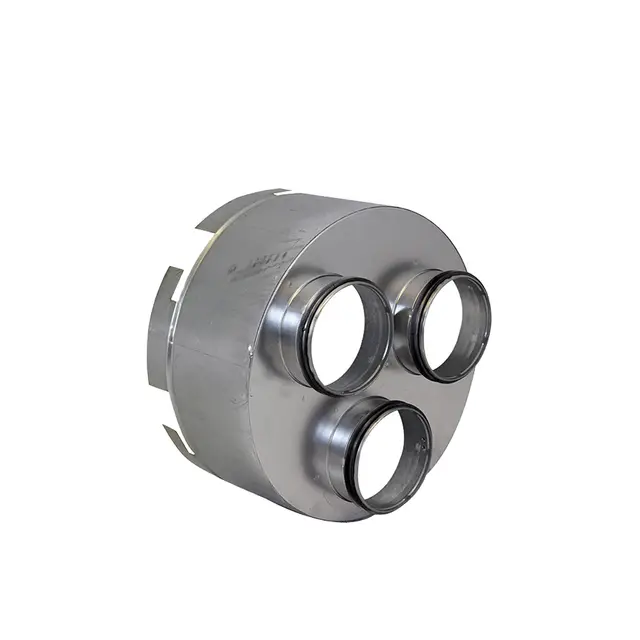

Weighing in at only 17.5kg the unit can be transported without any problems. The hoses of up to 45m in length can be connected to the PowerVent 3000, letting fresh air to be transported into the most remote rooms and stale air being drawn off. The air can be passed on even more purposefully by means of a practical triple distributor.
Can also be combined in many ways for air cleaning and as a dust protection system. For more information, see at the products:

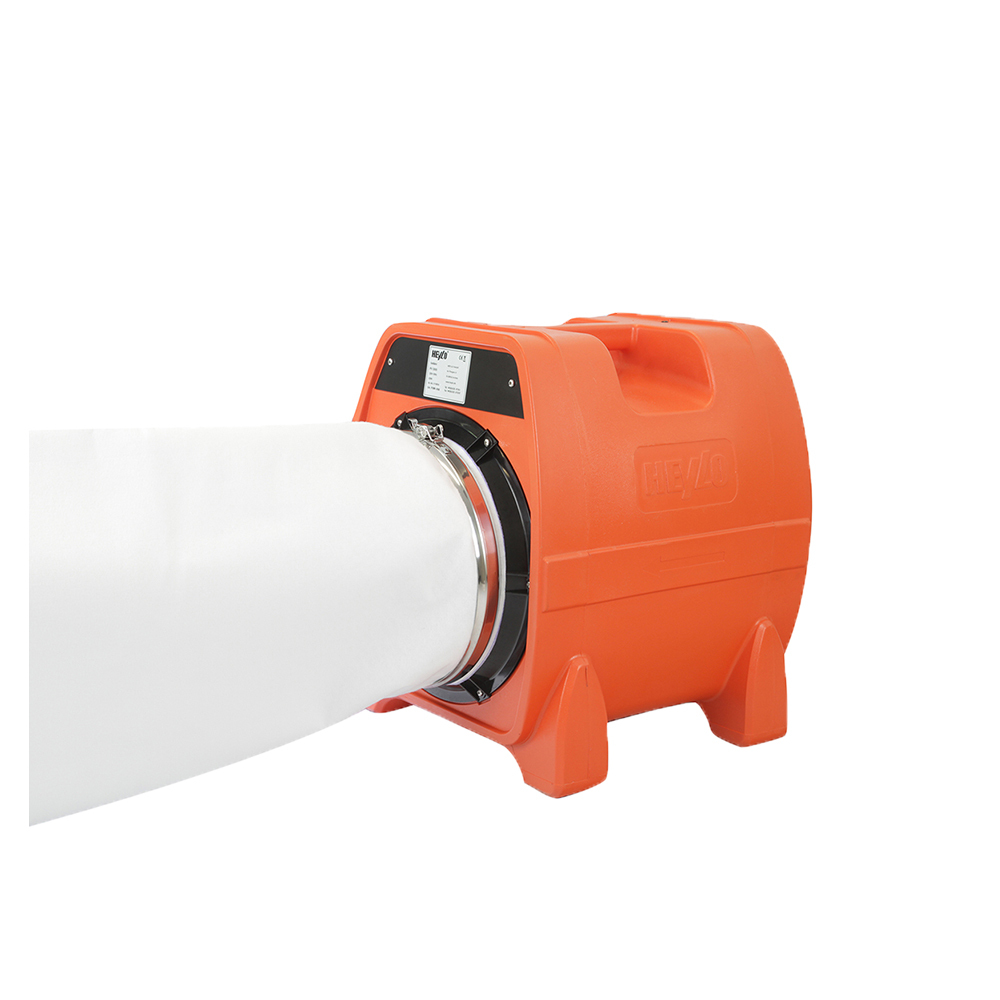

- Air cleaning dust extraction PV 3000 combi
- Air cleaning FarbStop 3000

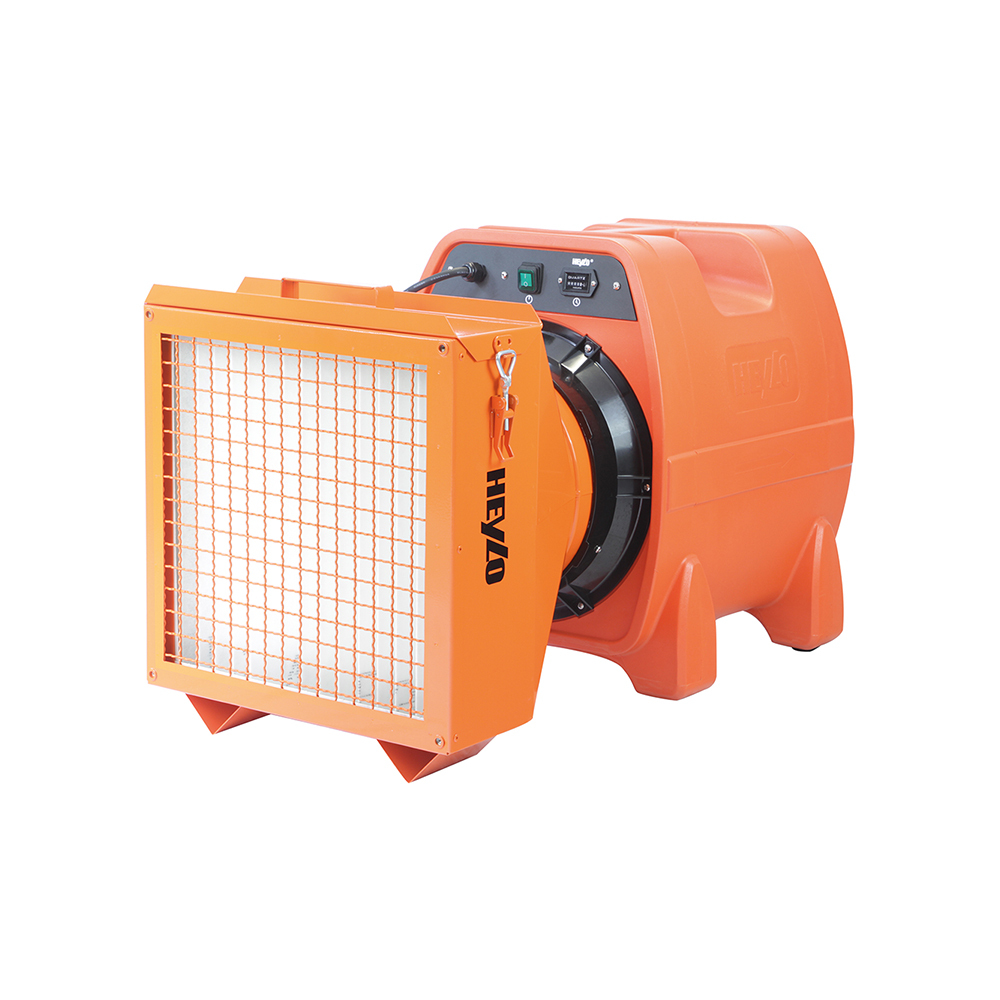

- StaubStop 3000
- StaubStop 3000 PLUS

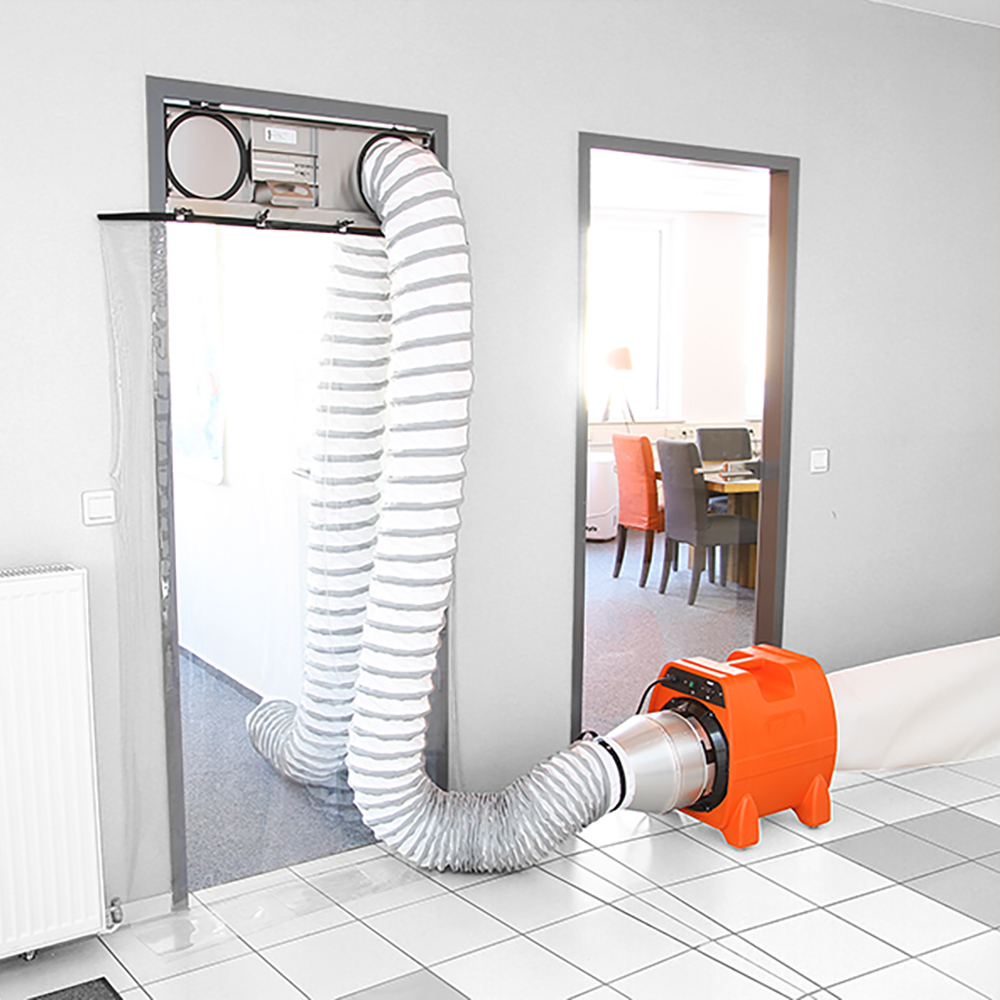

- Dust control system DCS-PV 3000
Interested?
Key features
-

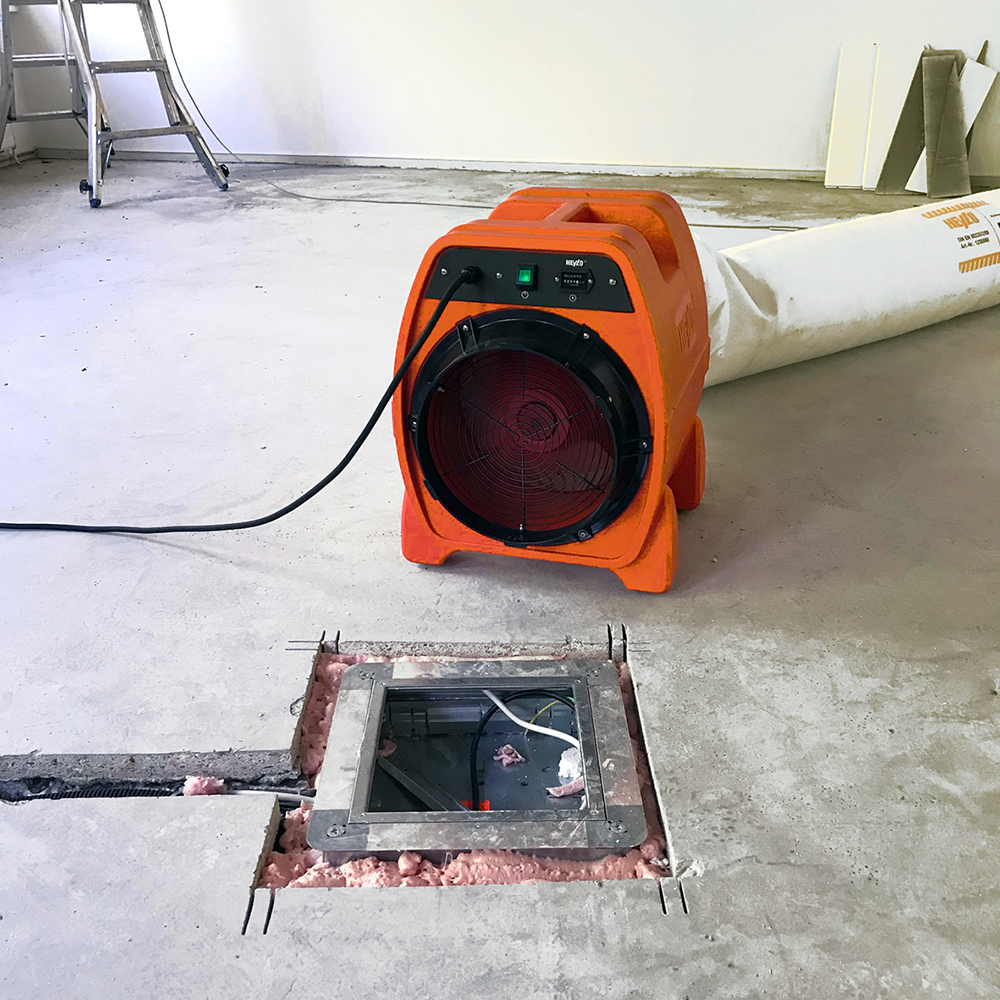

For ventilation of shafts, drying cavities after water damage, extraction during welding work in containers
-
Quick to set up
-

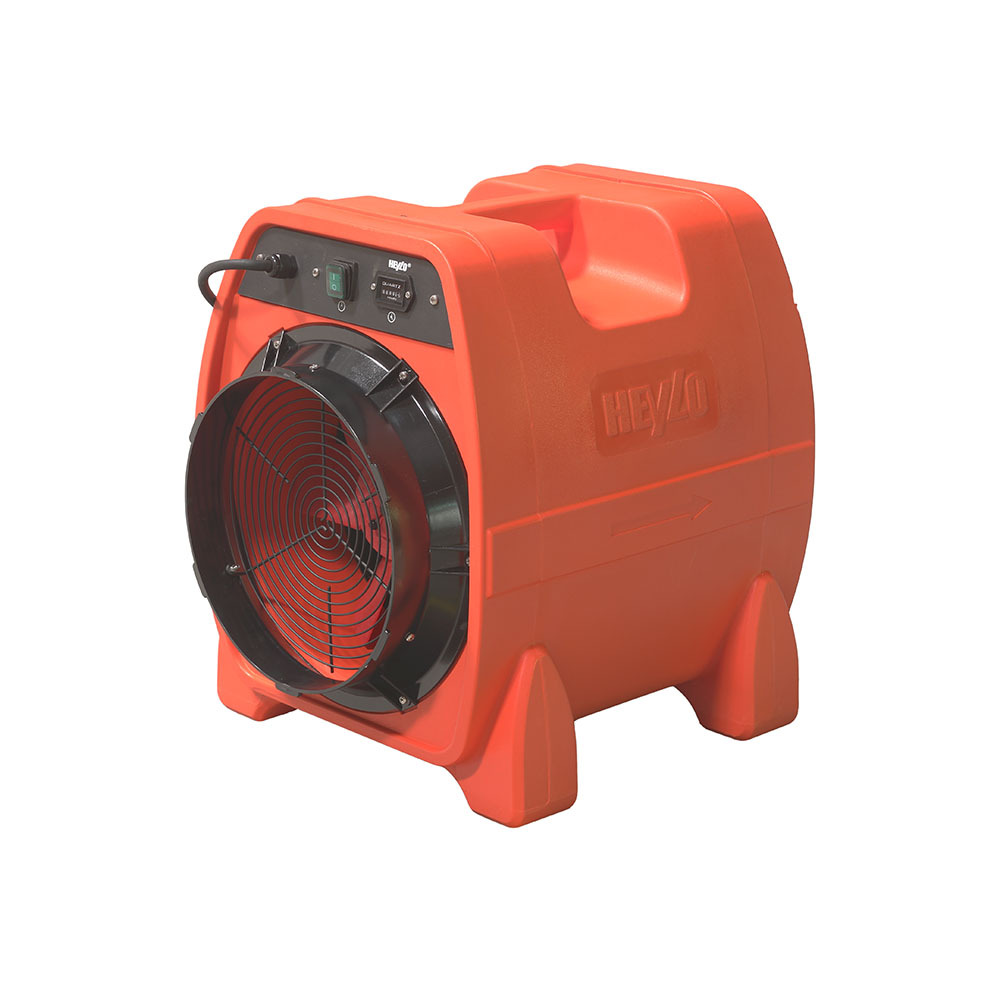

Easy connection of the hose on the outlet side or inlet side
-
Stackable for space saving storage
-
High protection class of the electric box (IP44) – thus particularly well suited for harsh outdoor use and on construction sites
-
High compression
-
Lightweight, quiet and compact
Fans for targeted drying and ventilation
Shortening the drying process with fans
The aim of drying is to quickly remove moisture from walls, ceilings and floors. Three factors are at work here: the faster the moisture escapes from materials into the ambient air,
- the warmer and drier the room air is,
- the faster air passes the materials,
- the larger the volume of air that passes by.
The effect of fans on the drying process is easy to understand. The fast air movement breaks up the layer of high humidity on the material and increases the evaporation rate. Walls, ceilings and floors dry faster!
The use of fans accelerates evaporation - this can shorten the drying process by up to 50%!
Fans for any application
If the existing natural ventilation in shafts and duct systems is not sufficient due to local conditions such as the location of the shafts or their cover properties, additional, technical ventilation measures become necessary. Especially in warm temperatures, when the air in the manhole is cooler than that in the surrounding area, it is often not possible to provide sufficient ventilation. Even temporarily opening manhole covers is not always sufficient for optimal ventilation. In sewer shafts, for example, foul gases can displace the oxygen in the air and even lead to unconsciousness among sewer workers.
This can be remedied with targeted technical ventilation and powerful fans. The fresh air then reaches the workplace directly and prevents health impairments caused by bad air. Sufficient technical ventilation is achieved when, for example, an air flow of at least 600m³/h per m² of duct cross-section is achieved in ducts.
Other areas of application for industrial fans:
- Water damage restoration
- Industry
- Building construction, civil engineering
- Tunnel construction
- Shaft and duct ventilation
- Sewage treatment plants
- Waterworks
- Tank and boiler cleaning
- Shipyards and shipbuilding
- Construction ventilation and deaeration
- Building cleaning
Product specifications
Air flow
3.102
m³/h
Air pressure
501
Pa
Fan
Axial
type
Blower stages
1
Power consumption
620
W
Power supply
230/1ph/50
V/Hz
Outlet size
305
Ømm
Protection class
IP44
Product size (l x w x h)
520 x 400 x 530
mm
Box size (l x w x h)
440 x 570 x 540
mm
Net/gross weight
17.5/20
kg
Pallet
12
pcs
Accessories and consumables
Product code: 4515.391
Accessory for Heylo PV 3000

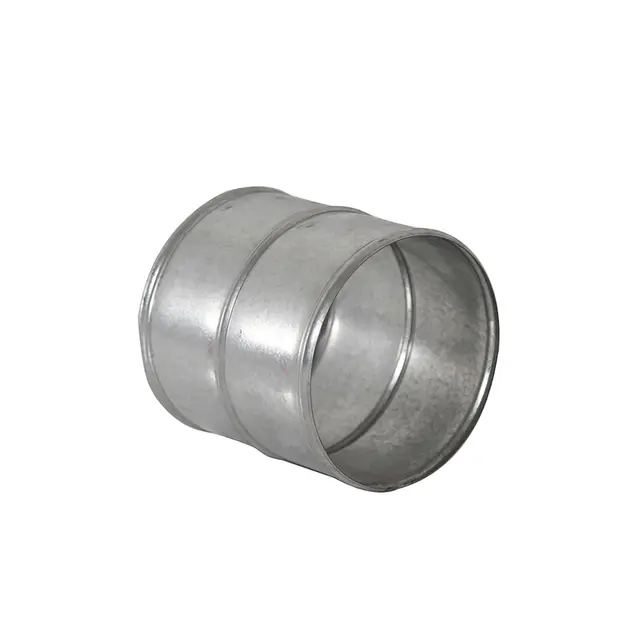

Product code: 1250203
Accessory for K 30 T, K 50, K 80, K 120, K 120 R, K 160, K 160 R, PowerVent 3000
Product code: 1670001
Accessory for all hose type "A" and ventilator hoses

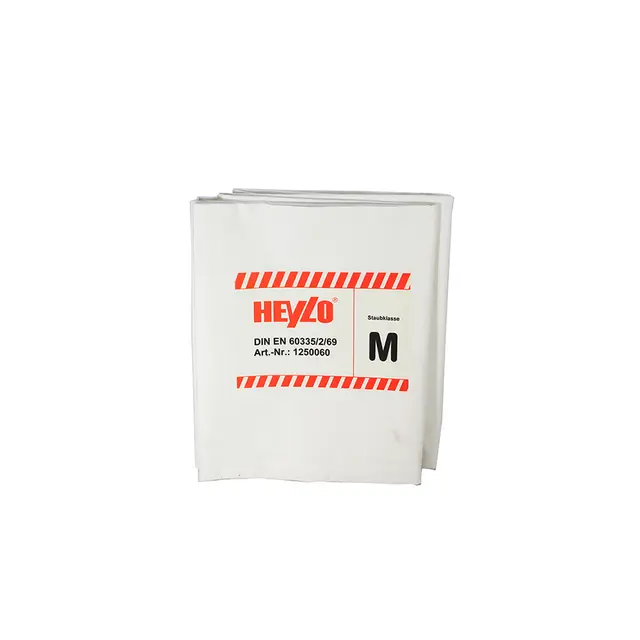

Product code: 1250060
Accessory for ventilator PowerVent 3000

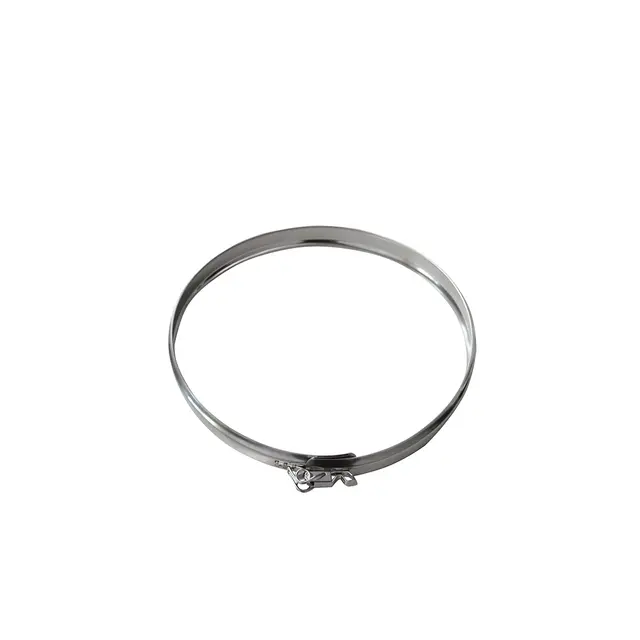

Product code: 1250096
Accessory for ventilator PowerVent 3000

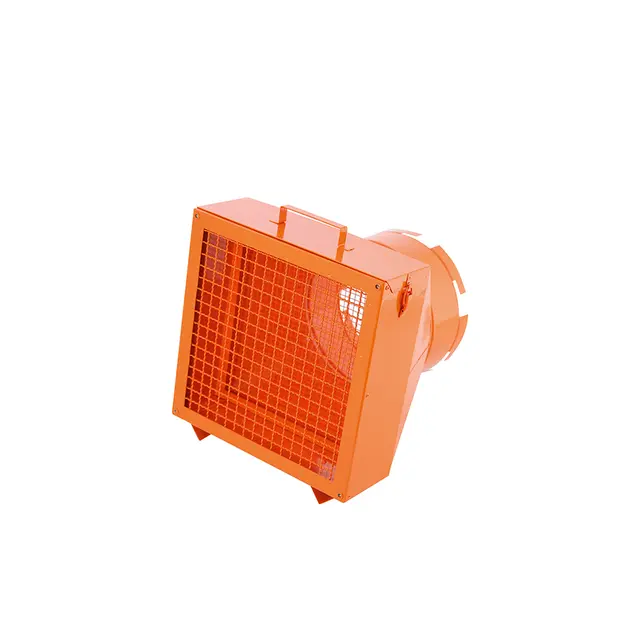

Product code: 1200039
Accessory for ventilator PowerVent 3000

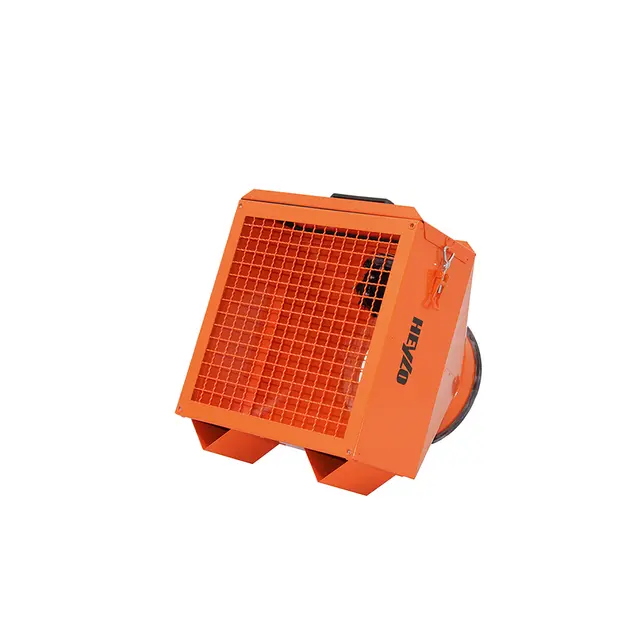

Product code: 1200047
Accessory for ventilator PowerVent 3000
Product code: 1200048
Accessory for filter box 3000, 3000 PLUS
Product code: 1200049
Accessory for filter box 3000, 3000 PLUS
Product code: 1200015
Accessory for ventilator PowerVent 3000

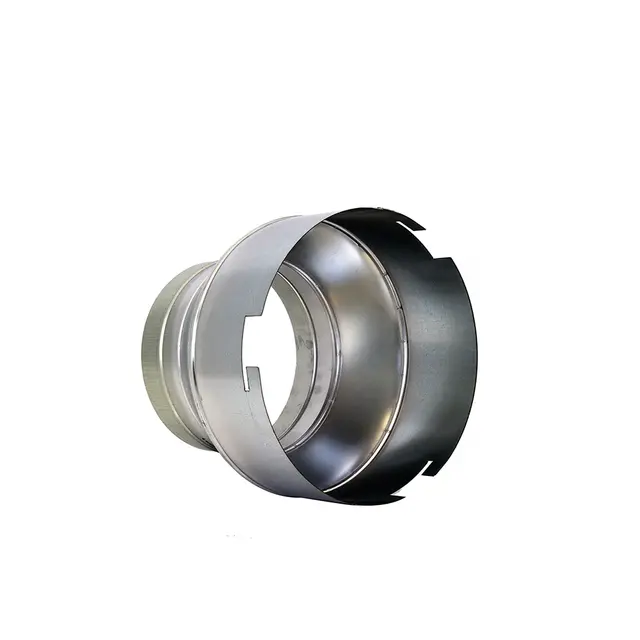

Product code: 1200016
Accessory for ventilator PowerVent 3000
