Heylo PowerFilter 3500 – air cleaner
Air cleaner
During the restoration of buildings or during industrial work, noxious particles (dust, mould spores, et cetera) are released frequently which jeopardise people when they spread at the place of work or in the remaining building.
The high-performance cleaner PF 3500 makes sure that harmful substances are removed at the source immediately so that they cannot get into other parts of the building.
The high-perfomance cleaner PowerFilter PF 3500 is the ideal unit for air cleaning for industry as well. By connecting several hoses, the dust filter and dust extraction even at different workplaces can be carried out at the same time.

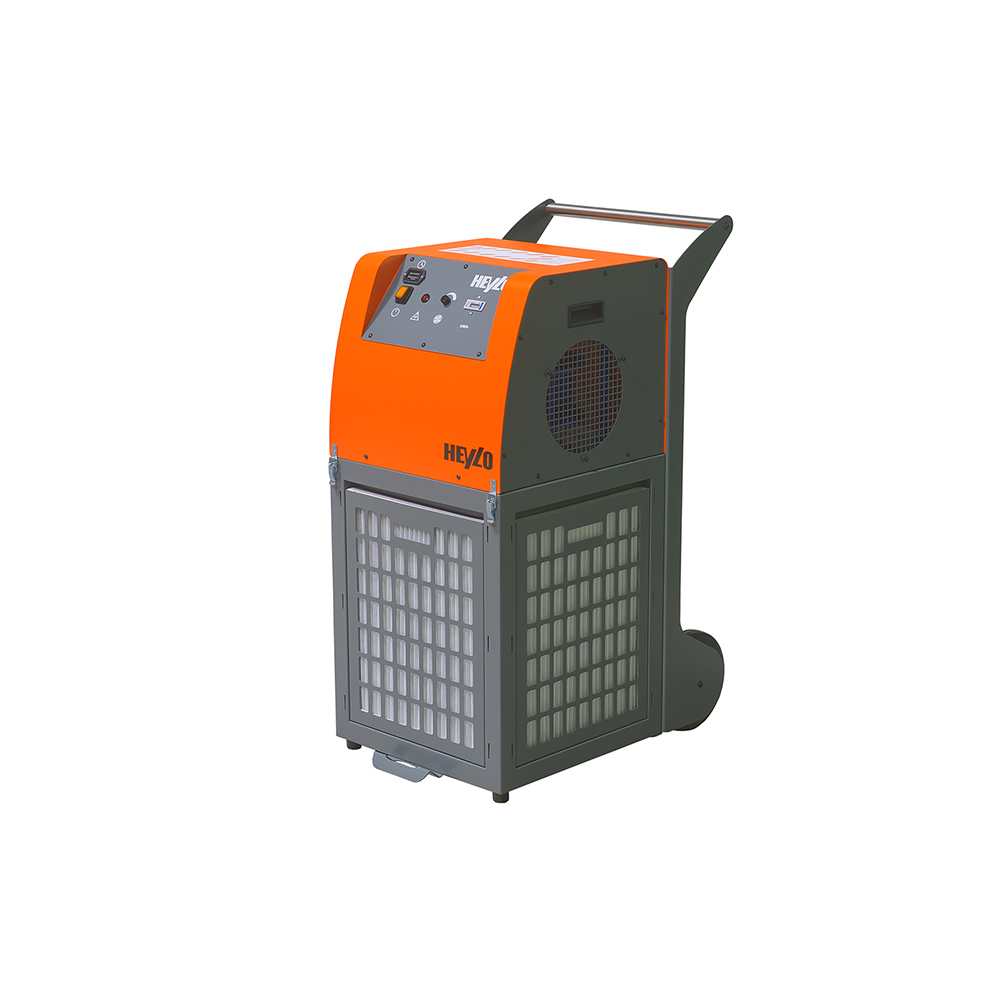

Heylo air cleaner PF 3500
|

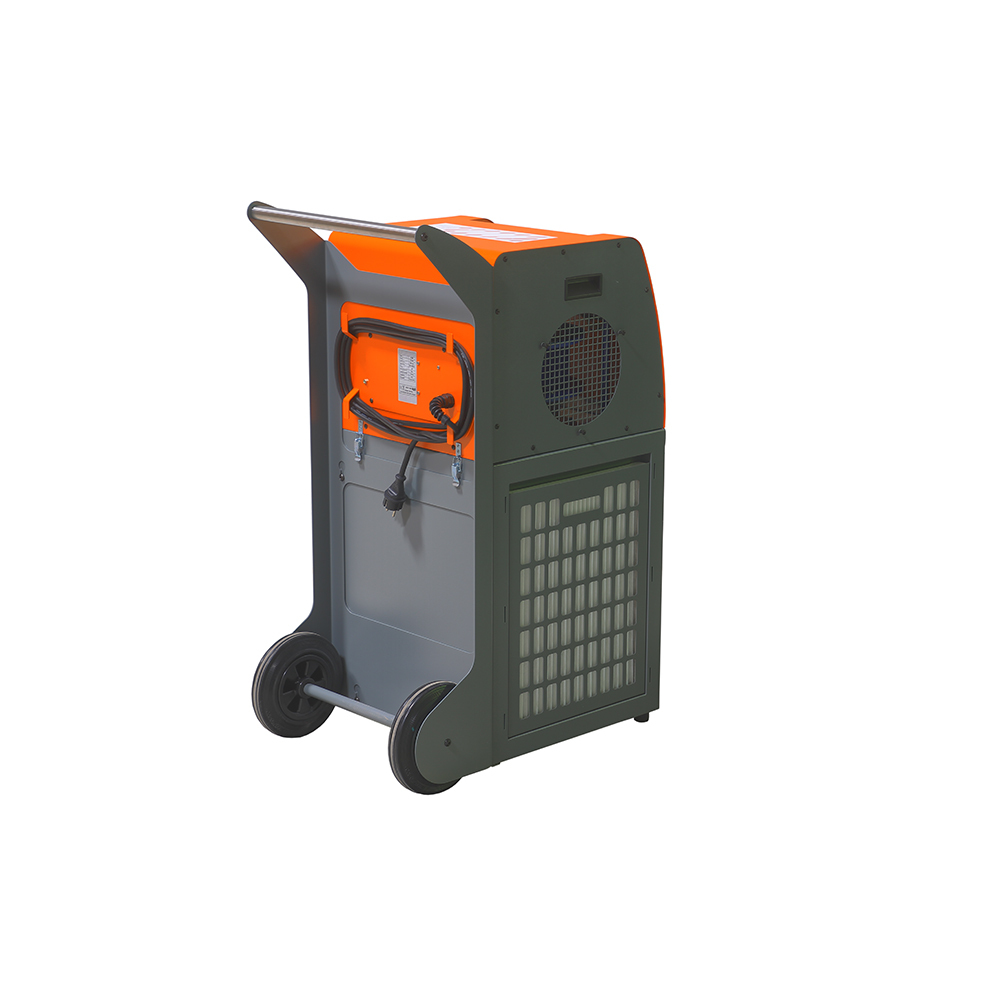

Heylo air cleaner PF 3500 back
|

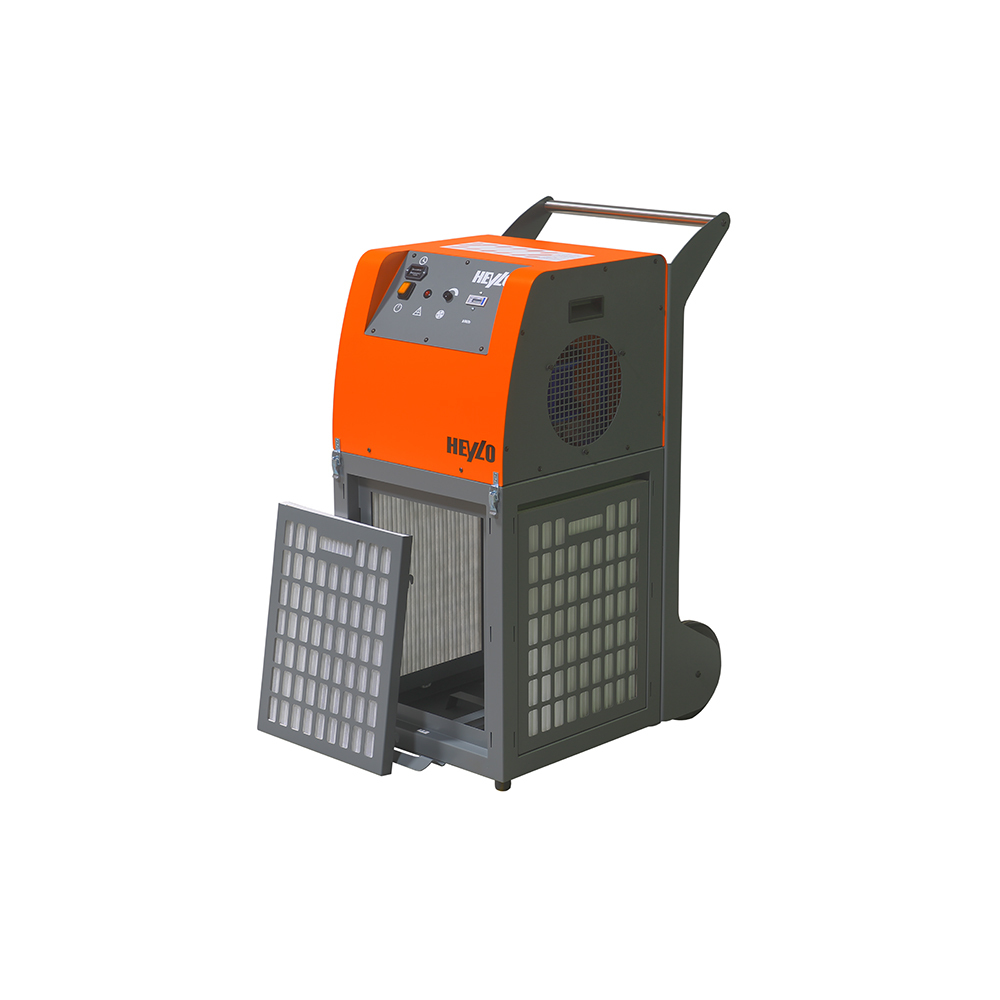

Heylo air cleaner PF 3500 open
|

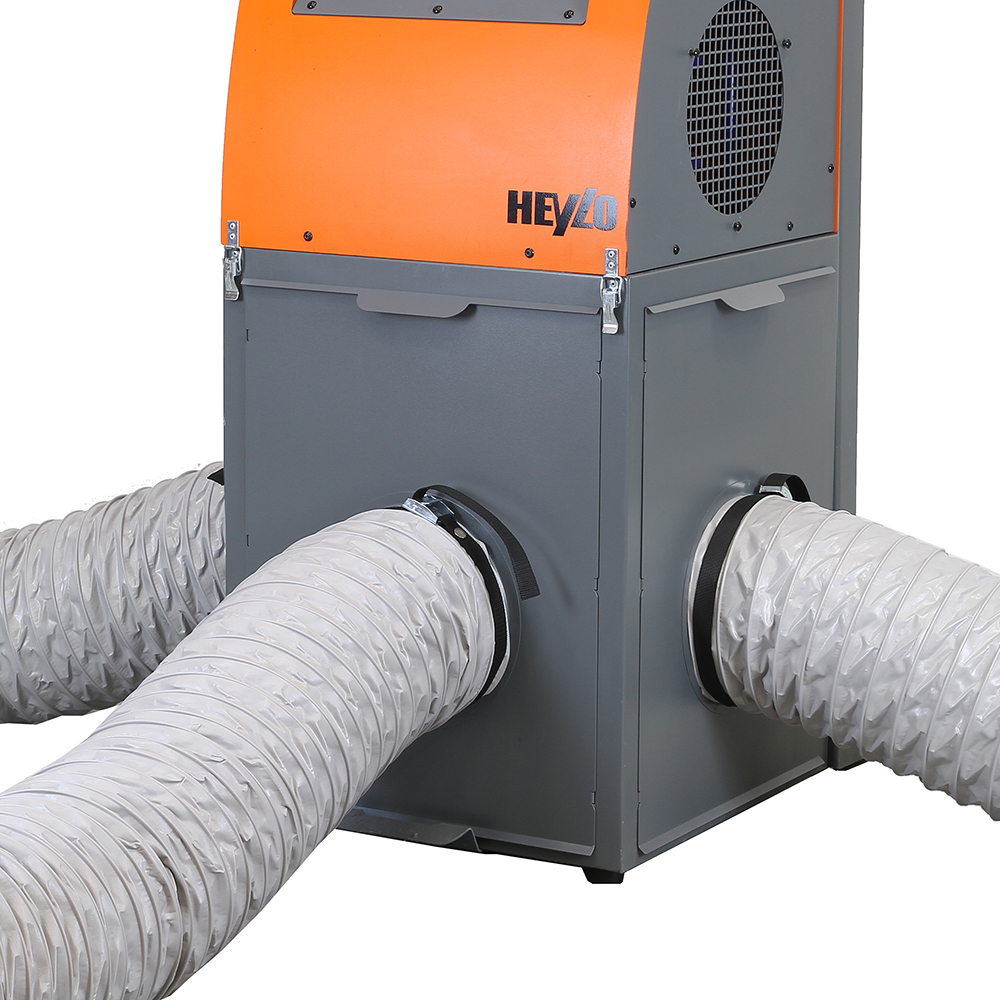

Heylo air cleaner PF 3500 hoses
|

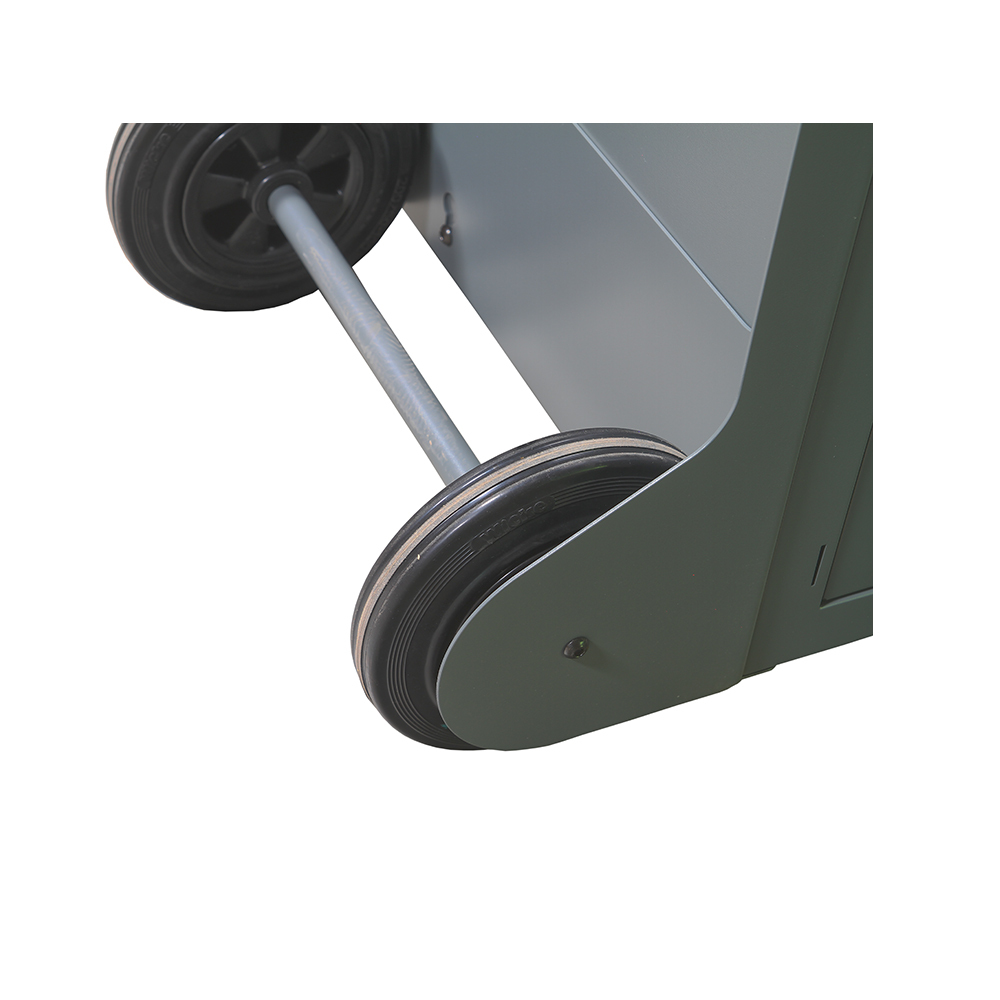

Heylo air cleaner PF 3500 wheels
|

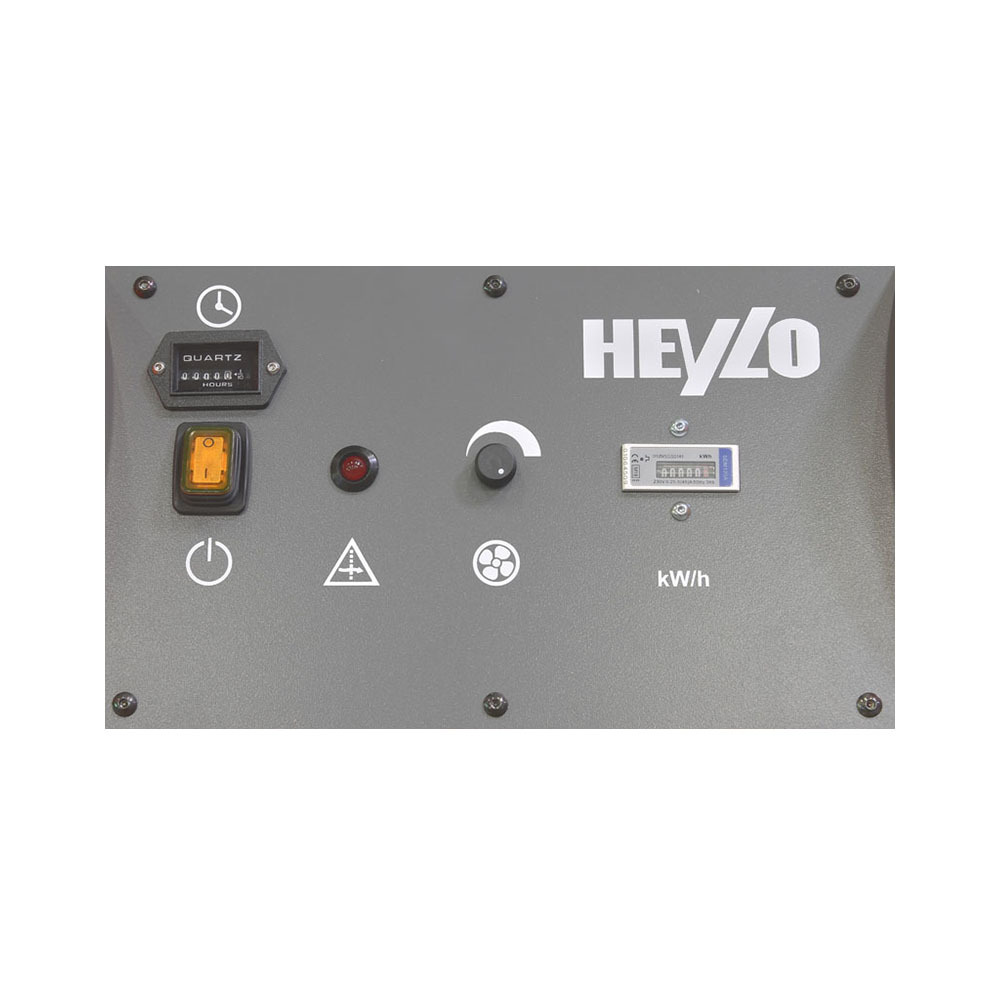

Heylo air cleaner PF 3500 panel
|
Key features
- Connection of several hoses: flexible use at several workplaces at the same time
- Infinitely variable air flow
- 3-stage filter system
- MID energy metre (kWh)
- For tough use – also in industry
- Can be closed after use of contaminants
- Robust metal housing
- Quiet and very energy efficient operation
- Filter change indicator
- Operating hours counter
- Including 3x pre-filter G4
Various filters are accessible quickly and can be exchanged easily:
- Pre-filter - coarse dust filter of class G4 in conformity with European standard EN779
- Main filter - fine dust filter of Class F9 in conformity with European standard EN779 and dust class M in conformity with EN60335
- Main filter - suspended solids filter HEPA H14 in conformity with European standard EN1822 and dust class M in conformity with EN60335
- Main filter - activated carbon filter
Product specifications
| Specifications | Units | PF 3500 |
|---|---|---|
| Fan air flow rate max. | m³/h | 3,100 |
| Air flow with F9 filter /M-class/H14 filter/H-class | m³/h | 2,795/2,420 |
| Min. air flow by saturated filters | m³/h | 1,700 |
| Power supply | V/Hz | 230/1ph/50-60 |
| Power consumption | kW | 0.48 |
| Current consumption | A | 2.5 |
| Sound level @3m | dB(A) | 0-70 |
| Hose inlet/outlet | Ømm | 205 |
| Product size (l x w x h) | mm | 710 x 460 x 1010 |
| Weight | kg | 48 |
Suitable for
- Camps and field hospitals
- Commercial buildings
- Construction
- Events and festivals
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Rental companies
- Transport and logistics
