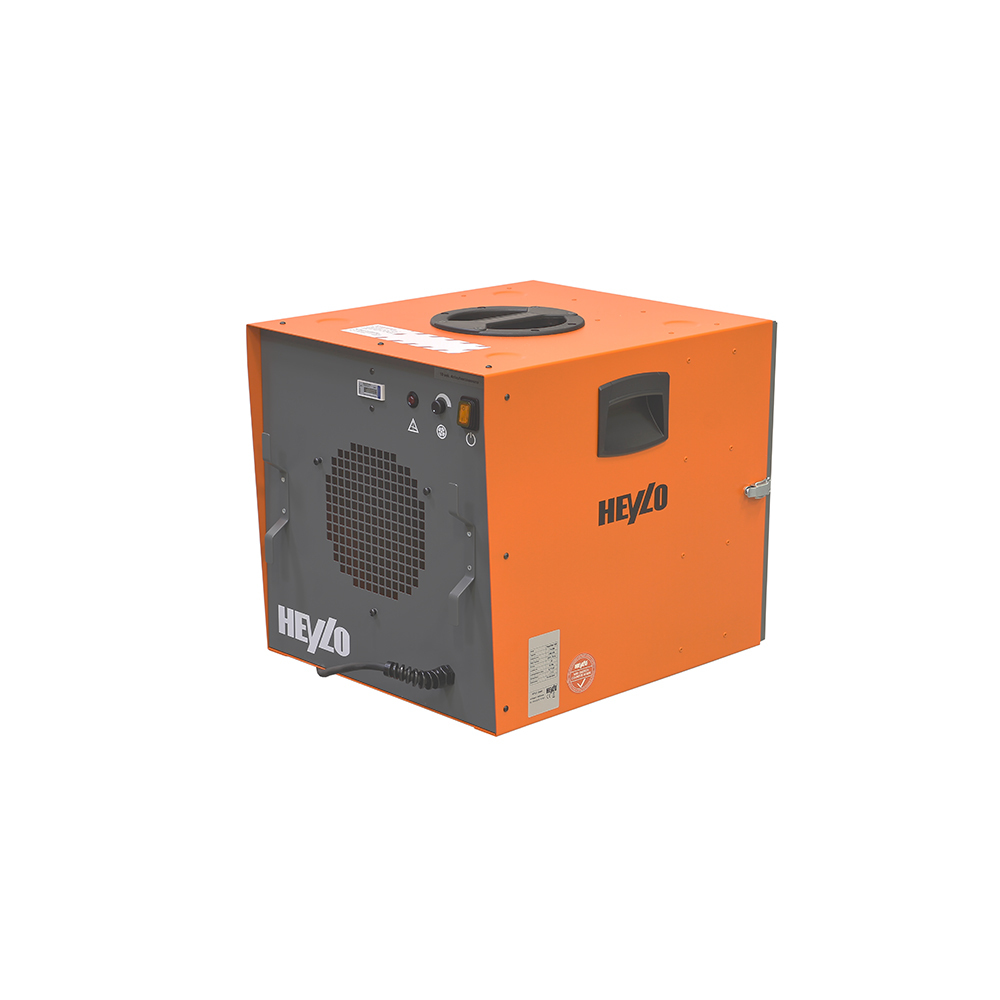

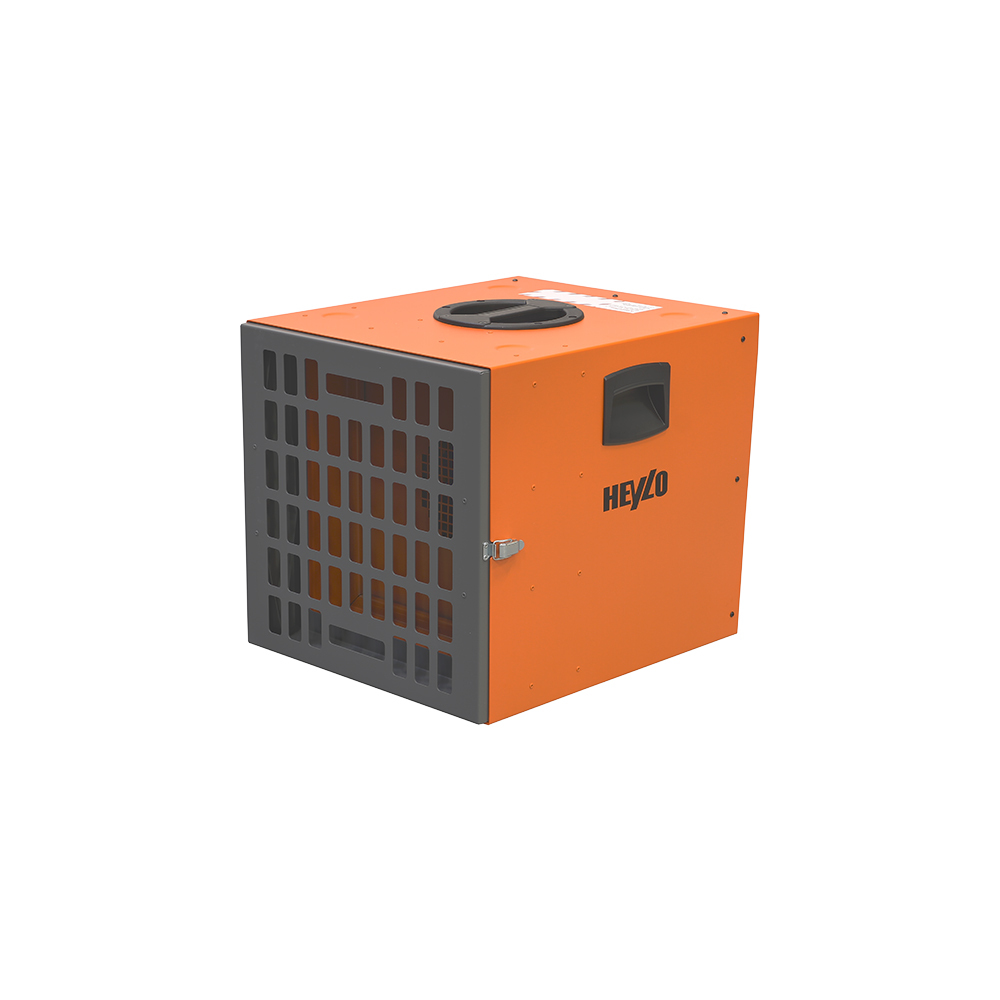

Heylo PowerFilter 1400 – air cleaner
Air cleaner

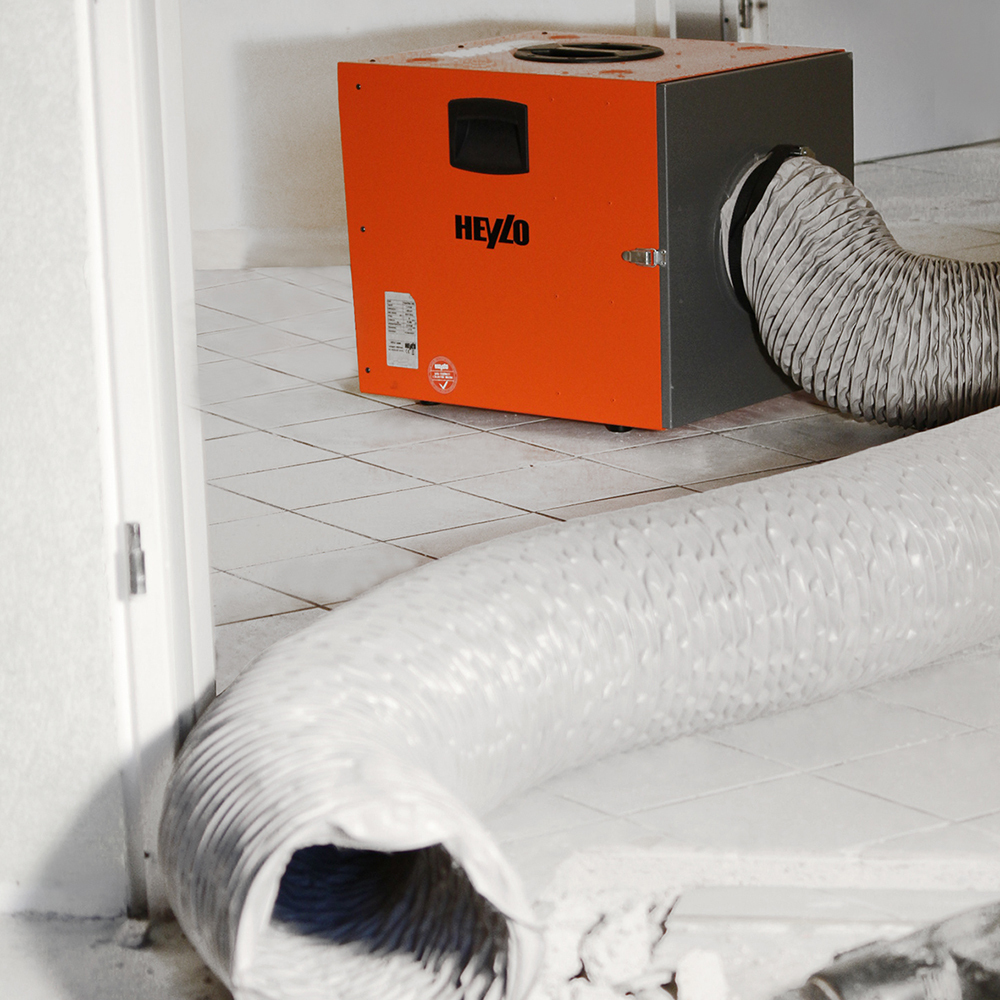

The compact Heylo PowerFilter 1400 air purifier sets the standard on construction sites and in industry. Due to its small dimensions and very light weight, it is particularly suitable for refurbishment in small rooms. With the ergonomic carrying handle, the air purifier can be transported effortlessly from room to room.
Different filters are available, which can be replaced very easily (delivery without filter). Coarse dust, fine dust or dangerous particles such as mould spores? All no problem for the PowerFilter 1400.
An activated carbon filter can also be used for odour elimination. The design of the metal housing is very service-friendly and the air purifier can thus be cleaned and maintained quickly and easily.
For odour elimination, an activated carbon filter can be fitted as well. The structure of the metal housing is very easy to maintain, and the air filter can thus be cleaned and maintained quickly and easily. In combination with the Heylo dust protection door DCD 3.0 you get the dust protection system DCS-PF 1400.
Interested?
Key features
-
High air flow, quiet operation
-
Various filter combinations (F9/HEPA/Active carbon, etc.) and easy filter replacement
-
2- or 3-stage filter system
-
Space-saving, stackable and lightweight
-
Filter change indicator
-
MID energy metre (kWh)
-
Air flow infinitely variable
-
Highly efficient EC fan motor
-
Ergonomic carrying handle
-

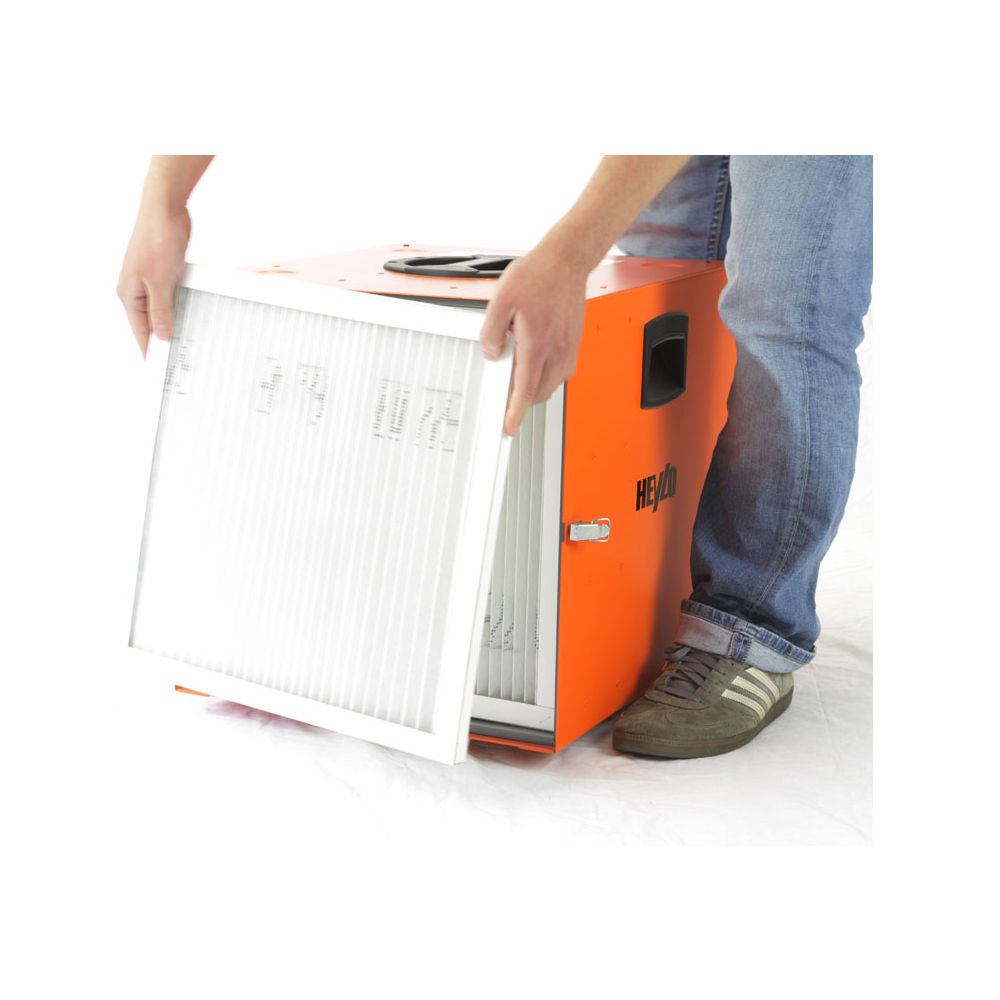

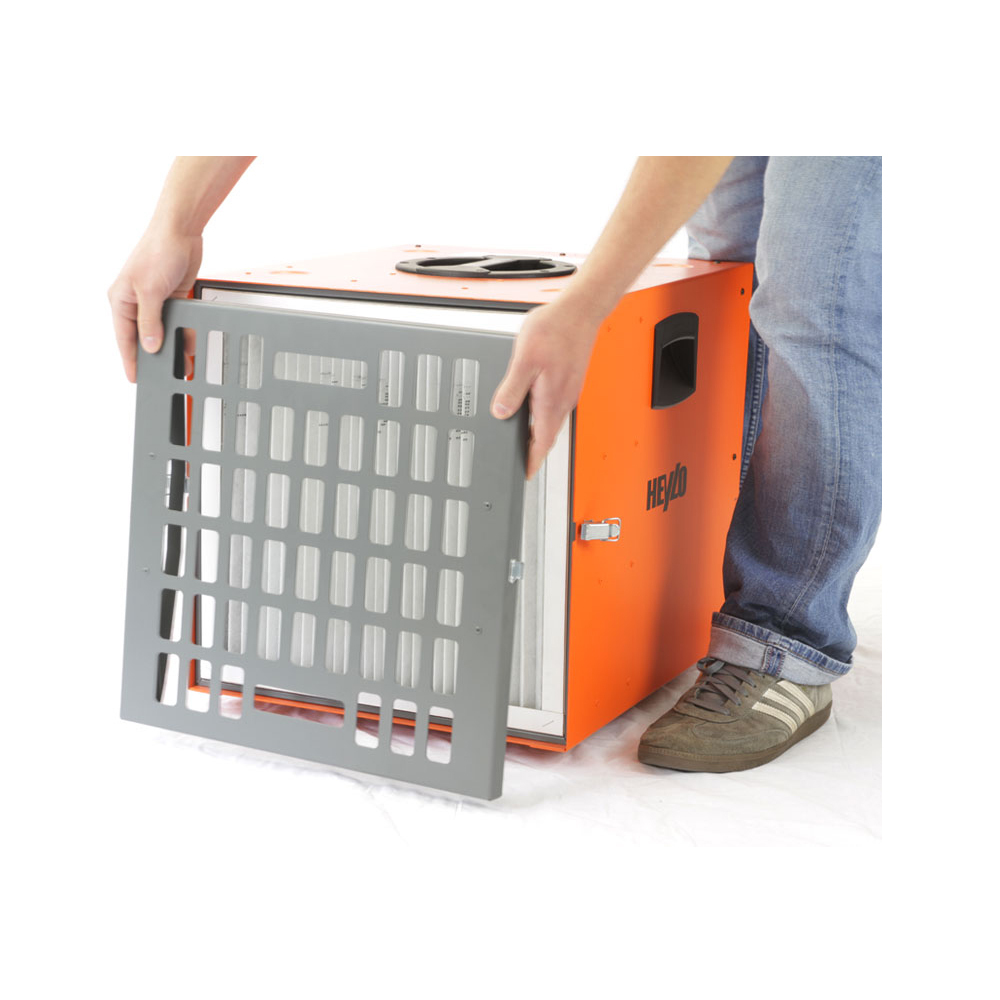

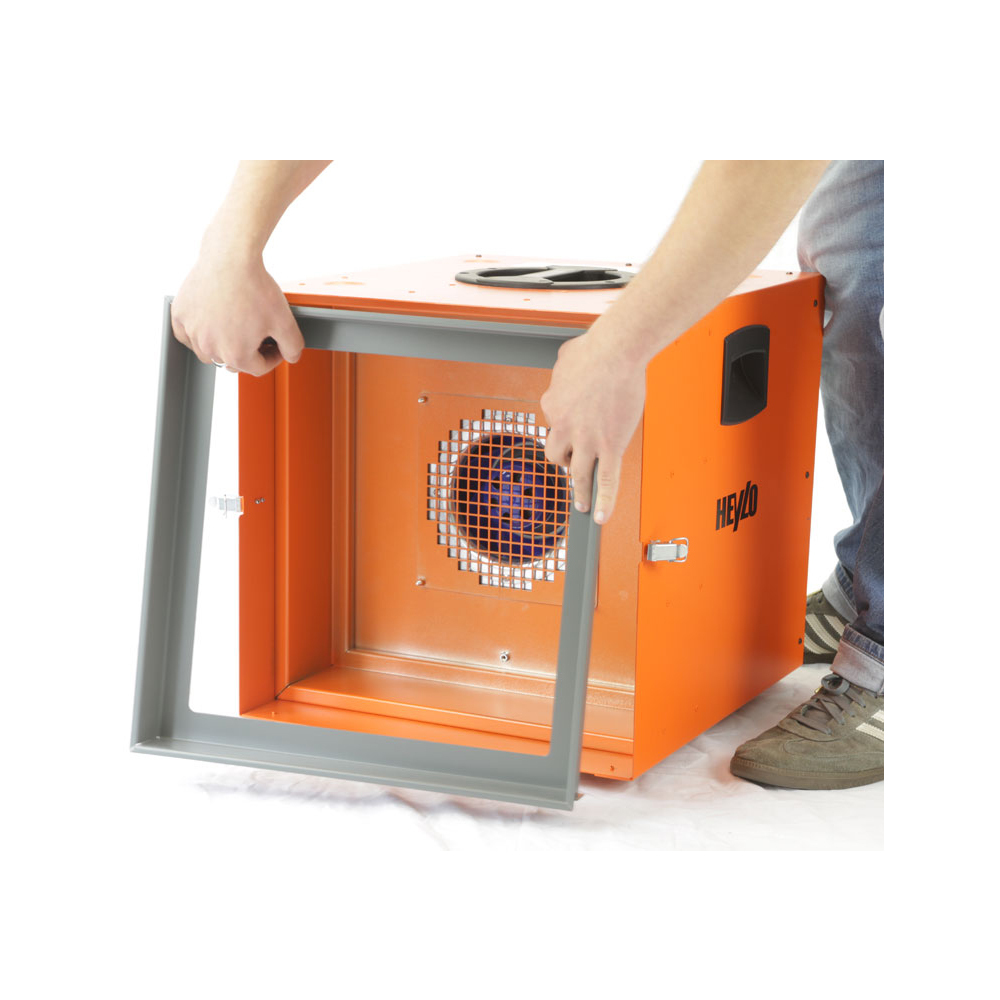

Low dust filter change due to special filter cassette
Various filters are accessible quickly and can be exchanged easily:
- Pre-filter – coarse dust filter of class G4 in conformity with European standard EN779

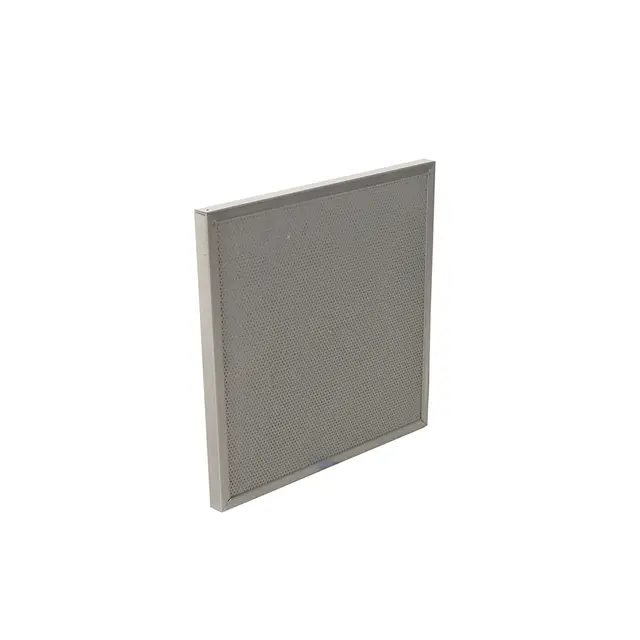

- Pre-filter – activated carbon filter
- Main filter – fine dust filter of Class F9 in conformity with European standard EN779 and dust class M in conformity with EN60335

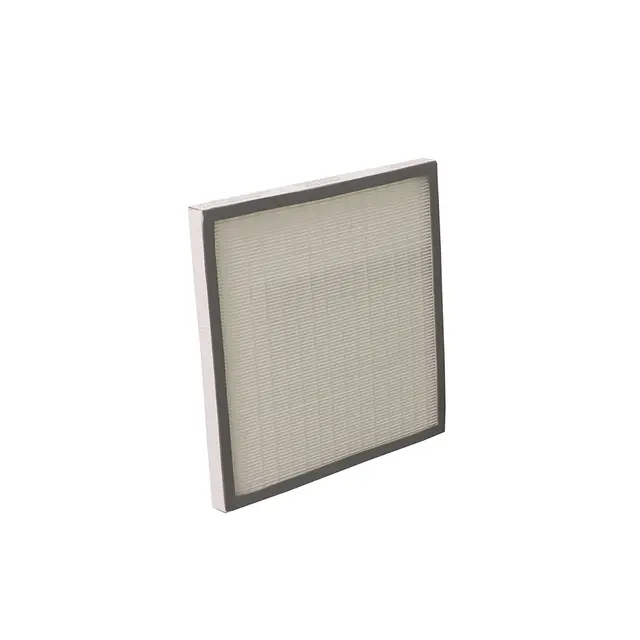

- Main filter – suspended solids filter HEPA H14 in conformity with European standard EN1822 and dust class M in conformity with EN60335
- Main filter – activated carbon filter
Product specifications
Fan air flow rate max.
1,010
m³/h
Air flow with F9 filter /M-class/H14 filter/H-class
890/697
m³/h
Min. air flow by saturated filters
600
m³/h
Power supply
230/1ph/50-60
V/Hz
Power consumption
0.175
kW
Current consumption
1.17
A
Sound level @3m
0-61
dB(A)
Hose inlet/outlet
205
Ømm
Product size (l x w x h)
505 x 420 x 445
mm
Weight
16
kg
Our tools
Air exchange rate calculator
Calculate the desired air exchange rate or room size and select the appropriate Heylo air cleaner.
Accessories and consumables

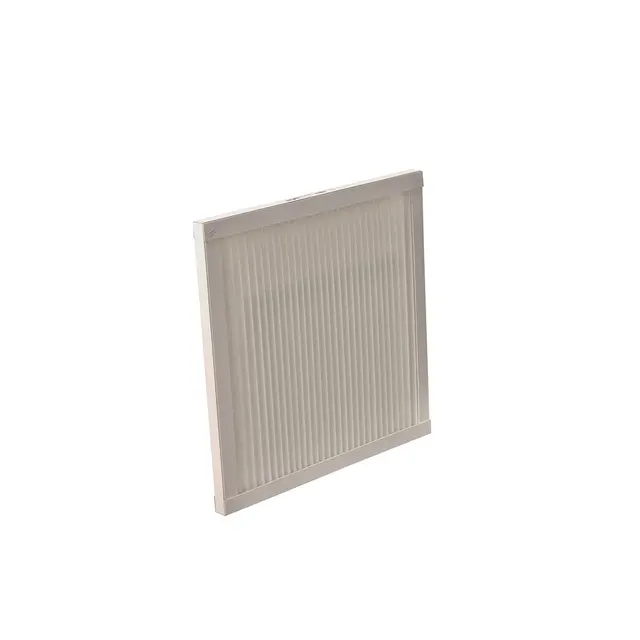

Product code: 1110925
Accessory for air cleaner Heylo PowerFilter 1400
Product code: 1110917
Accessory for air cleaner Heylo PowerFilter 1400
Product code: 1110914
Accessory for air cleaner Heylo PowerFilter 1400

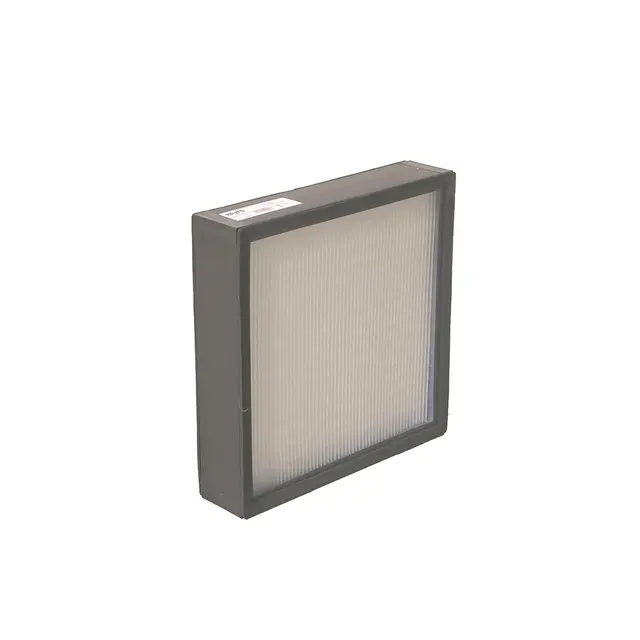

Product code: 1110853
Accessory for air cleaner Heylo PowerFilter 1400

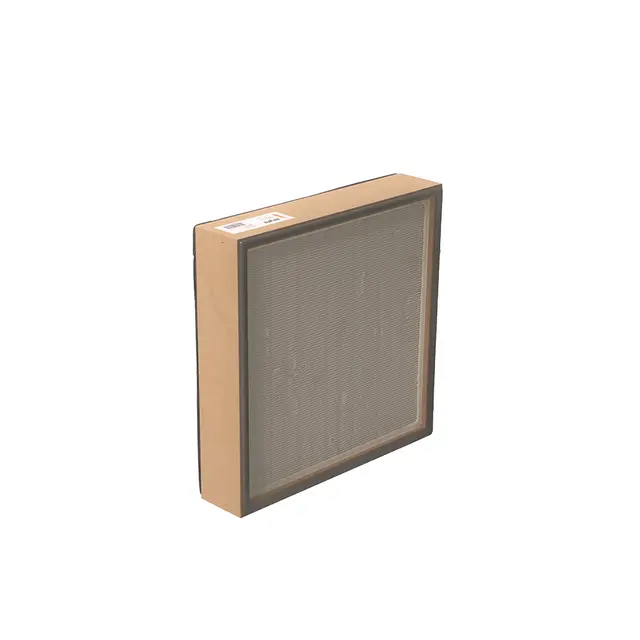

Product code: 1110854
Accessory for air cleaner Heylo PowerFilter 1400

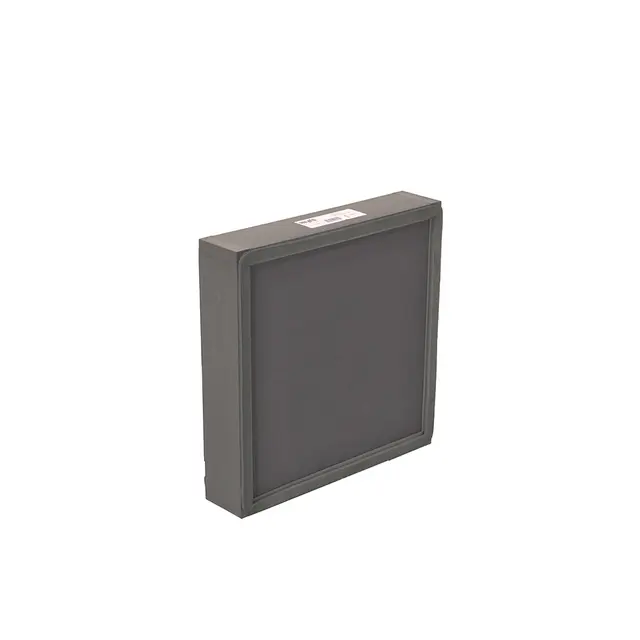

Product code: 1110855
Accessory for air cleaner Heylo PowerFilter 1400
Product code: 4515.390
Accessory for Heylo PV 1500, PF 1000, PF 1400, PF 3500

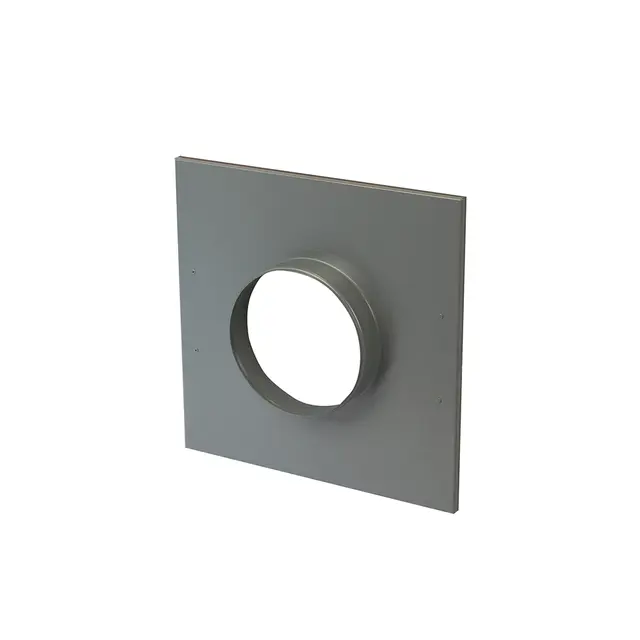

Product code: 1200076
Accessory for air cleaner Heylo PowerFilter 1400
Product code: 1200074
Accessory for air cleaner Heylo PF 1000, PF 1400, PF 3500
Product code: 1200086
Accessory for air cleaner Heylo PF 1000, PF 1400, PF 3500
