Heylo K 160 R – indirect oil fired heater

Portable oil fired heater
Master Top Badge

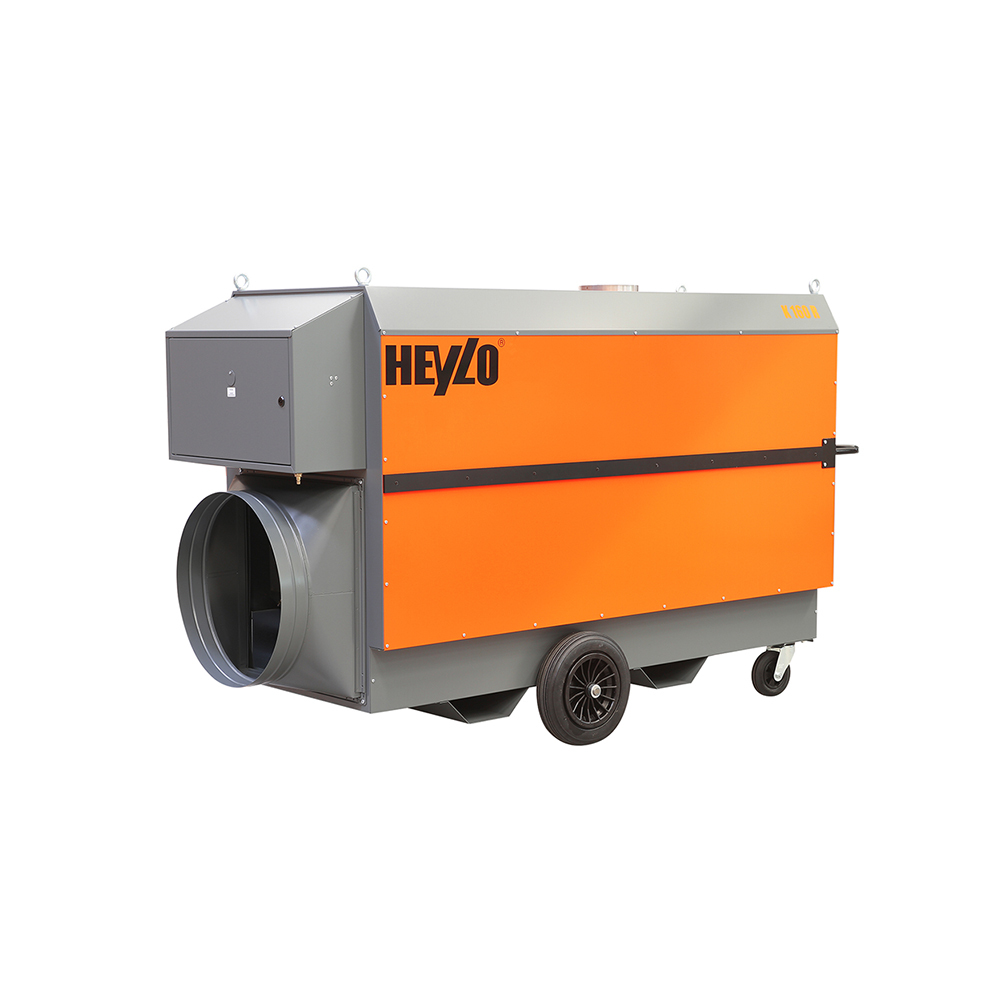

Heylo K 160 R – indirect oil fired heater
Heylo K 160 R – indirect oil fired heater

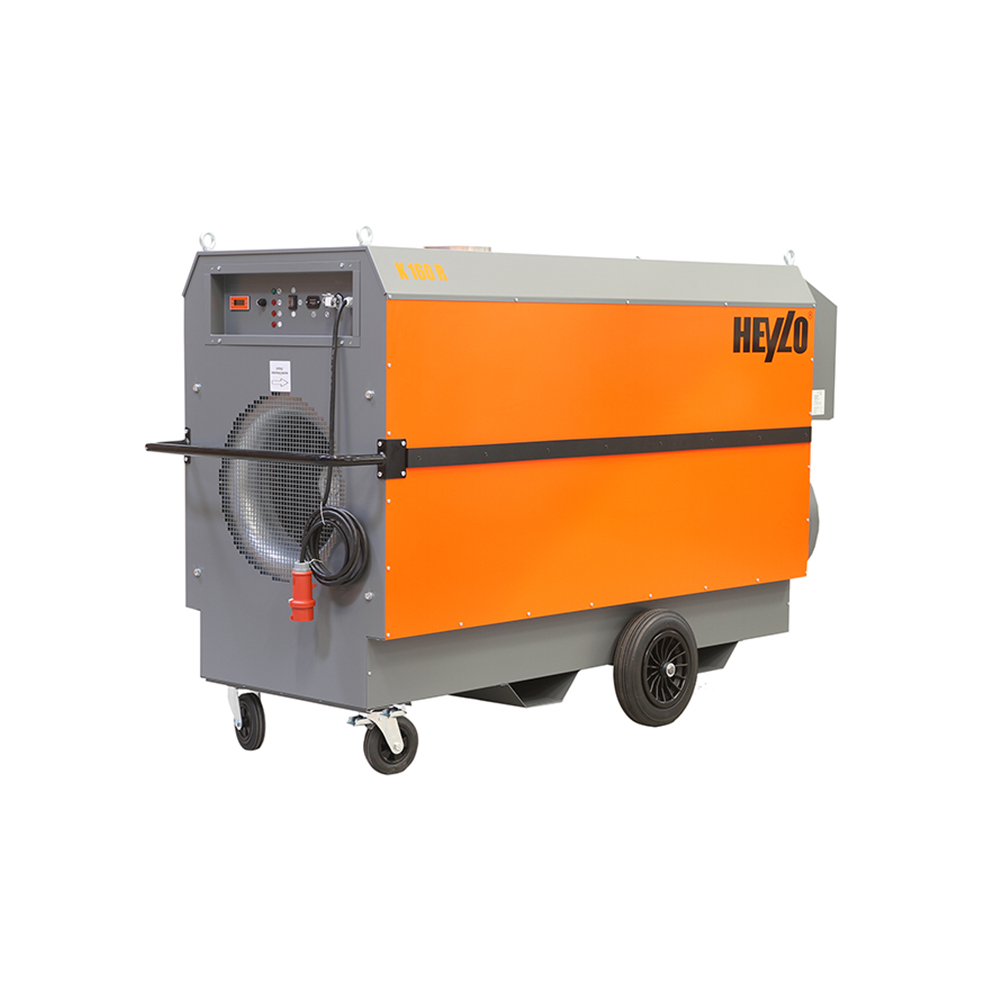

Heylo K 160 R heater back
Heylo K 160 R heater back

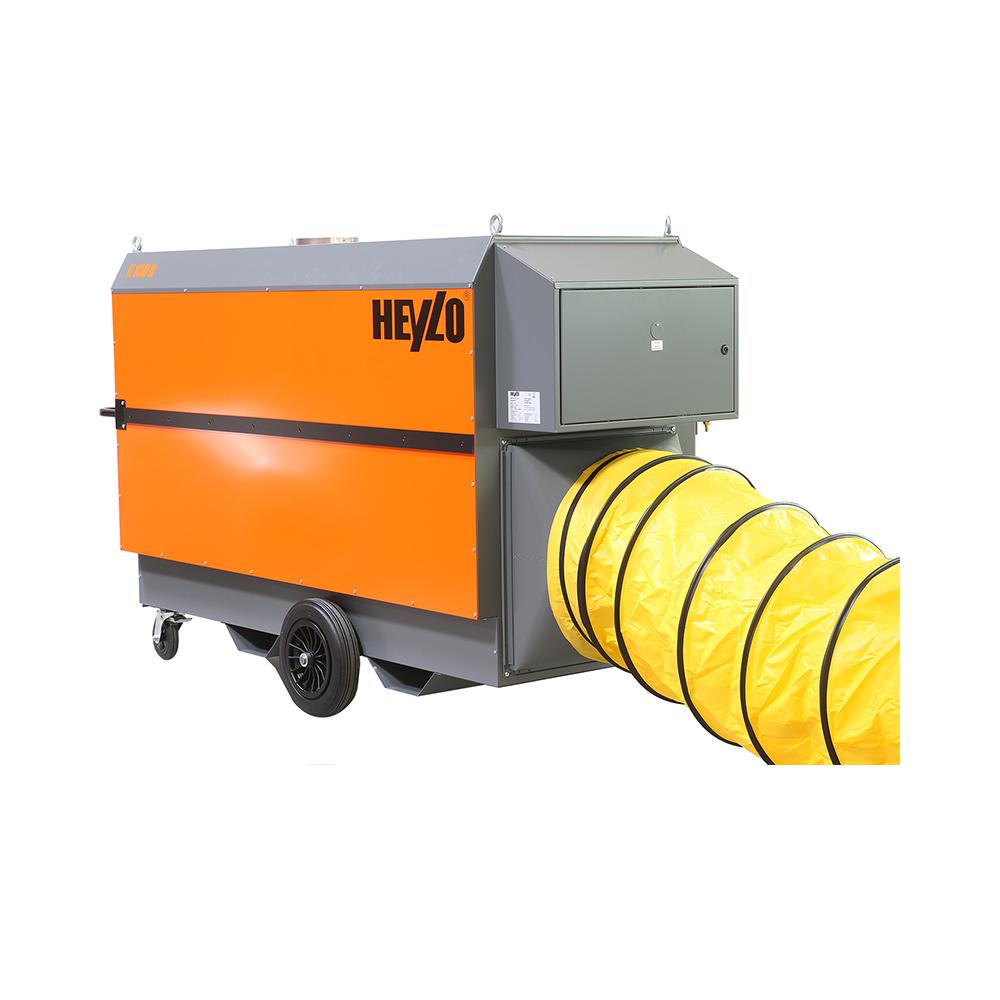

Heylo K 160 R heater  with hose
Heylo K 160 R heater with hose

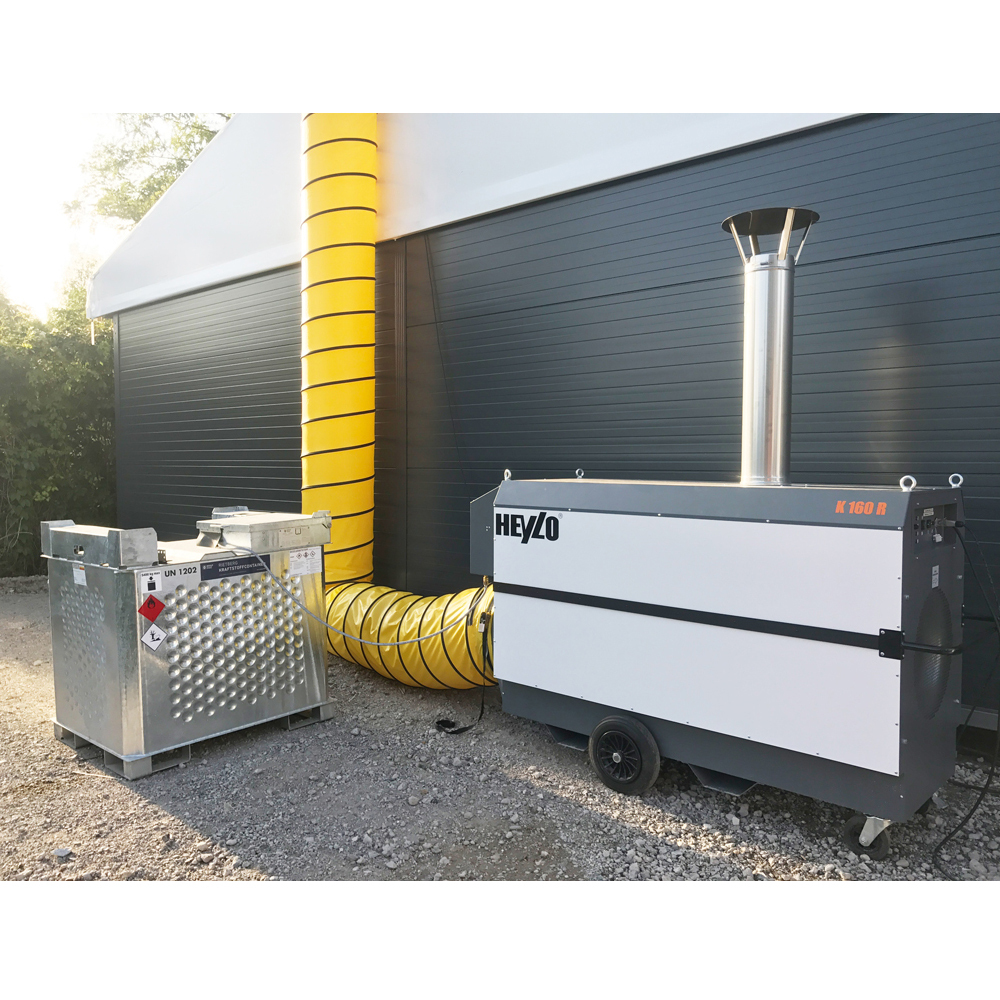

Heylo K 160 R heater tent heating
Heylo K 160 R heater tent heating

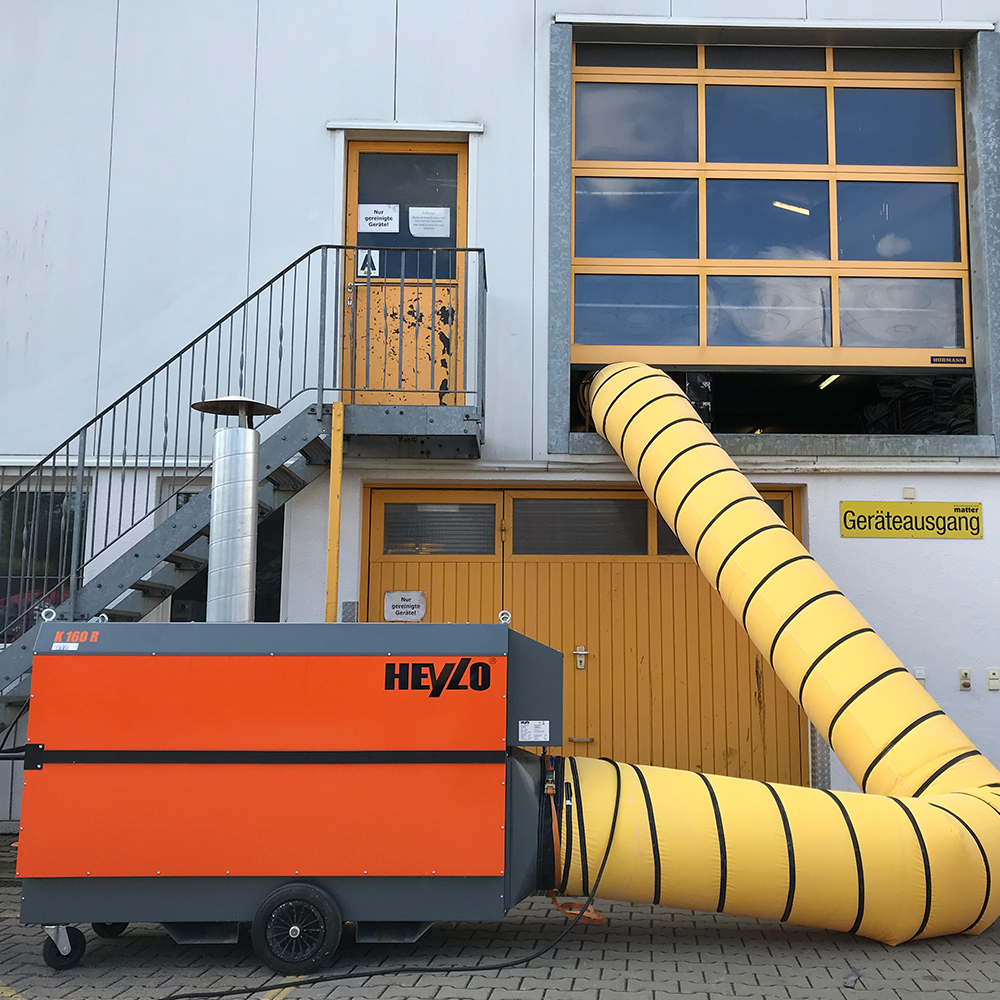

Heylo heater construction heating
Heylo heater construction heating

The K 160 R mobile heater fired with fuel oil is ideal for heating construction sites, halls and tents at events or relief operations. The oil heater is compact, versatile and easily transportable – by connecting up to 9 hoses, the warm air heater can be used specifically for temporary heating.

Mobile heaters of the Heylo K-series set the standard for mobile heating technology and have proven themselves for years in tough use on construction sites and events.

The original Heylo-ISK® burner concept protects all burner and switching elements and is characterised by ease of operation and maintenance.

View all of our indirect oil fired heaters, tent heaters and other types of mobile commercial heaters to meet your required applications.

Interested?

Key features

  • Optimized stainless steel combustion chamber/heat exchanger unit
  • Top-mounted burner for easy service accessibility
  • HEYLO FPS oil preheating (FlowSecure Preheating System) ensures safe operation at low temperatures
  • High air output/pressure due to powerful fans
  • HEYtronic control ensures more precise switching on of the fan and shutdown of the burner
  • Connection of a room thermostat possible
  • Recirculation mode (optional)
  • Safe single-line oil supply
  • Operating hours counter
  • Hose lengths up to 38m possible
  • Easy to use
  • Fully assembled and ready to use

The Heylo FPS oil preheating "FlowSecure Preheating-System" ensures perfect operation and starts easily even at low temperatures. The single-line oil system complies with environmental regulations in sensitive areas and increases safety against oil spills. Heylo K units stand for reliability, efficiency and low spare parts stock due to ISK® burner concept for all unit types.

Logistics advantages due to a width of only 88cm. The units require less space on construction sites and can fit eaily down narrow passages. Three oil heaters fit side by side on one truck (when loaded with offset wheels). The oil heater is equipped with side forklift lugs (80x170mm) and crane eyes as standard. This allows flexible transport to construction sites (mobile and mechanised) with lateral protective strips as well as front and rear brackets as protection against slight sheet metal damage due to transport and operation. Wheels suitable for smooth floors in warehouses or halls as well as on roads.

All important operating functions, such as malfunctions and operating hours, can be read on the control panel. Due to the location of the control panel on the fan side, the components are extremely well protected against moisture and dirt (dust) from outside by an overpressure in the control box.

Optional equipment on request:

  • Container operation with stand console (without wheels)
  • Console for stacking the units (max. 2 units) for storage
  • Console for mounting attachments (such as chimney, barrel fitting)

The HEYtronic control ensures that the fan is switched on and the burner is switched off more precisely. The display makes it possible to monitor the discharge temperatures at any time and to see which components are currently being controlled. This helps in fault diagnosis and in assessing the existing hose installation.

Due to different fans (axial and radial) Heylo offers the oil heater K 160 in two versions. The model K 160 R is equipped with a powerful radial module. The radial modules are extremely powerful and particularly suitable for conveying the air through long hoses without any losses. In addition, the fans are very quiet. This is also a great advantage in night operation near residential areas. Despite the size of the modules, the units are as slim and compact as the axial systems. All fans comply with the current ERP 2015 efficiency standard.

Product specifications

Heating capacity

161
kW


Heating capacity

549.355
Btu/h


Heating capacity

138,460
kcal/h


Air flow

12.767
m³/h


Fan

Radial
type


Air pressure

680
Pa


Thermostat operation

Analogue or digital


Fuel consumption

16.16
kg/h


Power supply

400/3ph/50
V/Hz


Electrical connection

4.8
kW


Rated current

6.8
A


Protection class

IP44


Exhaust gas connection

200
Ømm


Air outlet dimension

1 x 550
Ømm


Product size (l x w x h)

2326 x 880 x 1400
mm


Box size (l x w x h)

2326 x 950 x 1600
mm


Net/gross weight

350/425
kg
