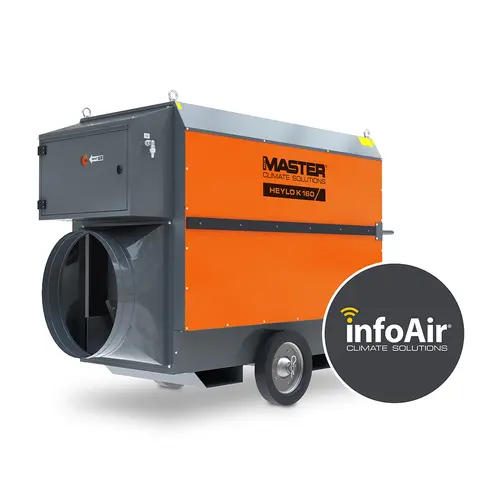

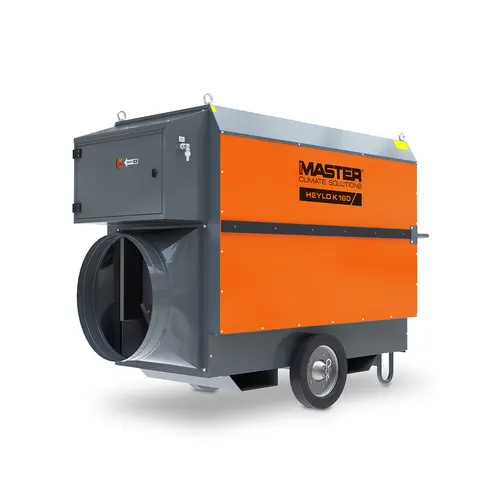

Heylo K 160 InfoAir – indirect oil fired heater
Portable oil fired heater

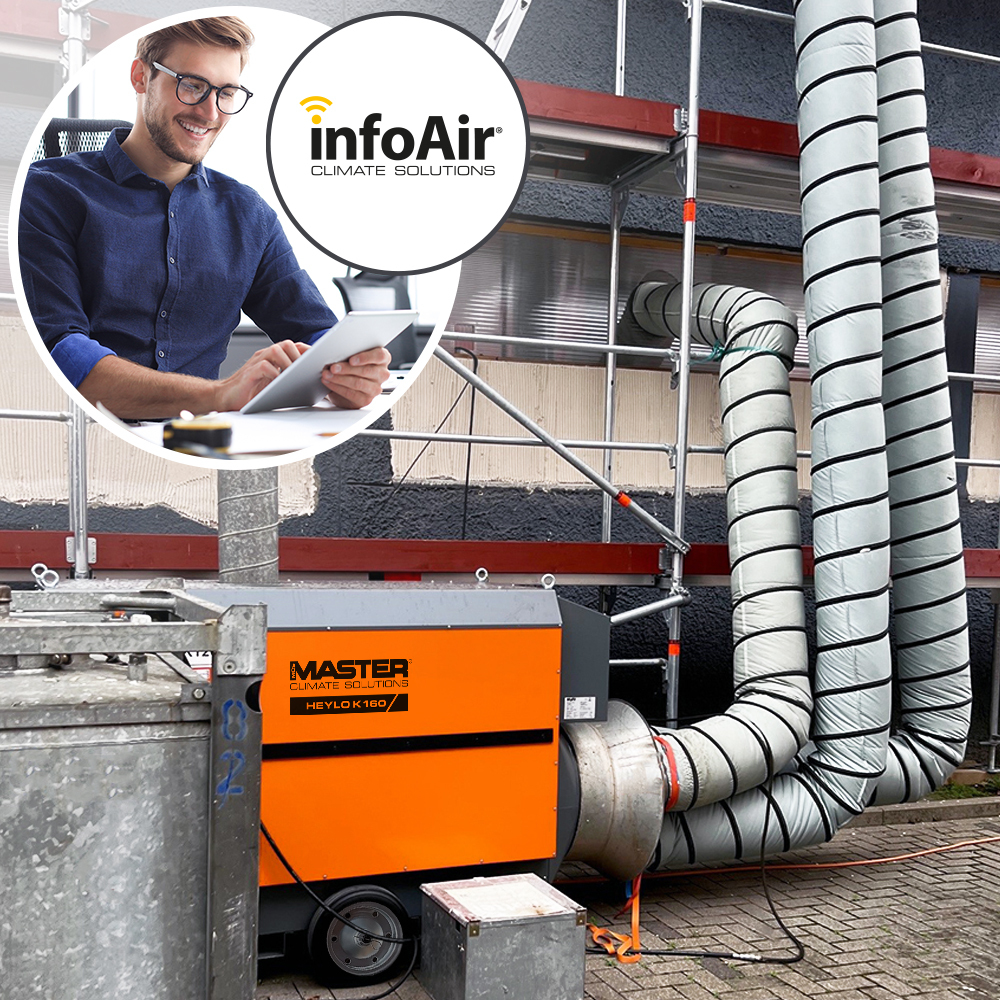

The mobile oil heater K 160 InfoAir provides efficient and targeted heating. Its versatility is ideal for construction heating, tent heating, event heating and hall heating. The oil heater is compact and easy to transport. Up to 3 hoses can be used specifically for temporary heating.
The Heylo K-series sets the standard for mobile heating technology and has proven itself for years in tough use on construction sites and events.
Interested?
Key features
-
Optimized stainless steel combustion chamber/heat exchanger unit
-
Top-mounted burner for easy service accessibility
-
Tiger loop filter (preheats the fuel, reduces air in the system, reduces potential leak hazard)
-
High air output/pressure due to powerful fans
-
Connection of a room thermostat possible
-
Safe single-line oil supply
-
Operating hours counter
-
Easy to use
-
Fully assembled and ready to use
-
Remote monitoring system InfoAir on board
Preheating filter ensures perfect operation and is easy to start – even at low temperatures. The single-line oil system complies with environmental regulations in sensitive areas and increases safety against oil spills.
The digital control panel is designed to offer easy operation to the user. When a button is pressed, the LED is activated, and the same happens in case of any alarm. The 6-digit display shows various information including: supply voltage, hour counter or dedicated graphics to specific phases.
All important operating functions, such as faults and operating hours, can be read easily off the control panel. Due to the location of the control panel on the fan side, the components are extremely well protected against moisture and dirt (dust) from outside by an overpressure in the control box. For additional protection, a protective film can be fitted in front of the control panel (optionally available).
Logistic advantages due to a width of only 88cm the units require less space on construction sites and can fit through narrow passages Three oil heaters fit side by side on a truck (loading with offset wheels is necessary for this). The oil heater is equipped with side forklift lugs in the format 80 x 170mm as standard. This allows for flexible transportation on construction sites (mobile and mechanised). For transport by crane, the crane eyes are also included as standard equipment. The unit is protected against possible damage to sheet metal during transport and operation by side guards and front and rear brackets.
Optional equipment on request:
- Container operation with pedestal (without wheels)
- Console for stacking the units (max. 2 units) for storage
- Console for mounting attachments (such as chimney, drum fitting)

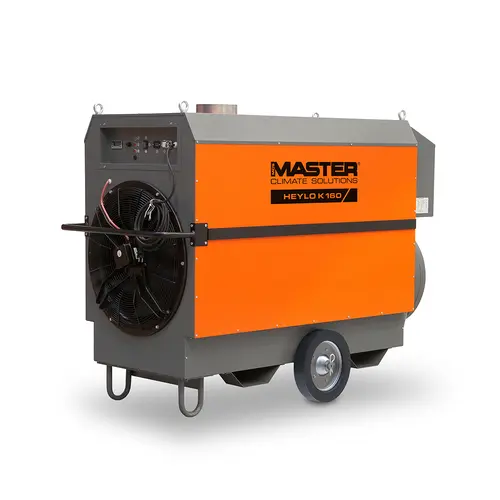

The K 160 oil heater is available with different fans (axial and radial). The K 160 model has a highly efficient axial compact fan. This type of fan has state-of-the-art fan blades. The special biometric shape leads to a reduction in noise and an increase in air performance and pressure. All fans comply with the current ERP 2015 efficiency standard. Please contact us for the K 160 R variant with radial fan.
Product specifications
Heating capacity
160
kW
Heating capacity
546,000
Btu/h
Heating capacity
137,600
kcal/h
Air flow
11,500
m³/h
Fan
Axial
Type
Air pressure
290
Pa
Thermostat operation
Analogue or digital
Fuel consumption
12.7
kg/h
Power supply
220-240/1ph/50
V/Hz
Electric power
1.65
kW
Rated current
7.3
A
Protection class
IP44
Sound level
78
dB(A)
Exhaust gas connection
197
Ømm
Air outlet dimension
1 x 545
Ømm
Remote monitoring system
InfoAir
Product size (l x w x h)
1895 x 880 x 1410
mm
Box size (l x w x h)
1950 x 930 x 1570
mm
Net/gross weight
280/327
kg
Pallet
1
pcs
