Heylo HEYWALL basic – dust control wall

Clean renovation with the Heywall basic package
Master Top Badge
Heylo HEYWALL basic - dust control wall
Heylo HEYWALL basic - dust control wall

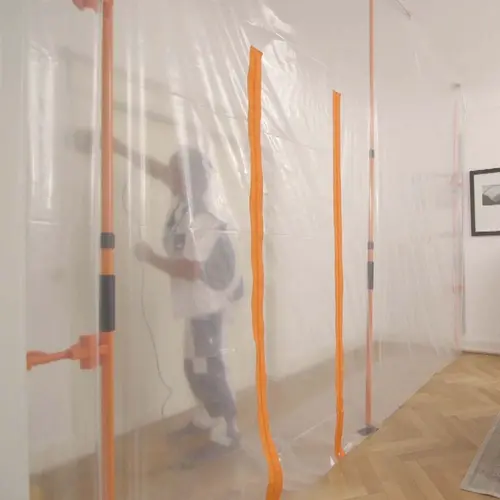

HEYWALL productvideo
HEYWALL video for application
HEYWALL productvideo
HEYWALL productvideo

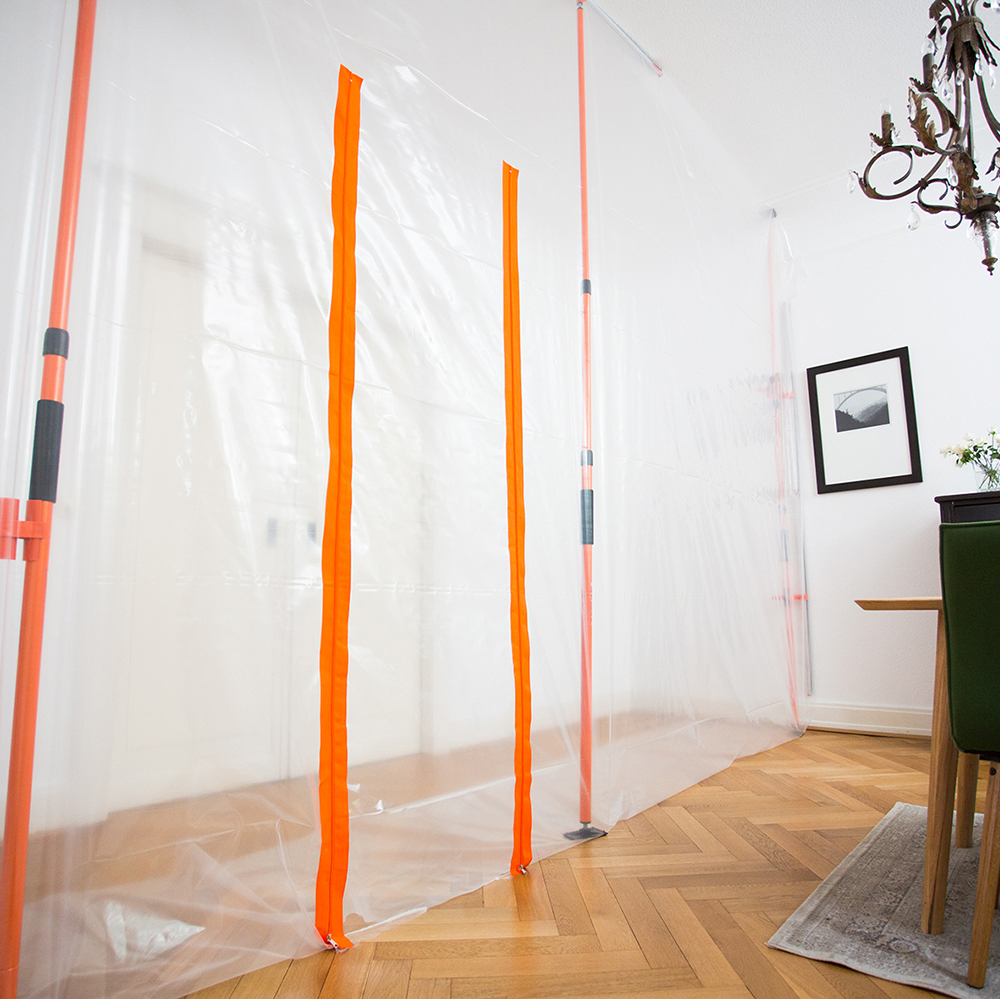

Heylo HEYWALL dust control wall
Heylo HEYWALL dust control wall

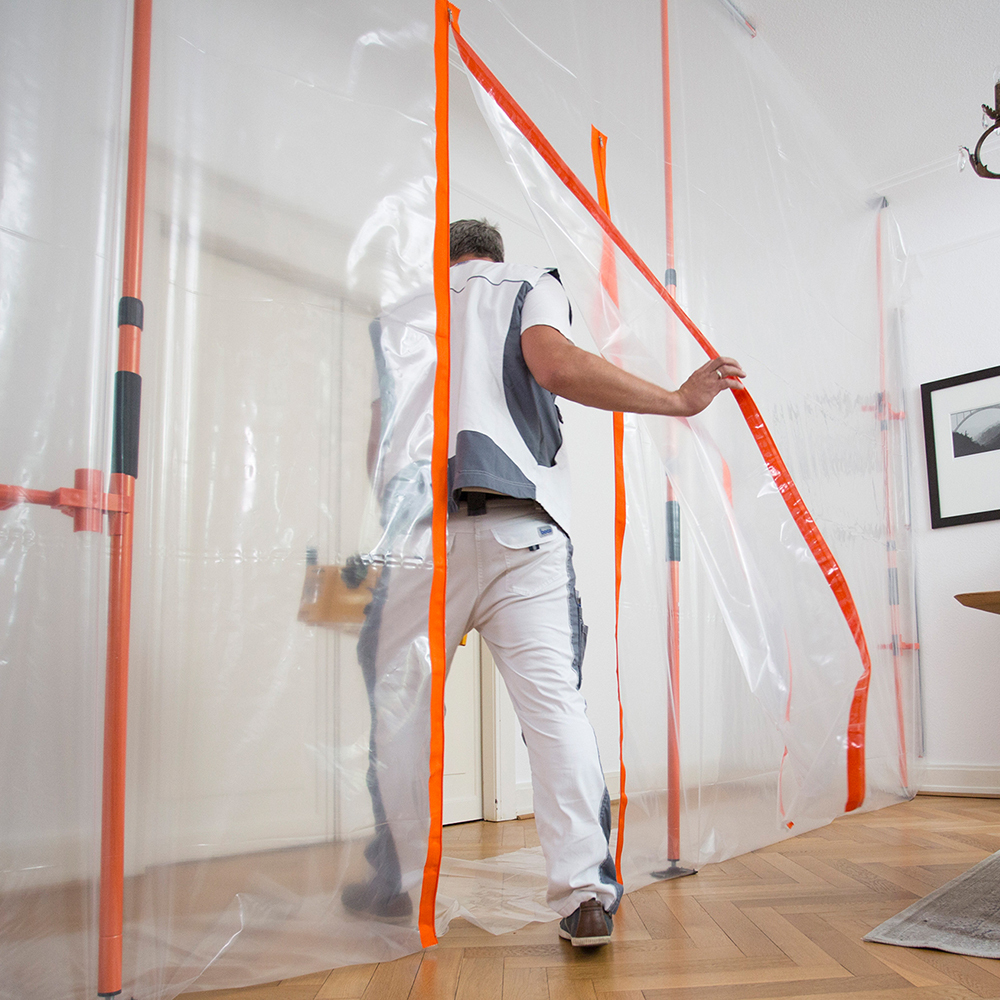

Heylo HEYWALL entrance
Heylo HEYWALL entrance

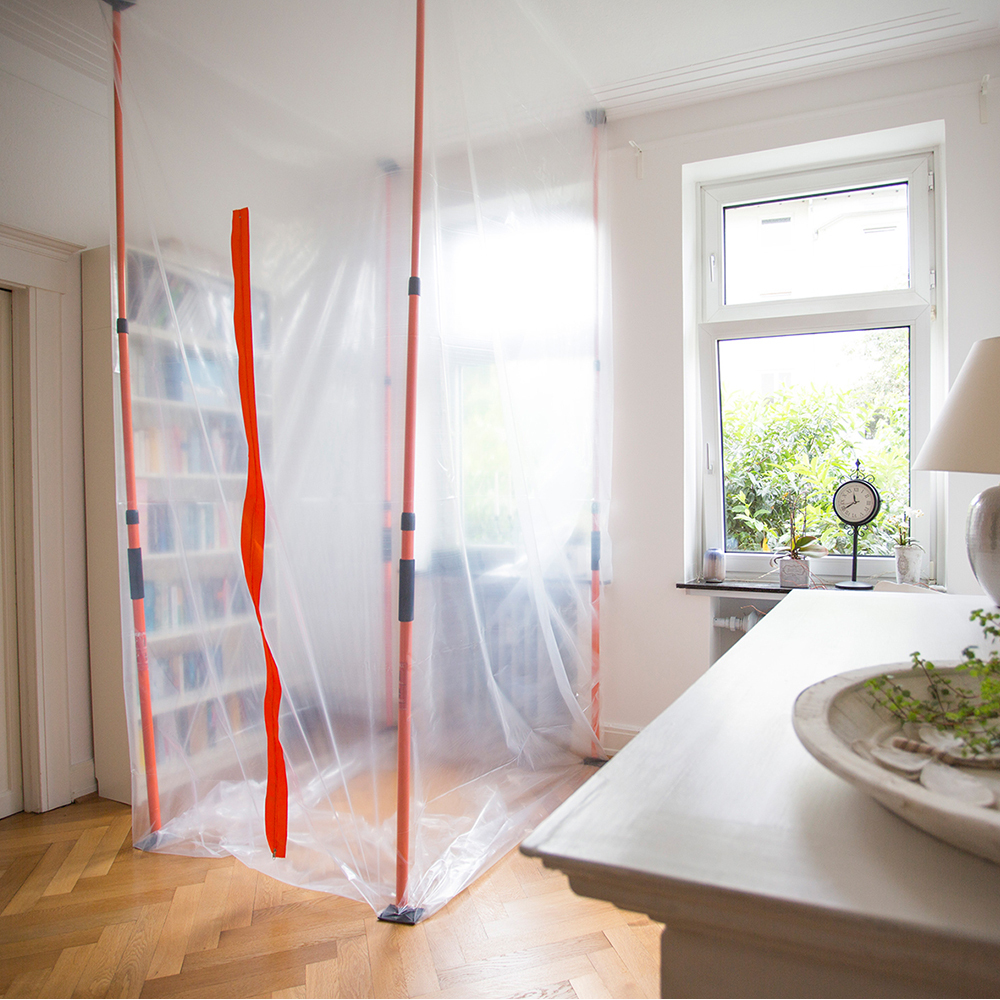

Heylo HEYWALL basic package
Heylo HEYWALL basic package

Do you need quick and flexible protection against dust during renovation work? Without time-consuming masking and covering of doors, windows and furniture? The HEYWALL dust protection wall ensures clean rooms during refurbishment or renovation work and avoids annoying subsequent cleaning. The clever dust protection system for partial rooms.

The HEYWALL modular system consists of aluminium poles up to 5m high which, together with a foil and a practical entrance or exit by means of self-adhesive zip, creates a dust-tight barrier. It can be set up as a room divider, in an L or U shape or as a polygon. All angles are possible.

Installation procedure:
1. Install system rods
2. Seal the sides
3. Seal ceilings
4. Attach zipper

Interested?

Key features

  • Quick and flexible protection against dust
  • For separating walls, ceilings and partial areas
  • Module system – individual modules for different applications
  • Quick to set up in a few minutes
  • Convenient entrance or exit by a self-adhesive zipper

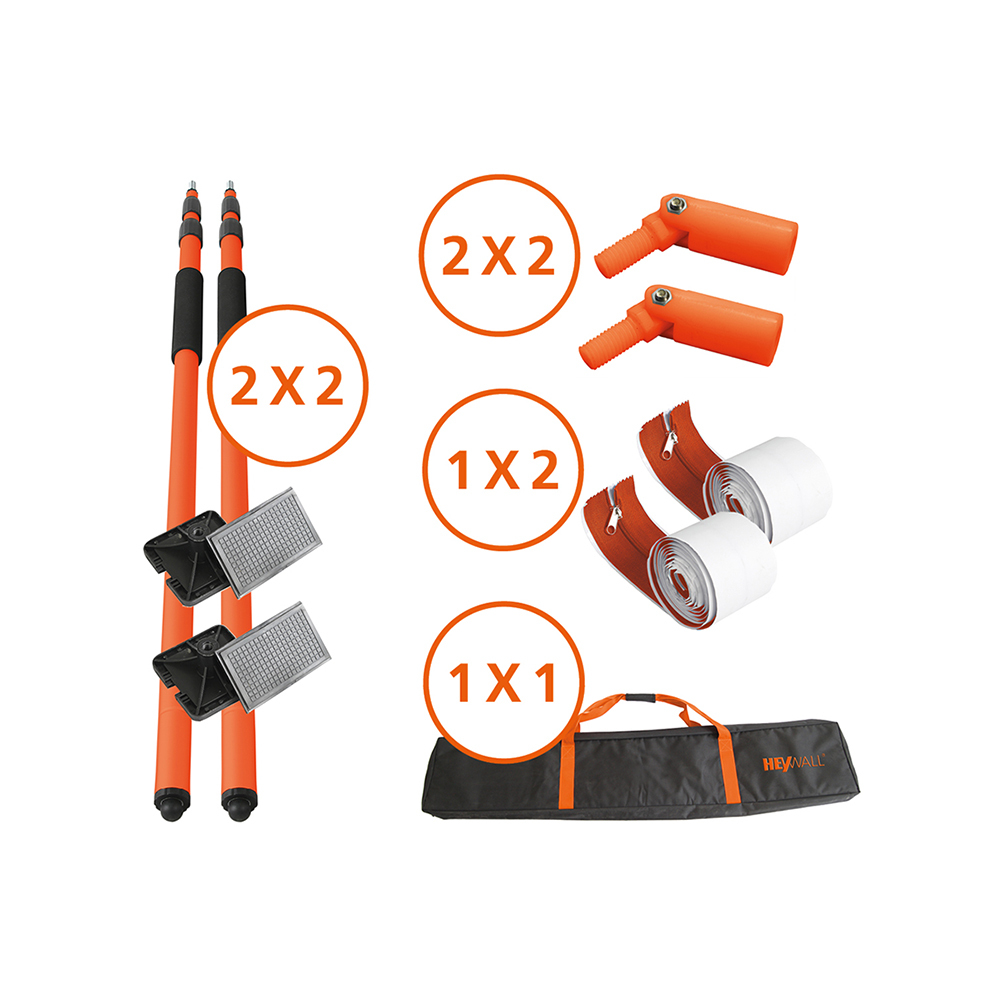

Content basic package:

4 system bars (up to 3.60 m height)
4 angle adaptor
2 zippers
1 transport bag

Modules for HEYLO HEYWALL

Extendable system bars made of aluminium including head and foot plates
Fix the head and foot plate to the system bar. Clamp the foil into the top plate. Then tighten the extendable system bars 3.6m to the desired length between floor and ceiling by pulling it out.

Sealing rails including ceiling clamps
For application on ceilings, use the sealing rail and ceiling clamps. Use sealing rail with side clamp for wall closure.

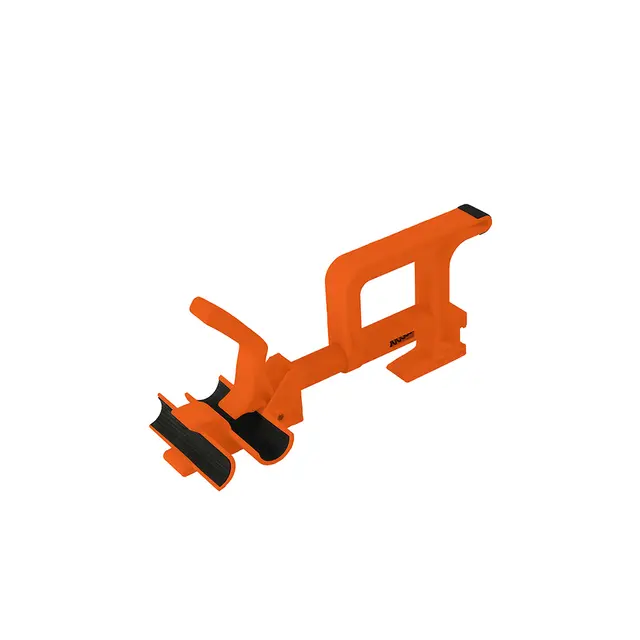

Side clamps
These create a wall closure together with the sealing rails. First, connect the side clamp to the sealing rail. Then connect the sealing rail and the side clamp at the appropriate height to the system bar.

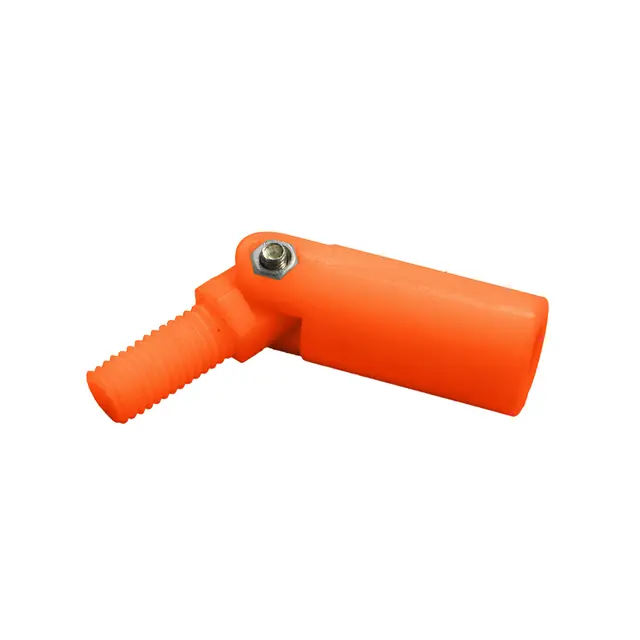

Angle adaptor
For fixing the system bars to inclined walls. Screw the angle adaptor onto the system bar, and then screw the head plate onto the angle adaptor. Then clamp the system bar between the floor and the slant.

Self-adhesive zippers
For application on the plastic foil. For easy entry and exit of the construction site. Stick the zipper and cut the film for the passage.

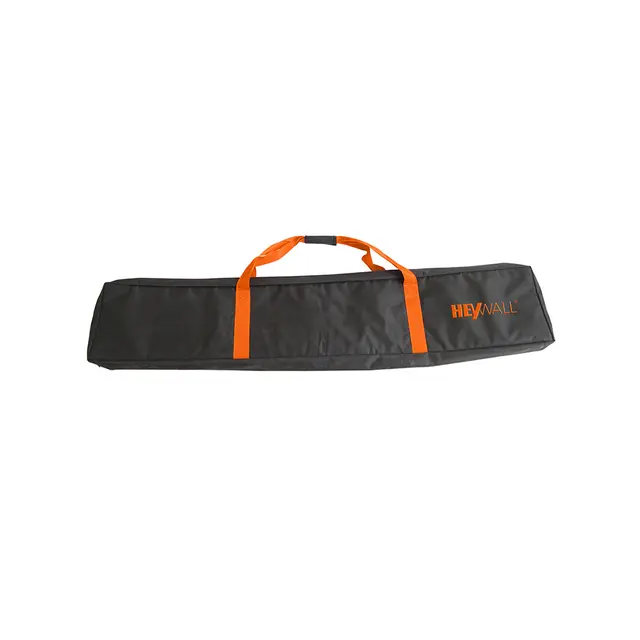

Carrying bag
Bag with sturdy zipper for stable transport and handling, as well as integrated bag for accessories. Washable surface inside and outside.

Product specifications

System bars (3.6m height)

4
count


Angle adaptor

4
count


Zippers

2
count


Transport bag

1
count


Max. length

8
m


Max. area

28.8


Box size (l x w x h)

1500 x 370 x 420
mm


Weight

12
kg


Accessories and consumables

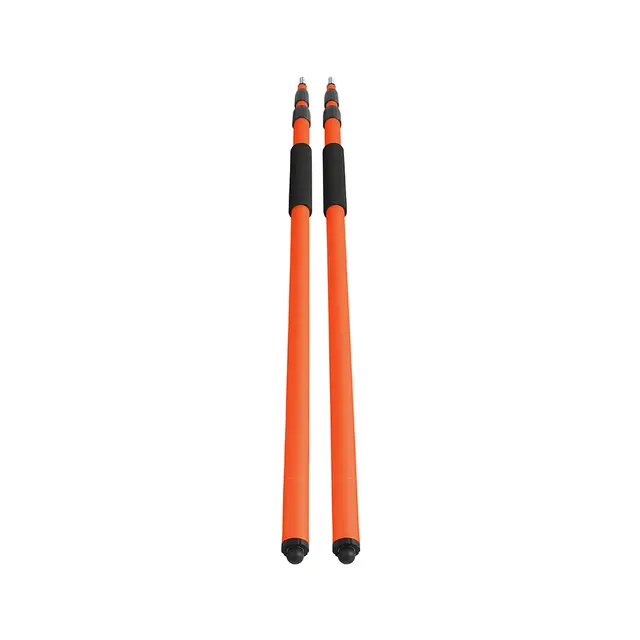

HEYWALL system bars - 1920201
Master Top Badge

Product code: 1920201

Accessory for dust control wall HEYWALL

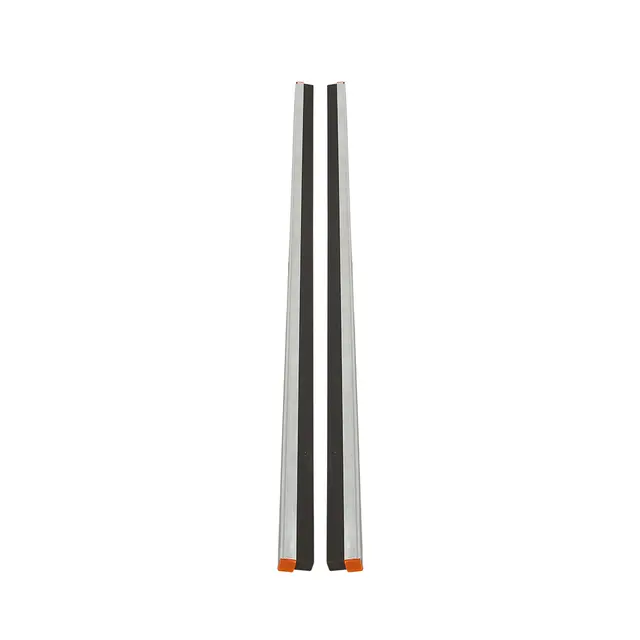

HEYWALL closing bars - 1920202
Master Top Badge

Product code: 1920202

Accessory for dust control wall HEYWALL

HEYWALL side clamps - 1920205
Master Top Badge

Product code: 1920205

Accessory for dust control wall HEYWALL

HEYWALL angle adapter - 1920207
Master Top Badge

Product code: 1920207

Accessory for dust control wall HEYWALL

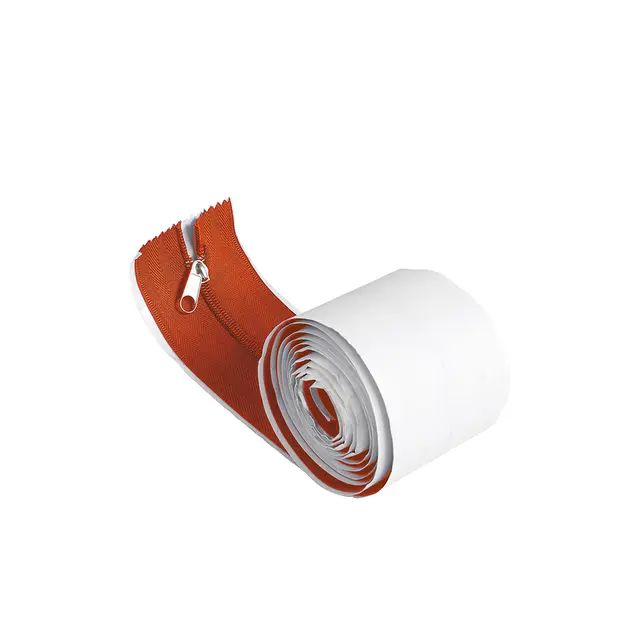

HEYWALL zipper - 1920206
Master Top Badge

Product code: 1920206

Accessory for dust control wall HEYWALL

HEYWALL transport bag - 1920208
Master Top Badge

Product code: 1920208

Accessory for dust control wall HEYWALL

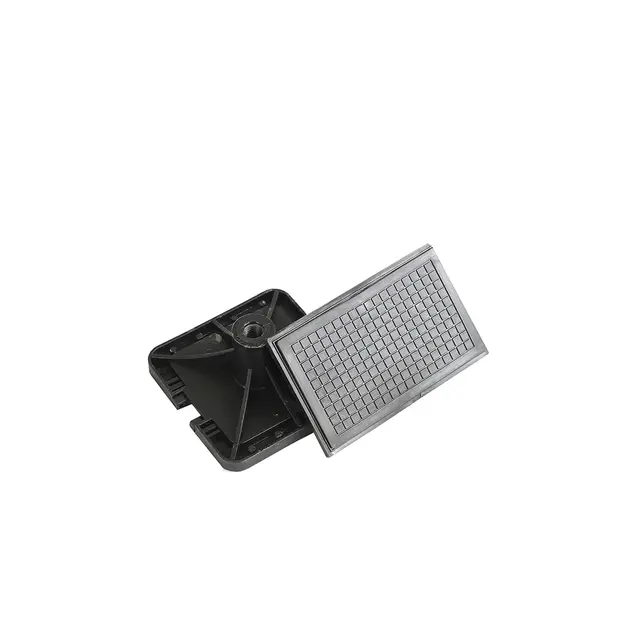

HEYWALL head and foot plate - 1920204
Master Top Badge

Product code: 1920204

Accessory for dust control wall HEYWALL

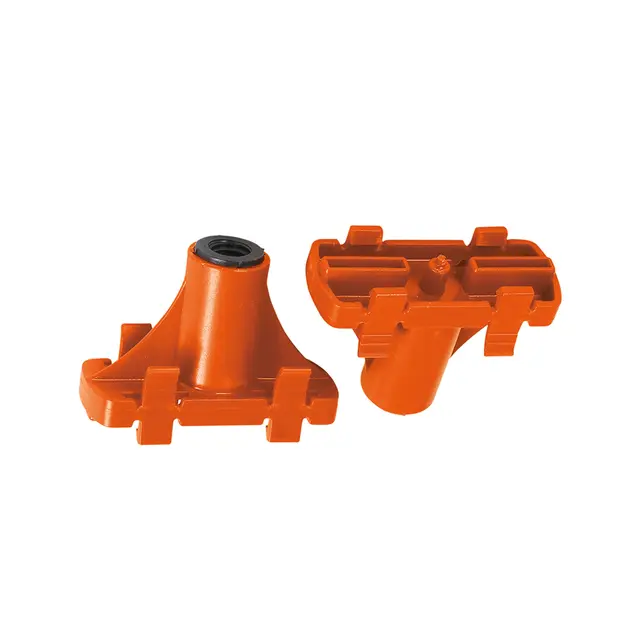

HEYWALL ceiling clips - 1920203
Master Top Badge

Product code: 1920203

Accessory for dust control wall HEYWALL

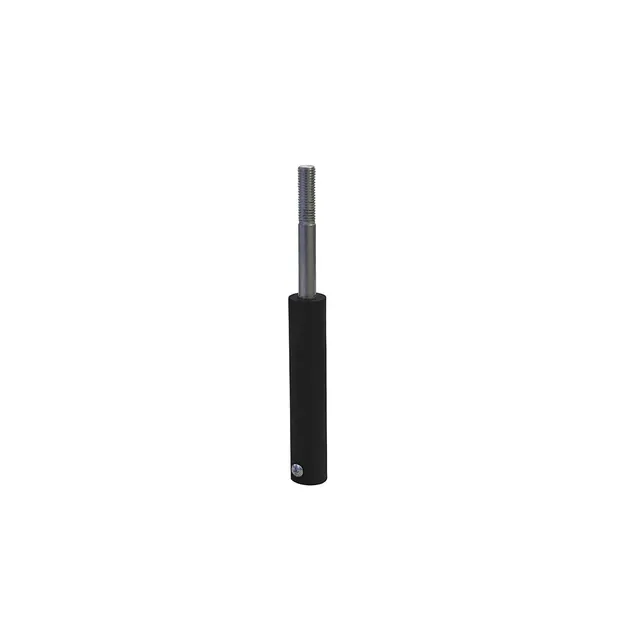

HEYWALL quick release adapter - 1920209
Master Top Badge

Product code: 1920209

Accessory for dust control wall HEYWALL

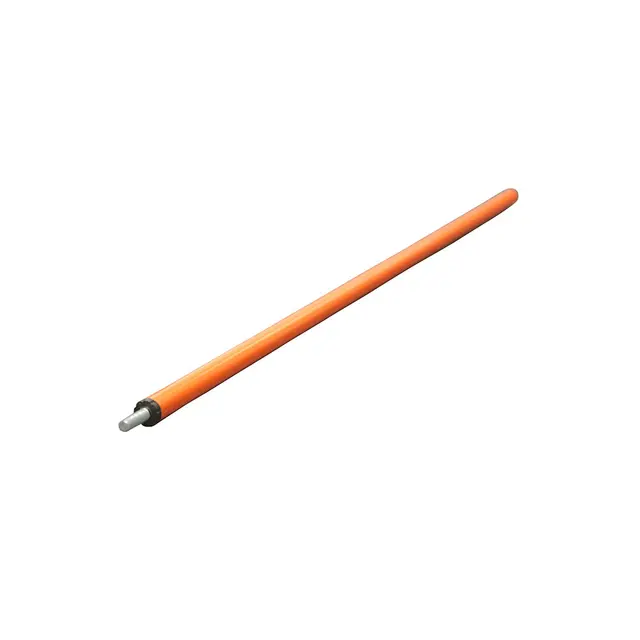

HEYWALL system bar extension - 1920210
Master Top Badge

Product code: 1920210

Accessory for dust control wall HEYWALL

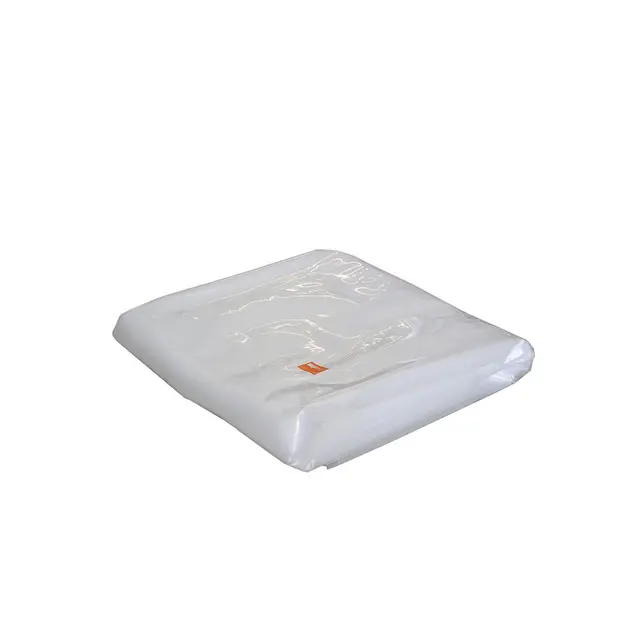

HEYWALL film - 1250125
Master Top Badge

Product code: 1250125

Accessory for dust control wall HEYWALL
