Heylo DCS-PF 1400 – dust control system
Including: DCD-3.0 (Door base element + 2x PVC foil incl. velcro fastener + transport bag) + air cleaner PF 1400 + coarse dust filter (G4) + fine dust filter (F9/M class) + suction piece. For mould restoration fitted optionally with HEPA filter H14 (class H).
Clean renovation with the Heylo dust protection system DCS. Dust extraction and negative pressure maintenance with the combination of dust protection door DCD and PowerFilter with hoses. The dust protection door is used for quick and safe partitioning of doors between the working or dirty area and the white area. By connecting the PowerFilter 1400 in the white area to the DCD, a negative pressure is created in the renovation area (black area), which prevents the fine dust from spreading into adjacent rooms. As soon as the hose is led through the opening directly to the place where the dust originates in the renovation area, a dust extraction function results.
Easily transported and quickly installed, the dust protection system saves time, money and complications. Time-consuming subsequent cleaning, as with water-based systems, is not necessary. Simply tap out the dust bags and filters used and dispose of them.

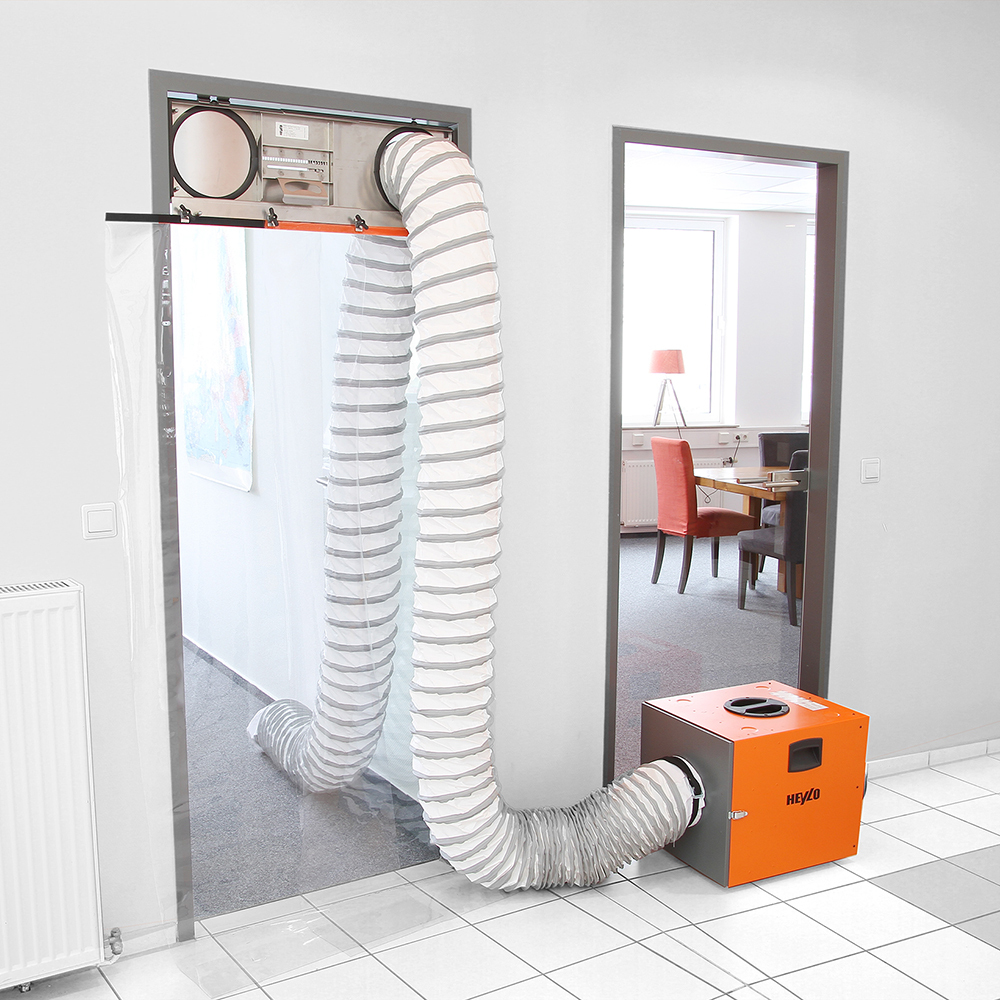

Heylo dust control system DCS-PF 1400
|

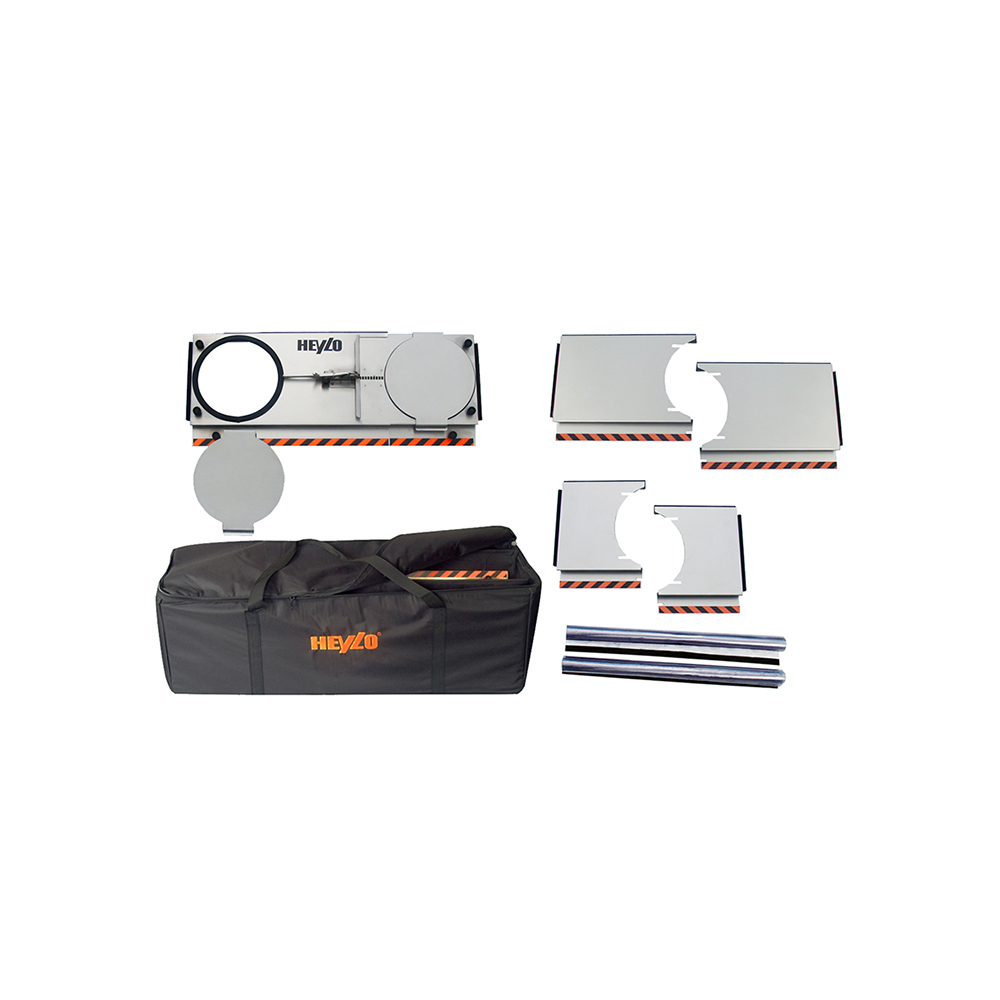

Heylo dust control door DCD-3.0
|

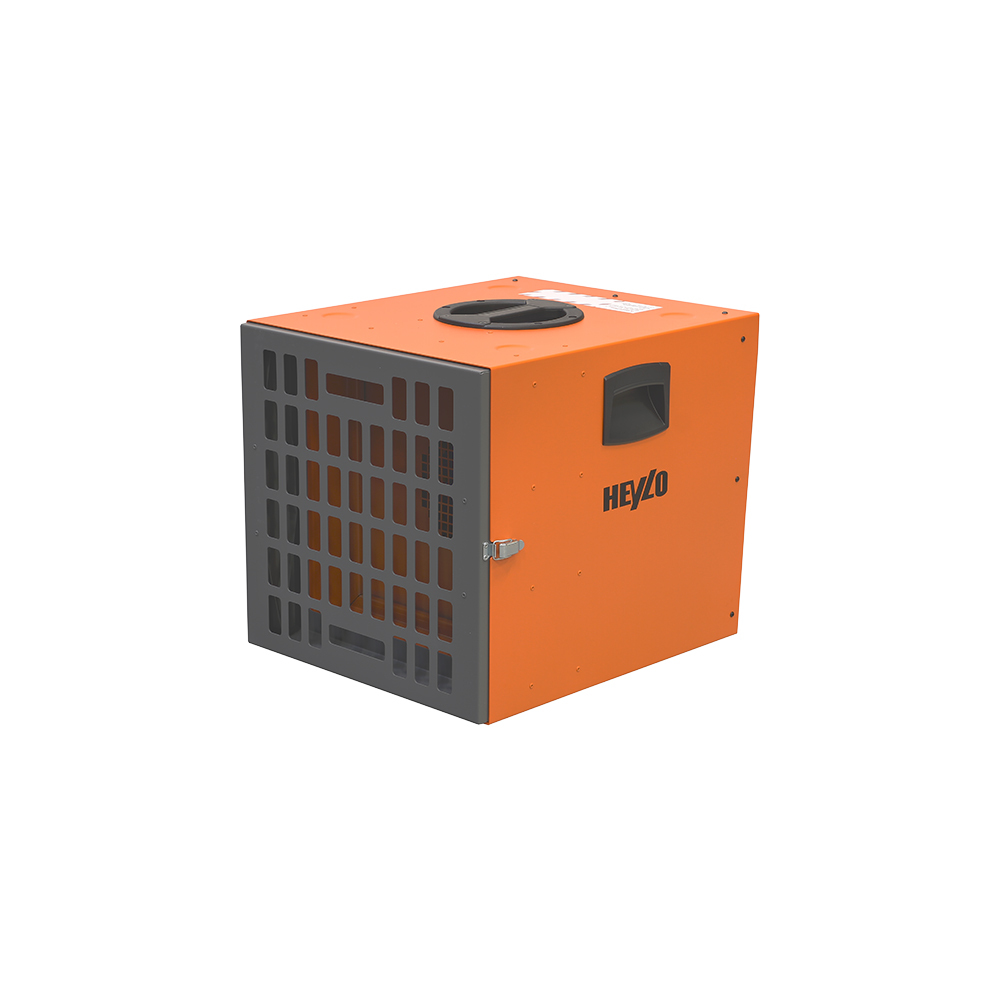

Heylo air cleaner PF 1400
|

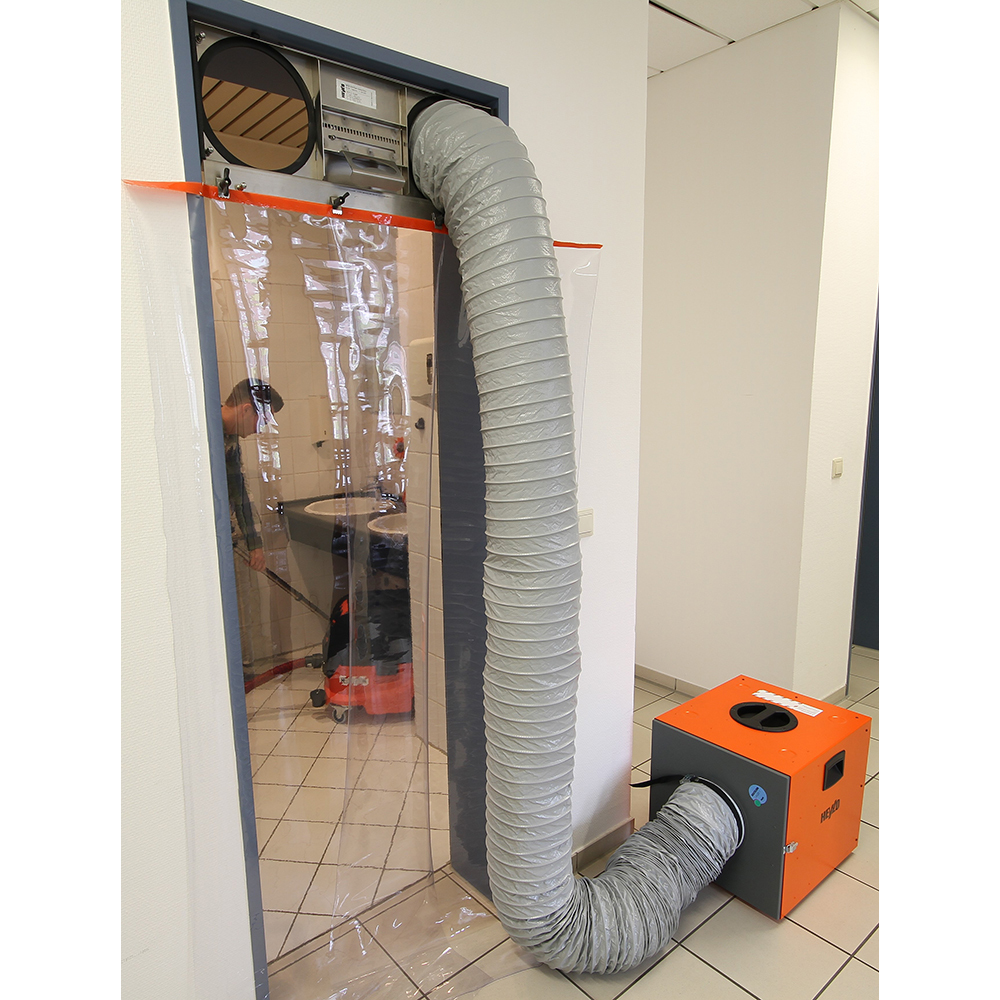

Heylo bath renovation
|
Key features
- Dust protection systems Heylo DCS are mobile systems consisting of dust protection door (DCD-3.0) and mobile air cleaner or fan in the white area
- Two integrated dust extraction openings for air cleaner or fan with trouser/dust bag
- For dust extraction and negative pressure maintenance in rooms
- Extensive post-cleaning is not necessary
- For work with hazardous substances such as mould, air purifier with HEPA filter
- Protects health, living/working in neighbouring rooms can continue undisturbed
- For very large rooms or heavy dust infestation, air purifiers with two hoses can be connected, e.g. the PF 3500
- Easy transport with carrying bag (DCD-3.0)
- Easy, quick installation of the DCD-3.0 due to quick release fastener
- High air flow rate possible (DCD-3.0)
Product specifications
| Specifications | Units | DCS-PF 1400 |
|---|---|---|
| Fan air flow rate max. | m³/h | 1,010 |
| Air flow with F9 filter /M-class/H14 filter/H-class | m³/h | 890/697 |
| Min. air flow by saturated filters | m³/h | 600 |
| Power supply | V/Hz | 230/1ph/50-60 |
| Power consumption | kW | 0.175 |
| Current consumption | A | 1.17 |
| Sound level @3m | dB(A) | 0-61 |
| Hose inlet/outlet | Ømm | 205 |
| Box size (l x w x h) | mm | 800 x 600 x 1250 |
| Weight | kg | 35 |
Suitable for
- Commercial buildings
- Construction
- Industrial, factories and production
- Leisure and recreation
