Heylo DCS-PF 1000 – dust control system
Including: DCD-3.0 (Door base element + 2x PVC foil incl. velcro fastener + transport bag) + air cleaner PF 1000 + coarse air filter + fine dust filter (F9/class M) / optional Hepa filter (H14/class H) + hose (length 7.6m)
Dust extraction and low pressure maintenance in rooms - quickly installed. Suitable for door widths up 680 to 1430mm. Optional expansible by door adapters.
Finally renovate cleanly! If you want to remove dust quickly and safely from your working area during restoration work and you want to protect other parts of the building, the dust control system DCS is exactly what you need.
The main part is Dust Protection Door DCD-3.0 - for quick and safe sealing of doors between the working or dirty area and the white area. By connecting the ventilators in the white area, a low pressure is produced in the renovation area (black area) which prevents that fine dust can spread to neighbouring rooms. As soon as the hose is passed through the opening directly to the source of the dust in he renovation area, a dust extraction function occurs.
Easy transport and quick installation, DCS saves time, money and complications. Extensive cleaning afterwards which is required in case of water-based system is not required - simply beat out or dispose of the dust bags.

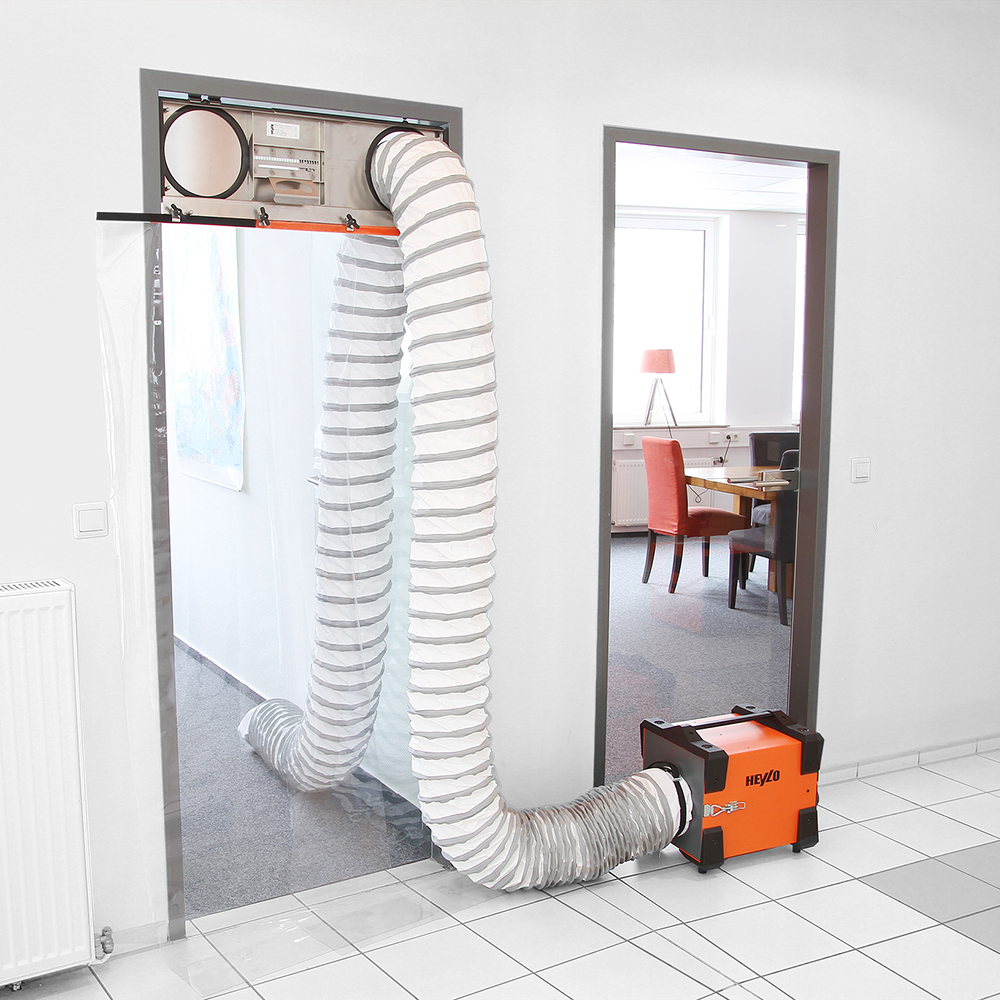

Heylo dust control system DCS-PF 1000
|
Heylo dust control door DCD-3.0
|

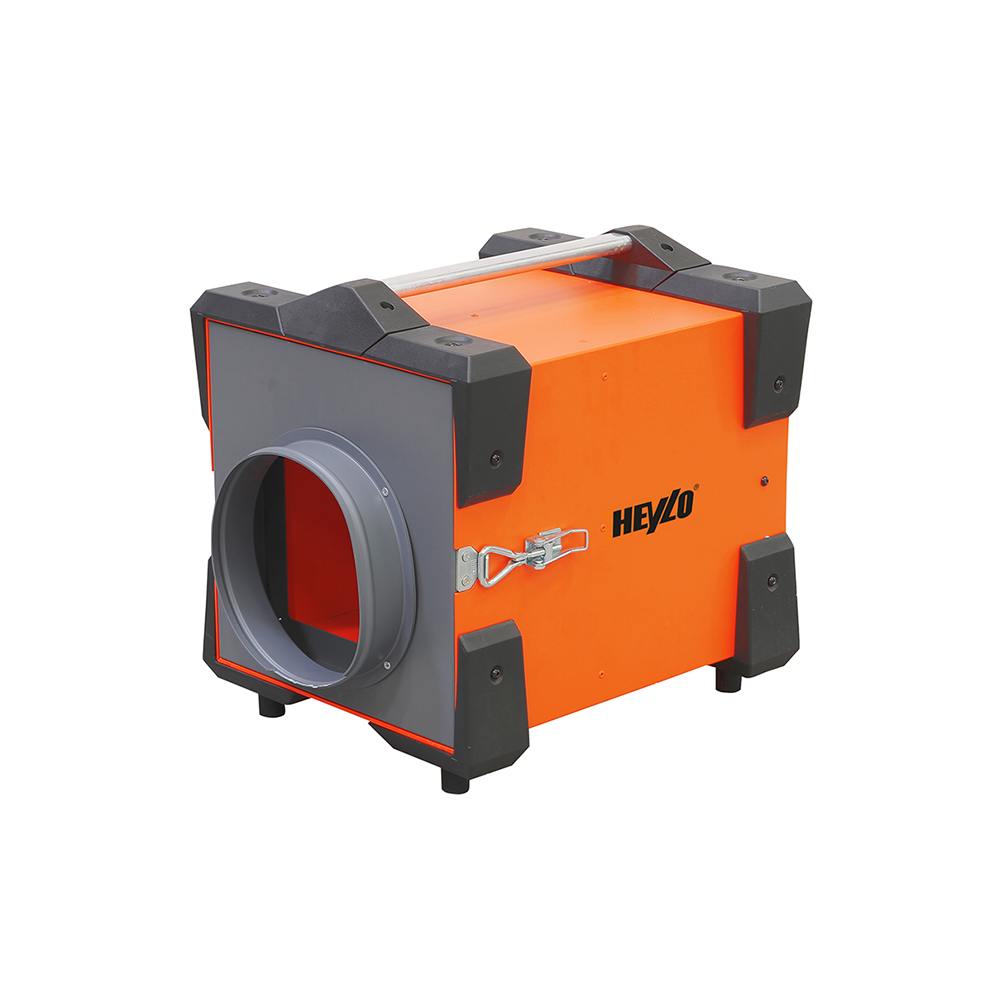

Heylo air cleaner PF 1000
|
Key features
- Dust protection systems Heylo DCS are mobile systems consisting of dust protection door (DCD-3.0) and mobile air cleaner or fan in the white area
- Two integrated dust extraction openings for air cleaner or fan with trouser/dust bag
- For dust extraction and negative pressure maintenance in rooms
- Extensive post-cleaning is not necessary
- For work with hazardous substances such as mould, air purifier with HEPA filter
- Protects health, living/working in neighbouring rooms can continue undisturbed
- For very large rooms or heavy dust infestation, air purifiers with two hoses can be connected, e.g. the PF 3500
- Easy transport with carrying bag (DCD-3.0)
- Easy, quick installation of the DCD-3.0 due to quick release fastener
- High air flow rate possible (DCD-3.0)
Product specifications
| Specifications | Units | DCS-PF 1000 |
|---|---|---|
| Fan air flow rate max. | m³/h | 917 |
| Air flow with F9 filter /M-class/H14 filter/H-class | m³/h | 760/515 |
| Min. air flow by saturated filters | m³/h | 346 |
| Power supply | V/Hz | 230/1ph/50 |
| Power consumption | kW | 0.185 |
| Current consumption | A | 1.33 |
| Sound level @3m | dB(A) | 0-66 |
| Hose inlet/outlet | Ømm | 205 |
| Box size (l x w x h) | mm | 800 x 600 x 1250 |
| Weight | kg | 35 |
Suitable for
- Commercial buildings
- Construction
- Industrial, factories and production
- Leisure and recreation
