Heylo DCD-3.0 – dust control door
Dust protection door consisting of: Basic door element (for door widths of 680-1430mm) , PVC film with Velcro tape (2x68cm), 4-piece adapter set and transport bag.
Clean partitioning of doors during renovation work. The core piece is the dust protection door DCD-3.0 - for quick and safe partitioning between the working or dirty area and the white area.
The dust extraction openings in the door element offer a wide range of combination possibilities, resulting in the Heylo complete solutions against dust on the construction site - the DCS dust protection systems.

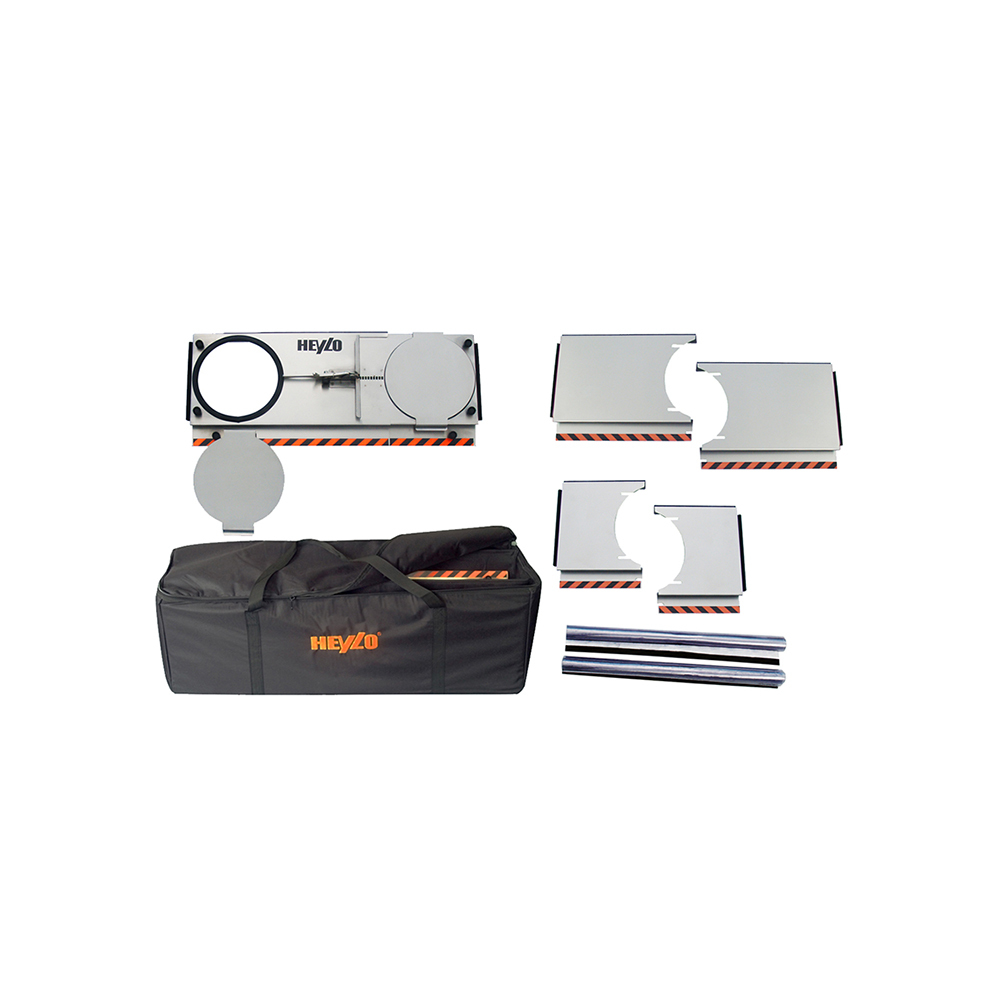

Heylo dust control door DCD-3.0
|

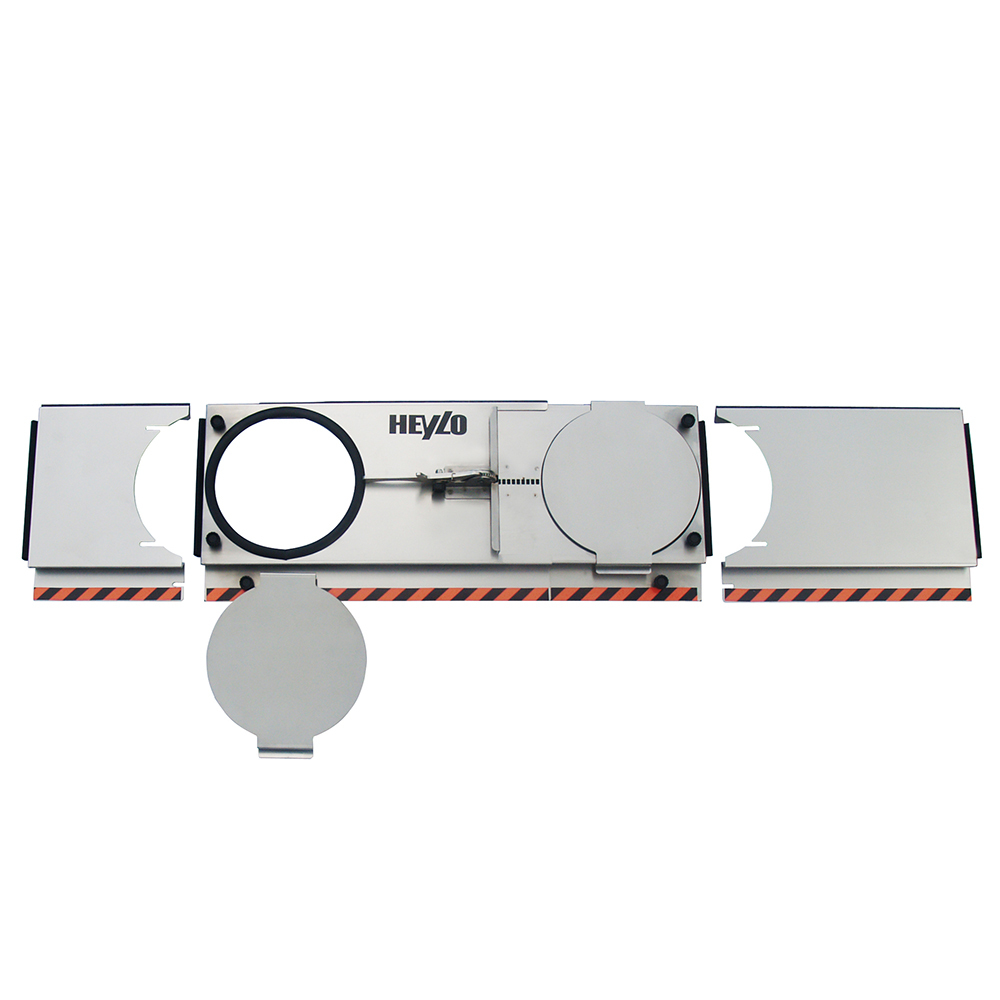

Heylo dust control door adapter
|

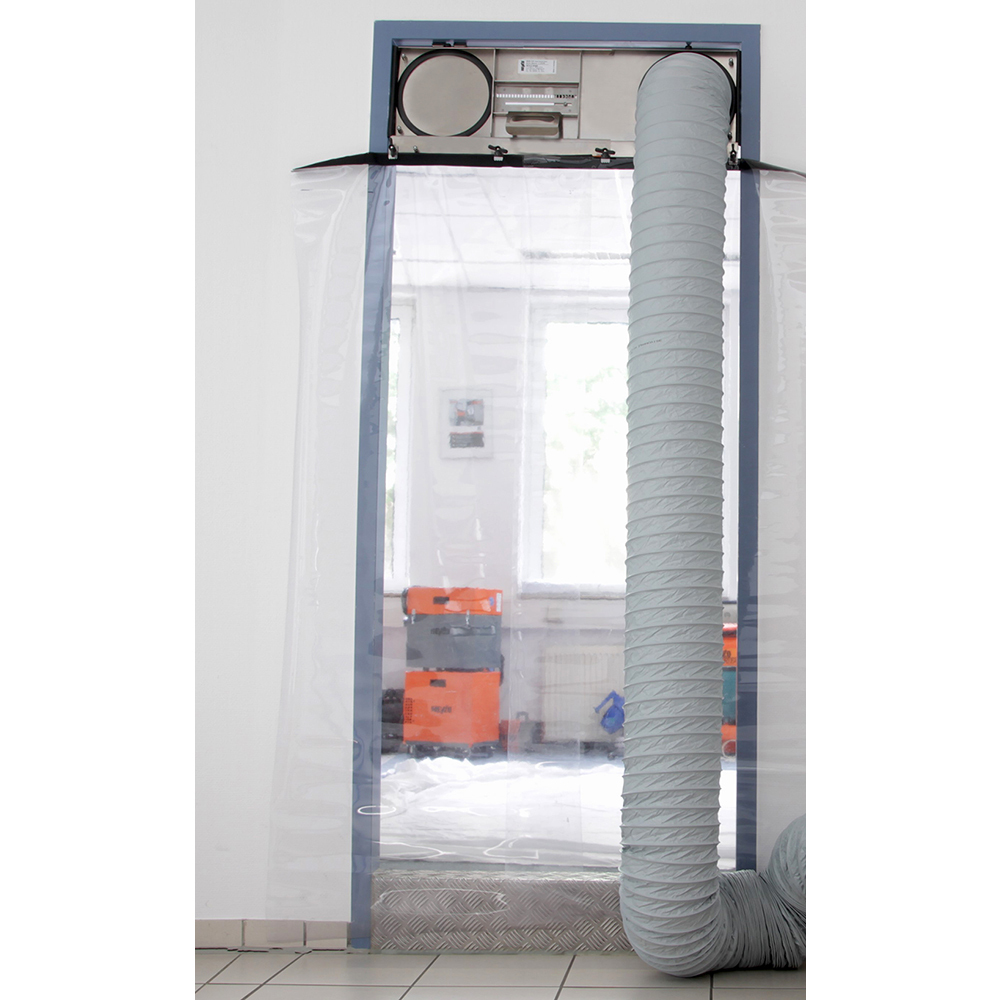

Heylo dust control door with hose
|
Key features
- For renovation work to quickly and safely seal off doors between the work or dirt area and the white area
- Includes two integrated dust extraction openings: this creates a wide range of combination options (Heylo DCS dust protection systems)
- An air cleaner or fan can be connected using air hoses
- For working with hazardous substances, e.g. mould: Air cleaner with HEPA filter
- Easy transport with carrier bag
- Easy and quick mounting via quick acting closure
- High air rate possible
- Flexible adaptation to different door widths thanks to extensions (four door adaptors A - D included)
- Easy cleaning
Dust extraction in the working area: The practical dust extraction openings allow a hose to be routed directly to the point of origin of the dust in the working area. The PowerVent 3000 mobile fan easily extracts the dust and collects it in M-class dust bags.
Negative pressure in the work area: The DCD-3.0 in combination with a filter fan (PF 1000/PF 1400/PF 3500) and hose connection placed in the white area near the dust protection door results in negative pressure maintenance in the suction method. For work with hazardous substances (e.g. mould), filter-fans with hepa-filters can be used.
Product specifications
| Specifications | Units | DCD 3.0 |
|---|---|---|
| Basic element (l x w x d) | mm | 680-830 x 300 x 81 |
| Suitable for door witdths incl. Adaptor | mm | 680-1,430 |
| Hose connection | Ømm | 2 x 205 |
| Weight | kg | 8 |
Suitable for
- Commercial buildings
- Construction
- Industrial, factories and production
- Leisure and recreation
