Dantherm VA-M15 MKII – tent heater
The VA-M1 5MKII is a transportable unit that provides heating in tents or temporary, transportable buildings. The unit has been developed in close cooperation with the armed forces of NATO countries and is designed to be placed outside the tent, with supply and return air ducted to the tent.
The heater is based on the in-direct fired (clean air) principle to avoid introducing combustion or fumes into occupied spaces. The forced air system provides for the most rapid warm-up capability. The heater is essentially self-contained, requiring only a source of external electric power and fuel. The unit runs effectively on almost all diesel fuels. These are supplied by the fuel hose assembly which may be connected to external jerry cans or drums.
View all of our tent heaters or search for an indirect oil fired, indirect fuel fired or other type of commercial heater to meet your required applications.

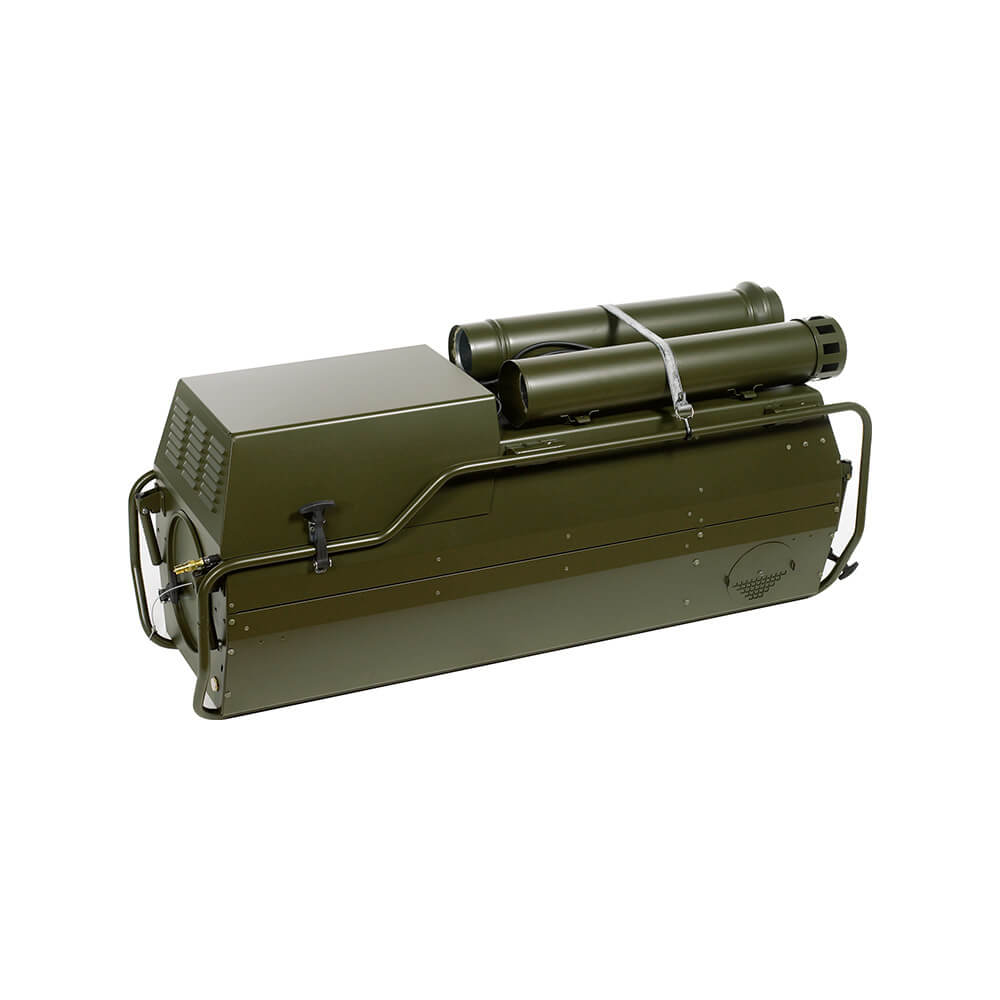

Dantherm VA-M15MKII – tent heater
|

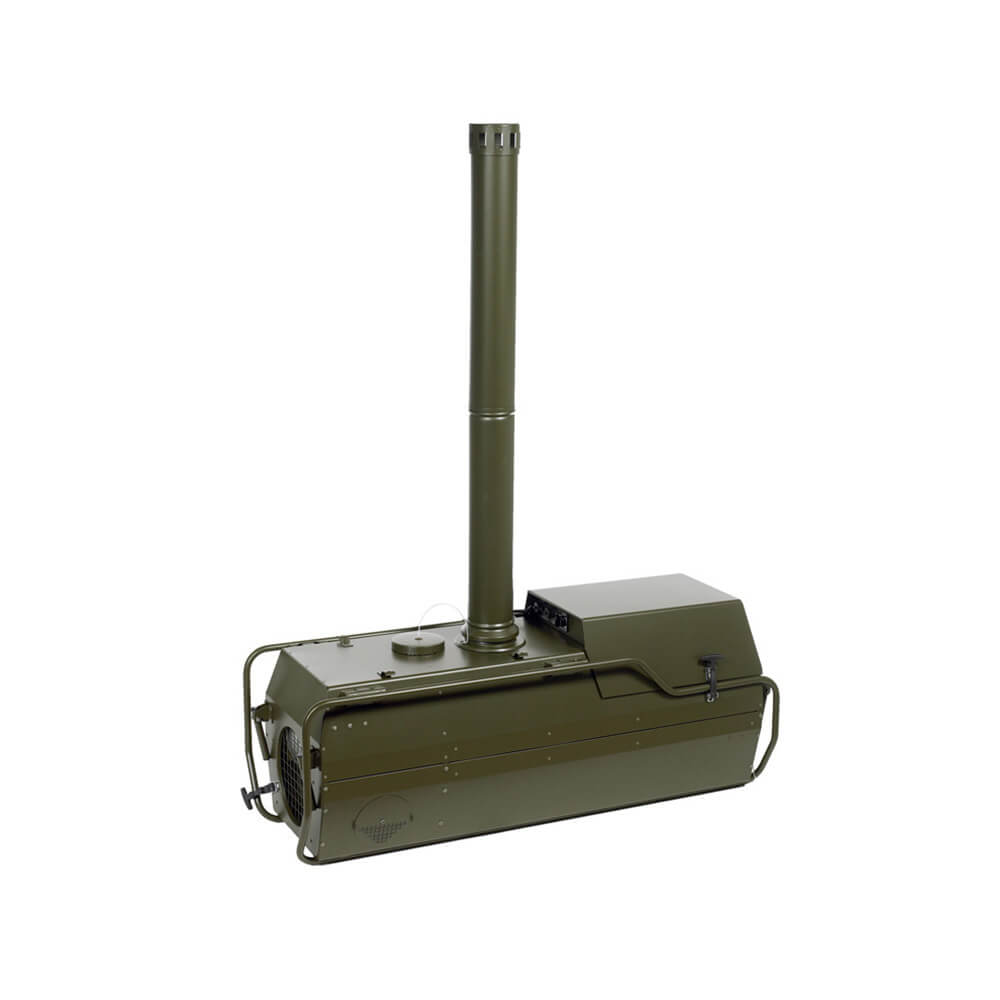

Dantherm VA M15 MKII side view
|

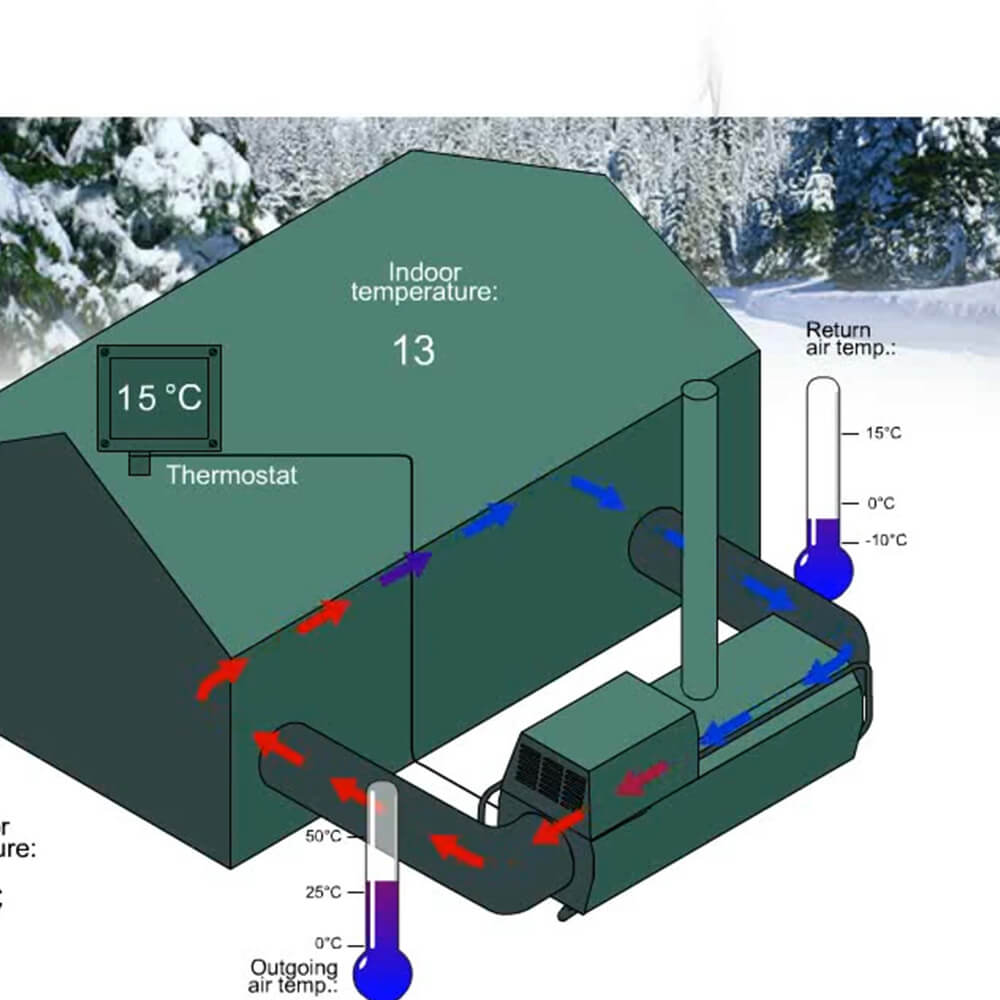

VA-M tent heater video
|
Dantherm energy saving heat exchanger ventilation unit for deployable field camps
|

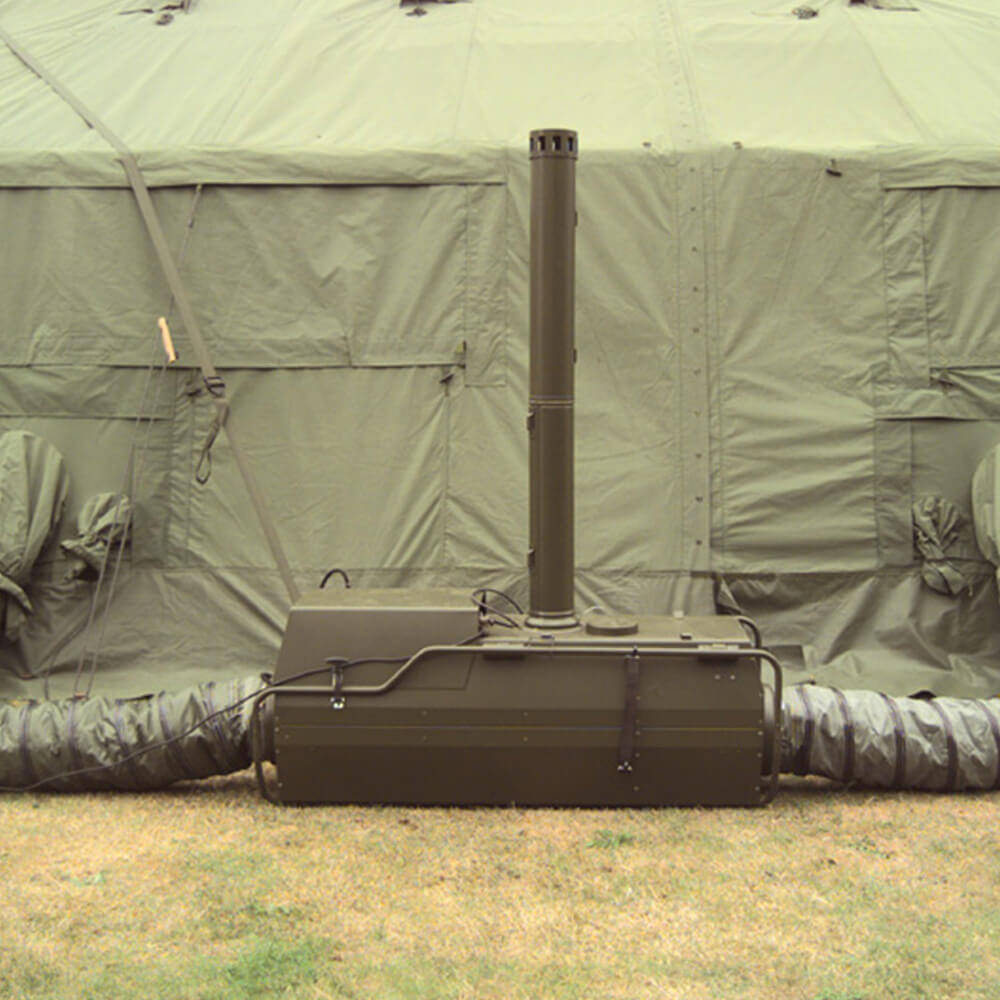

Dantherm VA-M15 MKII tent installation
|
Key features
- Can operate at temperatures down to -40°C
- Creates a comfortable working environment
- Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
- Reliable and virtually maintenance free
- Easy to transport, even over ice and snow
- Can be set up by one person without the use of tools, and is easy to operate
- Developed in close collaboration with the armed forces of NATO countries
- Chosen as the NATO standard, conforming to all NATO requirements and norms
- Ideal for open air operation with ducted supply and return air
- Adjustable fresh-air intake
- The efficient multi-liquid burner accepts almost all diesel fuels
Product specifications
| Specifications | Units | VA-M15 MKII |
|---|---|---|
| Registered NSN number | - | Yes |
| Operating temperature range | °C | -40 – +30 |
| Heat output | kW | 17.9 |
| Air flow | m³/h | 1,080 |
| Sound level @ 1.5m | dB(A) | 60 |
| Protection class | IPX4 | |
| Max. fuel consumption | l/h | 1.7 |
| Power supply | V/Hz | 230/1ph/50 |
| Max. power consumption | W | 1,000 |
| Air discharge temperature | °C | 80 |
| Flex duct connection | Ømm | 225 |
| Product size (h x l x w) | mm | 605 x 1360 x 490 |
| Weight | kg | 93 |
Product specifications (US)
| Specifications | Units | VA-M15 MKII |
|---|---|---|
| Registered NSN number | Yes | |
| Operating temperature range | °F | -40 to +86 |
| Heat output | BTU | 61,400 |
| Air flow | SCFM | 673 |
| Sound level @ 5 feet | dB(A) | 60 |
| Protection class | NEMA | 3S |
| Max. fuel consumption | lbs/h | 3.7 |
| Power supply | V/Hz | 230/1ph/50 |
| Max. power consumption | W | 1 |
| Air discharge temperature | °F | 176 |
| Flex duct connection | Øin | 8.6 |
| Product size (h x l x w) | in | 23.8 x 53.5 x 19.3 |
| Weight | lbs | 205 |
Suitable for
- Camps and field hospitals
- Events and festivals
- Military and aerospace
