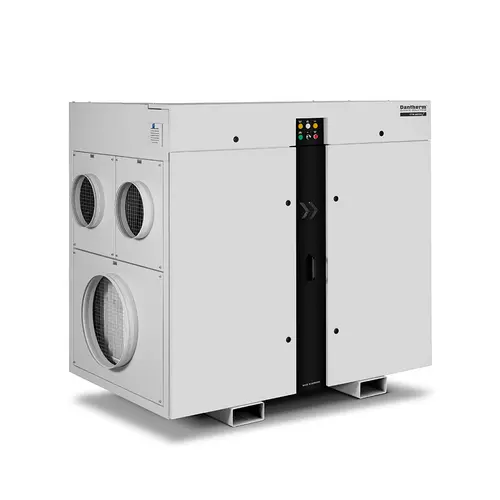

Dantherm TTR 8200 – desiccant dehumidifier
Industrial desiccant dehumidifier
The TTR 8200 industrial desiccant dehumidifier offers over 1,000kg of dehumidification performance per day, making it ideal for various tasks in industrial, haulage, or utility companies. It can protect products and production, as well as machines, inventory, and buildings from corrosion, condensation, or mould formation. Its robust, galvanised, and painted steel housing with corrosion protection can withstand harsh environmental conditions, making it suitable for dry keeping, gas dehumidification, or dry air production in the chemical, pharmaceutical, and food industries, mechanical engineering, or reducing the formation of ice and frost in deep freeze zones. It can also protect stored goods susceptible to moisture.
Contact our team to discuss which commercial adsorption dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.
Interested?
Key features
-
Housing made of powder-coated, galvanized sheet steel
-
Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
-
Filter monitoring with warning light
-
Rotor rotation control
-
Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
-
Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
-
Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
-
Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
-

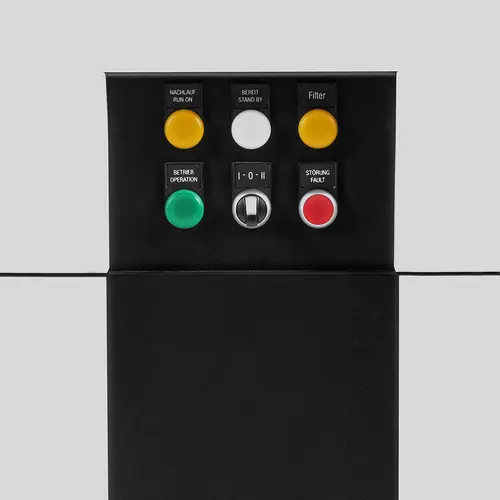

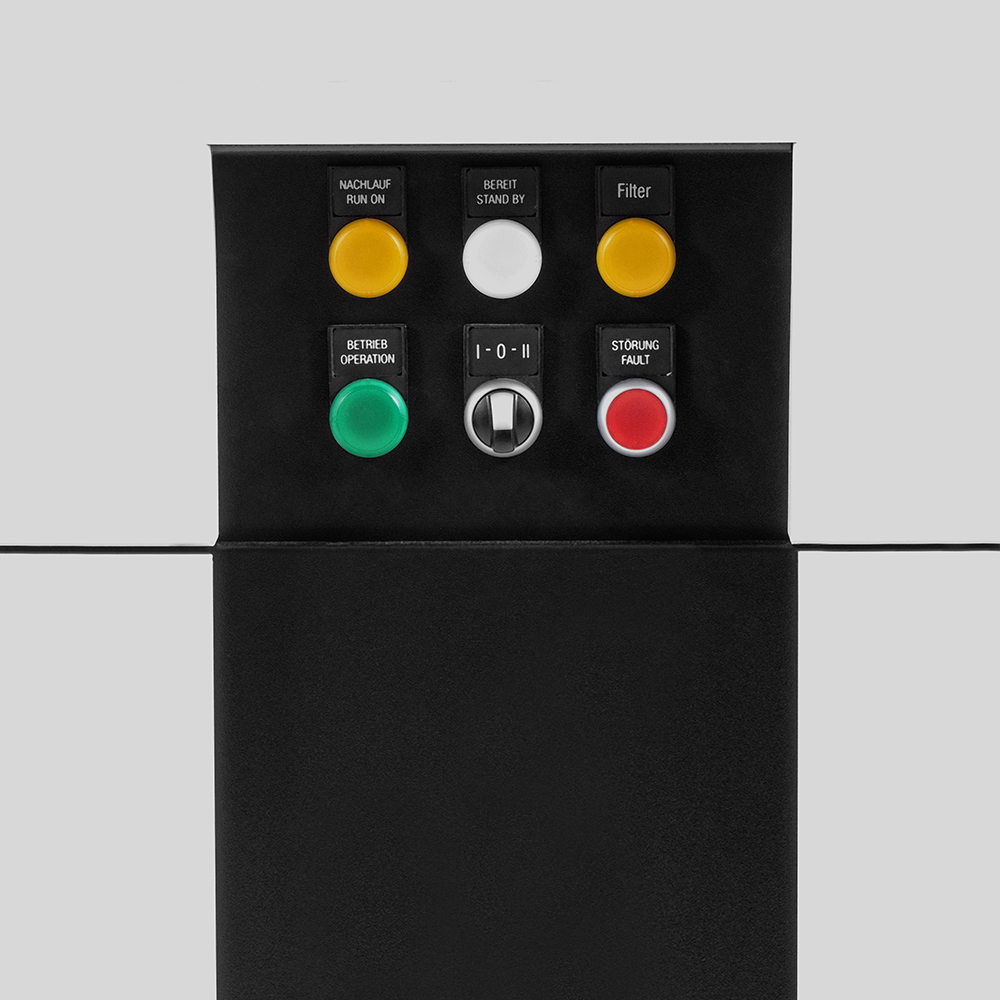

Control with four-line plain text display
-
Temperature-controlled rundown period
Product specifications
Dehumidification capacity @ 20°C/60% RH
46.2
kg/h
Dry air flow free-blowing
9,000
m³/h
Dry air flow nominal
8,200
m³/h
Available pressure
400
Pa
Regeneration air flow
1,660
m³/h
Available pressure
300
Pa
Operating temperature range
-20 to 40
°C
Heating
57.0
kW
Power consuption
64.5
kW
Power supply
380-480/3ph/50-60+PE
V/Hz
Electrical connection
125
A
Nominal current consumption
93.5
A

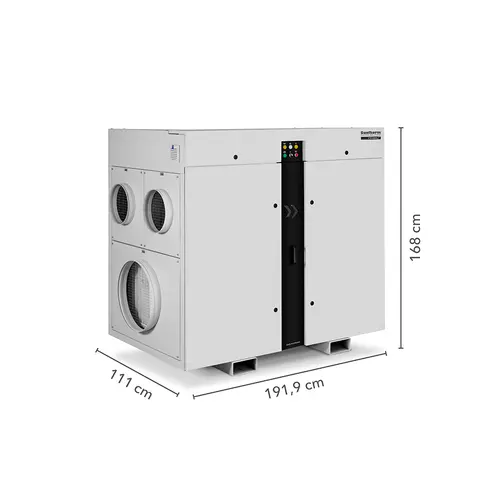

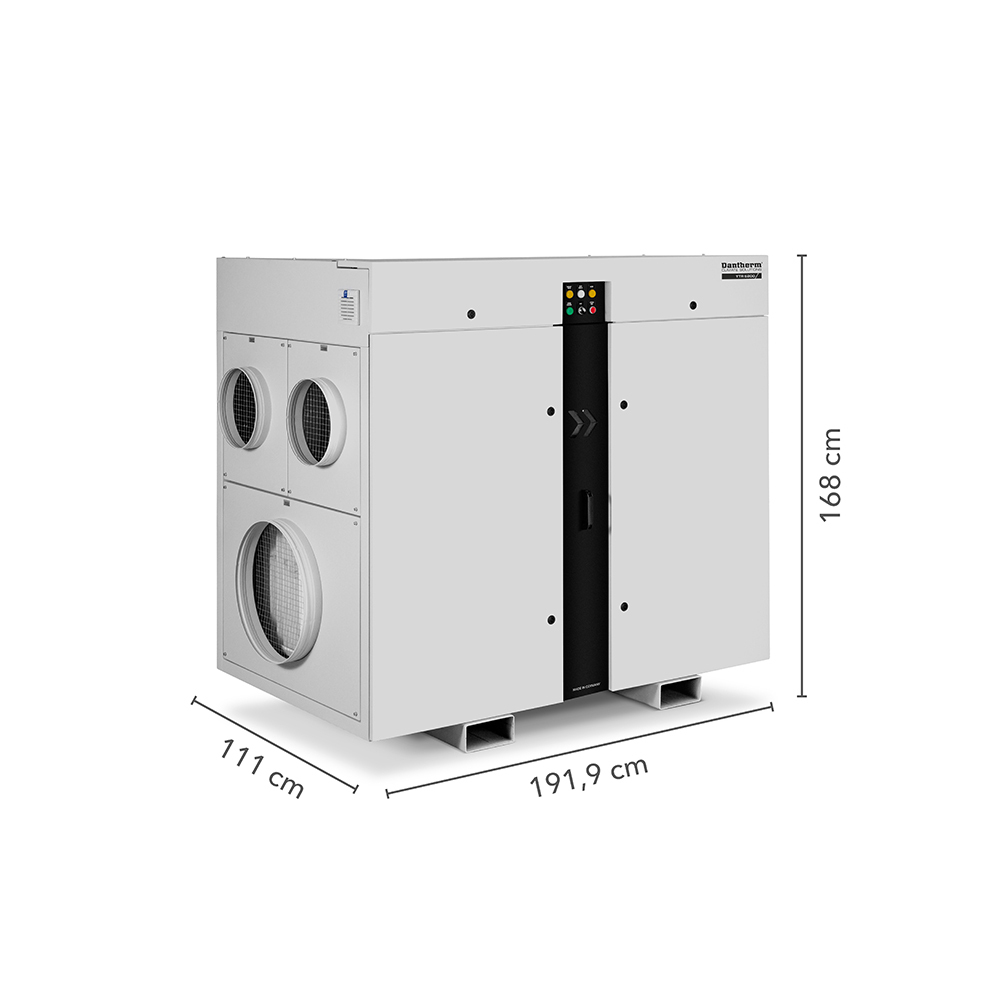

Product size (l x w x h)
1919 x 1100 x 1680
mm
Weight
750
kg
Connections dry air input/output
500/500
Ømm
Connections regeneration air input/output
300/300
Ømm
Suitable for
Accessories and consumables
Product code: 6.100.001.216
Accessory for TTR 5200, TTR 6600, TTR 8200, TTR 10000, TTR 12000, TTR 13500
Product code: 6.100.001.205
Accessory for TTR 5200, TTR 6600, TTR 8200
Product code: 7.160.000.449
Accessory for TTR 5200, TTR 6600, TTR 8200
Product code: 7.160.000.448
Accessory for TTR 5200, TTR 6600, TTR 8200
