Dantherm TTR 6600 – desiccant dehumidifier
The TTR 6600 industrial desiccant dehumidifier has approximately 900kg of dehumidification performance per day and a nominal air volume of 6,600 cubic metres of dry air per hour at a static pressure of 400Pa, making it suitable for high dry air demand in cold surroundings with low dew points. It is ideal for permanent dry keeping, gas dehumidification, or dry air production in the chemical, pharmaceutical, and food industry, mechanical engineering, or protecting machines, inventory, and buildings from corrosion, condensation, or mould formation in water processing facilities or electrical control centres. Its robust, galvanised, and painted steel housing with corrosion protection can withstand harsh environmental conditions, making it an ideal solution for reducing the formation of ice and frost in deep-freeze zones or protecting stored goods susceptible to moisture.
Contact our team to discuss which commercial adsorption dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

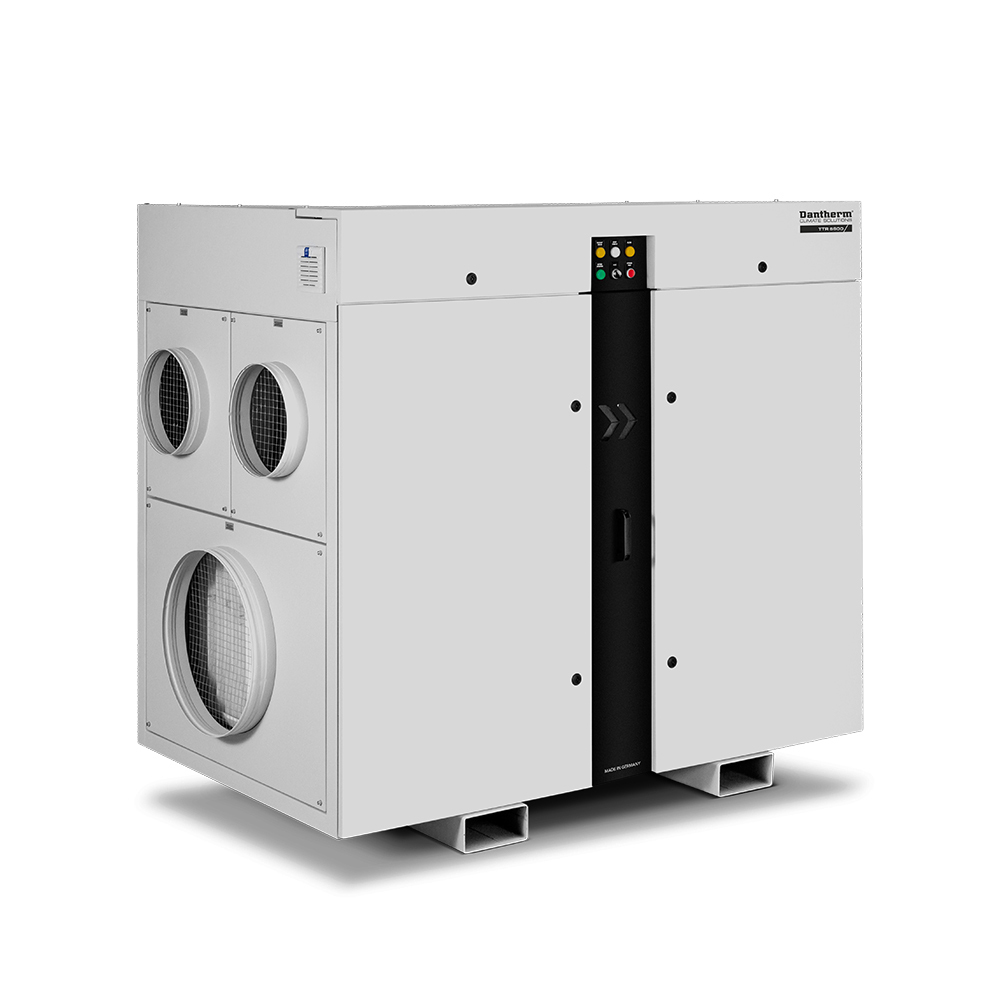

Dantherm TTR 6600 desiccant dehumidifier
|
Dantherm TTR 6600 front
|

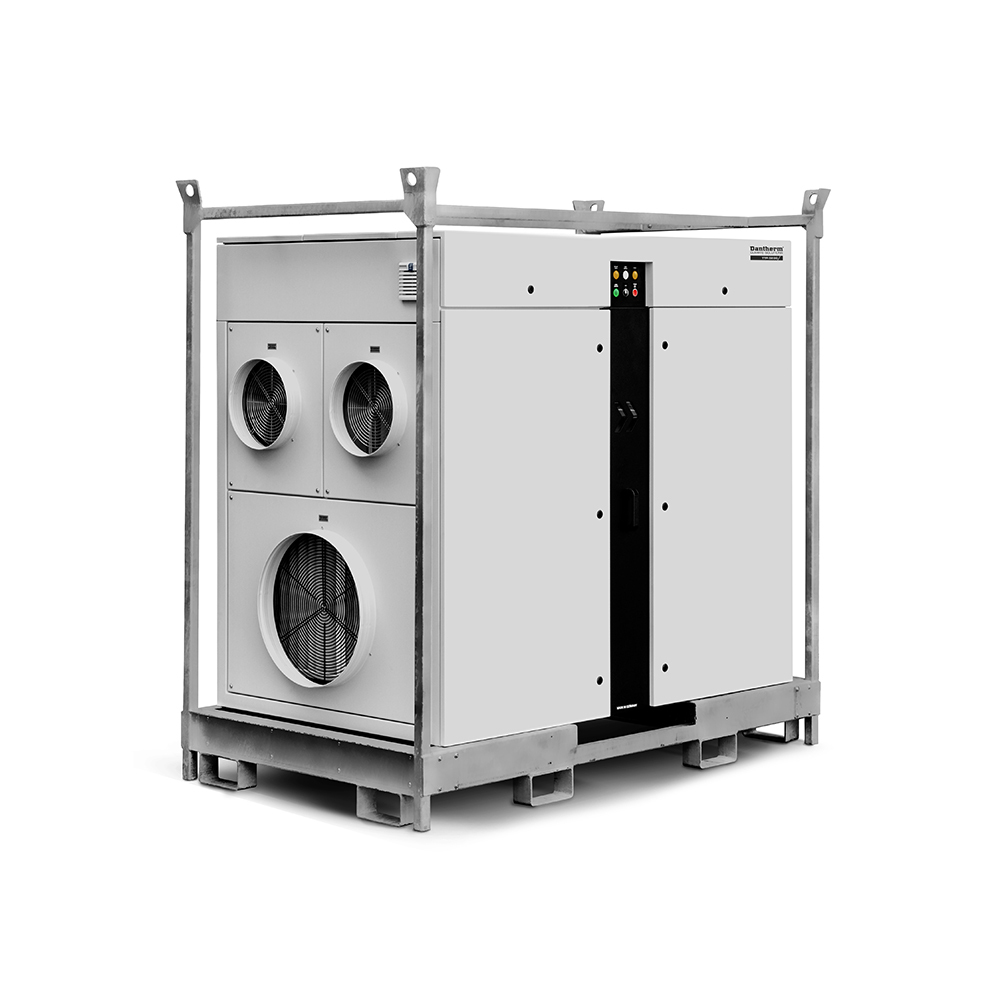

Dantherm TTR 6600 frame
|

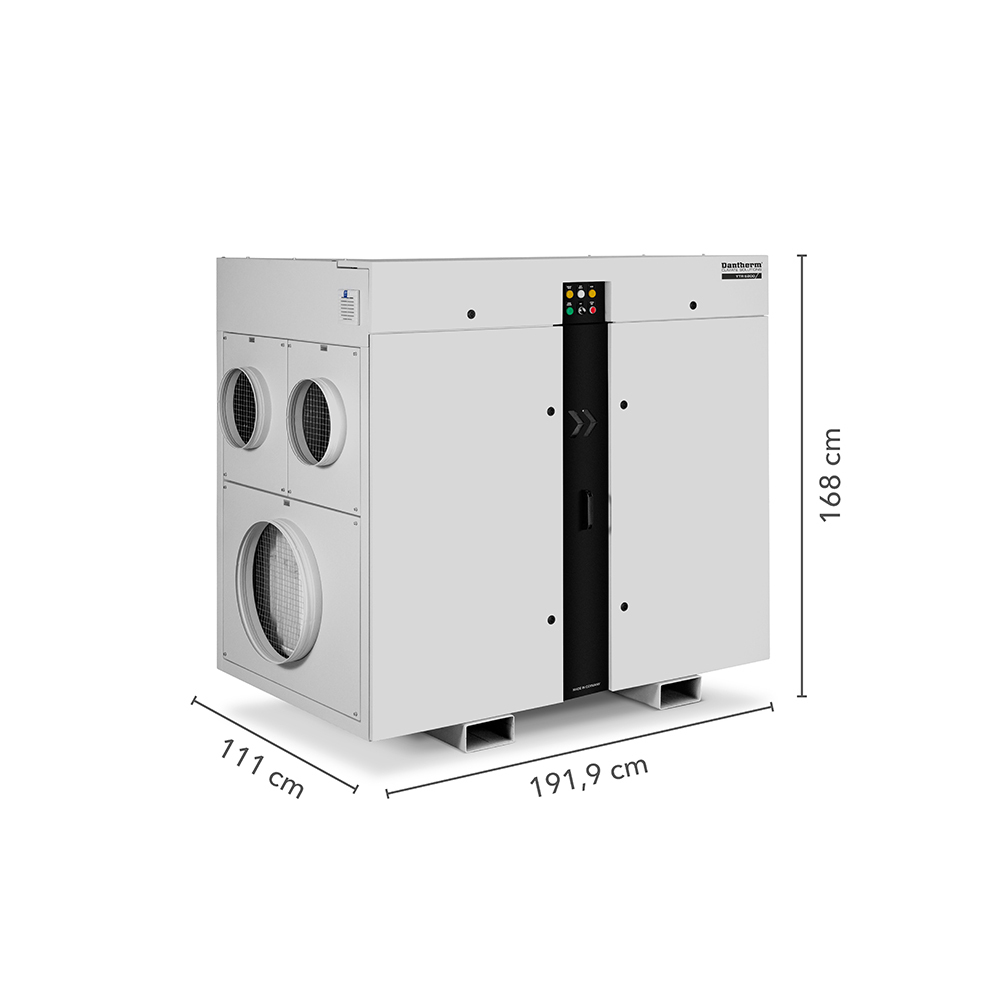

Dantherm TTR 6600 dimensions
|

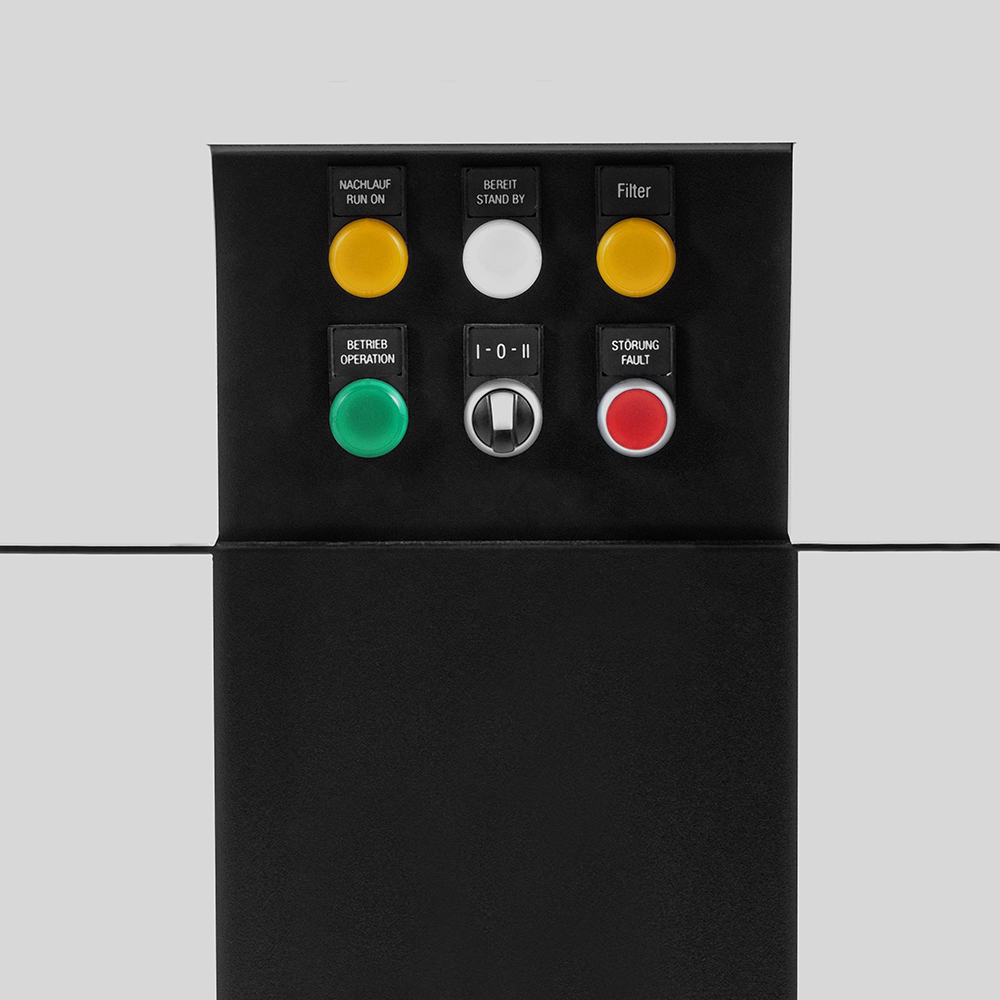

Dantherm TTR 6600 operation panel
|
Dantherm TTR 6600 detail
|
Key features
- Housing made of powder-coated, galvanized sheet steel
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Control with four-line plain text display
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 6600 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 37.2 |
| Dry air flow free-blowing | m³/h | 7,200 |
| Dry air flow nominal | m³/h | 6,600 |
| Available pressure | Pa | 400 |
| Regeneration air flow | m³/h | 1,330 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 45.0 |
| Power consuption | kW | 50.5 |
| Power supply | V/Hz | 380-480/3ph/50-60+PE |
| Electrical connection | A | 100 |
| Nominal current consumption | A | 73.5 |
| Product size (l x w x h) | mm | 1919 x 1100 x 1680 |
| Weight | kg | 720 |
| Connections dry air input/output | Ømm | 500/500 |
| Connections regeneration air input/output | Ømm | 300/300 |
Suitable for
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centres and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
