Dantherm TTR 6600 – desiccant dehumidifier

Industrial desiccant dehumidifier
Dantherm climate solutions badge

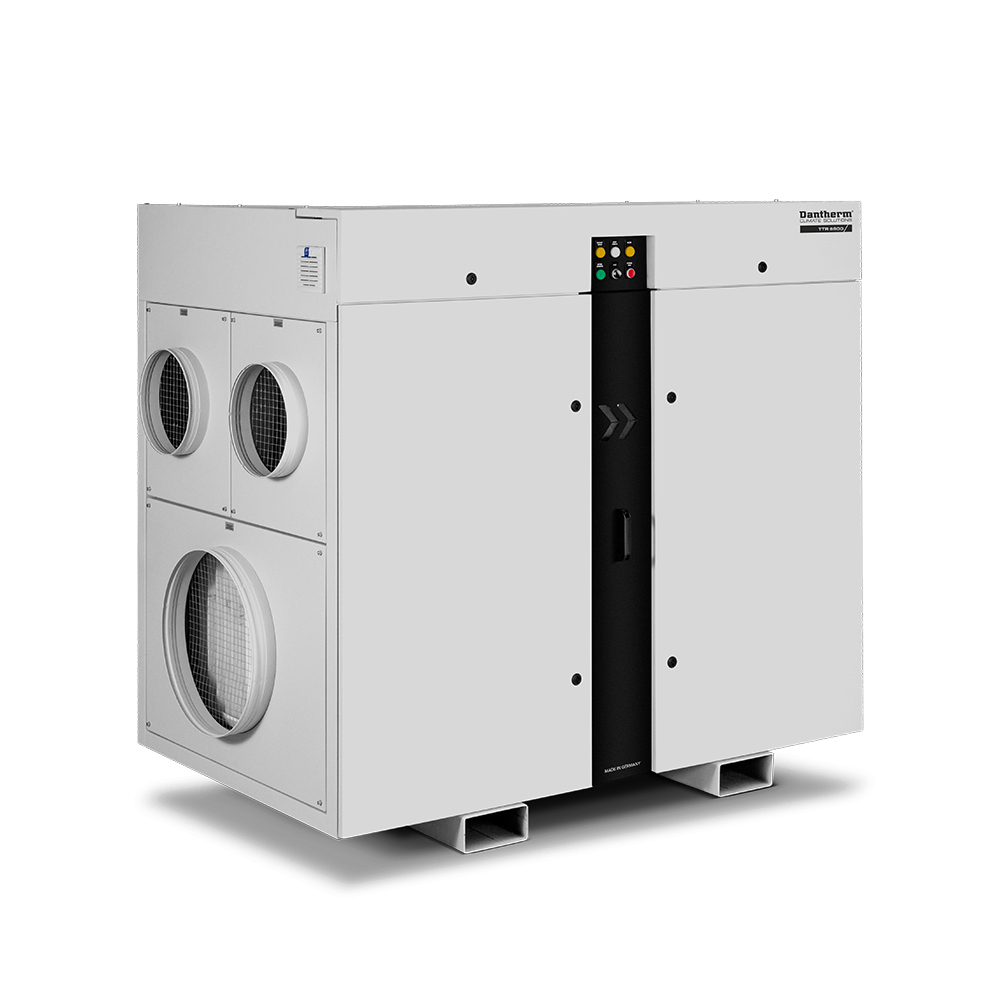

Dantherm TTR 6600 desiccant dehumidifier
Dantherm TTR 6600 desiccant dehumidifier

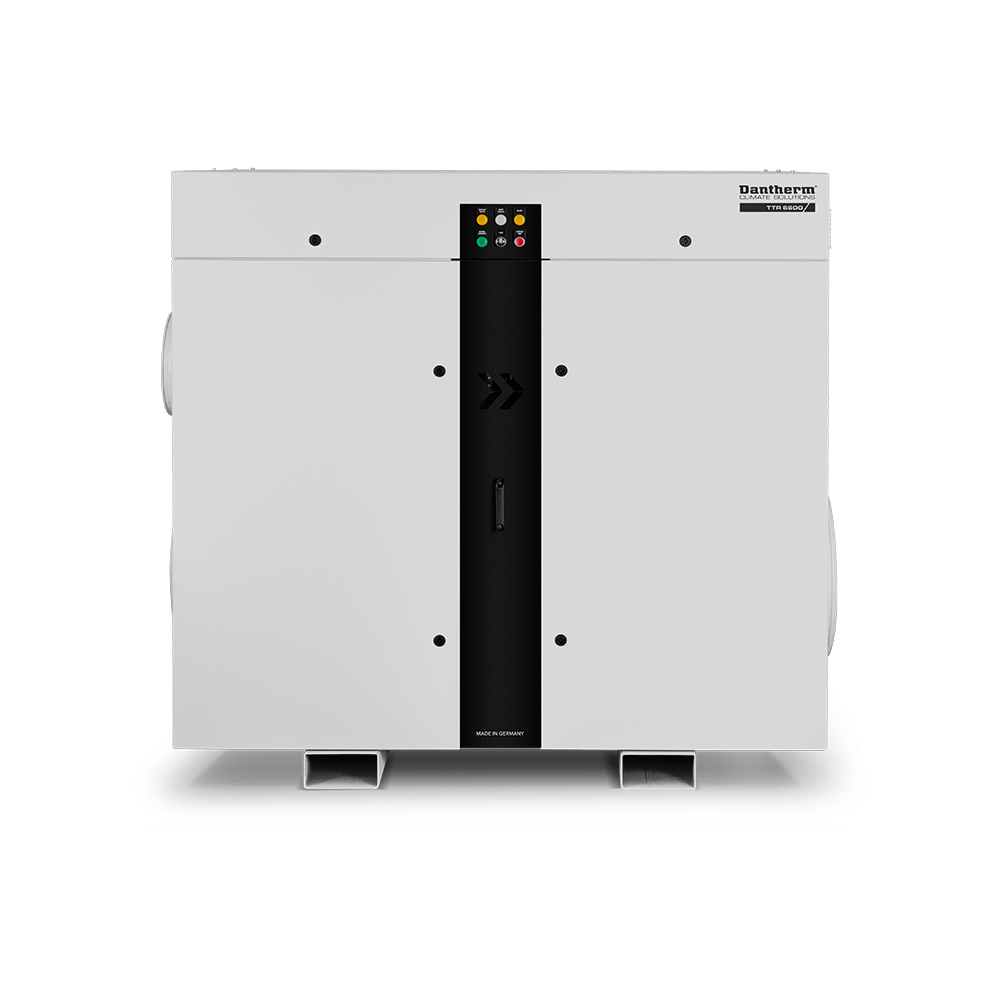

Dantherm TTR 6600 front
Dantherm TTR 6600 front

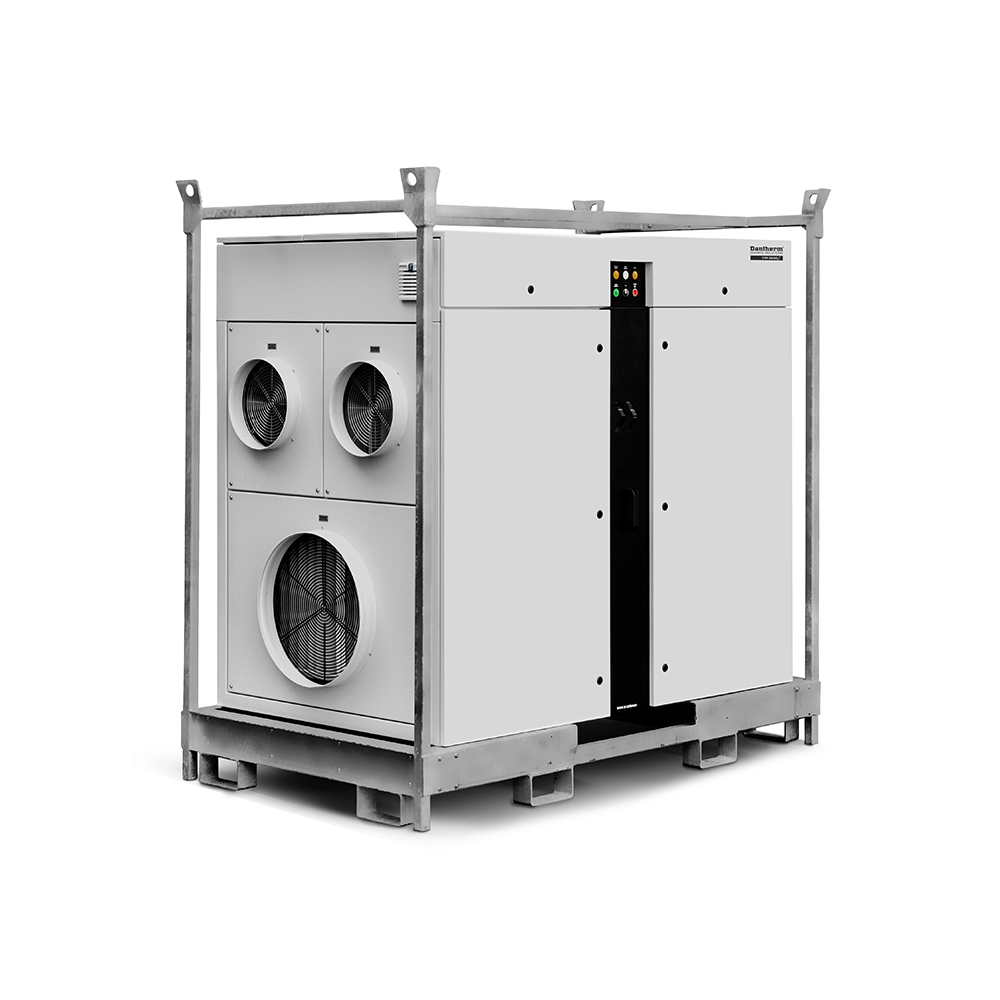

Dantherm TTR 6600 frame
Dantherm TTR 6600 frame

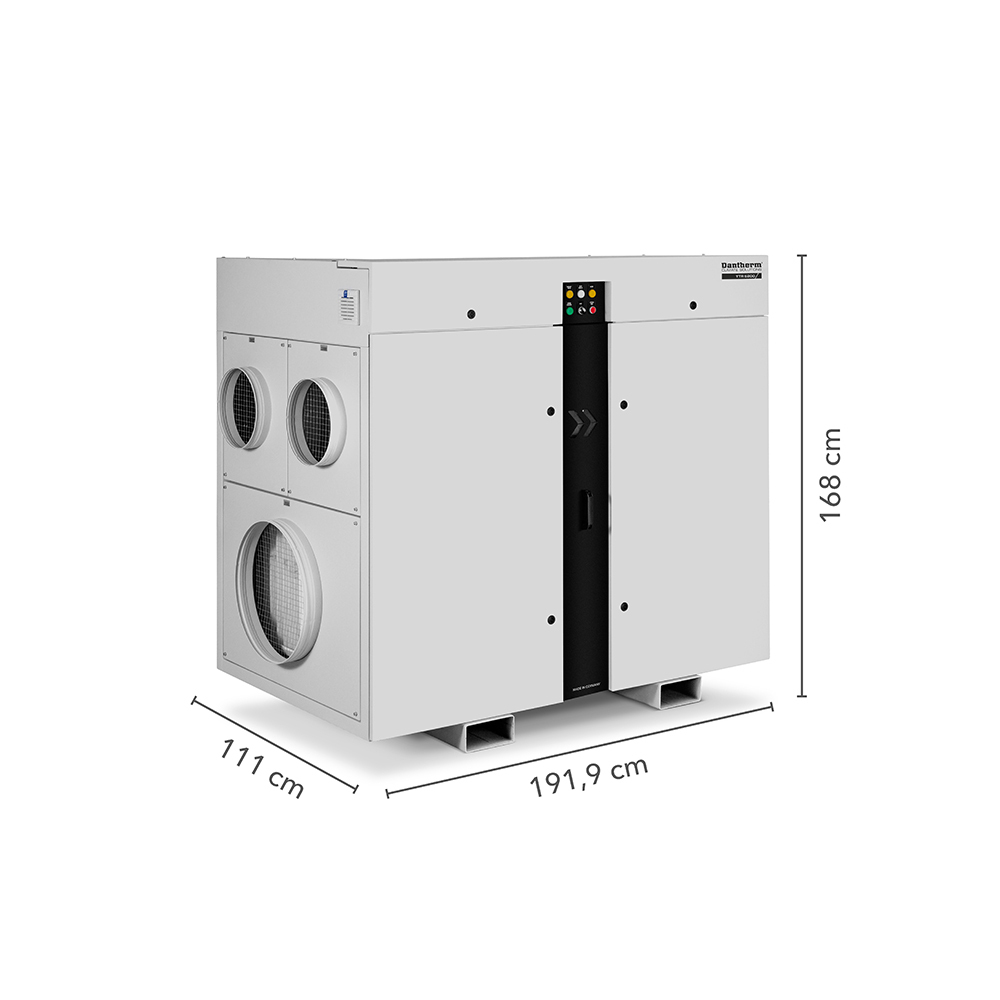

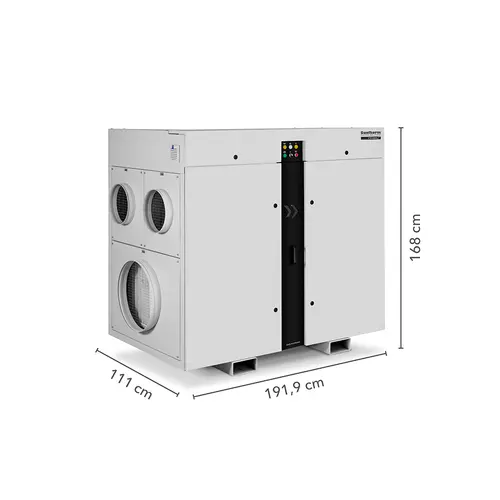

Dantherm TTR 6600 dimensions
Dantherm TTR 6600 dimensions

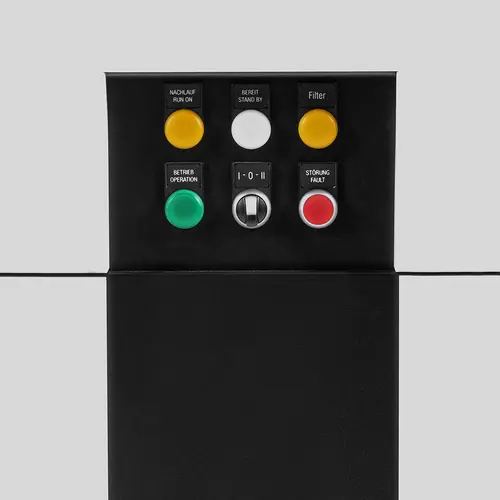

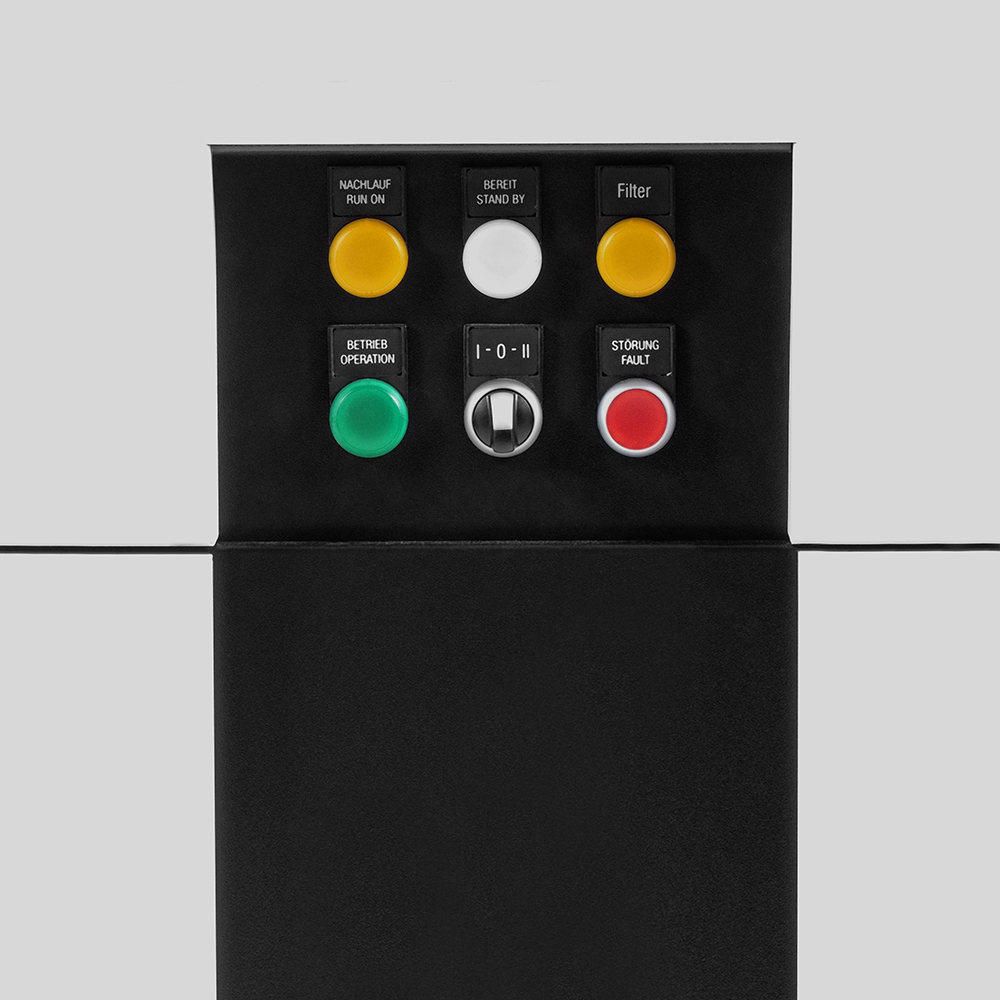

Dantherm TTR 6600 operation panel
Dantherm TTR 6600 operation panel

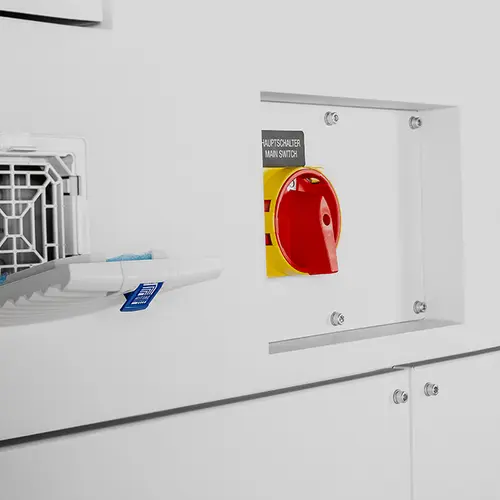

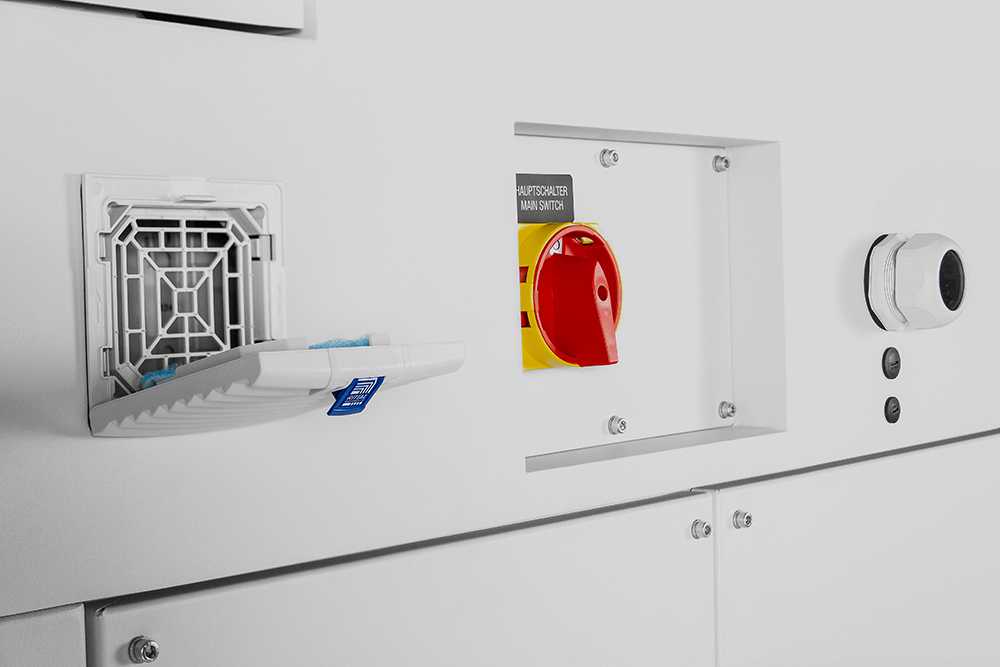

Dantherm TTR 6600 detail
Dantherm TTR 6600 detail

The TTR 6600 industrial desiccant dehumidifier has approximately 900kg of dehumidification performance per day and a nominal air volume of 6,600 cubic metres of dry air per hour at a static pressure of 400Pa, making it suitable for high dry air demand in cold surroundings with low dew points. It is ideal for permanent dry keeping, gas dehumidification, or dry air production in the chemical, pharmaceutical, and food industry, mechanical engineering, or protecting machines, inventory, and buildings from corrosion, condensation, or mould formation in water processing facilities or electrical control centres. Its robust, galvanised, and painted steel housing with corrosion protection can withstand harsh environmental conditions, making it an ideal solution for reducing the formation of ice and frost in deep-freeze zones or protecting stored goods susceptible to moisture.

Contact our team to discuss which commercial adsorption dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

Interested?

Key features

  • Housing made of powder-coated, galvanized sheet steel
  • Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
  • Filter monitoring with warning light
  • Rotor rotation control
  • Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
  • Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
  • Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
  • Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
  • Control with four-line plain text display
  • Temperature-controlled rundown period

Product specifications

Dehumidification capacity @ 20°C/60% RH

37.2
kg/h


Dry air flow free-blowing

7,200
m³/h


Dry air flow nominal

6,600
m³/h


Available pressure

400
Pa


Regeneration air flow

1,330
m³/h


Available pressure

300
Pa


Operating temperature range

-20 to 40
°C


Heating

45.0
kW


Power consuption

50.5
kW


Power supply

380-480/3ph/50-60+PE
V/Hz


Electrical connection

100
A


Nominal current consumption

73.5
A


Product size (l x w x h)

1919 x 1100 x 1680
mm


Weight

720
kg


Connections dry air input/output

500/500
Ømm


Connections regeneration air input/output

300/300
Ømm


Accessories and consumables

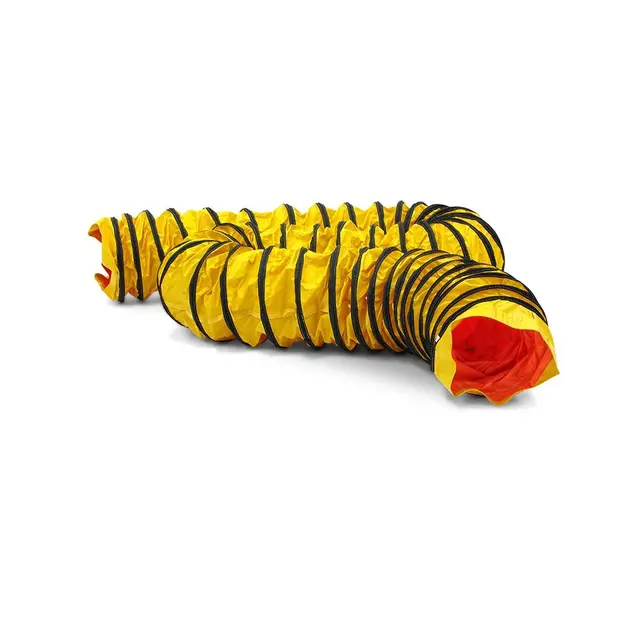

Dantherm Tronect SP T hose 6 100 001 216
Dantherm climate solutions badge

Product code: 6.100.001.216

Accessory for TTR 5200, TTR 6600, TTR 8200, TTR 10000, TTR 12000, TTR 13500

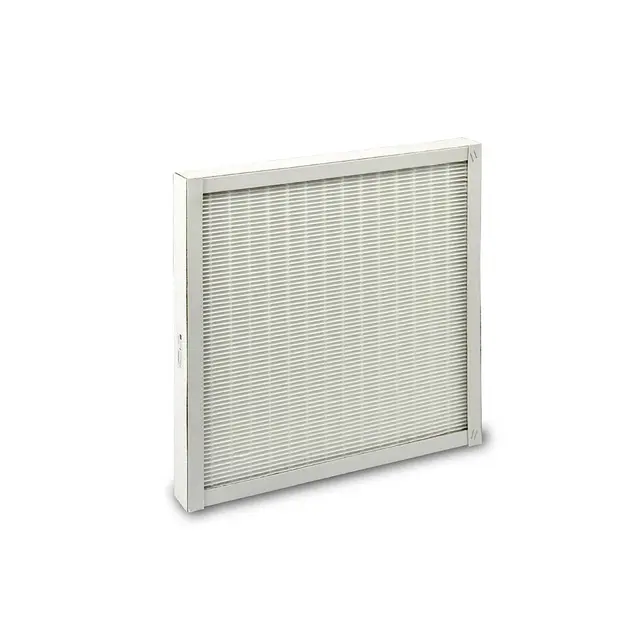

Dantherm TAC Plisseefilter F7 7 160 000 449
Dantherm climate solutions badge

Product code: 7.160.000.449

Accessory for TTR 5200, TTR 6600, TTR 8200

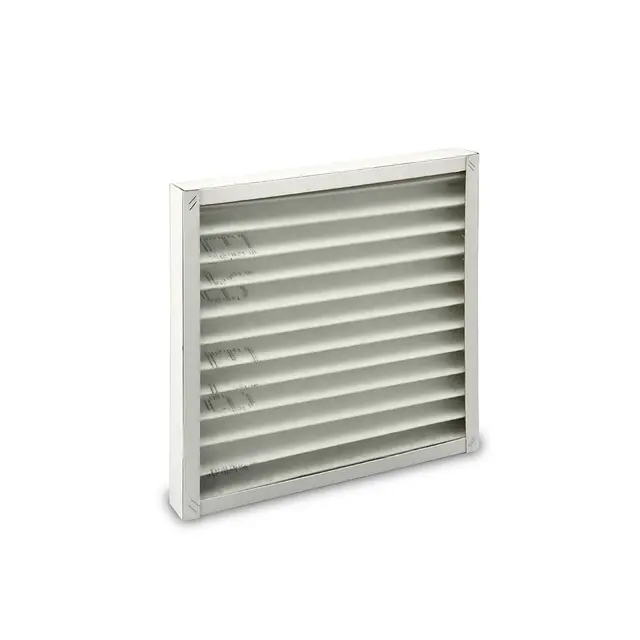

Dantherm G4 Z line filter 7 160 000 448
Dantherm climate solutions badge

Product code: 7.160.000.448

Accessory for TTR 5200, TTR 6600, TTR 8200

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

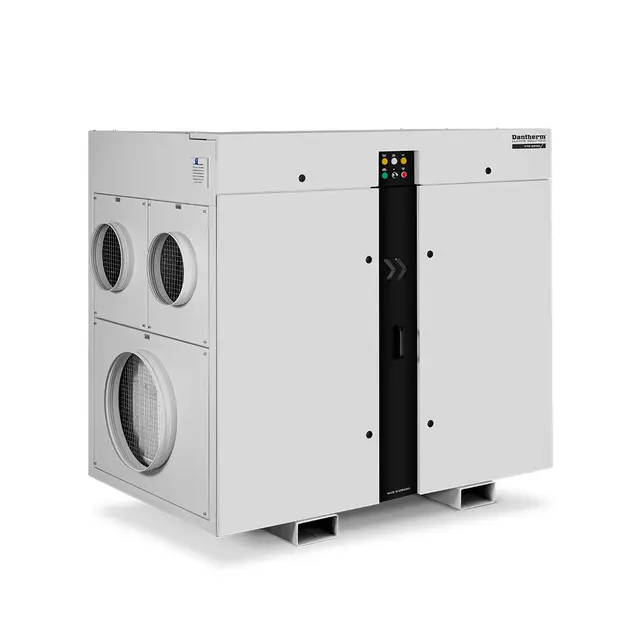

Dantherm TTR 5200 desiccant dehumidifier
Dantherm climate solutions badge

Industrial desiccant dehumidifier

A stationary high-performance desiccant dehumidifier with a dehumidification performance of 698kg/24h.

Dantherm TTR 8200 desiccant dehumidifier
Dantherm climate solutions badge

Industrial desiccant dehumidifier

A stationary high-performance desiccant dehumidifier with an impressive a large dehumidification performance of 1,108kg/24h.

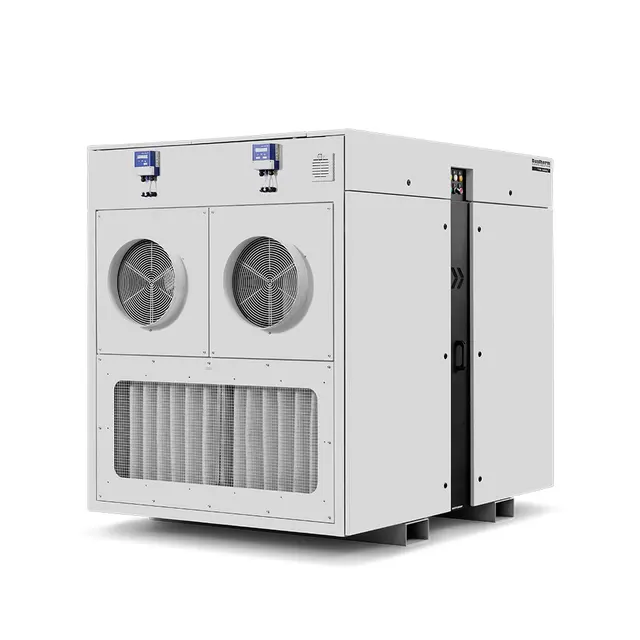

Dantherm TTR 10000 desiccant dehumidifier
