Dantherm TTR 2800 – desiccant dehumidifier

Industrial desiccant dehumidifier
Dantherm climate solutions badge

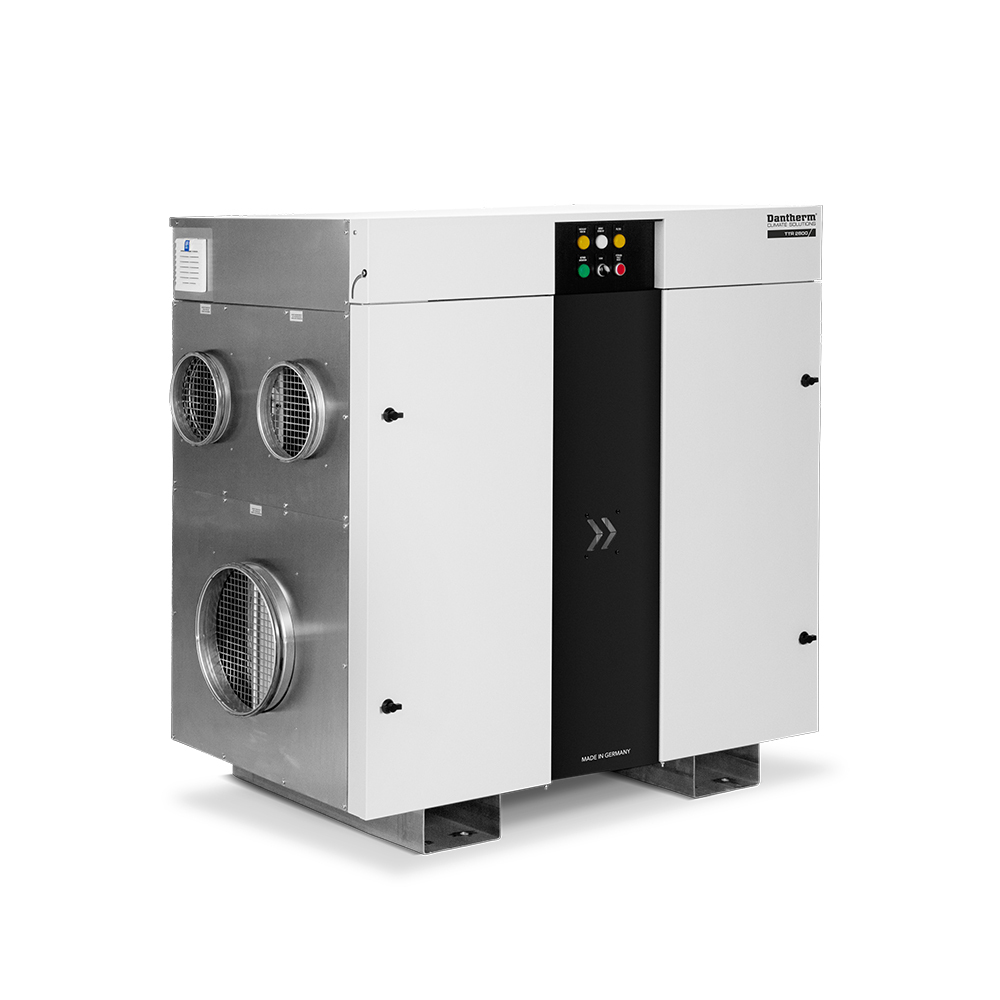

Dantherm TTR 2800 desiccant dehumidifier
Dantherm TTR 2800 desiccant dehumidifier

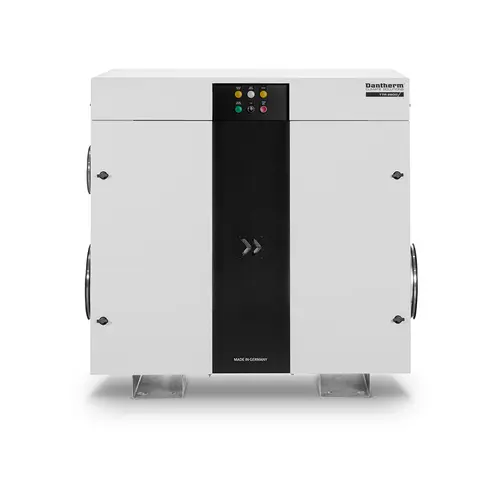

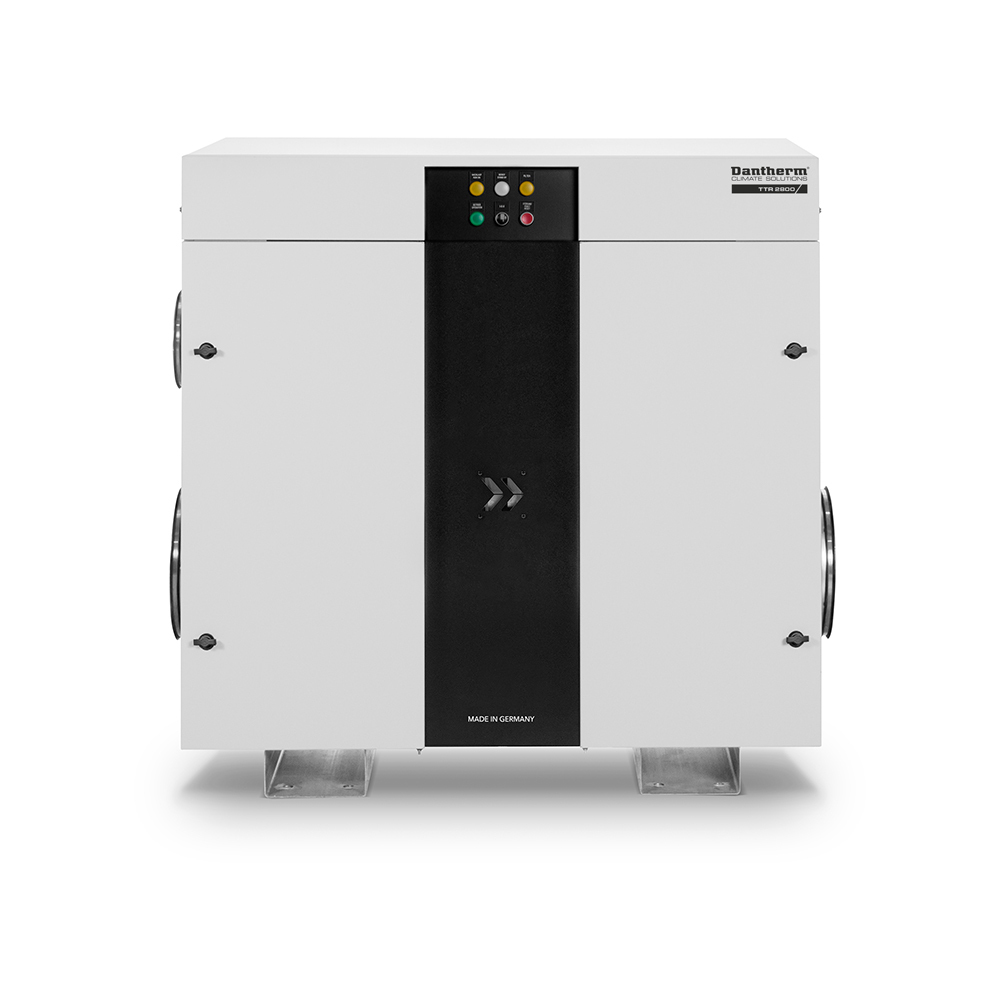

Dantherm TTR 2800 front
Dantherm TTR 2800 front

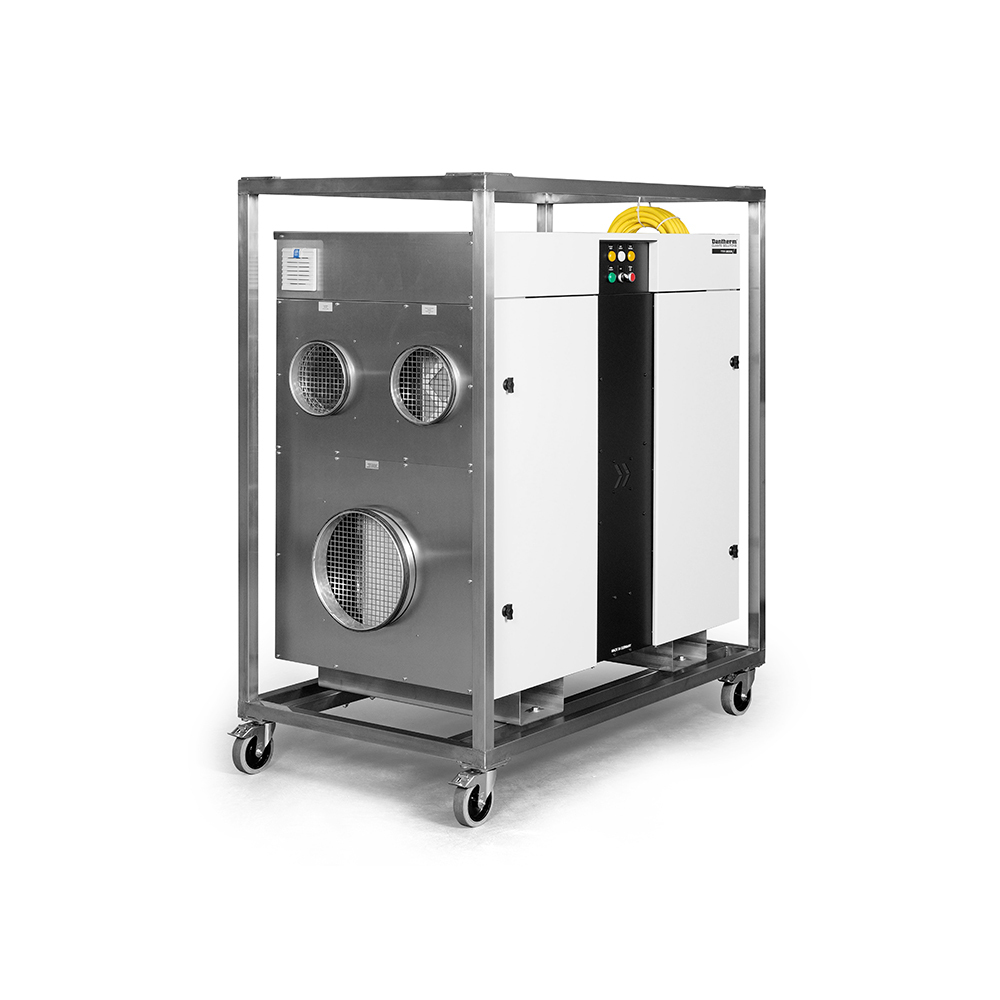

Dantherm TTR 2800 frame
Dantherm TTR 2800 frame

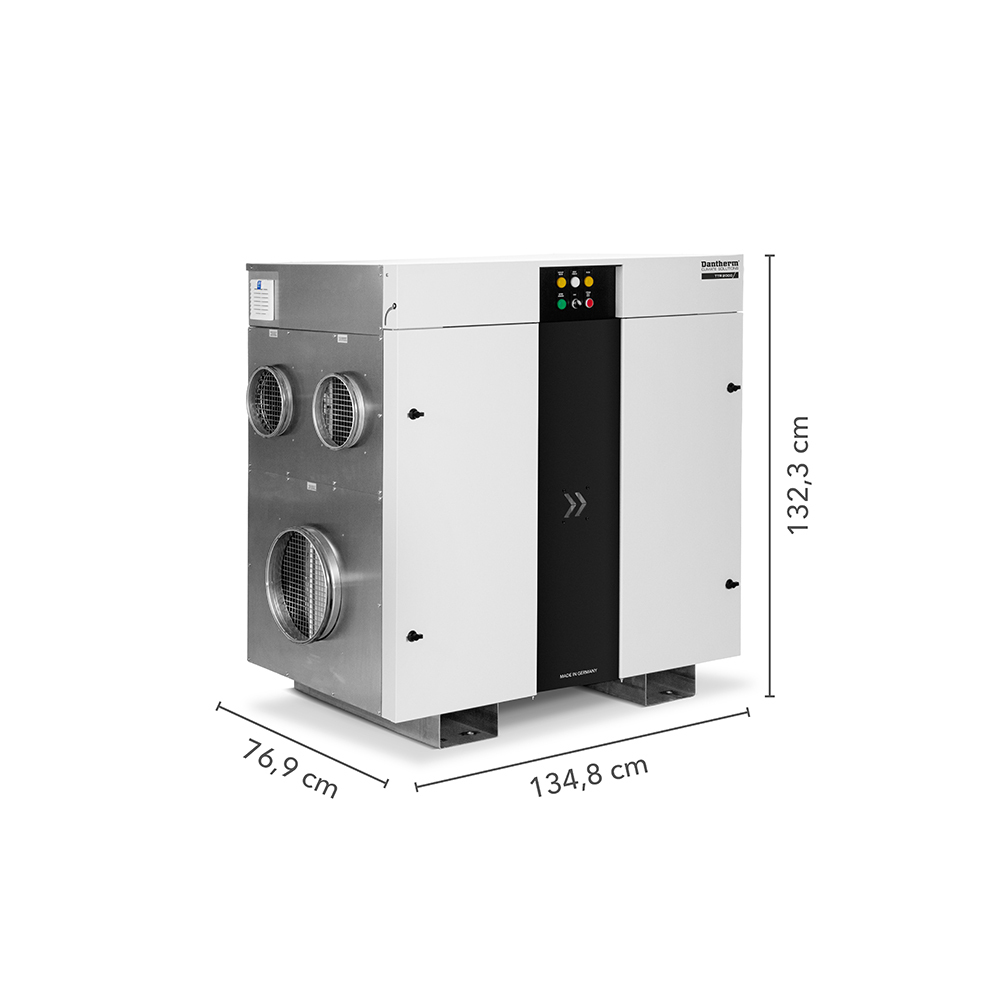

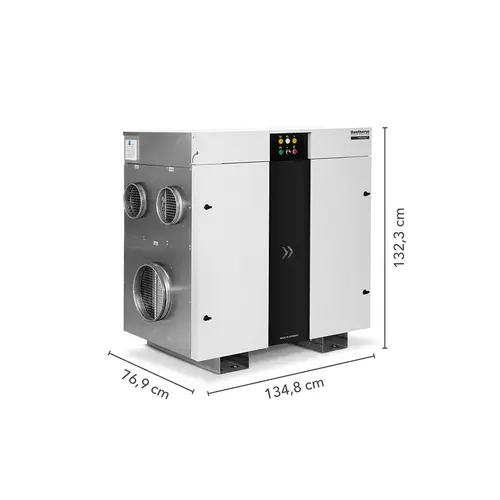

Dantherm TTR 2800 dimensions
Dantherm TTR 2800 dimensions

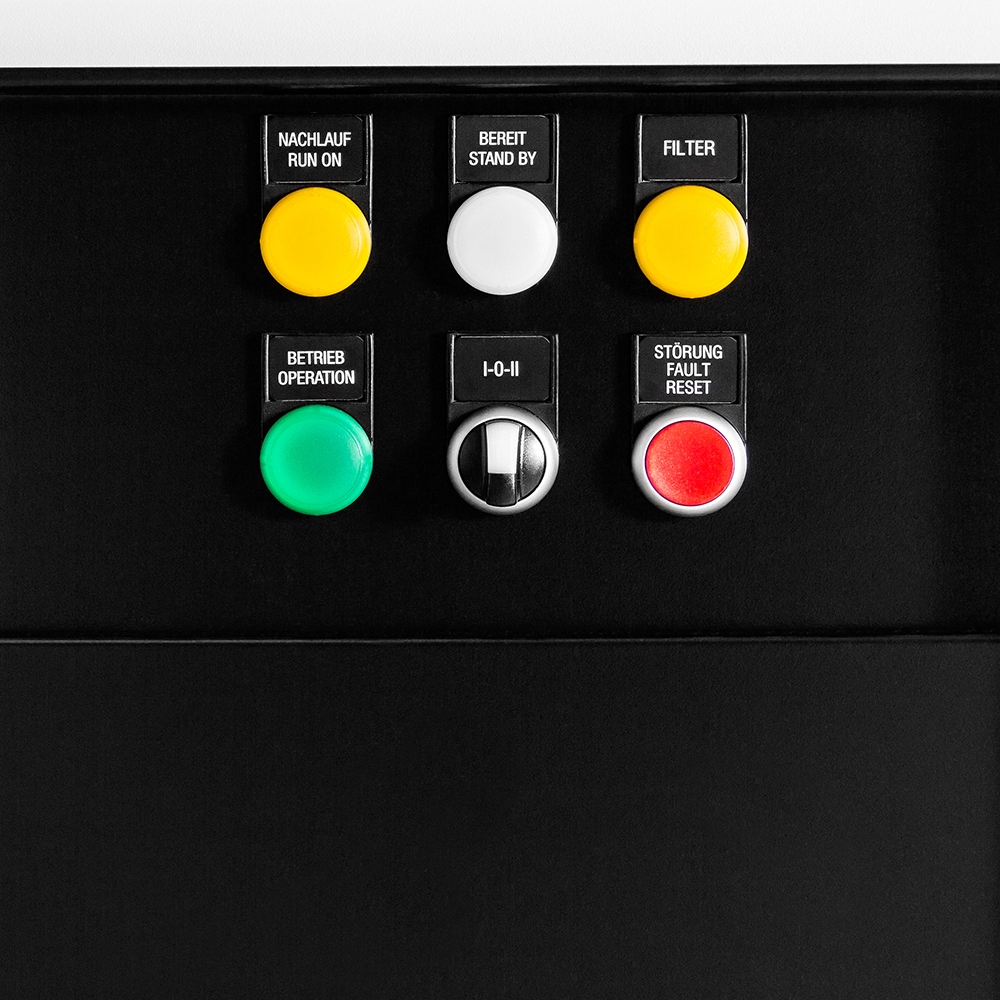

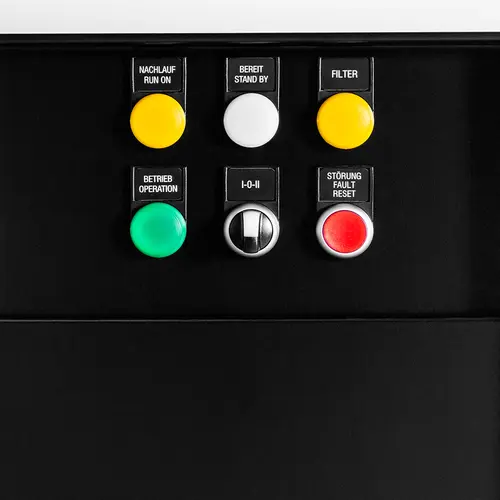

Dantherm TTR 2800 operation panel
Dantherm TTR 2800 operation panel
Dantherm TTR 2800 detail
Dantherm TTR 2800 detail

The TTR 2800 industrial desiccant dehumidifier can handle nearly 400kg of dehumidification performance per day, even in cold ambient conditions with low dew points. This makes it an ideal solution for various air and gas dehumidification tasks in industrial, haulage, or utility companies to protect products, machines, inventory, and buildings against corrosion, condensation, or mould formation. The TTR 2800 has a standard stainless steel housing and an electrical control box with IP44 protection, making it corrosion proof and suitable for dry keeping or producing dry air at low temperatures or under material-straining conditions, including hygiene-sensitive areas.

Contact our team to discuss which adsorption dehumidifier or type of commercial dehumidifier is most suitable for your intended purpose.

Interested?

Key features

  • Robust stainless steel housing
  • Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
  • Filter monitoring with warning light
  • Rotor rotation control
  • Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
  • Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
  • Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
  • Electric regeneration air heater comprising tubular heating elements, equipped with safety temperature limiters and differential pressure switch, controlled via semi-conductor relay(s)
  • Temperature-controlled rundown period

Product specifications

Dehumidification capacity @ 20°C/60% RH

15.7
kg/h


Dry air flow free-blowing

3,150
m³/h


Dry air flow nominal

2,800
m³/h


Available pressure

300
Pa


Regeneration air flow

570
m³/h


Available pressure

300
Pa


Operating temperature range

-20 to 40
°C


Heating

18.9
kW


Power consuption

21.6
kW


Power supply

380-480/3ph/50-60+PE
V/Hz


Electrical connection

32
A


Nominal current consumption

31.7
A


Product size (l x w x h)

1348 x 769 x 1323
mm


Weight

250
kg


Connections dry air input/output

315/315
Ømm


Connections regeneration air input/output

200/200
Ømm


Accessories and consumables

Dantherm TAC Plisseefilter F7 7 160 000 429
Dantherm climate solutions badge

Product code: 7.160.000.429

Accessory for TTR 2000, TTR 2800, TTR 3700

Dantherm TAC Plisseefilter F7 7 160 000 409
Dantherm climate solutions badge

Product code: 7.160.000.409

Accessory for TTR 800, TTR 1400, TTR 2000, TTR 2800, TTR 3700

Dantherm G4 Z line filter 7 160 000 428
Dantherm climate solutions badge

Product code: 7.160.000.428

Accessory for TTR 2000, TTR 2800, TTR 3700

Dantherm G4 Z line filter 7 160 000 404
Dantherm climate solutions badge

Product code: 7.160.000.404

Accessory for TTR 800, TTR 1400, TTR 2000, TTR 2800, TTR 3700
