Dantherm TTR 1400 – desiccant dehumidifier
Industrial desiccant dehumidifier
The TTR 1400 desiccant dehumidifier offers high dehumidification performance at low dew points, and its stainless steel housing and IP53 electrical control box make it ideal for use in harsh environments. It's suitable for dry keeping tasks or producing dry air in various industries such as chemical, pharmaceutical, and food. Additionally, it protects machines, inventory, and buildings from corrosion, condensation, and mold formation, making it perfect for use in water processing facilities or electrical control centers. The TTR 1400 is easy to maintain and provides effective dehumidification solutions.
View other commercial desiccant dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.
Dantherm TTR 1400 desiccant dehumidifier
|
Dantherm TTR 1400 desiccant dehumidifier front
|

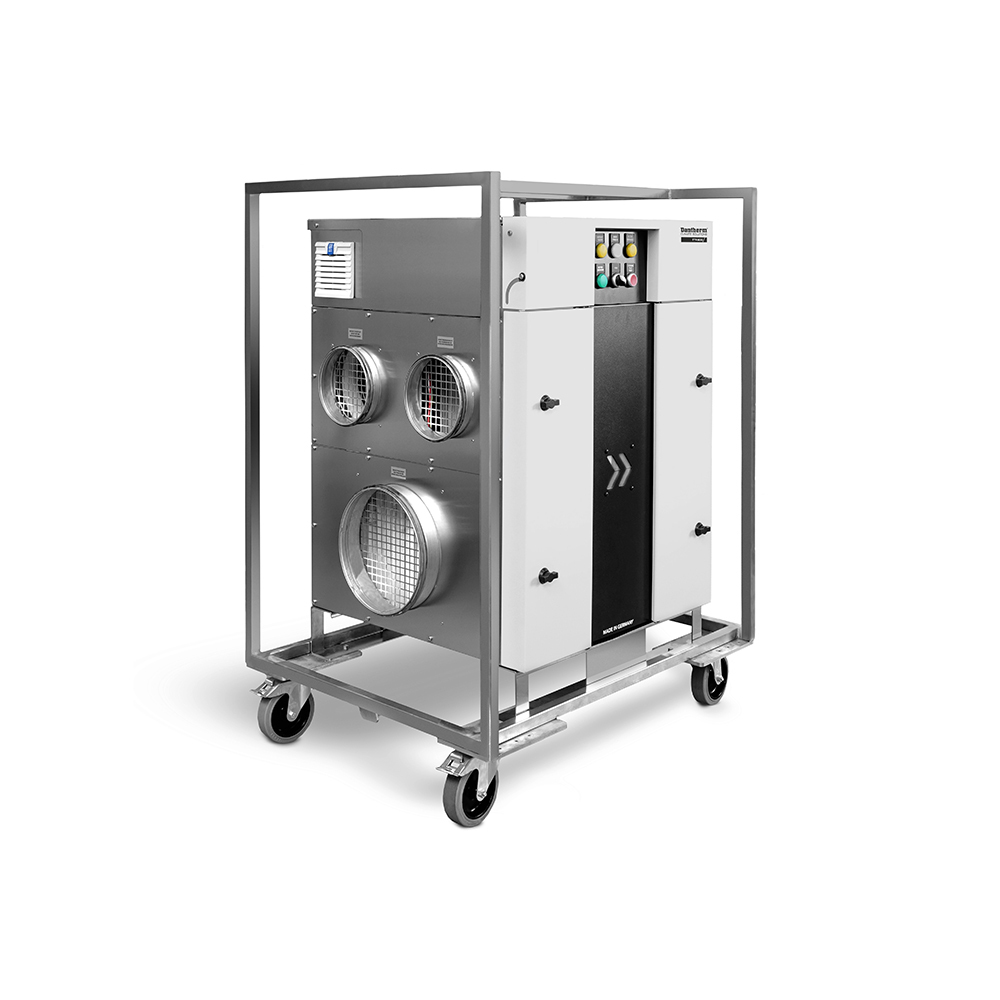

Dantherm TTR 1400 desiccant dehumidifier frame
|
Dantherm TTR 1400 desiccant dehumidifier dimensions
|
Key features
- Robust stainless steel housing
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Electric regeneration air heater comprising tubular heating elements, equipped with safety temperature limiters and differential pressure switch, controlled via semi-conductor relay(s)
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 1400 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 7.4 |
| Dry air flow free-blowing | m³/h | 1,750 |
| Dry air flow nominal | m³/h | 1,450 |
| Available pressure | Pa | 300 |
| Regeneration air flow | m³/h | 270 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 9.0 |
| Power consuption | kW | 9.8 |
| Power supply | V/Hz | 380-480/3ph/50-60 |
| Electrical connection | A | 16 |
| Nominal current consumption | A | 15 |
| Product size (l x w x h) | mm | 734 x 649 x 942 |
| Weight | kg | 100 |
| Connections dry air input/output | Ømm | 250/250 |
| Connections regeneration air input/output | Ømm | 160/160 |
Suitable for
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centres and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
