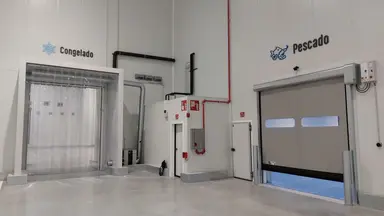

Read the story and learn how they also reduced their energy consumption and maintenance requirements
Fredrik Östman
- 3 min read
- Home
- Products
- Dehumidifiers
- Dantherm TTR 12000 – desiccant dehumidifier

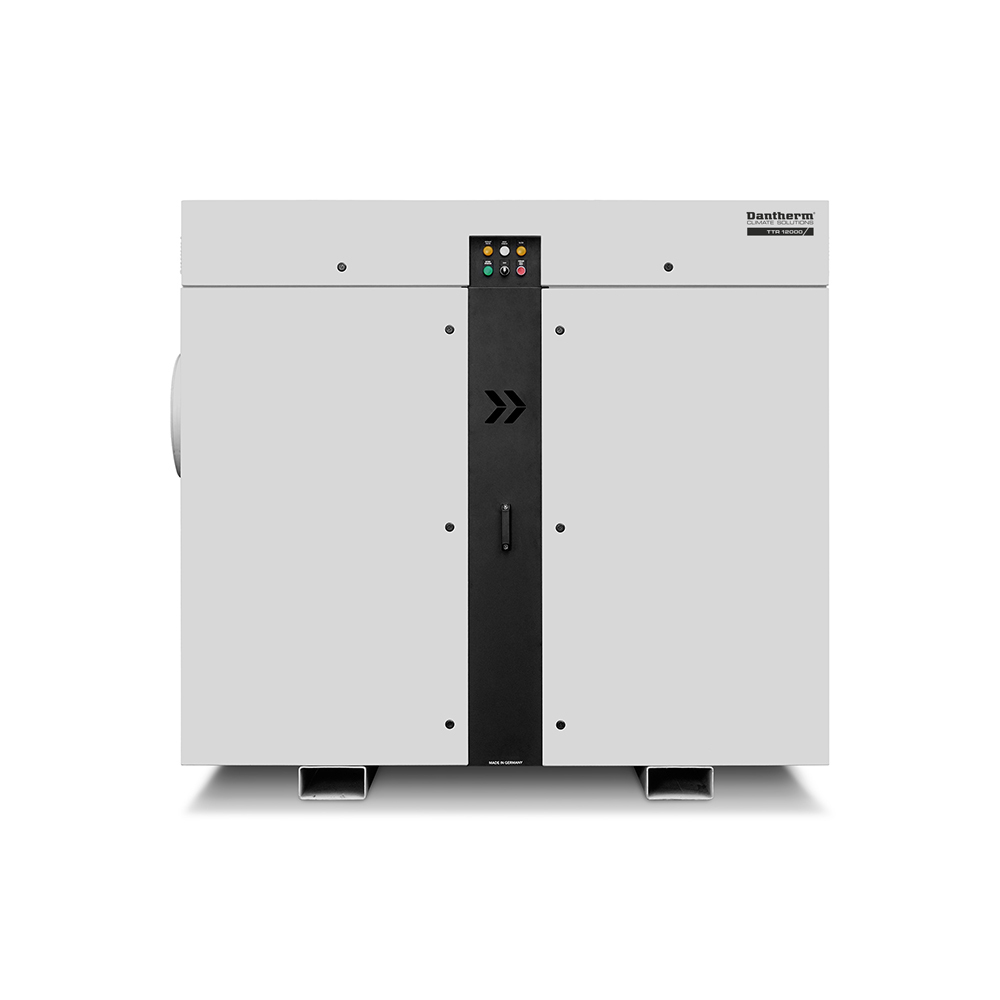

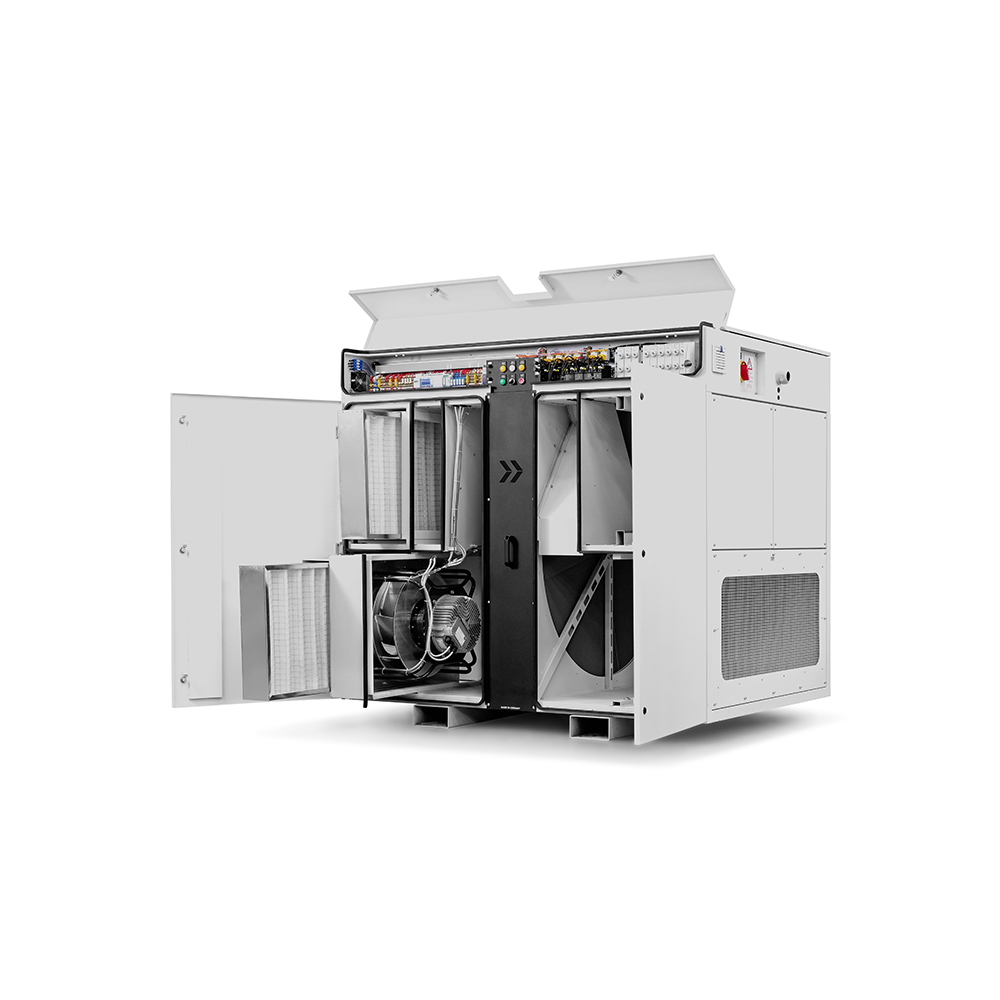

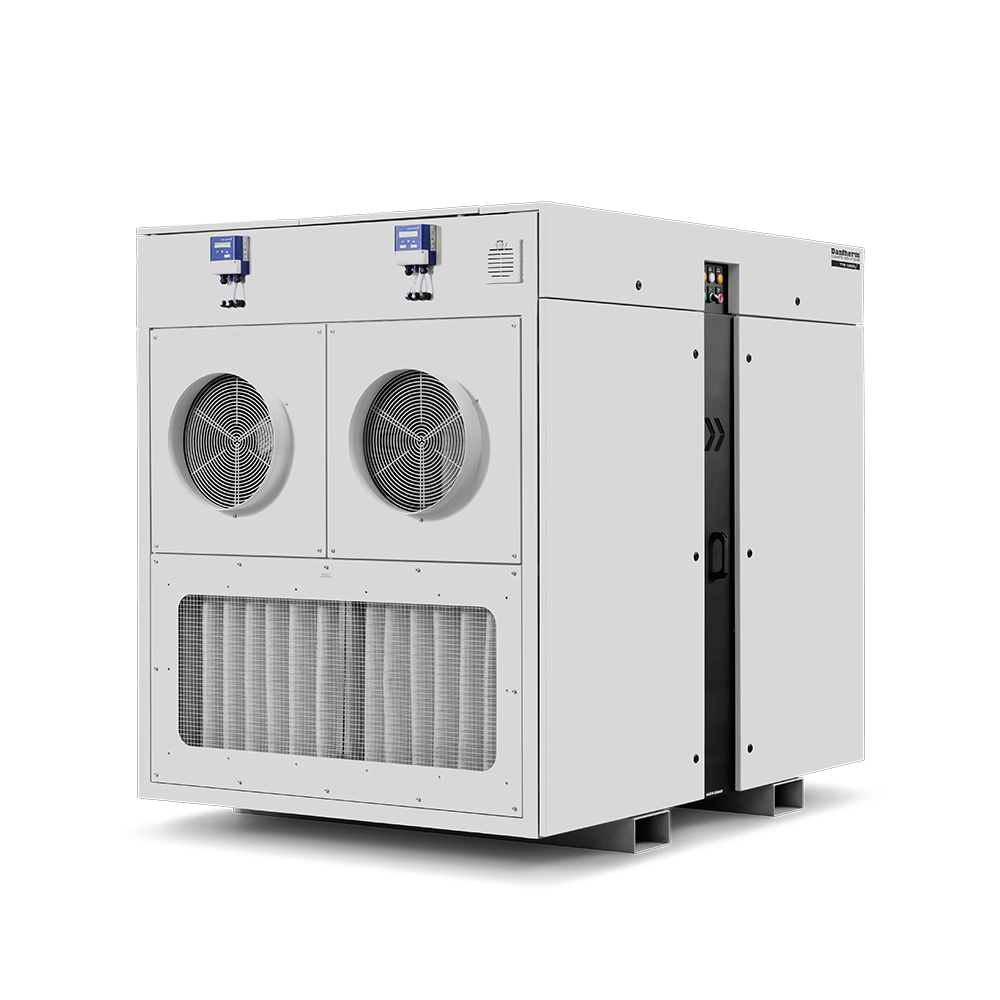

Dantherm TTR 12000 – desiccant dehumidifier
Industrial desiccant dehumidifier
The TTR 12000 is a German-manufactured, highly reliable and powerful desiccant dehumidifier suitable for various industries such as chemical, pharmaceutical, and food production, mechanical engineering, and water processing facilities or electrical control centres. It can also protect machines, inventory, and buildings from corrosion, condensation, and mould formation. The TTR 12000 has a dehumidification performance of 1,596kg per day, a nominal air volume of 11,800 cubic metres of dry air per hour at a static pressure of 300Pa, making it ideal for high dry air demand in cold environments with low dew points.
View other commercial adsorption dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.
Interested?
Key features
-
Housing made of powder-coated, galvanized sheet steel
-

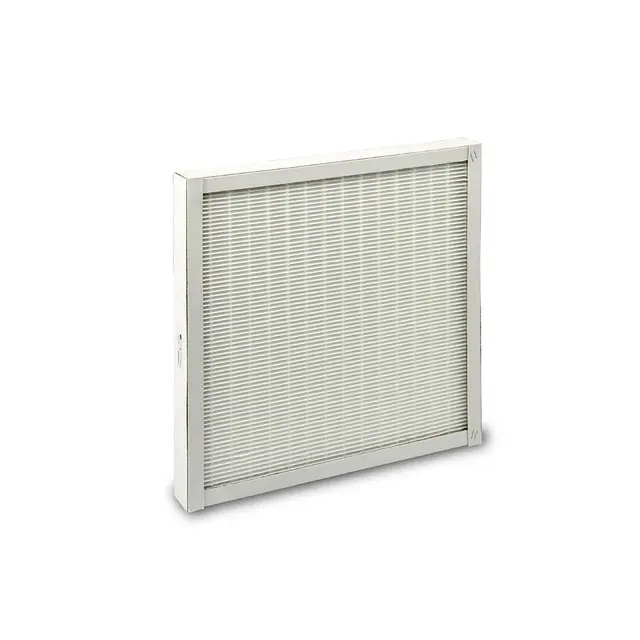

Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
-
Filter monitoring with warning light
-
Rotor rotation control
-
Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
-
Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
-

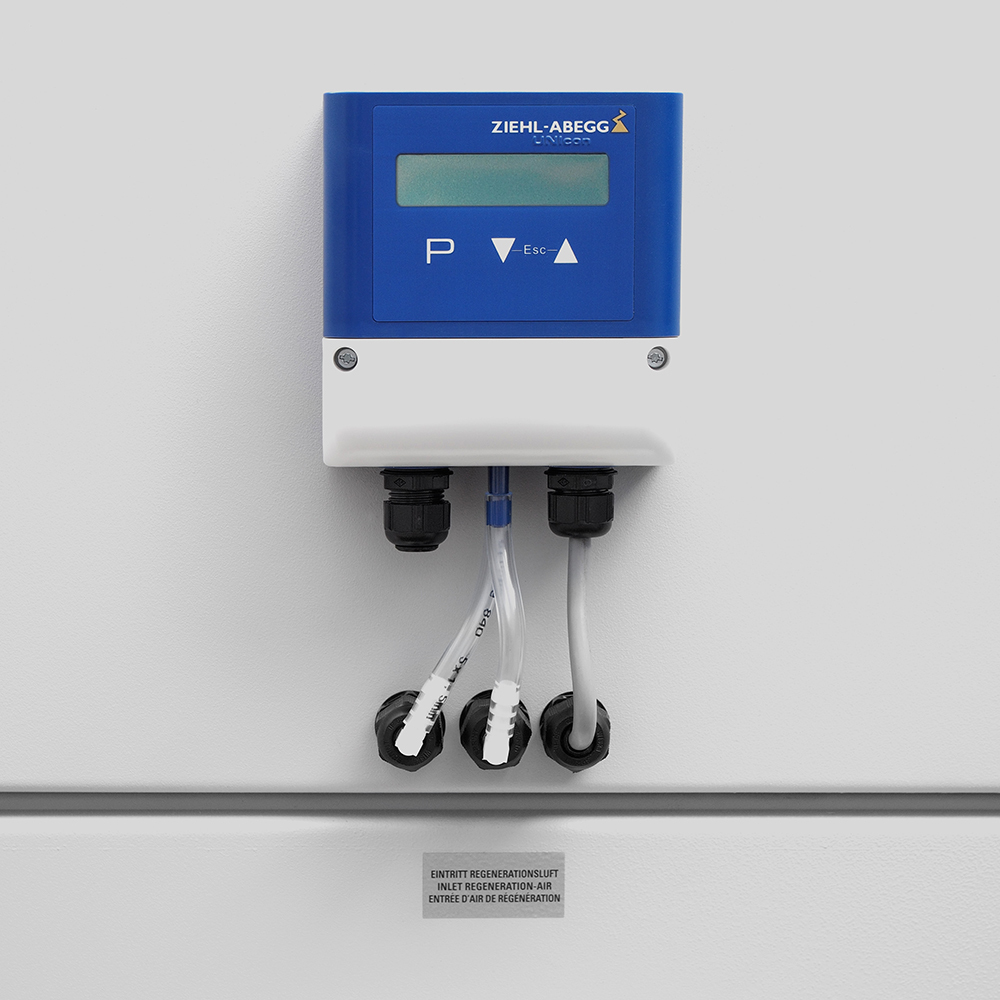

Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
-
Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
-

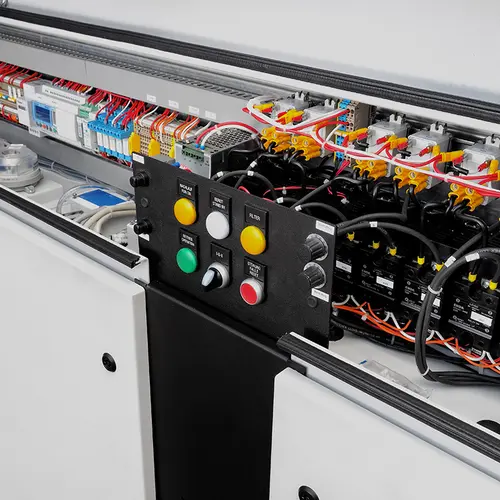

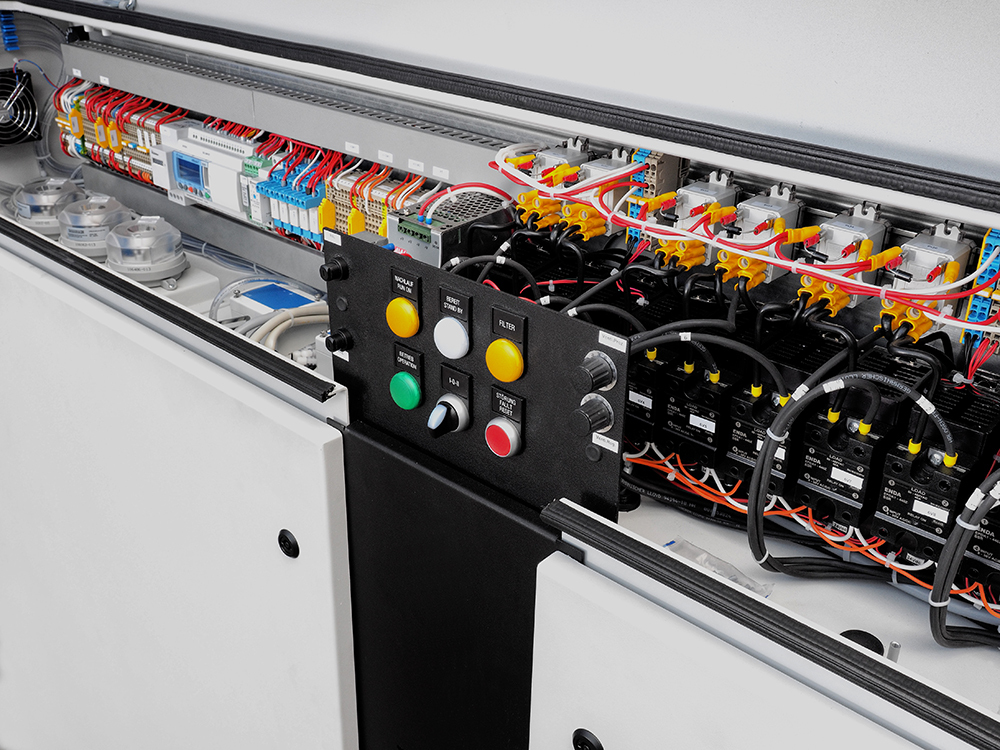

Control with four-line plain text display
-
Temperature-controlled rundown period
Product specifications
Dehumidification capacity @ 20°C/60% RH
66.5
kg/h
Dry air flow free-blowing
12,500
m³/h
Dry air flow nominal
11,800
m³/h
Available pressure
300
Pa
Regeneration air flow
2,380
m³/h
Available pressure
300
Pa
Operating temperature range
-20 to 40
°C
Heating
81.0
kW
Power consuption
89.0
kW
Power supply
380-480/3ph/50-60+PE
V/Hz
Electrical connection
160
A
Nominal current consumption
129
A

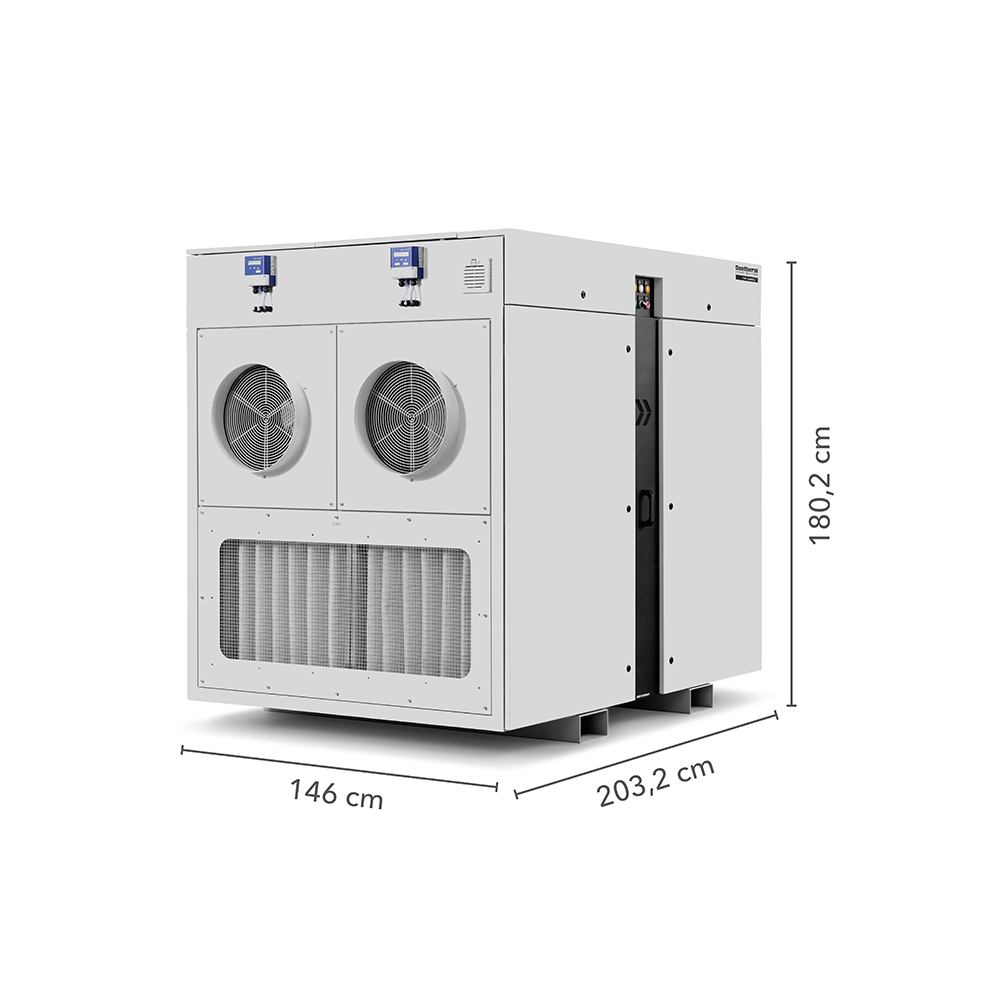

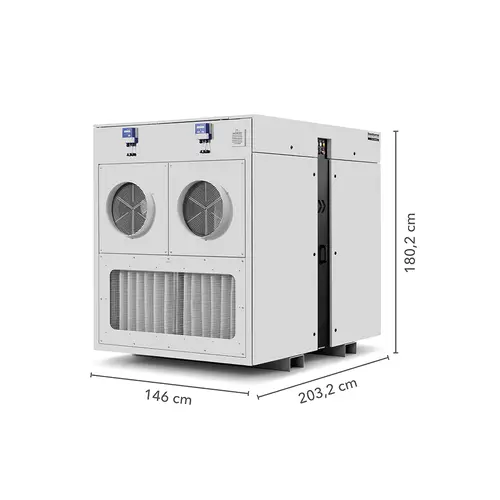

Product size (l x w x h)
2032 x 1460 x 1802
mm
Weight
1,000
kg
Connections dry air input/output
optional 2 x 500
Ømm
Connections regeneration air input/output
400/400
Ømm
Suitable for
Accessories and consumables
Product code: 6.100.001.216
Accessory for TTR 5200, TTR 6600, TTR 8200, TTR 10000, TTR 12000, TTR 13500

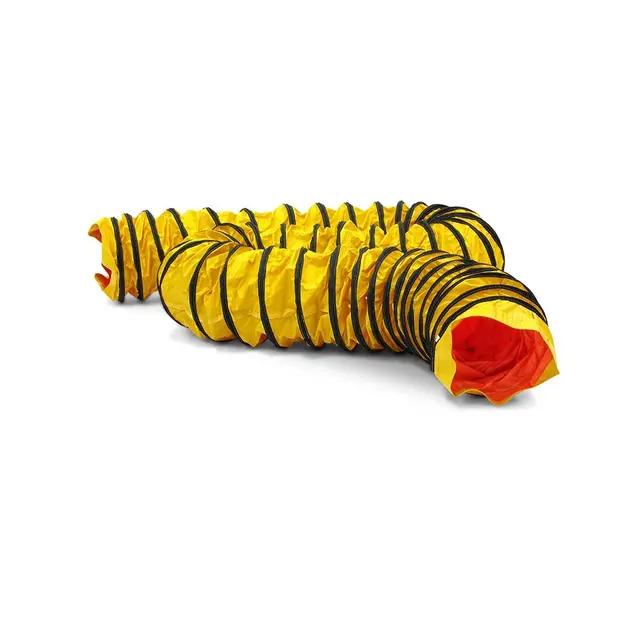

Product code: 6.100.001.212
Accessory for TTR 10000, TTR 12000, TTR 13500
Product code: 7.160.000.476
Accessory for TTR 10000, TTR 12000, TTR 13500
Product code: 7.160.000.496
Accessory for TTR 10000, TTR 12000, TTR 13500

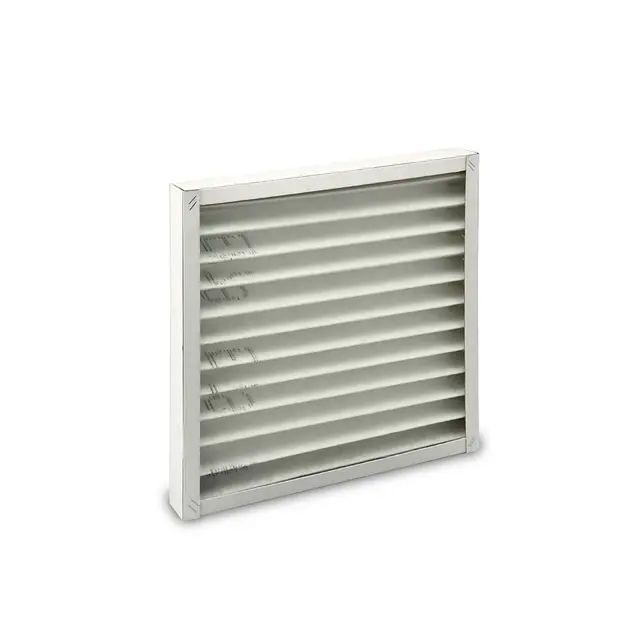

Product code: 7.160.000.475
Accessory for TTR 10000, TTR 12000, TTR 13500
Product code: 7.160.000.495
Accessory for TTR 10000, TTR 12000, TTR 13500
