Dantherm TTR 10000 – desiccant dehumidifier
The TTR 10000 is an ideal solution for high dry air demand in cold environments with low dew points. It has a dehumidification performance of 1,322 kg per day and can deliver 9,800 cubic metres of dry air per hour at a static pressure of 300Pa. This Germanmade dehumidifier is well-suited for permanent dry keeping, gas dehumidification, and dry air production in the chemical, pharmaceutical, and food industries, as well as mechanical engineering. It is also effective in protecting machines, inventory, and buildings from corrosion, condensation, and mould formation, particularly in water processing facilities or electrical control centres.
View other commercial adsorption dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.
Dantherm TTR 10000 desiccant dehumidifier
|

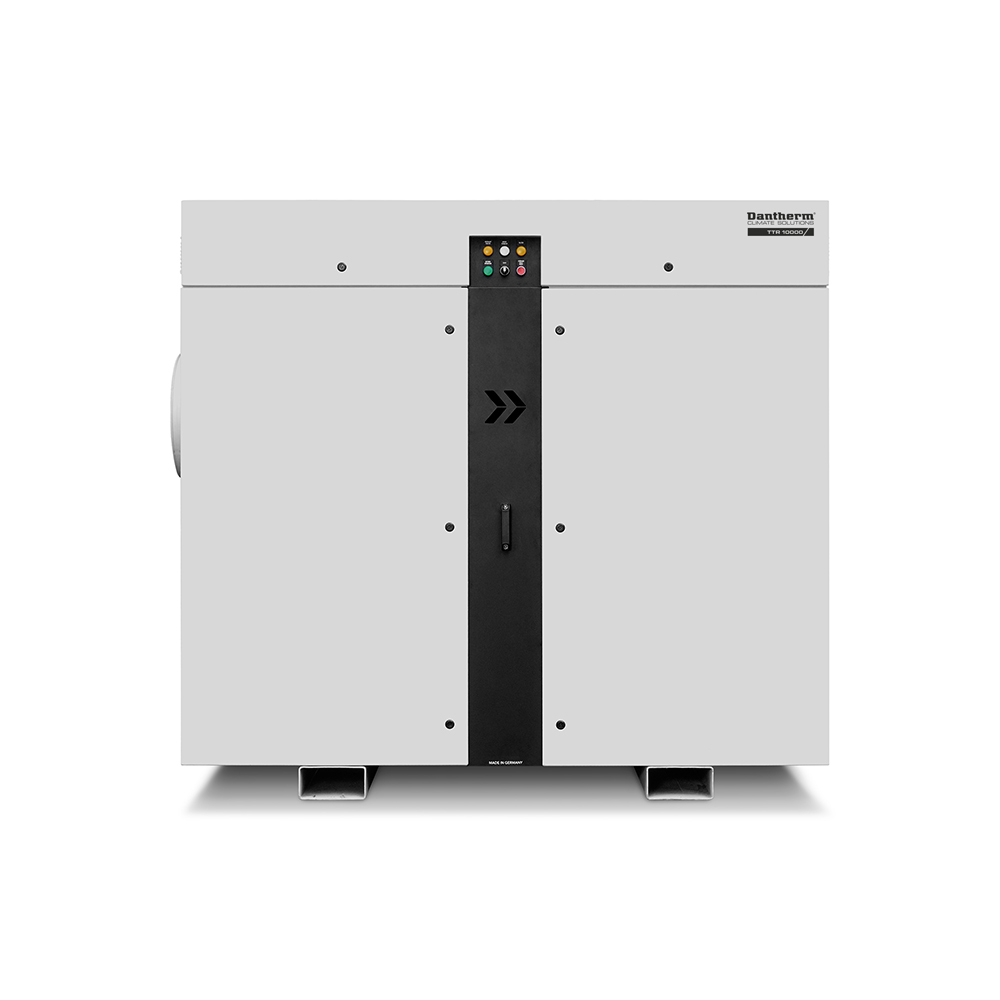

Dantherm TTR 10000 front
|

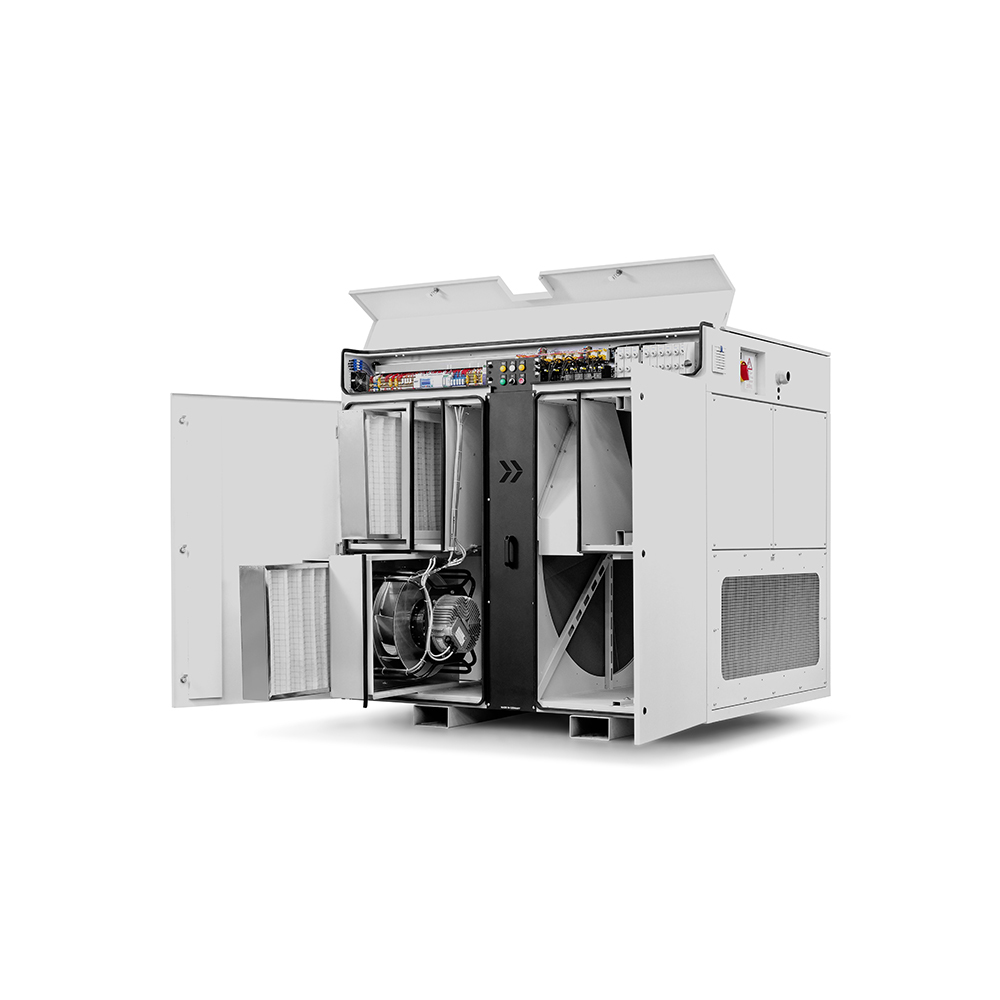

Dantherm TTR 10000 open
|
Dantherm TTR 10000 dimensions
|
Dantherm TTR 10000 detail
|
Dantherm TTR 10000 detail 02
|
Key features
- Housing made of powder-coated, galvanized sheet steel
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Control with four-line plain text display
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 10000 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 55.1 |
| Dry air flow free-blowing | m³/h | 10,500 |
| Dry air flow nominal | m³/h | 9,800 |
| Available pressure | Pa | 300 |
| Regeneration air flow | m³/h | 1,970 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 66.0 |
| Power consuption | kW | 74.0 |
| Power supply | V/Hz | 380-480/3ph/50-60+PE |
| Electrical connection | A | 160 |
| Nominal current consumption | A | 108 |
| Product size (l x w x h) | mm | 2032 x 1460 x 1802 |
| Weight | kg | 900 |
| Connections dry air input/output | Ømm | optional 2 x 500 |
| Connections regeneration air input/output | Ømm | 400/400 |
Suitable for
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centres and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
