Dantherm TKS 60 – high capacity free cooling unit
High capacity free cooling unit
TKS 60 is high-capacity free air cooling designed to control the internal environment of communication shelters using a minimum of energy.
By means of ventilation in an overpressure system, the TKS 60 efficiently removes excess heat from the temperature-sensitive equipment – maintaining the internal temperature within defined limits.
Interested?
Key features
-
Total heat management – designed for energy-efficiency with maximum use of controlled ventilation
-
Energy-efficient cooling strategy – automatic change between cooling modes
-
Protect your equipment – standard M5 fine bag filter and optional AirMaze (pat.pend.)
-
Avoid unsceduled service visits – plan service with built-in filter monitor
-
Wide geographical usage – ambient temperature operating range from -25 to 55°C
-
User friendly display for climate control and ethernet and SNMP for remote control
-
Integrated CC3000 control system
Product specifications
Nominal air flow
4,200
m3/h
Nominal cooling capacity in W/K (Δt = 1°C)
1,400
W/K
Nominal fan power consumption (at 100% fan speed)
782
W
Filter class
ePM10 55 % (F5)
Fan nominal voltage
230V AC
V
Sounds pressure @ 1m
67
dB(A)
Controller
CC3000
Type
Communication interface
Ethernet SNMP, Modbus
Type
Product size (h x w x d)
1100 x 600 x 600
mm
Net weight
53
kg
Suitable for
Useful downloads
Related products

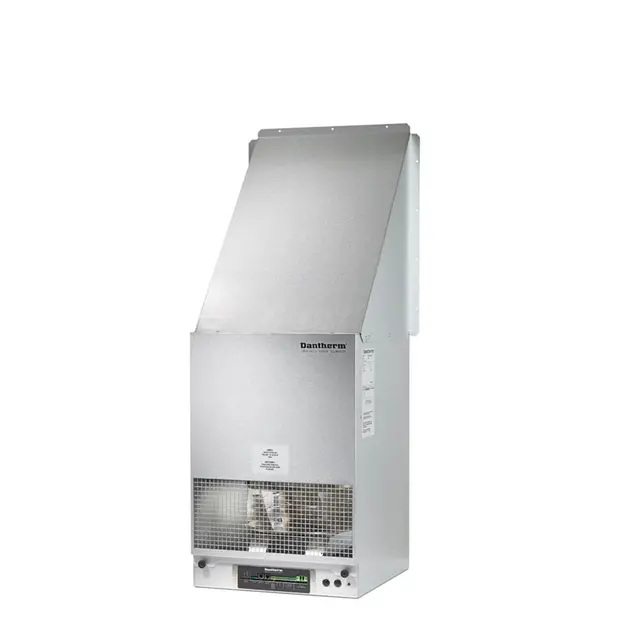

Free cooling unit
Free cooling is cost-effective controlled ventilation – the telecom shelter or enclosure is cooled by means of ambient air without a compressor.

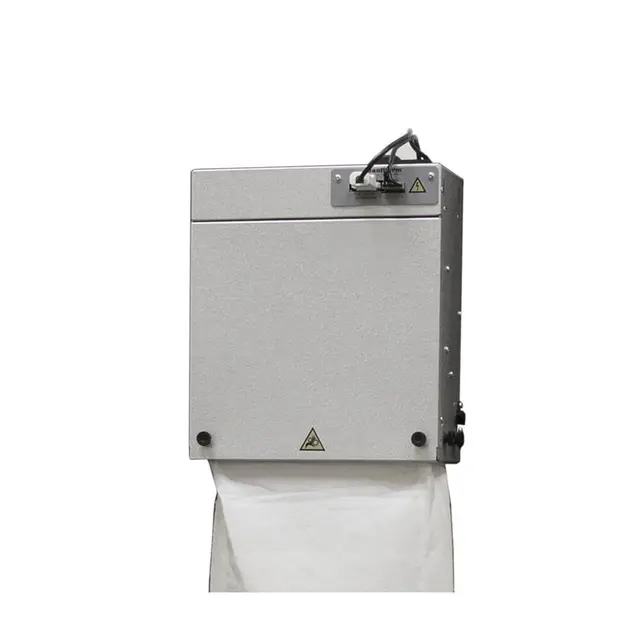

Ventilation units
The Dantherm DFC 350 and 450 are slim passive cooling units utilising the displacement free air cooling technology.

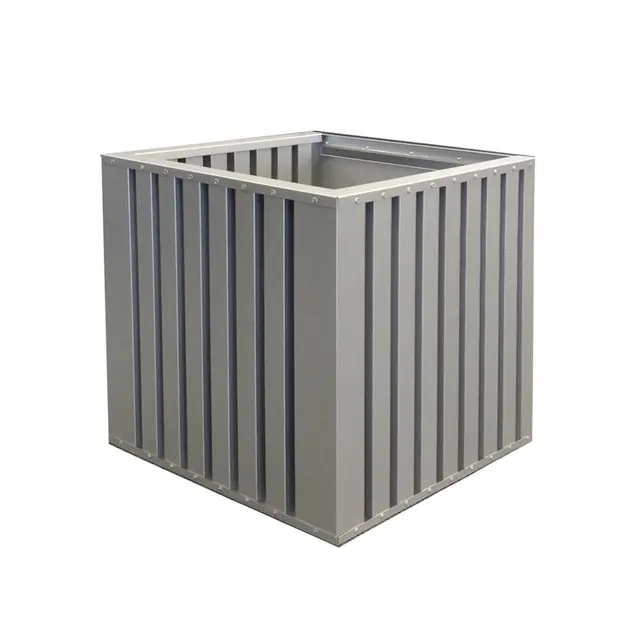

Air vent weather protection
AirMaze is a compact air path protection capable of removing wind-driven water and sand particles from even high air speed applications.
