Dantherm SD 800-1100 – desiccant dehumidifiers

Industrial drying – desiccant
Dantherm climate solutions badge

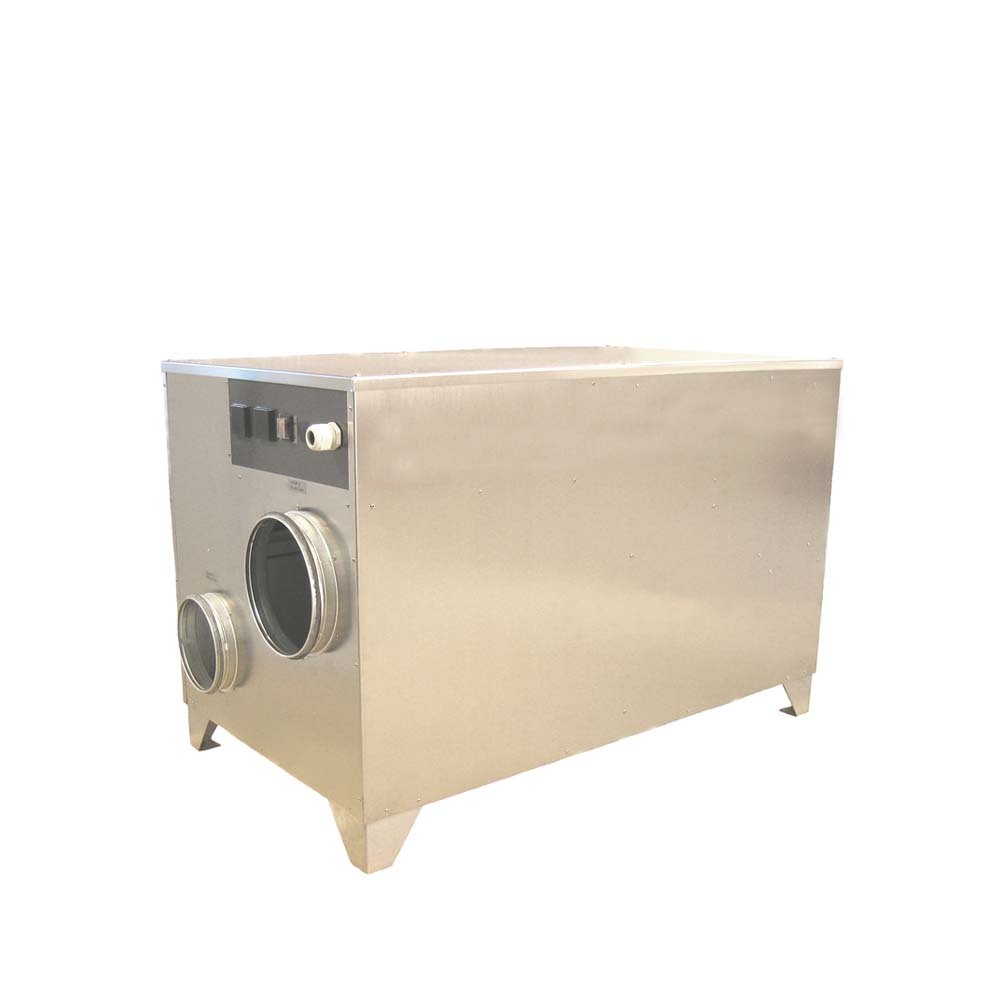

Dantherm SD 800 adsorption dehumidifier
Dantherm SD 800 adsorption dehumidifier
Dantherm SD desiccant dehumidifers for vertical farming video
Dantherm SD desiccant dehumidifers for vertical farming video

A mid-size 4-hole adsorption dehumidifier designed for commercial and industrial applications. These adsorption dehumidifiers have several features that can be customised to specific requirements. Low energy consumption combined with flexible control makes these dehumidifiers ideal for continuous process applications and where good climate control is a requirement. The stainless steel construction also allows this range to be used where hygiene is an important requirement.

This series can be used for dehumidifying air with up to 100% relative humidity (RH%) at temperatures ranging from -30°C to +60°C.

View other commercial adsorption dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.

Interested?

Key features

  • Effective dehumidification in all temperatures (-30°C to +60°C)
  • Particularly suitable at low temperatures
  • Dehumidifies even at low relative humidity (makes dry air even drier)
  • Available with thicker rotor (increased dehumidification capacity)
  • Energy-efficient with high-efficiency rotors and EC fans
  • High-quality casing in stainless steel (SS304) or acid-proof (SS316)
  • Low weight
  • PTC (Positive Temperature Control) regeneration coil, eliminating the risk of overheating and enabling stepless capacity control
  • Rotor including drive motor and fan can be easily lifted out of the unit for inspection and service

Product specifications

Process air (EC)

800
m³/h


Reg air (EC)

250
m³/h


Capacity (20°C/60% RH)

4.4
kg/h


Voltage*

3 x 400
V


Effect

7
kW


Effect reg

6.7
kW


Audio

60
dB


Weight

80
kg


Dimensions (l x w x h) without support/handle

1061 x 607 x 689
mm


Dimensions (t - dry air)

200
Ømm


Target (p - process air)

250
Ømm


Target (v - wet air)

160
Ømm


Target (r - regeneration air)

160
Ømm


Steering**

HYG


SD communication

On request


C-model/condenser*

Yes


Accessories and consumables

Timeteller
Dantherm climate solutions badge

Art. no.: SD-08006

Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100

Filtervakt
Dantherm climate solutions badge

Art. no.: SD-08019

Accessory for SD 800, SD 1100, SD 1300, SD 2300, SD 3300, SD 3500, SD 4500, SD 5800, SD 6000, SD 7000, SD 8000, SD 9000.

EC vifte
Dantherm climate solutions badge

Art. no.: SD-08016

Accessory for SD 800, SD 1300.

KC2
Dantherm climate solutions badge

Art. no.: SD-08020

Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100, SD 6000, SD 8000.

KC2
Dantherm climate solutions badge

Art. no.: SD-08004

Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100, SD 6000, SD 8000.

Hygrostat HR1 og HMH
Dantherm climate solutions badge

Art. no.: SD-08025

Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100.

Dantherm C Serien dehumidifier with condenser
Dantherm climate solutions badge

SD 400C - SD 500C - SD 800C - SD 1100C - SD 1300C - SD 2300C - SD 3300C

Industrial sorption dehumidifiers with condensers based on the SD series from 400 - 3300m³/h that convert the moist return air into water. Suitable when the distance to the exhaust air is large.
