Dantherm SD 6000-8000-13000-19000-27000 – desiccant dehumidifiers

Industrial drying – desiccant
Dantherm climate solutions badge
Dantherm SD 6000 desiccant dehumidifier
Dantherm SD 6000 desiccant dehumidifier
Dantherm SD desiccant dehumidifers for vertical farming video
Dantherm SD desiccant dehumidifers for vertical farming video

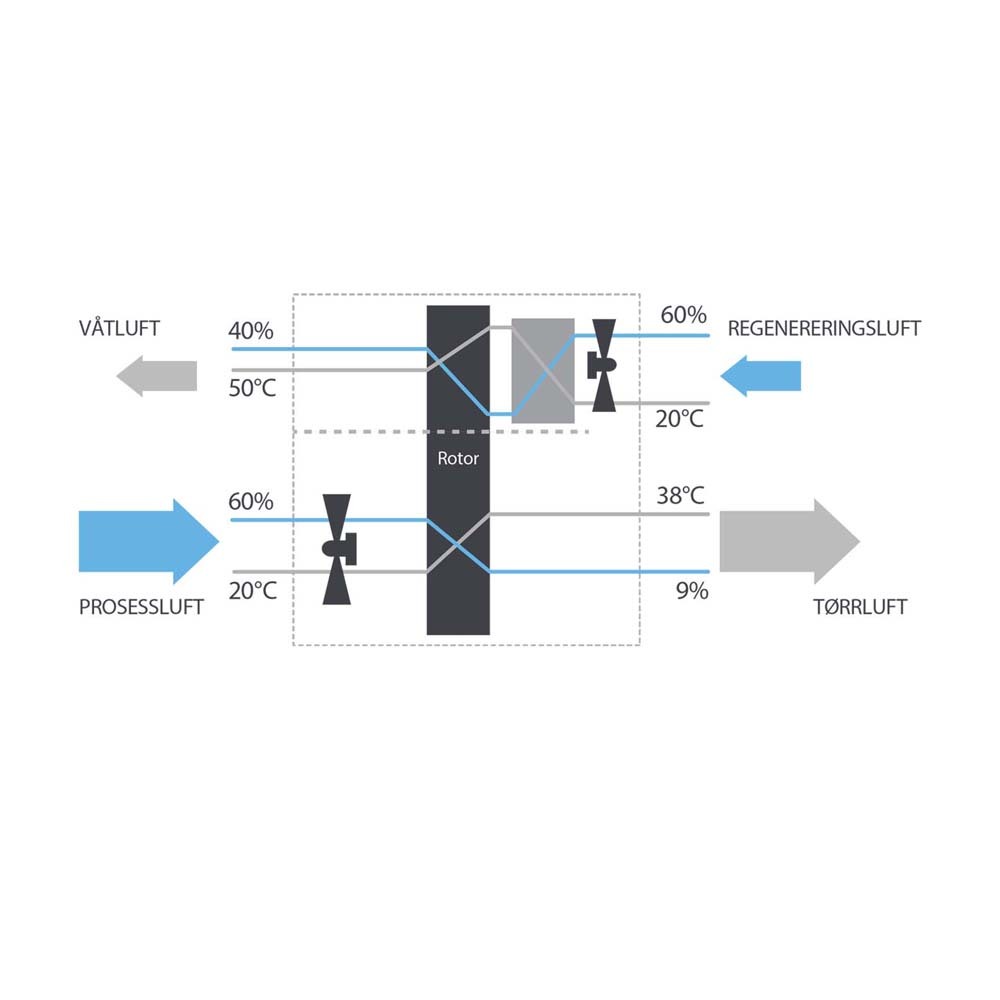

Principles of adsorption drying
Principles of adsorption drying

Large, powerful adsorption dehumidifiers with a wide range of air flow rates, insulated cabinets, internal energy-saving cleaning zone and a range of optional features.

View other desiccant dehumidifiers or see our full range of industrial dehumidifiers suitable for multiple applications.

Interested?

Key features

  • Effective dehumidification in all temperatures (-30°C to +60°C)
  • Particularly suitable at low temperatures
  • High dehumidification capacity adapted to every need
  • Can dehumidify down to 2% RH
  • Insulated double-jacketed cabinet
  • Can be supplied with thicker rotor (increased dehumidification capacity)
  • Energy-efficient solutions with high-efficiency rotors and EC fans
  • Powerful sorption dehumidifiers with a wide range of air volumes
  • Complete solutions

Product specifications

Process air (EC)

6,000
m³/h


Reg air (EC)

1,700
m³/h


Capacity(20°C/60% RH)

39
kg/h


Voltage

3 x 400
V


Effect

54.2
kW


Effect reg

48
kW


Weight

900
kg


Dimensions (l x w x h) without support/handle

2000 x 1350 x 1780
mm


Dimensions (l x w x h) without Dimensions (t - dry air)

630
Ømm


Target (p - process air)

630
Ømm


Target (v - wet air)

315
Ømm


Target (r - regeneration air)

315
Ømm


Steering

PLS


SD communication*

Modbus TCP/IP


*BacNet as an option



Max*

Yes
