Dantherm SD 210-400-500 – desiccant dehumidifiers
Industrial drying – desiccant
A mid-size 4-hole adsorption dehumidifier designed for commercial and industrial applications. These adsorption dehumidifiers have several features that can be customised to specific requirements. Low energy consumption combined with flexible control makes these dehumidifiers ideal for continuous process applications and where good climate control is a requirement. The stainless steel construction also allows this range to be used where hygiene is an important requirement.
This series can be used for dehumidifying air with up to 100% relative humidity (RH%) at temperatures ranging from -30°C to +60°C.
View other desiccant dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.

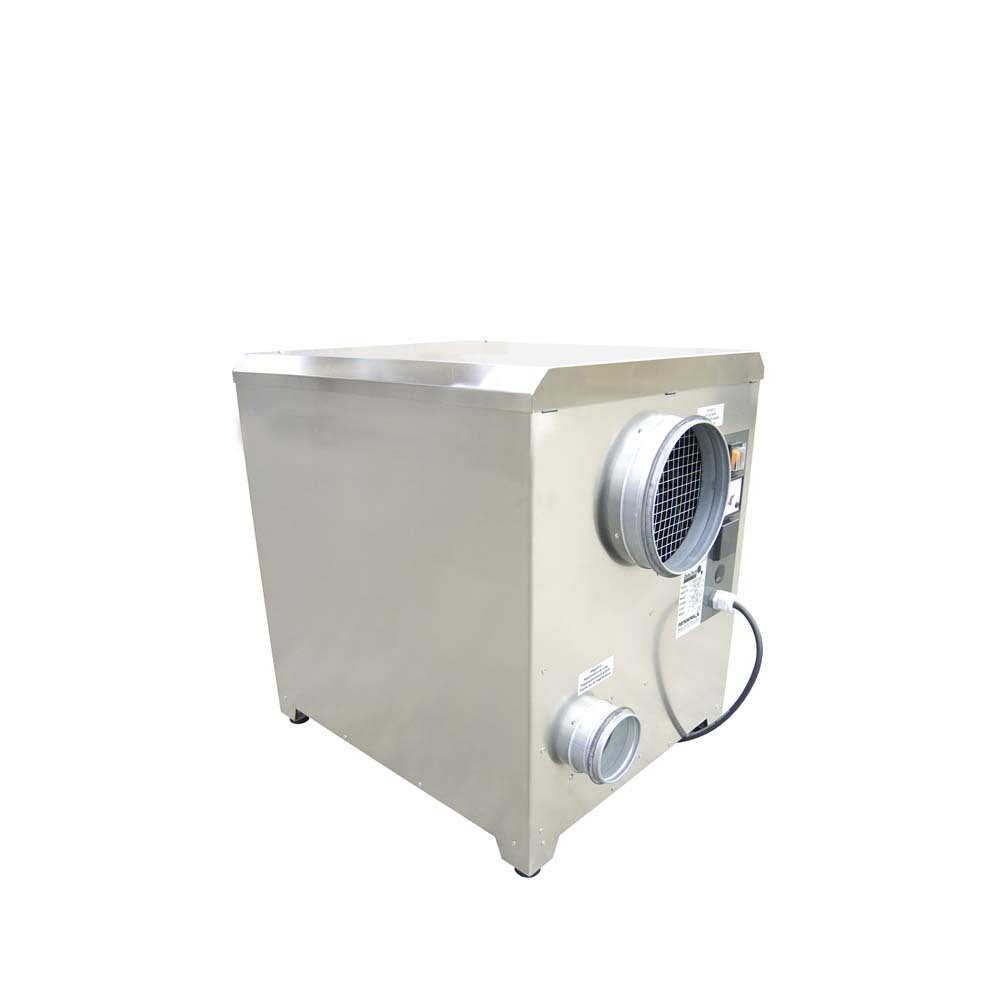

Dantherm SD 400 adsorption dehumidifier
|
Dantherm SD desiccant dehumidifers for vertical farming video
|

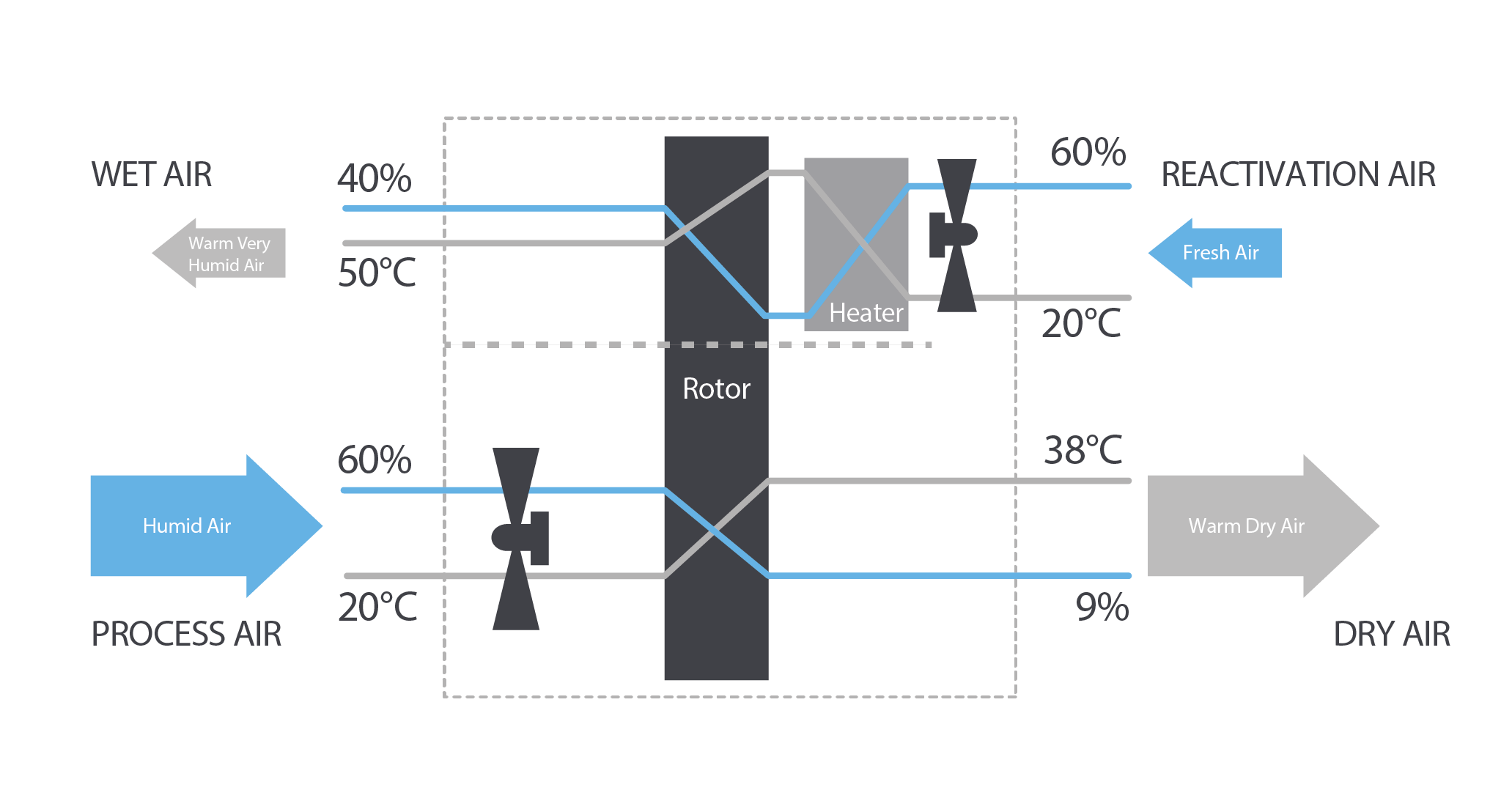

How a desiccant dehumidifier works
|
Key features
- Effective dehumidification in all temperatures (-30°C to +60°C)
- Particularly suitable at low temperatures
- Dehumidifies even at low relative humidity (makes dry air even drier)
- Available with thicker rotor (increased dehumidification capacity)
- Energy-efficient with high-efficiency rotors and EC fans
- High-quality casing in stainless steel (SS304) or acid-proof (SS316)
- Low weight
- PTC (Positive Temperature Control) regeneration coil, eliminating the risk of overheating and enabling stepless capacity control
- Rotor including drive motor and fan can be easily lifted out of the unit for inspection and service
Product specifications
| Specifications | Units | SD 210 |
|---|---|---|
| Process air | m³/h | 210 |
| Reg air | m³/h | 40 |
| Capacity (20 °C / 60% RH) | kg/h | 0.6 |
| Voltage | V | 1 x 230 |
| Effect | kW | 1.1 |
| Effect reg | kW | 0.8 |
| Audio | dB | 53 |
| Weight | kg | 16.5 |
| Dimensions (l x w x h) without support/handle | mm | 335 x 357 x 351 |
| Target (t - dry air) | Ømm | 100 |
| Target (p - process air) | Ømm | 125 |
| Target (v - wet air) | Ømm | 80 |
| Target (r - regeneration air) | Ømm | 80 |
| Steering | HYG | |
| C-model/condenser* | No |
| Specifications | Units | SD 400 |
|---|---|---|
| Process air | m³/h | 400 |
| Reg air | m³/h | 30 |
| Capacity (20 °C / 60% RH) | kg/h | 1.4 |
| Voltage | V | 1 x 230 |
| Effect | kW | 2.3 |
| Effect reg | kW | 2 |
| Audio | dB | 62.2 |
| Weight | kg | 22 |
| Dimensions (l x w x h) without support/handle | mm | 500 x 428 x 526 |
| Target (t - dry air) | Ømm | 160 |
| Target (p - process air) | Ømm | 160 |
| Target (v - wet air) | Ømm | 80 |
| Target (r - regeneration air) | Ømm | 80 |
| Steering | HYG | |
| C-model/condenser* | Yes |
| Specifications | Units | SD 500 |
|---|---|---|
| Process air | m³/h | 500 |
| Reg air | m³/h | 120 |
| Capacity (20 °C / 60% RH) | kg/h | 2.6 |
| Voltage | V | 1 x 230 |
| Effect | kW | 3.5 |
| Effect reg | kW | 3.2 |
| Audio | dB | 63 |
| Weight | kg | 31 |
| Dimensions (l x w x h) without support/handle | mm | 500 x 428 x 526 |
| Target (t - dry air) | Ømm | 160 |
| Target (p - process air) | Ømm | 160 |
| Target (v - wet air) | Ømm | 80 |
| Target (r - regeneration air) | Ømm | 80 |
| Steering | HYG | |
| C-model/condenser* | Yes |
Suitable for
- Agriculture
- Archives and preservation
- Commercial buildings
- Construction
- Data centres and telecoms
- Emergency services
- Food and beverage
- Industrial, factories and production
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Waterworks
