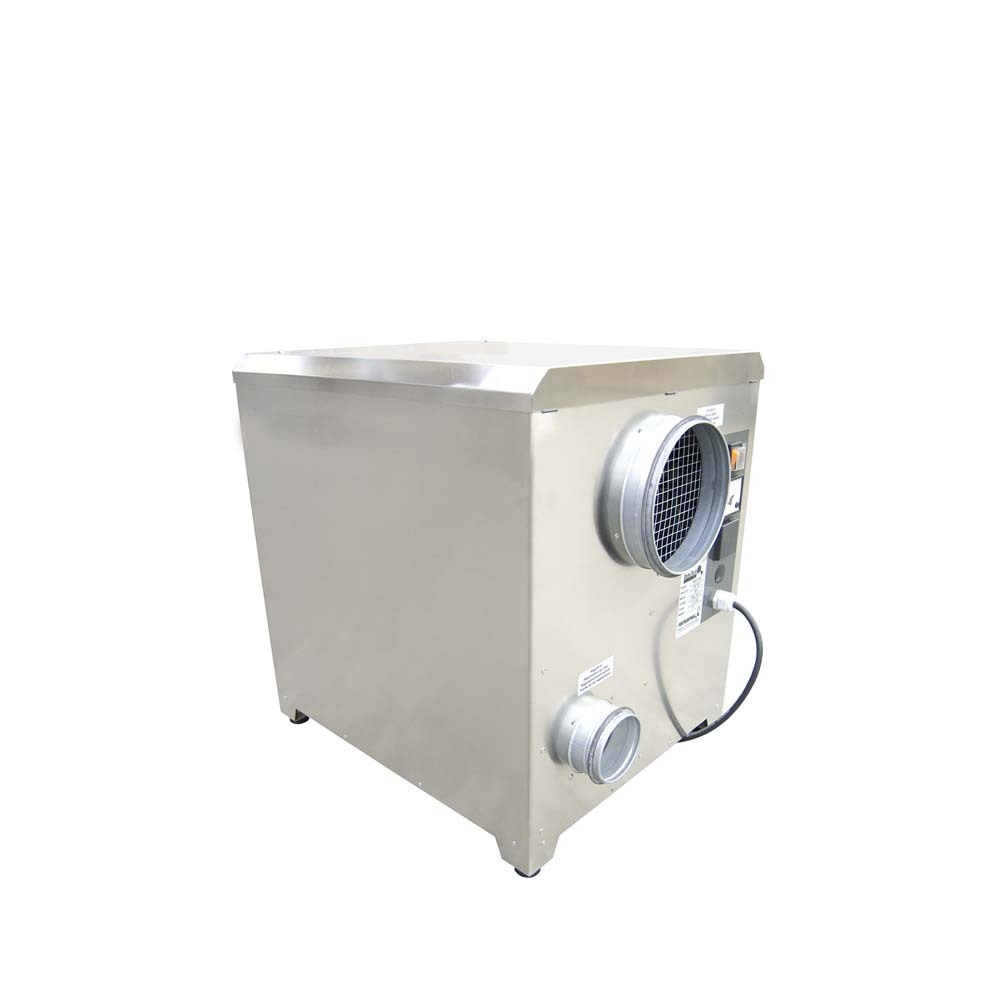

Dantherm SD 210-400-500 – desiccant dehumidifiers
Industrial drying – desiccant
A mid-size 4-hole adsorption dehumidifier designed for commercial and industrial applications. These adsorption dehumidifiers have several features that can be customised to specific requirements. Low energy consumption combined with flexible control makes these dehumidifiers ideal for continuous process applications and where good climate control is a requirement. The stainless steel construction also allows this range to be used where hygiene is an important requirement.
This series can be used for dehumidifying air with up to 100% relative humidity (RH%) at temperatures ranging from -30°C to +60°C.
View other desiccant dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.
Interested?
Key features
-
Effective dehumidification in all temperatures (-30°C to +60°C)
-
Particularly suitable at low temperatures
-
Dehumidifies even at low relative humidity (makes dry air even drier)
-
Available with thicker rotor (increased dehumidification capacity)
-

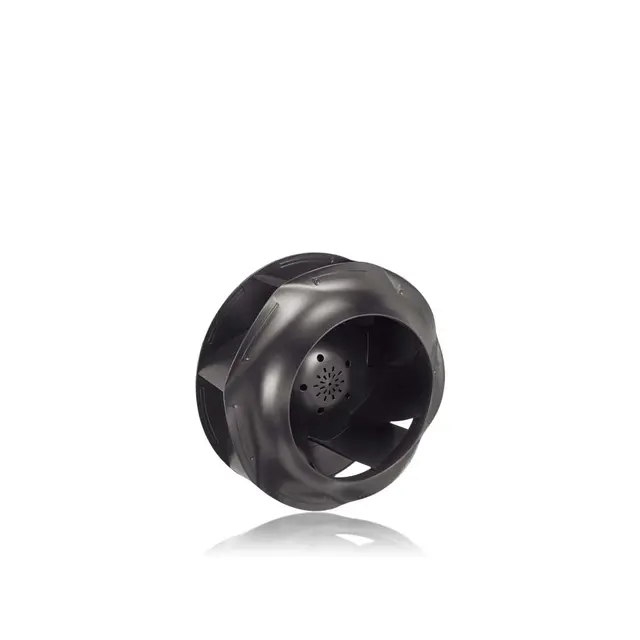

Energy-efficient with high-efficiency rotors and EC fans
-
High-quality casing in stainless steel (SS304) or acid-proof (SS316)
-
Low weight
-
PTC (Positive Temperature Control) regeneration coil, eliminating the risk of overheating and enabling stepless capacity control
-
Rotor including drive motor and fan can be easily lifted out of the unit for inspection and service
Product specifications
Process air
210
m³/h
Reg air
40
m³/h
Capacity (20 °C / 60% RH)
0.6
kg/h
Voltage
1 x 230
V
Effect
1.1
kW
Effect reg
0.8
kW
Audio
53
dB
Weight
16.5
kg
Dimensions (l x w x h) without support/handle
335 x 357 x 351
mm
Target (t - dry air)
100
Ømm
Target (p - process air)
125
Ømm
Target (v - wet air)
80
Ømm
Target (r - regeneration air)
80
Ømm
Steering
HYG
C-model/condenser*
No
Accessories and consumables

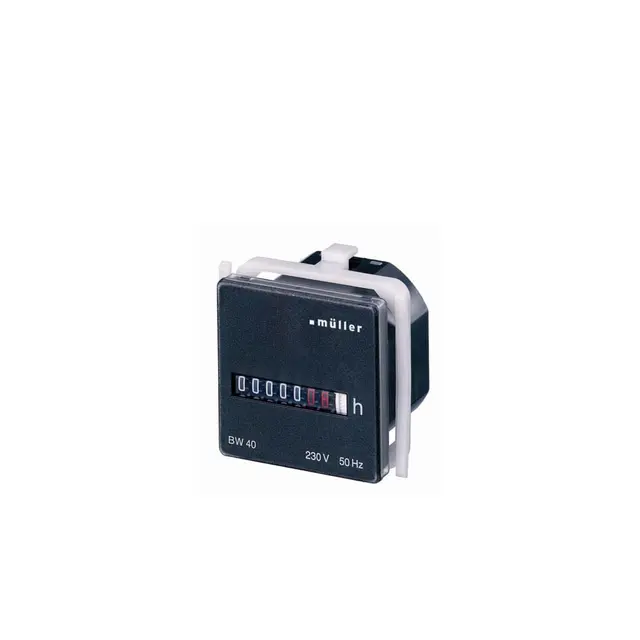

Dantherm Timeteller for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100 dehumidifier
Art. no.: SD-08006
Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100
Art. no.: SD-08019
Accessory for SD 800, SD 1100, SD 1300, SD 2300, SD 3300, SD 3500, SD 4500, SD 5800, SD 6000, SD 7000, SD 8000, SD 9000.
Art. no.: SD-08016
Accessory for SD 800, SD 1300.
Art. no.: SD-08020
Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100, SD 6000, SD 8000.
Art. no.: SD-08012
Accessory for SD 800, SD 1100.
Art. no.: SD-08025
Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100.
Art. no.: SD-08004
Accessory for SD 160, SD 210, SD 290, SD 400, SD 440, SD 500, SD 800, SD 1100, SD 6000, SD 8000.

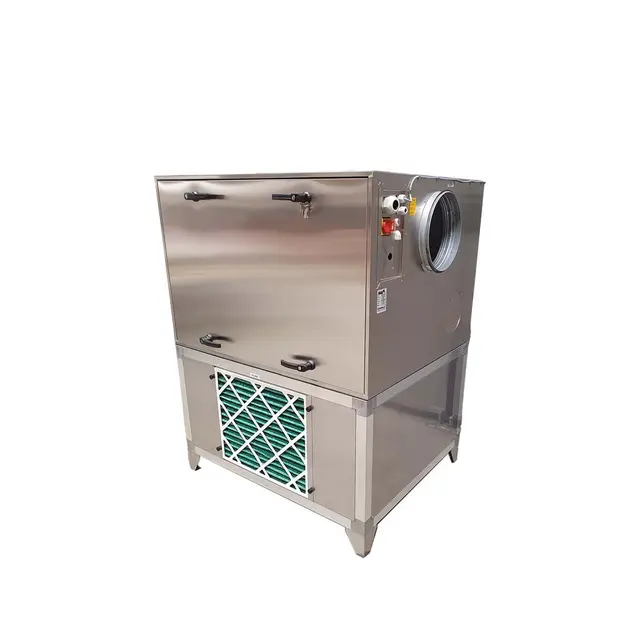

SD 400C - SD 500C - SD 800C - SD 1100C - SD 1300C - SD 2300C - SD 3300C
Industrial sorption dehumidifiers with condensers based on the SD series from 400 - 3300m³/h that convert the moist return air into water. Suitable when the distance to the exhaust air is large.
Useful downloads
Related products
Industrial drying – desiccant
A series of compact and efficient 4-hole desiccant dehumidifiers made of stainless steel (SS304) designed for moisture control in a wide range of applications.
Industrial drying – desiccant
A range of compact, high-capacity adsorption dehumidifiers with great flexibility in airflow rates with advanced PLC control suitable for both commercial and industrial applications.

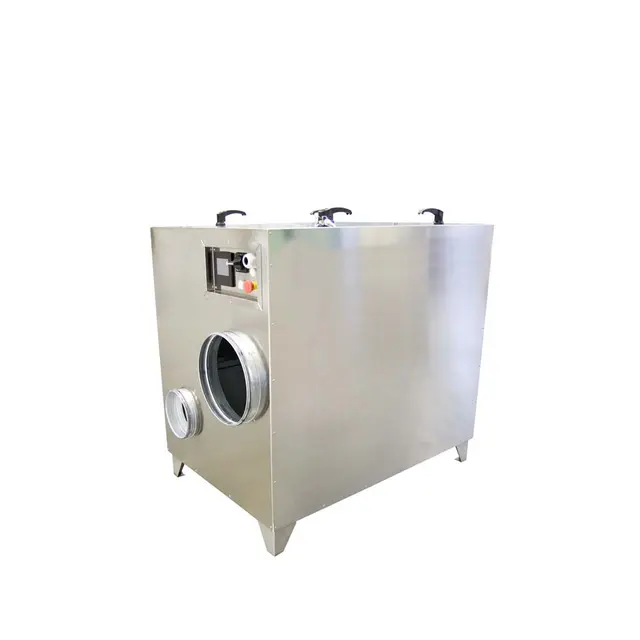

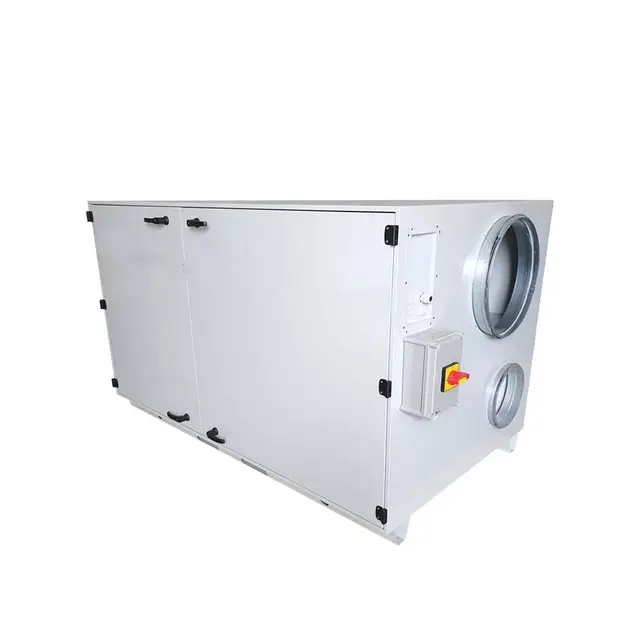

Industrial drying – desiccant
