Dantherm SD 1300-2300-3300-3500 – desiccant dehumidifiers

Industrial drying – desiccant
Dantherm climate solutions badge

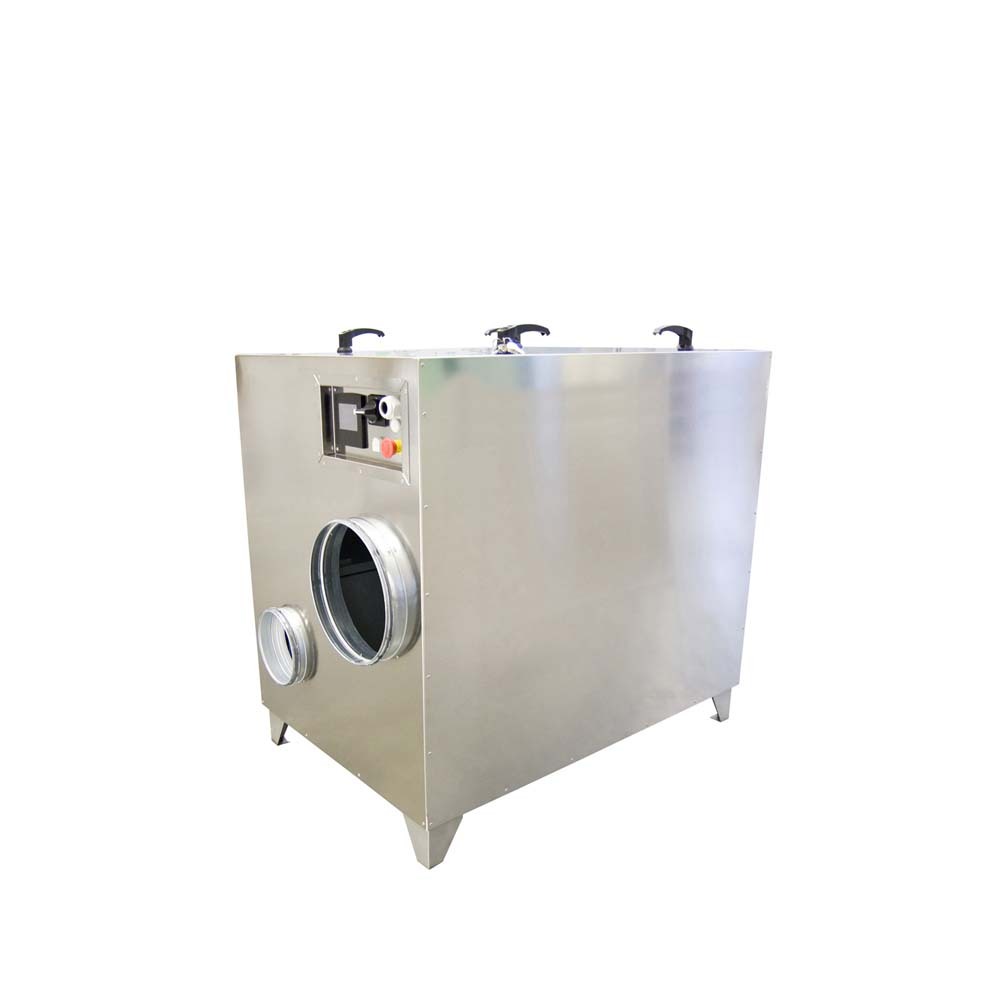

Dantherm SD 3500 adsorption dehumidifier
Dantherm SD 3500 adsorption dehumidifier
Dantherm SD desiccant dehumidifers for vertical farming video
Dantherm SD desiccant dehumidifers for vertical farming video
Principles of adsorption drying
Principles of adsorption drying

This range of adsorption dehumidifiers are designed for both standard and customised modes, making them a versatile option for a variety of applications. High energy efficiency and advanced PLC controls make these dehumidifiers ideal for continuous process applications and where tight control is a requirement. The insulated corrosion-resistant stainless steel enclosure also allows this range to be used where hygiene is an important requirement and where cooling or lower process temperatures are required.

View other adsorption dehumidifiers or see our full range of industrial dehumidifiers suitable for multiple applications.

Interested?

Key features

  • Effective dehumidification in all temperatures (-30°C to +60°C)
  • Particularly suitable at low temperatures
  • High dehumidification capacity adapted to every need
  • Can dehumidify down to 2% RH
  • PLC control
  • SD communication (Modbus/BACnet)
  • Robust and reliable with long service life
  • Can be supplied with thicker rotor (increased dehumidification capacity)
  • PTC (Positive Temperature Control) regeneration coil, eliminating the risk of overheating and enabling stepless capacity control

Product specifications

Process air (EC)

1,300
m³/h


Reg air (EC)

400
m³/h


Capacity(20°C/60% RH)

9.5
kg/h


Voltage*

3 x 400
V


Effect

13.6
kW


Effect reg

13
kW


Audio

63
dB


Weight

200
kg


Dimensions (l x w x h) without support/handle

1199 x 807 x 1170
mm


Dimensions (l x w x h) without dimensions (t - dry air)

315
Ømm


Target (p - process air)

400
Ømm


Target (v - wet air)

200
Ømm


Target (r - regeneration air)

200
Ømm


Steering

PLS


SD communication**

Modbus TCP/IP


*Can be supplied with 3 x 230



**BacNet as an option



Max*

Yes


C-model/condenser**

Yes
