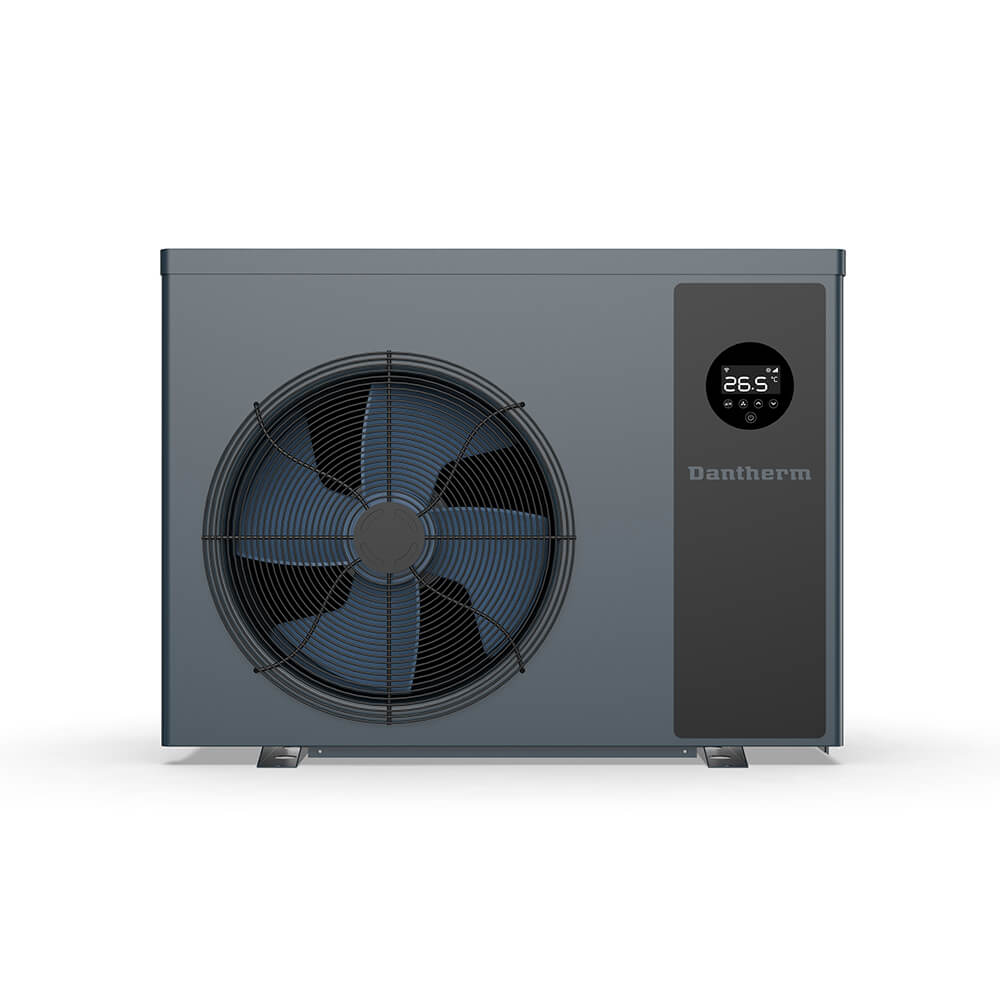

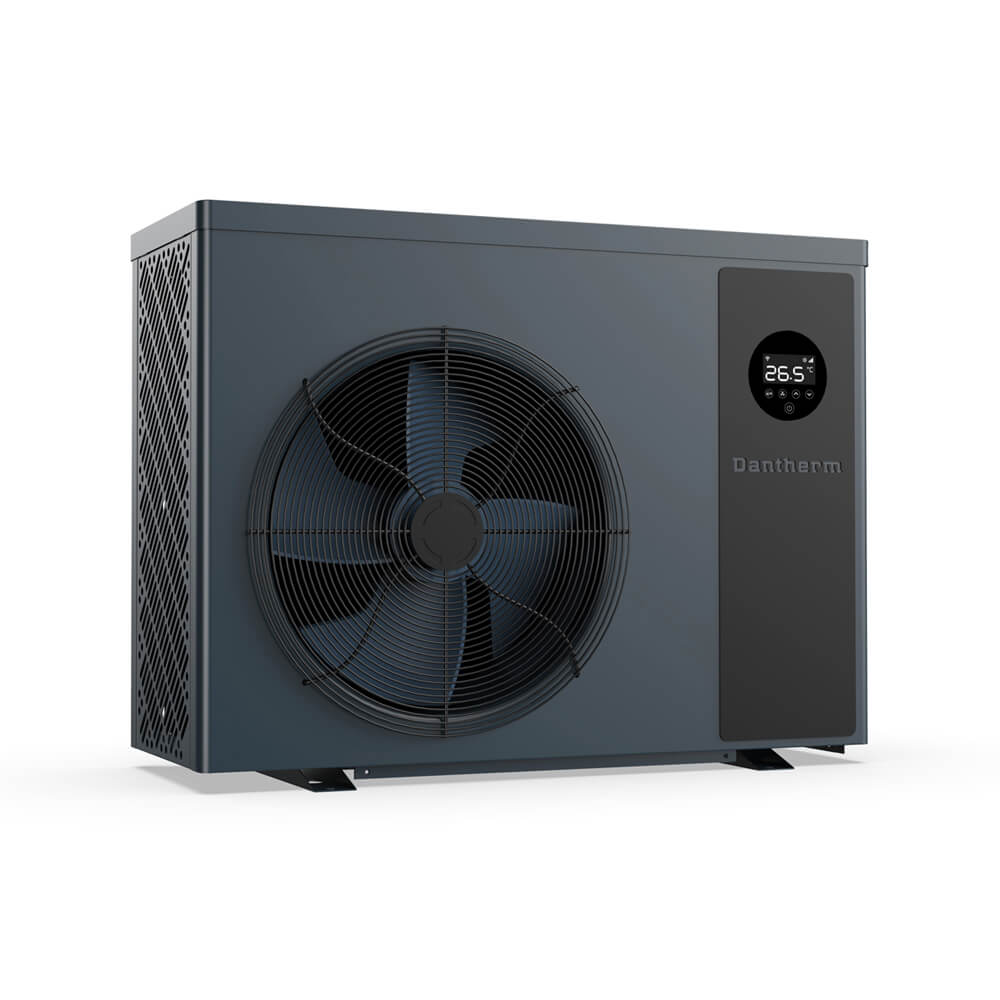

Dantherm HPP-iw 12-16-22-28 – inverter swimming pool heat pumps

Dantherm HPP-iw 12-16-22-28 – inverter swimming pool heat pumps

Swimming pool heat pumps – inverter

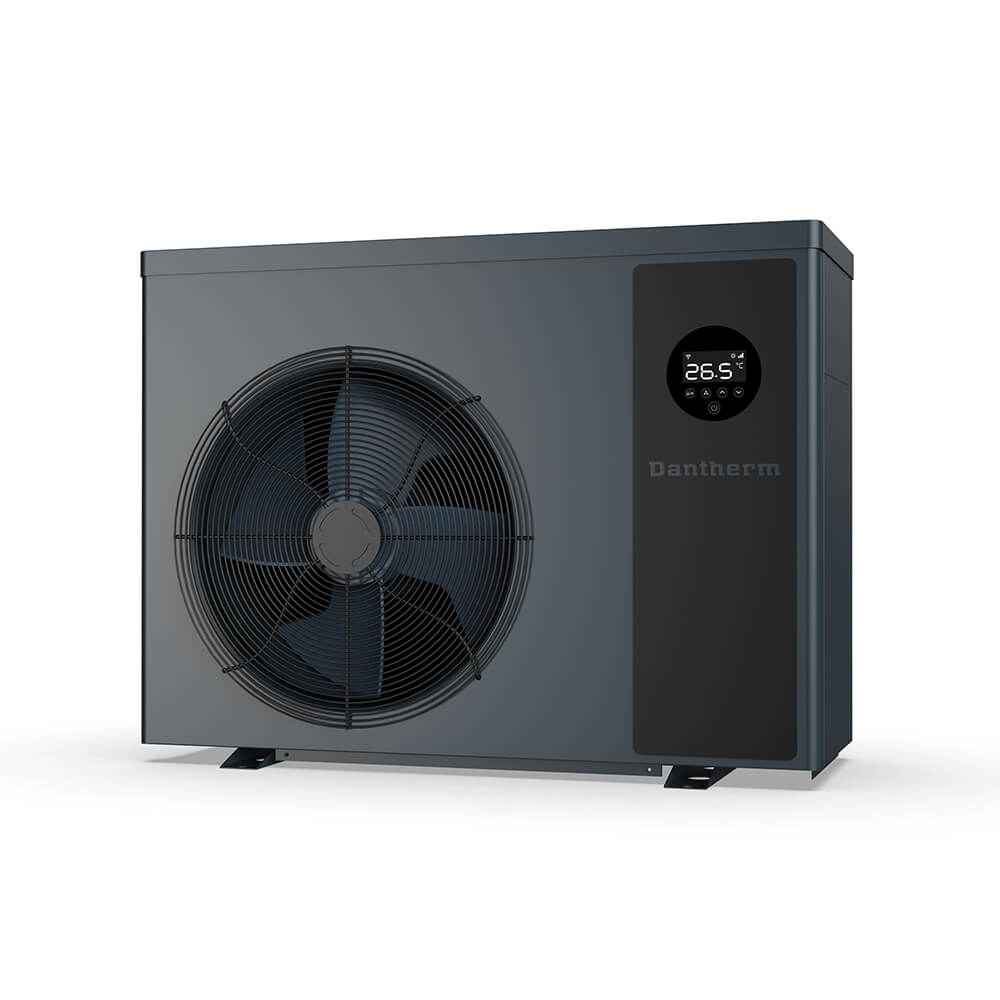

Dantherm HPP-iw 12-16-22-28 – inverter swimming pool heat pumps

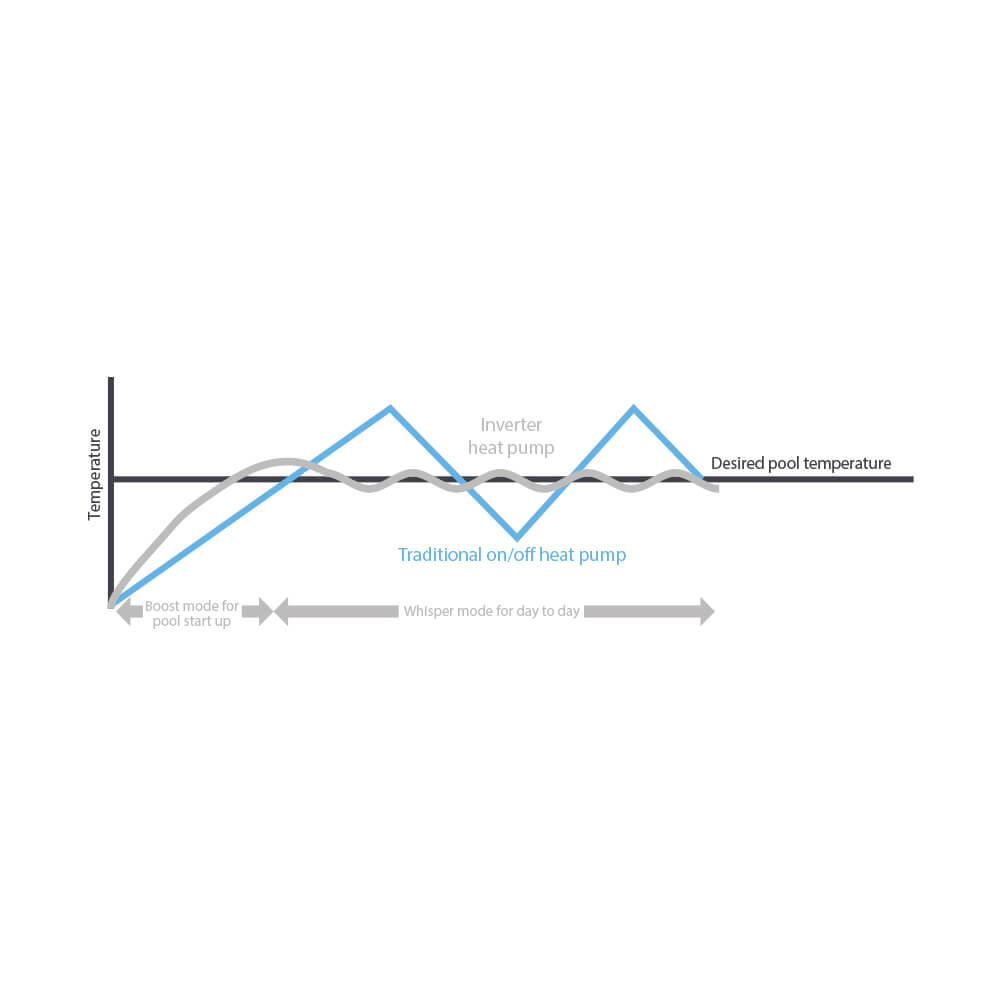

Dantherm inverter temperature control graph

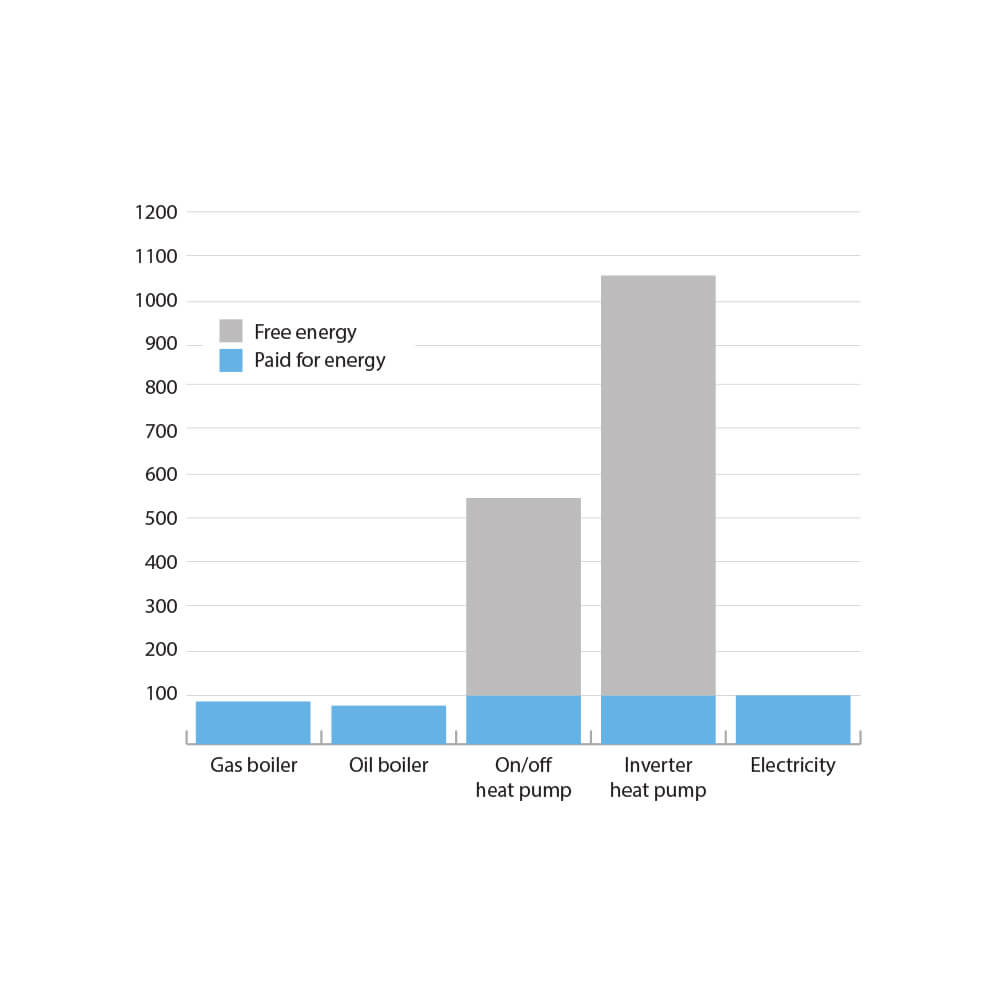

Dantherm heating method efficiency chart

The low energy consumption coupled with high heat production makes the HPP-iw heat pump an environmentally friendly way to heat your swimming pool.

Unlike alternative ways of heating pools, the HPP-iw heat pump requires no fuel storage tank or high capacity electrical supply. It produces no smell, fumes or CO₂ gases.

HPP-iw heat pumps are designed to work all year round when temperatures are above -10°C. Thus, the pool season can be extended for several months.

Open printer-friendly page

Interested?

Key features

Inverter heat pump
Average COP >10.1 = 2 x more efficient than on/off heat pumps
Eco-friendly refrigerant R32 = 675 GWP, (Global Warming Potential)
Performance ratings from 15 to 36kW
9-11 dB(A) sound reduction compared to an equivalent on/off heat pump, with ‘Whisper Mode’

Multifunction operation functions can be set to heating, heat/cool and cooling
Soft start-up
Aluminium alloy
Built-in Wi-Fi module

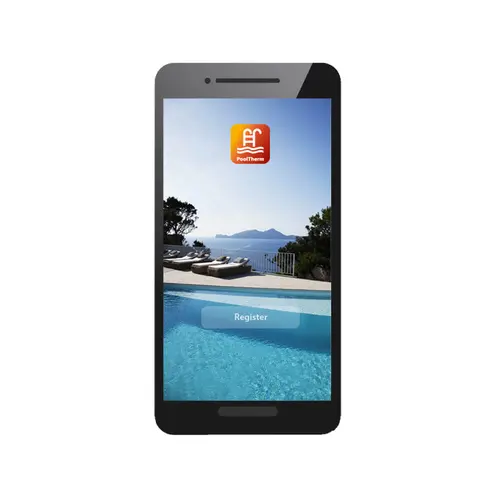

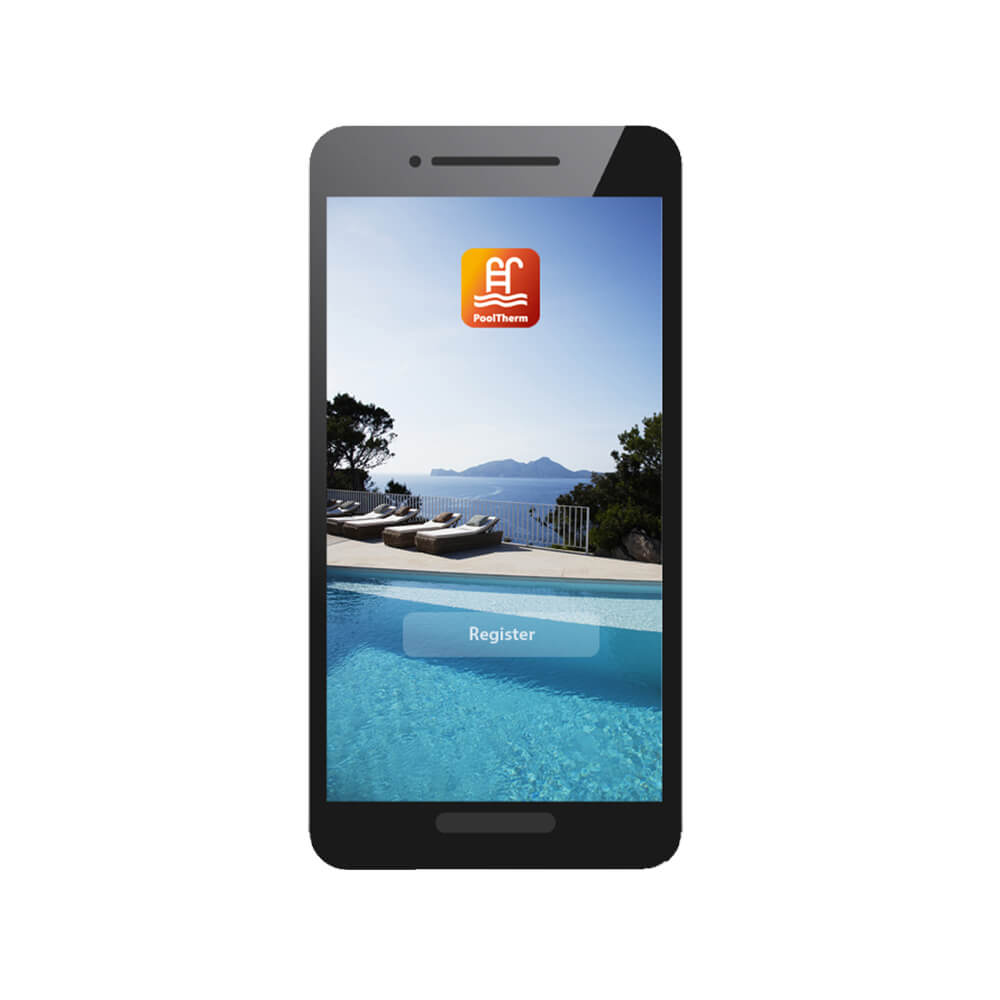

PoolTherm App is available on Android and iOS

Benefits

All year heating for outdoor and indoor pools
Can operate down to -10°C ambient air temperature
High heating performance at lower temperatures – ideal for quick pool heat up at the start of the season

Pool heating at altitude
Higher cooling capacity
Most efficient models – highest COP

New refrigerant gas

Has a low GWP (675)
Zero ozone depleting potential (ODP)
Is F-gas phase-down compliant

Requires less refrigerant volume per kW
Is easier to reuse and recycle

Rapid installation, flexible operation

Dantherm HPP-iw heat pumps are easy to install and fully self-contained units. When it comes to operation, the HPP-i units offer a quiet, high efficient, reliable, and safe performance.

Controls

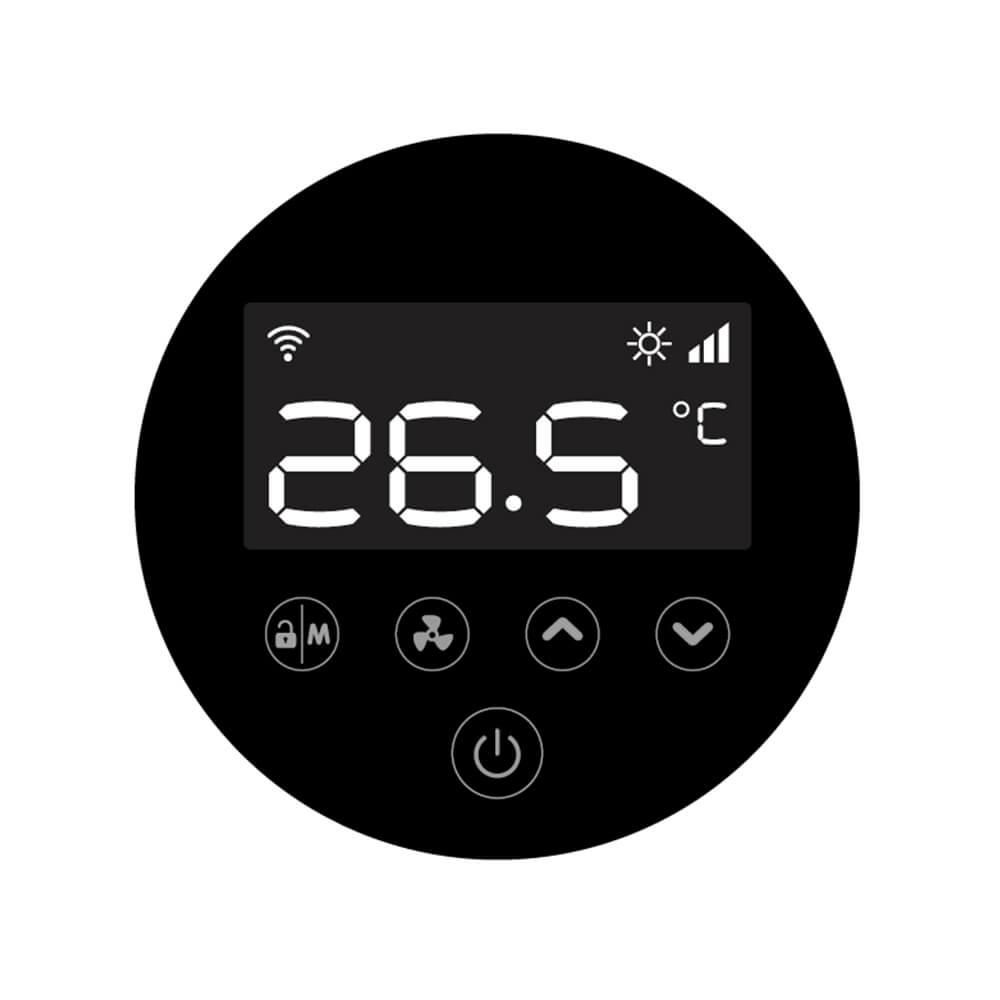

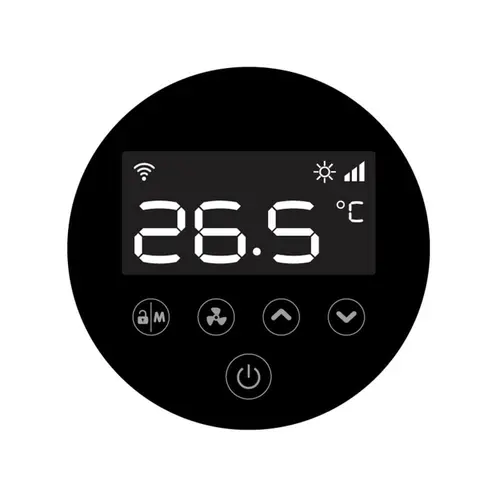

The HPP-iw heat pump has an integrated controller with a touchscreen user interface. The basic functions are:

Function settings for: Heating, cooling or heat/cool
Parameter adjustment

Product specifications

Select model:
HPP-iw 12
HPP-iw 16
HPP-iw 22
HPP-iw 28

Specifications	Units	HPP-iw 12
Air temperature range	°C	-10-43
Water temperature range	°C	12-40
Performance – air 27°C 80% RH, water 27°C
Heating capacity	kW	15.0
COP range		15.0-6.6
Average COP at 50% speed		10.6
Performance – air 15°C 70% RH, water 26°C
Heating capacity	kW	10.5
COP range		7.7-4.6
Average COP at 50% speed		6.4
Performance – air 5°C 70% RH, water 10°C
Heating capacity	kW	6.8
Performance – air -10°C 70% RH, water 23°C
Heating capacity	kW	3.2
Performance – air 35°C 80% RH, water 28°C
Cooling capacity	kW	6.7
Power supply	V/Hz	230/1ph/50
Rated input power	kW	0.27-2.28
Maximum input current	A	13.5
Water flow	m³/h	5.0-7.0
Water connection	"/mm	1½/50
Compressor		Inverter
Condenser		Titanium
R32 gas weight/CO₂ equivalent	kg/t	0.9/0.61
Sound level @ 10m	dB(A)	20.8-34.5
Product size (w x d x h)	mm	954 x 359 x 648
Weight	kg	52

Air temperature range

-10-43

°C

Water temperature range

12-40

°C

Performance – air 27°C 80% RH, water 27°C

Heating capacity

15.0

COP range

15.0-6.6

Average COP at 50% speed

10.6

Performance – air 15°C 70% RH, water 26°C

Heating capacity

10.5

COP range

7.7-4.6

Average COP at 50% speed

6.4

Performance – air 5°C 70% RH, water 10°C

Heating capacity

6.8

Performance – air -10°C 70% RH, water 23°C

Heating capacity

3.2

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

6.7

Power supply

230/1ph/50

V/Hz

Rated input power

0.27-2.28

Maximum input current

13.5

Water flow

5.0-7.0

m³/h

Water connection

1½/50

"/mm

Compressor

Inverter

Condenser

Titanium

R32 gas weight/CO₂ equivalent

0.9/0.61

kg/t

Sound level @ 10m

20.8-34.5

dB(A)

Product size (w x d x h)

954 x 359 x 648

Weight

Specifications	Units	HPP-iw 16
Air temperature range	°C	-10-43
Water temperature range	°C	12-40
Performance – air 27°C 80% RH, water 27°C
Heating capacity	kW	21.0
COP range		14.8-6.4
Average COP at 50% speed		10.3
Performance – air 15°C 70% RH, water 26°C
Heating capacity	kW	14.5
COP range		7.1-4.6
Average COP at 50% speed		6.3
Performance – air 5°C 70% RH, water 10°C
Heating capacity	kW	8.9
Performance – air -10°C 70% RH, water 23°C
Heating capacity	kW	4.2
Performance – air 35°C 80% RH, water 28°C
Cooling capacity	kW	9.5
Power supply	V/Hz	400/3ph/50
Rated input power	kW	0.41-3.15
Maximum input current	A	5.8
Water flow	m³/h	8.0-10.0
Water connection	"/mm	1½/50
Compressor		Inverter
Condenser		Titanium
R32 gas weight/CO₂ equivalent	kg/t	1.2/0.81
Sound level @ 10m	dB(A)	20.4-33.7
Product size (w x d x h)	mm	954 x 429 x 755
Weight	kg	68

Air temperature range

-10-43

°C

Water temperature range

12-40

°C

Performance – air 27°C 80% RH, water 27°C

Heating capacity

21.0

COP range

14.8-6.4

Average COP at 50% speed

10.3

Performance – air 15°C 70% RH, water 26°C

Heating capacity

14.5

COP range

7.1-4.6

Average COP at 50% speed

6.3

Performance – air 5°C 70% RH, water 10°C

Heating capacity

8.9

Performance – air -10°C 70% RH, water 23°C

Heating capacity

4.2

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

9.5

Power supply

400/3ph/50

V/Hz

Rated input power

0.41-3.15

Maximum input current

5.8

Water flow

8.0-10.0

m³/h

Water connection

1½/50

"/mm

Compressor

Inverter

Condenser

Titanium

R32 gas weight/CO₂ equivalent

1.2/0.81

kg/t

Sound level @ 10m

20.4-33.7

dB(A)

Product size (w x d x h)

954 x 429 x 755

Weight

Specifications	Units	HPP-iw 22
Air temperature range	°C	-10-43
Water temperature range	°C	12-40
Performance – air 27°C 80% RH, water 27°C
Heating capacity	kW	27.5
COP range		15.0-6.5
Average COP at 50% speed		10.3
Performance – air 15°C 70% RH, water 26°C
Heating capacity	kW	18
COP range		7.5-4.6
Average COP at 50% speed		6.3
Performance – air 5°C 70% RH, water 10°C
Heating capacity	kW	11.4
Performance – air -10°C 70% RH, water 23°C
Heating capacity	kW	5.2
Performance – air 35°C 80% RH, water 28°C
Cooling capacity	kW	11.9
Power supply	V/Hz	400/3ph/50
Rated input power	kW	0.48-3.91
Maximum input current	A	7.0
Water flow	m³/h	10.0-12.0
Water connection	"/mm	1½/50
Compressor		Inverter
Condenser		Titanium
R32 gas weight/CO₂ equivalent	kg/t	2.0/1.35
Sound level @ 10m	dB(A)	23.0-34.4
Product size (w x d x h)	mm	1084 x 429 x 948
Weight	kg	93

Air temperature range

-10-43

°C

Water temperature range

12-40

°C

Performance – air 27°C 80% RH, water 27°C

Heating capacity

27.5

COP range

15.0-6.5

Average COP at 50% speed

10.3

Performance – air 15°C 70% RH, water 26°C

Heating capacity

COP range

7.5-4.6

Average COP at 50% speed

6.3

Performance – air 5°C 70% RH, water 10°C

Heating capacity

11.4

Performance – air -10°C 70% RH, water 23°C

Heating capacity

5.2

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

11.9

Power supply

400/3ph/50

V/Hz

Rated input power

0.48-3.91

Maximum input current

7.0

Water flow

10.0-12.0

m³/h

Water connection

1½/50

"/mm

Compressor

Inverter

Condenser

Titanium

R32 gas weight/CO₂ equivalent

2.0/1.35

kg/t

Sound level @ 10m

23.0-34.4

dB(A)

Product size (w x d x h)

1084 x 429 x 948

Weight

Specifications	Units	HPP-iw 28
Air temperature range	°C	-10-43
Water temperature range	°C	12-40
Performance – air 27°C 80% RH, water 27°C
Heating capacity	kW	36
COP range		14.8-6.0
Average COP at 50% speed		10.2
Performance – air 15°C 70% RH, water 26°C
Heating capacity	kW	23.9
COP range		7.5-4.6
Average COP at 50% speed		6.3
Performance – air 5°C 70% RH, water 10°C
Heating capacity	kW	16.8
Performance – air -10°C 70% RH, water 23°C
Heating capacity	kW	7.7
Performance – air 35°C 80% RH, water 28°C
Cooling capacity	kW	16
Power supply	V/Hz	400/3ph/50
Rated input power	kW	0.64-5.20
Maximum input current	A	9.5
Water flow	m³/h	12.0-18.0
Water connection	"/mm	1½/50
Compressor		Inverter
Condenser		Titanium
R32 gas weight/CO₂ equivalent	kg/t	2.7/1.82
Sound level @ 10m	dB(A)	22.1-34.2
Product size (w x d x h)	mm	1154 x 539 x 948
Weight	kg	120

Air temperature range

-10-43

°C

Water temperature range

12-40

°C

Performance – air 27°C 80% RH, water 27°C

Heating capacity

COP range

14.8-6.0

Average COP at 50% speed

10.2

Performance – air 15°C 70% RH, water 26°C

Heating capacity

23.9

COP range

7.5-4.6

Average COP at 50% speed

6.3

Performance – air 5°C 70% RH, water 10°C

Heating capacity

16.8

Performance – air -10°C 70% RH, water 23°C

Heating capacity

7.7

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

Power supply

400/3ph/50

V/Hz

Rated input power

0.64-5.20

Maximum input current

9.5

Water flow

12.0-18.0

m³/h

Water connection

1½/50

"/mm

Compressor

Inverter

Condenser

Titanium

R32 gas weight/CO₂ equivalent

2.7/1.82

kg/t

Sound level @ 10m

22.1-34.2

dB(A)

Product size (w x d x h)

1154 x 539 x 948

Weight

120

Suitable for

Leisure and recreation

Swimming pools

Accessories and consumables

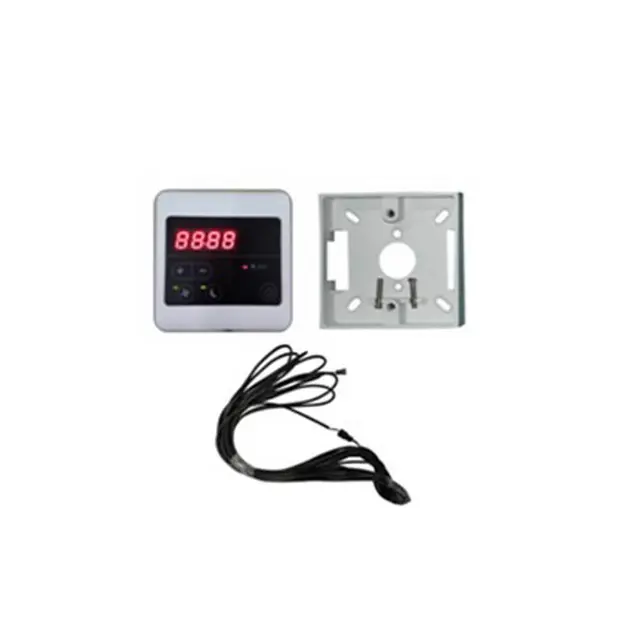

Dantherm Remote LED control kit for HPP-i and HPP-iw swimming pool heat pump

Product code: 1005544

Accessory for HPP-i and HPP-iw

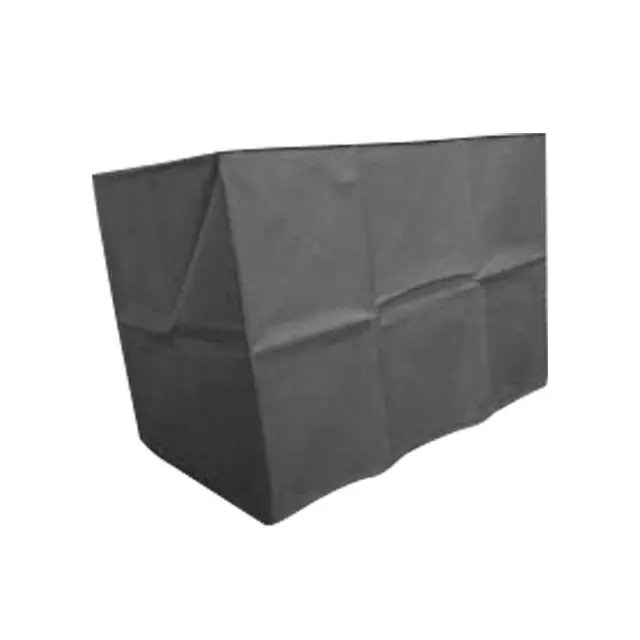

Dantherm Waterproof cover – small for HPP-i 8, HPP-i 12, HPP-iw 8, HPP-iw 12 swimming pool heat pump

Product code: 1005527

Accessory for HPP-i 8, HPP-i 12, HPP-iw 8, HPP-iw 12

Dantherm Waterproof cover – medium for HPP-i 16 swimming pool heat pump

Product code: 1005528

Accessory for HPP-i 16

Dantherm Waterproof cover – large for HPP-i 22 swimming pool heat pump

Product code: 1005529

Accessory for HPP-i 22

Useful downloads

Dantherm Group Catalogue – Professional Installed Solutions

Catalogues

Dantherm HPP owner installation manual

Manuals

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for spares?

The direct route to spare parts for your equipment.

Find spares

Looking for servicing?

Get service

Featured insights

Enquire about this product

Complete your details below and the right person from our expert team will get back to you.
For service and spare parts enquiries please include serial number and product type in the Message field.

First name

Last name

Email address

Phone number

City/town

Country

Company/organisation

Industry

Department to contact

Message

I agree to the terms of the privacy policy. This site is protected by reCAPTCHA and the Google privacy policy and terms of service apply.

Dantherm HPP-iw 12-16-22-28 – inverter swimming pool heat pumps

Key features

Benefits

New refrigerant gas

Product specifications

Select model:

Air temperature range

Water temperature range

Performance – air 27°C 80% RH, water 27°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 15°C 70% RH, water 26°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 5°C 70% RH, water 10°C

Heating capacity

Performance – air -10°C 70% RH, water 23°C

Heating capacity

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

Power supply

Rated input power

Maximum input current

Water flow

Water connection

Compressor

Condenser

R32 gas weight/CO₂ equivalent

Sound level @ 10m

Product size (w x d x h)

Weight

Air temperature range

Water temperature range

Performance – air 27°C 80% RH, water 27°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 15°C 70% RH, water 26°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 5°C 70% RH, water 10°C

Heating capacity

Performance – air -10°C 70% RH, water 23°C

Heating capacity

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

Power supply

Rated input power

Maximum input current

Water flow

Water connection

Compressor

Condenser

R32 gas weight/CO₂ equivalent

Sound level @ 10m

Product size (w x d x h)

Weight

Air temperature range

Water temperature range

Performance – air 27°C 80% RH, water 27°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 15°C 70% RH, water 26°C

Heating capacity

COP range

Average COP at 50% speed

Performance – air 5°C 70% RH, water 10°C

Heating capacity

Performance – air -10°C 70% RH, water 23°C

Heating capacity

Performance – air 35°C 80% RH, water 28°C

Cooling capacity

Power supply

Rated input power

Maximum input current

Water flow
