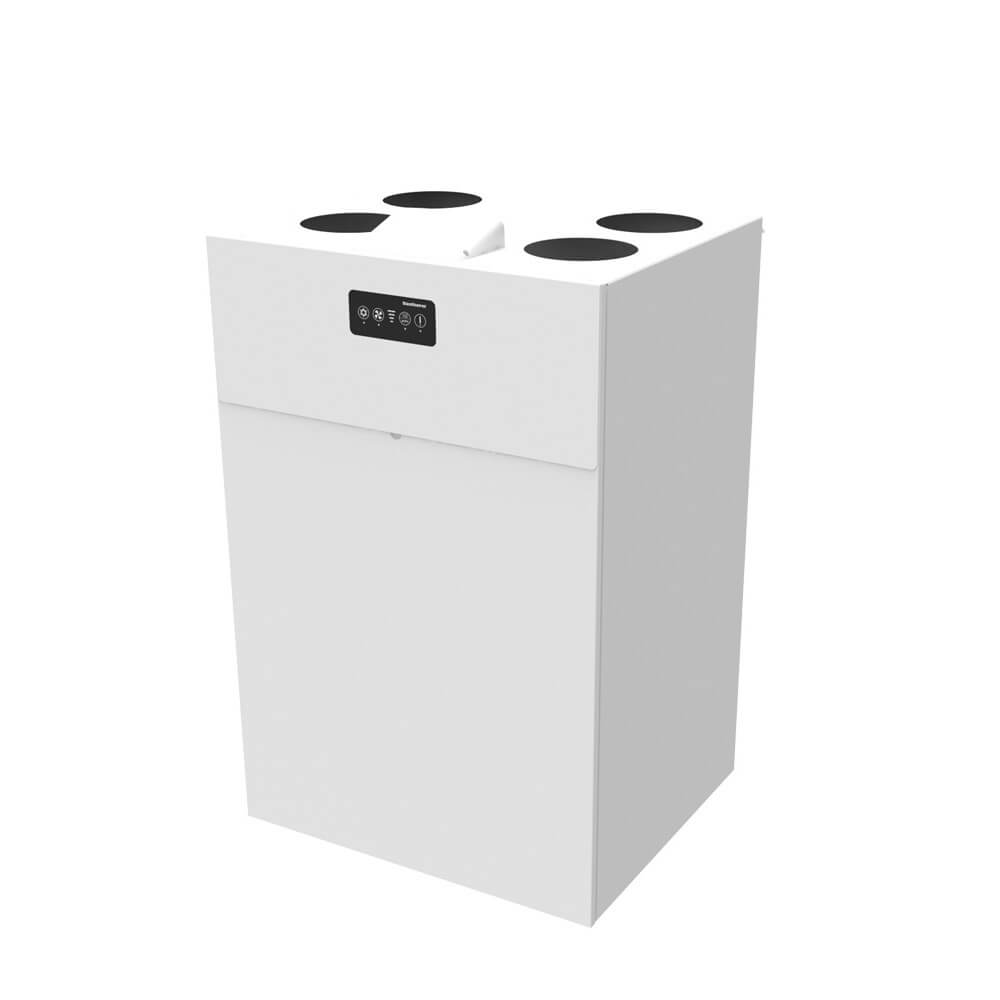

Dantherm HCV 500 – residential ventilation unit
Wall-mounted home ventilation units
The HCV 500 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and are delivered with all parts necessary for wall installation. The HCV 500 is ideal for free wall installation with minimum 700mm space. A standard wall rail is supplied with all units.
Dantherm HCV 500 – residential ventilation unit
|
Dantherm HCV calibration via pc tool
|
Dantherm HCV calibration using control panel
|
HCV 400 why choose an enthalpy heat exchanger
|
How to use the control panel on the Dantherm HCV series
|
How to change filter in Dantherm Home Ventilation units
|
Dantherm HCV filter timer reset
|
Dantherm Residential App
|
Key features
- Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
- Summer mode in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
- Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
- High-efficiency heat recovery
- EC fan motors with extremely low energy consumption (low SPI)
- Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
- Highly customizable units, with option a high variety of internal as well as external accessories
- A standard wall rail is supplied with the unit
Product specifications
| Specifications | Units | HCV 500 |
|---|---|---|
| Max. achievable flow at 100Pa | V100Pa | m³/h | 400 |
| Max. declared flow at 100Pa | Vmax.rated | m³/h | 300 |
| Recommended operating range | V | m³/h | 70 - 300 |
| EN 13141-7 reference flow at 50Pa | VREF | m³/h | 210 |
| Performance | ||
| Thermal efficiency in accordance with EN13141-7 | ηSUP | % | 86 |
| Specific power consumption in accordance with EN13141-7 | SFP | m³/h | 0.21 |
| Leakage (external and internal) in accordance with EN13141-7 | % | <2% (Class A1) |
| Filters in accordance with ISO16890 | - | ISO Coarse 75% (optional optional on supply: ePM1>50% ) |
| Filters in accordance with EN779 | - | G4 (optional on supply: F7) |
| Installation ambient temperature | tSURR | °C | +12 to +50 |
| Outdoor temperature without preheater installed | tODA | °C | -12 to +50 (The use of the preheating coil is recommended at outdoor temperatures below -3°C to ensure balanced operation.) |
| Outdoor temperature with preheater installed | tODA | °C | -20 to +50 |
| Maximum absolute humidity in extract air | x | g/kg | 10 |
| Cabinet | ||
| Dimensions (without wall bracket) | w x d x h | mm | 700 x 603 x 1050 |
| Spigots/duct connections | Ømm | 160 – female |
| Weight | kg | 49.5 |
| Thermal conductivity – polystyrene insulation | λ | W/mK | 0.031 |
| Heat transition figures – polystyrene insulation | U | W/m²K | <1 |
| Fire classification of the polystyrene insulation | class | DIN 4102-1 class B2
EN 13501 class E |
| Drainage hose | Ø/length | "/mm | ¾ / 1 |
| Cabinet colour | RAL | 9016 |
| Electrical | ||
| Voltage | U | V | 230 |
| Maximum power consumption without/with preheater | P | W | 170/1370 |
| Frequency | f | Hz | 50 |
| Protection class | - | IP21 |
Suitable for
- Residential buildings
