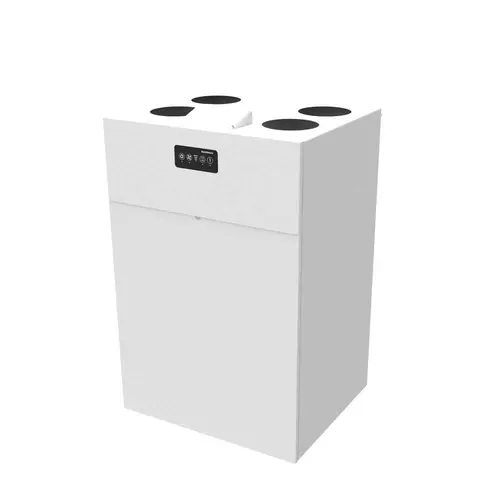

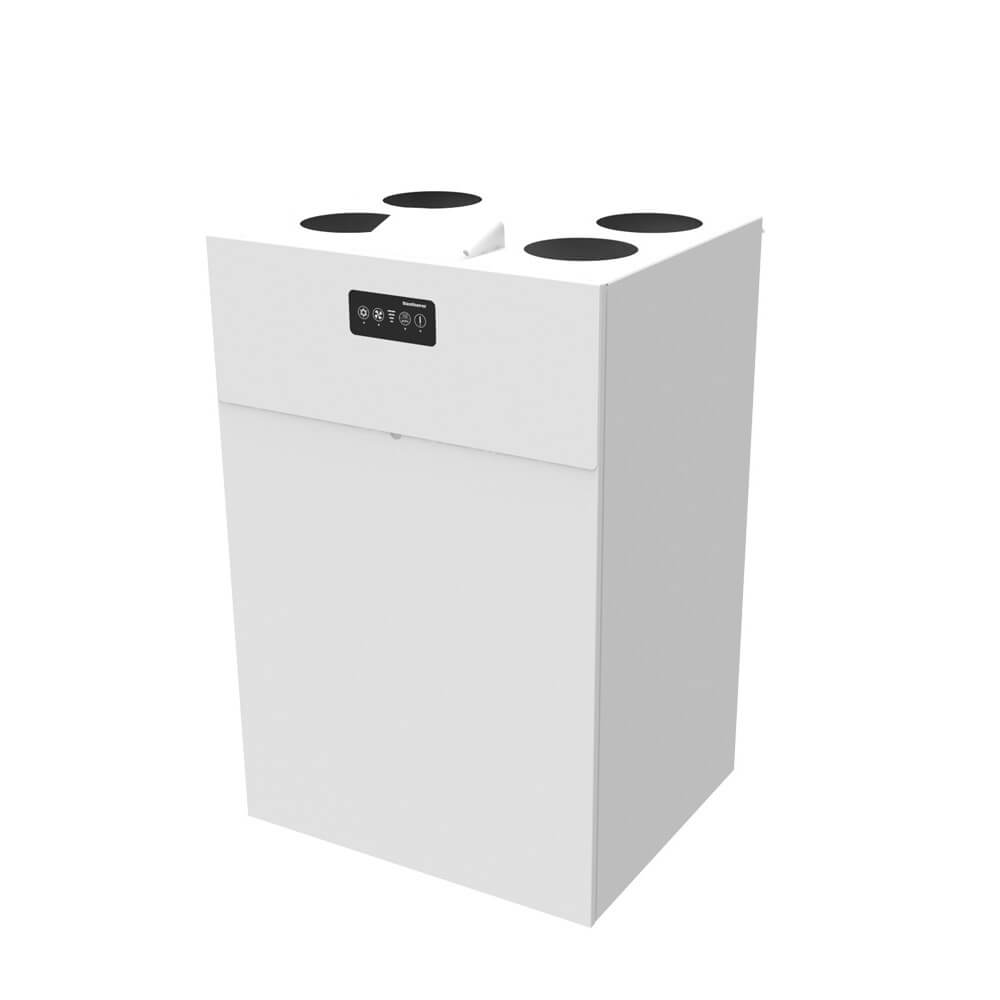

The HCV 500 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and are delivered with all parts necessary for wall installation. The HCV 500 is ideal for free wall installation with minimum 700mm space. A standard wall rail is supplied with all units.

Interested?

Key features

  • Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
  • Summer mode in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
  • Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
  • High-efficiency heat recovery
  • EC fan motors with extremely low energy consumption (low SPI)
  • Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
  • Highly customizable units, with option a high variety of internal as well as external accessories
  • A standard wall rail is supplied with the unit

Product specifications

Max. achievable flow at 100Pa

400
V100Pa | m³/h


Max. declared flow at 100Pa

300
Vmax.rated | m³/h


Recommended operating range

70 - 300
V | m³/h


EN 13141-7 reference flow at 50Pa

210
VREF | m³/h


Performance



Thermal efficiency in accordance with EN13141-7

86
ηSUP | %


Specific power consumption in accordance with EN13141-7

0.21
SFP | m³/h


Leakage (external and internal) in accordance with EN13141-7

<2% (Class A1)
%


Filters in accordance with ISO16890

ISO Coarse 75% (optional optional on supply: ePM1>50% )
-


Filters in accordance with EN779

G4 (optional on supply: F7)
-


Installation ambient temperature

+12 to +50
tSURR | °C


Outdoor temperature without preheater installed

-12 to +50
tODA | °C


Outdoor temperature with preheater installed

-20 to +50
tODA | °C


Maximum absolute humidity in extract air

10
x | g/kg


Cabinet



Dimensions (without wall bracket)

700 x 603 x 1050
w x d x h | mm


Spigots/duct connections

160 – female
Ømm


Weight

49.5
kg


Thermal conductivity – polystyrene insulation

0.031
λ | W/mK


Heat transition figures – polystyrene insulation

<1
U | W/m²K


Fire classification of the polystyrene insulation

DIN 4102-1 class B2 EN 13501 class E
class


Drainage hose

¾ / 1
Ø/length | "/mm


Cabinet colour

9016
RAL


Electrical



Voltage

230
U | V


Maximum power consumption without/with preheater

170/1370
P | W


Frequency

50
f | Hz


Protection class

IP21
-


Accessories and consumables

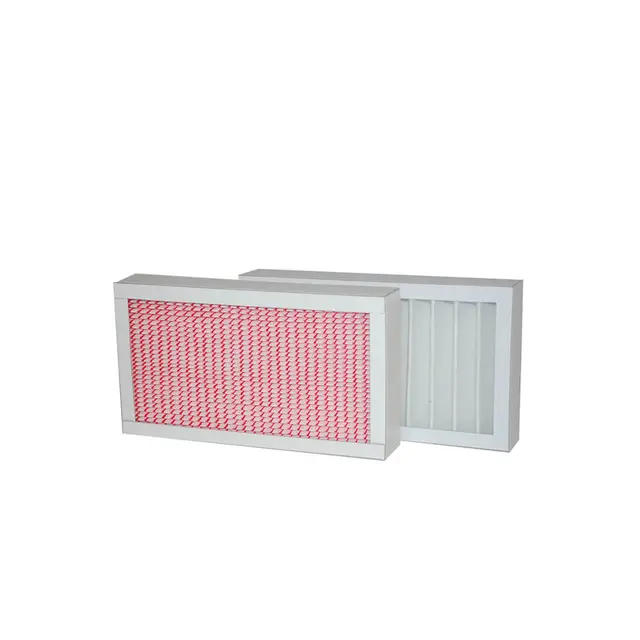

Dantherm HCV 500 Panel filter set F7 G4 096393
Dantherm climate solutions badge

Product code: 096393

Accessory for HCV 500

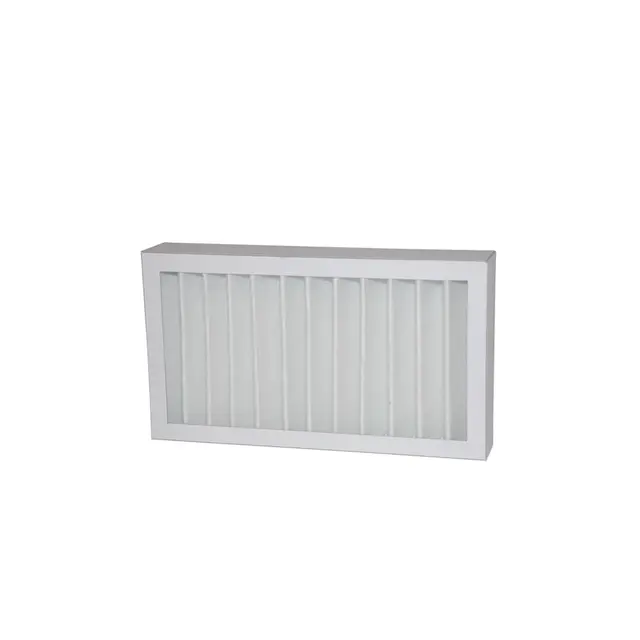

Dantherm HCV 500 Panel filter set G4 087342
Dantherm climate solutions badge

Product code: 087342

Accessory for HCV 500

Dantherm Water heating coil set 063851
Dantherm climate solutions badge

Product code: 063851

Accessory for HCV 400, HCV 460, HCV 500, HCH 5, RCV 320, HCC 2, HCC260, HCC 360, RCC 220

Dantherm Power supply 064885
Dantherm climate solutions badge

Product code: 064885

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCH 5, HCH 8, HCC 2, RCV 320, RCC 220

Dantherm Digital plug 086861
Dantherm climate solutions badge

Product code: 086861

Accessory for HCV 300, HCV 400, HCV 500, HCV 70, HCC 2, HCH 5-8, RCV 320, RCC 220

Dantherm USB cable 087619
Dantherm climate solutions badge

Product code: 087619

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2,HCH 5-8, RCV 320, RCC 220

Dantherm Cable for HCP 10 099104
Dantherm climate solutions badge

Product code: 099104

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2, HCH 5-8, RCV 320, RCC 220

Dantherm Calibration set 086853
Dantherm climate solutions badge

Product code: 086853

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2, HCH, RCV, RCC

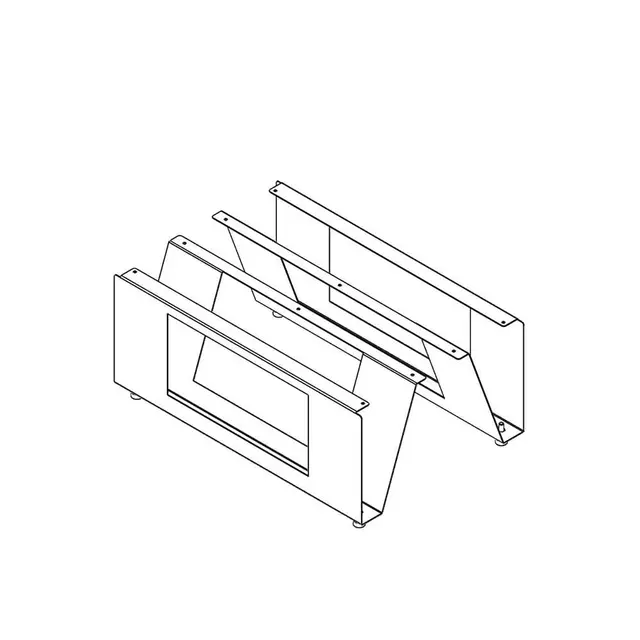

Dantherm Floor stand 052423
Dantherm climate solutions badge

Product code: 052423

Accessory for HCV 500 HCV 700

Dantherm Wireless remote control HRC 3 087953
Dantherm climate solutions badge

Product code: 087953

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2, HCH, RCV, RCC

Dantherm Wired control HCP 11 052535
Dantherm climate solutions badge

Product code: 052539

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2, HCH, RCV, RCC

Dantherm Hygrostat 516301
Dantherm climate solutions badge

Product code: 516301

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCH 5, HCH 8, HCC 2

Dantherm Humidity sensor 081447
Dantherm climate solutions badge

Product code: 113114-2

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCH 5, HCH 8

Dantherm Air quality sensor 077195
Dantherm climate solutions badge

Product code: 111633-2

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCH 5, HCH 8

Dantherm CO2 sensor 063874
Dantherm climate solutions badge

Product code: 063874

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCH 5, HCH 8, HCC 2

Dantherm Potential free Damper Controller 098084
Dantherm climate solutions badge

Product code: 098084

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2

Dantherm Fire Protection Controller 098083
Dantherm climate solutions badge

Product code: 098083

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2

Dantherm Accessory control HAC 2 077138
Dantherm climate solutions badge

Product code: 077138

Accessory for HCV 300, HCV 400, HCV 500, HCV 700, HCC 2
